USER MANUAL VP6250 Concept

Black vacuum cleaner with attached camera module, labeled 'VP6250' at bottom (no other text or symbols)

CZROENSKPLHULVDEFRITES

PODĚKOVÁNÍ

Exploded diagram of a vacuum cleaner with numbered parts for identification

CZ

concept

concept

CZ

POPIS DISPLEJE

Technical line drawings of mechanical components, including a cylindrical device and a multi-cylindrical device with a knob (no text or symbols)

DEMONTÁŽ FILTRU

Three-step diagram showing a device being assembled, with arrows indicating process direction (no text or symbols)

VYJMUTÍ KARTÁČE

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

concept

concept

OHEBNÝ PROPOJOVACÍ NÁSTAVEC

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

SK

concept

concept

SK

POPIS DISPLEJA

Technical line drawings of mechanical components, including a cylindrical device and a pump assembly (no text or symbols)

DEMONTAŽ FILTRA

Filtre z nádoby na prach vyberte smerom nahor. Odstránte hepa filter a hrubý filter pohybom smerom nahoru. Pred usadením spát do nádoby na prach nechajte filtre vyschnút.

Three-step diagram showing a mechanical device with a lid, housing, and a bucket being lifted (no text or symbols)

VYBRATIE KEFY

Na hornej strane turbokefy je tlačidlo na uvolnenie kefy, posunutim tlačidla kefu uvolnite, potom možno kefu vybrať.

Technical line drawing of two mechanical components with directional arrows indicating movement (no text or symbols)

SK

concept

concept

PL

OHYBNÝ SPOJOVACÍ NÁSADEC

Exploded diagram of a vacuum cleaner with numbered parts for identification

OPIS WYŚWIETLACZA

Technical line drawings of mechanical components, including a cylindrical device and a multi-stage optical or mechanical assembly (no text or symbols)

DEMONTAŻ FILTRÓW

Diagram showing three steps of a mechanical device with arrows indicating process direction

WYJĘCIE SZCZOTKI

Two technical diagrams showing mechanical components with no visible text or symbols

20

ŁACZNIK ELASTYCZNY

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Technical diagram with numbered components and labeled parts, likely from an engineering or mechanical drawing.

Labeled diagram of a vacuum cleaner with numbered parts for identification

A KIJELZÖ LEÍRÁSA

Technical line drawings of mechanical components, including a cylindrical device and a cylindrical device with a handle (no text or symbols)

A SZÜRÖ LESZERELÉSE

Three-step diagram showing a mechanical device with a lid and a base, illustrating the process of assembly or cleaning (no text or symbols present)

A KEFE KIVÉTELE

Two mechanical assembly diagrams showing front and side views of a device with no visible text or symbols

26

HAJLÍTHATÓ CSATLAKOZÓTOLDALÉK

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

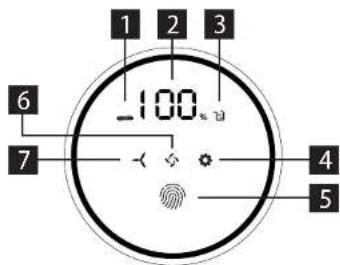

DISPLEJA APRAKSTS

1. Aizsprostotas birstes indikators
2. Akumulatora stävoklis
3. Pilna konteinera indikators
4. Augsta jauda
5. Pogas laudas malnai
6. Vidēja jauda
7. Zema jauda

-100 μs 6 7 4 5

LIETOŠANAS INSTRUKCIJA

PUTEKLSÜCEJA MONTÄZA

Pims piederumu pievienošanas vai nonemšanas vienmér atvienojiet un izvelciet uzlădes adapteru no kontaktligzdas.

Technical line drawings of mechanical components, including a light bulb and cylindrical device (no text or symbols)

FILTRU NONEMŠANA

Iznemiet filtrus no puteklu tvertnes virzienä augšup. Nonemiet hepa filtru un rupjo filtru, pärvietojot uz augšu. Filtrus var noskalot ar údeni. Pirms ievietošanas atpakal puteklu tvertne laujiet filtriem nožut.

Diagram illustrating three steps of a mechanical device with labeled components and directional arrows indicating motion.

BIRSTES NONEMŠANA

Technical line drawing of two mechanical components with no visible text or symbols

ELASTIGAIS SAVIENOJUMA UZGALIS

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Battery voltage DC 25,9 V
Input 500 W
Sound level ≤80 dB
Battery 2 500 mAh
Max. operating time at MIN power 45 min
Full charging time 4 hrs.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Make sure the mains voltage and current protection correspond to the values on the rating plate of the charging station.
• Do not leave the appliance without supervision when it is switched on.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the charger and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use a charger with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Keep the appliance away from heat sources such as radiators, ovens and other, protect it from direct sunlight and humidity.
• Do not touch the appliance with wet hands.

• Do not insert any objects into the openings. Do not use the appliance if any of the openings is clogged.
  • Take extra caution when vacuuming on stairs.

• If the appliance intake is clogged, switch off the appliance and remove the dirt before switching on again.

• When attaching accessories during cleaning or in the event of a malfunction, switch off the appliance and disconnect the charger from wall socket.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not vacuum anything burning like cigarettes, matches or hot ash.
• Do not use the appliance in rooms with increased air humidity, do not vacuum flammable liquids such as petrol and do not use the appliance in rooms where these substances may be present.
• Never vacuum without vacuum cleaner filters. Every time you use the appliance, make sure the vacuum cleaner filters are properly installed.
• Do not immerse the power cord or the charger in water or any other liquid.
• Check the appliance and the charger cord for damage regularly.
• Never switch on a damaged appliance.
• Before cleaning and after use of the appliance, switch off the appliance and allow it to cool down.
• Before vacuuming, remove all large or sharp objects from the surface intended for vacuum cleaning, such objects may damage the vacuum cleaner filter.
• Do not use the appliance with dirty filters.
• Do not put the battery in fire or expose it to temperatures above 40 °C.
• Do not touch the moving parts of the appliance during operation.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision.
• Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

EN

concept

concept

EN

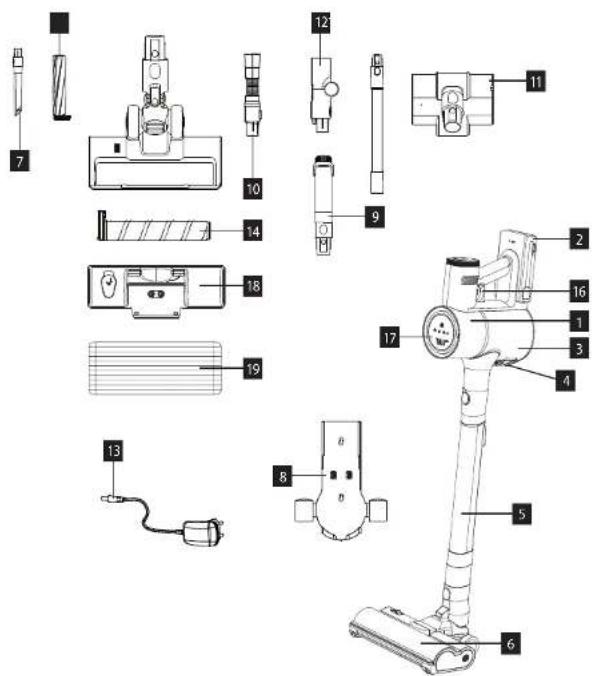

PRODUCT DESCRIPTION

1 Appliance body
2 Battery
3 Dust container
4 Dust container release button
5 Telescopic tube
6 Big turbo brush
7 Slot nozzle
8 Wall bracket
9 Slot nozzle with brush

10 Flexible hose
11 Small turbo brush
12 Flexible connection attachment
13 Charging adapter
14 Hardfloor brush
15 Carnet brush
16 On/off button
17. Display
18. Water tank
19 Cleaning cloths

Exploded diagram of a vacuum cleaner with numbered parts for identification

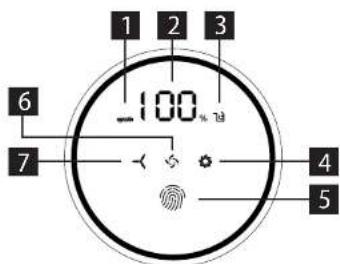

DISPLAY DESCRIPTION

1. Blocked brush indicator
2. Battery status
3. Full container indicator
4. High power indicator
5. Power change button
6. Medium power
7. Low power

1 2 3 -100% 6 7 4 5

OPERATING INSTRUCTIONS

Vacuum cleaner assembly

Always disconnect the plug out of the electrical outlet before assembling or removing accessories!

1. Insert the suction tube into the hand-held unit of the vacuum cleaner, you will hear a click. To remove the tube from the hand-held unit, press the lock button and pull to disconnect.
2. Insert the turbo brush into the suction tube, you will hear a click. To remove the turbo brush from the extension tube, press the lock button and pull to disconnect. The turbo brush can be connected to the hand-held unit in the same way.

BATTERY INSTALLATION

Insert the battery into the body of the hand-held unit and install it to prevent it from coming loose. The battery is placed correctly when you heard a sound. To release the battery, press the release buttons and pull to disconnect.

Note: To extend battery life, keep the battery charged between 20% and 80%. Do not store or recharge the appliance in environment with temperatures below 0 °C or higher than 40 °C. These temperatures may damage the appliance. During the charging process, the temperature of the appliance may increase, this is normal.

If you do not use the vacuum cleaner for more than 3 months, allow it to charge for 12 hours. Then place the vacuum cleaner in a dry and cool place.

USE

Before installing the battery, check if it is fully charged.

1. Press the ON/OFF button to switch on the appliance.
2. Press the power button to switch to suction power.
3. Press the ON/OFF button again to switch off the vacuum cleaner.

Note: We recommend using the maximum power of the hand-held unit in the case of a heavily soiled area or on carpets with medium or high pile.

16

EN

concept

concept

EN

ACCESSORIES

Select the accessories according to the nature of the surface to be cleaned.

Mini turbo brush – suitable for bed linen, fabric, sofas, etc.

Slot nozzle – suitable for wall corners, car cushioning, radiators, etc.

Slot nozzle with brush – suitable for bed linen, fabric, sofas, etc.

EMPTYING THE DUST CONTAINER

To empty the dust container, press the emptying button. Open the container, empty the dust and close the container cover.

REMOVING THE DUST CONTAINER

Press the buttons to release the dust container and move down and away from the appliance to remove the dust container.

Technical line drawings of mechanical components, including a cylindrical device and a multi-stage optical or mechanical assembly (no text or symbols)

REMOVING THE FILTER

Remove the filters from the dust container upwards. Turn the coarse filter to the left and the HEPA filter to the right to separate the filters. The filters can be rinsed in water. Allow the filters to dry before placing back into the dust container.

Diagram showing three-step cleaning or assembly process of a portable air purifier with lid and bucket, indicated by arrows.

REMOVING THE BRUSH

There is a brush release button on the side of the turbo brush, slide the button to release the brush, then the brush can be removed

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

FLEXIBLE CONNECTION ATTACHMENT

1. Insert the flexible connection attachment from the bottom of the appliance.
2. Insert the suction pipe and then the large turbo brush into the attachment.
3. Press the release button on the flexible connection attachment to bend the appliance.

CHARGING THE APPLIANCE IN THE WALL BRACKET

Plug the adapter into the wall bracket. Place the appliance into the wall bracket. After charging, all the bars will light up.

CHARGING WITHOUT THE WALL BRACKET

Plug the adapter into the charging connector on the appliance handle. After charging, all the bars on the battery will light up.

Problem Solution
Container indicator lights up	1/ Empty the dust container. 2/ Check the appliance for blockages. 3/ Check the filters and clean if necessary.4/ Check the brush in the turbo brush.
Appliance not working	1/ Charge the battery. 2/ Check that the appliance is not clogged.3/ Check the brush in the turbo brush.
The battery is not charging	1/ Check that the adapter is properly connected.2/ Check the mains voltage. 3/ Check the adapter for damage.
Blocked brush Indicator lights up Clean the brush in the turbo brush.

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
  • Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.

DE

concept

concept

DE

DANKSAGUNG

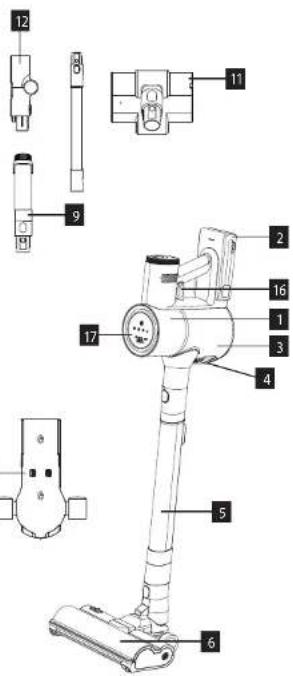

Technical diagram of a handheld device with numbered parts, including cable, connector, and motor assembly.

Technical diagram of a vacuum cleaner with numbered parts for identification

DE

concept

concept

DE

Technical line drawings of mechanical components, showing a device with a rotating arm and a cylindrical housing (no text or symbols)

FILTERAUSBAU

Three-step diagram showing a device being processed with a lid and a cloth cover, no text or symbols present.

BÜRSTENAUSBAU

Technical line drawing of a mechanical device with two views (top and side), no visible text or symbols

DE

concept

concept

FR

Technical line drawings of mechanical components, including a cylindrical device and a cylindrical device with a base plate (no text or symbols)

DÈMONTAGE DU FILTRE

Diagram illustrating three-step cleaning or assembly process of a vacuum cleaner, showing top-down and side-up views with directional arrows.

RETIRER LA BROSSE

Technical line drawing of two mechanical components with no visible text or symbols

EXTENSION FLEXIBLE

Exploded diagram of a vacuum cleaner with numbered parts for identification

Technical line drawings of mechanical components, one showing a rotating arm and the other a cylindrical device with a handle (no text or symbols)

Three-step diagram showing a mechanical device with a lid and a base, illustrating the process of lifting or rotating components (no text or symbols present)

Technical line drawing of two mechanical components with no visible text or symbols

ATTACCO DI CONNESSIONE FLESSIBILE

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Labeled diagram of a handheld vacuum cleaner with numbered parts for identification

Technical line drawings of mechanical components, including a cylindrical device and a multi-stage assembly (no text or symbols)

DESMONTAR EL FILTRO

Three-step diagram showing a mechanical device with a lid and a base, illustrating the process of assembly or cleaning (no text or symbols present)

DESMONTAR EL CEPILLO

Technical line drawing of two mechanical components with no visible text or symbols

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

DESCRIEREA DISPLAYULUI

Technical illustration of a mechanical device with a cylindrical component and a cylindrical housing, showing assembly or assembly steps (no text or symbols present)

DEMONTAREA FILTRULUI

Three-step diagram showing a mechanical device with a lid and rotating component (no text or symbols)

SCOATEREA PERIEI

Technical line drawing of two mechanical components with no visible text or symbols

ADAPTOR DE CONECTARE FLEXIBIL
