Product type	Extractor or recirculating hood
Brand	Whirlpool
Model	WHVP 62F LT SK
Dimensions (H x W x D)	59,8 x 32,6 x 15 cm
Exhaust duct diameter	15 cm
Power supply	220-240 V ~ 50/60 Hz
Number of speeds	3 speeds + booster
Control	Touch panel with T1 to T5 keys
Lighting	Integrated LED
Timer	Yes (20' / 15' / 10' depending on speed)
Grease filter	Washable metal, to be cleaned every month
Charcoal filter	Optional, to be replaced every 4 months approximately
Filter saturation indicator	Yes (40h for grease, 160h for charcoal)
Installation type	Extractor (external evacuation) or recirculating (recycling)
Minimum distance from cooking surface	45 cm (electric) / 65 cm (gas or mixed)
Noise level	Not specified
Energy class	Not specified
Maximum air flow	Not specified
Usage	Domestic
Warranty	According to manufacturer's conditions
Repairability	Spare parts available through approved after-sales service

Frequently Asked Questions - WHVP 62F LT SK WHIRLPOOL

What is the difference between extraction and recirculation mode?

In extraction mode, vapors are evacuated outside via a duct. In recirculation mode, the air is recycled after passing through a charcoal filter to neutralize odors.

How to clean the grease filters?

The metal filters should be cleaned once a month by hand with a mild detergent or in the dishwasher (short cycle, low temperature). Washing may alter the color but not the effectiveness.

When should the charcoal filter be replaced?

The charcoal filter must be replaced every 4 months maximum. It cannot be cleaned or regenerated. A saturation indicator lights up every 160 hours.

How to reset the filter saturation indicator?

With the hood off, press T1+T2 (grease) or T1+T3 (charcoal) during the flashing display (10 seconds). The keys flash twice to confirm.

The hood stops by itself, what to do?

Check the power supply and circuit breaker. If the problem persists, unplug the hood for 5 seconds then plug it back in. Contact after-sales service if necessary.

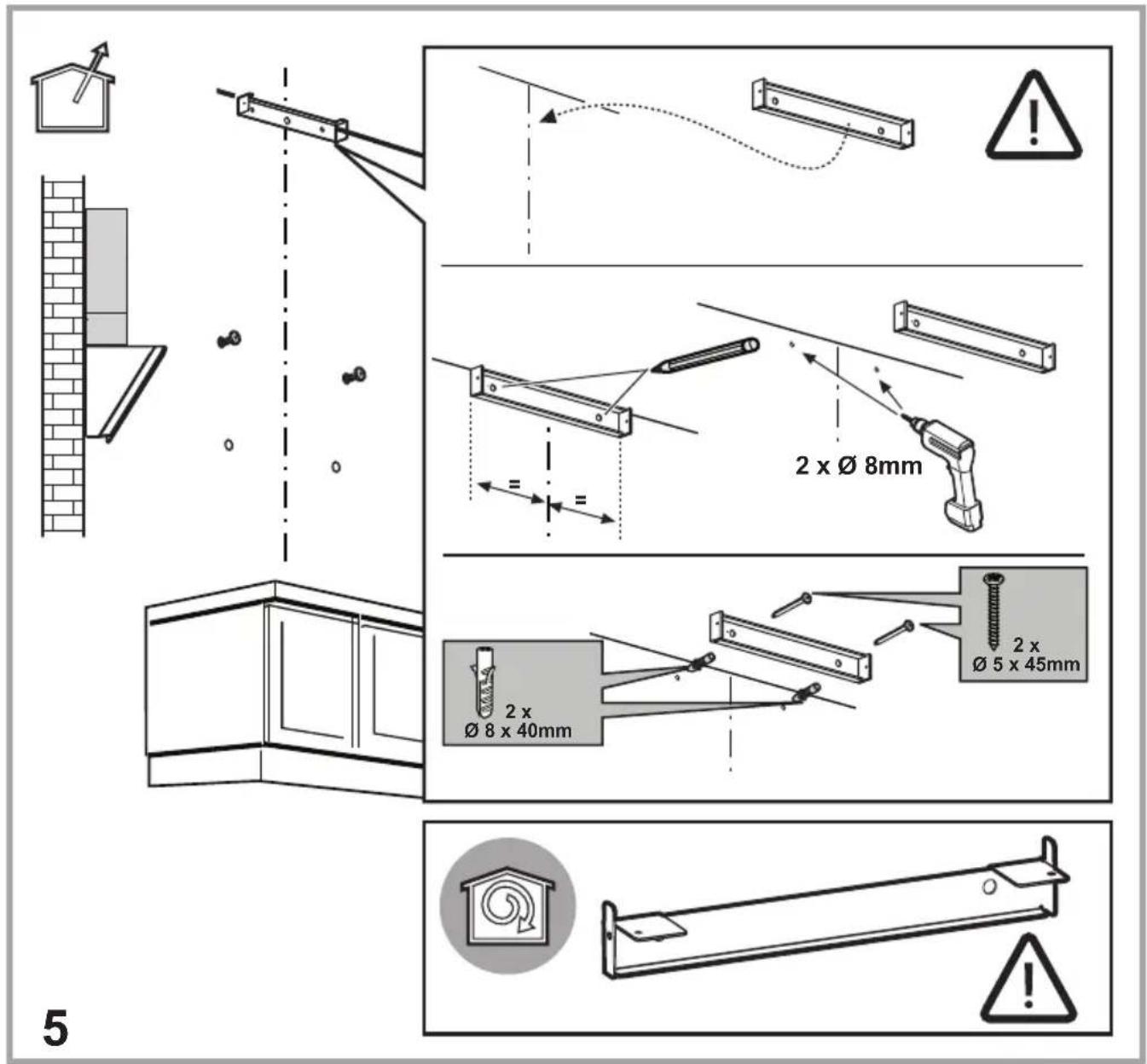

How to install the hood in extraction mode?

Connect the outlet flange to an exhaust duct (diameter 15 cm) to the outside. Remove the charcoal filter if present. Respect the minimum distances from the hob.

Can I use the hood without a grease filter?

No, the hood must never operate without the grease filter properly installed, due to risk of fire.

How to replace the LED lighting?

The LEDs are integrated and must be replaced by an authorized technician. Contact after-sales service for spare parts.

What is the minimum height between the hood and the cooktop?

45 cm for an electric cooktop, 65 cm for a gas or mixed cooktop. If the cooktop manual indicates a greater distance, follow that.

What to do if the hood is noisy?

Check that the exhaust duct is not blocked and that the filters are clean. A speed that is too high can also increase noise. Use bends with a maximum angle of 90° and a sufficient duct diameter.

USER MANUAL WHVP 62F LT SK WHIRLPOOL

EN Instructions for use

11

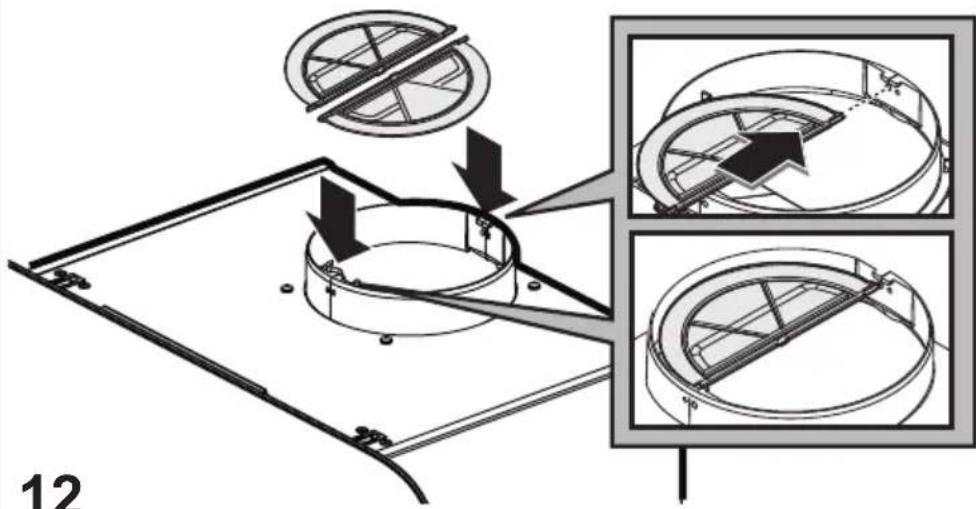

12

13

2 x 3.5 x 9.5 mm

2 x 3.5 x 9.5 mm

15a 15b

BG

GENERAL SAFETY

Replacing the lamps

- Waste Electrical and Electronic Equipment (WEEE).

EL

GENERAL SAFETY

HR

WARNINGS

Before any cleaning or maintenance operation, disconnect the hood from the electrical power supply by removing the plug or disconnecting the main switch in the house.

Replacing the bulbs

GENERAL SAFETY

Replacing the bulbs

Components not supplied with the product

GENERAL SAFETY

• Before starting any maintenance or cleaning procedure, disconnect the hood from the electrical power supply, unplug it from the outlet, and pull out the plug or turn off the main circuit breaker in the house.
• Always wear work gloves for all installation and maintenance operations.

- This appliance can be used by children, but not younger than 8 years old, and by persons with reduced physical or mental capabilities or lack of experience and knowledge, if they are under supervision or after receiving instructions on safe use of the appliance and understanding the hazards that may occur during use.

- Children must be supervised to ensure they do not play with the appliance. Cleaning and maintenance must not be performed by children without supervision.

- The room must be sufficiently ventilated when the kitchen hood is used together with other gas-burning appliances or other combustion devices.

- The hood must be cleaned regularly, both inside and outside (AT LEAST ONCE A MONTH). Also, it is necessary to follow the specific maintenance instructions.

- Failure to follow the instructions for cleaning the hood and for replacing or cleaning the filters may cause a fire.

- It is strictly forbidden to prepare food over an open flame beneath the hood.

- To replace the light bulb, use only the type of bulb specified in the maintenance/light bulb replacement section of this manual.

Maintenance of the carbon filter

Circular carbon filter

Place one on each side to cover both protective grilles of the rotating part of the motor, then turn clockwise.

To disassemble, turn counterclockwise.

The carbon filter becomes saturated after prolonged use and depends on the type of kitchen and how often the grease filter was washed. In any case, the cartridge must be replaced every 4 months.

Replacing the lamps

The kitchen hood is equipped with a lighting system based on LED technology.

Components not supplied with the product

To download the safety instructions, user manual, technical data sheet, and energy data:

• Visit docs.whirlpool.eu
• Use the QR code
• Or, contact the service department (at the phone number listed in the warranty booklet). When contacting the service department, provide the codes on the product's serial number plate.

ET

GENERAL SAFETY INFORMATION

Charcoal filter maintenance

Round charcoal filter

GENERAL SAFETY

Round charcoal filters

Replacing the bulbs

Components are not supplied with the product.

GENERAL SAFETY

Second speed T2 = duration 15'

Third speed: T3 = duration 10'.

Circular charcoal filter

Replacing the bulbs

GENERAL SAFETY

Replacing lamps

GENERAL SAFETY

• Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not be allowed to tamper with the controls or play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite. CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.
• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging, it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

- The hood must NEVER be used as a support surface unless specifically indicated.

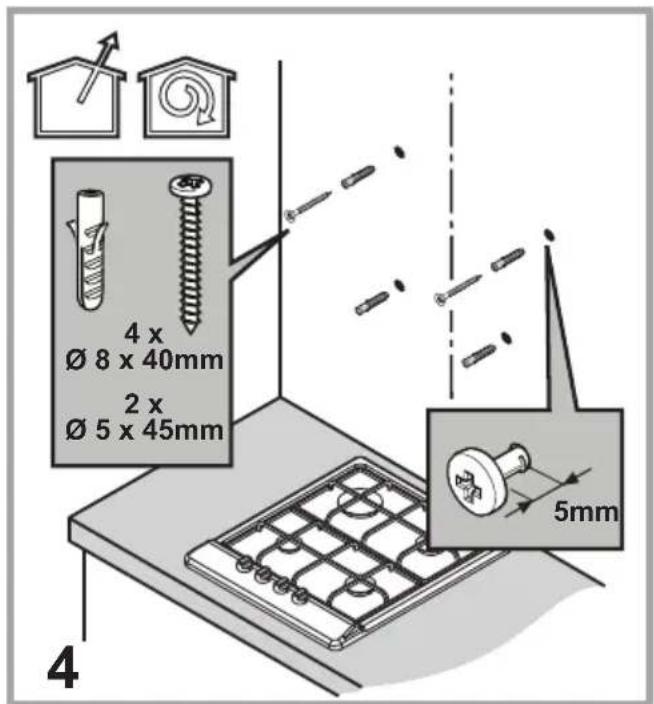

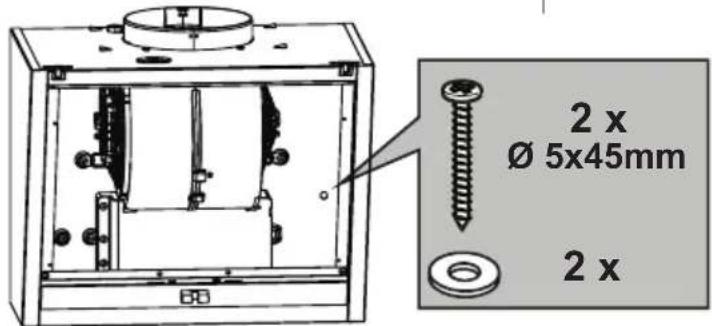

- Use only the fixing screws supplied with the product for installation or, if not supplied,

purchase the correct screws type.

• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

⚠ WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised.

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. This appliance is not for professional use. Do not use the appliance outdoors. The appliance must be handled and installed by two or more persons - risk of injury. Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children – risk of suffocation.

Do not use the appliance when you are wet or barefoot.

Never use steam cleaning equipment – risk of electric shock.

The packaging material is 100% recyclable and is marked with the recycle symbol.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product. • Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

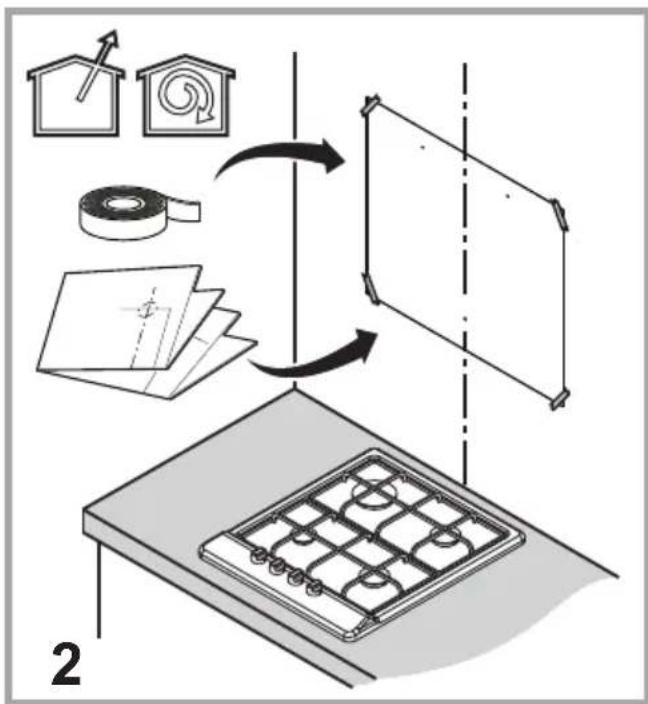

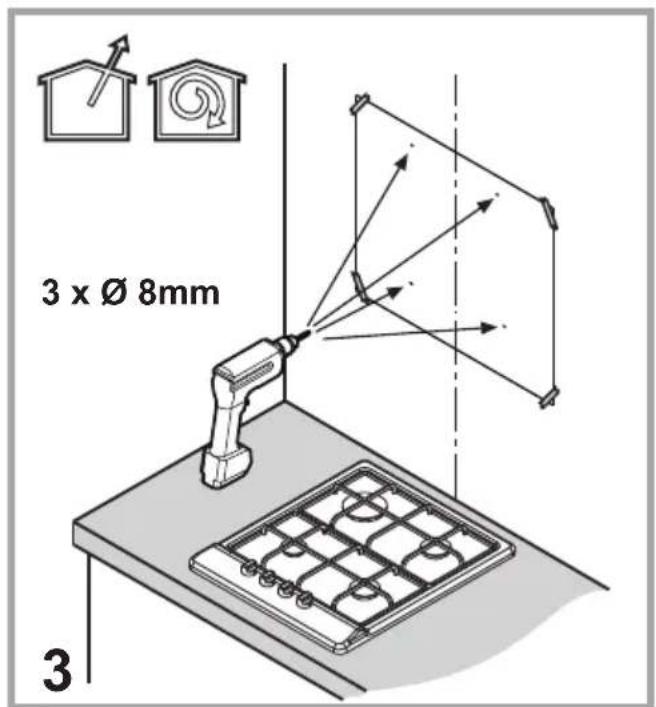

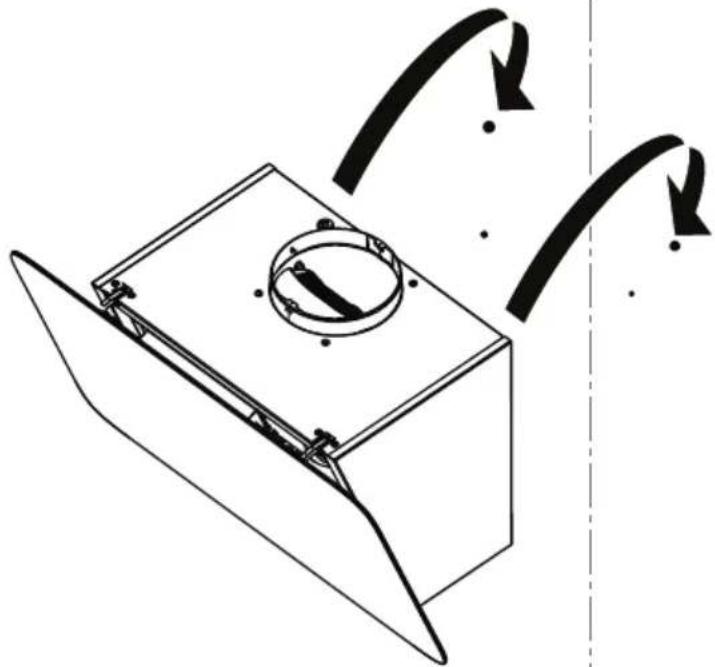

• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

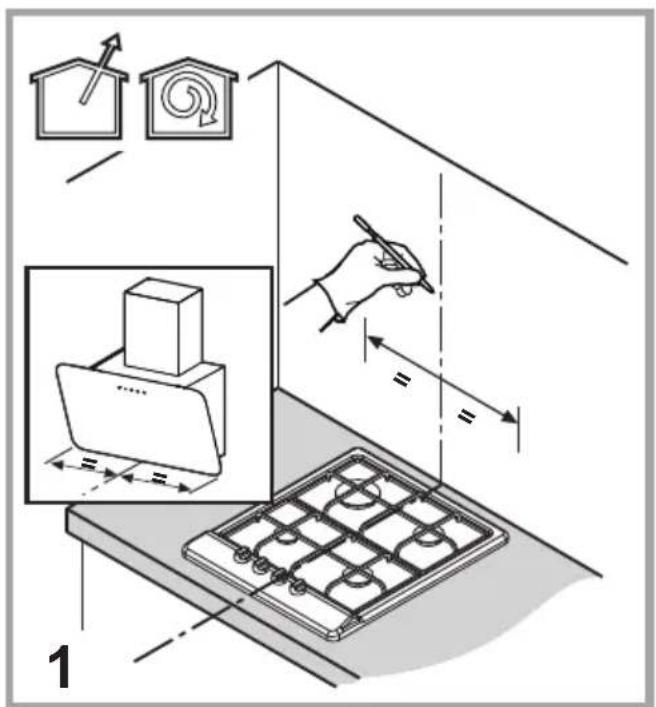

- The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 45cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

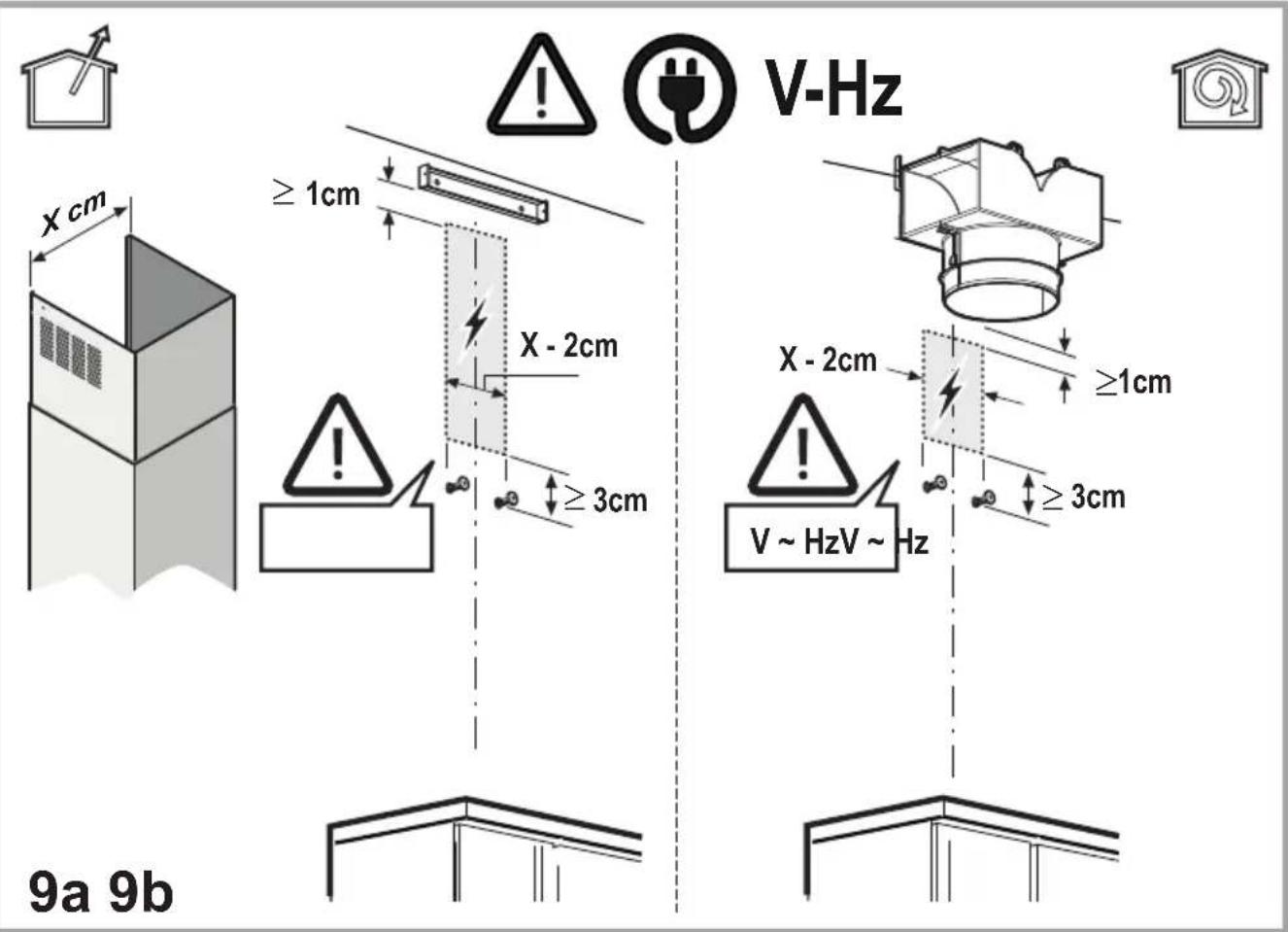

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-

current category III, in accordance with installation instructions.

⚠ WARNING! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

If the cable is not fitted with a plug, connect the wires according to the following table:

Mains voltage and frequency

Refer to the rating indicated on the plate inside of the hood

Wire connection

N: blue

L: brown

Replacing the power cable

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

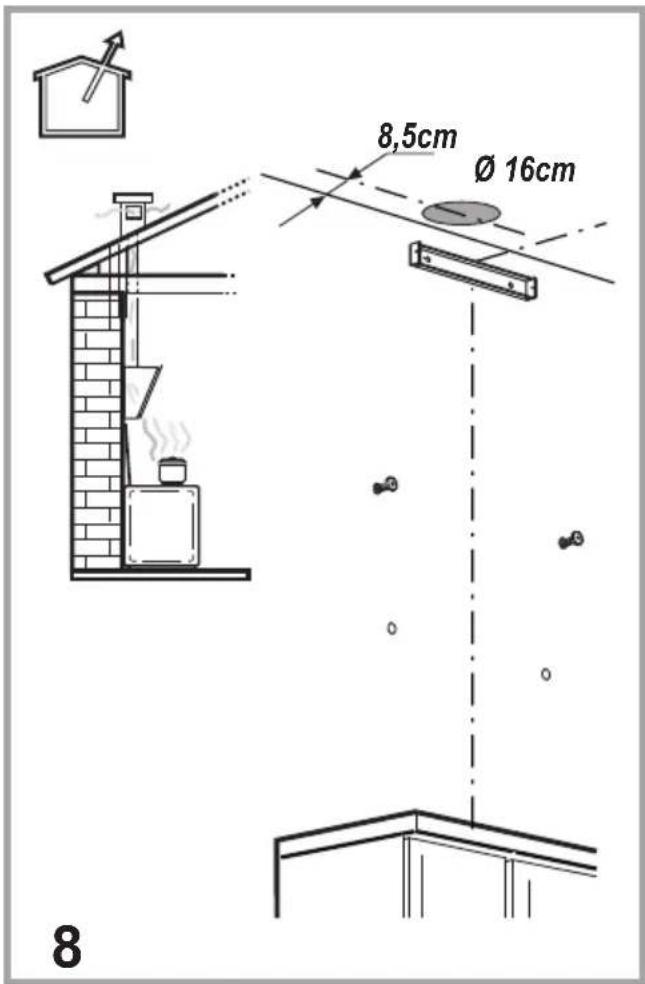

AIR VENT

(for the suction versions)

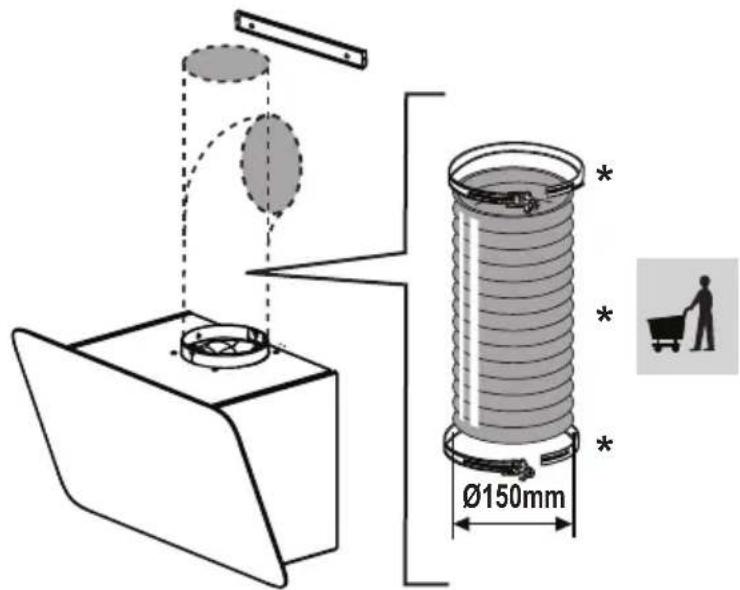

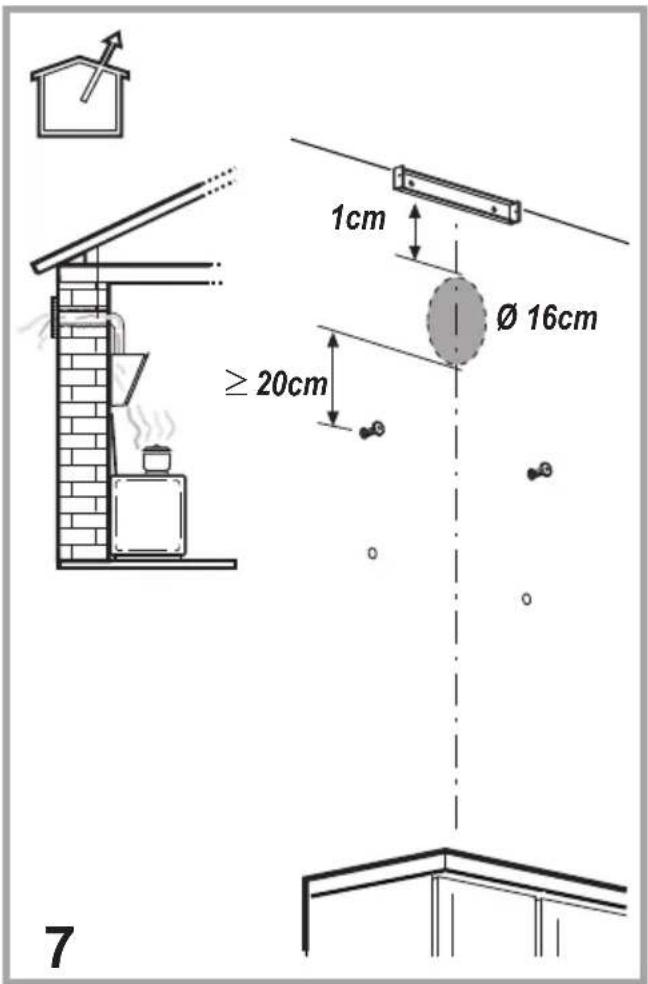

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! The company declines any responsibility whenever these regulations are not respected.

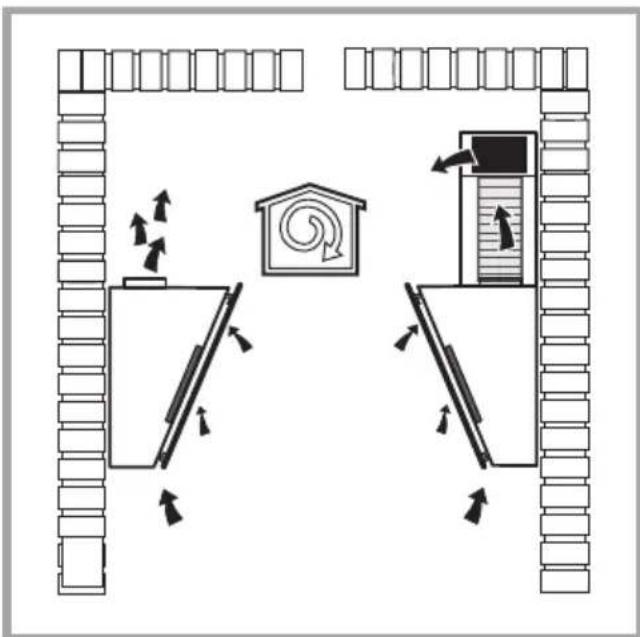

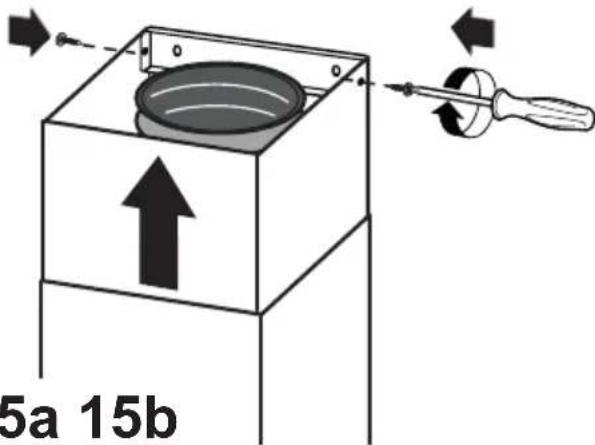

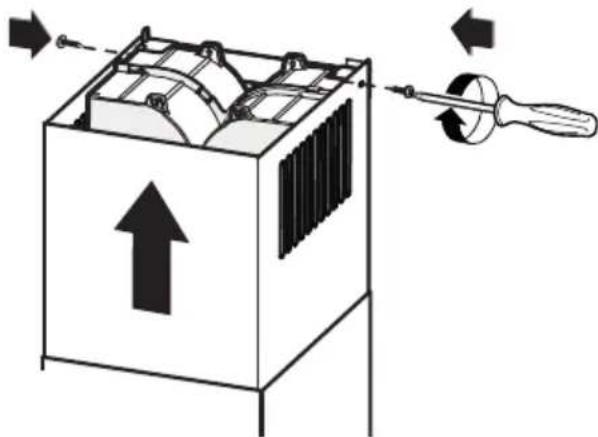

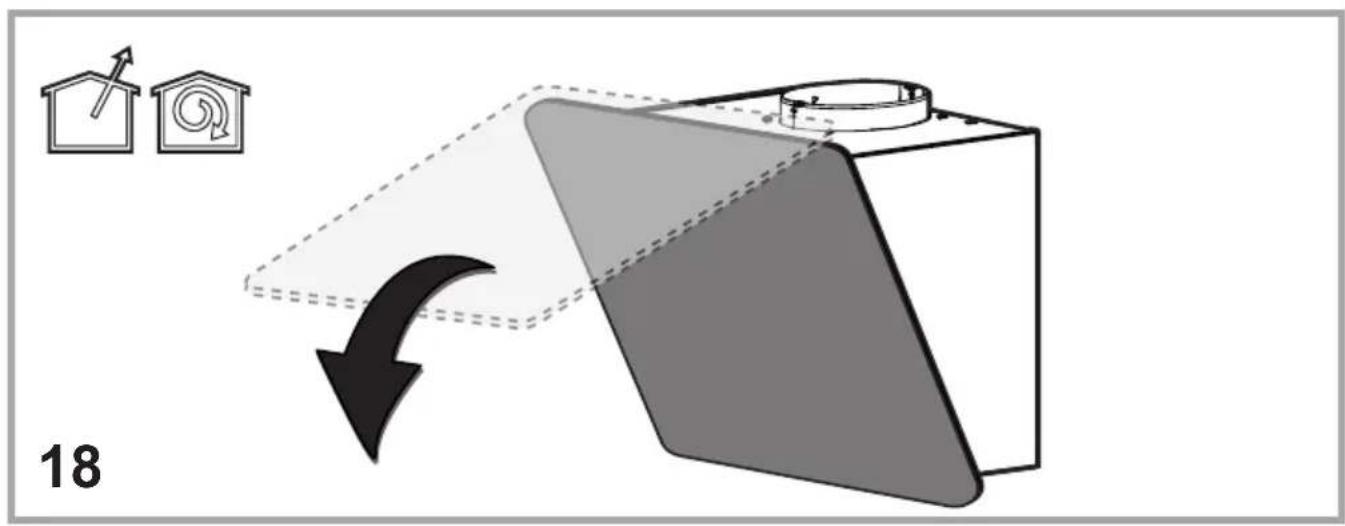

FILTERING OR DUCTING?

Your cooker hood is ready to be used in suction version.

To use the hood in filtering version, the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

Ducting version

In this case, the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

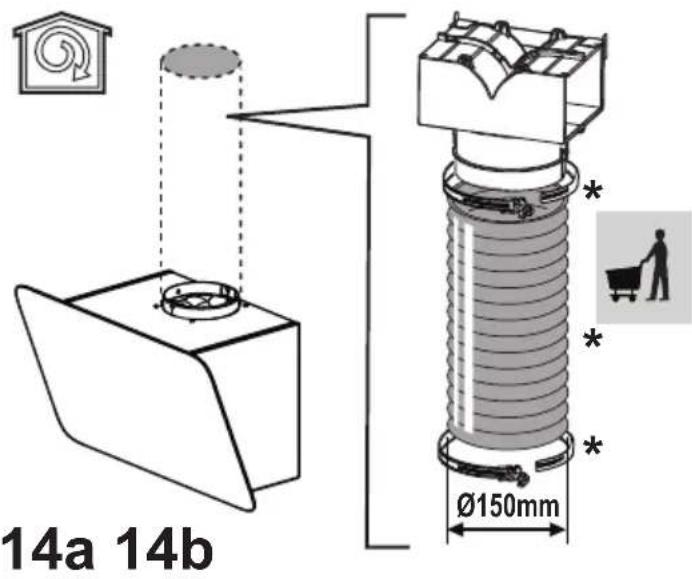

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

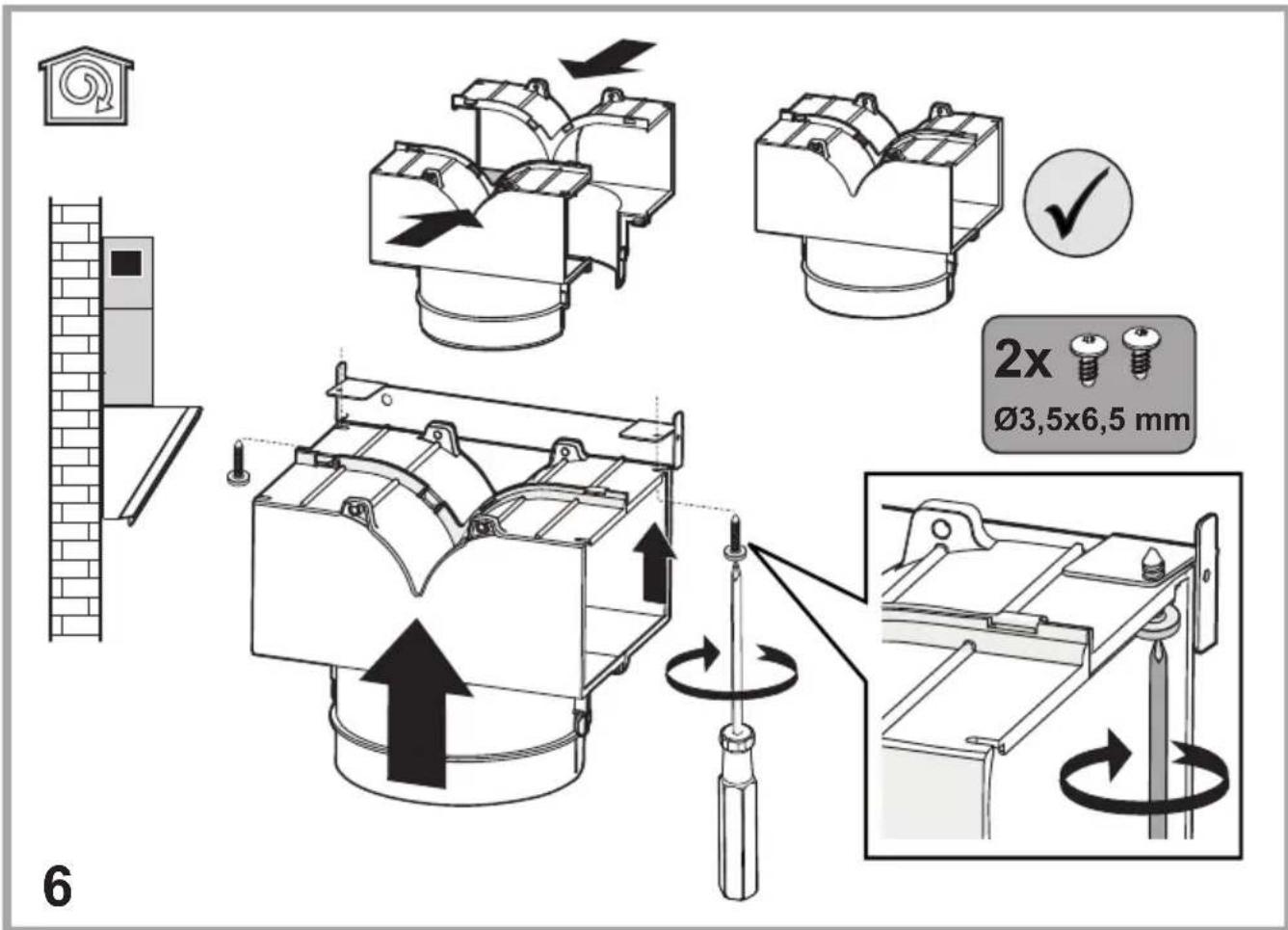

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

First speed (T1)

Press T1 to activate the first speed. When the function is activated, the LED turns on with a fixed light. Press T1 again to turn the hood off.

Second speed (T2)

Press T2 to activate the second speed. When the function is activated, the LED turns on with a fixed light. Press T2 again to turn the hood off.

Third speed and BOOSTER (T3)

When the hood is off or with the first or second speed active, the third speed can be activated by pressing the button T3 and the LED will turn on with a fixed light.

If T3 is pressed again, the booster turns on. The booster can only be activated if the third speed is already active. When the booster is on, the LED T3 starts to flash. While the booster is working, it is possible to switch to the first or second speed by pressing the desired speed button T1 or T2, the booster will turn off and the selected speed will be activated.

When the booster is on, press T3 again to turn the hood off.

After 5' the booster automatically turns off and the third speed is automatically activated.

Timer (T4)

The timer can be activated when the first, second or third speed is active. When the function is activated, both the LED of the Timer (T4) and that of the previously selected speed (T1/T2/T3) turn on with a fixed light.

The duration of the timer depends on the selected speed:

First speed T1 = duration 20'

Second speed T2 = duration 15'.

Third speed T3 = duration 10'.

The timer cannot be activated when the booster is active. When the time expires, the hood turns off. When a speed is timed, it is possible to switch to other speeds by pressing the desired speed button, this operation will turn the timer off.

When a speed is timed, the timer can be deactivated by pressing T4, or one of the other two inactive speeds. To turn the hood off, press the speed again to which the timer had previously been linked.

Light (T5)

The light can be activated at any time by pressing key T5. When the function is activated, the LED turns on with a fixed light.

Filter setting

Activation or deactivation of the filter indicators is only possible with the hood off.

To access the configuration menu, hold pressed T2+T3, once inside the menu T1 will start to flash.

The default setting is:

- grease filter indicator (T2) on, therefore active;

- odour filter indicator (T3) off, therefore not activated.

T2 activates/deactivates the grease filter indicator. T3 activates/deactivates the odour filter indicator. To exit the menu, hold pressed T1 or wait 10"

Filter reset

The hood signals the need for filter maintenance at regular intervals:

- grease filter every 40 hours;

- odour filter every 160 hours.

In this case, with the hood off, when the user touches any button the interface signals two types of needs for a period of 10":

- if T1+T2 flash: grease filter maintenance;

- if T1+T3 flash: odour filter maintenance.

During the 10" it is possible to reset the grease filter by pressing T1+T2 and to reset the odour filter by pressing T1+T3. After the reset, the button combinations will flash rapidly twice. The interface will now work as normal.

Please note:

During the 10", the hood will work normally but without any visual feedback regarding the speed buttons. If during the 10" no operations are carried out, the LEDs will stop flashing and the visual feedback will return to normal.

MAINTENANCE

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Perimeter aspiration panel

Clean the perimeter aspiration panel with the same frequency as the anti-grease filter, using a cloth and not too concentrated liquid detergent. Do not use abrasive substances.

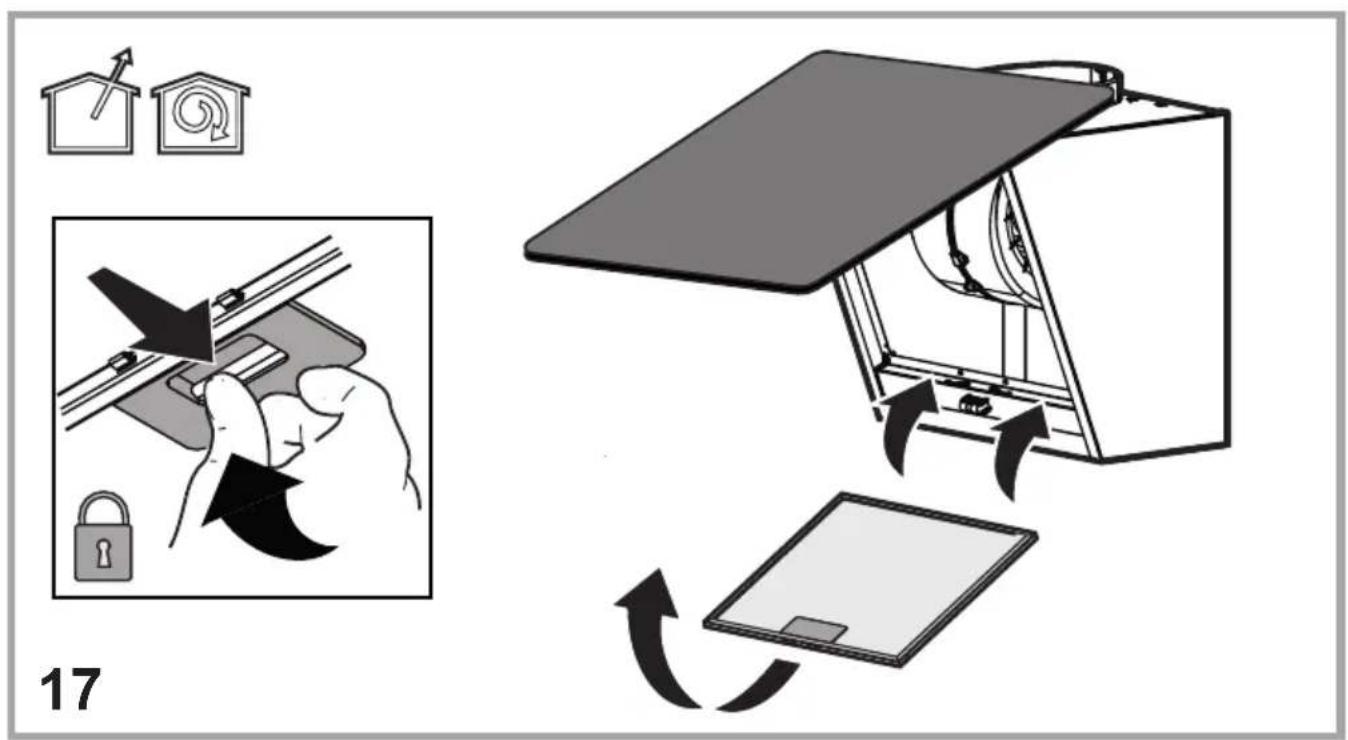

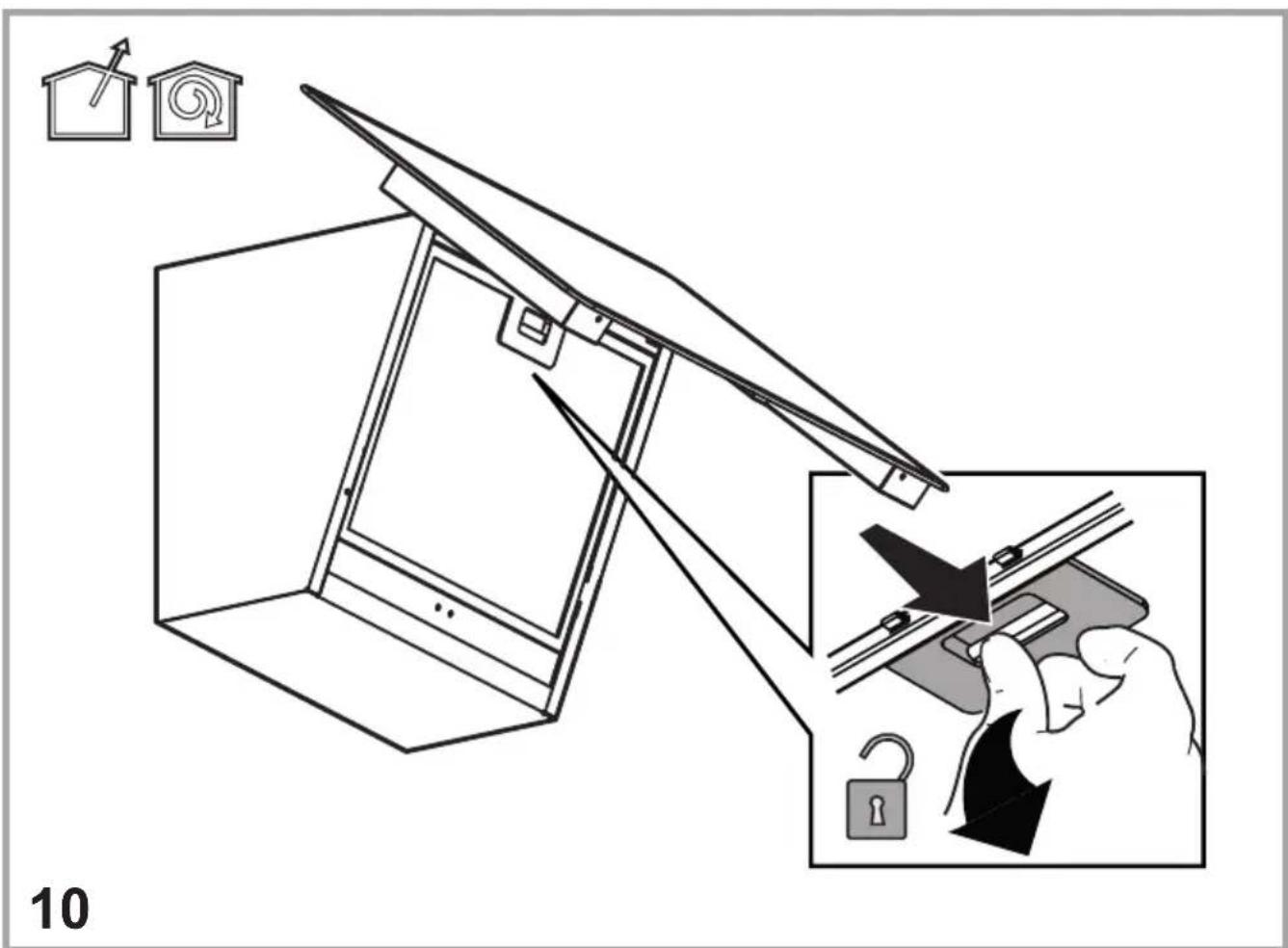

Maintenance of the anti-grease filters

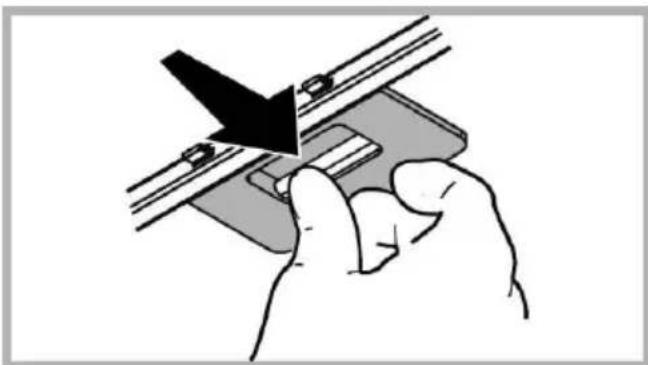

Traps cooking grease particles.

The grease filter must be cleaned once a month using non-aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity. To remove the grease filter, pull the spring release handle.

Maintenance of the charcoal filter

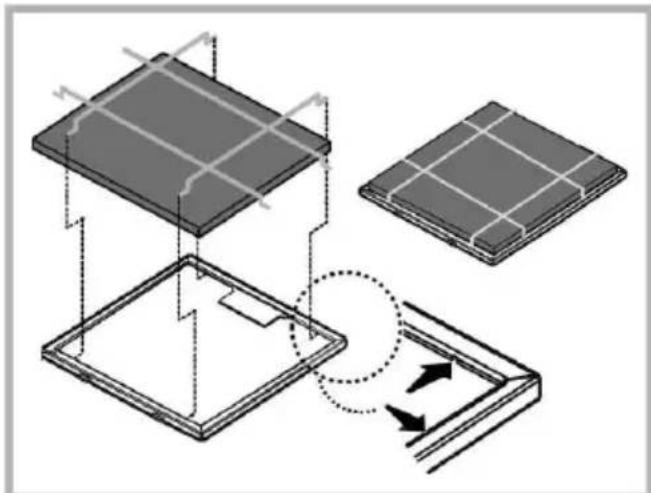

It absorbs unpleasant odors caused by cooking. Synthetic mat filter (supplied with the product)

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65°C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100°C to dry completely. Replace the mat every 3 years and when the cloth is damaged.

The synthetic mat filter can be replaced with the round carbon filter.

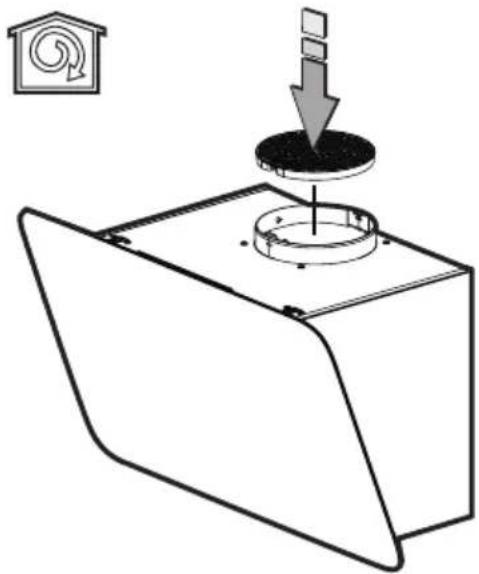

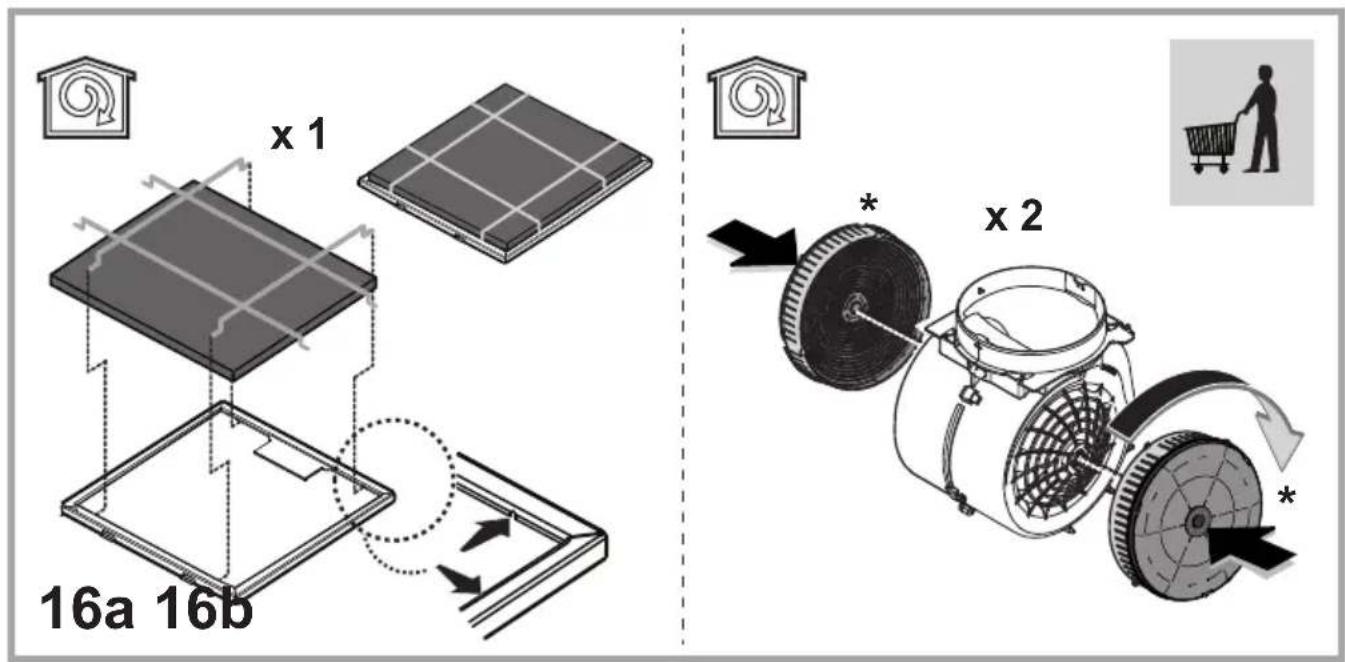

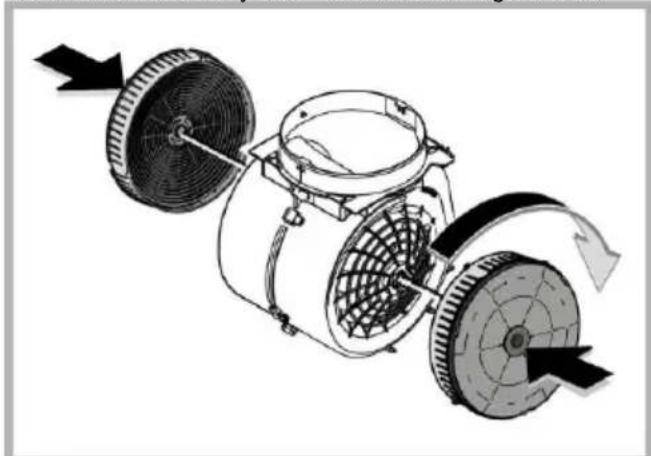

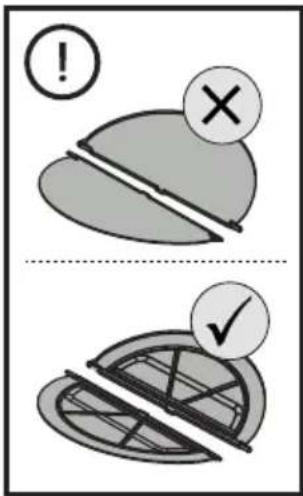

Circular charcoal filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, turn counter-clockwise.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy.

To replace lights, contact an authorized spare parts center.

DISPOSAL

• This appliance is marked according to the European directive 2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. - EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and keep it running for a few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

- If the hood is not working:

Check that:

- The power has not been disconnected.

- A speed has been selected.

- If the hood performs inefficiently:

Check that:

- The motor speed selected is sufficient for the amount of smoke and vapours released.

- The kitchen is sufficiently ventilated to allow air intake.

- The charcoal filter is not worn (hood in filtering version).

- If the hood has turned off during normal functioning:

Check that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. Then connect it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Height (cm)		Width (cm)	Depth (cm)	∅ of the exhaust tube (cm)
	71-104,59,5-104,5	59,8	32,6	15
	71-104,59,5-104,5	79,8	32,6	15

Components not provided with the product

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs.whirlpool.eu
• Using QR Code • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

GENERAL SAFETY

Circular carbon filter

GENERAL SAFETY

GENERAL SAFETY

GENERAL SAFETY

Round carbon filter

Replacing bulbs

GENERAL SAFETY

Replacing the bulbs

Replacing the bulbs

SK

GENERAL SAFETY

Circular charcoal filter

Replacing the bulbs

The extractor hood is equipped with a lighting system based on LED technology.

CS

GENERAL SAFETY PRECAUTIONS

Replacing the light fixtures

HU

GENERAL SAFETY REGULATIONS

Circular charcoal filter

Replacing the bulbs

RO

GENERAL SAFETY
