TRÅDFRI 105.415.02 - Lighting IKEA - Free user manual and instructions

Brand	IKEA
Model	TRÅDFRI 105.415.02
Product type	Connected LED bulb
Category	Connected lighting
Compatibility	IKEA connected lighting range
Maximum number of sources per remote control	10
Operating frequency	2405 - 2480 MHz
Output power	10 dBm
Power supply	220-240 V AC
Rated power	Equivalent to a standard bulb (estimation 10 W)
Dimensions	Standard E27 (typical size 110 x 60 mm)
Weight	Approximately 50 g
Main functions	On/off, dimming via IKEA control device
Reset	Toggle the main switch 6 times
Use with standard dimmer	Not recommended: use only the provided control device
Care and cleaning	Clean with a soft dry cloth, disconnect before
Safety	Do not immerse in water, follow recycling instructions
Recycling	Sort according to local regulations (crossed-out wheeled bin symbol)
Spare parts	Not applicable, sealed product
Repairability	Not user-repairable
Warranty	Refer to IKEA terms and conditions
General information	Instructions available in multiple languages on the IKEA website

Frequently Asked Questions - TRÅDFRI 105.415.02 IKEA

How to pair the TRÅDFRI bulb with a control device?

Install and turn on the bulb. Hold the control device within 5 cm of the bulb. Press the pairing button for at least 10 seconds until a red LED lights up. The bulb flashes once to confirm pairing.

How many bulbs can be paired with a single control device?

You can pair up to 10 light sources with a single control device. Make sure to pair them one by one.

What to do if the bulb stops responding?

Reset the bulb by toggling the main switch 6 times. Then restart the pairing procedure.

Can I use a standard dimmer with this bulb?

No, do not use a standard dimmer. Only use the control device provided with the product or mentioned in the instructions.

Is the TRÅDFRI bulb compatible with other brands?

This bulb only works with products from the IKEA connected lighting range.

What is the operating frequency of the bulb?

The operating frequency is between 2405 and 2480 MHz with an output power of 10 dBm.

How to clean the TRÅDFRI bulb?

Unplug the bulb and clean it with a soft dry cloth. Do not use chemical products.

What to do in case of power outage?

After a power outage, the bulb automatically returns to its previous state (on or off) if paired with a control device.

Can I adjust the color temperature of this bulb?

This bulb provides warm white light (2700K) and is not adjustable in color temperature.

How to recycle the bulb at end of life?

Follow local regulations: the crossed-out wheeled bin symbol indicates it must be recycled. Contact your IKEA store for more information.

USER MANUAL TRÅDFRI 105.415.02 IKEA

LED2102G3, LED2103G5

English 8
Deutsch 11
Français 14
Nederlands 17
Dansk 20
Islenska 23
Norsk 26
Suomi 29

Svenska 32
Česky 35
Espanol 38
Italiano 41
Magyar 44
Polski 47
Eesti 50
Latviešu 53

Lietuviu 56

Portugues 59

Româna 62

Slovensky 65

Български 68

Hrvatski 71

Eλληνικα 74

Pycckn 77

yKpaIHcbka 80

Srpski 83

Slovenscina 86

Türkçé 89

92

ADD LIGHT SOURCES TO YOUR STEERING DEVICE:

Before you can use your light source you'll need to pair it with a steering device. To add more light sources, just repeat the steps below:

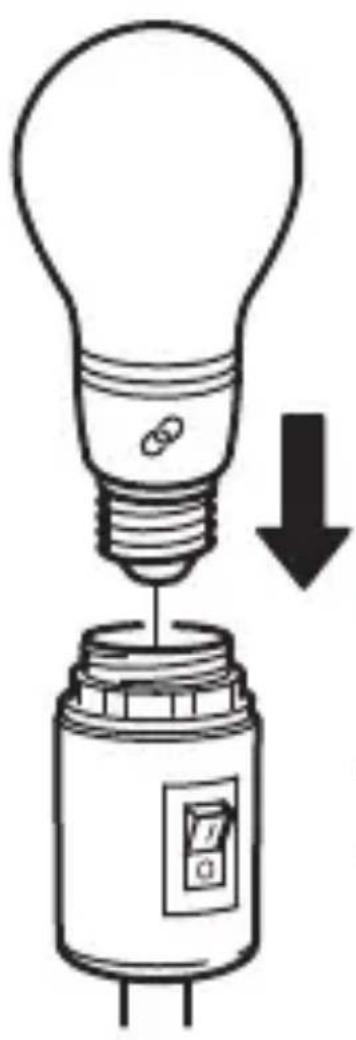

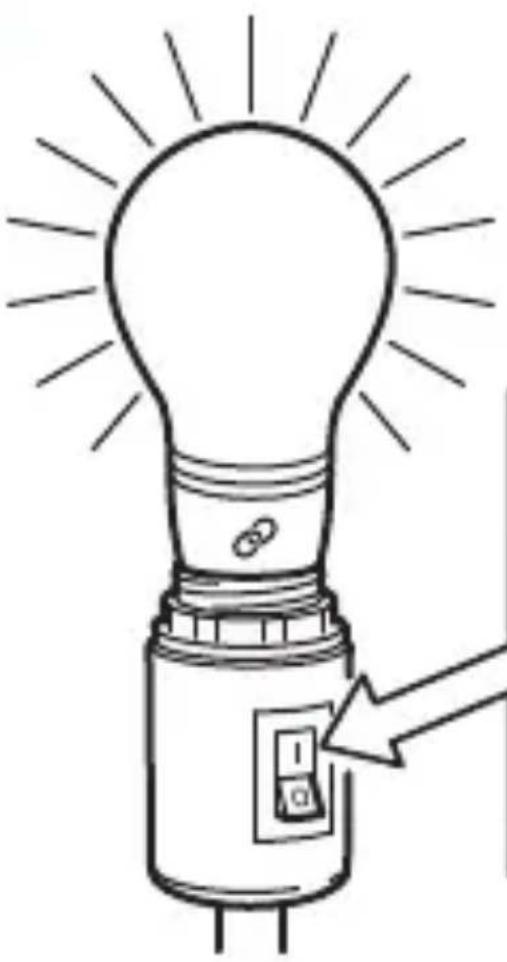

1. Make sure that your light source is installed and the main power switch is turned on.

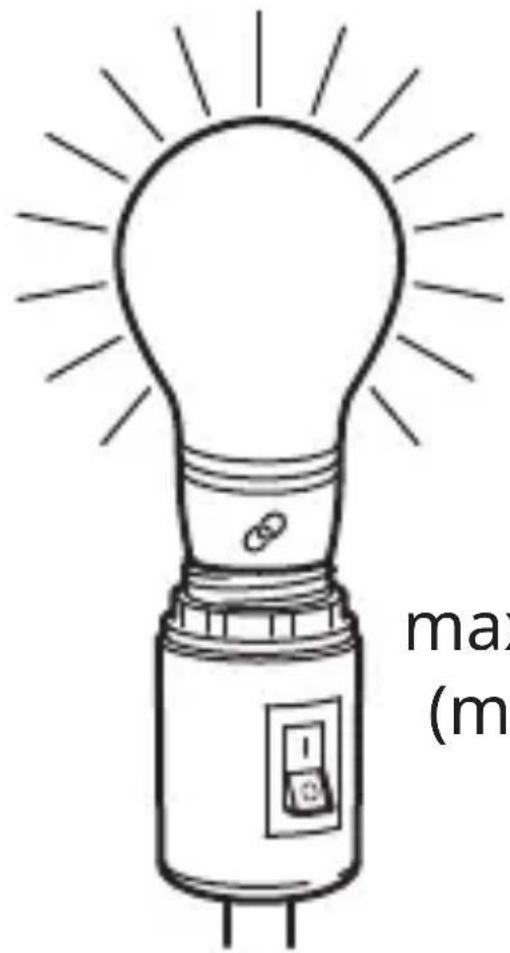

2. Hold the steering device close to the light source you want to add (no more than 5 cm away).

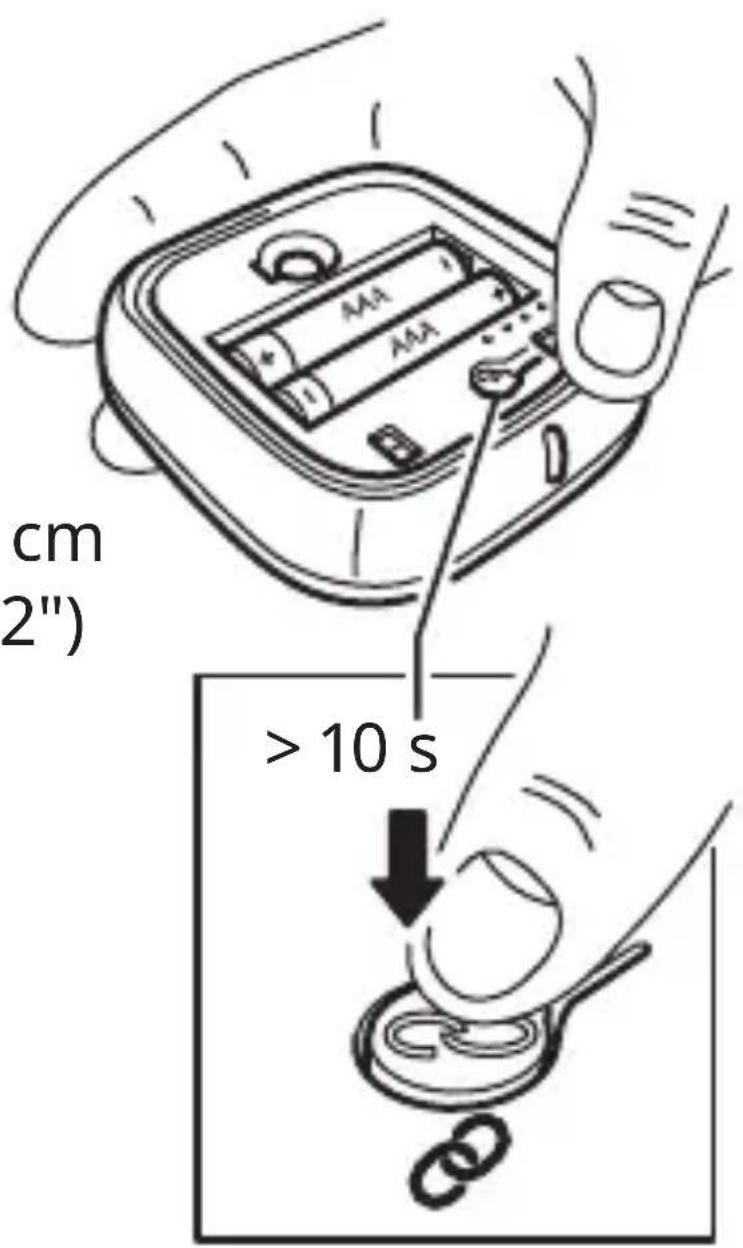

3. Press and hold the pairing button for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.

Up to 10 light sources can be paired with 1 steering device.

Make sure to pair them one at a time. If the light sources are close to each other, disconnect those that have already been paired from the main power switch.

CAUTION:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

RESET YOUR DEVICE

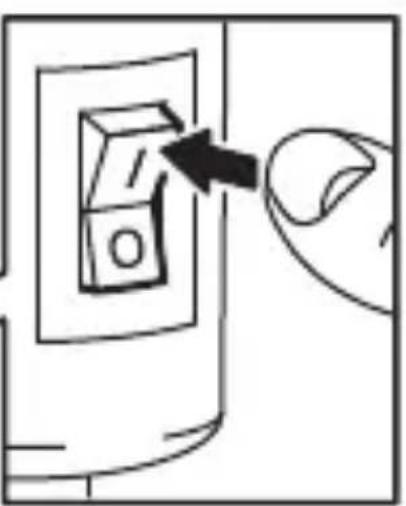

Toggle the main switch 6 times.

TECHNICAL DATA:

Operating frequency: 2405 - 2480 MHz

Output power: 10 dBm

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Ålmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

AJOUT SOURCES LUMINEUSES AU DISPOSITIF DE COMMANDE

Fabricant : IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Almhult, SUÉDE

Producent: IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Almhult, SVERIGE

Framleiðandi: IKEA of Sweden AB

Heimilisfang: Box 702, SE-343 81 Ålmhult, SWEDEN

Produsent: IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Ålmhult, SWEDEN

Producent: IKEA of Sweden AB

Adres: Box 702, SE-343 81 Ålmhult, SZWECJA

Tootja: IKEA of Sweden AB

Address: Box 702, SE-343 81 Ålmhult, SWEDEN

Vyrobca: IKEA of Sweden AB

Adresa: Box 702, SE-343 81 Ålmhult, SWEDEN
