USER MANUAL TRÅDFRI 705.415.61 IKEA

Line drawing of a rectangular electronic device with a circular button and base (no text or symbols)

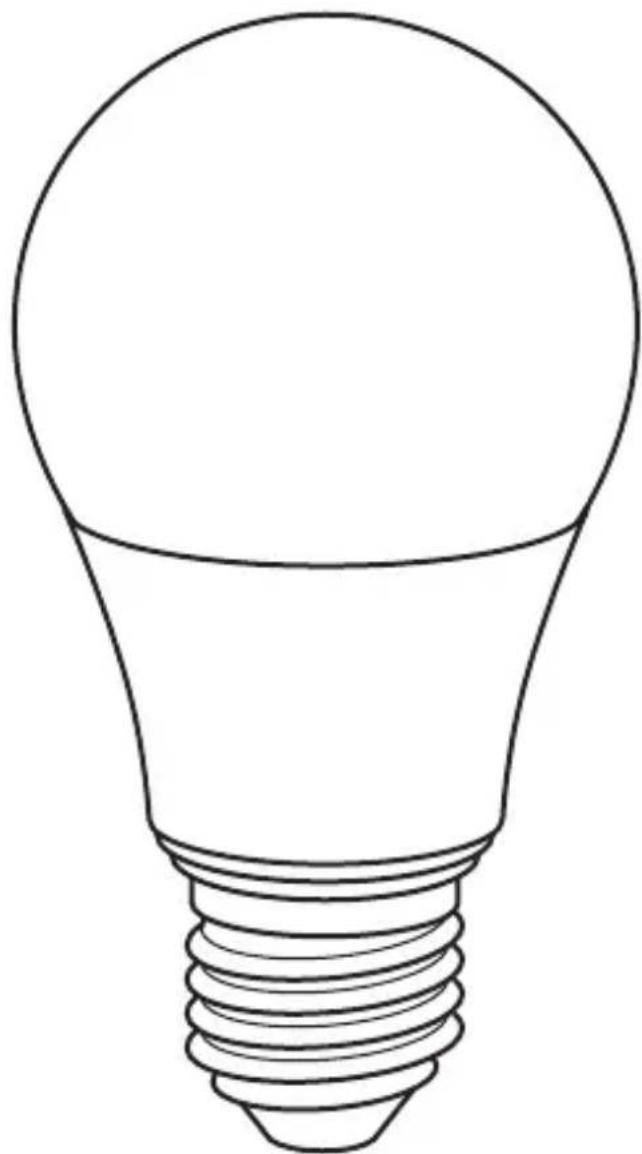

Line drawing of a standard incandescent light bulb with a flanged base (no text or symbols)

1

Diagram showing a light bulb being inserted into a device with a downward arrow indicating process or reduction.

2

Diagram showing a light bulb connected to a control panel with labeled buttons and an arrow indicating action.

3

max 5 cm (max 2") > 10 s

English 4 Latviešu 49
Deutsch 7 Lietuvių 52
Français 10 Portugues 55
Nederlands 13 Româna 58
Dansk 16 Slovensky 61
Íslenska 19 Български 64
Norsk 22 Hrvatski 67
Suomi 25 Ελληνικά 70
Svenska 28 Русский 73
Česky 31 Українська 76
Español 34 Srpski 79
Italiano 37 Slovenščina 82
Magyar 40 Türkçe 85
Polski 43 عربي 88
Eesti 46

English

RODRET wireless dimmer/power switch works with smart lights and plugs from IKEA. It can be used with DIRIGERA hub to control smart products via the IKEA Home smart app.

IKEA Home smart app

Apple devices, download the app using the App Store. For Android devices, download the app using Google Play store.

Note: If you have a TRÄDFRI gateway please use IKEA Home smart 1 app.

Getting started with DIRIGERA hub

Download the IKEA Home smart app and follow the instructions on screen to add the dimmer/switch to your IKEA Home smart system.

Getting started without DIRIGERA hub

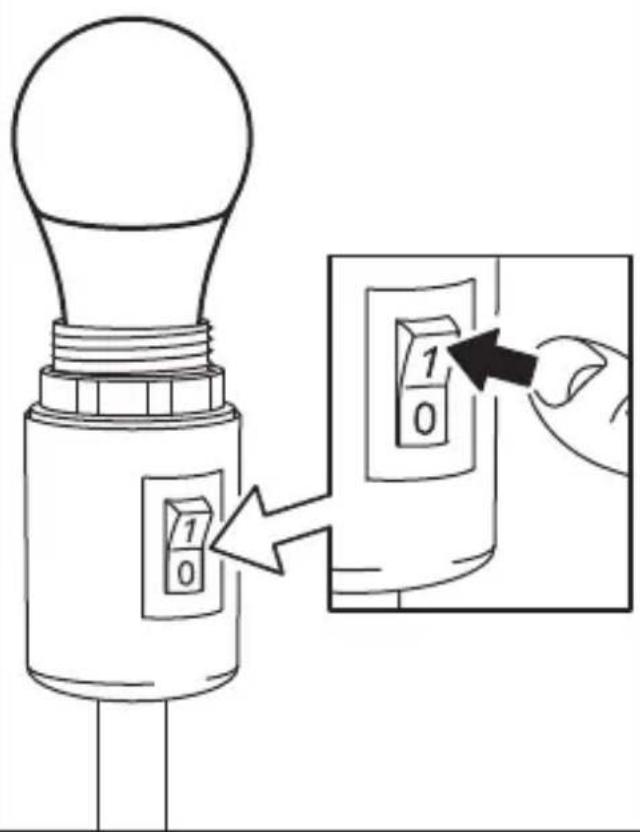

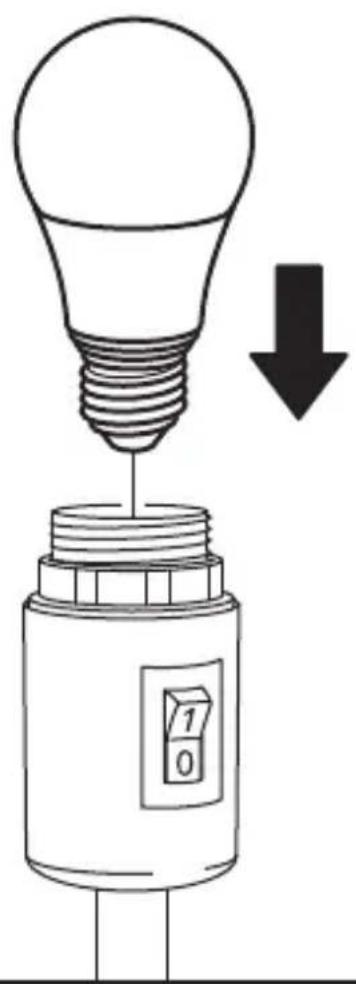

1. Make sure the smart product you want to connect is installed and powered on.

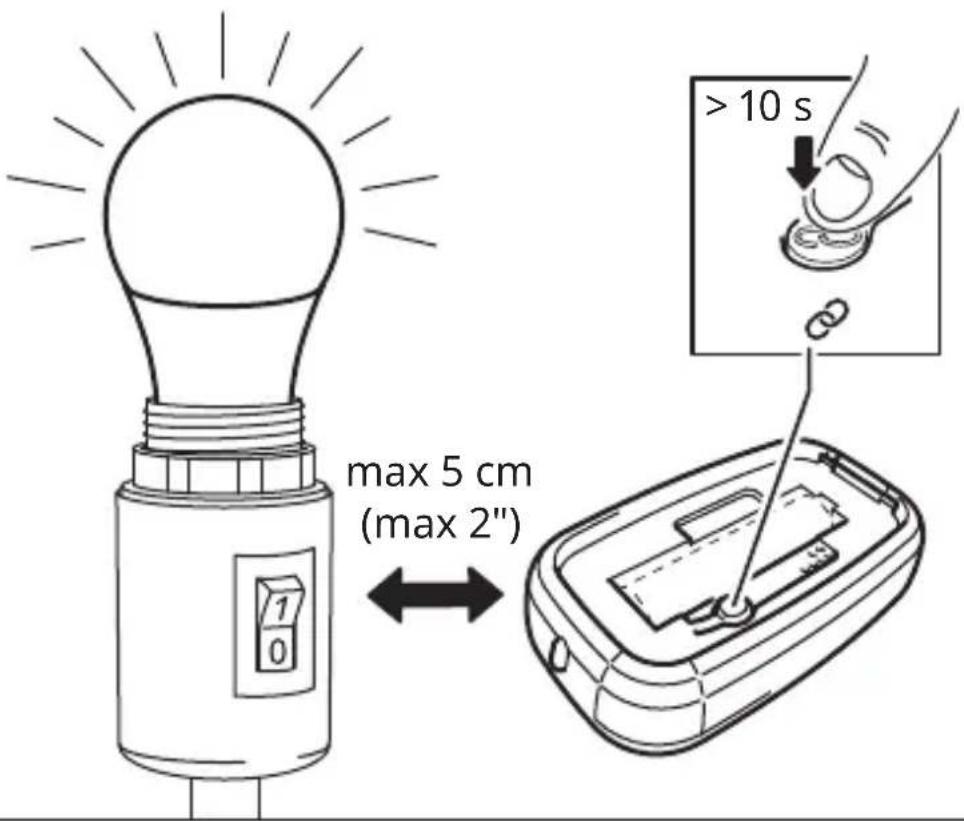

2. Hold your dimmer/switch close to the smart product (less than 5 cm away).
3. Press and hold the pairing button for at least 10 seconds. A red LED will show on the dimmer/switch. The smart product will pulse with a white LED once connected.

Good to know

Without DIRIGERA, you can connect a maximum of 10 smart products to one dimmer/switch. Remember to add one product at a time. If your products are close together, disconnect the ones you have already connected while adding the next product.

Caution:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

Get to know your product

Pairing button

Press to turn on, or long-press to increase brightness

○ Press to turn off, or long-press to decrease brightness

Changing the battery

A red LED light will blink when you press any button the dimmer/switch to show that a new battery is needed. Open the battery lid and replace with a new AAA/HR03 battery. We recommend using a LADDA rechargeable battery. Please note it is sold separately.

Factory reset

To reset and remove all connected products, quick-press the pairing button 4 times (within 5 seconds). Follow steps 1-3 to reconnect your smart products.

Care instructions

To clean the product, wipe it with a soft cloth moistened with a little mild detergent. Use another soft, dry cloth to wipe dry. Never use abrasive cleaners or chemical solvents as this can damage the product.

IMPORTANT!

• The wireless dimmer is for indoor use only and can be used in temperatures ranging from 0°C to 40°C.
• Do not leave the wireless dimmer in direct sunlight or near any heat source, as it may overheat.
• Different building materials and placement of the units can affect the wireless connectivity range.

WARNING!

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Technical data

Model: RODRET wireless dimmer

Type: E2201

Input: 1.2 V, 1x AAA/HR03 LADDA battery

Range: 10 m in open air.

For indoor use only

Operating frequency: 2405-2480 MHz

Output power: 3 dBm

IP-class: IP44

Type: LED2103G5

Operating frequency: 2405 - 2480 MHz

Output power: 10 dBm

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
