TRÅDFRI 805.456.91 - Lighting IKEA - Free user manual and instructions

Product type	Connected LED bulb
Model	TRÅDFRI 805.456.91
Brand	IKEA
Base	E27 (standard)
Power	8 W (equivalent 40-60 W)
Color temperature	2 200 K (reddish) to 4 000 K (cool white)
Luminous flux	Approximately 500 lm
Beam angle	220°
Power supply	230 V AC, 50/60 Hz
Connectivity	Zigbee Light Link
Frequency	2405 - 2480 MHz
RF output power	10 dBm
Pairing distance	Less than 5 cm from control device
Max number of sources per control	10
Dimmable	Yes (via IKEA dimmer only, not standard dimmer)
Reset	Toggle switch 6 times
Dimensions	110 x 60 mm
Weight	80 g
Material	Plastic, glass
Lifespan	25 000 hours
Energy class	A+
Repairability	Not user repairable
Recycling	Complies with local regulations (crossed-out wheelie bin symbol)

Frequently Asked Questions - TRÅDFRI 805.456.91 IKEA

How to pair the TRÅDFRI bulb with a remote control?

Make sure the bulb is on and within 5 cm of the remote control. Press the pairing button for at least 10 seconds until the red light stays on. The bulb will flash once to confirm pairing.

Can I use this bulb with a standard dimmer?

No. Only use the dimmer provided with the bulb or an IKEA TRÅDFRI product. Standard dimmers may damage the bulb.

How to reset the TRÅDFRI bulb?

To reset, toggle the power switch six times in a row. The bulb should return to factory settings.

What color temperatures are available?

The bulb can range from warm white (2,700 K) to cool white (4,000 K), with a reddish option at 2,200 K.

How many bulbs can I connect to one remote control?

Up to 10 TRÅDFRI bulbs can be paired with one remote control. Pair them one by one.

What if the bulb does not pair?

Check that the bulb is on and the remote is within 5 cm. If the problem persists, reset the bulb by toggling the switch six times.

Is this bulb compatible with other IKEA products?

Yes, it is designed to work with all IKEA smart lighting products (TRÅDFRI).

What frequency does the bulb use?

The bulb operates on the 2405-2480 MHz band with an output power of 10 dBm (Zigbee).

Can I use this bulb with a gateway?

Yes, it can be connected to an IKEA TRÅDFRI gateway for control via the app.

How to recycle the bulb at end of life?

The bulb has the crossed-out wheelie bin symbol. Dispose of it at an appropriate collection point for waste electrical and electronic equipment.

USER MANUAL TRÅDFRI 805.456.91 IKEA

max 5 cm (max 2")

English 8

Deutsch 11

Français 14

Nederlands 17

Dansk 20

Íslenska 23

Norsk 26

Suomi 29

Svenska 32

Česky 35

Español 38

Italiano 41

Magyar 44

Polski 47

Eesti 50

Latviešu 53

Lietuvių 56

Português 59

Româna 62

Slovensky 65

Български 68

Hrvatski 71

Ελληνικα 74

Русский 77

Українська 80

Srpski 83

Slovenščina 86

Türkçe 89

92 عرب

ADD LIGHT SOURCES TO YOUR STEERING DEVICE:

Before you can use your light source you'll need to pair it with a steering device.

To add more light sources, just repeat the steps below:

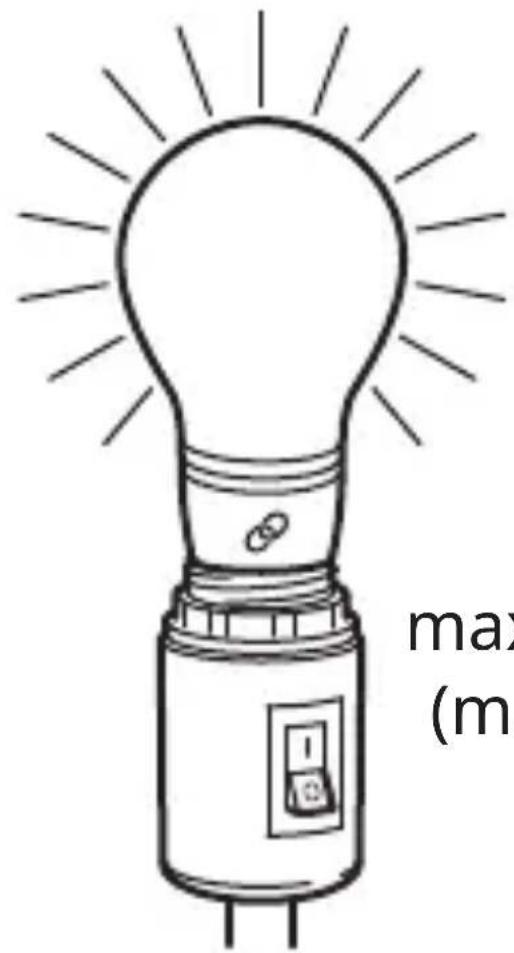

1. Make sure that your light source is installed and the main power switch is turned on.

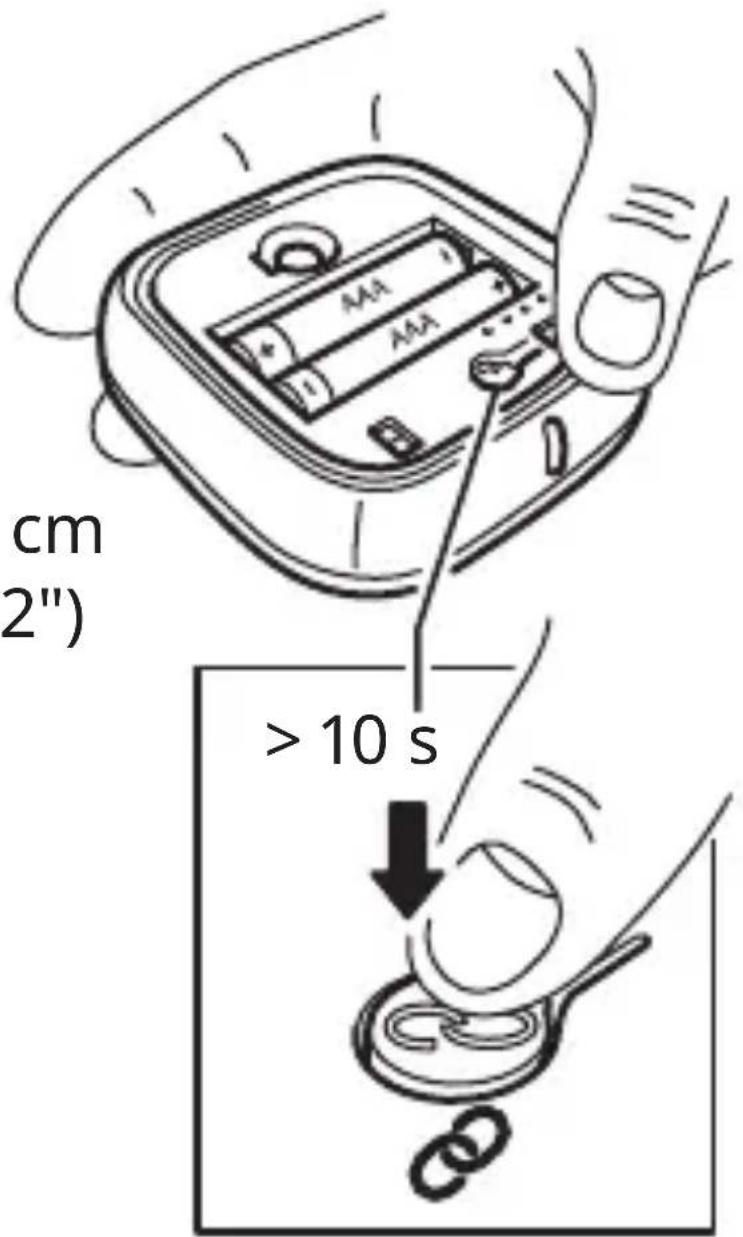

2. Hold the steering device close to the light source you want to add (no more than 5 cm away).

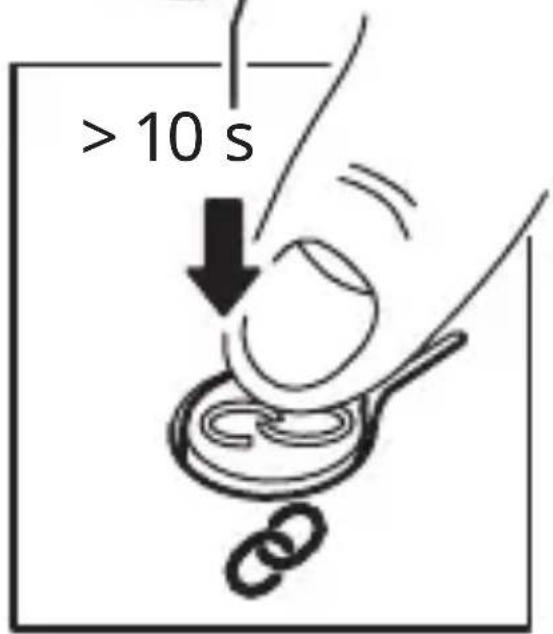

3. Press and hold the pairing button for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.

Up to 10 light sources can be paired with 1 steering device.

Make sure to pair them one at a time. If the light sources are close to each other, disconnect those that have already been paired from the main power switch.

CAUTION:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

The colour temperature can be switched between 2200K (warm glow), 2700K (warm white) and 4000K (cool white).

RESET YOUR DEVICE

Toggle the main switch 6 times.

TECHNICAL DATA:

Operating frequency: 2405 - 2480 MHz

Output power: 10 dBm

Manufacturer: IKEA of Sweden AB

Address: Box 702 SE-343 81 Älmhult SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or numbers present)

AJOUT SOURCES LUMINEUSES AU DISPOSITIF DE COMMANDE

Fabricant : IKEA of Sweden AB

Adresse : Box 702, SE-343 81 Älmhult, SUÈDE

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

JE APPARAAT RESETTEN

Producent: IKEA of Sweden AB

Framleiðandi: IKEA of Sweden AB

Heimilisfang: Box 702 SE-343 81 Älmhult SWEDEN

TILBAKESTILL PRODUKTET

Produsent: IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Älmhult, SWEDEN

Producent: IKEA of Sweden AB

Adres: Box 702 SE-343 81 Älmhult SZWECJA

Tootja: IKEA of Sweden AB

Aadress: Box 702 SE-343 81 Älmhult SWEDEN
