USER MANUAL TRÅDFRI 704.867.86 IKEA


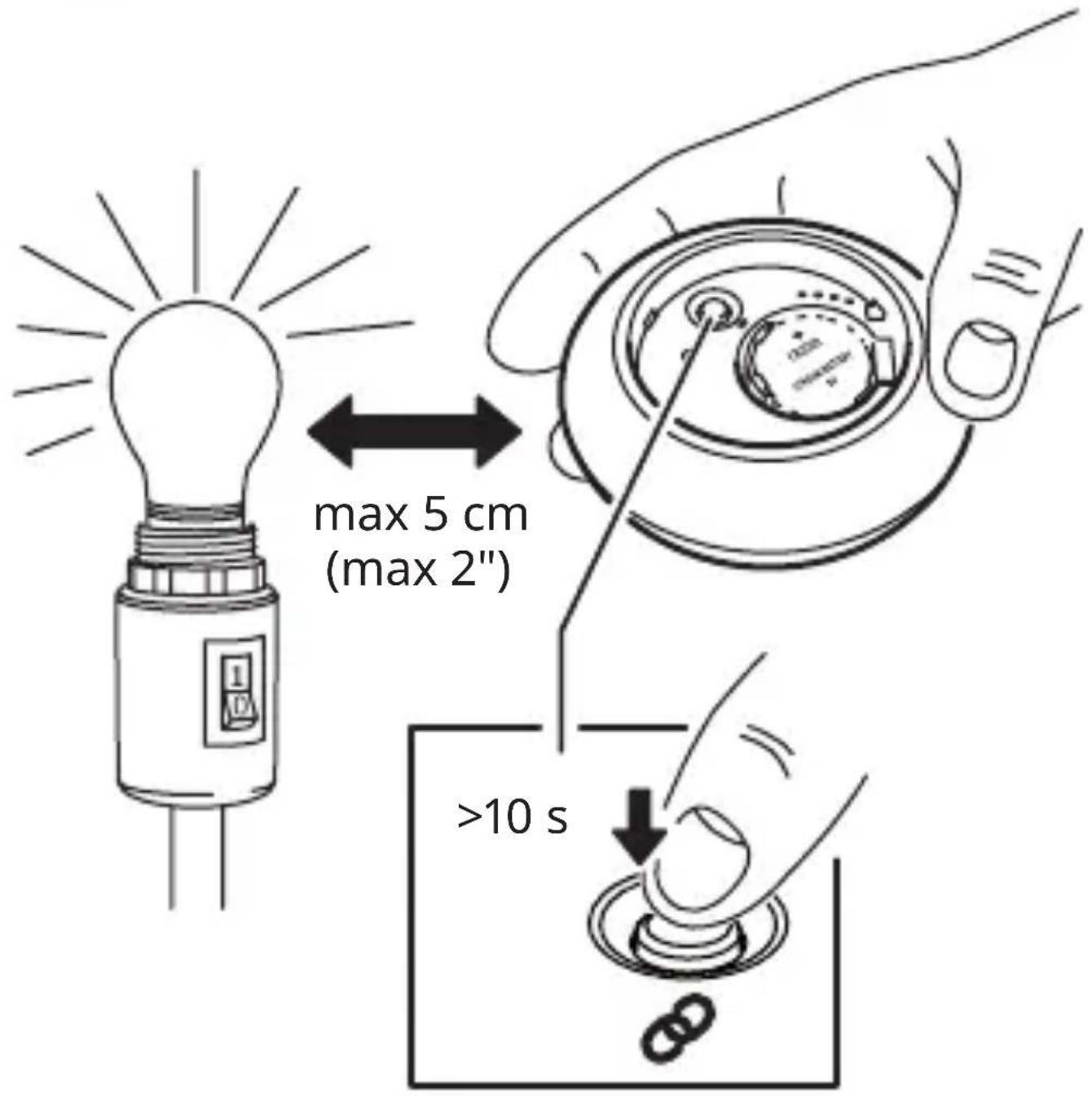

Diagram illustrating a process of lighting and switching from a light bulb to a device, with Chinese annotations.
Deutsch 11
Français 14
Nederlands 17
Dansk 20
Íslenska 23
Norsk 26
Suomi 29
Svenska 32
Česky 35
Español 38
Italiano 41
Magyar 44
Polski 47
Eesti 50
Latviešu 53
Lietuvių 56
Português 59
Româna 62
Slovensky 65
Български 68
Hrvatski 71
Ελληνικα 74
Русский 77
Українська 81
Srpski 83
Slovenščina 86
Türkçe 89
عربي 92
ADD LIGHT SOURCES TO YOUR STEERING DEVICE:
Before you can use your light source you'll need to pair it with a steering device.
To add more light sources, just repeat the steps below:
- Make sure that your light source is installed and the main power switch is turned on.
- Hold the steering device close to the light source you want to add (no more than 5 cm away).
- Press and hold the pairing button for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.
Up to 10 light sources can be paired with 1 steering device.
Make sure to pair them one at a time. If the light sources are close to each other,
disconnect those that have already been paired from the main power switch.
CAUTION:
DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.
The colour temperature can be switched between 2200K (warm glow), 2700K (warm white) and 4000K (cool white).
RESET YOUR DEVICE
Toggle the main switch 6 times.
TECHNICAL DATA:
Operating frequency: 2405 – 2480 MHz Output power: 10 dBm
Manufacturer: IKEA of Sweden AB
Address: Box 702 SE-343 81 Älmhult SWEDEN

