USER MANUAL STJÄRNSTATUS IKEA

Water Supply Connection 18

Controls And Settings 20

3 Automatic Ice and Water Dispenser 24

Storage Features 29

7 Storing Food and Saving Energy 35

8 Normal Operating Sounds 36

9 Filter Replacement 37

Care And Cleaning 39

Troubleshooting 41

Limited Warranty 46

IMPORTANT SAFETY INFORMATION

WARNING

Please read all instructions before using this appliance.

Safety Definitions

This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

CAUTION

CAUTION Risk of fire or explosion. Dispose of refrigerator properly in accordance with the applicable federal or local regulations. Flammable refrigerant used.

CAUTION Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used.

DANGER

DANGER Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.

DANGER Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Use only manufacturer-authorized service parts. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing.

WARNING

CALIFORNIA RESIDENTS ONLY WARNING! Cancer and Reproductive Harm www.P65Warnings.ca.gov

Child Safety

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

Safety Instructions

• DO NOT store or use gasoline, or other flammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards.
• DO NOT operate the refrigerator in the presence of explosive fumes.
• Avoid contact with any moving parts of automatic ice maker.
• Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.

WARNING

Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer.

Proper Disposal of your Appliance Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for "just a few days". If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appliance recycling/disposal methods. Check with your utility company or visit energystar.gov/recycle for more information on recycling your old refrigerator.

Before you throw away your old refrigerator/freezer:

• Remove doors.
• Leave shelves in place so children may not easily climb inside.
• Have refrigerant removed by a qualified service technician.

IMPORTANT

CFC/HCFC Disposal

Your old refrigerator may have a cooling system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere.

If you are throwing away your old refrigerator, make sure the refrigerant is removed for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation.

Electrical information

• The refrigerator must be plugged into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three-prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified electrician. Avoid connecting refrigerator to a Ground Fault Interrupter (GFI) circuit. Do not use an extension cord or adapter plug.
• If the power cord is damaged, it should be replaced by an authorized service technician to prevent any risk.
• Never unplug the refrigerator by pulling on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent damaging the power cord.
• Unplug the refrigerator before cleaning to avoid electrical shock.
  • Performance may be affected if the voltage varies by 10% or more. Operating the refrigerator with insufficient power can damage the compressor. Such damage is not covered under your warranty.
• Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally.

IMPORTANT

To turn off power to your refrigerator you must unplug the power cord from the electrical outlet.

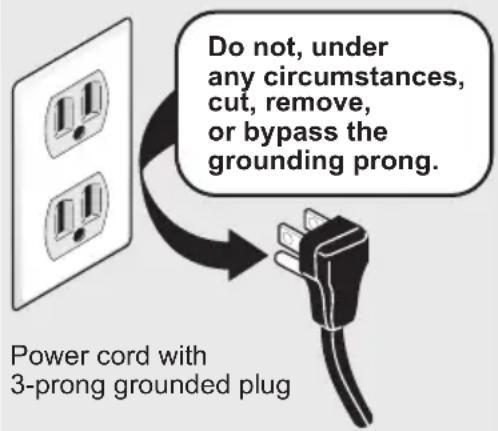

Grounding type wall receptacle

Do not, under any circumstances, cut, remove, or bypass the grounding prong. Power cord with 3-prong grounded plug

CAUTION

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

Thank you for choosing IKEA.

This User Manual is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance.

We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use this page to record important product information.

Purchase Date

Model Number

Serial Number

Pure technical line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

Serial Number Location

Installation Checklist

Doors

□ Handles are secure and tight
☐ Door seals completely to cabinet on all sides

Leveling

☐ Refrigerator is level side-to-side and slightly elevated in front to assist with door and drawer closing (front should be higher than back)
□ Cabinet is setting solid on all corners

Electrical Power

House power turned on
☐ Refrigerator plugged in

Ice Maker(s)

☐ House water supply connected to refrigerator.
WARNING: Potable water supply only.
☐ No water leaks present at all connections - recheck in 24 hours

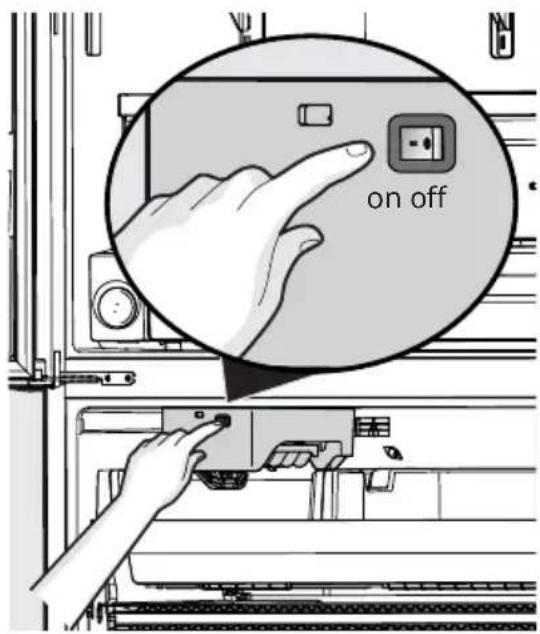

☐ Ice maker(s) is/are turned ON
☐ Ice & water dispenser operates correctly

Final Checks

□ Shipping material removed
☐ Refrigerator and freezer temperatures set

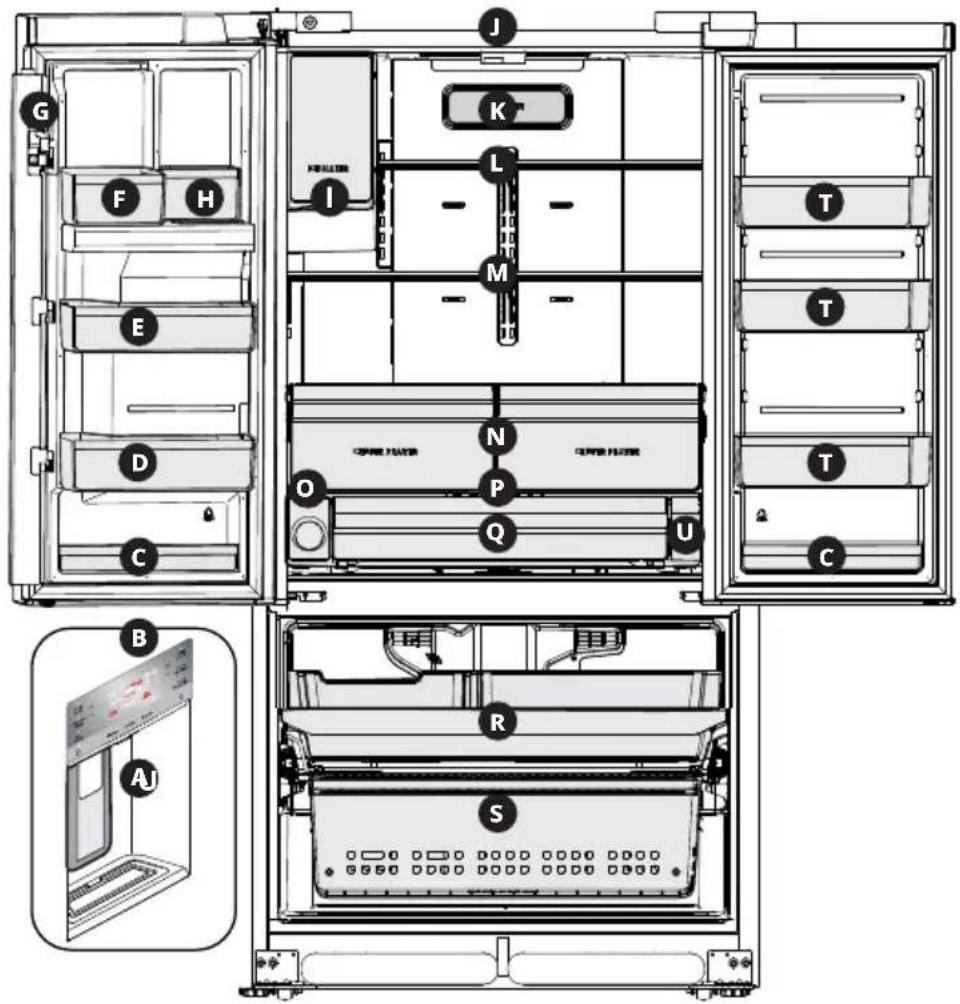

Technical diagram of a refrigerator internal compartments with labeled parts and exploded view, including front, back, and top views.

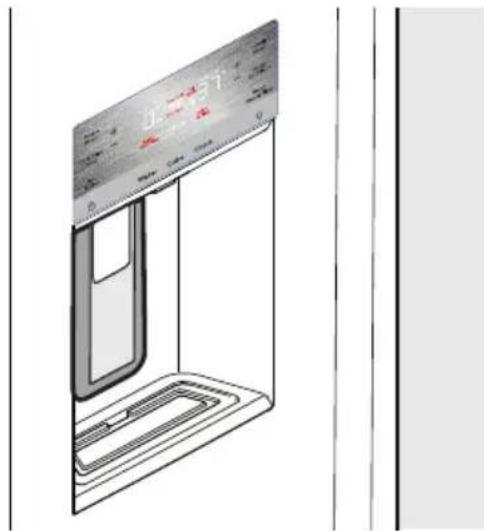

A Ice & Water Dispenser

B External Appliance Control Display

C Condiment Bins

D L-Shaped Bin

E Dairy Bin

F Gallon Bin

G Flipper Mullion

H Slim Bin

I Fresh Food Ice Maker & Bin

J Flipper Guide

K Air Filter

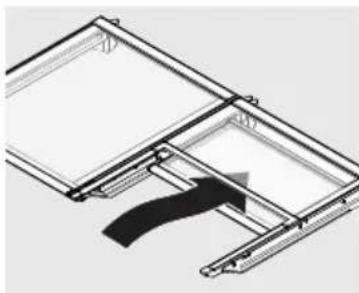

L Slide Under 1⁄4 & 1⁄2 Width Shelves
M Edge-to-Edge Glass Shelving

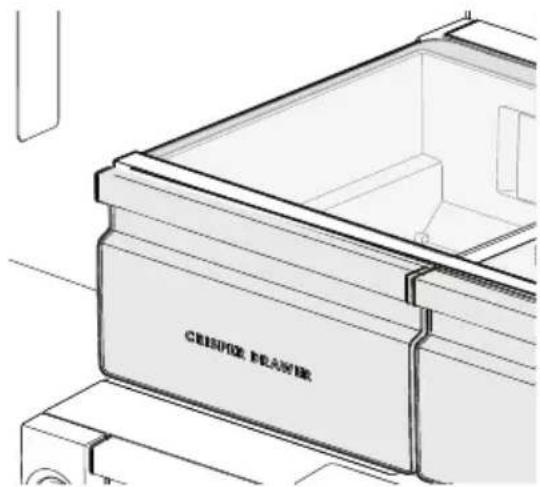

N Crisper Drawers
O Water Filter
P Adjustable Temp Drawer Controls
Q Adjustable Temp Drawer
R	Upper Freezer Basket
S Lower Freezer Basket
T Standard Bin
U Decorative Filler

IMPORTANT

Accessories are available for your appliance and may be purchased by calling [phone].

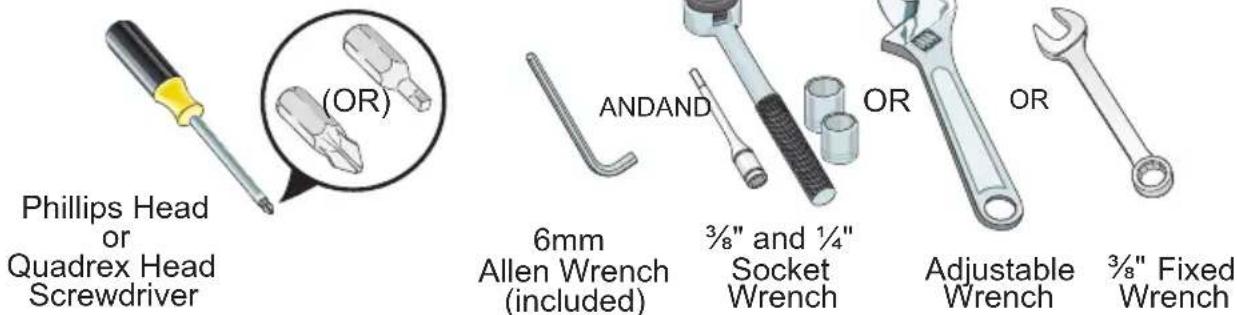

Tools Necessary:

Phillips Head or Quadrex Head Screwdriver (OR) 6mm Allen Wrench (included) ANDAND 3/8" and 1/4" Socket Wrench OR Adjustable Wrench OR 3/8" Fixed Wrench

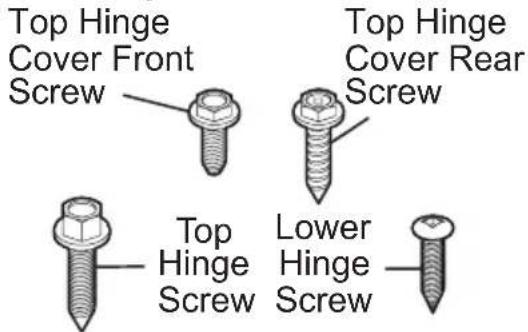

Components Provided:

Top Hinge Cover Front Screw Top Hinge Cover Rear Screw Top Hinge Screw Lower Hinge Screw

This User Manual provides general installation and operating instructions for your model. We recommend using a service or kitchen contracting professional to install your refrigerator. Use the refrigerator only as instructed in this User Manual. Before starting the refrigerator, follow these important first steps.

Location

• Choose a place that is near a grounded, non-GFCI, electrical outlet. Do Not use an extension cord or an adapter plug.
• If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher, or other heat sources.
• The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator.
• Consider water supply availability for models equipped with an automatic ice maker.

Door opening

Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of refrigerator drawers and freezer baskets, the refrigerator should be in a position where both can be fully opened.

WARNING

This appliance is intended to be used in residential household and similar applications such as:

• a kitchen/kitchenette
- a pantry room
- a basement
- other interior residential-type environments

CAUTION

Do Not install the refrigerator where the temperature will drop below 55^ F ( 13^ C) or rise above 110^ F ( 43^ C). The compressor will not be able to maintain proper temperatures inside the refrigerator.

Installation

WARNING

Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:

• Sides & Top 3 / 8 inch (9.5 mm)
• Back 1 inch (25.4 mm)

NOTE

If your refrigerator is placed with the door hinge side against a wall, you may have to allow additional space so the door can be opened wider.

337 mm 13.25 in 337 mm 13.25 in 138° 138° 56.75 in 254 mm 1 in 9.5 mm .37 in 9.5 mm .37 in

Cabinet Leveling & Refrigerator Door Alignment (if necessary)

Guidelines for final positioning of refrigerator:

• All 4 corners of the cabinet must rest firmly on the floor.
• The front should be slightly elevated to ensure that doors close and seal properly.
• Doors should align with each other and be level.

Most of these conditions can be met by raising or lowering the adjustable anti-tip legs.

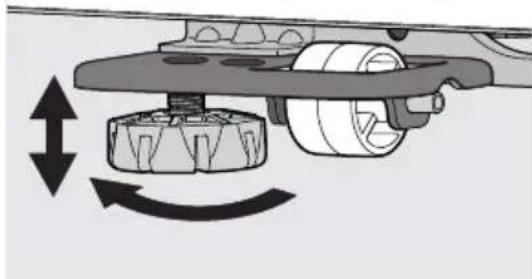

To level the cabinet using the anti-tip legs:

1. Slightly open freezer drawer to reveal anti-tip legs at bottom of cabinet.
2. Lower anti-tip legs until they are both touching the floor. Use a pair of pliers to adjust.

To raise unit: turn leg clockwise if looking from the top.

To lower unit: turn leg counterclockwise if looking from the top.

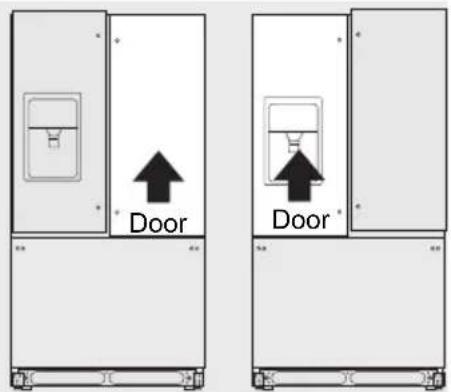

1. Ensure both doors are bind-free with their seals touching the cabinet on all 4 sides and that cabinet is stable.

Mechanical assembly diagram showing a rotating component with bidirectional motion arrows (no text or symbols)

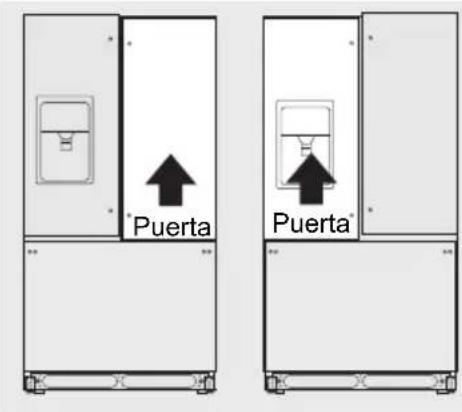

Door Door

NOTE

Product is shipped with doors adjusted to the lowest position on the hinges.

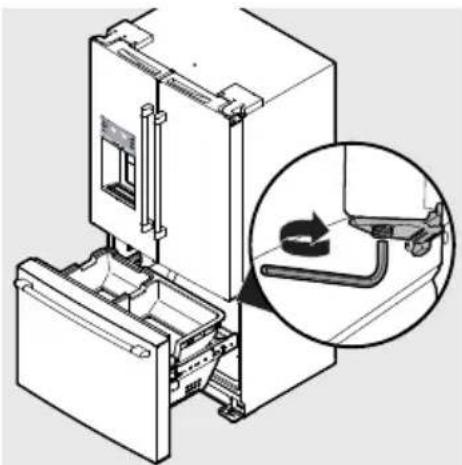

To make final door height adjustments:

1. Open freezer drawer to access hinges for fresh food doors.
2. Insert 6 mm Allen ^TM wrench into the shaft of the lower hinge (included with unit).

To lower door: turn adjustment screw counterclockwise if looking at the door from below.

To raise door: turn adjustment screw clockwise if looking at the door from below.

Technical illustration of a refrigerator internal structure with an inset showing a hand valve mechanism (no text or symbols present)

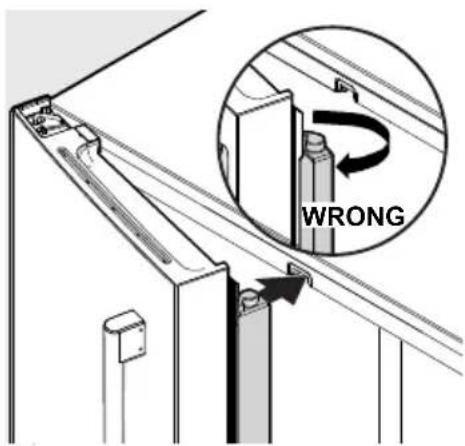

Flipper Mullion

Adjust Flipper Mullion for proper connection with the mullion guide by ensuring the flipper mullion is folded and perpendicular to the fresh food door. If the mullion guide is not in the correct position, it could prevent the door from closing completely.

WRONG

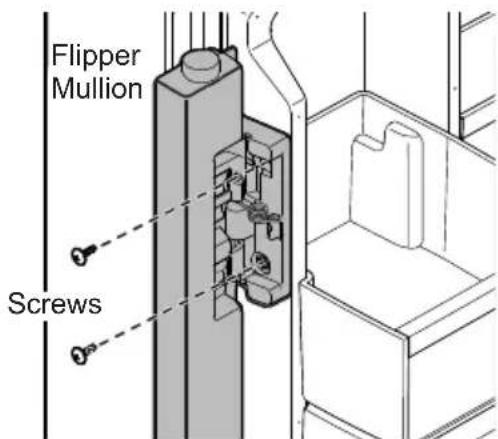

To adjust the flipper mullion:

1. Loosen the 2 screws located on the flipper mullion hinge.

Flipper Mullion Screws

Adjusting Flipper Mullion Screw

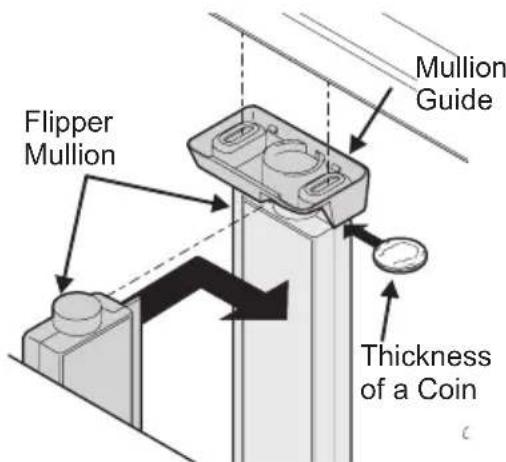

1. Adjust flipper mullion height. For proper connection with the flipper mullion guide, there should be a separation about the thickness of a coin (0.060 inches, or 1.5 mm) between the guide and flipper mullion.

Mullion Guide Flipper Mullion Thickness of a Coin

Adjusting Flipper Mullion Height

1. Retighten screws.

Getting through narrow spaces

If your refrigerator will not fit through an entrance area, you can remove the doors. Check first by measuring the entrance.

To prepare for removing the doors:

1. Make sure the electrical power cord is unplugged from the wall outlet.
2. Remove any food from the door shelves and close the doors.

WARNING

Make sure the electrical power cord is unplugged from the wall outlet.

To remove refrigerator doors:

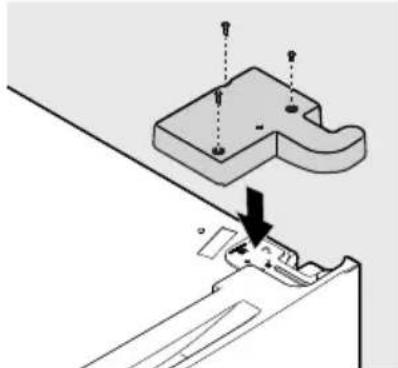

1. Remove the three screws from both hinge covers on the left and right top of the cabinet, taking care not to damage electrical connections or sensors.

Technical diagram showing a mechanical assembly with an arrow indicating a process or operation (no text or symbols present)

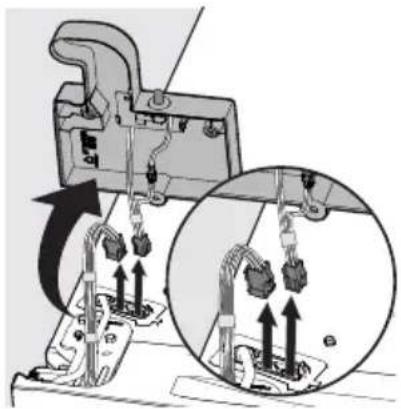

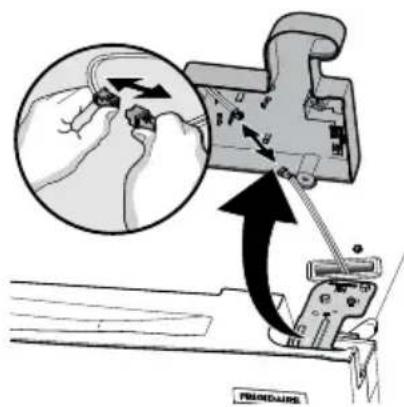

1. After the hinge covers are removed, disconnect any harnesses between the cabinet and doors by grasping both sides of the connector firmly, depress the latch and pull apart.

Mechanical device with attached wires and a magnified inset showing cable connections (no text or symbols)

Left Door

Diagram illustrating a mechanical device with force application and internal components, including a magnified view of the component.

Right Door

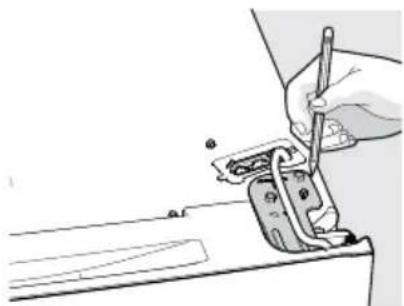

1. Trace lightly around the door's top hinges with a pencil. This makes reinstallation easier.

Illustration of a hand using a tool to adjust or install an electrical socket (no text or symbols visible)

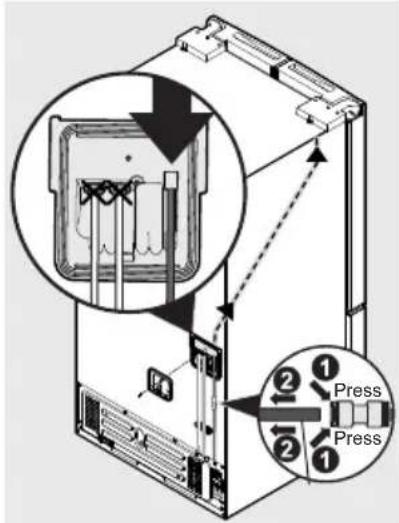

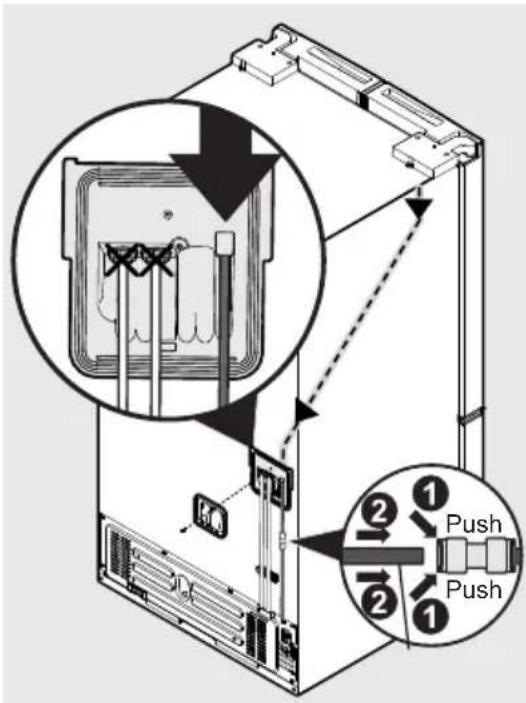

1. Remove bulkhead cover at rear of unit to access water tubing. Disconnect the water tube at the push-lock connection on the rear of the unit below the bulkhead. The dispenser line is connected to the yellow water line coming from the main water valve.

Diagram illustrating the internal structure and press application on a server rack, with numbered annotations indicating press locations.

1. Pull the water tube out of the conduit from the top of the cabinet.

NOTE

You will be pulling approximately 5 ft of water tube from the back of the refrigerator. Use care while pulling the water tube from the unit to be sure that you do not kink the tube.

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

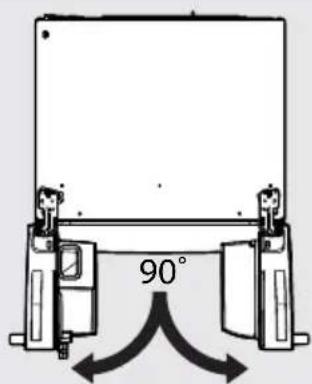

1. Open both doors to a 90° angle.

CAUTION

Be sure doors are set aside in a secure position where they cannot fall and cause personal injury, or damage to the doors or handles.

90°

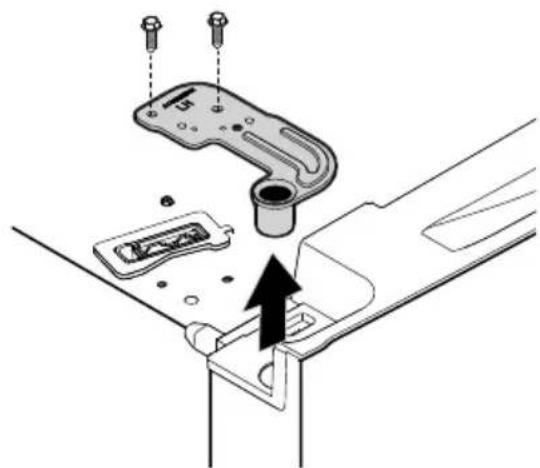

1. Remove hex screws from top hinge plate, then remove the top hinge.

Mechanical assembly diagram showing a component with bolts and a directional arrow (no text or symbols)

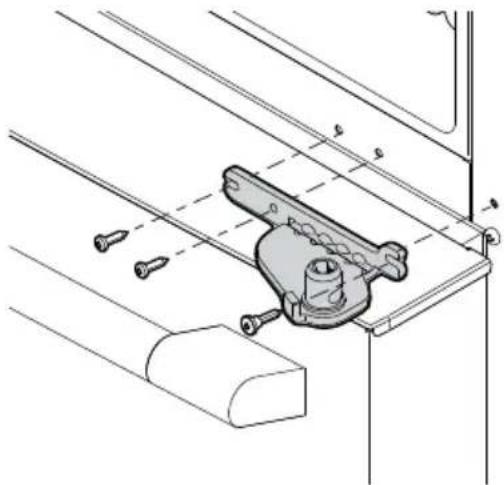

1. Lift doors off bottom hinges and set aside.
2. Unscrew the three bottom hinge screws and remove the bottom hinges.

Technical line drawing of a mechanical assembly with no visible text or symbols

Lower Hinge Removal

To reinstall the refrigerator doors:

1. Replace 3 bottom hinge screws and hinges on both sides of the cabinet. Ensure screws are tightly snug to hinges on both sides of the cabinet before reinstalling doors

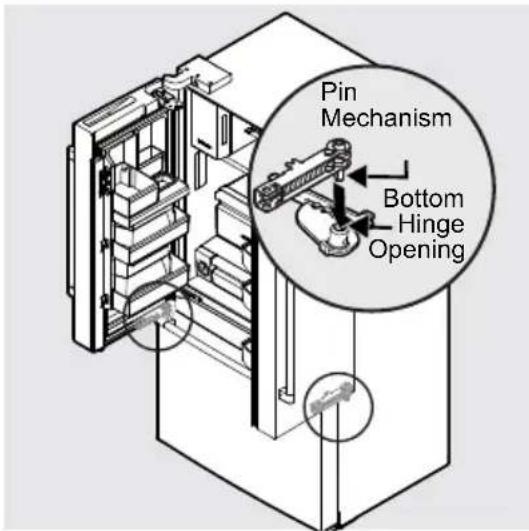

2. Holding the door at a 90° angle, drop the pin down into the bottom hinge opening. Rotate it slightly in either direction until the door falls onto the hinge and is fully seated.

Pin Mechanism Bottom Hinge Opening

NOTE

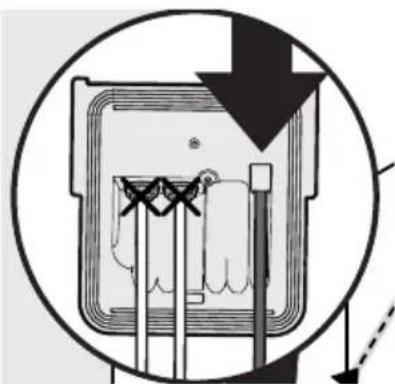

When reinserting the water tube and replacing the top hinge cover, use care to be sure you do not kink the tube. The water line may also be difficult to pass back through the conduit inside the cabinet

NOTE

Upon replacement, the tube needs to be fully inserted up to the marking line.

1. Reinstall top hinges and screws.
2. Insert and feed water line back into the conduit at the top left door hinge until tube reappears at rear of unit.

Diagram of a server rack with labeled instructions for inserting or removing a device, showing step-by-step instructions and component layout.

1. Reconnect all harnesses.
2. Replace top hinge covers and screws.
3. Reconnect water line to push-lock connection and reinstall water line bulkhead cover at rear of unit.
4. Reconnect electrical power cord to the wall outlet

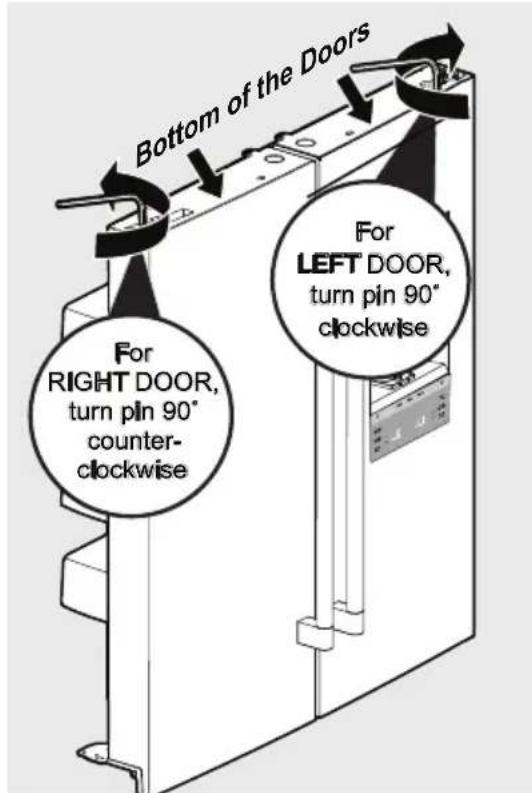

To reset door pin:

If doors are removed at less than a 40^ angle, the pin returns to the home position. It can be reset by turning the door upside down and using a 5/32" Allen wrench to rotate the left hand pin 90^ clockwise and the right hand pin 90^ counterclockwise.

Bottom of the Doors For RIGHT DOOR, turn pin 90° counter- clockwise For LEFT DOOR, turn pin 90° clockwise

Once the door pins are reset, follow the steps To reinstall the refrigerator doors.

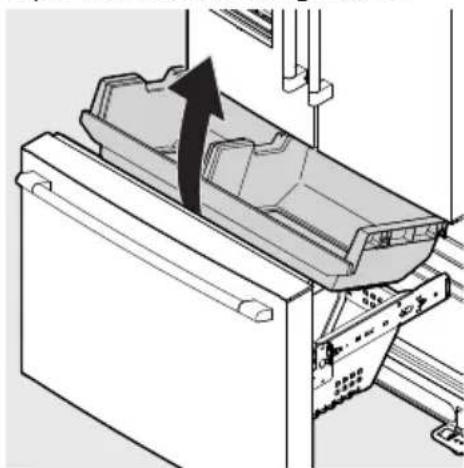

Removing Freezer Drawer

CAUTION

Drawer is heavy. Use caution when lifting.

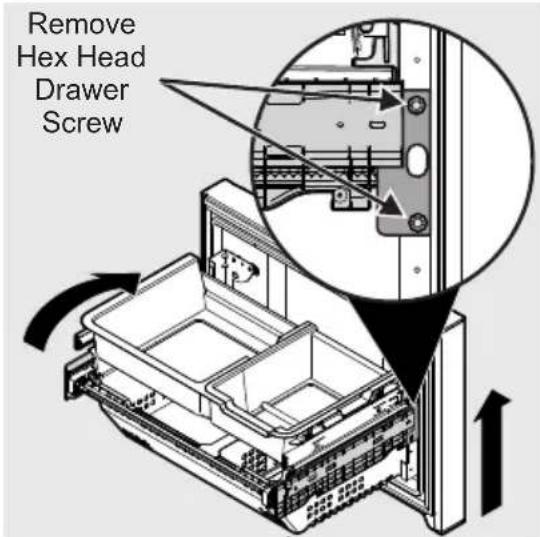

1. Remove 4 hex head drawer screws (2 per side) that secure the drawer to the slide assemblies.
2. Lift up drawer to remove.

Remove Hex Head Drawer Screw

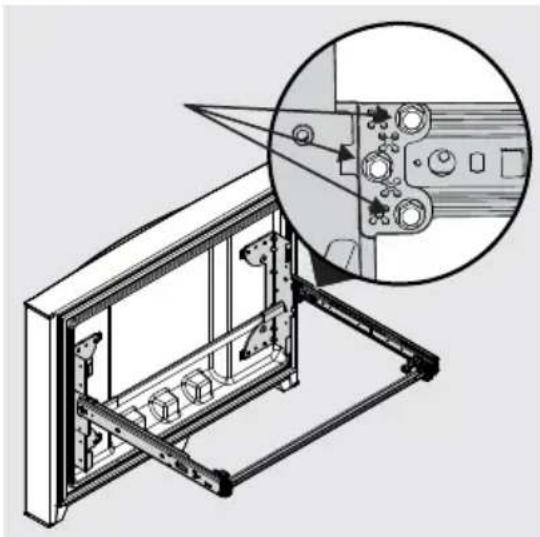

CAUTION

Do Not loosen or remove the 3 hex screws.

Technical illustration of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

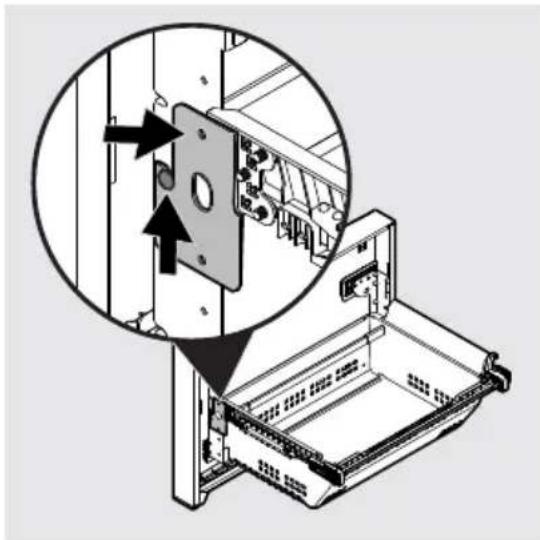

Replacing Freezer Drawer

1. Extend the Freezer slides from the unit.
2. Carefully align support pin with hooks on end of freezer slides and then lower freezer door onto slides.
3. Replace the 4 hex head screws that secure the slides to the door (2 on each side) and tighten.

Technical diagram of a server rack with an inset showing a component inserted into a panel (no text or symbols present)

NOTE

To locate the pin, look inside the drawer and the pin is next to the door liner and the slides. Not all parts are shown in the illustration.

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

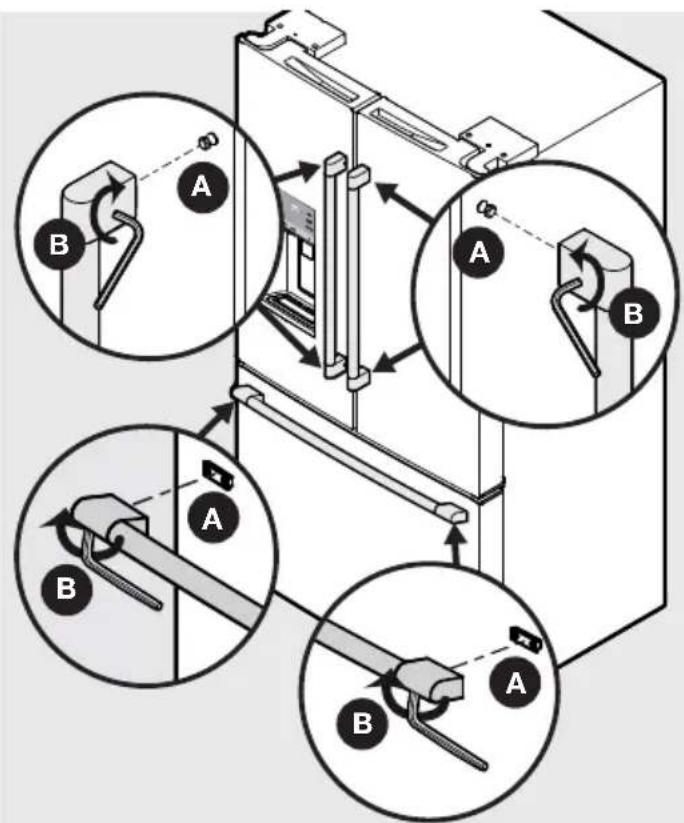

Door Handle Mounting Instructions

1. Remove handles from carton and any other protective packaging.

2. Position refrigerator handle end caps over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door.

3. While holding handle firmly against door, fasten upper and lower Allen set screws (B) with supplied Allen wrench.

4. Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws are facing towards the opposite door.

5. Position freezer handle end caps over left and right pre-installed shoulder bolts (A) that are fastened to the door, ensuring the holes for the set screws are facing down.

6. While holding handle firmly against door, loosely tighten right Allen set screw (B) with supplied Allen wrench until there is no gap between handle and door.

7. Still holding the handle firmly to the door, firmly tighten left Allen set screw (B) with supplied Allen wrench.

8. Return to the right Allen set screw (B) and firmly tighten with supplied Allen wrench.

Diagram illustrating mechanical assembly steps with labeled components A and B, showing directional movement and component placement.

NOTE

When tightening the Allen set screws, it is important that force be applied to the longer arm of the Allen wrench supplied in the handle packaging.

NOTE

All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn tight to freezer and refrigerator doors with no gaps. Opening the opposite door while tightening the Allen screw makes installation easier.

The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the handles.

WARNING

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.

CAUTION

To Avoid Property Damage:

• Copper or Stainless Steel braided tubing is recommended for the water supply line. Water supply tubing made of 14 " plastic is not recommended to be used. Plastic tubing greatly increases the potential for water leaks, and the manufacturer will not be responsible for any damage if plastic tubing is used for the supply line.
• DO NOT install water supply tubing in areas where temperatures fall below freezing.
  • Chemicals from a malfunctioning water softener can damage the ice maker. If your home has a water softening system, ensure the softener is maintained and working properly.

IMPORTANT

Ensure your water supply line connections comply with all local plumbing codes.

Before Installing The Water Supply Line, You Will Need:

• Basic Tools: adjustable wrench, flat-blade screwdriver, and Phillips™ screwdriver
• Access to a household cold water line with water pressure between 30 and 100 psi.

• A water supply line made of 14'' (6.4 mm) OD, copper or stainless steel tubing. To determine the length of tubing needed, measure the distance from the water inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 6' (1.8 m) so the refrigerator can be moved out for cleaning as shown.

• A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type shutoff valve.

• Do not reuse compression fittings or use thread seal tape.
• A compression nut and ferrule (sleeve) for connecting a copper water supply line to the ice maker inlet valve.

NOTE

Check with your local building authority for recommendations on water lines and associated materials prior to installing your new refrigerator. Depending on your local/state building codes, we recommend, for homes with existing valves, a 6' (1.8 m) Stainless Steel Water Line, and for homes without an existing valve we recommend a 20' (6 m) Copper Water Line with self-tapping saddle valve. Call 833-337-4006 for more information.

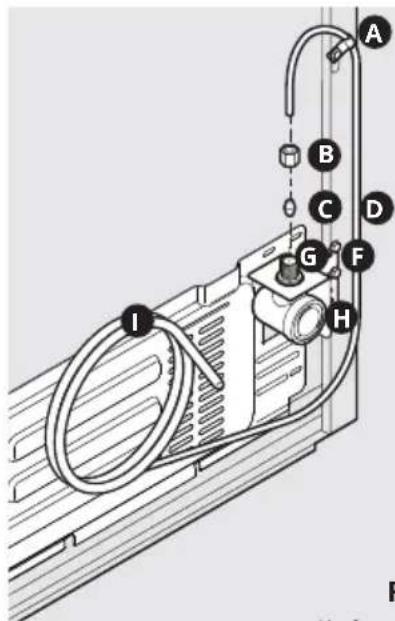

To Connect Water Supply Line To Main Water Inlet Valve

1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn ON water supply and flush supply line until water is clear. Turn OFF water supply at shutoff valve.
3. Remove plastic cap from water valve inlet and discard cap.
4. If you use copper tubing - Slide brass compression nut, then ferrule (sleeve) onto water supply line. Push water supply line into water valve inlet as far as it will go (¼"/6.4 mm). Slide ferrule (sleeve) into valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT overtighten. See Figure 1.

If you use braided flexible stainless steel tubing - The nut is already assembled on the tubing. Slide nut onto valve inlet and finger tighten nut onto valve. Tighten another half turn with a wrench; DO NOT overtighten. See Figure 2.

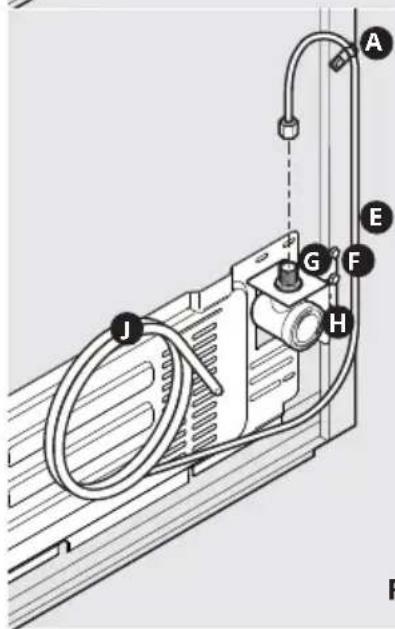

Technical diagram of a mechanical device with labeled components A through H, showing wiring and components.

Figure 1

Technical diagram of a mechanical device with labeled components A through J, showing wiring and housing connections.

Figure 2

1. With steel clamp and screw, secure water supply line to rear panel of refrigerator as shown.
2. Coil excess water supply line (copper tubing only), about 2½ turns, behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface. Do not kink tubing.
3. Turn ON water supply at shutoff valve and tighten any connections that leak.
4. Reconnect refrigerator to electrical power source.
5. To turn ice maker on, ensure Ice Maker is enabled on display (LED will be lit) or set the ice maker's On/off power switch to the ON (freezer ice maker).

Parts
A	Steel clamp
B	Brass compression nut
C	Ferrule sleeve
D	Copper water line
E	Braided flexible stainless steel water line
F	Water valve bracket
G	Water valve inlet
H	Water valve
I	Copper water line from household water supply
J 6	(1.8 m) minimum braided flexible stainless water line from household water supply
Include enough tubing in loop to allow moving the refrigerator out for cleaning.

NOTE

These instructions do not cover after market ice maker installation. Instructions in after market ice maker kit should be used.

IMPORTANT

Your refrigerator's water supply system includes several tubing lines, a water filter, and a water valve. To ensure that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply line.

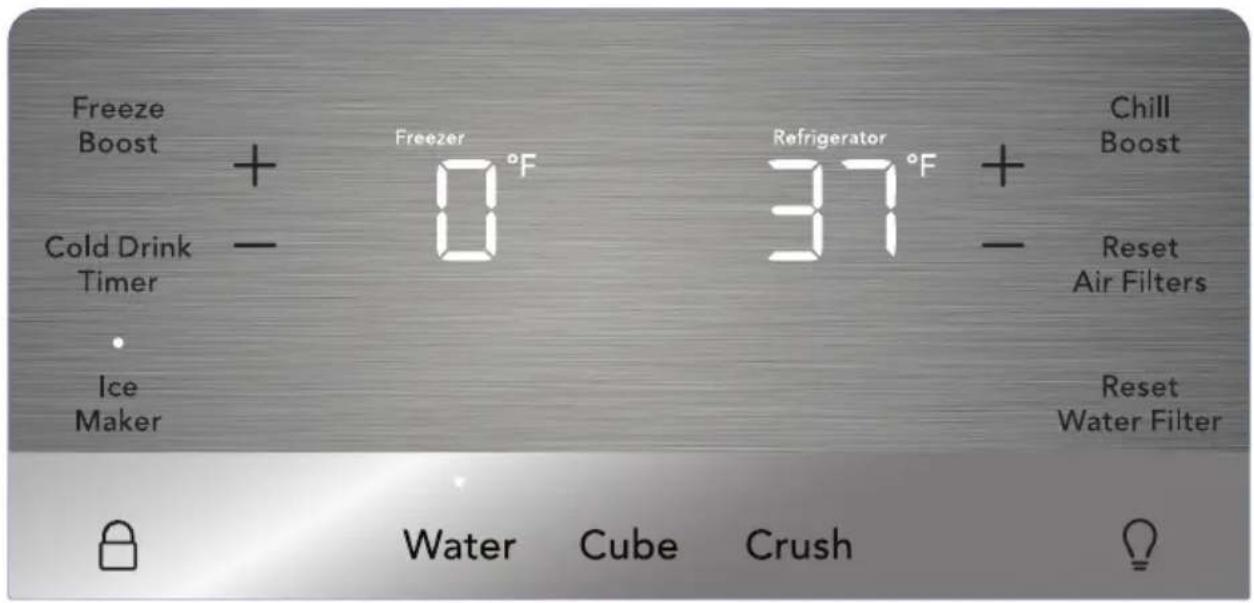

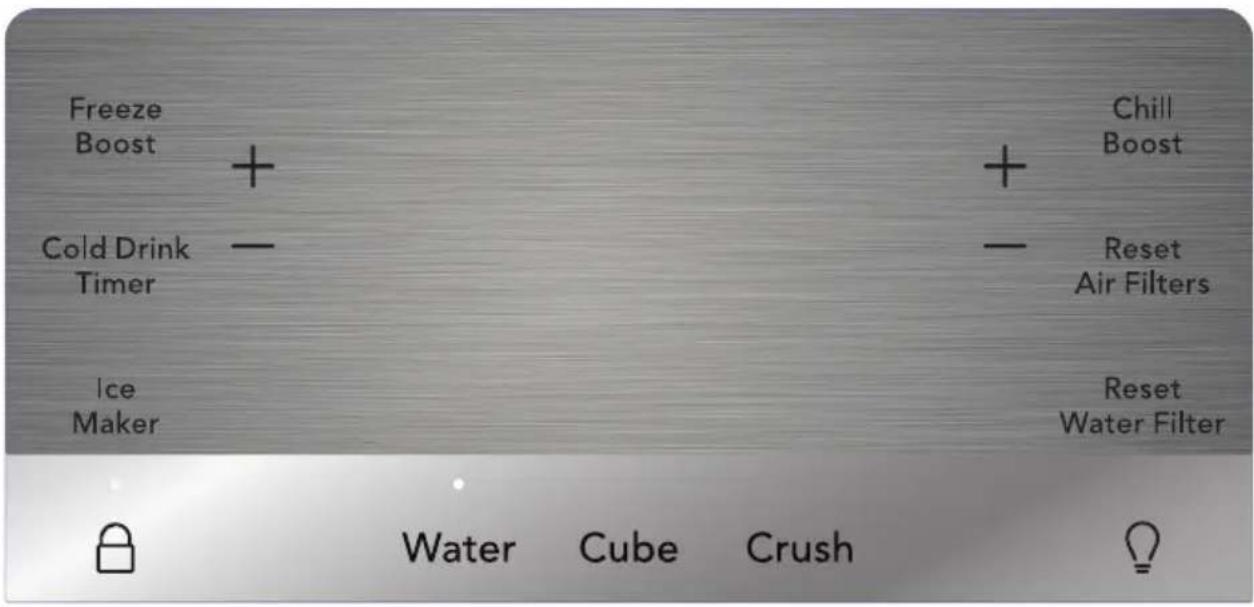

Sleep Mode Display

Freeze Boost + Cold Drink Timer - Ice Maker Chill Boost Reset Air Filters Reset Water Filter Water Cube Crush

Sleep Mode

As a default, the display will go to sleep after a short time. If any icon is pressed, the display will be awakened. After a short time, it will go back to sleep. When in sleep mode, wake up the display to confirm ice maker is On/Off. Sleep mode can be turned off to have the display on full time (awake mode). When sleep mode is Off, the display will always be illuminated. To turn sleep mode On/Off, simultaneously press and hold Crush and Light icons for 5 seconds. Tone will confirm.

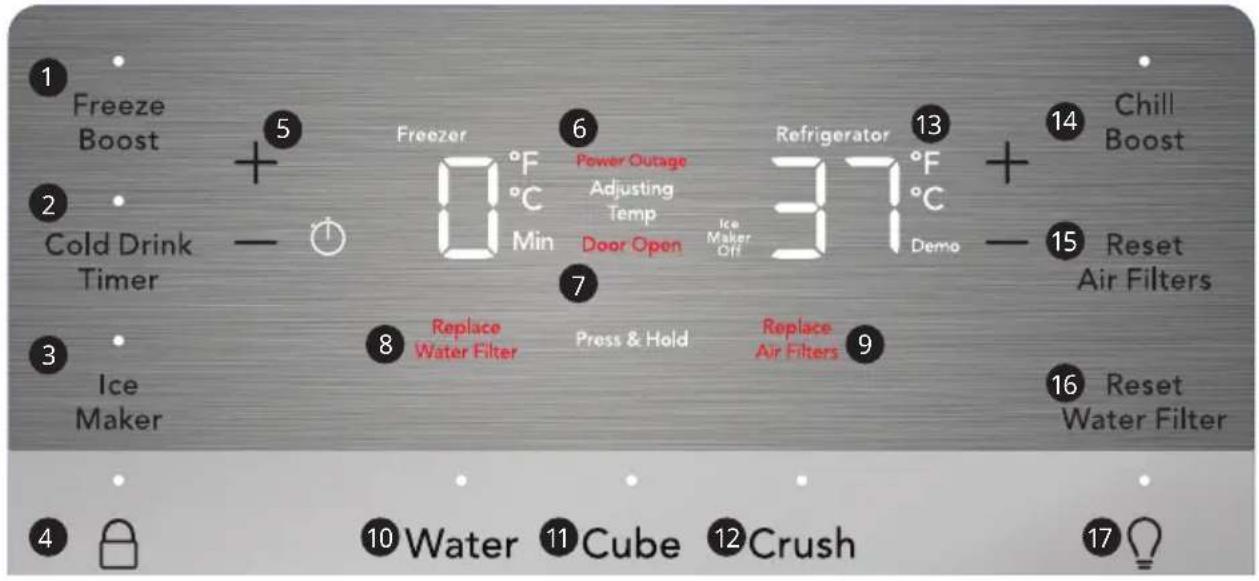

Awake Mode Display

Freeze Boost + - Cold Drink Timer Ice Maker Freezer 0°F Refrigerator 37°F + - Chill Boost Reset Air Filters Reset Water Filter Water Cube Crush

Awake Mode

To change from sleep mode (on) to awake mode (off), simultaneously press and hold Crush and Light icons for 5 seconds. Display will show the current temperature/ice maker status. Tone will confirm.

1 Freeze Boost 2 Cold Drink Timer 3 Ice Maker 4 Water 5 Freezer 6 Power Outage Adjusting Temp Door Open 7 Press & Hold 8 Replace Water Filter 9 Replace Air Filters 10 Cube 11 Crush 12 Crush 13 Refrigerator 14 Chill Boost 15 Reset Air Filters 16 Reset Water Filter

1 Freeze Boost (on/off)

Prior to grocery shopping, we recommend you activate Freeze

Boost to lower the temperature and freeze food faster. Freeze Boost will remain active for up to 24 hours before automatically deactivating or manually exiting by pressing Freeze

Boost to turn the function off. This will reset the freezer to the previous temperature setting.

2 Cold Drink Timer

Touch Cold Drink Timer to quickly chill a drink inside the freezer compartment. A time value will appear on the freezer temp display (range is from 20-45 minutes in 5 minute intervals) and can be changed using the +/- buttons. A tone will sound when you input the time. Drinks will freeze if the temperature setting is too low or the timer setting is too long.

WARNING

When using the cold drink timer, make sure to remove drinks from freezer compartment when alarm sounds. Carbonated drinks may explode if left in freezer for too long.

3 Ice Maker

Press and hold for 3 seconds to turn the ice maker on/off. When the indicator is lit, the ice maker is on. When the indicator is not lit, the ice maker is in the OFF state and will stop making ice. While off, ice dispensing can continue as long as there is ice in the bucket. When the ice maker is off and ice is dispensing, the indicator will blink.

4 Lock Controls

Use to lock the display preventing it from being used in certain situations. Press and hold for 3 seconds to enable/disable. While in the locked state, you cannot make changes to settings on the display. Dispensing ice and water will be disabled. The indicator will flash and you will hear an audible warning tone.

5 Adjusting Temp

Illuminates when you change temperatures on the display and will remain illuminated until you reach the desired temperatures inside the refrigerator and freezer. Press either + or - to adjust to the desired temperature setting.

Freezer temp - Control temperatures range from -6°F / -21°C to +6°F / -15°C.

Refrigerator temp - Control temperatures range from +34°F / +1°C to +44°F / +7°C.

This unit is designed to operate at 37°F Refrigerator/0°F Freezer.

Temperatures should stabilize within 24 hours of installation.

6 Power Outage

In the event of a power outage, the power outage alert will illuminate once power has been restored and a tone will sound. Press any button to silence the tone.

7 Door Open

This alert indicates the door has been open for 5 minutes or more. The Door Open LED illuminates and the audible alert sounds until the door is closed. Turn the audible alert off by pressing Door Open or by closing the door. If the door is open for 5 minutes, the interior light will turn off.

8 Water Filter

Water Filter illuminates every 6 months or when you need to replace the filter. Replace the filter, and then press and hold Reset Water Filter for 3 seconds to deactivate the warning on display. See FILTER REPLACEMENT for more information.

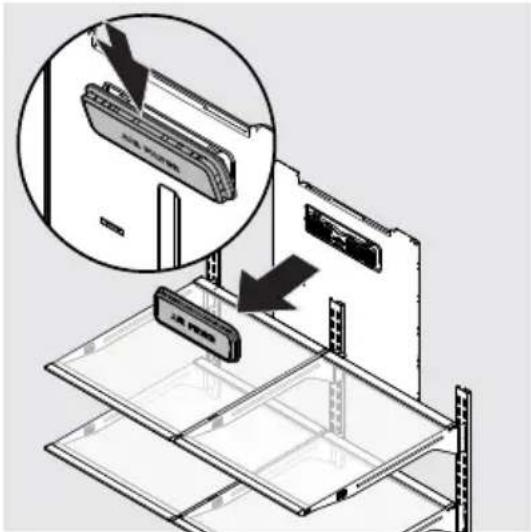

9 Air Filter

Air Filter illuminates every 6 months or when you need to replace the filter. Replace the filter, and then press and hold Reset Air Filter for 3 seconds to deactivate the warning on the display. See FILTER REPLACEMENT for more information.

10 Water

Press Water to select water. An indicator light illuminate above the active feature.

11 Cube

Press Cube to select cubed ice. An indicator light will illuminate above the active feature.

12 Crush

Press Crush to select crushed ice. An indicator light will be illuminate above the active feature.

13 °F/°C

To toggle between Fahrenheit (°F) and Celsius (°C), simultaneously press and hold + and - for 5 seconds on the refrigerator side of the display.

14 Chill Boost

Prior to grocery shopping, we recommend you activate Chill Boost to lower the temperature and cool food faster. Chill Boost will remain active for up to 6 hours before automatically deactivating or manually exiting by pressing Chill Boost to turn the function off. This will reset the freezer to the previous temperature setting.

15 Reset Air Filters

The filter condition status is always displayed when the door is open. Press and hold for 3 seconds to reset after changing the filter.

16 Reset Water Filter

Press and hold for 3 seconds to reset after changing the filter.

17 Light

Toggles dispenser light On and Off.

NOTE

The recommended settings for a product installed in a kitchen is 37^ F for the refrigerator and 0^ F for the freezer.

Setting cooling temperatures

Press + or - next to the Refrigerator or Freezer temperature display to adjust the temperature to the desired setting.

The temperature setting will begin to blink with the first touch. The display will time out after 10 seconds and return to the basic display.

Clear Alerts

Door Open

If the freezer or refrigerator doors are left open for 5 minutes or more, an alarm sounds and the door open indicator illuminates on the display. Close the door or press any key on the display to silence the alarm. The appliance control display will return to normal operations after the door is closed.

High Temp Alarm

An alarm sounds in the event of a high temperature condition. The appliance control displays HI on whichever compartment the alarm is detected in, and the alarm sounds every 10 seconds until acknowledged. Touch any key or open a door to silence the alarm.

Power Outage

In the event of a power outage, a tone sounds and the power outage alert illuminates once power has been restored. Press any key on the appliance control display to silence the alarm.

Flapper

If the flapper (or ice chute door) is held open by a jammed ice cube when you select Cube or Crush, an alarm sounds and the current selection blinks on the dispenser control. The alarm resets when you remove the ice cube.

NOTE

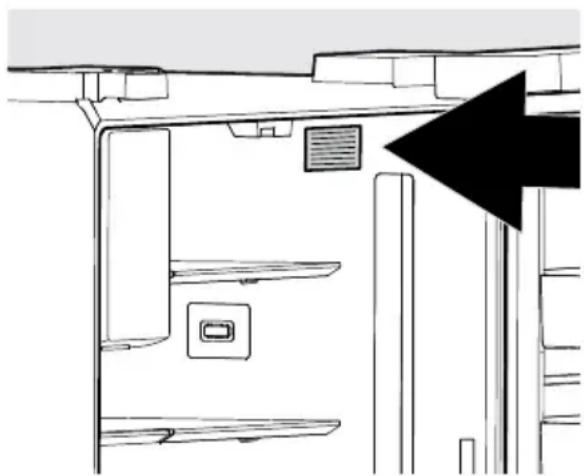

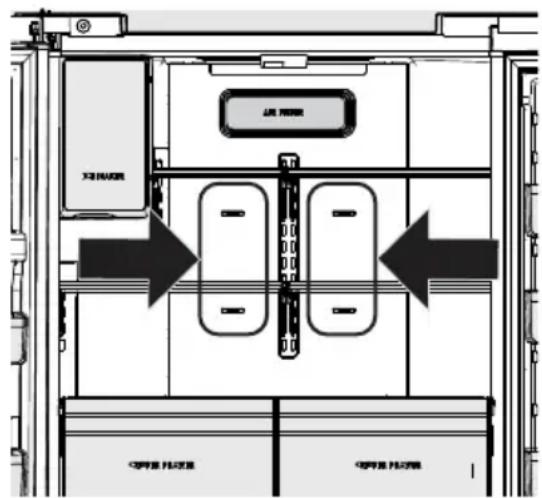

Food placed within 1" in front of air ports may cause food to freeze.

Sabbath Mode

The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.

Turn Sabbath Mode ON and OFF by simultaneously pressing and holding both the Freezer - and Refrigerator + for 10 seconds. The display shows Sb while in Sabbath mode.

In the Sabbath Mode, the High Temp alarm is active for health reasons. For example, if the door is left ajar the High Temp alarm is activated. The refrigerator will function normally once the door is closed, without any violation of the Sabbath/Holidays. The High Temp alarm is permitted when the cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while High Temp stays lit until you exit the Sabbath mode.

For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, please visit the web at star-k.org.

NOTE

While in Sabbath Mode, neither the lights, dispenser, nor the appliance control display will work until Sabbath Mode is deactivated.

The refrigerator stays in Sabbath Mode after power failure recovery. You must deactivate it with the buttons on the appliance control display.

NOTE

Although you have entered the Sabbath Mode, the ice maker will complete the cycle it had already initiated. The ice cube compartment will remain cold, and you can make new ice cubes with standard trays.

Refrigerator Ice Maker

Priming the water supply system

Using the dispenser after installation

Before making ice for the first time, be sure to prime the water supply system. Air in new plumbing lines can result in 2 or 3 empty ice maker cycles. Furthermore, if the system is not flushed, the first ice cubes may have discolored water or have an odd flavor.

CAUTION

For proper dispenser operation, we recommend the water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause the system to malfunction.

1. Begin filling the system by pressing and holding a drinking glass against the water dispenser paddle.
2. Keep the glass in this position until water comes out of the dispenser. It may take about 1½ minutes.
3. Continue dispensing water for about 4 minutes to flush the system and plumbing connections of any impurities (stopping to empty the glass as necessary).

Line drawing of a refrigerator with a digital display on top panel (no text or symbols)

Dispenser

NOTE

The water dispenser has a built-in device that shuts off the water flow after 3 minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.

NOTE

Dispensed water is not chilled. For colder water, add ice to cup or container before dispensing water.

Ice maker operation and care

After you properly install the refrigerator and it has cooled for several hours, the ice maker can produce ice within 24 hours. The ice maker will fill the ice bin from the rear. You must dispense some ice to force the ice forward in the bin. This will allow the bin to fill completely.

Ice Maker and Storage Bin Capacity

In a Standard Depth model, the refrigerator ice maker should produce 3.0 to 3.4 pounds of ice per 24 hours. In a Counter Depth model, the refrigerator ice maker should produce 2.7 to 3.2 pounds of ice per 24 hours.

In a Standard Depth model, the refrigerator ice bin will hold around 5 pounds of ice. In a Counter Depth model, the refrigerator ice bin will hold around 3.7 pounds of ice.

Refrigerator Ice Maker

Turning the refrigerator ice maker on and off

Ice production is controlled by the ice maker's On/Off feature on the appliance control panel. Pressing the On/Off feature turns the ice maker on & off.

IMPORTANT

Turning off the ice maker simply disables ice making. You will still be able to dispense existing ice, and you will still be able to dispense water.

NOTE

The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. This signal arm should not be used to manually stop the ice maker.

IMPORTANT

Your ice maker is turned on at the factory so it can work as soon as you install your refrigerator. If you cannot connect a water supply, set the ice maker's On/Off feature to Off; otherwise, the ice maker's fill valve may make a loud chattering noise when it attempts to operate without water.

IMPORTANT

On occasion, you may notice unusually small ice cubes in the bucket or in dispensed ice. This could occur in normal operation of the ice maker. If you start seeing these more frequently, it may indicate low water pressure or the water filter needs to be replaced. As the water filter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. Remember, if it's been 6 months or longer since you last changed your water filter, replace the water filter with a new one. Poor quality household water may require you change the filter more frequently.

Ice maker/dispenser tips

• If your refrigerator is not connected to a water supply or the water supply is turned off, turn off the ice maker as described in the previous section.

• The following sounds are normal when the ice maker is operating:

• Motor running

• Ice dropping into ice bin
• Water valve opening or closing
• Running water

- If you need a large quantity of ice at one time, it is best to get cubes directly from the ice bin.

• Ice cubes stored too long may develop an odd flavor. Empty the ice bin as explained below.
• When dispensing cubed ice, it is normal to have a small quantity of little pieces along with the whole cubes.
  • To avoid splashing, dispense ice into your container before adding liquids.
• It is normal for ice to fill to the top of the ice bin.

CAUTION

If the water supply to your refrigerator is softened, be sure to properly maintain the softener. Chemicals from a water softener can damage the ice maker.

Refrigerator Ice Maker

Cleaning the ice maker

Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

Illustration of hands inserting a device into a storage bin with arrows indicating direction (no text or symbols)

Removing Ice Bin

1. Turn off the ice maker.
2. Lift the ice bin upward then pull straight out to remove.
3. Empty and carefully clean the ice bin with mild detergent. Do not use harsh or abrasive cleaners. Rinse with clean water.
4. Allow the ice bin to dry completely before replacing in the freezer.
5. Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if:

• An extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and refreeze together after power is restored, jamming the dispenser mechanism.
• You do not use the ice dispenser frequently. Ice cubes will freeze together in the bin, jamming the dispenser mechanism.

CAUTION

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin and dispenser mechanism.

To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.

IMPORTANT

When removing or replacing the ice bin, avoid rotating the auger in the ice bin. If you accidentally rotate the auger, you must realign the auger by turning it in 45° turns (see below) until the ice bin fits into place with the drive mechanism. If you do not properly align the auger when replacing the ice bin, the refrigerator will not dispense ice. The refrigerator door also may not close properly causing warm air to leak into the refrigerator compartment.

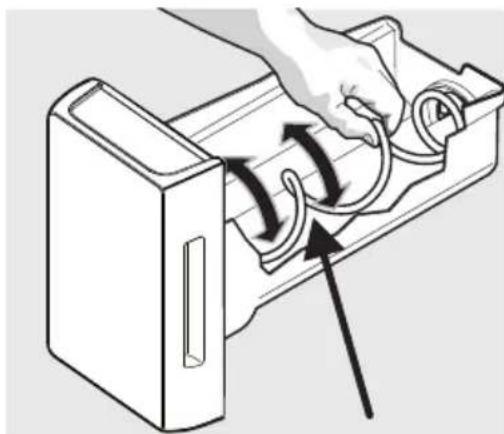

Diagram of a hand using a coiled cable to interact with a device in a container (no text or symbols)

Adjusting Ice Bin Auger

Freezer Ice Maker

Ordering the Optional Freezer Ice Maker

Order the optional freezer ice maker by calling [phone].

Ice Maker Operation & Care

After the refrigerator is installed properly, the ice maker can produce ice within 24 hours. When using the ice maker for the first time, and in order for it to work properly, it is necessary to clear air from the water tubing and the filter. Furthermore, if the system is not flushed, the first ice cubes may be discolored or have an odd flavor. Once the ice maker begins making ice, allow the bin to fill completely, then discard the first FULL bin of ice.

Ice Maker and Storage Bin Capacity

This ice maker should produce between 2 and 2.5 pounds of ice per 24 hours depending on usage conditions. For a Standard Depth unit, the ice bin should hold around 12 pounds of ice. For a Counter Depth unit, the ice bin should hold around 9 pounds of ice.

NOTE

The ice maker will only produce the advertised production rate if the product is set at 0^ F.

Turning the ice maker on and off

Press power button to turn Ice Maker on (button will not illuminate).

NOTE

The Freezer Ice maker fills from the back left-hand corner of the bin. Moving the ice to the edges of the bin allows the bin to fill completely.

on off

Ice maker tips

• The following sounds are normal when the ice maker is operating:

• Motor running
• Ice dropping into ice bin
• Water valve opening or closing
• Running water
• Ice cubes stored too long may develop an odd flavor. Empty the ice bin as explained below.

CAUTION

If the water supply to your refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker.

Freezer Ice Maker

Cleaning the ice maker bin

Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

1. Turn off the ice maker.
2. Remove the ice bin.
3. Empty and carefully clean the ice bin with mild detergent. Do not use harsh or abrasive cleaners. Rinse with clean water.

4. Allow the ice bin to dry completely before replacing in the freezer.

5. Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if an extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and refreeze together after power is restored.

CAUTION

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin.

To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.

Shelves

CAUTION

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in dishwasher.

You can easily adjust shelf positions in the refrigerator compartments to suit your needs. The shelves have mounting brackets that attach to slotted supports at the rear of each compartment.

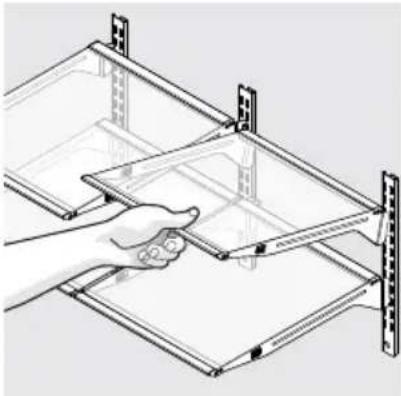

Change the Position of a Shelf

1. Remove all food from the shelf.
2. Lift the front edge up and pull the shelf out.

Illustration of a hand holding a tray over a multi-tiered shelf (no text or symbols visible)

1. Replace by inserting the mounting bracket hooks into the desired support slots.
2. Lower the shelf and lock it into position.

To adjust slide-under shelf

1. Push the front half shelf backward toward the rear of the cabinet until the rear half shelf drops down. Then gently

Technical line drawing of a mechanical assembly with no visible text or symbols

Slide-Under Shelf

continue pushing the front half shelf back and under the rear half shelf.

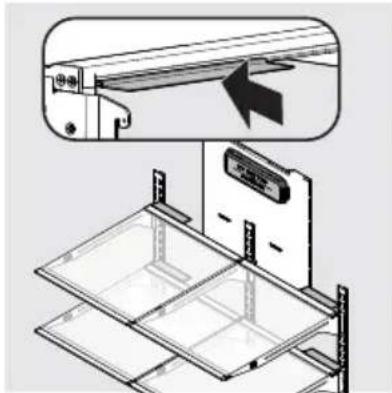

Reposition the Air Seal

For glass shelves:

1. Remove the air seal by pushing the seal straight back.
2. Position the air seal toward the outside edge of the shelf to avoid the air tower when you push the shelf back into place.
3. Install the seal by sliding the open channel end of the seal onto the back edge of the shelf until the seal sits snug on the back of the shelf and the flap sits at about a 10^ angle from the shelf surface.

IMPORTANT

Be aware of the air seal located at the rear of the shelf. Shelves located on the left side should have the air seal mounted on the far left side. Shelves located on the right side should have the air seal mounted on the far right side. This is to ensure there is no interference with the large air tower on the back wall of the cabinet. This also applies to the crisper shelves.

Diagram of a refrigerator interior with a door and storage tray, showing no text or symbols.

Drawers

Your refrigerator includes a variety of storage drawers.

Crispers

Crispers are designed for storing fruits, vegetables, and other fresh produce.

Illustration of a hand using a tool to lift a device into a rack, with no visible text or symbols.

Opening the Crisper

Crisper Humidity Control

Crispers have an auto humidity control on the back of each crisper under the humidity control cover.

NOTE

We do not recommend replacing the auto-humidity membrane unless it becomes damaged or ruined. If the membrane becomes soiled, washed it with soap and water. Ensure the membrane is dry before replacing it in unit.

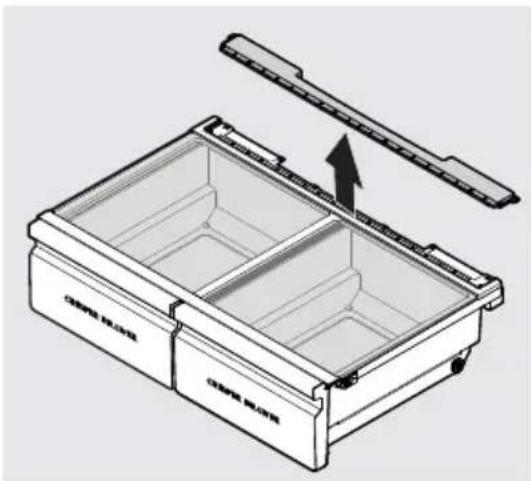

To remove the auto humidity control membrane:

1. Remove any shelves placed above the crisper cover, and then lift up and remove the crisper cover from the unit.

2. Remove 3 screws on the bottom of the crisper cover to release the auto humidity cover.

3. Slide out the auto humidity cover from the crisper cover to gain access to the humidity membrane.

4. Clean the membrane with hot soapy water.

5. Replace the membrane and cover by reversing the steps above.

Diagram of a drawer with two compartments and an arrow indicating direction (no text or symbols)

Removing Auto Humidity Control Membrane

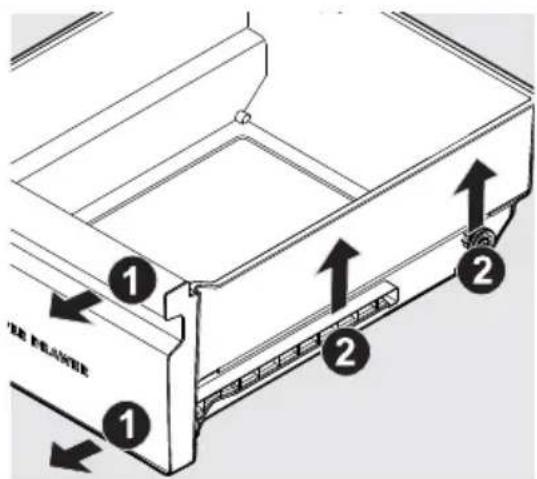

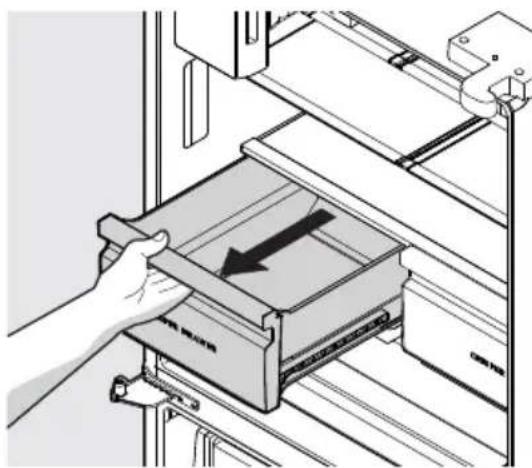

To remove the Crisper for cleaning:

1. Pull the crisper out until it stops.
2. Lift the front slightly and remove the crisper.

① ② ① ②

Removing the Crisper

1. Push the crisper straight once the bottom rollers clear the front deli crisper support rollers.

CRISPINE BEAMER

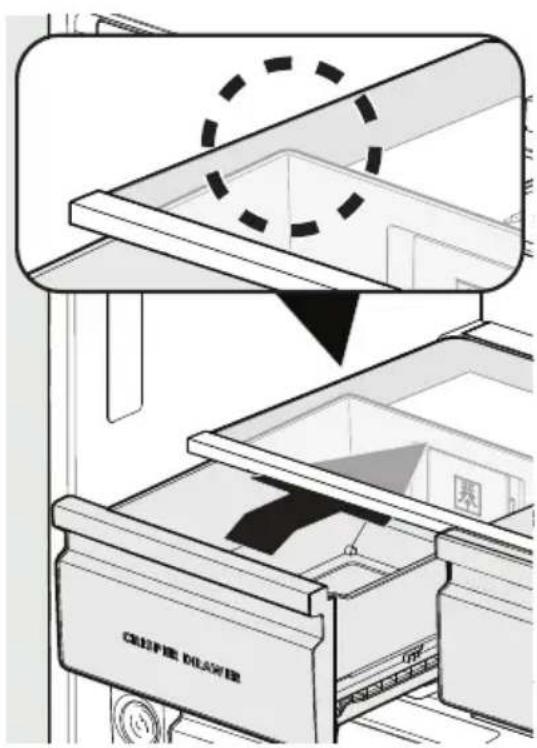

To replace the Crisper after cleaning:

1. Place the crisper on top of the deli cover and slightly tilt it upward.

NOTE

The gasket should be on the outside wall of the crisper when assembled.

DHAR AIR DEHYDAR

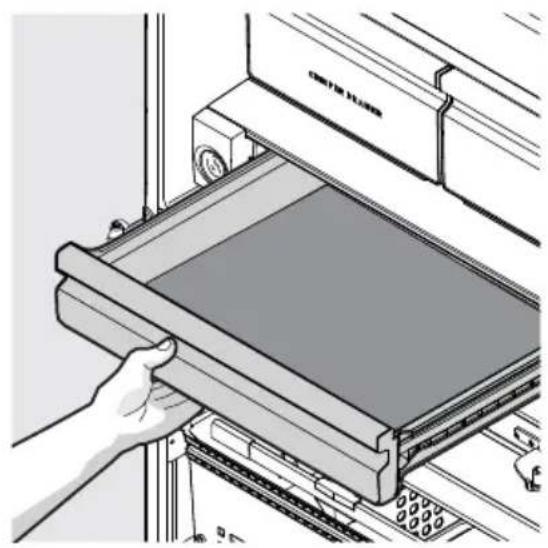

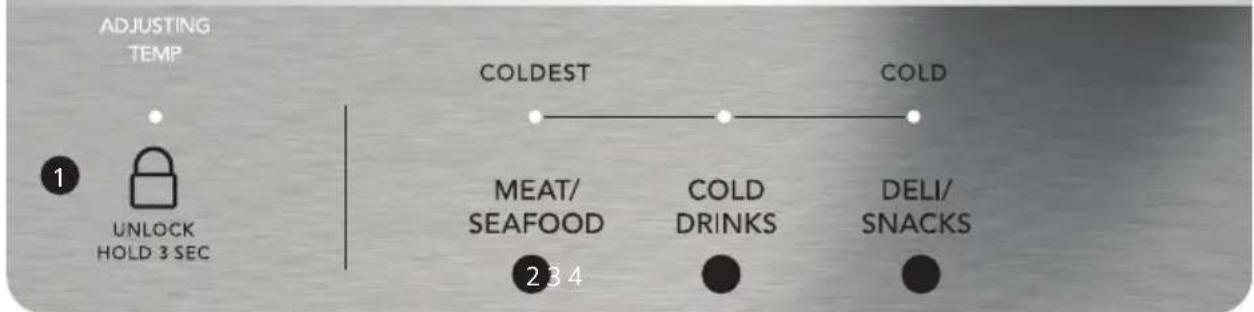

Adjustable Temp Drawer

ADJUSTABLE TEMP DRAWER

ADJUSTING TEMP 1 UNLOCK HOLD 3 SEC COLDEST COLD MEAT/ SEAFOOD COLD DRINKS DELI/ SNACKS 2 3 4

Ideal for storing deli meats, cheese, and beverages.

Illustration of a hand inserting a tray into a device (no text or symbols visible)

Using your Adjustable Temp Drawer

IMPORTANT

Do not use the Adjustable Temp Drawer to store fresh produce as these items may freeze and cause damage to the fruits and leafy vegetables stored in the drawer.

1 Lock Control

The drawer automatically defaults to a locked state to prevent any unwanted use. To change the drawer's settings, you first need to unlock it. To unlock it, press and hold for 3 seconds. It will automatically lock after 10 seconds without any interaction.

2 Meat/Seafood Setting

Select Meat/Seafood for short term storage. Freeze any meat to be kept longer than 2 days. A tone will sound to confirm choice.

3 Cold Drinks Settings

Select Cold Drinks when storing individually packaged beverages such as soda cans or juice boxes. A tone will sound to confirm your choice.

4 Deli/Snacks Settings

Select Deli/Snacks when storing meat and cheeses. A tone will sound to confirm your choice.

Doors

Storage bins

The doors to your refrigerator compartment use a system of modular storage bins. All of these bins are removable for easy cleaning. Some of them have fixed positions, while others can be adjusted to your needs.

Door bins are ideal for storing jars, bottles, cans, and large drink containers. They also enable quick selection of frequently used items.

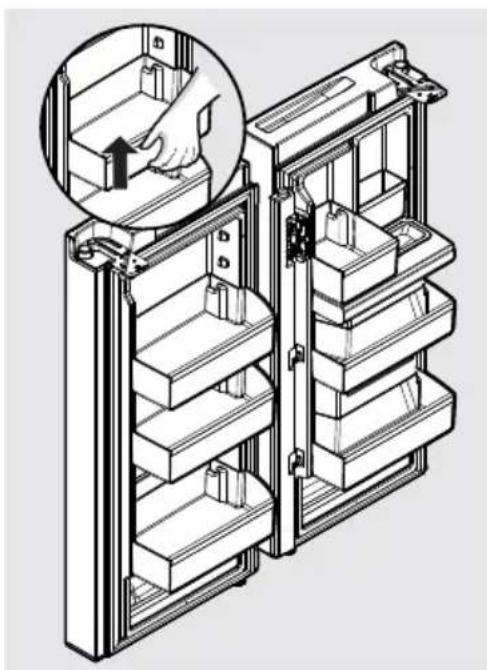

To change the position of an adjustable door bin:

1. Remove all food from door bin.
2. Grip the bin firmly with both hands and lift it upward.
3. Remove the bin.
4. Place the bin just above the desired position.
5. Lower the bin onto supports until it locks in place.
6. Place the bin liner into the bin.

Technical illustration of a multi-level refrigerator with an inset showing hand positioning and mounting bracket (no text or symbols)

Adjustable Door Bins

Freezer Accessories

Your freezer has baskets and dividers you can adjust to your needs.

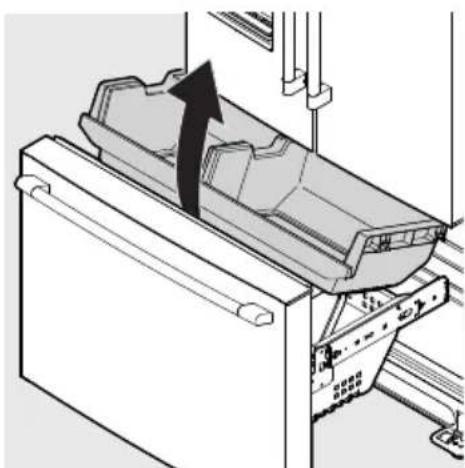

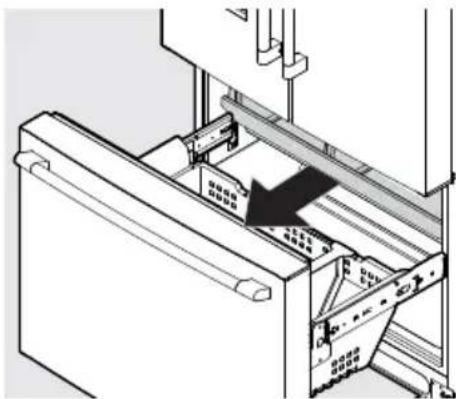

To remove the upper freezer basket:

1. Open the freezer drawer fully.
2. Extend the upper freezer drawer all the way out from the cabinet.

Technical line drawing of a mechanical assembly with a black arrow indicating a component (no text or symbols present)

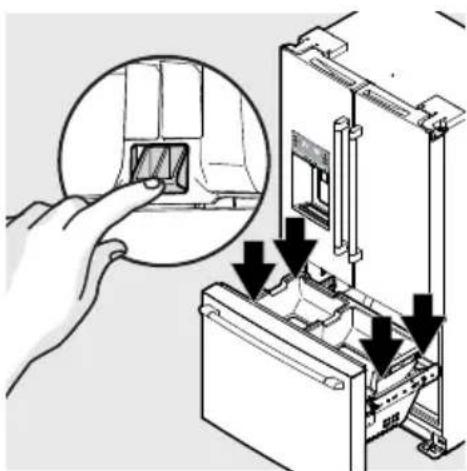

1. Push inward slightly on the basket tabs to release the upper basket from the slide assemblies (1 per side, in front).

Diagram showing a hand inserting a component into a device with arrows indicating process flow (no text or symbols present)

1. Lift the basket up and out of the freezer compartment.

Diagram of a refrigerator interior with an upward arrow indicating motion or movement (no text or symbols present)

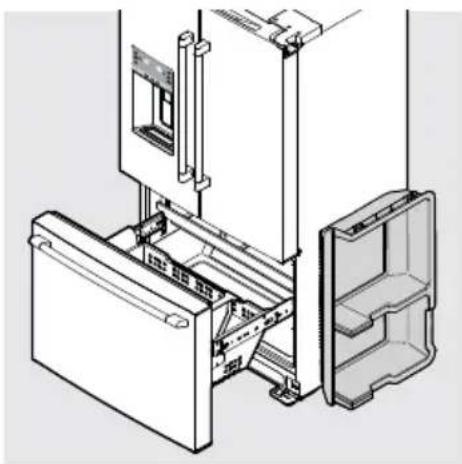

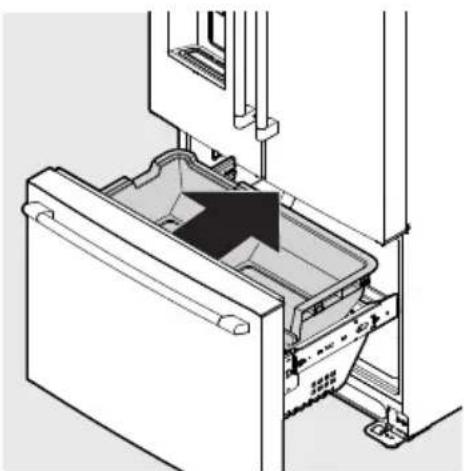

To replace the upper freezer basket

1. Open the freezer drawer completely.

Technical line drawing of a refrigerator internal compartments and door frame (no text or symbols)

1. Pull both the upper slides out of the freezer compartment, fully extending them.
2. Take the upper basket assembly and snap the basket back into the docks on the slide assemblies. Perform this on one side at a time as slides will move freely during the installation.
3. Once you place the basket is fully on the upper slide assemblies, push the basket back into the freezer compartment.

Diagram of a refrigerator interior with an arrow indicating a component, showing no text or symbols.

1. Close the freezer drawer completely.

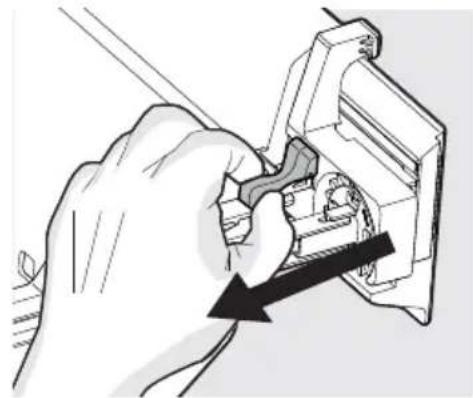

To Remove Lower Freezer Basket:

Hand using a tool to adjust or install a mechanical component, no text or symbols visible

1. Open the freezer compartment completely.
2. Locate basket clips in the rear corners of the basket and pull them out to remove it.
3. Lift the basket up and remove it. Reverse the steps to reinstall the lower freezer basket.

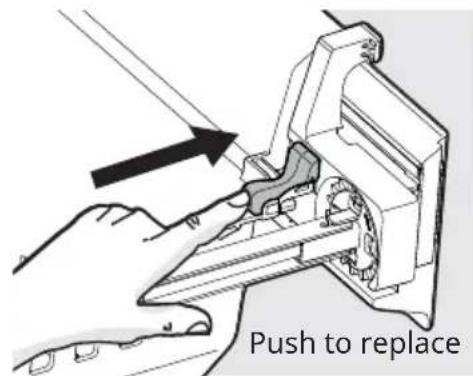

Push to replace

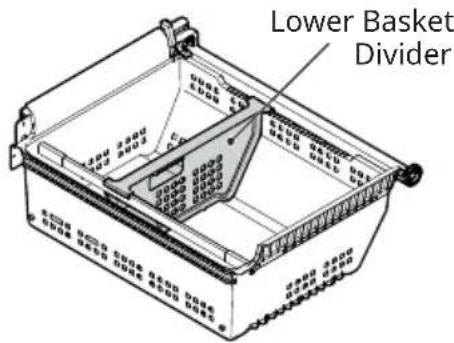

Lower Basket Divider

Grab the lower basket divider and pull it up slightly to slide to the next position. (The divider cannot be removed.)

Lower Basket Divider

Ideas for storing foods

Refrigerator storage

• Keep the refrigerator compartment between 34°F and 40°F with an optimum temperature of 37°F.
• Avoid overcrowding the refrigerator shelves, which reduces air circulation and causes uneven cooling.
• Avoid placing food in front of air ports. (See CONTROLS AND SETTINGS for illustration.)

Fruits and vegetables

• Store fruits and vegetables in crisper drawers, where trapped moisture helps preserve food quality for longer time periods.
• Wash items and remove excess water.
• Wrap any items that have strong odors or high moisture content.

Meat

• Wrap raw meat and poultry separately and securely to prevent leaks and contamination of other foods or surfaces.
• Use the deli drawer to store meat/poultry for short-term storage. Freeze any meat to be kept longer than 2 days.

Frozen food storage

• Keep the freezer compartment at 0°F or lower.
• A freezer operates most efficiently when it is at least 23 full.

Packaging foods for freezing

• To minimize food dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags, or airtight containers. Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out, change color, and develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.
• Do not refreeze meat that has completely thawed.

Loading the freezer

• Prior to grocery shopping, we recommend you activate Freeze Boost to freeze your food faster. It will remain active up to 24 hours.

• Activating Freeze Boost will help your freezer more efficiently maintain the selected temperature after placing new purchases with pre-existing frozen foods.

• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing, and can raise the temperature of frozen foods.

• Leave a space between packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.

Ideas for saving energy

Installation

• Locate the refrigerator in the coolest part of the room, out of direct sunlight, and away from heating ducts or registers.
• Do not place the refrigerator next to heat-producing appliances such as a range, oven, or dishwasher. If this is not possible, a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more efficiently.
• Level the refrigerator so that the doors close tightly.

Temperature settings

• Refer to CONTROLS AND SETTINGS for procedures on temperature settings.

Food storage

• Avoid overcrowding the refrigerator or blocking cold air vents. Doing so causes the refrigerator to run longer and use more energy.
• Cover foods and wipe containers dry before placing them in the refrigerator. This cuts down on moisture build-up inside the unit.
• Organize the refrigerator to reduce door openings. Remove as many items as needed at one time and close the door as soon as possible.
• Do not place a hot container directly on a cold shelf. Remember, such an extreme temperature change may damage the glass.

NOTE

Energy efficient foam in your refrigerator is not a sound insulator.

NOTE

During the automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal.

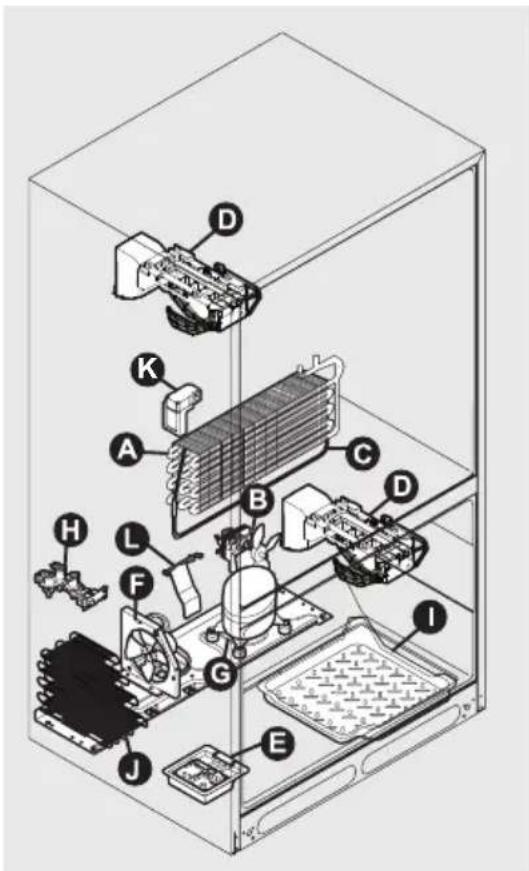

Understanding the sounds you may hear

Your new, high-efficiency refrigerator may introduce unfamiliar sounds. These sounds normally indicate your refrigerator is operating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable.

The following is a list of major components in your refrigerator and the sounds they can cause:

A. Evaporator Refrigerant through the evaporator may create a boiling or gurgling sound.
B. Evaporator fan You may hear air being forced through the refrigerator by the evaporator fan.
C. Defrost heater During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur.
D. Automatic ice maker When ice has been produced, you will hear ice cubes falling into the ice bin. The ice maker fan, water valve activation, and refrigerant gas fluid may create sounds from operation.
E. Electronic control & automatic defrost control These parts can produce a snapping or clicking sound when turning the cooling system on and off.
F. Condenser fan You may hear air being forced through the condenser.
G. Compressor Modern, high-efficiency compressors run much faster than older models. The compressor may have a high-pitched hum or pulsating sound.

H. Water valve Makes a buzzing sound each time it opens to fill the ice maker.
I. Drain pan (not removable) You may hear water dripping into the drain pan during the defrost cycle.
J. Condenser May create minimal sounds from forced air.
K. Motorized damper May produce a light humming during operation.
L. Ice dispensing paddle When dispensing ice, you will hear a snapping, clicking, or popping sound.

Exploded view diagram of an appliance assembly with labeled parts A through L

Air Filter

The air filter is located at the top of the air tower.

Diagram showing a device with a labeled component being inserted into a rack, with an inset magnified view highlighting the component.

Replacing Your Air Filter

To ensure optimal filtering of refrigerator odors, you should change the air filter every 6 months (the filter status light on the main controls prompts you to replace the filter after 6 months).

To remove and replace the air filter:

1. Place fingers on the bottom of air filter cover and pull from the top towards the front of the unit, releasing the top snaps on the air filter cover from the air tower.
2. Lift the bottom snaps up and out of air tower assembly to disengage and remove the front cover.
3. Replace the air filter by snapping the filter into snaps on the air filter cover.
4. Reverse the previous steps to install the front cover.
5. To reset the Air Filter status, refer to instructions under CONTROLS AND SETTINGS.

Ordering Replacement Filters

To order your replacement filters call toll-free at [phone]. We recommend you order extra filters when you first install your refrigerator, and replace your filters at least once every 6 months.

Air Filter Replacement cartridge,

part # FRGPAAF2

Water Filter

Your refrigerator is equipped with a water filtering system. The water filter system filters all dispensed drinking water, as well as the water used to produce ice.

The water filter is located at the left side of the Adjustable Temp Drawer.

Replacing Your Water Filter

The water filter is located at the bottom left of the refrigerator compartment next to the Adjustable

Technical line drawing of a mechanical assembly with no visible text or symbols

Temp Drawer. In general, you should change the water filter every 6 months to ensure the highest possible water quality. Water Filter Status on the appliance control display prompts you to replace the filter after a standard amount of water (125 gal/453 L) has flowed through the system. If you have not used your refrigerator for a period of time (during moving for example), change the filter before reinstalling the refrigerator.

Ordering Replacement Filters

To order your replacement filters call toll-free at [phone]. We recommend you order extra filters when you first install your refrigerator, and replace your filters at least once every 6 months.

Use these product numbers when ordering:

Water Filter PWF-1

Part# FPPWFUO1 ^TM

NOTE

When you order your replacement filter, please reorder the same filter type currently in your refrigerator.

More about your Advanced Water Filter

The ice and water filter system is tested and certified to NSF/ANSI Standards 42, 53, 401 and CSA B483.1 for the reduction of claims specified on the performance data sheet.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Use systems certified for cyst reduction on disinfected waters that may contain filterable cysts.

Test & Certification Results:

• Rated Capacity - 125 gal/453 L
- Rated service flow - 0.50 gal/min.
- Operating Temp.: Min. 33°F, Max. 100°F
• Maximum Rated Pressure - 100 lbs/in. ^2
- Recommended Minimum Operating Pressure: 30 lbs/in ^2

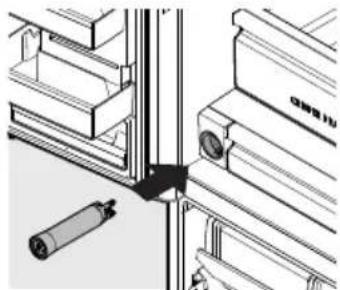

Replacing Your Water Filter

You do not have to turn the water supply off to change the filter. Be ready to wipe up any small amounts of water released during the filter replacement.

1. Turn Off the ice maker(s).
2. Remove the filter by pushing on the end/face of the filter.
3. Slide the old water filter cartridge straight out of the housing and discard it.
4. Unpack the new filter cartridge. Using the alignment guide, slide it gently into the filter housing until it stops against the snap-in connector at the back of the housing.
5. Push firmly until the cartridge snaps into place (you should hear a click as the cartridge engages the snap-in connector).
6. Press a drinking glass against the water dispenser while checking for any leaks at the filter housing. Any spurts and sputters that occur as the system purges air out of the dispenser system are normal.
7. After filling one glass of water, continue flushing the system for about 4 minutes.
8. Turn On the ice maker(s).
9. Press and hold Water Filter on the appliance control display for 3 seconds. When the display changes from red to green, the status has been reset.

Protecting your investment

Keeping your refrigerator clean maintains its appearance and prevents odor build-up.

NOTE

Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.

Wipe up any spills immediately and clean the freezer and refrigerator compartments at least twice a year.

• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.

NOTE

If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue until you unplug the power cord from the wall outlet.

• Do not wash any removable parts in a dishwasher.
  • Always unplug the electrical power cord from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly. This will prevent the floor from being damaged.

Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.

CAUTION

• Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be careful not to move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

IMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation.

Vacation and moving tips

Occasion Tips

Short

Vacations

• Leave the refrigerator operating during vacations of 3 weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn the automatic ice maker off and empty the ice bucket even if you will be gone only a few days.

Long

Vacations

• Remove all food and ice if you will be gone 1 month or more.
• Turn the cooling system off (see CONTROLS AND SETTINGS for the location of the On/Off button) and disconnect the power cord.
• Turn the water supply valve to the closed position.
• Clean the interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block the doors open if necessary.

Moving • Unplug the unit

• Remove all food and ice.
• Use a handcart, and load from the side.
• Adjust the rollers all the way up to protect them during sliding or moving.
• Pad the cabinet to avoid scratching the surface.

Care & Cleaning Tips
Part What	To Use Tips and	Precautions
Interior & Door Liners	Soap and waterBaking soda and water	Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring excess water out of sponge or cloth before cleaning around controls, light bulb or any electrical part.
Door Gaskets • Soap and water Wipe ga	skeets with a clean soft cloth.
Drawers & Bins	Soap and water	Use a soft cloth to clean drawer runners and tracks.
Glass Shelves • Soap and waterGlass cleanerMild liquid sprays	Allow glass to warm to room temperature before immersing in warm water.
Exterior & Handles	Soap and waterNon Abrasive Glass Cleaner	Do not use commercial household cleaners containing ammonia, bleach or alcohol to clean handles. Use a soft cloth to clean smooth handles. DO NOT use a dry cloth to clean smooth doors.
Exterior & Handles(Stainless Steel Models Only)	Soap and waterStainless Steel Cleaners	Never use CHLORIDE or cleaners with bleach to clean stainless steel.Clean stainless steel front and handles with non-abrasive soapy water and a dishcloth. Rinse with clean water and a soft cloth. Use a non-abrasive stainless steel cleaner. These cleaners can be purchased at most home improvement or major department stores. Always follow manufacturer's instructions. Do not use household cleaners containing ammonia or bleach.NOTE: Always clean, wipe and dry with the grain to prevent scratching. Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse well, and wipe dry with a clean soft cloth.

Let us help you troubleshoot your concern! This section will help you with common issues. If you need us, visit our website, chat with an agent, or call us. We may be able to help you avoid a service visit. If you do need service, we can get that started for you!

[phone]

Concern Potential Cause Common Solution
Automatic Ice Maker
Ice maker is not making any ice.	Ice maker is turned off.Refrigerator is not connected to water line or water valve is not open.The water supply line is kinked.The water filter is not seated properly.The water filter may be clogged with foreign material.The ice maker bail arm is being held up by an item not allowing it to go in the on or down position.

Concern Potential Cause Common Solution
Automatic Ice Maker (Cont'd)
Ice maker is not making enough ice.	· Ice maker is producing less ice than you expect.· The water filter may be clogged with foreign material.· The water supply line is kinked.· Saddle valve on cold water pipe is clogged or restricted by foreign material.· Heavy traffic, opening or closing of the doors excessively.· Freezer control is set too warm (freezer ice maker).· Water pressure is extremely low. Cut-off and cut-on pressures are too low (well systems only).· Reverse osmosis system is in regenerative phase.	· The refrigerator ice maker should produce 2.7 to 3.2 pounds of ice per 24 hours.The refrigerator ice bin will hold around 3.7 pounds of ice.· If water dispenses slower than normal, or if the filter is 6 months old or older, it should be replaced.· Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.· Turn off household water line valve. Remove valve. Clean valve. Replace valve if necessary.· Set freezer control to colder setting to improve performance of the ice maker (freezer ice maker). Allow 24 hours for temperature to stabilize.· Have someone turn up the cut-off and cut-on pressure on the water pump system (well systems only).· It is normal for a reverse osmosis system to be below 20 psi during the regenerative phase.
Ice cubes are freezing together.	· Ice cubes are not being used frequently enough or interruption of power for prolonged time.· Ice cubes are hollow (shells of ice with water inside). The hollow cubes break open in the bin and leak their water onto existing ice, which causes it to freeze together.	· Remove ice container and discard ice. The ice maker will produce fresh supply. Ice should be used at least twice weekly to keep the cubes separated.· This generally occurs when the ice maker does not get enough water. This is usually the result of a clogged water filter or restricted water supply. Replace the water filter and if the condition still occurs check for a clogged Saddle Valve, water valve not turned on all the way or kinked water supply line.
Dispenser (Ice & Water)
Dispenser will not dispense ice.	There is no ice in the bin to be dispensed.The refrigerator doors are not completely closed.Dispenser paddle has been pressed too long and the dispenser motor has overheated.	See Ice maker is not making any ice.Make sure the refrigerator doors are completely closed.The motor overload protector will reset in about three minutes and then ice can be dispensed.
Ice dispenser is jammed.	Ice has melted and frozen around auger due to infrequent use, temperature fluctuations, and/or power outages.Ice cubes are jammed between ice maker and back of ice container.	Remove ice container, thaw, and empty the contents. Clean container, wipe dry, and replace in proper position. When new ice is made, dispenser should operate.Remove ice cubes that are jamming the dispenser.
Dispenser will not dispense water.	Water filter not seated properly.Water filter is clogged.Household water line valve is not open.	Remove and reinstall the water filter. Be sure to push the filter in all the way until it clicks into place and is secured inside of the water filter housing.Replace filter cartridge. Be sure to push filter all the way in until it clicks into place and is secured inside of the water filter housing.Open household water line valve. See the CONCERN column of AUTOMATIC ICE MAKER.
Water not cold enough.	The water dispensing system is not designed to chill water.	Add ice to cup or container before dispensing water.
Water has an odd taste and/ or odor.	Water has not been dispensed for an extended period of time.Unit not properly connected to cold water line.	Draw and discard 10-12 glasses of water to freshen the supply.Connect unit to cold water line that supplies water to the kitchen faucet.
Opening/Closing Of Doors/Drawers
Door(s) will not close.	·Door was closed too hard, causing other door to open slightly.·Refrigerator is not level. It rocks on the floor when moved slightly. Refrigerator is touching a wall or cabinet.	·Close both doors gently.·Ensure floor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping floor.
Drawers are difficult to move.	·Food is touching shelf on top of drawer.·Track that drawers slide on is dirty.	·Remove top layer of items in drawer.·Ensure drawer is properly installed on track.·Clean drawer, rollers, and track. See CARE AND CLEANING.
Running of Refrigerator
Compressor does not run.	·Freezer control is set to OF.·Refrigerator is in defrost cycle.·Plug at electrical outlet is disconnected.·House fuse blown or tripped circuit breaker.·Power outage.	·Set freezer control.·This is normal for a fully automatic defrost refrigerator. The defrost cycle occurs periodically, lasting about 30 minutes.·Ensure plug is tightly pushed into outlet.·Check/replace fuse with a 15 amp time-delay fuse. Reset circuit breaker.·Check house lights. Call local electric company.
Refrigerator seems to run too much or too long.	·Your variable speed compressor is designed to run 100% of the time except during the defrost cycle. At times it will run faster, such as after a defrost cycle.	·It is normal for the compressor to run continuously except during defrost mode.
Digital Temperature Setting Display
Digital temperature displays an error.	·Electronic control system has detected a performance problem.	·Call your service representative, who can interpret any messages or number codes flashing on the digital displays.
Water/Moisture/Frost Inside Refrigerator
Moisture collects on inside of refrigerator walls.	·Weather is hot and humid.·Flipper mullion	·The rate of frost buildup and internal sweating increases.·Adjust flipper mullion. (See To adjust the flipper mullion in INSTALLATION.)
Water collects on bottom side of drawer cover.	·Vegetables contain and give off moisture.	·It is not unusual to have moisture on the bottom side of the cover. Move humidity control (some models) to lower setting.
Water collects in bottom of drawer.	·Washed vegetables and fruit drain while in the drawer.	·Water collecting in bottom of drawer is normal. Dry items before putting them in the drawer or store produce in tightly sealed bags to help reduce condensation inside of the drawer.
Water/Moisture/Frost Outside Refrigerator
Moisture collects on outside of refrigerator or between doors.	·Weather is humid. ·This is normal in humid weather.When humidity is lower, the moisture should disappear.
Food in Fresh Food Compartment
Food is freezing.	·Temperature setting is too low.·Temperature sensor is covered by food (right side of fresh food area).·Food is covering the air ports.	·Move the setting to a higher degree.·Allow space for air flow to the sensor.·Allow space between the air ports and the food.

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LAGAN or TILLREDA in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

IKEA "Service Provider" will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. Some exceptions not guaranteed are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault (e.g., repairs, parts, labour and travel) will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

- Normal wear and tear. - Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

- Consumable parts including batteries and lamps. - Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible colour differences.

- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

- Cases where no fault could be found during a technician's visit.

- Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.

• Repairs caused by installation which is faulty or not according to specification.

- The use of the appliance in a non-domestic environment i.e. professional use.

- Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.

- Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

How country law applies

The IKEA guarantee gives you specific legal rights, and you may also have other rights which vary from state to state or jurisdiction to jurisdiction. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in United States or Canada, or moved to one of the mentioned countries, the services will be provided in the framework of the guarantee conditions normal in the specified country.

An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;
• the Assembly Instructions and User Manual Safety Information.

The dedicated AFTER SALES for IKEA appliances

Please don't hesitate to contact IKEA appointed After Sales Service Provider to:

• make a service request under this guarantee;
• ask for clarifications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture;
• ask for clarification on functions of IKEA appliances.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.

How to reach us if you need our service

In order to provide you a quicker service, we recommend to use the specific phone

IKEA

Phone number:

[phone]

Opening hours:

Monday - Friday

8:30 am - 8:00 pm EST

numbers listed on this manual. Always refer to the numbers listed in the booklet of the specific appliance you need an assistance for.

Please also always refer to the IKEA article number (8 digit code) placed on the rating plate of your appliance.

SAVE THE SALES RECEIPT!

It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

STJÄRNSTATUS

ES

Índice

www.P65Warnings.ca.gov

Seguridad infantil

Line drawing of a refrigerator interior with a black arrow pointing to the door (no text or symbols)

Technical diagram of a refrigerator internal compartments with labeled parts and exploded view, including front, back, and top views.

337 mm 13.25 in 337 mm 13.25 in 138° 138° 56.75 in 25.4 mm 1 in 9.5 mm 0.37 in 9.5 mm 0.37 in

Mechanical assembly diagram showing a rotating component with bidirectional motion arrows (no text or symbols)

Puerta Puerta

NOTA

Technical illustration of a mechanical device with an inset showing a close-up of a pipe connection (no text or symbols present)

Aleta parteluz

Technical diagram showing a mechanical assembly with an arrow indicating a process or operation (no text or symbols present)

Mechanical device with attached wires and a magnified inset showing internal components (no text or symbols visible)

Diagram illustrating a medical procedure with labeled components and directional arrows indicating movement or force.

Illustration of a hand using a tool to adjust or install electronic components on a surface (no text or symbols visible)

Technical diagram of a server rack with labeled components and directional arrows indicating assembly or process flow.

Cross-sectional diagram of a mechanical or electrical component with internal components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow indicating movement (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a server rack with labeled components and directional arrows indicating assembly or connection, including 'Empujar' annotations.

Technical diagram showing a device with an inset close-up of its internal structure, no text or symbols present.

PRECAUCIÓN

Technical illustration of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

NOTA

Diagram illustrating mechanical assembly steps with labeled components A and B, showing directional movement and component positioning.

NOTA

Technical diagram of a mechanical device with labeled components A through H, showing wiring and components.

Figura 1

Technical diagram of a mechanical device with labeled components A through J, showing wiring and housing connections.

Figura 2

Line drawing of a refrigerator with control panel and door (no text or symbols)

Dispensador

NOTA

Illustration of hands using a device to remove granular material from a rack (no text or symbols)

Illustration of a hand using a tool to lift a mechanical component with curved arrows indicating motion (no text or symbols)

Line drawing of a hand holding a tray over a metal shelf, with no text or symbols present.

Technical line drawing of a structural frame with an arrow indicating direction (no text or symbols)

Estante deslizable

Diagram of a refrigerator unit with a downward arrow indicating airflow direction (no text or symbols present)

Cajones

Illustration of a hand using a tool to lift a device into a rack, with no visible text or symbols.

Diagram of a multi-level refrigerator with an inset showing a hand inserting a tray into the top panel (no text or symbols present)

Technical line drawing of a mechanical assembly with a black arrow indicating a component (no text or symbols present)

Diagram showing a hand inserting a component into a device with arrows indicating process (no text or symbols present)

1. Levante la canasta y sáquela del compartimento del congelador.

Technical illustration of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a refrigerator internal compartments and door frame (no text or symbols)

Technical line drawing of a mechanical device interior showing internal components and a black arrow indicating direction (no text or symbols)

Hand using a tool to adjust or install a mechanical component, no text or symbols visible

Exploded view diagram of a refrigerator internal components with labeled parts A through J

Filtro de aire

Diagram showing a device being inserted into a rack, with an inset magnified view highlighting the component.

Technical line drawing of a mechanical assembly with no visible text or symbols

www.P65Warnings.ca.gov

Architectural line drawing of a building interior with a black arrow pointing to a wall-mounted door (no text or symbols)

Technical diagram of a refrigerator internal compartments with labeled parts and exploded view, including front, back, and top views.

Mechanical assembly diagram showing a rotating component with bidirectional motion arrows (no text or labels)

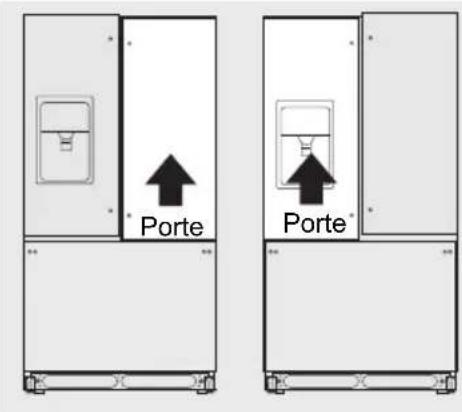

Porte Porte

REMARQUE

Technical illustration of a mechanical device with an inset showing a rotating lever mechanism (no text or symbols present)

Meneau à bascule

Technical diagram showing a mechanical assembly with an arrow indicating a process or operation (no text or symbols present)

Mechanical device with clamping mechanism and magnified inset showing internal components (no text or symbols)

Medical diagram showing surgical procedure with catheter insertion and magnified view of internal anatomy

Illustration of a hand using a tool to adjust or install electronic components on a workbench (no text or symbols visible)

Technical diagram of a server rack with labeled components and directional arrows indicating internal structure

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a server rack with labeled components and connection arrows, showing internal structure and pousse placement instructions.

Technical diagram of a server rack with an inset close-up showing internal components (no text or symbols)

MISE EN GARDE

Technical illustration of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

REMARQUE

Diagram illustrating the mechanism of a refrigerator with labeled parts A and B, showing hand positioning and adjustment steps.

REMARQUE

Technical diagram of a mechanical device with labeled components A through H, showing wiring and components.

Figure 1

Technical diagram of a mechanical device with labeled components A through J, showing wiring and housing connections.

Figure 2

Sabbath Mode (Mode Sabbat)

Line drawing of a refrigerator front panel with digital display (no text or symbols on the diagram itself)

Distributeur

REMARQUE

Illustration of hands inserting a device into a storage bin with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to lift a component with curved arrows indicating motion (no text or symbols)

Line drawing of a hand holding a tray over a metal shelf, with no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Clayette encastrable

Diagram of a refrigerator interior with storage compartments and a door handle (no text or symbols)

Tiroirs

Technical diagram showing a hand using a tool to lift a device into a rack, with an arrow indicating the process.

RAC A LEADINES RAC A LEADINES

Illustration of a hand inserting a device into a rack, showing internal components and no text or symbols.

4 Réglage Deli/Snacks (Charcuteries/collations)

Diagram of a multi-level refrigerator unit with an inset showing hand inserting a component (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand inserting a component into a device with arrows indicating process (no text or symbols present)

Diagram of a refrigerator interior with an upward arrow indicating movement or change, no text or symbols present

Technical line drawing of a refrigerator internal structure (no text or symbols)

Technical line drawing of a mechanical device interior with no visible text or symbols

Hand using a tool to adjust or install a mechanical component, no text or symbols visible

Exploded view diagram of an appliance assembly with labeled parts A through J

Filtre à air

Diagram showing installation of an air conditioner unit with a magnified view highlighting the component.

Technical line drawing of a mechanical assembly with labeled components (no readable text or symbols)
