USER MANUAL 305046 Mybeo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

• This device is suitable only for domestic use. Use the trimmer only for trimming hair!
• Ensure that your hands are not wet and that the device is dry while using.
• Do not use the device if it is faulty.
• Do not use the device if it has fallen down or the surface is damaged.
• Do not immerse the product under water and ensure that it does not come in contact with water.

• Please ensure the correct polarity when inserting the batteries! Ensure that you do not reverse the battery polarity under any circumstances!

• Never dismantle the device. Warranty claims are rendered void in the event of improper use.

• This product is not a toy!

• Keep it out of the reach of children.

• This device is not intended to be used, cleaned or maintained by people (including children) with reduced physical, sensory or mental abilities or lack of experience and/or knowledge. Unless they are supervised by a person who is responsible for their safety or have received instructions from this person about how the device is to be properly used.

• Do not use the device near combustible or inflammable surroundings or objects.

• Use only high-quality rechargeable batteries. Inferior quality rechargeable batteries may leak and damage the device.

• Batteries should never be thrown into the fire nor be charged.
• If the device is not used for a long duration of time, then ensure that the batteries are removed and stored in a dry place.
• Do not use any chemical cleaning agents. Use only a soft cloth for cleaning.
• Beware of electrical shock!
• Be careful with the sharp blade!

• Be careful with the sharp blade when you cut the hair near the ears.

• Do not wash the hair trimmer under water since it is not waterproof.

• Do not attempt to repair the product by yourself.
• Please do not store at high temperatures (above 40^ ) or low temperatures (below 0^ !
• Do not use the product in the bathroom or near water.

Thank you for choosing a mybeo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Hair trimmer
• User manual
• Charging cable
• Mains adapter
• Cleaning brush
• 8 Shear adapter
• Oil bottles

2. Technical data

Power supply 1 type 18650	2000 mAh rechargeable battery
Running time About 90 -24	0 min
Power Approx. 5 W
Charging time approx. 3-4	hours
Attachments 3 mm, 6 mm,	9 mm, 12 mm, 15 mm, 18 mm, L, R

3. Initial use

Take the device out of the package and remove all the packaging material. Charge the device completely before using the hair trimmer. The battery requires about 4-6 hours to charge completely.

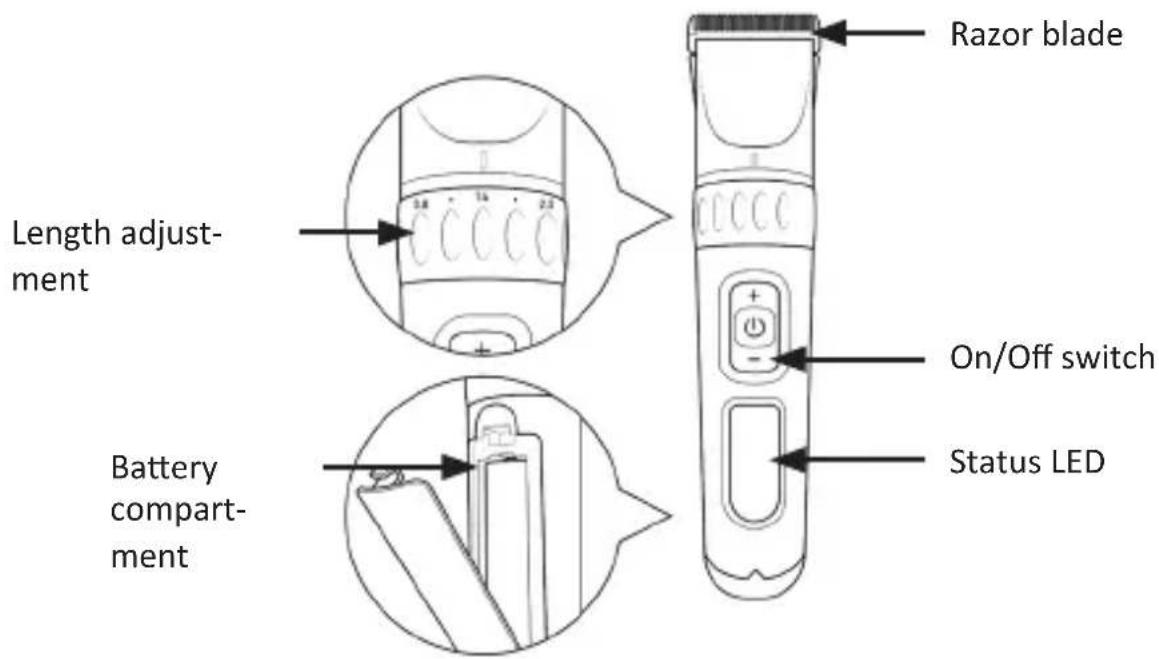

4. Product details

4. Charging the batteries

The optimum charging condition is 5^ to 40^

The charging duration is about 3-4 hours, the condition of the rechargeable battery becomes optimum after 4 or 5 times of use.

Do not overcharge the battery, otherwise the battery performance will be negatively affected.

You should charge the product when the battery is empty or if it has not been used for a long time.

5. Cleaning the shaver

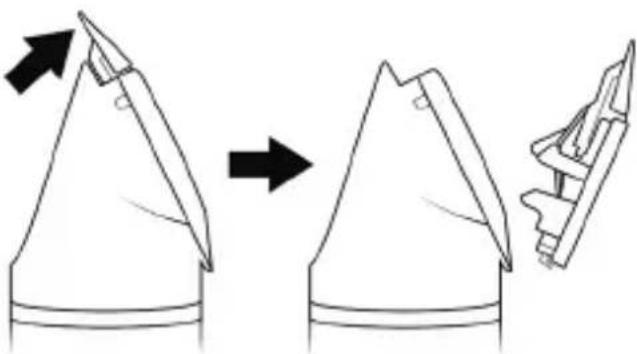

Switch off the shaver. Remove the shaver blade as shown in the figure below.

Make sure that the hair trimmer is switched off before removing the blade. Use your thumb to remove the blade.

Use the brush to remove any hair remaining between the upper and lower blade. Please do not dismantle the spring of the blade if it falls out.

Use the cleaning brush to remove any hair from the hair trimmer.

Apply a little lubricant between the upper and lower blade after cleaning the blade. Otherwise, the blade edge may become blunt, may make unusual noises, emit heat and reduce the performance.

Replace the blade. You will hear a clicking sound if you do it correctly.

6. Mounting the attachment

Select the desired attachment and mount it on the shaver. Ensure that the attachment is mounted correctly.

7. Usage

Press the ON / OFF switch to turn the device on and off. The status LED starts to glow once the device is turned on.

8. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

10. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU
WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305046/20201014NB164 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

ATTENTION!
