USER MANUAL 305591 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganziinfach.de in our download area.

m = 311

IMPORTANT SAFETY INSTRUCTIONS

• Before connecting the appliance, ensure that the mains voltage matches the specification on the nameplate of the appliance!
• This product should not be operated if the cable or plug is damaged or defective!
• When disconnecting from the mains, please hold the plug instead of pulling the power cord.
• The product should not be used if it has fallen down or has been damaged!
• Do not touch any hot surfaces! Always use the knobs or handles provided!
• Never immerse the appliance, plug or cable in water or any other liquid! The product should not be rinsed in water!
• Turn off the appliance after use. Disconnect the mains plug before cleaning it.
• Do not allow the cable and the plug to protrude over an edge or over hot surfaces!
• Use only accessories recommended by the appliance manufacturer! There is a risk of injury!
• Monitor the product constantly, especially if children or invalid persons are nearby.

• Do not place the product near other hot appliances such as gas, electric or backing ovens.

• The product should not be placed on an unstable, moist surface or on surfaces that are not heat-resistant during use. Any damage or malfunction should be avoided.

• Cleaning and maintenance of the appliance should not be carried out by children without supervision. Cleaning may be carried out only by children who are older than 8 years and under supervision.
• Do not cover the appliance during use! Heat and steam should be able to escape. A fire can occur if it is covered with flammable material.
• Use the appliance only for intended purpose described in this user manual!
• Do not use the appliance outdoors!
• The inserted socket must be provided with an earthing protection. The plug must be firmly in place, otherwise the loose connection may cause a fire. Multifunctional sockets should not be used simultaneously with other appliances.
• Do not use water as an extinguishing agent if the product catches fire. Please cover the burning food items quickly with a damp cloth.

• This appliance can be used by children above the age of 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and understand the hazards involved.

• Place the product out of the reach of children.

• Keep the appliance and cable out of the reach of children under the age of 8 years.
• Children should always be supervised to ensure that they do not play with the appliance!
• If the power cord is damaged, it should be replaced by the manufacturer, his customer service agency or an equally qualified person, so as to prevent any risk.
• This appliance should not be operated with an external timer or a separate remote control system.
• Never open the housing of the appliance. There is a risk of electric shock!
• The appliance is intended for household use or similar uses, e.g., small kitchens in shops, offices or other workplaces, farms, for use by guests in hotels, motels or other lodging establishments, in private boarding houses or holiday homes. The company is not liable for any malfunction or damage caused by commercial use of the product, improper use or unspecified use. Such damage will void the warranty.

Do not use the product if one of the following situation occurs:

• The product or the power cable is damaged.
• The product falls down accidentally, leading to the product being in a non-standard condition.

If any of the above happens, please contact our customer service department.

CAUTION: This appliance becomes very hot during use! There is a risk of burns! Use the appliance up to maximum of 3 hours at a time and allow it to cool for at least 30 minutes after use.

• The appliance should not be permanently installed.
• Do not heat any closed cans.
• The glass plate becomes hot due to the radiating heat. Do not touch the surface immediately after cooking. Wait until the appliance cools down.
• Do not overload the hotplate. This could lead to damage. Make sure that you do not exceed the total capacity of approx. 5kg .
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can get the most from the product you have purchased. Before using the product, rst check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

Hotplate
- User manual

2. Technical data

Power supply 220-240 V	AC 50/60 Hz
Power consump on max.	2000 W
Dimensions (H x W x D)	approx. 6.8 cm x 28 cm x 28 cm

3. Before first use

• Check that the accessories and all parts are complete as per the scope of supply and are not damaged.
• Clean all the parts as described in the chapter "Cleaning and Care" of this user manual.
• When the appliance is first put into operation, there is a faint smell of smoke, but this is normal and decreases with me.

Temperature regulator

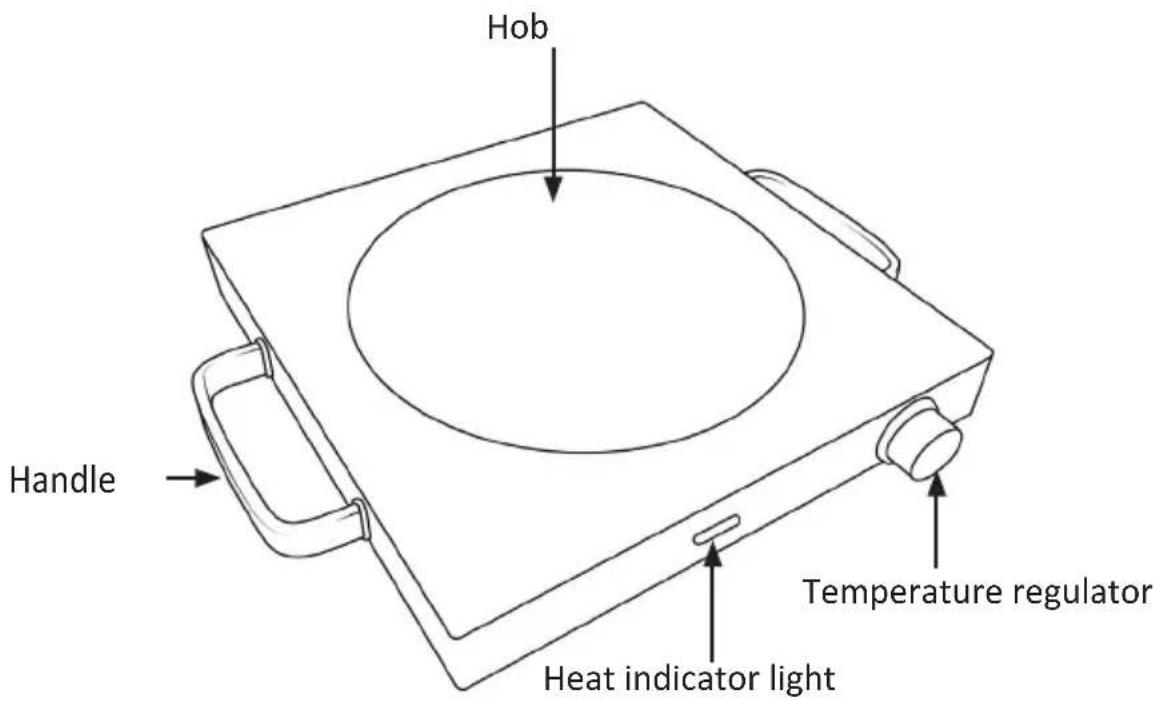

4. Product details

5. Initial use

1. Make sure that there is no damage to the appliance. Keep the dishes away from the ceramic plate.
2. Wipe off any dust on the surface of the appliance with a dry cloth before using it.
3. Make sure that the pot or pan in which the food or liquid is present is placed in the centre of the ceramic plate.
4. Use cooking pots or pans that have a flat bottom.
5. The diameter of the bottom of the pot must not protrude beyond the hotplate.

6. Connect the mains plug of the appliance to a properly installed socket.

7. Turn the temperature regulator to the desired position. The hotplate switches on.

8. As soon as you have finished cooking, turn the temperature regulator back to the minimum (min) and disconnect the mains plug from the socket.

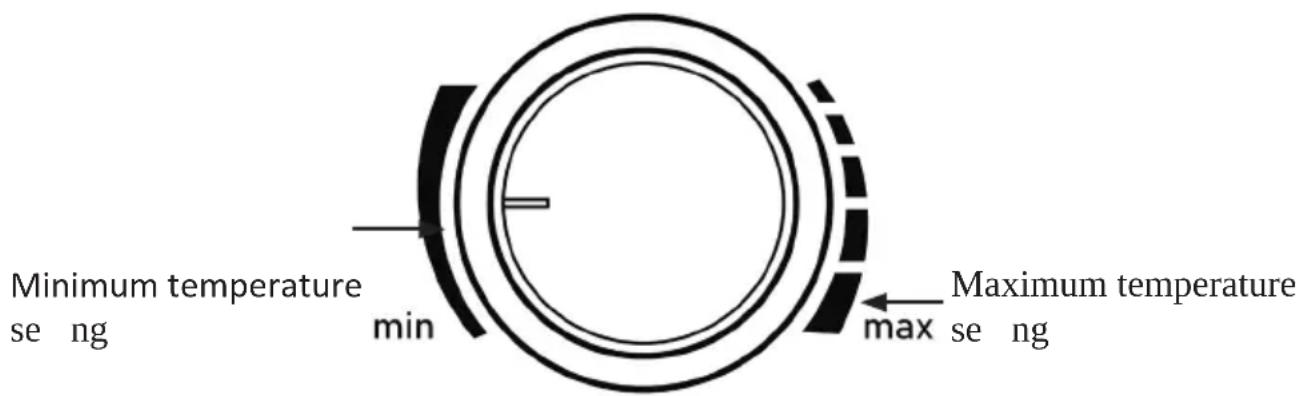

6. Temperature setting

You can adjust the temperature of the hotplate using the temperature regulator.

7. Cleaning and Care

Please make sure that the appliance is disconnected from the power supply and switched off before you start cleaning. Please allow the appliance to cool down for at least 30 minutes after use before cleaning.

The appliance is not designed to be disassembled by an inadequately qualified technician.

Clean the product only with a slightly damp, soapy cloth. Make sure that the cloth is sufficiently dry so that no standing water remains. After wiping with the soapy cloth, dry the surface with a dry paper towel. Do not use abrasive cleaning agents.

8. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the appliance away from high temperatures.

Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it was subject to impact or has been damaged

in some other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy.

Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the appliance, which is not carried out by the original supplier, will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU
WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 305591 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
