USER MANUAL 304285 Liam&Daan
LIAM&DAAN "STUDIO 3"
MOD.-NR.: 304285/20200107SZ215
TABLE OF CONTENTS
DEUTSCH 3
ENGLISH 11
FRANÇAIS 19
ESPANOL 27
ITALIANO 35
Thank you for choosing a LIAM&DAAN product. Please read the following user manual carefully so as to get the most from the product you have purchased.
SCOPE OF DELIVERY
- LIAM&DAAN "STUDIO 3"
- Microphone shock mount
- Pop protection
- Microphone arm
- Connection cable
- User manual
| Port USB | |
| Sensitivity | -47dB~-29dB, +/-3dB(0dB=1V/Pa at 1KHz) |
| Max. Sound pressure level | 125 dB |
| Frequency response 20 Hz | - 20 kHz |
| Signal-to-noise ratio > 74 dB | |
| Sampling Rate up to 192 kHz | |
| Cable length approx. 2.5 m | |
| Features | • Pop protection • Table bracket • Microphone shock mount |

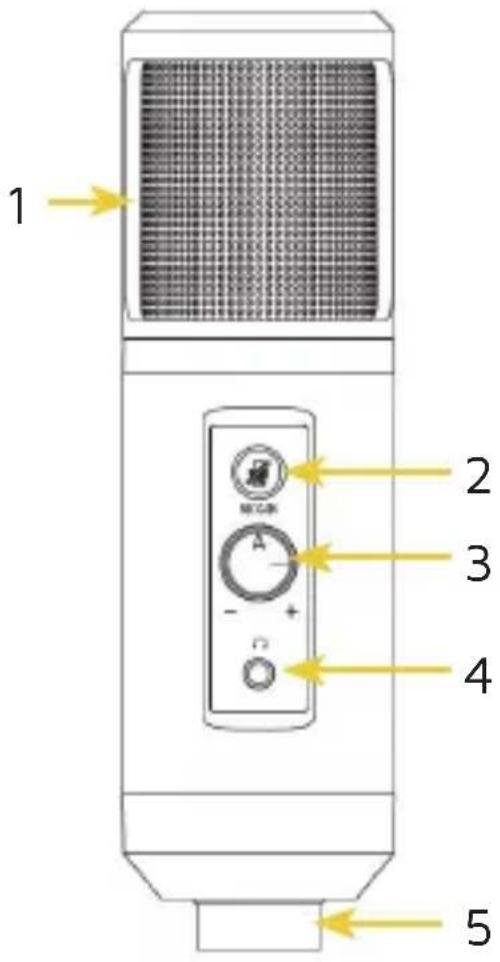

| No. Discription | |
| 1 Microphone | |
| 2 Mute button (Mute) | |
| 3 Dial for increasing (+) / decreasing (-) the volume | |
| 4 Headphone jack | |
| 5 USB port |
Fig. 1 Fig. 2
TECHNICAL SPECIFICATIONS

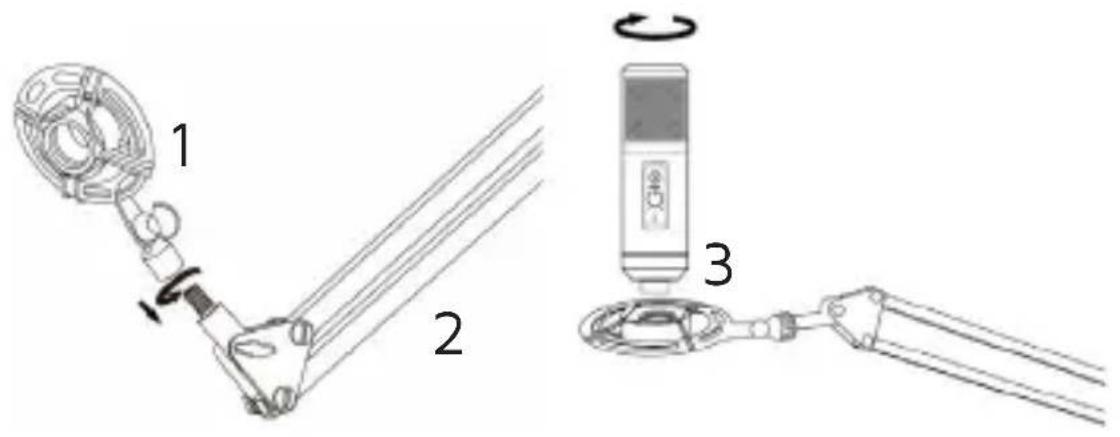

Take the product out of the package and remove all the packaging material. First screw the microphone shock mount (1) onto the microphone arm (2). Ensure that it is attached correctly (see picture).
Now insert the microphone properly into the microphone shock mount (3) and then connect it using the supplied USB cable.
Caution! Always make sure that the microphone with the logo faces the direction in which you want to record the sounds!

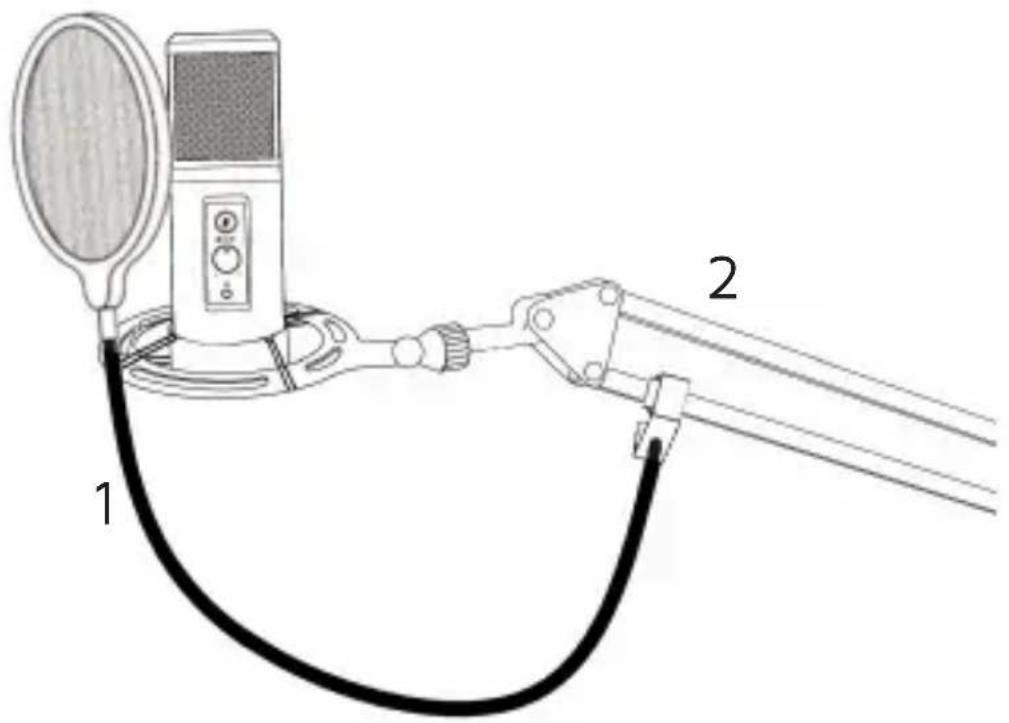

Then mount the pop protection (1) to the microphone arm (2) as shown in the following figure. The distance between the microphone and pop-protection should be about 5 - 10 ~cm .
NOTE:
To ensure optimum performance of your microphone, we advise you to test the device in the studio at different positions.
The microphone may be detected as an external sound card and activated. If you do not want this to happen, then you need to activate your default sound card again as the audio output device.
IMPORTANT SAFETY INFORMATION
| SOUND | LEVEL IN DB | EFFECT |
| Whispering 30 harmless | less | |
| normal conversation, sewing machine | 55-60 | harmless but may impair concentration |
| Lawn mower 70 mostly harmless | ||
| Hand grinder, mixer | 85-90 | hearing may be damaged above 85 dB |
| Circular saw 100 | dangerous if exposed continuously. Do not to expose yourself for more than 15 minutes to this level without hearing protection | |
| Chainsaw 110 | dangerous if exposed continuously | |
| Rock concert, jet engine starting | 110-130 | Pain threshold above approximately 120 dB |
Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.
Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy.
Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.
Do not use headphones in noisy dangerous environments.
In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal
DISPOSAL INSTRUCTIONS
of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/ and on the packaging refers to these regulations. By separating materials, recycling and disposing of old equipment in this way, you make an important contribution towards protecting our environment.
WEEE directive 2012/19/EU
WEEE Register no.: DE 67896761
The company WD Plus GmbH hereby certifies that the device 304285/20200107SZ215 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
