USER MANUAL 306629 Mybeo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

- When using the iron, basic safety precautions should always be taken, including the following: Read all the safety instructions given in this manual thoroughly before using the product.

- Use the iron only for the intended purpose.

- Please do not immerse the iron in water or other liquids to protect against electric shock.

- The iron should always be turned to "min" before plugging it into / removing it from the socket. Do not pull the power cable to disconnect the plug from the socket. Always hold the plug.

- Do not allow the power cord to come into contact with hot surfaces.

- Allow the iron to cool down

completely before putting it away.

• When filling the iron with water or emptying it and when it is not being used, always disconnect the plug from the socket.
• Close supervision is required for any appliance that is used by children or near children. Never leave the appliance unattended when it is connected to the power supply or to the ironing board.
• Contact with hot metal parts, hot water or steam can cause burns. Be careful when you place the steam iron upside down - there may be hot water in the tank.
• If the appliance is not working properly, disconnect it from the power supply. Contact an authorised customer service representative.

- Do not leave the appliance unattended when switching it on. Do not place the iron on an unprotected surface even if it is on the back support.

- The iron has to be placed and used on a level, stable surface.

- If you place the iron on its stand, make sure that the surface on which the stand is placed, is level.

- The appliance should not be used if it has been dropped at some time, if there are any visible signs of damage or when the iron is leaking. The iron should be sent back to the manufacturer or an authorized service centre before using it further.

- If the power cable is damaged, then it should be replaced by the manufacturer or his customer service or an equally qualified person, so as to

prevent any risk.

• The iron has to be used on a stable ironing board.
• The iron should not be left unattended when it is connected to the mains.
• The plug has to be disconnected from the socket before filling water into the water tank.
• This iron is not intended for regular use.
• The iron can only be used by children aged 8 and over and persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the iron.

- Cleaning and user maintenance must not be carried out by children without supervision.

- Keep the iron and its cord out of the reach of children under 8 years of age while it is switched on or still cooling down.

Caution, hot surface

The surfaces during use may become hot.

Thank you for choosing a mybeo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Electric iron
• User manual

2. Technical data

Power supply 220-240 V AC 50-60 Hz
Power consumption 700 W
Cable length approx. 1.2 m
Features • Temperature control (rotary knob)• Steam switch (On / Off)• Steam button

3. Important precautions

To use your appliance sensibly and properly, please read this manual carefully and make sure that you understand the product before using it.

1. Check if the voltage on the rating plate of the product matches your mains voltage.
2. The appliance should not be used if it has been dropped, there are visible signs of damage or if it is leaking. The iron should be sent back to the manufacturer or his authorized service centre before using it further.
3. Always coil the power cable completely.
4. Make sure that children do not touch the hot iron or pull the power cable.

5. The iron has to be used on a stable ironing board.

6. Always disconnect the plug when the appliance is not being used. Please disconnect the plug and always place the iron on the stand at the back of the appliance.

7. Please always disconnect the plug of the iron before filling water or removing excess water from the iron.

8. Never immerse the iron in water.

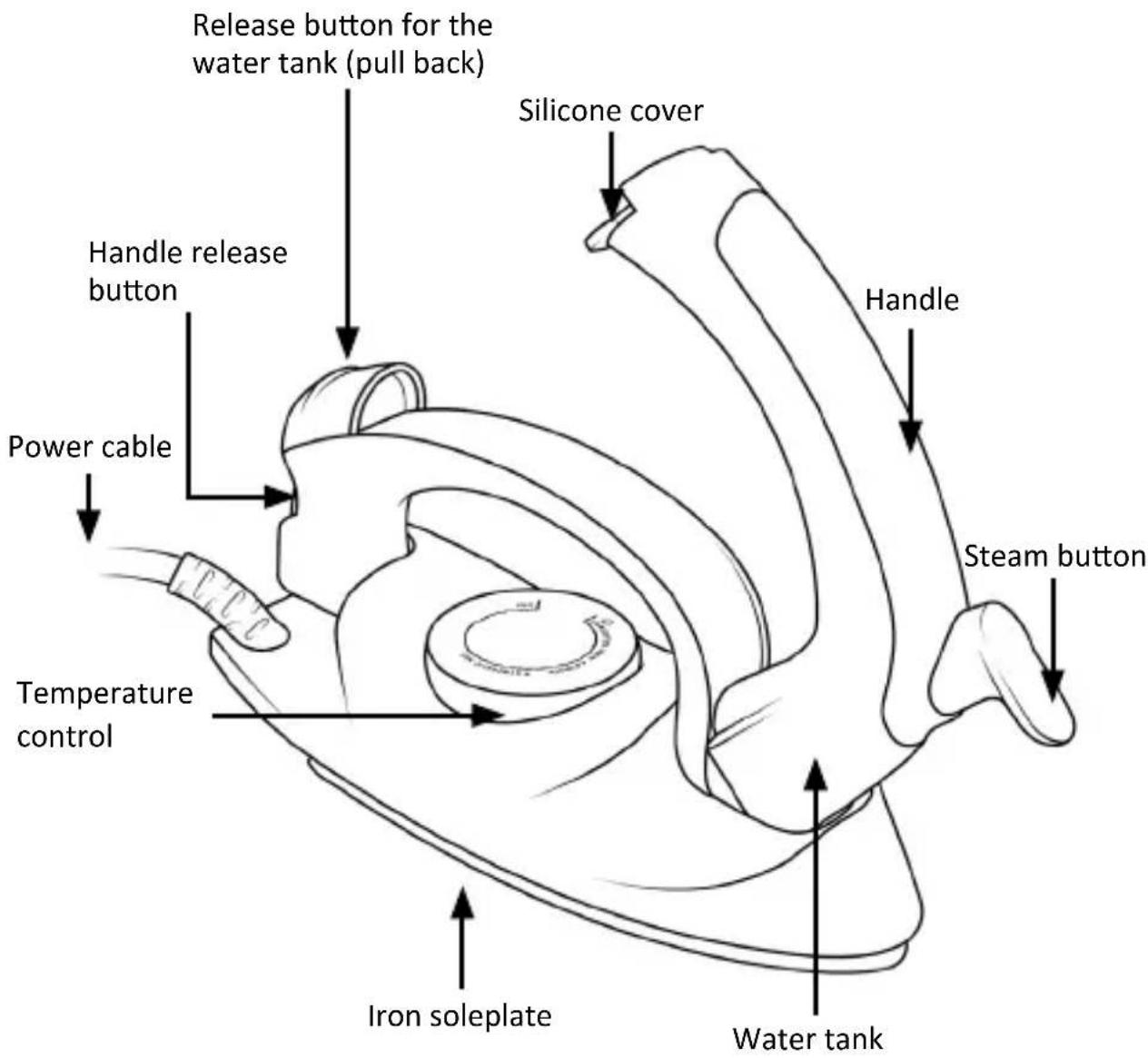

4. Product details

Release button for the water tank (pull back) Silicone cover Handle Handle release button Power cable Steam button Temperature control Iron soleplate Water tank

5. Initial use

1. Please take the appliance out of the package and remove all the packaging material.
2. Please clean the appliance using a soft cloth to remove any production residues.

Note: Some parts of the iron have been slightly greased, which is why the iron may release some steam when used for the first time. After some time the grease should evaporate and the iron should work as desired.

6. Temperature selection

1. Check the ironing instructions on the garments to be ironed.
2. Fabrics which have a kind of "Finish" (printed clothing) can be ironed at the lowest temperature.
3. If the fabric contains several types of fibres, always select the applicable temperature when a product contains 60% polyester and 40% cotton, you should always select the temperature that corresponds to polyester. Do not use steam here.

4. First classify the garments to be ironed based on the most suitable ironing temperature: Wool with wool, cotton with cotton etc. Since the iron heats up as quickly as it cools, start ironing the garments that require the lowest temperature such as synthetic fibre articles. Keep the padding as smooth as possible.

5. Turn the temperature control knob till it points to the corresponding signal as follows:

6. Position for chemical fibres such as nylon and acetate

7. Position for wool, silk or mixtures, silk or mixtures
   ●●● Position for cotton or linen (steam)

7. Initial use

1. Unplug the iron.

2. Unlock the water tank by pulling back the release button.

3. Open the silicone cover and fill the water tank through the filler opening.

Note: If you have hard water, it is advisable to use only distilled or 50% demineralised water and 50% hard water. Also make sure that you do not use chemically decalcified water or perfumed water.

1. Plug the iron into a properly connected socket.
2. Set the desired temperature using the rotary temperature switch and wait until you hear a light „click“ sound.

1. Caution! Before using the iron with a steam function for the first time, we recommend that you operate it horizontally for a moment, away from your iron.
2. When the ironing process is finished or you take a break from ironing, please bring the iron into an upright position and place it on the stand.
3. Disconnect the iron from the power supply. Pour off the remaining water and allow the iron to cool down completely.

Emitting a blast of steam

A steam burst provides additional steam to remove stubborn creases.

1. Set the temperature dial to the „max“ position (●●●). Wait until the status LED goes out.
2. Move the iron to the desired position and press the steam button. Wait a few seconds for the steam to penetrate the fibre before pressing the button again.

Note: For the best steam quality, do not use more than three consecutive bursts of steam. Excessive use of this function will cause the iron to cool down.

8. Cleaning and Care

• Disconnect the plug before cleaning and allow the appliance to cool down.
• The appliance should not be treated with liquids or immersed in liquids.
• Wipe the appliance only with a dry lint-free cloth.
• To clean residues and oily substances from the sole plate, it is enough to rub the sole plate with a wool or fabric cloth, which is dipped in water mixed with a little vinegar.
• Drain the remaining water from the water tank before cleaning!
• Do not use any strong or aggressive cleaning agents. Do not use vinegar or any other descaling agents to clean the water tank!
• Always place the appliance on the stand, otherwise the sole plate could be damaged.

9. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the appliance away from high temperatures.

Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without prior intimation.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 306629 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
