Product type	USB Microphone
Brand	CSL
Model	304262 (RMP-800)
Sensitivity	-58 ± 2 dB
Impedance	2,2 kΩ
Operating voltage	4,5 V DC (via USB)
Frequency range	70 Hz to 10 kHz
Signal-to-noise ratio	≤ 50 dB
Cable length	Approx. 1,5 m
Main functions	Rotating volume control, mute function, windscreen
Power supply	USB, 4,5 V DC
Compatibility	Computer with USB port
Included accessories	USB Microphone RMP-800, user manual
Safety instructions	Do not open, avoid contact with voltages, use in dry conditions, do not expose to moisture or high temperatures
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Disposal	Do not dispose of with household waste. Recycle according to the WEEE directive.
Warranty	Warranty void if repair not carried out by the original supplier.
WEEE number	DE 67896761
Manufacturer	WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

Frequently Asked Questions - 304262 CSL

How to set up the CSL 304262 microphone?

Remove the device from the packaging and remove all packing material. Connect the microphone to a USB port on your computer. The device is then operational.

How to adjust the microphone volume?

Use the rotating volume control on the top of the microphone. Turn it in the « + » direction to increase the volume and in the « - » direction to reduce it.

How to mute the microphone?

Turn the rotating volume control to the stop in the « - » direction to mute the microphone.

Is the microphone compatible with all computers?

The microphone is compatible with any computer with a USB port. No specific driver is required, it is recognized automatically.

How to install the windscreen?

Place the windscreen (pop filter) over the microphone. Note that it only provides limited protection against wind or breath effects.

What safety instructions must be followed?

Never attempt to open the device. Avoid any contact with mains voltages. Use it only in dry conditions, away from moisture, water, snow, and high temperatures. Keep out of reach of children.

How to clean the microphone?

Use a soft, dry cloth to clean the exterior. Do not use abrasive products or solvents.

What to do in case of malfunction?

Check that the microphone is properly connected to the USB port. If the problem persists, contact customer service. Do not attempt to repair the device yourself, as this will void the warranty.

How to dispose of the microphone at the end of its life?

Do not dispose of the device with household waste. According to the WEEE directive, take it to an appropriate collection point for recycling.

What is the warranty of the CSL 304262 microphone?

The warranty is void if repairs or modifications are carried out by persons not authorized by the original supplier. The device must be used in accordance with the user manual.

USER MANUAL 304262 CSL

Thank you for choosing a product from CSL. To ensure that you have a lot of fun with the device you have purchased, please read the following brief instructions carefully.

1. Scope of delivery

• RMP-800 USB Microphone
- User Manual

2. Technical data

Sensitivity -58 ± 2 dB
Impedance 2.2 kΩ
Operating voltage 4.5V DC
Frequency range 70 Hz-10 kHz
Signal-to-noise ratio	≤ 50 dB
Cable length ca. 1.5 m

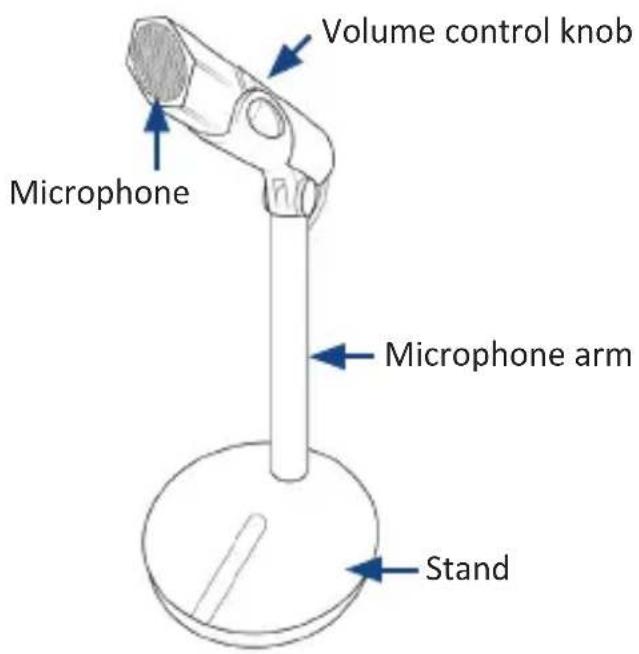

3. Product details

4. Start-up

Take the device out of the packaging and remove all packaging material. Then connect the microphone to a USB port on your computer. The device is now ready for use.

4.1 Muting the Microphone

You can mute the microphone with the "Volume control knob" on the top of the microphone. To do this, turn the rotary control all the way to the "-" position.

4.2 Adjusting the Microphone Volume

Use the “Volume control knob” on the top of the microphone. Use this knob to increase (knob in direction “+”) or decrease (knob in direction “-”) the microphone volume as desired.

6. Windshield

The microphone can be equipped with a windscreen (pop screen). Place the windshield on the microphone.

Please note that the windscreen can only provide limited protection against wind influences or blowing!

1. Safety information

Sound Level in DB Effect
Whisper 30 harmless
normal conversation, sewing machine	55-60	harmless, but can lead to concentration problems
Lawn Mower 70 mostly	harmless
hand grinder, mixer 85	-90	from 85 dB on, hearing damage can occur
Circular saw 100		Dangerous during prolonged exposure. It is recommended not to expose yourself to these volumes for more than 15 minutes without hearing protection
Chainsaw 110		dangerous in case of prolonged exposure
Rock concert, starting jet planes	110-130 Pain threshold from approx. 120 dB

8. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE Directive: 2012/19/EU

WEEE Register No: DE 67896761

WD Plus GmbH hereby declares that the 304262/20191223SZ154 is in compliance with the essential requirements and other relevant regulations. A complete Declaration of Conformity can be obtained from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
