USER MANUAL 304261 CSL

Thank you for choosing a product from CSL. To ensure that you have a lot of fun with the device you have purchased, please read the following brief instructions carefully.

1. Scope of delivery

• RMP-900 USB Microphone
- User Manual

2. Technical data

Sensitivity -58 ± 2dB
Impedance 2,2 kΩ
Operating voltage 4,5V DC
Frequency range 100 Hz-10 kHz
Signal-to-noise ratio	≤ 50 dB
Cable length ca. 1.5 m

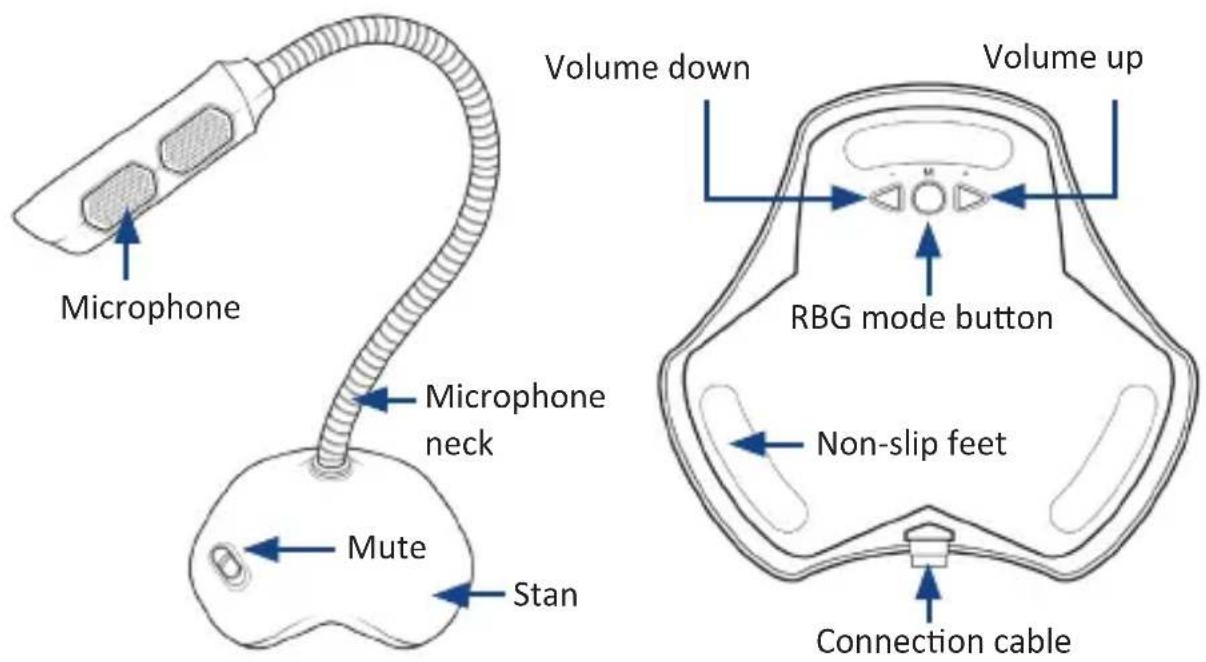

3. Product details

Microphone Microphone neck Mute Stan Volume down Volume up RBG mode button Non-slip feet Connection cable

4. Start-up

Take the device out of the packaging and remove all packaging material. Then connect the microphone to a USB port on your computer. The device is now ready for use.

4.1 Muting the Microphone

The "Mute" switch allows you to mute and unmute the microphone.

4.2 Adjusting the Microphone Volume

On the bottom of the device are the “Decrease volume” and “Increase volume” buttons. With these buttons you can adjust the microphone volume as desired.

5. RBG LEDs

An RBG mode button is integrated on the bottom of the device. Press the button to change the RBG mode.

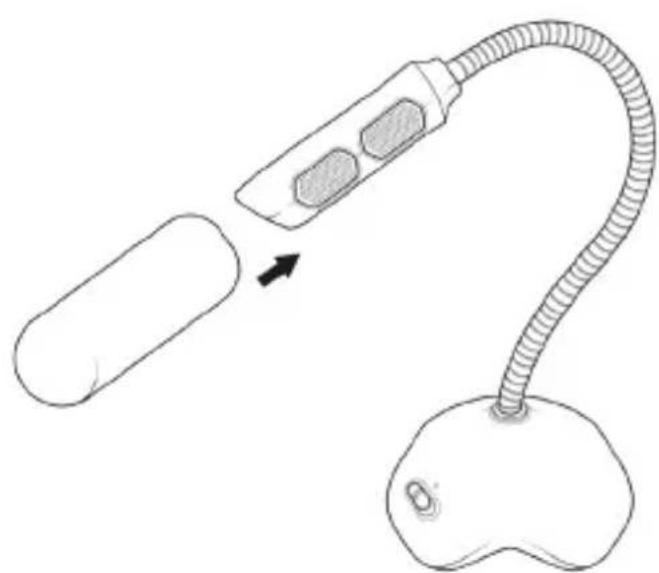

6. Windscreen

Diagram of a medical device with a curved tube and two rectangular components, showing an arrow indicating direction (no text or symbols)

The microphone can be equipped with a windscreen (pop screen). Attach the wind-screen as shown in the picture.

Please note that the wind-screen only provides limited protection against wind influences or blowing!

1. Safety information

Sound Level in DB Effect
Whisper 30 harmless
normal conversation, sewing machine	55-60	harmless, but can lead to concentration problems
Lawn Mower 70 mostly	harmless
hand grinder, mixer 85	90	from 85 dB on, hearing damage can occur
Circular saw 100		Dangerous during prolonged exposure. It is recommended not to expose yourself to these volumes for more than 15 minutes without hearing protection
Chainsaw 110		dangerous in case of prolonged exposure
Rock concert, starting jet planes	110-130 Pain threshold from approx. 120 dB

8. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE Directive: 2012/19/EU WEEE Register No: DE 67896761

WD Plus GmbH hereby declares that the 304261/20191223SZ154 is in compliance with the essential requirements and other relevant regulations. A complete Declaration of Conformity can be obtained from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
