USER MANUAL 304567 CSL

Line drawing of a gaming controller with multiple controllers and scroll buttons (no text or symbols)

Thank you for choosing a CSL product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Charger case
• User manual

2. Technical data

Power supply 9V2	A rechargeable via USB (max. 18 W)
Battery capacity 10000 mAh
Input/Output	Input:• 1 Type C female PowerDelivery compatible (charging input)Output:• 1 Type A female QC 3 compatible• 1 Type C male
Compatibility Switch

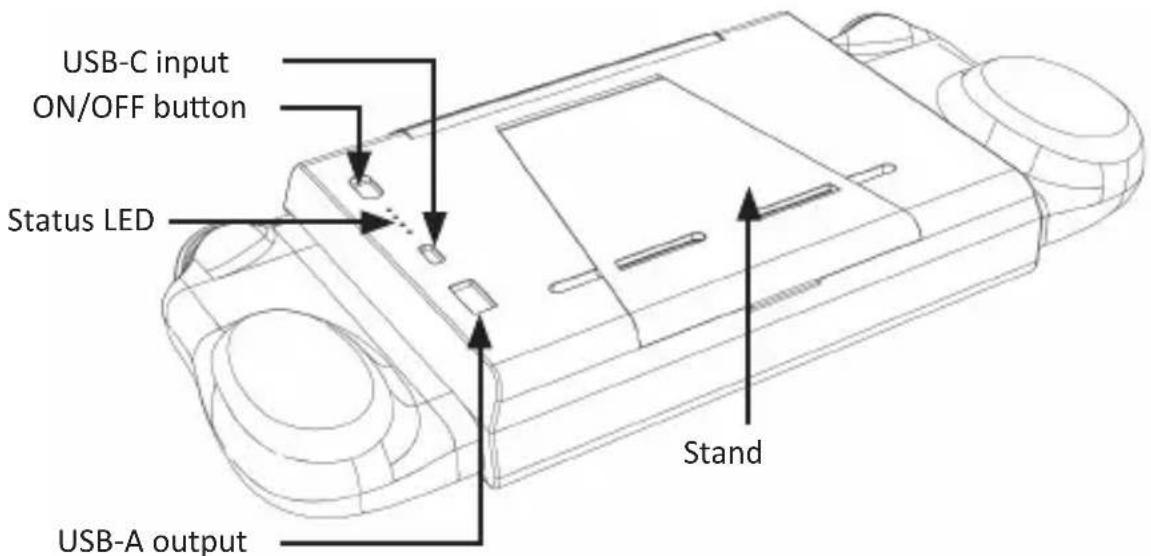

3. Product details

USB-C input ON/OFF button Status LED Stand USB-A output

4. Initial use

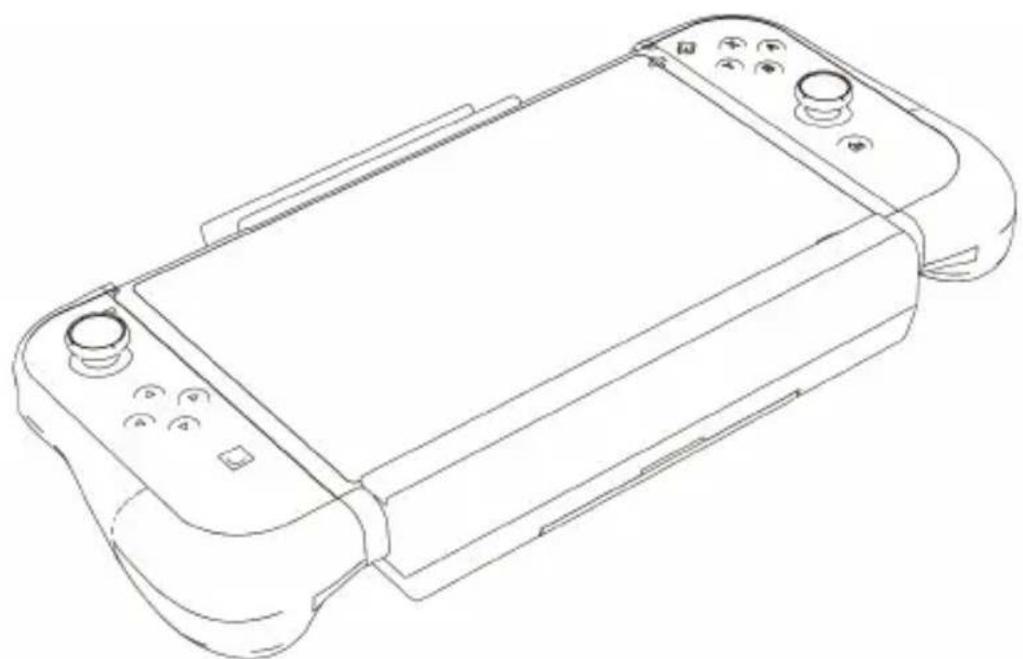

Take the device out of the package and remove all the packaging material. Charge the charger case fully by connecting a charger to the USB-C charging port of the product. Open the opener and insert the switch console and controller into the charger. Make sure that the console charging port matches the USB-C output of the charger.

Line drawing of a gaming controller with multiple controllers and scrollbars (no text or symbols)

Then flip the holder forward so that the console is held in place.

5. Charging process

Please charge the Gamepad fully before using it for the first time. To start charging the console, briefly press the ON/OFF button on the charger case. Pressing the button again stops the charging process.

Note: When the battery is fully charged, the LED indicator stops flashing and glows continuously.

The status LEDs indicate the approximate charging level at present.

Status LED Meaning
LED 1 Charging level is 10-25%
LED 1+2 Charging level is 25-50%
LED 1-3 Charging level is 50-75%
LED 1-4 Charging level is 75-100%

6. Safety instructions and disclaimer

Never try to open the device to undertake any repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Please use it only in dry places. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

7. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be recycled or disposed of separately, because toxic and hazardous components can cause lasting damage to the environment if disposed of improperly. As a consumer, you are obliged under the German Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge to the manufacturer, the point of sale or to public collection points set up for this purpose at the end of their lifetime. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

8. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. The customer can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 304567/20200513SZ275 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16,30179 Hannover
