USER MANUAL 305615 Mybeo

• This device is suitable only for domestic use. Use the massage gun only for massaging!
• Do not use the device if it is defective.
• Do not use the device if it has fallen down or the surface is damaged.
• Read all the instructions carefully before using it.
• Do not immerse the product under water and ensure that it does not come in contact with water.
• Never dismantle the device. Warranty claims are rendered void in case of improper use.
• This product is not a toy!

• Keep it out of the reach of children.

• If you are unable to switch on the device even after pressing the power button for a long time, or if switches off immediately after switching on, check whether the device battery is sufficiently charged.

• Please use the specified voltage of this product for charging. It is advisable to charge with a DC5V / 2A adapter. If you use a voltage other than that specified for charging, the device may not function properly or get damaged.
• If the device gets stuck during operation or stops, press and the POWER button briefly to continue.

• Touch and do not press the massage head during operation.

• Do not use the device for a long time at the same spot to prevent physical injury.

• Do not use it on weak muscles or bones, joints, neck, etc.
  Children, minors, pregnant women, persons with cardiac pacemakers, people with broken bones or those with metal in their body, should not use this device.
• If you feel uncomfortable, please stop using the product immediately.
• This device should not be used by persons (including children) with reduced physical, sensory or mental capabilities or persons with inadequate experience and / or knowledge, unless they are supervised by a

person who is responsible for their safety, or if they have been instructed on how to use the device.

• Children should be supervised to ensure that they do not play with the device
• Consult your physician before using this product if
• you are pregnant,
• you have a pacemaker, artificial joints or electronic implants,

• you suffer from one or more of the following diseases or conditions: Circulation problems, varicose veins, open wounds, bruises, cracked skin, inflammation of the veins.

• Do not use this device to supplement medical treatments.

• If you experience pain or discomfort during the massage, stop immediately and consult your physician.
• Never leave the device unattended, especially when children are nearby.
• Do not use the device directly on swollen or inflamed areas or on skin rashes.
• Do not use this product before going to bed. The massage has a stimulating effect and can delay sleep.
• This device is intended for personal use only and not for professional use.
• Never charge the device unattended.

Thank you for choosing a mybeo product. Please read the following user manual carefully to get the most from the product you have purchased.

1. Scope of delivery

• Massage gun
  Spherical massage attachment
• Flat massage attachment
  Cylindrical massage attachment
  U massage attachment

2. Technical data

Power supply DC 5V 2A
Battery type 7.4V 2000 mAH
Power consumption max. 26 W
Speeds 4
Ambient temperature + 0-3°C to 35-40°C

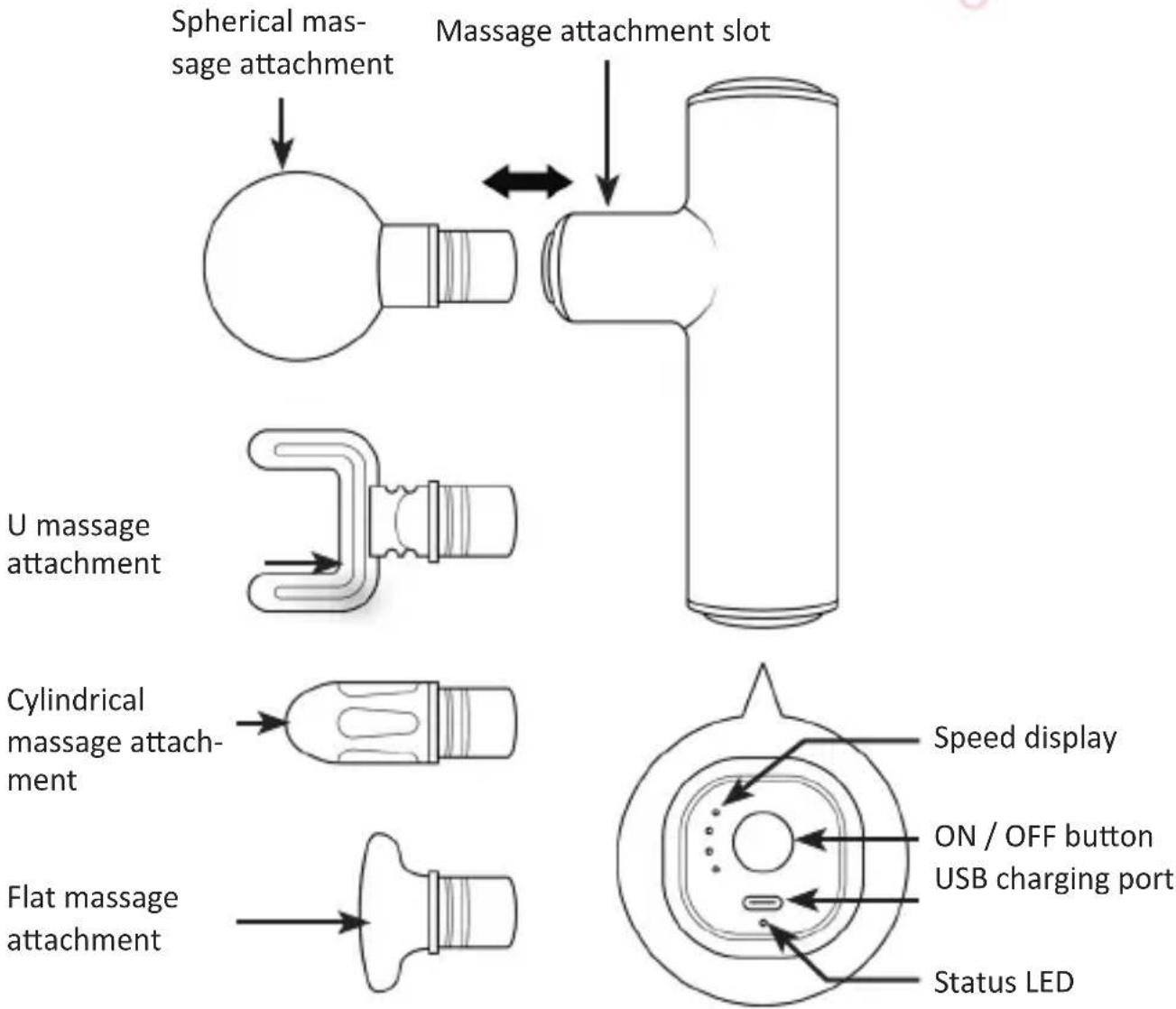

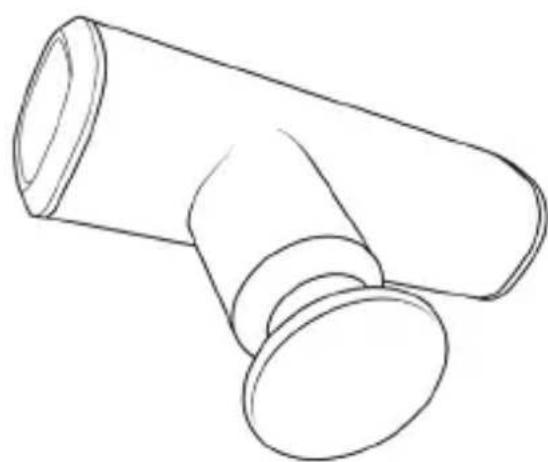

3. Product details

4. Attachments

Attachment Usage
Spherical attachment	Suitable for massaging large muscle groups like arms, back, thighs and calves.
U attachment	It can be used for relaxation and shaping of all muscle groups.
Cylindrical attachment	Suitable for deep tissue massage such as meridians, palms and plantar.
Flat attachment	Suitable for massaging both sides of the spine and the Achilles tendon.

5. Initial use

Take the device out of the package and remove all the packaging material. Charge the device fully before using it. Use a 5V/2A charger and connect it to the USB Type C charging socket of the massage gun.

5. Usage and function

1. Select one of the four standard massaging heads and install it on the device by inserting it into the massage attachment slot. Ensure that the attachment is fixed correctly.
2. Press the ON/OFF button for about 5-6 seconds to switch on the device. The massager starts in first speed by default after it is switched on. Alternatively, you can press the ON/OFF button to change to the desired speed.
3. To protect the product, the device automatically switches off after 15 minutes of continuous operation. If you want to continue using it, you can restart it.
4. When the product is shifted to 0 speed and is not operated further for one minute, it switches off automatically.
5. If the green and the red light flash alternately during use, this means that the battery is too weak. Recharge it for normal use.

5.1 LED description

Green status LED starts glowing: Press the ON/OFF button for about 5-6 seconds to switch on the product. Green light is continuously on. This means that the device is always in the switched on state.

Speed indicator: After switching on, the default speed is 1 and only one blue indicator light of the speed indicator glows. Briefly press the ON / OFF button for changing to speed 2 (2 blue indicator lights glow). When you change to speed 3, 3 blue indicator lights glow. Accordingly, 4 blue indicator lights glow for speed 4. When you shift to speed 0, all the blue indicator lights go off.

Red status LED flashes slowly: The red indicator light flashes slowly during charging. The red indicator light turns off once the device battery is fully charged.

6. Cleaning and Care

Follow the safety instructions strictly when cleaning. Once the device is switched off, you can clean the surface using a slightly damp, soft cloth.

Do not use cleaning agents, solvents or scouring agents for cleaning. Use only a soft cloth to clean the device.

7. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior notice.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

9. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305615 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

ATTENTION!
