USER MANUAL 660166 Schwaiger
GB USER GUIDE AND SAFETY INSTRUCTIONS
RGB LED OUTDOOR SOLAR TABLE LAMP, WITH PULL SWITCH
MODE D'EMPLOI ET CONSIGNES DE SÉCURITÉ
Diagram of a conical lamp with labeled components including base, collector, and screen parts
Diagram showing a table lamp with a conical shade being placed on its side, then to form a second lamp (no text or symbols present)Produkt aufladen
Read the user guide and keep it in a safe place
Congratulations and thank you for purchasing this SCHWAIGER Product.
This user manual is an integral part of this product. It contains important information on commissioning and handling.
This user manual is intended to assist you in using the product. Read through the instructions for use carefully. Store this guide safely throughout the product's entire service life and pass it on to any subsequent users or owners. Check that the supplied package is complete and ensure that none of the parts are defective or damaged.
INTENDED USE
The product is designed exclusively for atmospheric table lighting indoors or outdoors.
The product is intended for private use only and is not suitable for commercial use.
Only use the product as described in this user manual. Any other use is considered improper and may result in property damage.
PACKAGE CONTENTS


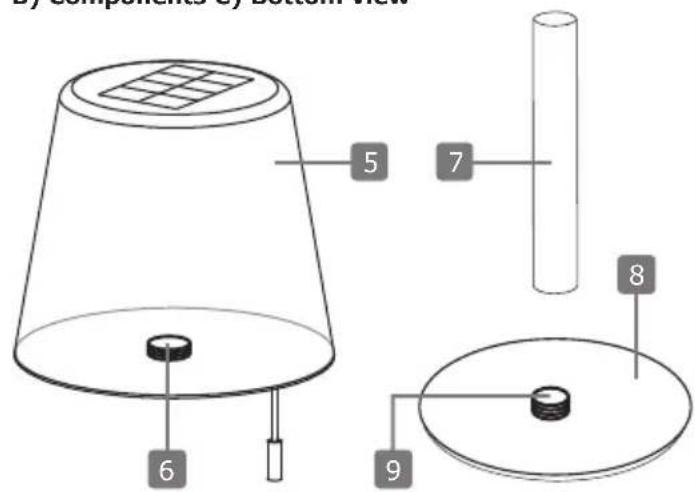

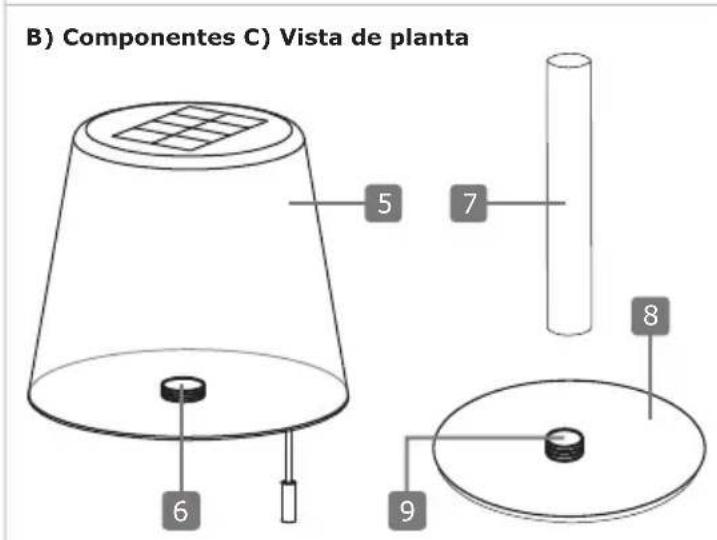

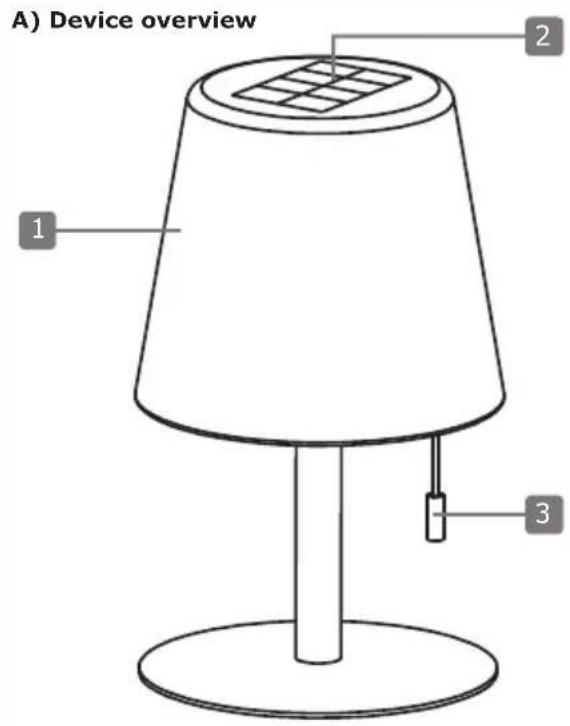

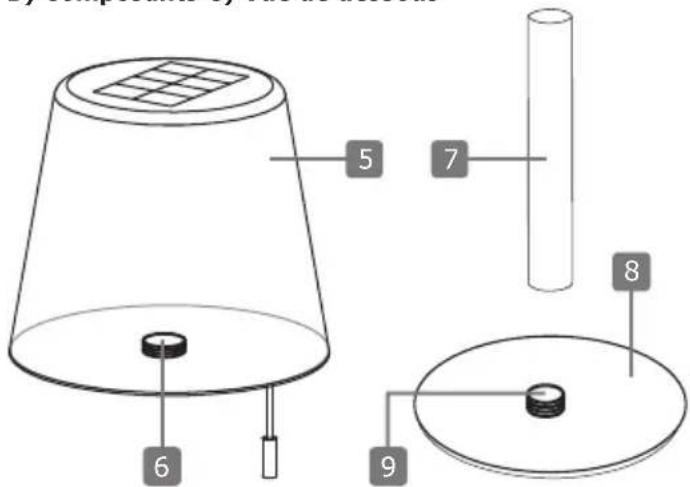

A) Device overview 1 2 31 RGB LED Outdoor solar table lamp
2 Solar panel
3 Pull switch

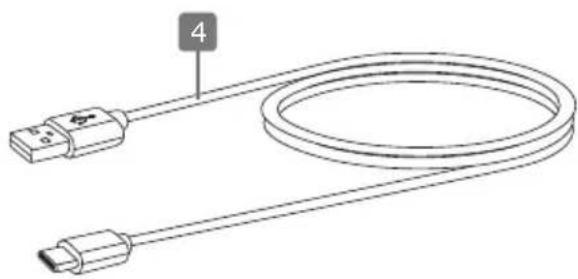

4 USB Type C charging cable
5 Lampshade
6 Screw thread (lampshade)
7 Pole
8 Base
9 Screw thread (base)

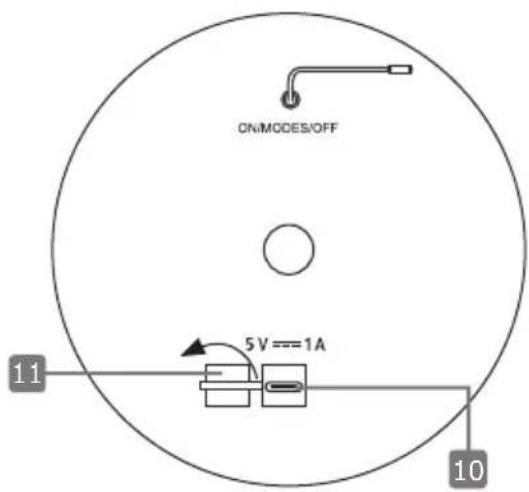

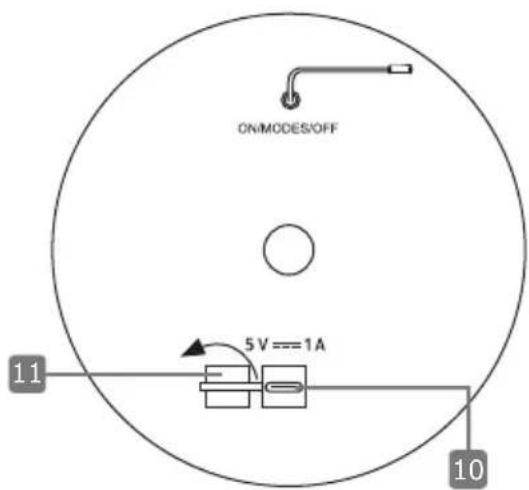

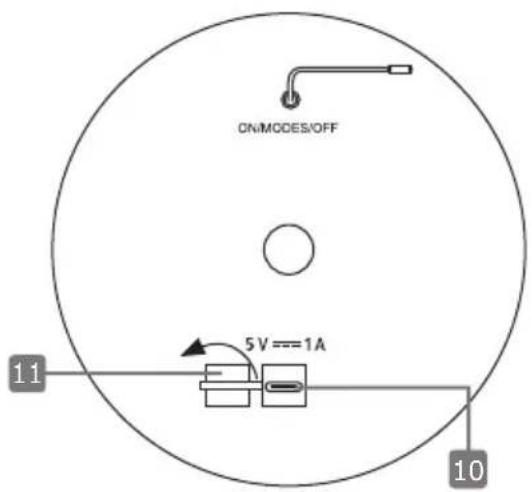

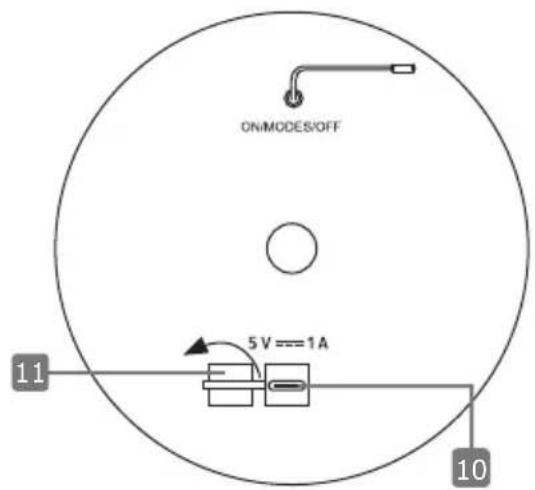

10 USB Type C charging socket
11 Cover cap
WARNING!
Risk of electric shock!
Faulty electrical installation or excessive mains voltage can lead to electric shock.
- If you use a USB charger, only connect it if the mains voltage of the socket matches the specification on the type plate.
- To charge the installed Li-ion battery, use only power supplies that comply with the SELV standard according to IEC 61558-2-6 or IEC 61347-2-13 or ES1 / IEC 62368-1 according to IEC 62368-3.
- Do not operate the product if it has visible damage or the USB charging cable is defective.
- Do not open the housing but entrust the repair to specialists. Contact a specialist workshop for this purpose. Liability and warranty claims are excluded in the event of repairs carried out independently, improper connection or incorrect operation.
- Only parts that correspond to the original device data may be used for repairs. This product contains electrical and mechanical parts which are essential for protection against sources of danger.
- Never immerse the product in water.
- Never touch the USB plug with wet hands
- Never pull the USB plug out of the charging socket by the USB charging cable, but always hold the USB plug.
- Never use the USB charging cable as a carrying handle.
- Keep the product and the USB charging cable away from open flames and hot surfaces.
- Route the USB charging cable so that it does not become a tripping hazard.
- Do not bend the USB charging cable or place it over sharp edges.
- Never operate the product in wet areas or in the rain.
- Do not expose the product to rain or extreme weather conditions e.g., sub-zero temperatures, hail, extreme heat.
- Charge the product indoors.
- Never place the product in such a way that it can fall into water.
- Never reach for an electrical device if it has fallen into water. In such a case, immediately pull the USB charger out of the charging socket.
- Make sure that no liquid gets into the product and, if necessary, dry the product thoroughly before using it again.
- Ensure that children do not insert any objects into the product.
- When you are not using the product, cleaning it or if a malfunction occurs, always switch off the product and disconnect the power plug.
- The light source of this fixture is not replaceable; when the light source reaches its end of life, replace the entire fixture.
WARNING!
Hazards for children and persons with reduced physical, sensory or mental abilities (for example, partially disabled persons, elderly persons with reduced physical and mental abilities) or lack of experience and knowledge (for example, older children).
- This product can be used by children aged from eight years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children must not play with the product. Cleaning and user maintenance must not be carried out by children without supervision.
- Keep children younger than eight years away from the product and the connecting cable.
- Do not leave the product unattended during operation.
- Do not allow children to play with the packaging film. Children can get caught in it while playing and suffocate.
WARNING!
Fire hazard!
Improper handling of the product and battery may cause an explosion or fire.
- The battery is permanently installed in the case; it cannot be replaced.
- Keep the product away from water, other liquids, open flames, and hot surfaces.
- Do not cover the product and the USB charging cable with objects or clothing.
- Do not place open fire sources, such as lighted candles, on or near the product.
- Keep a distance of at least 5 cm from easily flammable materials.
- Charge the battery of the device regularly, even if you do not use it for a longer period of time (about every 3 months). Otherwise, the battery may become deeply discharged and permanently unusable.
- Due to the battery technology used, no previous discharge of the battery is necessary during the charging process, so it can be recharged regardless of the charge status.
- Place the product on a surface that is not sensitive to heat during the charging process. Slight heating during charging is normal.
- Leaking or damaged batteries can cause burns if they come into contact with the skin. Therefore, use suitable protective gloves in this case.
- Liquids leaking from batteries are chemically very aggressive. Objects or surfaces that come into contact with them can be severely damaged.
CAUTION!
Risk of injury!
The light from the LED lamp is bright and can damage the eyes when viewed from an insufficient distance.
- Never look into the illuminated LED lamp from a short distance.
- Never look at the illuminated LED lamp with a magnifying glass or other optical instruments .
IMPORTANT!
Risk of damage!
Improper handling of the product may result in damage to the product.
- Place and operate the product on an easily accessible, level, dry, heat-resistant, vibration-free, and sufficiently stable base to prevent the product from falling. Do not place the product at the edge or on the edge of the base.
- Never place the product on or near hot surfaces (e.g., stove tops).
- Do not bring the product and the USB charging cable into contact with hot parts.
- Never expose the product to high temperature (heating, etc.) or weather (rain, etc.).
- Never immerse the product in water for cleaning and do not use a steam cleaner for cleaning. The product may otherwise be damaged.
- Do not use the product if the plastic components of the product are cracked or deformed. Replace damaged components only with suitable original spare parts.
OPERATION IN DETAIL
Checking product and supplied package
IMPORTANT!
Risk of damage!
The product can become quickly damaged if you do not take care when opening the packaging with a sharp knife or other sharp objects.
- Open the packaging very carefully.
- Remove the product from the packaging.
- Check that the supply package is complete.
- Check that the product or individual parts are not damaged. If anything is damaged, do not use the product. Contact the hotline or e-mail address given in this operating manual.

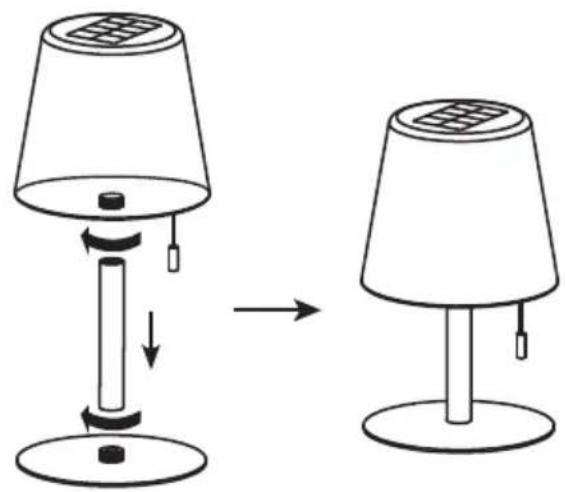

Assembling the product
For a secure hold, mount the RGB LED outdoor solar table lamp (1) before using it for the first time.
Take the pole (7) and screw it tightly onto the screw thread (9) of the base (8). Then take the lampshade (5) and screw its screw thread (6) tightly into the pole (7).
It is recommended to fully charge the built-in battery of the RGB LED outdoor solar table lamp (1) before using the product for the first time.
Charging with the USB charging cable
i IMPORTANT!
Risk of damage!
Charging the product with an unsuitable USB charger may damage the product.
- Only use USB chargers with max. 5 V output voltage for charging.
- To charge the product, place it on a dry, horizontal surface that is not sensitive to heat.
- Unwrap the supplied USB Type C charging cable (4) completely.
- Open the cover cap (11) on the bottom side of the lampshade (5).
- Insert the USB Type C plug into the USB Type C charging socket (10).
- Insert the USB plug into a suitable USB charger or into an active USB socket (e.g., laptop, computer).
During charging, the indicator light on the bottom side of the lampshade (5) lights up red.
The charging time is approx. 4 hours.
When the product is fully charged, the indicator light turns green.
Then remove the USB Type C charging cable (4) and close the cover cap (11).
Charging with the solar panel
-
Place the product outdoors
-
Make sure that the product is not in the shade.
-
Allow the product to charge by direct sunlight on the solar panel (2) for approx. 8 hours.
The charging time depends on the light intensity. If the sky is cloudy, the charging time may be longer. Make sure that the USB Type C charging cable (4) is not connected to the product during this time.
You can then use the product.
OPERATION IN DETAIL
The RGB LED outdoor solar table lamp (1) is operated exclusively via the pull switch (3) on the lampshade (5).
- Pull the pull switch once to switch on the product. The luminaire then shines in warm white light at full brightness.
- Pull the pull switch a second time to dim the brightness of the warm white light to 20% .
- Pull the pull switch a third time to switch the product to RGB colour change mode. The light then changes colour in the following sequence: red - yellow - green - blue - purple. The light colours merge smoothly into one another, and the brightness is again at 100%.
- Pull the pull switch a fourth time to stop the RGB colour change mode. The lighting then remains in the current colour.
- Pull the pull switch a fifth time to switch the product off again.
If you then pull the pull switch again, the product is switched on again and the above lighting sequence starts again.
Please note that the lighting is not dimmable during the charging process via USB charging cable and is at approx. 30 % of luminosity.
TECHNICAL DATA
| Item number 660166 Lifetime approx. 50000 h | ||
| Model number OTL492 Dimmable yes | ||
| Connections 1x USB Type C socket Charging time appro | 4 h (via USB Type C) | approx. 8 h (via solar panel) |
| Power supply 5 V DC, 1 A Lighting time approx. 8 - 15 h (RGB light) | approx. 4 h (warm white light) | |
| Type of battery Lithium-ion-battery Protection IP44 | ||
| Battery capacity 1800 mAh Protection class III | ||
| Solar panel 1.0 W (poly crystal) | Ambient temperature | -13°C ~ +35°C |
| LEDs 4x RGB LED9x LED warm white | Product material PP + metal | |
| LED power 4x 0,18 W (RGB LED)9x 0,20 W (LED warm white) | Colour | white / black |
| Luminous flux 200 Lm Dimensions (WxHxD) | 153 x 255 x 153 mm | |
| Colour temperature 3000 K | Weight | 605 g |
MAINTENANCE & CLEANING
i IMPORTANT!
Short circuit hazard!
Water or other liquids entering the housing can cause a short circuit.
- Never immerse the product in water or other liquids.
• Make sure that no water or other liquids get into the housing.
i IMPORTANT!
Risk of damage!
Improper handling of the product may result in damage to the product.
- Do not use aggressive cleaning agents, brushes with metal or nylon bristles, or sharp or metallic cleaning objects such as knives, hard spatulas, and the like. These can damage the surfaces.
-
Before cleaning, switch off the product and remove the USB cable.
-
Clean the product with a soft, dry cloth.
-
If the product is stubbornly dirty, use a slightly damp cloth and a little mild detergent if necessary.
-
Allow all parts to dry completely afterwards.
Storage
All parts must be completely dry before storing.
• Always store the product in a dry place.
- Store the product out of children's reach in a securely locked place and at a storage temperature between 5 °C and 20 °C (room temperature).
Disposal
Do not dispose of batteries or electric and electronic devices in the normal household waste. The consumer is legally obliged to return electrical and electronic devices and batteries that are at the end of their useful life to the point of sale or public collection points that have been set up for this purpose. Legislation in the country of use governs individual details regarding disposal. The symbol on the product, the user guide or the packaging indicates this legal requirement.
Batteries and rechargeable batteries must not be disposed of with household waste!
As a consumer, you are required by law to return all batteries and rechargeable batteries, whether they contain harmful substances* or not, to a collection point in your municipality / district or in the trade, so that they can be disposed of in an environmentally friendly manner.
*marked with: Cd = cadmium, Hg = mercury, Pb = Lead
- Return the product completely (with the integrated battery) and only in discharged condition to your collection point.
Disclaimer
Schwaiger GmbH does not accept any liability or warranty for damages that are sustained due to improper installation or mounting, improper use of the product or non-compliance with the safety instructions.
Manufacturer's information
Dear Customer,
Please contact our Technical Support if you need technical advice and your retailer is unable to help you.
Warranty
The warranty period starts when the product is purchased. The purchase receipt, such as a till receipt, invoice or delivery slip, serves as proof of this date. Keep these documents in a safe place. Our warranty is based on our warranty conditions valid at the time of purchase.
Office Hours (Technical Support in German)
Monday to Friday: 8:00 a.m. - 5:00 p.m.
