Product Type	External Canister Filter for Aquarium
Brand	Fluval
Model	C4
Category	Water Filter
Maximum Flow Rate (120V)	989 L/h
Maximum Flow Rate (230V)	900 L/h
Minimum Flow Rate (120V)	642 L/h
Minimum Flow Rate (230V)	480 L/h
Power Supply	120V or 230V depending on version
Number of Filtration Stages	5 stages: mechanical (2), chemical, biological (2)
Included Filter Media	Foam/polyester pad, activated carbon, Bio-Screen, C-Nodes cylinders
Foam/polyester pad replacement interval	Every 4 to 6 weeks
Activated carbon replacement interval	Every 2 to 4 weeks
Bio-Screen replacement interval	Every 2 to 3 months
C-Nodes cylinders replacement interval	Replace half every 6 months
Motor cleaning	Every 3 months
Motor seal	Replace annually
Maximum water temperature	35 °C
Warranty	2 years
Usage	Indoor and domestic use only
Minimum water level below frame	6 cm (2.25 inches)
Available spare parts	Tank, biological chamber, chemical basket, cover, mechanical frame, U-tube, telescopic tube, extension tube, crown cover assembly, crown, motor seal, motor, leveling device

Frequently Asked Questions - C4 Fluval

What to do if the filter does not start or makes a mechanical noise?

Check that all parts are correctly installed and that the crown blades move freely on the magnetic block. Make sure the filter is properly plugged in.

Why does the motor not start after maintenance of the filter media?

Check that the filter is reconnected and that all parts are cleaned and reassembled according to the instructions. Refer to the Motor Filter Maintenance section.

What to do if priming does not occur?

Check that the tank is filled with water, the U-tube is properly installed, the device is plugged in, and that the water level in the aquarium is not more than 6 cm below the frame.

Why is the water cloudy in my new aquarium?

Bacterial cloudiness may occur during the first week and last up to six weeks. If it persists, consult a pet store specialist.

What happens if I forget to clean the filter media?

The filter media become dirty, reducing efficiency. The foam clogs and water bypasses filtration. Immediate cleaning or replacement is necessary.

When should I use reduced flow?

Reduced flow is useful during feeding or if the current is too strong for small or delicate fish. The refiltration system allows reducing flow without loss of efficiency.

Why use only aquarium water to rinse the filter media?

Tap water contains chlorine or other chemicals that kill beneficial bacteria. Aquarium water preserves these bacteria essential for the nitrogen cycle.

How to clean the crown cover assembly?

Gently grasp and pull to remove it. Clean it once a year with an intake tube brush. Replace by pushing until it clicks.

What additional filter media are available?

Fluval offers ammonia neutralizer and Zeo-Carb (carbon + neutralizer mix) to improve water quality.

How to maintain the filter motor?

Unplug the filter, remove the cover and baskets, empty the water. Turn the motor a quarter turn in the direction of the arrow to release it. Clean the crown and the well with a brush. Reassemble by wetting the seal.

USER MANUAL C4 Fluval

FLUVAL. C Power Filter

Instruction Manual

Quick Start Guide

1

PACKING LIST

Congratulations on the purchase of your new Fluval C Power Filter. Please allow approximately 15-20 minutes for the complete installation of filter parts and inserts. Inspect the filter for any visible signs of shipping damage, and verify that the motor is securely fastened to the filter case. The following parts should be included in your package.

附表1

Fig. 12a
或

Leve:
10.3

Mechanical Frame

PcWocun Far

“IF Tax”

Talang: iriko Tabe

Iroder

Achland Carbon

Hely Urt Wt Sg Rng

09601000 11B10

2

PREPARING FILTER INSERTS. All filters must be rinsed thoroughly.

FLUVAL POLY/FOAM PAD

Slide the mechanical frame out of the filter body and rinse under tap water to remove any debris caused during shipment. Check to make sure the PolyFoam pad is inserted correctly, with the dense polyester side facing the grid on the frame.

FLUVAL BIO-SCREEN

Rinse Bio-Screen under tap water, and place into Trickle Chamber cover. Note: The side with the large holes must face upwards.

FLUVAL ACTIVATED CARBON

Remove Activated Carbon insert from its plastic shipping bag, and rinse pouch under tap water to remove any dust particles. Place pouch loosely into the chemical media basket (Do not remove carbon from porous bag).

FLUVAL C-NODES

Open poly bag and spread them evenly in the Trickle Chamber, then rinse under tap water. (Aquarium water is preferable if the aquarium is already established). Replace Trickle Chamber cover. Note: Ensure C-Nodes are well positioned inside the chamber so that the cover closes perfectly.

FILTER INSERTS MAINTENANCE

NOTE: Regular replacement of Fluvial filter inserts is essential to ensure optimum filter performance.

The Fluval PolyFoam Pad, Activated Carbon, Bio Screen and C-Nodes should be changed alternately in order to maintain continuous biological activity. To enhance bacterial action, pour a dose of Nutrafin Cycle Biological Aquarium Supplement onto your filter inserts each time you change the media. Follow individual packaging instructions for recommended replacement intervals.

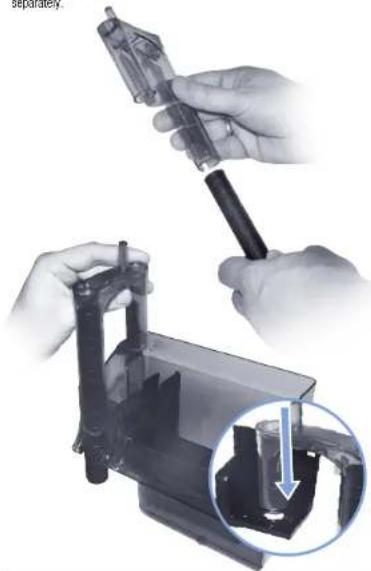

ATTACHING "U" TUBE

1. Attach the telescopic intake tube to the "U" tube.
2. Slide the "U" tube down into its place.
   Note: For deep aquariums, an additional extension tube can be purchased separately.

Close-up of hands using a tool to adjust or install a mechanical component, with an inset showing a magnified view of the component (no text or symbols visible)

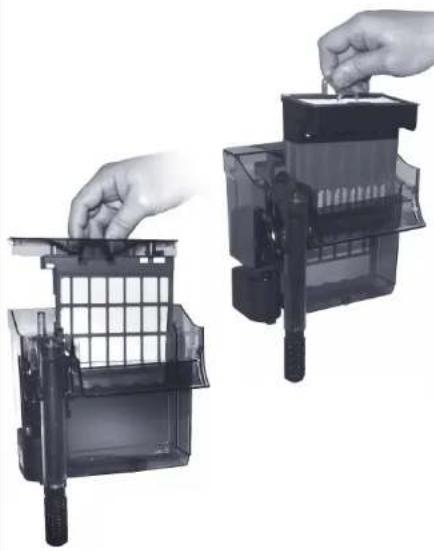

INSTALLING FILTER INSERTS

After preparing filter inserts, first slide the mechanical cartridge frame into the rear of filter case with the cleaning indicator to the right. Then slide the chemical basket and Trickle Chamber into the filter case.

Two hands installing or adjusting a mechanical device into a transparent plastic housing (no text or symbols visible)

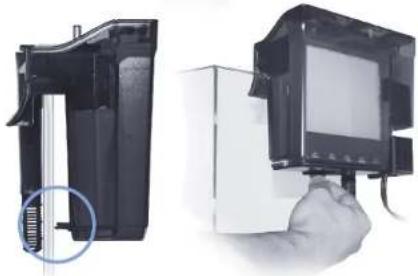

ATTACHING LEVELING DEVICE

To ensure optimal operating performance, the Fluval C Power Filter must be level.
1. Insert leveller into bottom of filter case.
2. Mount Power Filter onto rear of aquarium, and adjust leveller by turning it to the required setting so that the filter sits perfectly in vertical position.

Close-up of hands holding a black electronic device with a cable and indicator lights (no visible text or symbols)

Two-panel image showing a device with a black plastic housing and a hand holding a white electronic device (no visible text or symbols)

POWER FILTER START-UP

1. With the cover removed, fill the Power Filter case completely with water and replace cover.
2. For the initial start-up and for a faster priming of the filter, adjust water flow control lever on the intake "U" tube to its minimum position.
3. Plug power cord into electrical outlet. Allow a few seconds for priming (air being expelled from the "U" tube.)

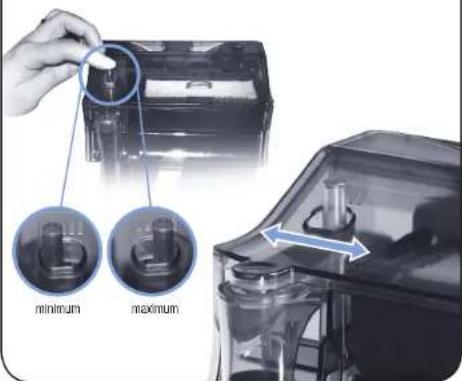

4. After priming has been completed, move adjustment control on "U" tube to adjust water flow rate to desired output level.
   (See How it Works — Patented Refiltration System.)

IMPORTANT: DO NOT OPERATE FILTER WITHOUT WATER.

For a correct filter installation, the minimum water level in the tank should be no more than 6 cm (2.25 inches) below the aquarium rim. NOTE: For maximum filter operation and efficiency, regular cleaning of media is recommended every two weeks.

minimum maximum

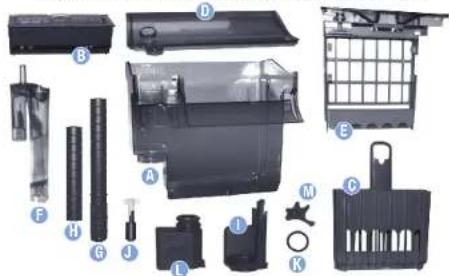

REPLACEMENT PARTS

To re-order parts for your Fluval C Power Filter, please refer to the parts list below.

Exploded view diagram of a mechanical device with labeled parts A through K

ITEM	C2	C3	C4
A Filter Case	A20265	A20266	A20267
B Biological Trickle Chamber with cover	A20268	A20269	A20270
C Chemical Basket	A20271	A20272	A20273
D Filter Cover	A20274	A20275	A20276
E Mechanical Frame	A20277	A20278	A20279
F "U" Tube	A20280	A20280	A20281
G Telescopic Intake Tube	A20282	A20282	A20283
H Extension Tube	A20284	A20284	A20285
I Impeller Cover Assembly	A20286	A20286	A20287
J Impeller	A20297	A20298	A20299
K Motor Seal Ring	A20288	A20288	A20288
L Motor Unit	A16000	A16000	A16000
M Leveling Device	A20290	A20290	A20290

IMPORTANT SAFETY INSTRUCTIONS

WARNING - To guard against injury, basic safety precautions should be observed, including the following:

1. For the complete enjoyment, use and understanding of this product.

READ AND FOLLOW ALL SAFETY INSTRUCTIONS and all-important notices on the Power Filter to

Failure to do so may result in damage to the unit.

1. DANGER — to avoid positive electrical shock, special care should be taken since water is employed in the use of this equipment. For each of the following situations, do not attempt repairs yourself: return the Royal Power Filter for repair to an authorized service facility for service or discard the appliance.
   L. If the Fluvial Motor Unit falls into the water DD NOT reach for it! First unplug it and then retrieve it. If any of the electrical components of the Power Filler gel vest, unplug it immediately.
   II. If the Motor Unit shows any sign of abnormal water leakage or it RCD (or GFCI- Ground Fault Current Interrupter) switches off, disconnect the power supply cord from the wall socket and remove pump from water.
   III. Carefully examine the Power Filler after installation. It should not be plugged in if there is water on parts not intended to be vct.
   IV. Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or if it is dropped or damaged in any manner. The power cord of this appliance cannot be replaced: If the cord is damaged, the appliance should be discarded. Never cut the cord.
   V. To avoid the possibility of the Power Filter's plug or socket getting vet, position the unit to one side of a wall mounted socket to prevent water from dripping onto the socket or plug. A "drip loop" (4) should be arranged. The "drip loop" is the part of the cord below the level of the socket or the connector if an extension card is used. To prevent water travelling along the cord and coming into contact with the socket. If the plug or socket does get vet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker that supplies power to the appliance. Then unplug and examine for presence of water in the socket.
2. WARNING - Close supervision is necessary when any appliance is used by or near children. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
3. To avoid injury, do not contact moving parts or hot parts such as heaters, reflectors, lamp bulbs, impeller etc.
4. CAUTION — Always unplug or disconnect all appliances in the aquarium from electrical supply before placing hands in water, before pulling on or taking off parts and whilst the equipment is being installed, maintained or handled. When inserting or removing the pump from the water, always pull out the main electrical plug. Never yard cord to pull plug from outlet. Grasp the plug and pull to disconnect. Always unplug appliances from the socket when not in use.
5. This is an aquarium filter-pump. Do not use this pump for other than its intended use (i.e.: do not use in swimming pools, bathrooms, etc.). The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition, and will invalidate your warranty.

• Do not use this pump in swimming pools or other situations where people are immersed.
  • This pump is suitable for use in water temperatures up to 35°C.
• Do not use this pump with inflammable or drinkable liquids.
• This pump is suitable for INDOOR HOUSEHOLD use only. Do not install or store the appliance where it will be exposed to the weather or to temperatures below freezing.
• Make sure an appliance mounted on a tank is securely installed before operating it, and that the electrical connections are in accordance with data on the rating label. Do not allow pump run cry.
• If an extension cord is necessary, a cord with proper rating should be used. A cord rated for less amperes or walls than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled. The connection should be carried out by a qualified electrical installer.
  For the complete use and understanding of this power filter it is recommended that this manual is thoroughly read and understood. Failure to do so may result in damage to this filter.

10. SAVE THESE INSTRUCTIONS

2 YEAR WARRANTY

To register your warranty on line or for more information on this and other products go to: www.hagen.com The Flutes C Fillers are guaranteed against defects in material or workmanship under normal aquarium usage and service for 2 years. We offer a 2-year guarantee on all non-recoverable ports which means that the filter will be repaired or replaced at the manufacturer's discretion, free of charge, when the complete pump is returned with proof of purchase and postage paid. This warranty does not apply to any filter that has been subjected to misuse, negligence, or tampering. No liability is assumed with respect to loss or damage to livestock or personal property irrespective of the cause thereof.

FOR AUTHORIZED WARRANTY REPAIR SERVICE

For Authorized Warranty Service please return well packaged and by registered post to the address below enclosing dated receipt and reason for return. If you have any queries or comments about the operation of this product, please let us try to help you before your return the product to your retailer. Most queries can be handled promptly with a phone call. When you call for write, please have all relevant information such as model number, age of product, details of aquarium set-up, as well as the nature of the problem. When you call (or write), please have all relevant information, such as model number and/or part numbers available, as well as the nature of the problem.

CANADA: Hagen Industries, Consumer Repair, 3235 Guénette, Montréal QC H4S 1M2

U.S.A.: Rolf C. Hagen (U.S.A.) Corp., 3115 Forbes Blvd, Marsfield, MA. 02048

UK: Roll C. Hagen (UK) Ltd, Customer Service Department California Drive, Whitwood Ind Est., Castford, West Yorkshire INF10 50H — http://hagen-uk.custhelo.com

CALL US ON OUR TOLL-FREE NUMBER: Canada only: 1-800-554-2436 between 9:00 a.m. and 4:30 p.m. Eastern Standard Time, Ask for Customer Service.

U.S. only: 1-800-724-2436 between 9:00 a.m. and 4:00 p.m. Eastern Standard Time, Ask for Customer Service. U.K. only: Helpline Number 01977 556622. Between 9:00 AM and 5:00 PM, Monday to Friday (excluding Bank Holidays).

RECYCLING

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handed pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. Check with your local Environmental Agency for positive disposal instructions or have to an official council registered refuse collection point. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

HOW IT WORKS

The Fluval C Power Filter draws water from the aquarum through the intake tube into the motor which then pumps water out of the impeller assembly. The motor pushes the flow of unfithered water through filter inserts to trap particles, debris, and purify the water. The New Fluval C series filtration system offers the ultimate multistage filtration available in the market: With 2 x Mechanical, 1 x Chemical and 2 x Biological, each stage operates independently.

Unsurpassed Mechanical,

Chemical and Biological filtration

A healthy aquarium requires "beneficial" bacteria. Invisible and harmless, beneficial bacteria are essential in the removal of toxic ammonia and nitrite. With cartridge filtration systems, when you

throw away the cartridge, you throw away beneficial bacteria. It can take weeks for the bacteria to re-colonize, resulting in a stressful environment. The Fuvat® 5 stage filtration system is different. Only one of the filtration components is changed at a time. This ensures that the maximum amount of beneficial bacteria remains. There is never a sudden depletion of bacteria so biological filtration remains always at high effective levels.

Stage 1 & 2: Mechanical — Poly/ Foam Pad

Effective mechanical filtration is essential for efficient chemical and biological filtration. The large surface area of the PolyFoam pad effectively performs two stages of Mechanical filtration. The first stage of porous foam traps large particles and the second stage of dense polyester captures fine debris.

Note: The mechanical frame is equipped with a cleaning indicator (A) located on the top portion of the frame. When fully visible (B), the mechanical Poly/Foam pad requires maintenance.

Stage 3: Chemical — Activated Carbon Insert

Fluvial Activated Carbon Filter Insert contains 100% premium research grade carbon. Premium research grade carbon provides large amounts of surface area for adsorption of undesirable impurities. The activated carbon filter insert removes unwanted odors, discoloration and impurities, resulting in a crystal clear aquarium.

a. livisible and

Stage 4: Biological — Bio-Screen

An additional hydraulic circuit conveys part of the intake water to the NEW Innovative Bio-Screen paced at the top of the Trickle Chamber cover. Fluss's Bio-Screen removes any debris before dripping into the biological chamber. It also ensures that the water pumped to the Trickle Chamber is evenly soread through all areas before it drips on the C-Nodes, which are contained in the chamber. The motion of water dropping slowly through the grids mimics the rain. This process ensures that additional oxygen is dissolved into the water before returning to the aquarium, for a more efficient biological filtration.

Stage 5: Biological — C-Nodes

The surface of the C-Nodes is made up of a complex pore system that provides optimal living space for beneficial bacteria to thrive and enhance the removal of ammonia and ribites. The new "Star Shape" provides a higher filtration surface and more biological power than a traditional cartridge, resulting in a healthy aquarium environment.

PATENTED REFILTRATION SYSTEM

For a healthy aquarium and clear water

Sometimes delicate fish and plants require a gentler water flow. Fluvial's potentiated retillation system allows you to control the flow rate without compromising filtration efficiency. When the flow rate is reduced, up to 50% of the water within the filter chamber is re-processed multiple times. More impurities are filtered out, creating a healthier tank with sparking clean and clear water

NOTE: A reduced flow rate is also recommended during feeding, to ensure more efficient food consumption and less waste.

FLIVAL C POWER FILTERS FLOW RATES

MODEL # C2.C3 C4
	120V	230V 120V	230V 120V		230V
	gph	lph	gph	lph	gph	lph
Maximum Flo Rate	119	400	153	480	264	900
Minimum Flo Rate	62	210	80	330	159	480

No special maintenance is required to clean the external sides of the filter, other than periodic cleaning with a damp cloth (never use harsh chemical products or detergents). Simple lemon juice may be useful for removing caecareous encrustation. Rinse thoroughly afterward to stimulate acid residue. Following a routine maintenance schedule will result in a healthier aquarium, and extend the life of the filter. Fluvial C Power Filters have been designed to facilitate these tasks, as they can be done within a matter of minutes.

Poly/Foam Pad

Remove mechanical frame from the filter body and place in an empty bucket. Remove PolyFoam Pad from frame, and rinse using water taken from the aquarium. Do not use top water as this will kill the beneficial bacteria in your foam. NEVER use soap or detergents as these products could be harmful to the inhabitants of your aquarium. After rinsing, renstall the PolyFoam Pad into the mechanical frame, then slide the frame into the rear of filter case with the cleaning indicator to the right. Note: Make sure that the dense polyester side is facing the grid on the frame. For best results, replace every 4-6 weeks.

Two hands installing or adjusting a grid-patterned device into a container (no text or symbols visible)

Activated Carbon Insert

Remove filter cover. Pull out the chemical basket and Trickle Chamber from filter body. Separate the 2 sections then remove insert from Chemical basket. Replace with new insert. For best results, replace every 2-4 weeks.

Two hands holding a device with a grid of pins, one being adjusted for size (no text or symbols visible)

Blo-Screen

Remove filter cover. Using the tab, pull open the Trickle Chamber Cover and remove it. Place cover in the sink or a bucket, and rinse with the Bio-Screen, using water taken from the aquarium. Do not use tap water as this will kill the beneficial bacteria in your foam. For best results, replace every two to three months.

Biological C-Nodes

Using the lab, pull open the Trickle Chamber Cover and remove it. Lightly rinse the C-Nodes with aquarium water or replace 1/2 the quantity every 6 months. Never replace all the C-Nodes at one time, as the valuable colonies of beneficial bacteria would be lost. For best results, completely fill the cartridge with additional C-Nodes, but be sure to allow the cover to close easily.

Two hands inserting white granules into black plastic bins, one with a lid and the other with a tray (no text or symbols visible)

Impeller and Motor

Unplug the power cord. Remove cover, filter baskets and discard water remaining in filter case. Remove motor by loxating a 1/4 - turn gently in the direction of the arrow on the motor. Ease the motor down slowly to prevent damage to the filter and motor guide. Pull impeller out of the impeller wall, and rinses to remove accumulated slime deposits. If the impeller wall needs cleaning, scrub it gently with a Fluvial Cleaning Brush (solid separately). A motion swab or impeller wall brush (not supplied) can be used to remove more stubbom deposits. It is recommended to vest motor seal ring to prevent damage before pacing into filter case.

Note: It is recommended to replace the motor O-Ring on a yearly base to prevent leaking. Re-position the magnetic impeller on the shaft and insert into the impeller wall. Re-position the motor in the filter case.

Removing motor

Three-panel image showing hands assembling or adjusting a mechanical component, no visible text or symbols

Water Intake Components

The telescopic intake tube, "0" tube and impeller cover, can be cleaned using a filter stem brush to remove any build-up of deposits.

To remove the impeller cover assembly, gently grasp the impeller cover and pull

To insert the impeller cover assembly: place the impeller cover and gently push it down until it "clicks".

Note: For an optimal performance it is recommended to clean the impeller cover assembly once a

year. The motor should be thoroughly cleaned every three months. When all parts have been cleaned and thoroughly rinsed, reassemble the filter and replace onto aquarium. (See Quick Start Guide 2, 3 and 4.) Follow operating instructions to restart and prime power filter. (See Power Filter Start-up.)

Two hands installing or adjusting a mechanical component, one with a magnified inset showing a downward arrow (no text or symbols visible)

AVAILABLE SEPARATELY

Alternate Filter Inserts

We offer the following alternative chemical stage inserts as superior solutions to your filtration system.

Fluval Ammonia Remover Filter Insert Ammonia remover is a natural ion-exchange media designed to remove toxic ammonia as water passes over it. Controlling ammonia levels reduces stress on fish. Use this to provide a healthy environment when settling up a new aquarium or maintaining one that contains a higher than average fish stock.

Fluval Zoo-Carb Filter Insert

Zea Carb filter insert is a blend of premium activated carbon and ammonia remover. It collectively

eliminates impurities, odors and discoloration, while simultaneously removing toxic ammonia, resulting in a crystal clear and healthy aquarium. Water quality is the most important aspect of keeping fish. Maintaining the optimum water quality will help you keep your fish healthy and happy, and make the aquarium a beautiful and exciting addition to your home.

NUTRAFIN WATER CARE PRODUCTS

Nutrafin Aqua Plus

Tap Water Conditioner makes tap water safe for fish.

Nutrafin Cycle

Biological aquarium supplement introduces beneficial bacteria to accelerate the maturation of new tanks.

Q. What if the power filter motor doesn't start or makes a mechanical noise?

A. First check that all the filters' components have been correctly installed. Then check to make sure

the impeller blades are free moving on magnet assembly.

Q. Why won't the power filter motor re-start after performing filter insert maintenance?

A. Make sure the unit has been plugged back into the power outlet and that all parts are thoroughly

clean and replaced as directed. (See Power Filter Maintenance)

Q. What should I do if the priming process doesn't occur?

A. Verify that:

• All parts are installed correctly

• Filter case is completely filled with water

• Unit is plugged into power outlet

• "U" tube is correctly installed

• The minimum water level inside the tank no more than 6 cm (2.25 inches) below the aquarium rim

Q. Why is the water cloudy in my new aquarium?

A. Bacterial cloudiness may occur during the first week of a new aquarium set-up and may last up to

six weeks. If the condition persists, consult your local aquarium professional.

Q. What happens if I forget to clean my filter inserts?

A. If the Power Filler is left unattended for too long, the filler inserts become clogged with debris.

The efficiency of the filtration is very low, and the filter inserts require immediate rinsing or

replacement (See Filter Inserts Maintenance)

Q. When should I operate a reduced flow?

A. Reduced flow is most helpful during feeding times, or when the input suction or output stream is

too strong for small or delicate fish. (See How it Works — Patented Refiltration System.)

Q. Why should I use only aquarium water to rinse my filter inserts after they are installed?

A. Most cities add chlorine or other chemicals to eliminate harmful bacteria in drinking water for

human consumption. These additives, while harmless to us, are very toxic to fish.

GUIDE DE DÉMARRAGE RAPIDE DU FILTRE À MOTEUR FLUVAL C

1

LISTE DES ARTICLES

Carter of the following:

Upraxial de
NAMES

Diaries

T136-01

The image is too blurry to recognize any text content.

Fenler de l'italien

Exhibit

Close-up of hands using a tool to adjust or install a mechanical component, with an inset showing a magnified view of the component (no text or symbols visible)

INSTALLATION DES MASSES FILTRANTES

Two hands installing or adjusting a mechanical component, one with grid and the other with a handle (no text or symbols visible)

FIXATION DU DISPOSITIF DE NIVELLEMENT

Hand holding a device with a pen, showing internal components (no visible text or symbols)

Two views of a device showing a black plastic housing and a white enclosure with a hand holding the camera (no visible text or symbols)

minimum maximum

PIÈCES DE RECHANGE

Exploded view diagram of a mechanical device with labeled parts A through K

Two hands handling a small container with a grid and a tool, no visible text or symbols

Sachet de charbon activé

Two hands holding a small electronic device with a grid and indicator lights (no visible text or symbols)

Blo-Screen

Two hands inserting white granular material into black plastic bins (no text or symbols visible)

Couronne et moteur

Three-panel image showing hands assembling or adjusting a device, no visible text or symbols

Two hands installing or adjusting a mechanical component, one showing a downward arrow (no text or symbols visible)

VENDUS SÉPARÉMENT

Masses filtrantes de rechange

The source image is too blurry to recognize any text content.

Fair

Close-up of hands using a tool to adjust or install a mechanical component, with a magnified inset showing a detail (no text or symbols visible)

INSTALLATION DER FILTEREINSÄTZE

Two hands installing or adjusting a mechanical component, one with grid mesh and the other with a handle (no text or symbols visible)

BEFESTIGUNG DES NIVELLIERERS

Three-panel photo showing hands holding electronic devices: a handheld device, a black box with internal components, and a digital display (no visible text or symbols)

INBETRIEBNAHME DES POWERFILTERS

Minimum Maximum

ERSATZTEILE

Exploded view diagram of a battery pack with labeled components A through K

Two hands cleaning a small container with a wire, one partially open and the other filled with a white object (no text or symbols visible)

Aktivkohleelsatz

Two hands holding a card and a device component, no visible text or symbols

Bio-Filtersieb

Two hands inserting white granules into black plastic bins, one with a tool and the other with a grid-patterned tray (no text or symbols visible)

Flügelrad und Motor

Two hands holding a device: one with a black component and the other holding a black plug (no visible text or symbols)

Two hands installing or adjusting a mechanical component, one showing a downward arrow (no text or symbols visible)

SEPARAT ERHÄLTLICH

Close-up of hands using a tool to adjust or install a mechanical component, with an inset showing a magnified view of the component (no text or symbols visible)

Two hands installing or adjusting a transparent plastic container with a grid pattern (no text or symbols visible)

Close-up of hands holding a device with a cable and connector (no visible text or symbols)

Two views of a device: one showing a black plastic component with a magnified inset, the other holding a white rectangular device (no visible text or symbols)

Exploded view diagram of a mechanical device with labeled parts A through K

ARTÍCULO	C2	C3	C4
A Caja del filtro	A20265	A20266	A20267
B Cámara de goteo biológica con tapa	A20268	A20269	A20270
C Cesta química	A20271	A20272	A20273
D Tapa del filtro	A20274	A20275	A20276
E Armazón mecínico	A20277	A20278	A20279
F Tubo en "U"	A20280	A20280	A20281
G Tubo de entrada telescólico	A20282	A20282	A20283
H Tubo de extensión	A20284	A20284	A20285
I Conjunto do la tapa del impulsor	A20286	A20288	A20287
J Impulsor	A20297	A20298	A20299
K Aro sellador del motor	A20288	A20288	A20288
L Motor	A16000	A16000	A16000
M Dispositivo nivelador	A20290	A20290	A20290

Person cleaning a small container with a grid and paper (no text or symbols visible)

Two hands holding a device with a transparent container and a rectangular package (no visible text or symbols)

Filtro biológico

Two hands inserting white granules into black plastic bins, one being filled with granules (no text or symbols visible)

Impulsory motor

Three-panel image showing hands assembling or adjusting a mechanical component, no visible text or symbols

Instructional diagram showing a mechanical component being inserted into a housing, with an inset highlighting the insertion process.

DISPONIBLE POR SEPARADO
