BS-DIG.011A - Scale Haeger - Free user manual and instructions

Product type	Electronic bathroom scale
Brand	Haeger
Model	BS-DIG.011A
Maximum capacity	180 kg (396 lb)
Graduation	100 g
Display	LCD screen with unit selection (kg/lb)
Power supply	Automatic energy generation (battery-free)
Auto-off	Yes, after approximately 10 seconds of inactivity
Overload indicator	Displays "Err" if capacity exceeded
Low battery indicator	Icon " " then automatic shutdown
Platform material	Tempered glass (estimated)
Recommended use	Hard, flat surface; avoid carpet
Optimal weighing	Without clothes or shoes, upon waking up
Stability	Avoid shocks and excessive vibrations
Cleaning	Slightly damp cloth, no harsh detergents
Humidity	Do not expose to rain or humidity
Ambient temperature	Avoid direct sunlight and heat sources
Warranty	24 months from purchase date (EU)
Compliance	CE, EMC directive 2014/30/EU
Country of manufacture	Not specified (estimated: China)

Frequently Asked Questions - BS-DIG.011A Haeger

How to turn on the Haeger BS-DIG.011A scale?

Press or tap the U-Power power button on the platform. Wait for "0.0" to display before stepping on.

Why does the display show 'Err'?

This means the weight exceeds the maximum capacity of 180 kg (396 lb). Remove the load to avoid damaging the scale.

How to change the weight unit (kg/lb)?

Turn on the scale, then before the screen turns off, press the UNIT button on the back of the device to switch between kg and lb.

What to do if the screen shows a low battery symbol?

The symbol indicates insufficient energy. Simply press the U-Power button to recharge the scale (it uses automatic energy generation).

How to clean the scale without damaging it?

Use a slightly damp cloth (not wet) with a little mild detergent. Never immerse the scale in water and avoid abrasive products.

Should the scale be used on a carpet?

No, for accurate measurements, place it on a hard, flat surface. Carpets or uneven surfaces distort results.

Why do measurements differ between two consecutive weighings?

The scale rounds to the nearest 100 g. If you get two different values, your actual weight is between the two, oscillating around the graduation.

Does the scale turn off automatically?

Yes, after approximately 10 seconds of inactivity after stepping off, and after 1 minute if no one steps on, to save energy.

Can I use the scale barefoot or with shoes?

For accurate weighing, use it barefoot, without heavy clothing, and preferably upon waking up before eating or drinking.

What does the 24-month warranty cover?

The warranty covers manufacturing defects and defective parts. It does not cover damage due to misuse, drops, immersion, or use of non-compliant batteries. Contact your retailer with proof of purchase.

USER MANUAL BS-DIG.011A Haeger

White digital kitchen scale with a black LCD screen and a circular button, no visible text or symbols on the device itself.

CE

Simple line drawing of an umbrella with raindrops (no text or symbols)

• Keep the scale out off water.
• Mantenha a balança afastada de água.
• Mantenga la balanza alejada del agua.
• Gardez la balance loin de l'eau.

Simple line drawing of a wine glass inside a square frame (no text or symbols)

• Keep the scale with care.
• Transporte a balança com cuidado.
• Transporte la balanza cuidadosamente.
• Transportez la balance soigneusement.

Prohibition sign with crossed-out cigarette and lightning symbol, commonly used in smoking or anti-smoking contexts

Prohibition sign with crossed-out cigarette and plug symbol, commonly used in smoking or safety rules

• Don't step on the edge of the scale.
• Não pise nas extremidades da balança.
• No pise en el borde de la escala.
• Ne marchez pas sur les bords de l'échelle.

Dear customer

Thank you for having chosen a HÆGER product.

The HÆGER products have been produced to think about the welfare of the consumer privileging the most raised standards of quality, functionality and assign. We are sure you will be happy with this appliance.

We assume that the user is familiar with the common procedures of handling household appliances.

To ensure the scale continues to deliver peak performance, please read these operation instructions carefully and thoroughly prior to initial usage.

General Information

Your scale is a precision electronic instrument. Treat your scale with care. Do not drop it or jump on it. The scale is durable, but misuse or abuse may render the electronic sensors inoperable.

1. Read all instructions before operating the scale.
2. Follow the basic safety precautions for all office equipment when using this scale.
3. The manufacturer does not warrant this unit to be waterproof. Do not expose this product to rain or moisture.
4. Do not use the scale under sun or keep it away from heating appliances such as oven, stove, etc.
5. This scale does not contain any user-serviceable parts. Do not disassemble.
6. Use the scale for its intended purpose only.

Note: The display value may be affected by electromagnetic influences, e.g. when a radio is operated in the immediate vicinity of the device. The product can be used for its intended purpose again when the interference is discontinued but may need to be switched on again to re-start.

How to use

The scale was designed to indicate precisely the increase in or the loss of weight.

1. Position the balance on a hard, flat surface (avoid carpets). Uneven floors lead to imprecise readings.

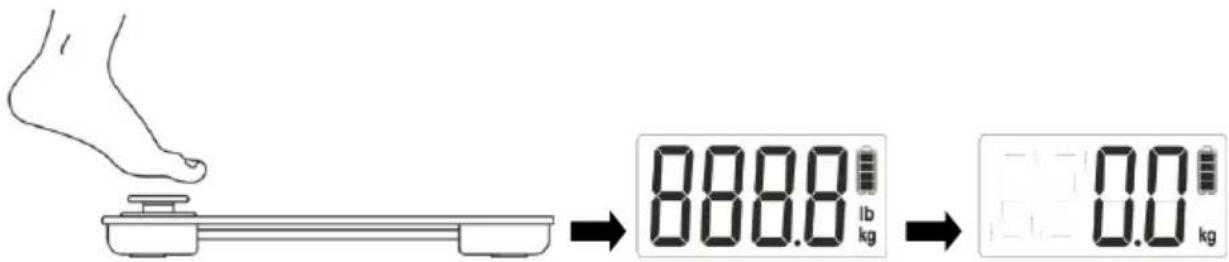

2. Just press or stamp on the U-power button to power up and activate the scale.
3. Wait until "0.0" appears on the display. The scale powers off automatically after one minute.

Note: Do not step on the scale until 0.0 appears.

Instructions for use 1

888.8 lb kg 0.0 kg

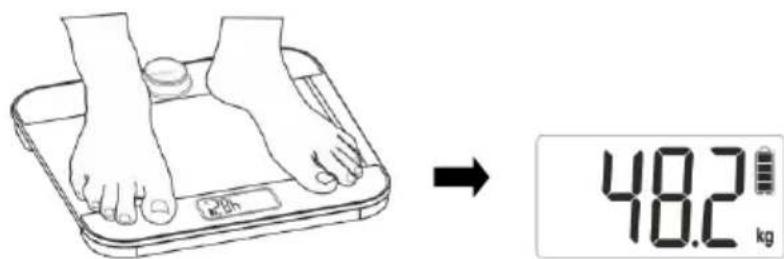

1. Step on the scale. Distribute your weight equally on the scale and wait for the scale to calculate your weight.

2. Your correct weight will then be displayed in the following:

48.2 kg

Selecting weight unit

Turn the scale on by pressing on U-power button. Before the display switch off press the unit key to choose the unit kg or lb. The key is on the back of the scale.

Note: Set the unit before weighing. It could not change the unit while weighing.

0.0 kg UNIT 0.0 lb

Overload

1. When the loading capacity exceeds the maximum capacity of the Digital Scale, the letters Err will be displayed on the LCD screen.
2. Remove the item(s) from the scale platform to avoid damage to the scale.

Low battery indication

When the screen indicates “☐☐☐”, it will turn off automatically after few seconds. Simply reload it by stamping on the U-Power button.

2 Instructions for use

Usage tips

• The scales are designed for a maximum weight of 180kg (396lb).
• Weigh yourself without any clothes or shoes on before meals and always at the same hour of the day. The best time to weigh yourself is when you wake up in the morning.
• The scale rounds off weight to the closest 100 g.
• If you weigh yourself twice and two different values are given, it means that your weight is comprised between both values.

Cleaning

• Do not immerse the balance in water: the electronic components can be damaged.
• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Clean the device with a slightly moist cloth. Make sure that no humidity or waters seeps into the device!
• Use a commercially sold detergent or soap for cleaning.
• Dry the device well after cleaning with a dry and soft cloth.

Technical Specifications

Model: BS-DIG.011A

Maximum Capacity: 180kg (396lb)

Graduation: 100g/0.2 lb

Power Source: ...... Automatic power generation

Conformity

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility Directive 2014/30/EU, and has been constructed in accordance with the latest safety

regulations.

Environment

Please consider our environment

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally responsible manner.

When you wish to dispose of the appliance, remove the battery and dispose it in an environmentally friendly way (e.g. recycling plant).

Guarantee

This unit is covered by a 24 months (*) warranty, from the purchase date, and covers the repair free of charges of the damaged due to the manufacturer fault or defected components. The distributor reserves the right to change the unit for an equivalent model.

The warranty does not cover any damaged caused by incorrect use, lightning, incorrect installation, external factors or any intentional damaged. The warranty does not cover damage thus attributable to falls, blows, spill, exposure to extreme environmental conditions or deterioration caused by normal use of plastic parts or keyboards, as well as using batteries other than those specified in this manual.

For the repairing, during the warranty period, the unit shall be sent to the distributor or reseller, or to the address indicated by them, and must be jointed the warranty certificated and the respective original invoice or selling ticket, where the buying date is expressed indicated.

The consumer is protected by the guarantee provided by Directive 1999/44/CE of European Parliament and Council of 25 May.

(*) Only for European Union countries

4 Instructions for use
