EN User Manual | Hob 2

QR code containing a document icon in the center, likely linking to a digital resource or webpage.

Welcome to Electrolux! Thank you for choosing our appliance.

Get usage advice, brochures, trouble shooter, service and repair information:

www.electrolux.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......2
2. SAFETY INSTRUCTIONS......4
3. INSTALLATION....7

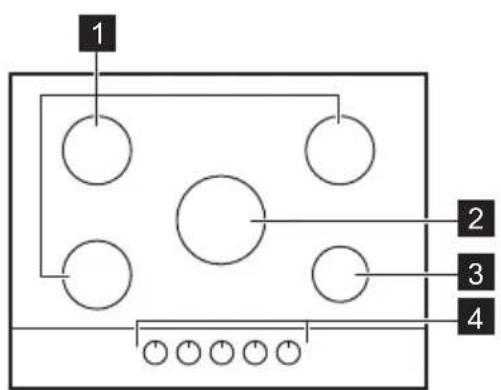

4. PRODUCT DESCRIPTION....11
5. DAILY USE....12
6. HINTS AND TIPS.... 13
7. CARE AND CLEANING.... 15
8. TROUBLESHOOTING.... 16
9. TECHNICAL DATA.... 18
10. ENERGY EFFICIENCY....19
11. ENVIRONMENTAL CONCERNS....20

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- This appliance is for cooking purposes only.

- This appliance is designed for single household domestic use in an indoor environment.

- This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

- Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid.

- WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Danger of fire: Do not store items on the cooking surfaces.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use the appliance before installing it in the built-in structure.
• Do not use a steam cleaner to clean the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.
• Where the appliance is directly connected to the power supply, an all-pole isolating switch with a contact gap is required. Complete disconnection in compliance with the conditions specified in overvoltage category III must be guaranteed. The earth cable is excluded from this.
• When you route the mains cable, make sure that the cable doesn't come into direct contact (for example using insulating sleeving) with parts that can reach temperatures of more than 50^ above room temperature.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

2. SAFETY INSTRUCTIONS

This appliance is suitable for the following

markets: IT

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

WARNING!

Risk of injury or damage to the appliance.

- Remove all the packaging.

• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Keep the minimum distance from other appliances and units.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Seal the cut surfaces of the cabinet with a sealant to prevent moisture from causing swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance next to a door or under a window. This prevents hot

4 ENGLISH

cookware from falling from the appliance when the door or the window is opened.

• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer is sufficient for air circulation.
• The bottom of the appliance can get hot. Install a non-combustible separation panel under the appliance to prevent access to the bottom.

2.2 Electrical Connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to a socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

2.3 Gas connection

CAUTION!

When using a gas cylinder, always keep it on a flat horizontal surface (with the gas valve on top).

• All gas connections must be made by a qualified person.
• Before installation, make sure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
• Make sure that there is air circulation around the appliance.
• The information about the gas supply is on the rating plate.
• This appliance is not connected to a device which evacuates the products of combustion. Make sure to connect the appliance in accordance with current installation regulations. Follow the requirements for adequate ventilation.

2.4 Use

WARNING!

Risk of injury, burns and electric shock.

CAUTION!

The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use.

Prolonged intensive use of the appliance may require additional ventilation, for example the increasing of mechanical ventilation where present, additional ventilation to safely remove the products of combustion to outside (external) air whilst also providing room air changes with additional ventilation. Consult a qualified person before installation of the additional ventilation.

• Do not change the specification of this appliance.
• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to "off" after each use.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• When you place food into hot oil, it may splash.
• Do not use aluminum foil or other materials between the cooking surface and the cookware, unless otherwise specified by the manufacturer of this appliance.
• Use only accessories recommended for this appliance by the manufacturer.

WARNING!

Risk of fire and explosion.

- Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.

• The vapours that very hot oil releases can cause spontaneous combustion.
  • Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Never leave a burner on with empty cookware or without cookware.
• To prevent spills, use only stable cookware with the correct shape and diameter, larger than the dimensions of the burners.
• Make sure cookware is centrally positioned on the burners.
• Do not use large cookware that overlap the edges of the appliance. This can cause damage to the worktop surface.
• Make sure that pot handles are not above the front edge of the appliance.
• Make sure the flame does not go out when you quickly turn the knob from the maximum to the minimum position.
• Do not install a flame diffuser on the burner.
• Do not let acid liquids, for example vinegar, lemon juice or limescale remover, touch the hob. This can cause matt patches.
• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

2.5 Care and cleaning

WARNING!

Do not remove the buttons, knobs or gaskets from the control panel. Water may get inside the appliance and cause damage.

• Clean the appliance regularly to prevent the deterioration of the surface material.
• Switch off the appliance and let it cool down before cleaning.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects, unless otherwise specified.

2.6 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your local authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Flat the external gas pipes.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Before the installation

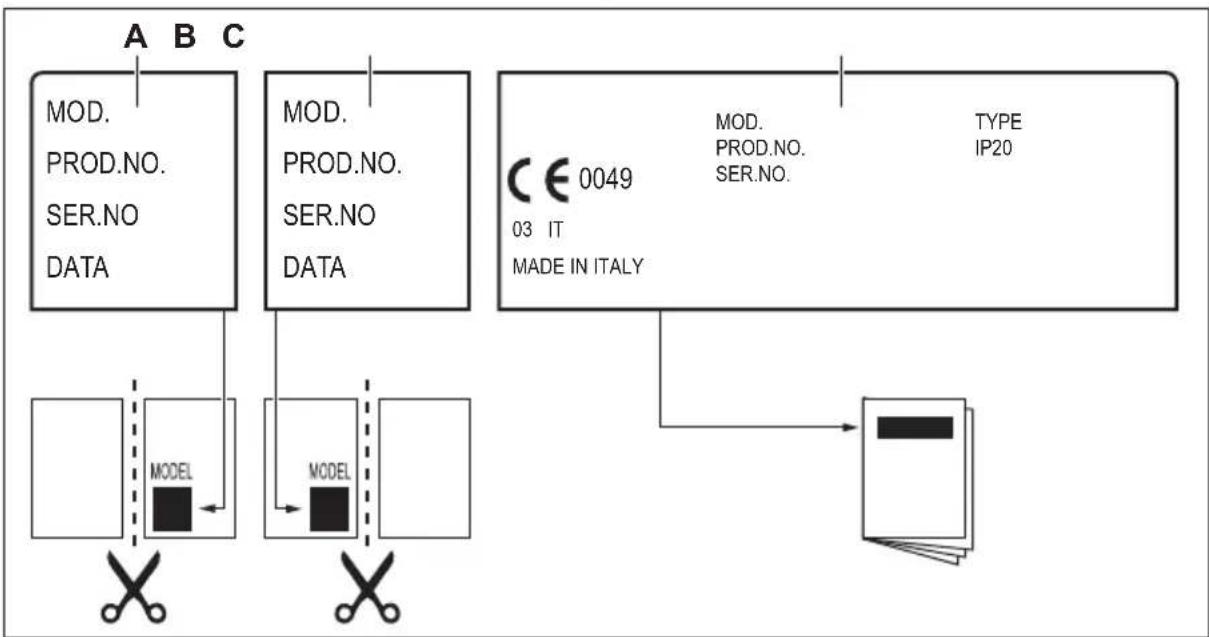

Before you install the hob, write down the information below from the rating plate. The rating plate is on the bottom of the hob.

Model ......

PNC ....

Serial number ....

3.2 Gas Connection

WARNING!

The following instructions about installation, maintenance and ventilation must be carried out by qualified personnel in compliance with the regulation in force (UNI-CIG 7129 - 7131). Make sure that the kitchen is well ventilated: keep natural ventilation holes open (at least 100 cm ^2 ) or install a mechanical extractor hood.

Choose fixed connections or use a flexible pipe in stainless steel in compliance with the regulation in force. If you use flexible metallic pipes, be careful they do not come in touch with mobile parts or they are not squeezed.

Also be careful when the hob is put together with an oven.

Make sure that the gas supply pressure of the appliance obeys the recommended values.

If the supplied pressure has not the specified value, it is necessary to assemble a proper pressure regulator in compliance with the standard UNI EN 88. For Liquid Gas (LPG) the use of pressure regulator is allowed only if they are in compliance with UNI EN 12864. The adjustable connection is fixed to the comprehensive ramp by means of a threaded nut G 1/2". Screw the parts without force, adjust the connection in the necessary direction and tighten everything.

A B C

A. End of shaft with nut
B. Washer supplied with the appliance
C. Elbow supplied with the appliance

Rigid connection:

Carry out connection by using metal rigid pipes (copper with mechanical end) (UNI-CIG 7129).

Flexible connection:

Use a flexible pipe in stainless steel (UNI-CIG 9891) with a maximum length 2 m.

WARNING!

When installation is complete, make sure that the seal of each pipe fitting is correct. Use a soapy solution, not a flame!

3.3 Injectors replacement

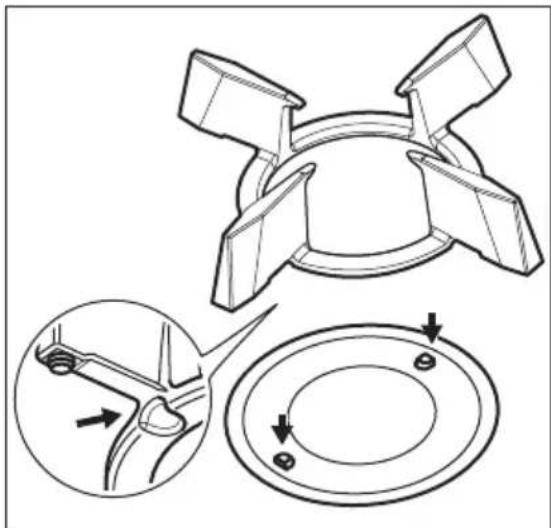

1. Remove the pan supports.
2. Remove the caps and crowns of the burner.
3. With a socket spanner 7 remove the injectors and replace them with the ones which are necessary for the type of gas you use (see table in "Technical Data" chapter).
4. Assemble the parts, follow the same procedure backwards.
5. Attach the label with the new type of gas supply near the gas supply pipe. You can find this label in the package supplied with the appliance.

If the supply gas pressure is changeable or different from the necessary pressure, you must fit an applicable pressure adjuster on the gas supply pipe.

3.4 Adjustment of minimum level

To adjust the minimum level of the burners:

1. Light the burner.
2. Turn the knob on the minimum position.

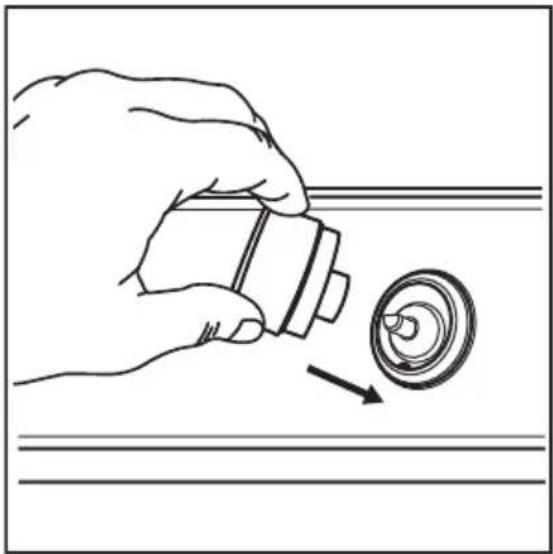

3. Remove the knob and the gasket.

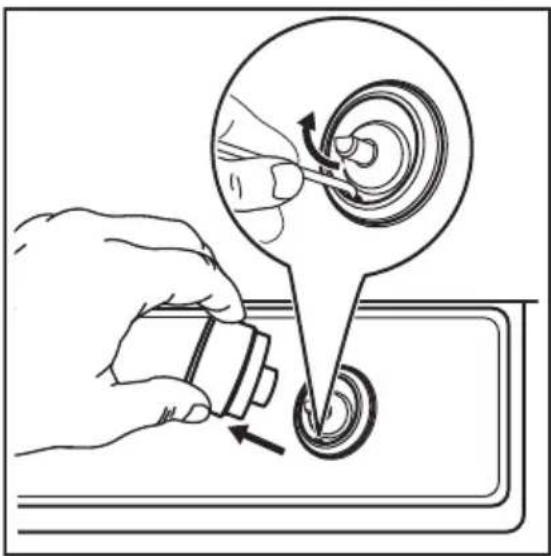

Illustration of a hand using a battery to adjust a circular component with a tool, showing rotational motion (no text or symbols)

WARNING!

Pay attention not to damage the gasket. Do not use sharp tool to remove it.

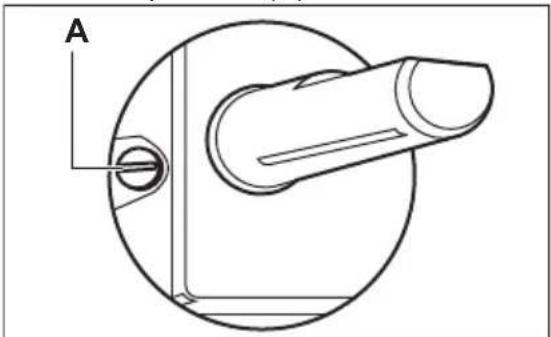

1. With a thin screwdriver, adjust the bypass screw position (A).

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

1. If you change:

• from natural gas G20 20 mbar to liquid gas, fully tighten the bypass screw in.
- from liquid gas to natural gas G20 20 mbar, undo the bypass screw approximately 1/4 of a turn.

1. Reassemble the gasket and the knob.

Hand holding a battery with a circular component being inserted, no text or symbols visible

WARNING!

Make sure to place the gasket exactly in the original position.

WARNING!

Make sure the flame does not go out when you quickly turn the knob from the maximum position to the minimum position.

3.5 Electrical connection

• Make sure that the rated voltage and type of power on the rating plate agree with the voltage and the power of the local power supply.
- This appliance is supplied with a mains cable. It has to be supplied with a correct plug which can hold the load that the rating plate rates. Make sure that you install the plug in a correct socket.
• Always use a correctly installed shockproof socket.
- Make sure that there is an access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
- There is a risk of fire when the appliance is in connection with an extension cable, an adapter or a multiple connection. Make sure that the ground connection agrees with the standards and regulations.
- Do not let the power cable to heat up to a temperature higher than 90^ .

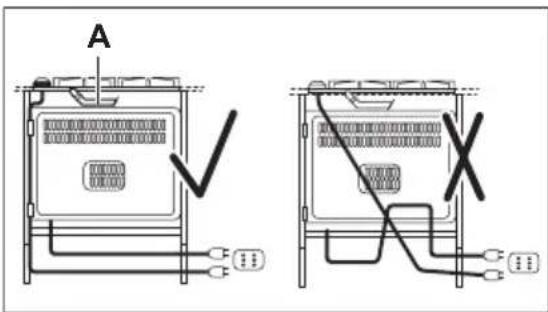

To prevent contact between the cable and the appliance below the hob use the clamps which are on the side of the cabinet.

A X

A. Rigid copper pipe or flexible pipe of stainless steel

3.6 Connection cable

To replace the connection cable use only the special cable or its equivalent. The cable type is: H03V2V2-F T90.

Make sure that the cable section is applicable to the voltage and the working temperature. The yellow / green earth wire must be approximately 2 cm longer than the brown (or black) phase wire.

L N

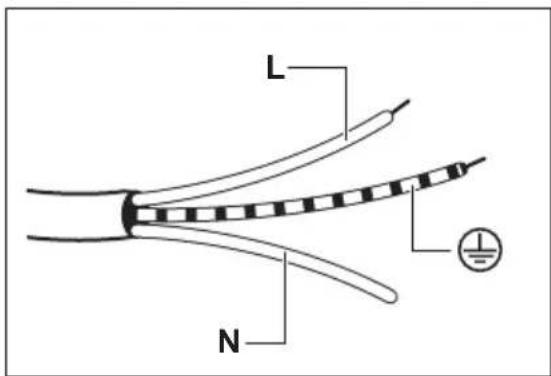

1. Connect the green and yellow (earth) wire to the terminal which is marked with the letter 'E', or the earth symbol ⊕ or coloured green and yellow.
2. Connect the blue (neutral) wire to the terminal which is marked with the letter 'N' or coloured blue.
3. Connect the brown (live) wire to the terminal which is marked with the letter 'L'. It must always be connected to the network phase.

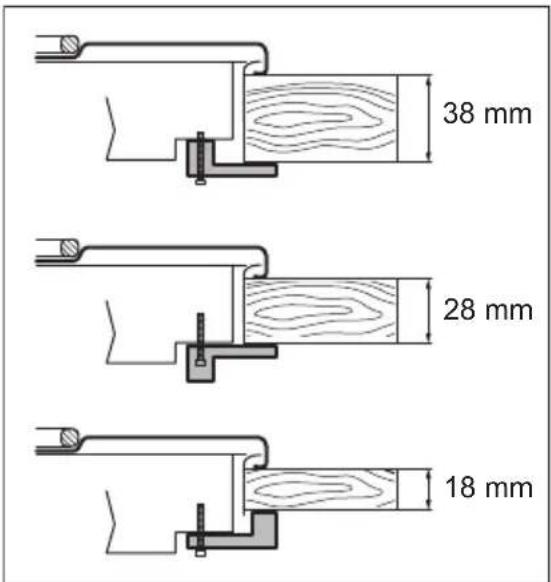

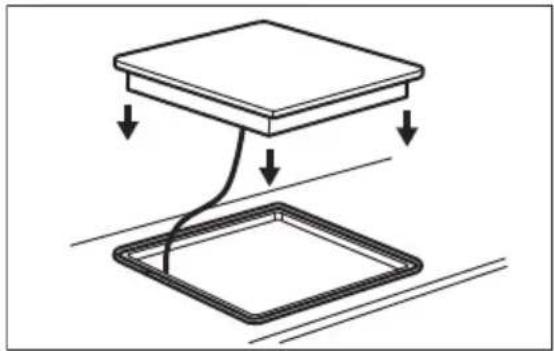

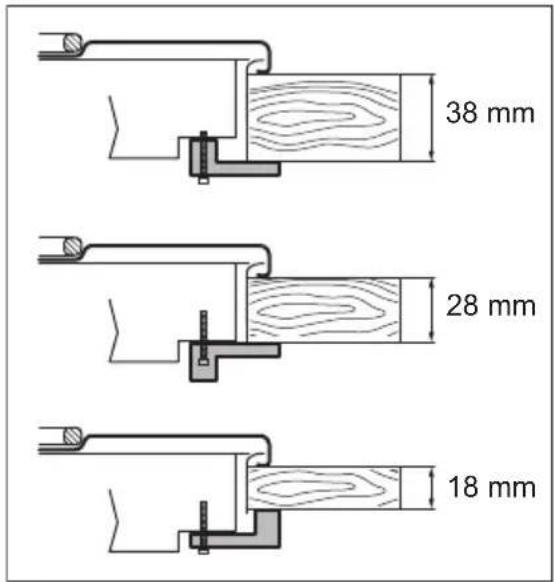

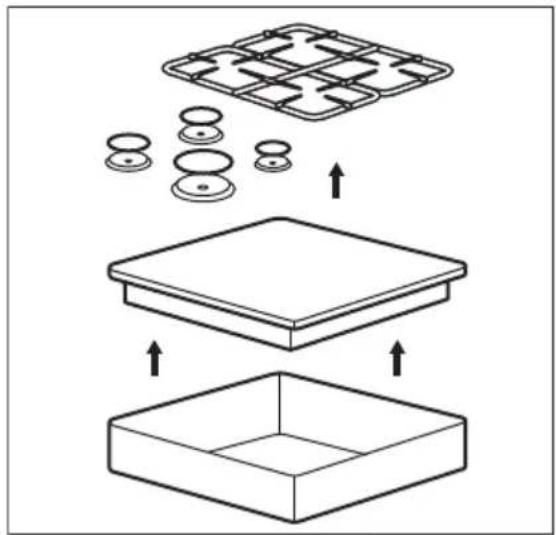

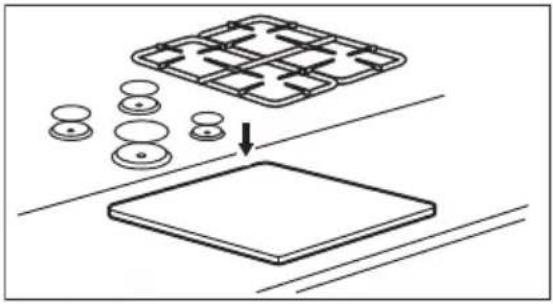

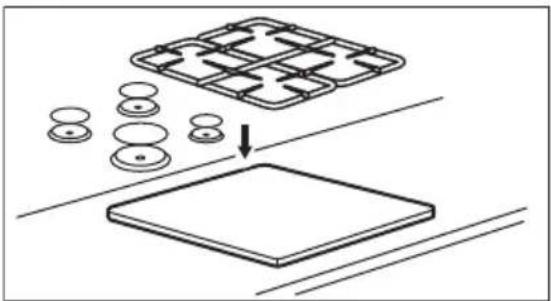

3.7 Assembly

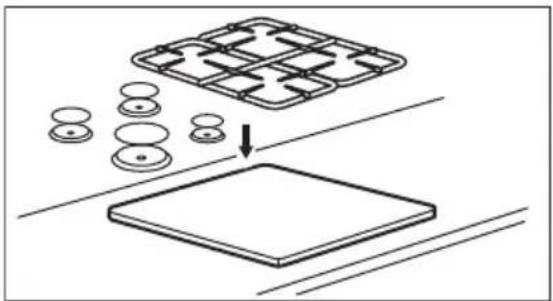

ON-TOP INSTALLATION

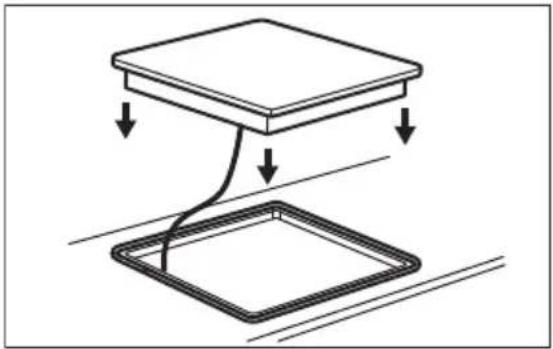

1.

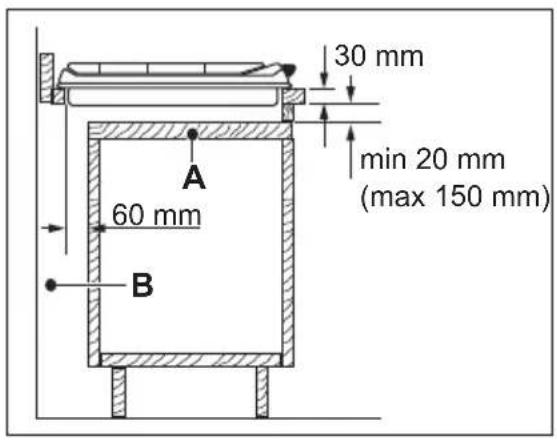

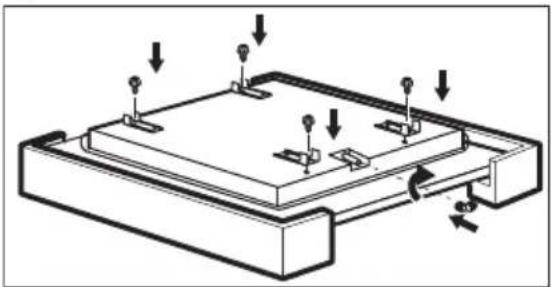

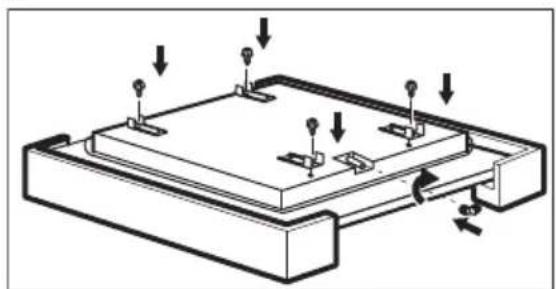

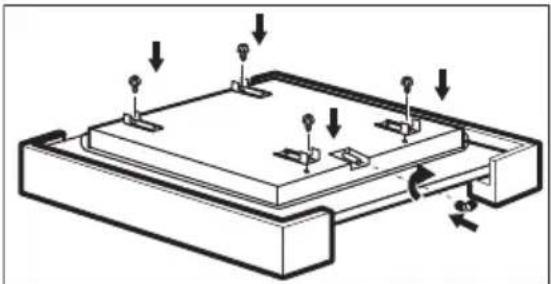

Diagram showing three steps of a mechanical assembly: top-down view, middle-down view, and bottom-down view (no text or symbols)

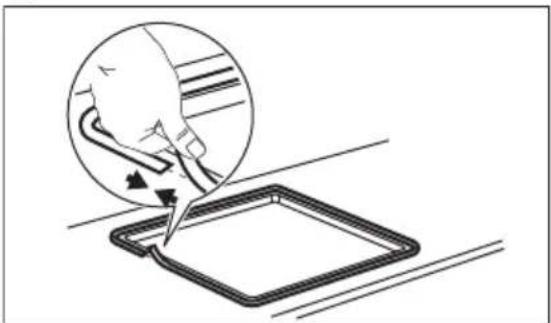

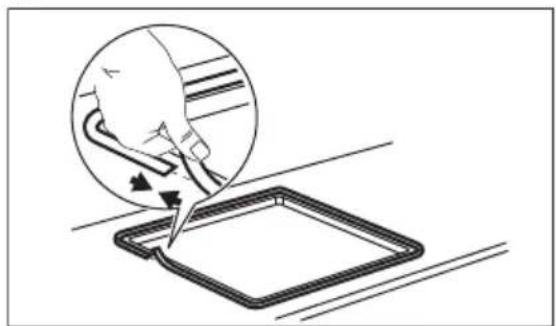

1.

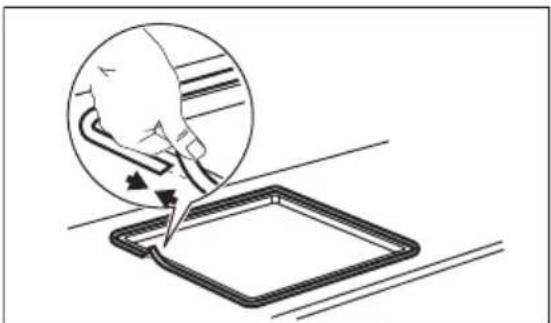

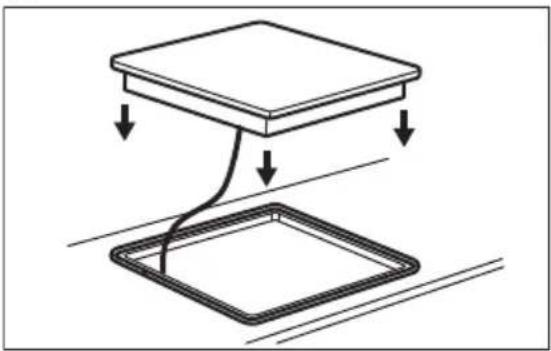

Technical diagram of a mechanical assembly with mounting holes and internal components (no text or labels)

3.

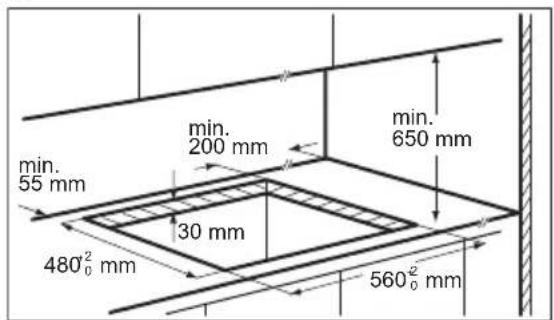

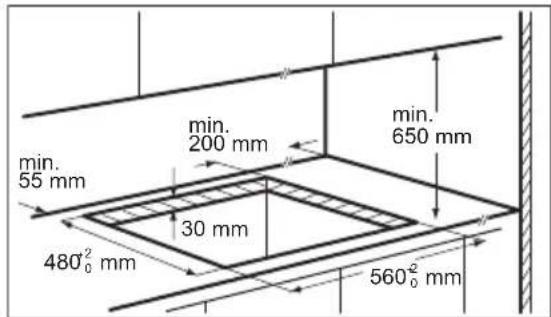

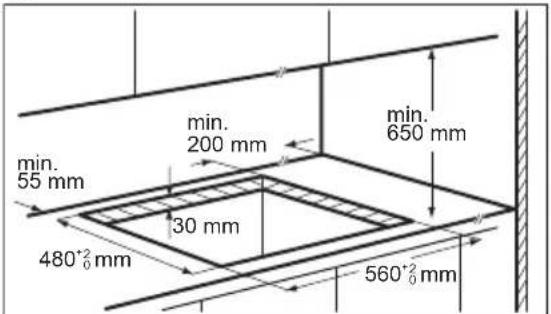

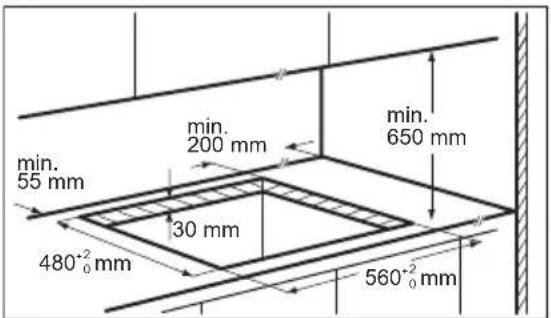

min. 55 mm 480°²₀ mm 30 mm min. 200 mm min. 650 mm 560°²₀ mm

4.

Diagram showing a hand holding a tool interacting with a square component, with an inset magnified view of the tool (no text or symbols present)

1.

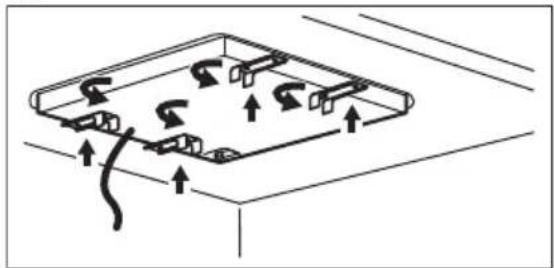

Diagram showing a square plate being lifted by a curved wire, with arrows indicating force direction (no text or symbols)

1.

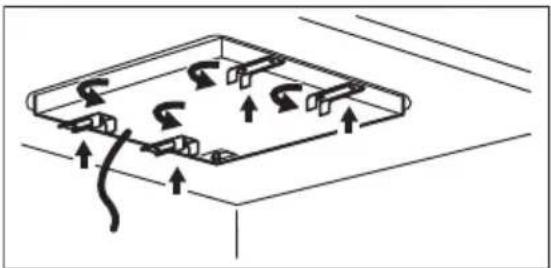

Diagram of a mechanical or electrical component with curved arrows indicating motion, no text or symbols present

1.

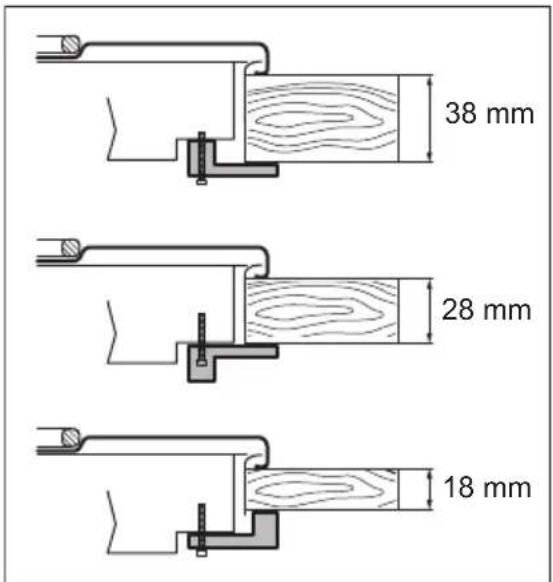

38 mm 28 mm 18 mm

1.

Diagram showing a grid-patterned plate being cut into a square plate, with additional rollers and a downward arrow indicating process (no text or symbols)

CAUTION!

Install the appliance only on a worktop with flat surface.

3.8 Installing hob under the hood

If you install the hob under a hood, please see the installation instructions of the hood for the minimum distance between the appliances.

3.9 Possibilities for insertion

The panel installed below the hob must be easy to remove and let an easy access in case a technical assistance intervention is necessary.

Kitchen unit with door

30 mm min 20 mm (max 150 mm) A 60 mm B

A. Removable panel
B. Space for connections

Kitchen unit with oven

The electrical connection of the hob and the oven must be installed separately for safety reasons and to allow for easy removal of the oven from the unit.

4. PRODUCT DESCRIPTION

4.1 Cooking surface layout

1 Semi-rapid burner
2 Ultra Rapid burner
3 Auxiliary burner

4 Control knobs

4.2 Control knob

Symbol Description

	no gas supply / off position
	ignition position / maximum gas supply
1	minimum gas supply
1 - 9 power levels

5. DAILY USE

WARNING!

Refer to Safety chapters.

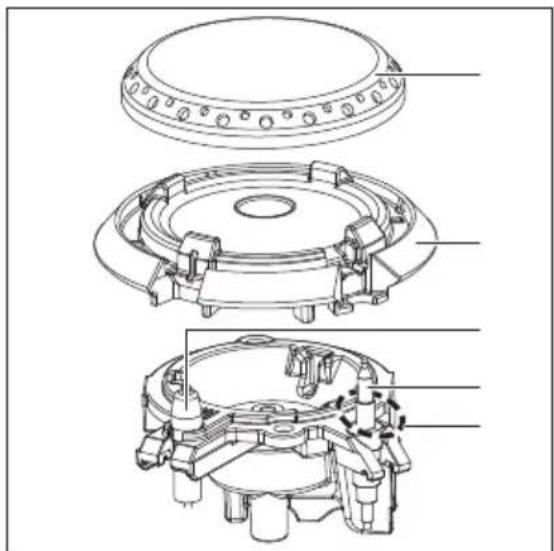

5.1 Burner overview

Technical line drawing of a mechanical assembly showing exploded and assembled views (no text or symbols)

A. Burner cap
B. Burner crown
C. Ignition candle
D. Thermocouple
E. Pilot flame

5.2 Ignition of the burner

WARNING!

Always light the burner before you put on the cookware.

not light the burner when the flame reader is removed.

WARNING!

Be very careful when you use open fire in the kitchen environment. The manufacturer declines any responsibility in case of the flame misuse.

1. Push the control knob down and turn it counterclockwise to the maximum gas supply position (★).

2. Keep the control knob pushed for equal or less than 10 seconds. This lets the thermocouple warm up. If not, the gas supply is interrupted.

3. Adjust the flame after it is regular.

If after some tries the burner does not light, check if the crown and its cap are in correct positions.

WARNING!

Do not keep the control knob pushed for more than 15 seconds. If the burner does not light after 15 seconds, release the control knob, turn it into off position and try to light the burner again after minimum 1 minute.

CAUTION!

In the absence of electricity you can ignite the burner without electrical device; in this case approach the burner with a flame, turn the control knob counterclockwise to maximum gas supply position and push it down. Keep the control knob pushed for equal or less than 10 seconds to let the thermocouple warm up.

If the burner accidentally goes out, turn the control knob to the off position and try to light the burner again after minimum 1 minute.

The spark generator can start automatically when you switch on the mains, after installation or a power cut. It is normal.

The hob is supplied with StepPower. This function allows you to set the power more precisely from 9-1.

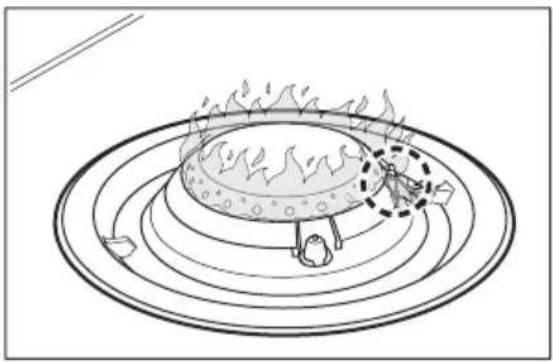

Pilot flame

The flame that surrounds the thermocouple is a pilot flame. It prevents unexpected shutdown.

Line drawing of a hot pot with flames and a small object, no text or symbols present

5.3 Turning the burner off

To put the flame out, turn the knob to the off position

WARNING!

Always turn the flame down or switch it off before you remove the pans from the burner.

6. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

6.1 Cookware

CAUTION!

Do not use cast iron pans, clay or earthenware pots, grilling accessories or toaster plates. The stainless steel can become tarnished if it is too much heated.

WARNING!

Do not put the same pan on two burners.

WARNING!

Do not put unstable or damaged pots on the burner to prevent spills and injuries.

CAUTION!

Make sure that the bottoms of pots do not stand too close to the control knob, otherwise the flame heats the control knob up.

CAUTION!

Make sure that pot handles are not above the front edge of the cooktop.

CAUTION!

Make sure that the pots are placed centrally on the burner in order to get the maximum stability and a lower gas consumption.

6.2 Diameters of cookware

CAUTION!

Use cookware with diameters applicable to the size of burners.

Burner Diameter of

cookware (mm)

Ultra Rapid 200 - 260

Semi-rapid (rear left) 160 - 240

Semi-rapid (rear right) 160 - 240

Semi-rapid (front left) 160 - 220

Auxiliary 120 - 220

6.3 Suggested recipes

Food categories Recipes Burner type Heat up phase			power level 1)	Cooking phase power level
Sauces - Dressing	Bechamel Small - 1-3
	Tomato sauce Small 2-4 1-2
Pasta - Rice - other Cereals	Mushrooms rice Large - 6-8
	Couscous Large 4-6 1-4
	Spaghetti Large - 7-9
	Ravioli Large - 7-9
Soup - Legumes	Vegetable soup Medium - 6-9
	Mushrooms and pota- toes soup	Medium - 6-9
	Fish soup Large - 1-2
Meat	Beef meatballs Large 3-6 1-3
	Fillet of pork roast	Large 7-9 4-6
	Beef burger gratin	Medium 7-9 3-6
Fish	Sepia with peas	Large - 1-3
	Roasted tuna steak Large 7-9 4-6
Vegetables	Mushrooms with sea- sonings	Medium - 5-8
	Caponata with vegeta- bles	Large 4-6 1-4
	Boiled potatoes	Medium - 7-9
	Frozen spinach with butter	Large - 1-3
Fried dishes	French fries	Large - 8-9
	Donuts	Large 6-8 1
Snacks cooked with pan	Roasting nuts	Large 7-9 4-6
	Croutons of bread and escarole	Large 7-9 4-6
	Pancakes Medium 7-9 2-5
Desserts	Caramel	Small - 1-3
	Custard	Small - 2-4
	Panna cotta	Small - 3-6

1) Useful to reach optimal cooking condition.

All recipes for approximately 4 portions. The settings suggested in the cooking

table should only serve as guidelines and be adjusted depending on the rawness of food, its weight and quantity as well as on the type of gas used and the material of the cookware used to prepare the dish.

7. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

7.1 General information

• Clean the hob after each use.
  • Always use cookware with a clean base.
• Use a special cleaner suitable for the surface of the hob.
• Wash stainless steel parts with water, and then dry them with a soft cloth.
  • Scratches or dark stains on the surface have no effect on how the hob operates.

You can wash the burner crown in a dishwasher.

CAUTION!

Do not clean the burner crown with abrasive products, abrasive cleaning pads, solvents or metal objects. Burner crown may cause discoloration.

7.2 Pan supports

The pan supports are not resistant to washing in a dishwasher. They must be washed by hand.

1. Remove the pan supports to easily clean the hob.

Be very careful when you replace the pan supports to prevent the hob top from damage.

1. The enamel coating occasionally can have rough edges, so be careful when you wash the pan supports by hand and dry them. If necessary, remove stubborn stains with a paste cleaner.
2. After you clean the pan supports, make sure that they are in correct positions.
3. For the burner to operate correctly, make sure that the arms of the pan supports are aligned with the centre of the burner.

7.3 Removing and assembling pan supports

After cleaning of the hob, make sure that pan supports are in a correct position. In order to place a pan support properly, make sure that its arms fits the grips placed at the base of the burner as shown in the picture. This way, a pan support is stable and fixed.

Technical line drawing of a mechanical component with cross-sectional and top views (no text or symbols)

7.4 Cleaning the hob

- Remove immediately: melted plastic, plastic foil, salt, sugar and food with sugar,

otherwise, the dirt can cause damage to the hob. Take care to avoid burns.

• Remove when the hob is sufficiently cool: tomato, ketchup, mayonnaise, mustard, limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and a non-abrasive detergent. After cleaning, wipe the hob dry with a soft cloth.
• To clean the enamelled parts, caps and crowns, wash them with warm soapy water and dry them carefully before you put them back on.

Easy Clean Coating

• To clean the hob remove any food remains from the cooking surface.
- Clean the hob with warm water and a non-abrasive detergent.
- To remove burnt food, fat and stubborn stains let them soak in a small amount of mild detergent for a few minutes before cleaning.
- To dry the hob after cleaning, wipe it with a soft cloth or chamois leather using horizontal movements.
- To clean the Easy Clean surface everyday use a soft cloth moistened with water or a glass cleaner. We do not recommend the use of paper towels which can leave streaks on the surface.
- Do not use cleaning products containing corrosive chemicals such as chlorides, do not clean the surface with disinfectants, stain or rust removers and immersion cleaners.

WARNING!

Harsh detergents and hard water can leave stains on the stainless steel surface.

WARNING!

Abrasive detergents and sponges with abrasives can cause scratches on the stainless steel surface.

7.5 Cleaning the flame spreader

You can wash the flame spreaders in a dishwasher.

WARNING!

Let the flame spreaders cool down before you clean them.

Light stains:

Wash the flame spreader with warm water and soap and dry it with a soft cloth.

Medium stains:

Use the dishwasher. Place the flame spreader on the bottom rack in a flat position, with the top side up.

Heavy stains:

Clean the flame spreader with warm water and soap, then wash it in the dishwasher. If the stain is still present wash the top of the flame spreader with a grill cleaner and run through the dishwasher again.

Use a toothpick to clean the holes of the flame spreader.

7.6 Cleaning the spark plug

This feature is obtained through a ceramic ignition candle with a metal electrode. Keep these components well clean to prevent difficult lighting and check that the burner crown holes are not obstructed.

7.7 Periodic maintenance

Speak to your local Authorised Service Centre periodically to check the conditions of the gas supply pipe and the pressure adjuster, if fitted.

8. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

8.1 What to do if...

Problem Possible cause Remedy
There is no spark when you try to activate the spark generator.	The hob is not connected to an electrical supply or it is connected incorrectly.	Check if the hob is correctly connected to the electrical supply.
The fuse is blown. Make sure that the fuse is the cause		of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
Burner cap and crown are placed incorrectly.		Place the burner cap and crown correctly.
Flame spreader is placed incorrectly.		Place the flame spreader correctly.
The flame extinguishes immediately after ignition.	Thermocouple is not heated up sufficiently.	After lightning the flame, keep the knob pushed for equal or less than 10 seconds.
The flame ring is uneven. Burner cap is blocked with food residues.		Make sure that the injector is not blocked and the burner crown is clean.

8.2 If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Make sure, you operated the hob correctly. If not the servicing by a service

technician or dealer will not be free of charge, also during the warranty period. The information about guarantee period and Authorised Service Centres are in the guarantee booklet.

8.3 Labels supplied with the accessories bag

Stick the adhesive labels as indicated below:

A. Stick it on Guarantee Card and send this part (if applicable).
B. Stick it on Guarantee Card and keep this part (if applicable).

C. Stick it on instruction booklet.

9. TECHNICAL DATA

9.1 Hob dimensions

Width 745 mm

Depth 515 mm

9.2 Bypass diameters

BURNER ∅ BYPASS 1/100 mm

Ultra Rapid 57

Semi-rapid 32

Auxiliary 28

9.3 Other technical data

TOTAL POWER:	Gas original: G20 (2H) 20 mbar 10,65 kW
	Gas replacement: G30 (3+) 28-30 mbar 720 g/h
		G31 (3+) 37 mbar 707 g/h
Electric supply: 220-240 V ~ 50-60 Hz
Appliance category: II2H3+
Gas connection: G 1/2"
Appliance class: 3

9.4 Gas burners for NATURAL GAS G20 20 mbar

BURNER NORMAL POWERkW	MINIMUM POWER kW INJECTOR MARK
Ultra Rapid 3,85 1,4 151
Semi-rapid 1,9 0,45 103x
Auxiliary 1,1 0,33 79x

9.5 Gas burners for LPG G30/G31 28-30/37 mbar

BURNER	NORMAL POWER kW	MINIMUM POWER kW	INJECTOR MARK	NOMINAL GAS FLOW g/h
				G30 28-30 mbar	G31 37 mbar
Ultra Rapid	3,3	1,75	90x	240	236
Semi-rapid	1,85	0,55	67	134	132
Auxiliary	1,05	0,45	52	76	75

10. ENERGY EFFICIENCY

10.1 Product Information according to EU Ecodesign regulation

Model identification	KGU753723Z
Type of hob	Built-in hob
Number of gas burners	5
Energy efficiency per gas burner (EE gas burner)	Left rear - Semi-rapid 60.2%
	Right rear - Semi-rapid 60.2%
	Centre middle - Ultra Rapid 56.9%
	Left front - Semi-rapid 59.3%
	Right front - Auxiliary not applicable
Energy efficiency for the gas hob (EE gas hob)	59.2%

EN 30-2-1: Domestic cooking appliances burning gas - Part 2-1 : Rational use of energy - General

10.2 Energy saving

• Before use, make sure that the burners and pan supports are assembled correctly.
• Use cookware with diameters applicable to the size of burners.
• Center the pot on the burner.

• When you heat up water, use only the amount you need.

• If it is possible, always put the lids on the cookware.

• When the liquid starts to boil, turn down the flame to barely simmer the liquid.
• If it is possible, use a pressure cooker. Refer to its user manual.

10.3 Product Information for power consumption and maximum time to reach applicable low power mode

Power consumption in off mode 0.3 W

Maximum time needed for the equipment to automatically reach the applicable low power mode 2 min

11. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with

the household waste. Return the product to your local recycling facility or contact your municipal office.

Electrolux Appliances AB - Contact Address: Al. Powstancow Slaskich 26, 30-570 Krakow, Poland

Illustration of a hand using a tool to adjust a circular component, with no visible text or symbols.

AVERTISSEMENT!

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

1. Si vous passez :

Hand holding a battery with a circular component being inserted, no text or symbols present

AVERTISSEMENT!

Diagram showing a multi-tiered storage or packing process with increasing volume and component arrangement (no text or symbols)

2.

Technical diagram of a mechanical assembly with mounting brackets and directional arrows indicating force or movement (no text or symbols present)

1.

min. 55 mm 480⁺²₀ mm min. 200 mm 30 mm 560⁺²₀ mm min. 650 mm

1.

Diagram showing a hand holding a tool above a square plate, with an inset magnified view of the tool tip (no text or symbols present)

1.

Diagram showing a square plate being lifted by a curved wire into a square frame, with arrows indicating force direction (no text or symbols)

1.

Diagram of a mechanical or electrical component with curved arrows indicating flow or movement, no text or symbols present.

1.

38 mm 28 mm 18 mm

1.

Diagram showing a grid-patterned structure above a square plate, with additional rollers and a downward arrow indicating motion (no text or symbols)

ATTENTION!

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Line drawing of a hot air balloon on a circular platform with flames and a dashed box (no text or symbols)

7.2 Supports de casserole

Technical line drawing of a mechanical component with cross-sectional and top views (no text or symbols)

Illustration of a hand using a battery to adjust a circular component with a tool, showing rotational motion (no text or symbols)

WARNUNG!

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

1. Wenn Sie wechseln:

Hand holding a battery with a circular component being inserted, no text or symbols visible

WARNUNG!

Diagram showing three steps of a mechanical assembly: top-down view, middle-down view, and bottom-down view (no text or symbols)

1.

Technical diagram of a mechanical assembly with mounting brackets and directional arrows indicating force or movement (no text or symbols present)

3.

min. 55 mm 480°²₀ mm 30 mm min. 200 mm min. 650 mm 560°²₀ mm

1.

Diagram showing a hand holding a tool interacting with a square component, with no visible text or symbols.

5.

Diagram showing a square plate being lifted by a curved wire, with arrows indicating force direction (no text or symbols)

1.

Diagram of a rectangular device with curved arrows indicating flow or movement, no text or symbols present

1.

38 mm 28 mm 18 mm

1.

Diagram showing a grid-based structure with circular components and an arrow pointing to a rectangular plate (no text or symbols)

VORSICHT!

Technical line drawing of a mechanical assembly showing cross-sectional views of a circular component (no text or labels)

A. Brennerdeckel
B. Brennerkrone
C. Zündkerze
D. Thermoelement
E. Zündflamme

Line drawing of a hot pot with flames and a flame inside, placed on concentric circular plates (no text or symbols)

Technical diagram of a mechanical component with cross-sectional and top views, showing internal parts and alignment (no text or symbols)

Illustration of a hand using a battery to adjust a circular component, with a magnified inset showing the internal spiral (no text or symbols)

ADVERTENCIA!

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Hand holding a battery with a circular component being inserted, no text or symbols visible

ADVERTENCIA!

Diagram showing three steps of a mechanical assembly: top-down view, middle-down view, and bottom-down view (no text or symbols)

2.

Technical diagram of a mechanical assembly with mounting holes and directional arrows indicating force or movement (no text or symbols)

3.

min. 55 mm 480°² mm 30 mm 200 mm 650 mm 560°² mm

4.

Diagram showing a hand holding a tool interacting with a square component, with an inset magnified view of the tool (no text or symbols present)

1.

Diagram showing a square plate being lifted by a curved wire into a square frame, with arrows indicating force direction (no text or symbols)

1.

Diagram of a mechanical or electrical component with curved arrows indicating flow or movement, no text or symbols present.

1.

38 mm 28 mm 18 mm

1.

Diagram showing a grid-patterned structure above a square plate, with additional rollers and a downward arrow indicating motion (no text or symbols)

PRECAUCIÓN!

Technical line drawing of a mechanical assembly showing cross-sections of a circular component with internal components (no text or labels)

Diagram of a fire extinguisher with concentric rings and flames, no text or symbols present

Technical line drawing of a mechanical component with cross-sectional and top views (no text or symbols)
