DO91609BK - Freezer DOMO - Free user manual and instructions

Brand	DOMO
Model	DO91609BK
Product type	Freezer
Refrigerant	R600a (isobutane)
Climate class	SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C), T (16°C to 43°C)
Temperature setting	Control knob (0 to 7, position 3 recommended)
Lighting	Interior LED with switch
Freezing capacity	Not specified in the manual
Energy consumption	Not specified in the manual
Noise level	Not specified in the manual
Dimensions (W x D x H)	Not specified in the manual
Weight	Not specified in the manual
Power supply	220-240 V, 50 Hz (standard mains voltage)
Power consumption	Not specified in the manual
Main functions	Temperature control, LED lighting, automatic defrost, reversible door, adjustable feet
Maintenance and cleaning	Interior cleaning with soft cloth and soapy water, automatic defrost, clean door seal with clear water
Safety	Indoor use only, keep away from heat sources, do not use with an external controller, follow instructions for flammable refrigerant
Spare parts and repairability	Repairs by the manufacturer or authorized service, accessories available on the DOMO webshop
Warranty	2 years from the date of purchase, suspended during repair
General information	Country of manufacture not specified, compliant with European standards, EU declaration available

Frequently Asked Questions - DO91609BK DOMO

How to adjust the temperature of the DOMO DO91609BK freezer?

Use the control knob located inside. Positions 1 to 7 allow you to adjust the temperature, with 3 being the recommended setting for normal use. Position 0 stops cooling but does not cut the power.

How to reverse the door opening direction?

Unplug and empty the appliance. Remove the protective cover and screws of the upper hinge, take off the door. Tilt the appliance, unscrew the lower hinge and reposition it on the other side. Reassemble the door and fix the upper hinge. Let it rest for 12 hours before restarting.

The freezer is making an abnormal noise, what to do?

Check that the appliance is level by adjusting the adjustable feet. Make sure it does not touch a wall or another object. If the noise persists, contact customer service.

How to clean the inside of the freezer?

Turn off and unplug the appliance. Remove food and shelves. Clean with a soft cloth soaked in warm water and mild detergent. Wipe thoroughly. Do not use abrasive products.

Is defrosting automatic?

Yes, defrosting is fully automatic. Condensation flows through a channel to the compressor and evaporates. Keep the condensation channel clean for proper operation.

What to do if water accumulates under the freezer?

The condensation channel may be blocked. Clean it. Also check that the door closes properly and the seal is intact. Avoid placing hot drinks inside.

Can I use a power strip behind the freezer?

No, do not place a power strip or portable power supply behind the appliance. Plug it directly into a grounded wall outlet.

What is the warranty for the DOMO DO91609BK?

The appliance has a 2-year warranty from the date of purchase. It covers construction, manufacturing or material defects. Keep the proof of purchase.

What refrigerant is used and is it dangerous?

The refrigerant is isobutane (R600a), a natural but flammable gas. Avoid damaging the cooling circuit. In case of leak, keep the appliance away from flames and ventilate the room.

Can I use the freezer outdoors or while camping?

No, the appliance is designed for indoor use only. It must not be used in a tent or outdoor space.

USER MANUAL DO91609BK DOMO

Interior view of a modern stainless steel refrigerator with multiple beverage cans on the shelves (no visible text or labels)

EN Instruction booklet Bar Cooler

Read all instructions carefully.

Save this instruction manual for future reference.

Two safety signs: a checkmark and a cross, both pointing at a barrier with a minus sign.

Diagram of a mechanical switch or lever assembly with a downward arrow indicating motion (no text or symbols present)

Simple line drawing of a mechanical component with a bracket and circular holes (no text or symbols)

Simple line drawing of a cabinet with a cup above it (no text or symbols)

Diagram of a mechanical component with bolts and a downward arrow indicating direction (no text or symbols)

Simple line drawing of a kitchen appliance with a lid and tray (no text or symbols)

GEBRUIK

TEMPERATUURREGELING

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Two labeled diagrams showing a checkmark and a cross symbol on a stand, likely indicating approval or rejection status.

Mechanical assembly diagram showing a bracket with mounting holes and a triangular component (no text or symbols)

Simple line drawing of a small electronic component above a triangular base (no text or symbols)

Simple line drawing of a cabinet with a cup above it (no text or symbols)

Diagram of a mechanical component with bolts and a downward arrow, no readable text or symbols present

Simple line drawing of a control panel with buttons and a knob (no text or symbols)

UTILISATION

RÉGLAGE DE LA TEMPÉRATURE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating approval or rejection status.

Mechanical assembly diagram showing a lever mechanism with a bracket and mounting base (no text or symbols)

Simple line drawing of a flat stool placed on a triangular base with dots, no text or symbols present.

Simple line drawing of a cabinet with a cup above it (no text or symbols)

Diagram of a mechanical component with adjustment arrows and mounting holes (no text or symbols)

Simple line drawing of a device with a handle and control panel (no text or symbols)

GEBRAUCH

TEMPERATURREGELUNG

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

• Make sure that children do not touch the cord or appliance.

- Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful

during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your refrigerator from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- Using the appliance incorrectly may cause an injury. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

• It is prohibited to alter or modify the device and its specifications.
• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

⚠️INSTALLATION

• Do not place near flammable materials, gases or explosives.
  • Always use the appliance on a steady, level and dry surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Keep the ventilation openings free of obstructions.
• Avoid long exposure to direct sunlight.
• Make sure that you have access to the plug of the appliance.
• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.
• This is a heavy appliance. Be careful when moving it.
• This cooling unit is not intended for use as a built-in appliance.
• Do not place a power strip or other portable power supply behind the appliance.
  • After installation, it is advisable to wait 12 hours before connecting the appliance to allow the oil to flow back in the compressor.

⚠ USE

• Do not use or store this appliance outdoors.

• Only use the appliance for its intended purpose, i.e. storing drinks.

• Do not use any other electrical appliance inside the refrigerator, unless they are approved for this purpose by the manufacturer.

• Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Do not place warm or hot objects on top of the appliance.
• Do not clean the appliance with anything made of metal.
• Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.

WARNING: Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

PARTS

1. LED lighting
2. Light switch
3. Metal shelves
4. Temperature controller
5. Leveling feet

1 2 3 4 DOMO 5

INSTALLATION

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Dry the appliance off well.
• Install the handle.

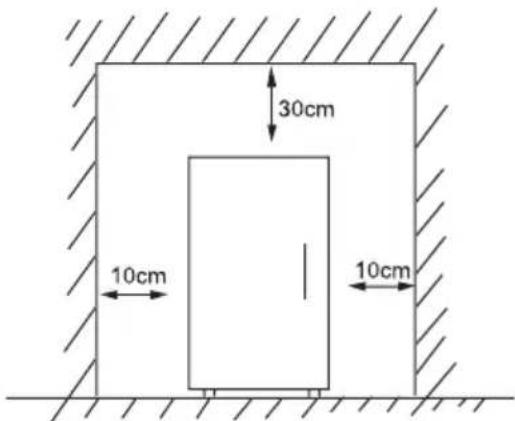

• Let air circulate freely around the cabinet.

30cm 10cm 10cm

10 cm

• Make sure there is sufficient space to open the door.

• This cooling unit is not intended for use as a built-in appliance.

• Select a place with a strong, level floor.

• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.
• Avoid very moist places. Too much moisture in the air will cause frost to form very quickly on the evaporator, and your refrigerator.
• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.
• The plug is the only way to disconnect the device from the power supply, make sure it is always easily accessible. To disconnect power to the device, turn off the device and then unplug it.
  • After installation, leave the fridge for 12 hours before turning it on. This way the refrigerant can settle.
• Allow the appliance to run empty for 3 hours before filling.

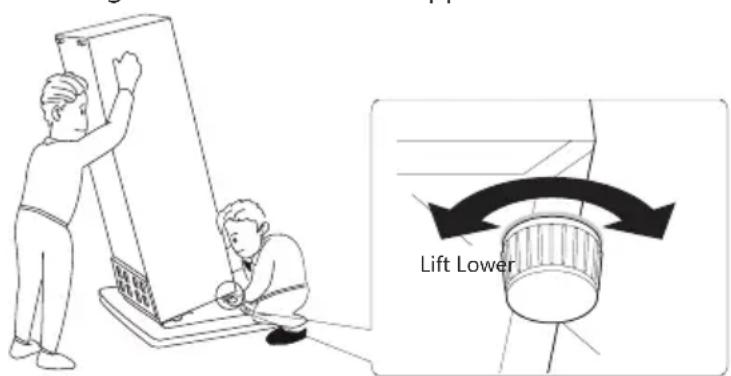

• You can level the appliance using the adjustable legs. The adjustable legs can be adjusted by screwing them in or out of the appliance.

Lift Lower

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

- The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the inside or back of the appliance.

• SN: Subnormal: ambient temperature between 10°C and 32°C
• N: Normal: ambient temperature between 16°C and 32°C
• ST: Subtropical: ambient temperature between 16°C and 38°C
• T: Tropical: ambient temperature between 16°C and 43°C

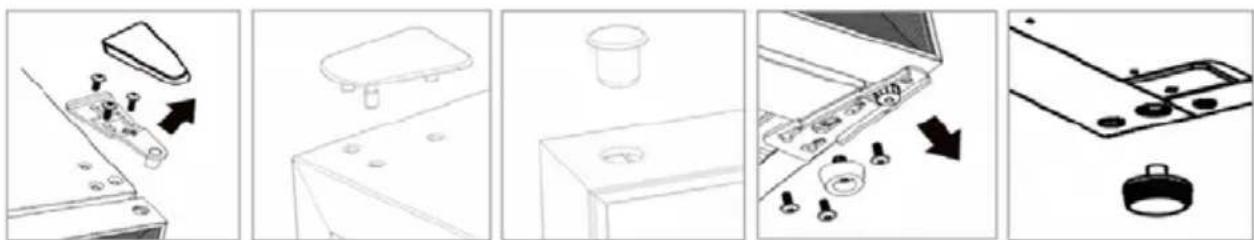

DOOR CONVERSION

If you need to hinge your door on the opposite side, it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty.

1. Remove the protective cap from the hinge. On the other side, remove the cover plate. Inside the door, remove the rubber cover cap at the top.
2. Remove the 3 screws from the top hinge. Remove the top hinge. You can then lift the door off the lower hinge. Place the door somewhere it is safe from becoming scratched. When you change the door-opening direction, we recommend that you also rotate the rubber seal around the door. This ensures the door seals perfectly when you replace it.
3. Tilt the appliance, unscrew the feet and remove the 3 screws in the bottom hinge. Now remove the hinge.

4. Use the 3 screws to securely attached the hinge on the other side of the fridge. Screw the feet back into their holes.

5. Put the appliance back on its feet. You can now fit the door back on the bottom hinge. Securely attach the door to the top hinge by screwing the 3 screws into their holes. Cover the top hinge and screw holes with the cover plates. Ensure that the rubber door seal is fitted properly. Now place the rubber cover cap in the hole at the top right.

6. Make sure you leave the appliance in the upright position for 12 hours before switching it on again. This allows the coolant to settle.

Illustration of a kitchen appliance interior with labeled parts and directional arrows (no text or symbols)

USE

TEMPERATURE CONTROL

The fridge is controlled by a temperature controller located at the bottom on the back. Adjust the control knob as desired to suit your individual preference. The higher the number, the colder the temperature. Position 3 is the recommended position for normal use.

• In the 0 position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted.
• The running time and temperature are affected by where the fridge is located, how often the door is opened and the temperature of the room the fridge is located in.
  • The higher up in your appliance, the warmer.
  • Leaving the door open for a long time can significantly increase the temperature inside the appliance.

LIGHTING

The lighting in the fridge is a LED light. LED lights are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

The lighting inside the appliance is controlled by a light switch, which can be found at the top of the right wall inside the appliance.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Empty the fridge. Also remove all shelves.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

VACATION

For short vacation periods, leave the control knobs at their usual settings. During longer absences:

• Empty the fridge.
  • Disconnect from electrical outlet.

• Clean the refrigerator thoroughly, including defrost pan.

• Leave the door open to avoid possible formations of condensate, mould or odours.

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR

• This bar fridge is for cooling and chilling drinks only.
• Beverages should be stored in sealed containers.
• Don't open the door unless necessary.
• An empty fridge consumes more energy. After all, when the door is opened, warm air enters the space and needs to be cooled. More air enters when there are fewer products, meaning that more energy needs to be consumed to cool that air. So fill your fridge properly or choose a model sized for your needs.

⚠️ Not for outer camping use (e.g. in a tent).

⚠️ For indoor use only.

⚠ The appliance can not be used in public transportation.

CLEANING AND MAINTENANCE

• Do not use abrasive cleaning agents or solvents.
• Turn the appliance off. Disconnect the mains plug from the mains socket.
  • Take out the food and store in a cool location.
• Clean the appliance with a soft cloth, warm water and detergent.
• Wipe the door seal with clear water only and then wipe dry thoroughly.
  • After cleaning, put the plug in the socket and set the desired temperature.
• Put the food back into the appliance.

DEFROSTING THE REFRIGERATOR

The refrigerator defrosts fully automatically.

While the cooling is running, beads of condensation or hoarfrost form at the back of the refrigerator. This is normal. It is not necessary to wipe off the condensation or frost. The rear panel defrosts automatically. The condensation runs into the condensation channel and is conveyed to the compressor from where it evaporates.

Note: Keep the condensation channel and drainage hole clean, so that the condensation can run out.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The refrigerator does not work.	· Check connection of power cord to power source.· Check that the temperature controller is not in the 0 position.· Plug in unit.· Use proper voltage.
The refrigerator cools too frequently.	· The temperature setting is too cool.· Close door securely.· Be sure that food is cool before inserting.· Do not keep door open for too long and minimize door openings.· Use proper voltage.· Do not place unit close to heat sources or direct sunlight.
The internal temperature is not cold enough.	· Check connection of power cord to power source.· Plug in unit.· Check setting and adjust as needed.· Close door securely.· Be sure that food is cool before inserting.· Do not keep door open for too long and minimize door openings.· Allow room for air to circulate around unit.· Use proper voltage.· Do not place unit close to heat sources or direct sunlight.
Unusual sounds. · The appliance is not level. Readjust the adjusting feet and level the unit.· The unit is touching a wall or another object. Gently move the appliance.
There is water on the floor. · The condensation duct is blocked. See the chapter on cleaning.· Too much condensation has formed in the fridge, causing the reservoir to overflow. Too much condensation is caused by a heat difference. Is the door closed properly? Were hot drinks placed in the fridge? Does the seal still close properly?
The door does not close properly.	· The door seal is deformed. Heat it gently using a hairdryer. The rubber seal will become flexible and the magnetic strip in the rubber will automatically pull towards the appliance. After cooling, the rubber stays in that position.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating approval or rejection status.

Illustration of a kitchen appliance interior with labeled parts and directional arrows (no text or symbols)

USO

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Two safety signs: a checkmark and a cross, both pointing at a barrier with a lock.

Illustration of a kitchen appliance interior with labeled parts and directional arrows (no text or symbols)

UTILIZZO

CONTROLLO DELLA TEMPERATURA

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

MANIPULSCE S PŘÍSTROJEM

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Two identical diagrams showing a checkmark and a cross symbol, likely indicating approval or rejection status.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
