USER MANUAL Endurance ED Hawke

The binocular magnification specification is the first number in the binocular description. e.g. a 10x42 binocular has a magnification power of 10x. That is to say, the viewed image will be 10x larger than with the naked eye. While a higher magnification will make the image larger and easier to view it will also reduce the field of view and make any movement of the binoculars more exaggerated. Typically an 8 or 10x magnification power is the preferred choice, but 12x magnification is also available in some models.

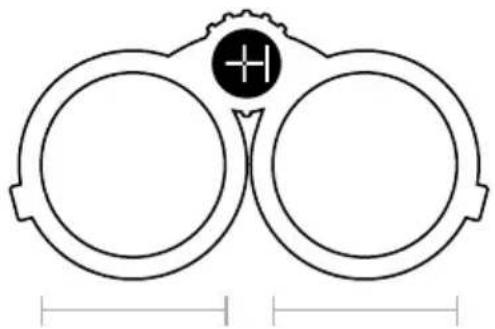

02 | Objective Lens

The objective lenses are at the front end of the binocular. The width of the objective lens relates to the second number in the binoculars description. e.g. a 10x42 binocular has a pair of objective lenses that each measure 42mm in diameter. Larger objective

lenses give better light transmission and allow for a brighter picture. A larger objective lens will allow the binoculars to be used in lower light conditions.

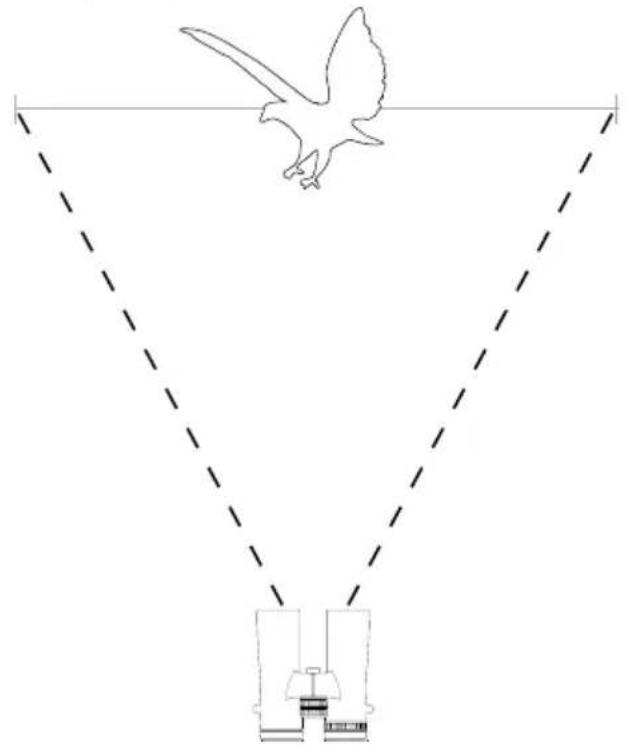

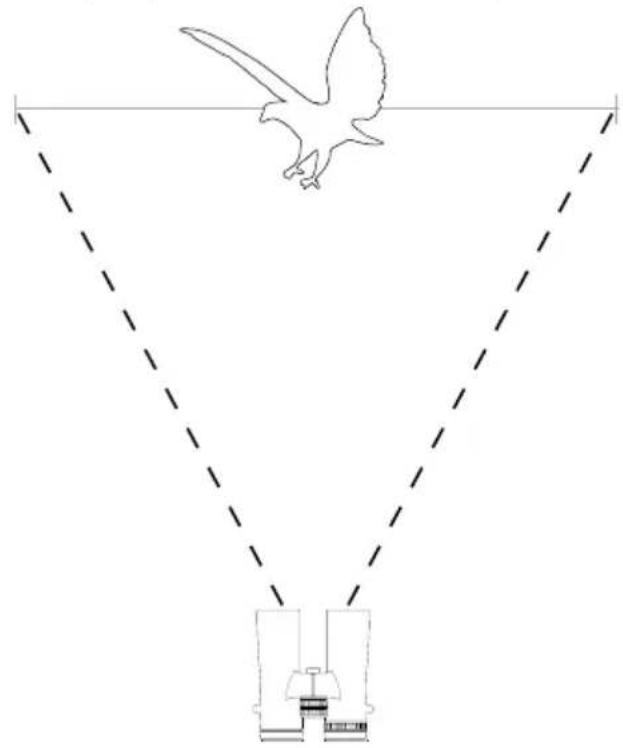

03 | Field of View (FOV)

The width of the binoculars view. A larger FOV allows for a wider image to be seen. This can be measured in terms of angle (degrees), or by a set distance. e.g. the FOV of an 8x42 binocular may be 142m wide when looking at an image 1000m away. This is equivalent to 426ft wide when looking at an image 1000yds away.

01 | Magnification

Concentric circles arranged in a spiral pattern with a dashed line extending from the center (no text or symbols)

02 | Objective Lens

Simple line drawing of two binoculars with a central circular symbol (no text or labels)

03 | Field of View (FOV)

Simple line drawing of a bird flying above a structure with dashed lines indicating alignment or measurement (no text or symbols)

05 04 06

07

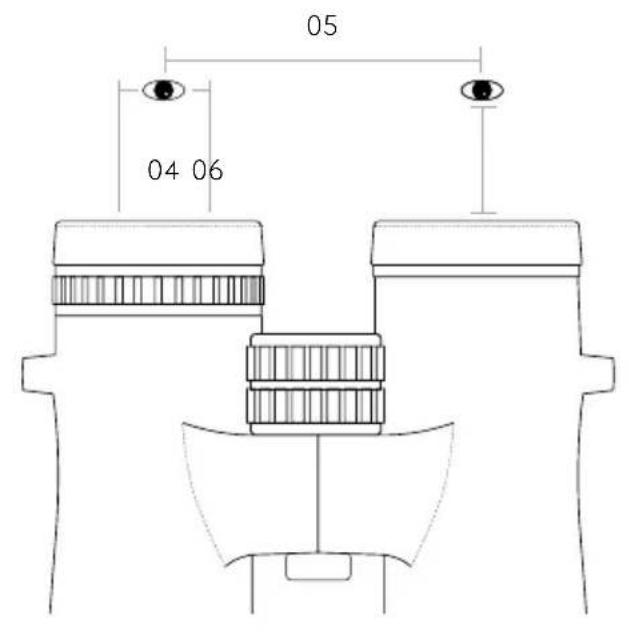

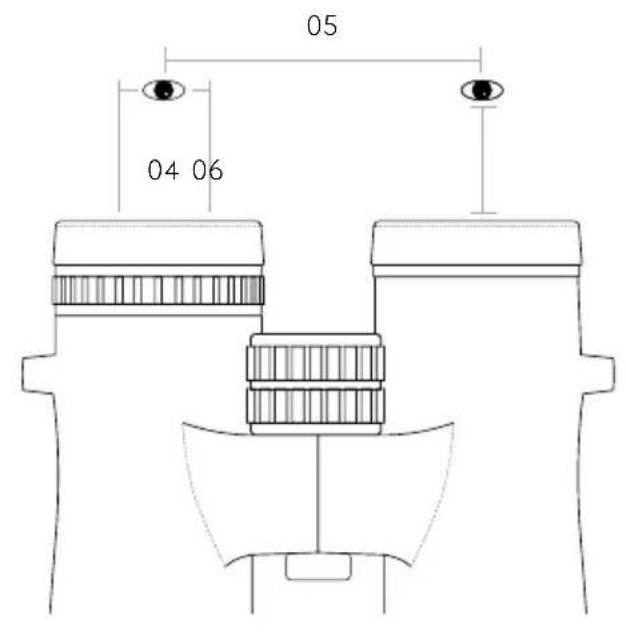

04 | Exit Pupil

The diameter of the viewing image when the eye is positioned at the correct eye relief. This is calculated by dividing the objective lens diameter by the binocular magnification. e.g. for a 10x42 binocular we divide the objective lens diameter of 42mm by the magnification power of 10 to get 4.2mm.

05 | Interpupillary Distance

The distance between the two ocular lenses.

This is measured from the middle of one lens to the other. The interpupillary distance has a range, as the distance will change depending how open or closed the binoculars hinge is set.

06 | Eye Relief

The correct distance for the pupil to be located from the ocular lens. When at this distance the best viewing experience will be achieved. All Hawke binoculars are fitted with adjustable twist-up eye cups to help gain the correct eye relief distance and comfortable viewing experience. (see page 8)

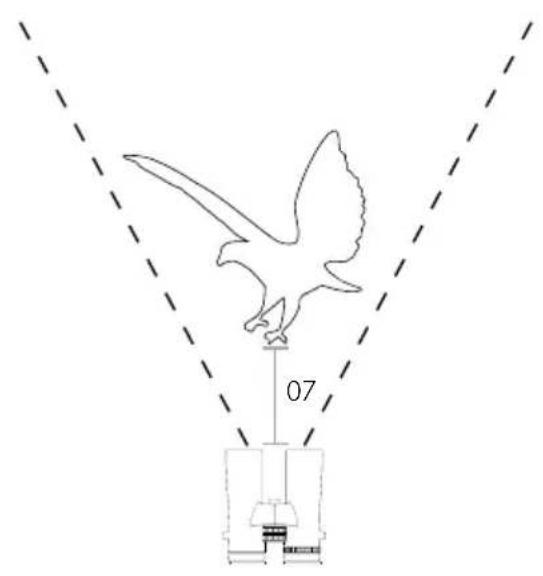

07 | Close Focus

The closest possible distance that the binoculars can be focused at. Binoculars with an ability to focus at close range allow for better viewing of nearby objects such as insects.

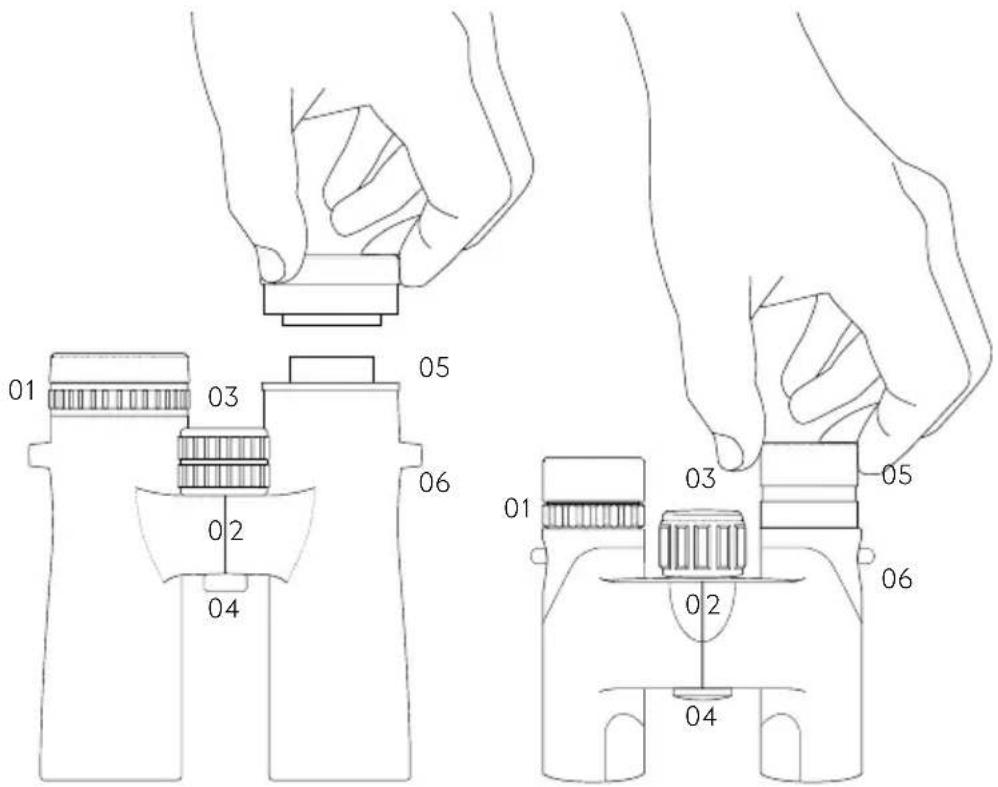

PARTS & MECHANICAL FEATURES

01 | Diopter
02 | Hinge
03 | Focus Wheel
04 | Tripod Attachment
05 | Twist-Up Eye Cups / Replaceable Twist-off Eye Cups with position stops*
06 | Strap Loops

*Replaceable Twist-off Eye Cups available on Frontier APO, EDX and HDX models only.

01 03 05 06 02 04 01 03 05 06 02 04

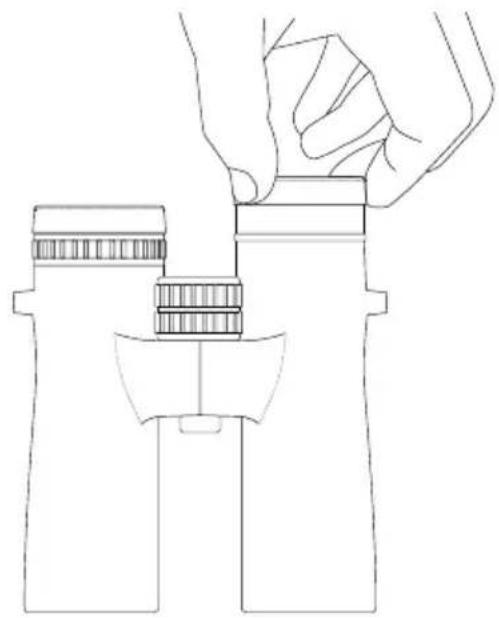

Eyeglass users will normally need the eye cups twisted down. Users not wearing eyeglasses should adjust the eye cups upwards for optimum eye relief.

Line drawing of a hand using binoculars to adjust the lens (no text or symbols present)

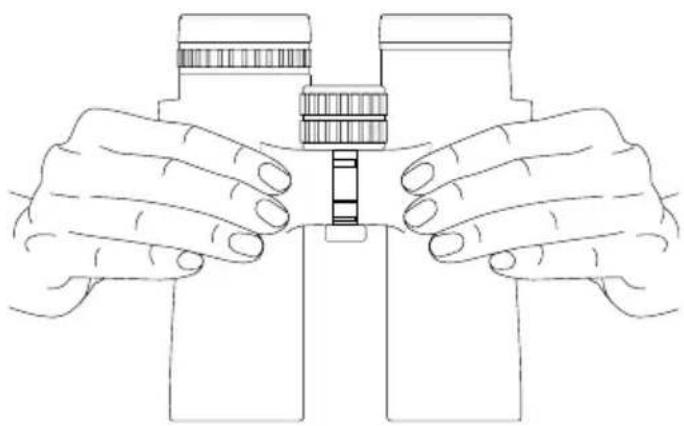

02 | Adjusting the Hinge

The distance between the eyes varies from one person to the next. To achieve perfect alignment of the eyes and the lens openings, hold the binocular in the normal viewing position and move the two barrels either apart or closer to each other until you have a single, clear field of view.

Line drawing of two hands assembling binoculars with a ruler inside (no text or symbols)

01 02 03

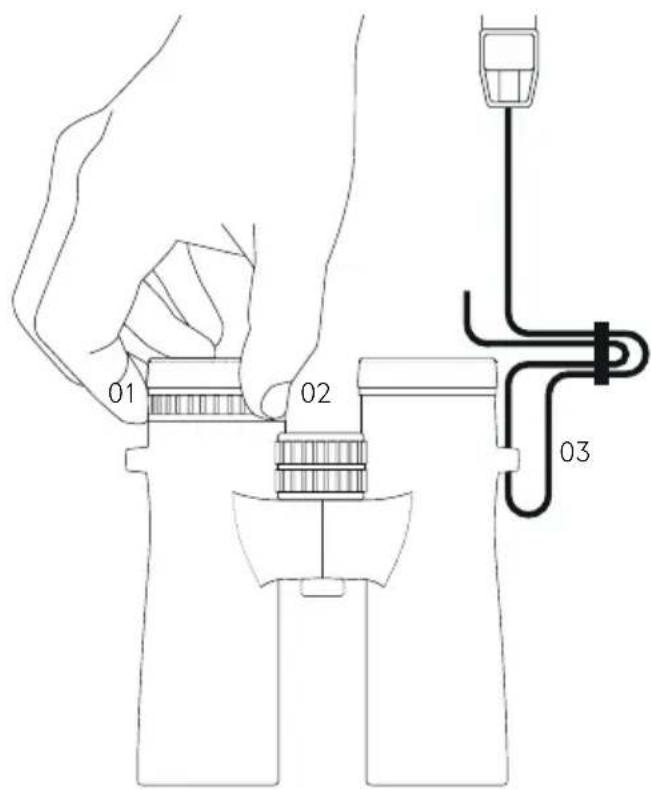

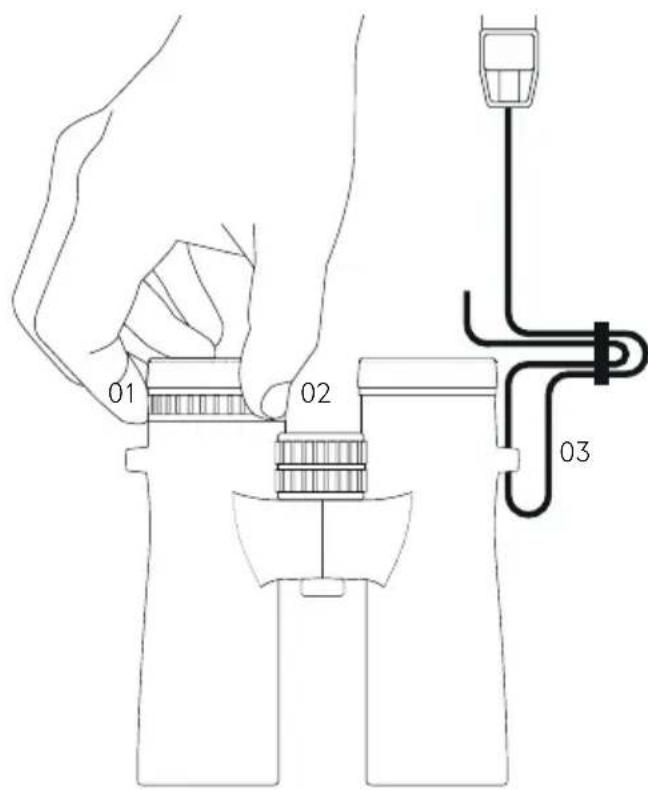

01 & 02 | Focusing your Binocular

• Set the diopter adjuster (01) to the center position.
• Cover the right front lens with your hand and rotate the focusing wheel (02) until the image in the left eyepiece appears sharp.
• Now cover the left front lens with your hand and rotate the diopter adjuster (01) until the image is sharp.
• The binoculars have now been adjusted to your eyes. Note the diopter reading of the right eyepiece for future reference.

03 | Attaching the Strap

• From new, unloop the strap from the buckle completely.
- Loop the strap through the buckle once.
- Thread the strap through the strap loop on the binocular from bottom to top.
- Loop the strap again through the buckle, passing underneath the original loop.
- Repeat on the other side and adjust length to suit personal preference.

Note, the ocular lens cover also has a loop on one side to thread the strap through if desired.

CARING FOR YOUR BINOCULAR

• Keep lens covers on the binocular when not in use.
• When cleaning the lenses, use the lens cloth that comes with the binocular, or a soft, lintless cloth.
• To remove dirt, add one or two drops of isopropyl alcohol to the cloth.
• Store your binocular in a moisture-free area.
• Never attempt to clean your binocular internally or try to take it apart.
• Your binocular is fog and waterproof in normal weather conditions, but is not designed to be immersed in water.

LIFETIME WARRANTY

Hawke products are covered by our lifetime warranty. For full details and conditions or to make a claim please see www.hawkeoptics.com/warranty or contact your in-country distributor.

Please note your proof of purchase should accompany any warranty claim. You can register your purchase with us now at www.hawkeoptics.com/registration

Hawke products are covered and/or licensed by one or more of the following registered designs, patents or are patent pending – visit www.hawkeoptics.com/ip
