| Brand | Haier |
| Model | HAF5P 011 |
| Product type | Air fryer |
| Power supply | 220-240 V ~ 50/60 Hz |
| Power | 1500 W |
| Basket capacity | Not specified, approx. 3-5 L (estimated) |
| Main functions | Preset menu, temperature and timer adjustment, start/pause, monitoring alert, automatic shut-off |
| Adjustable temperature | Yes, in increments of 5°C |
| Adjustable timer | Yes, in increments of 1 minute |
| Material of basket and plate | Non-stick coating |
| Maintenance and cleaning | Basket and plate dishwasher safe or washable in warm soapy water with non-abrasive sponge |
| Safety | Automatic shut-off at end of cooking, overheat protection (implied), insulated handle, hot surface warning |
| Spare parts and repairability | Use only genuine Haier parts. Contact authorized after-sales service |
| Warranty | According to conditions in country of sale, contact the retailer |
| General information | For household use only, complies with EC directives |
Frequently Asked Questions - HAF5P 011 HAIER
User questions about HAF5P 011 HAIER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Deep fryer in PDF format for free! Find your manual HAF5P 011 - HAIER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HAF5P 011 by HAIER.
USER MANUAL HAF5P 011 HAIER
 |  |  |  Shake |
 AIR FRY | 180 °C 18 min | √ | |
 GRILL | 180 °C 12 min | √ | |
 BAKE | 170 °C 12 min | √ | |
 ROAST | 200 °C 40 min | √ | |
 DRY | 80 °C 90 min | √ | |
 DEFROST | 90 °C 15 min | √ |
This appliance is intended for domestic and indoor use only as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.
WARNING To eliminate suffocation hazard for young children, discard all packaging materials immediately after removing the product.
Paper package for accessories may be present inside the appliance depend on the models you purchased, remove all package before using the appliance to avoid a fire hazard.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
Keep the appliance and its cord out of reach of children less than 8 years.
If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised Haier service engineer must replace the power cord.
Use only attachments, consumables or spares recommended or supplied by Haier. The use of accessories or attachments not recommended by Haier may cause injuries.
Only use the appliance in accordance with the power specification on the rating plate.
WARNING: Risk of scalding! Never touch the inside of the appliance while in use and after operation. The heating element is subject to residual heat after use. Please always use the handle to carry the bucket.
Only press the bucket release button with the buckets resting flat on a counter (or any level, heat-resistant surface).
Do not block any ventilation openings. Hot steam is released through air outlets. Keep your hands and face away from the hot steam and openings. Also be careful of hot steam and air when you
remove the bucket from the appliance.
Do not operate the appliance by means of an external timer or separate remote-control system.
Do not let any water or other liquid enter the appliance to prevent electric shock.
Do not pull or carry the appliance by the power cord. Always unplug the appliance from the socket by pulling the plug instead of the cord. Do not place the power cord over sharp edges or near hot surfaces. Do not use an extension cord.
Do not plug in the appliance or operate it with wet hands. Never immerse the appliance, cord, plug or main unit in water or other liquid.
WARNING: Risk of fire! The food may burn, therefore do not use the appliance near or below combustible material, such as curtains.
Do not place the appliance against the wall or other appliances. Keep a free space of at least 10cm on the back and sides for the appliance. Do not place anything on top of the appliance while in use.
WARNING Risk of injury! A misuse of the appliance can potentially lead to injury. Pay attention to clean surfaces which are intended to come into contact with
food! Please note the information on cleaning in the instructions.
Do not use the appliance for any other purpose than described in this User Guide.
The pan, the bucket and accessories inside the appliance become hot during use. Be careful when you handle them.
Do not overfill above the maximum line indicated in the bucket. Prevent food from touching heating elements. Excessive or oversized food, paper, carboard, plastic or metal foil packages must not be cooked which may cause risk of fire.
Use the recommended cooking time for food, excessive cooking time could lead the food to burning.
Only connect the appliance to an earthed wall socket.
Always make sure that the plug is inserted into the wall socket properly.
Use on worktop only. Do not place the appliance near the edge of a worktop.
Do not operate the appliance on an inclined surface and move it when working.
Do not operate the appliance without bucket installed.
Do not leave the appliance unattended while in use.
Exercise extreme caution
when use an appliance which contains hot oil or other hot liquid.
Allow the appliance to cool down before cleaning or any maintenance.
Regularly clean the bucket, otherwise any residue stuck to it may smoke or burn. Unplug from the socket after use and before cleaning the appliance or any maintenance task.
Do not continue to use your appliance if it appears faulty. Haier service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Haier service engineer.
The surfaces are liable to get hot during use. Do not touch.
The Environment
The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal
service or the shop where you purchased the appliance.
CE This appliance complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.
CANDY HOOVER GROUP S.r.l. Via Comolli,16, 20861 Brugherio (MB) Italy
2. Getting to know your Air Fryer
COMPONENTS & FEATURES:
A. Control panel
a. ON/OFF Button
b. Temperature/Time Decrease Button
c. Temperature/Time Button
d. Temperature/Time increase Button
e. Menu Button
f. Start/Pause Button
g. Display
B. Main Body
C. Frying Bucket
D. Frying Bucket Handle
E. Frying Plate
3. Using Your Air Fryer
Before using the appliance and accessories, thoroughly clean the parts that come into contact with food. Before you clean the appliance, unplug it. Make sure to remove all packing materials from the appliance. Place the appliance on a stable, horizontal, level and heat-resistant Surface. Extract the power cord and plug into the power supply.

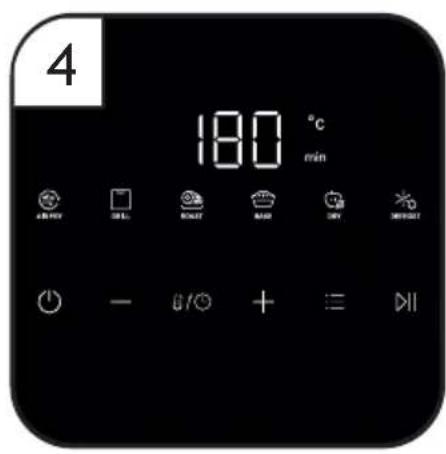

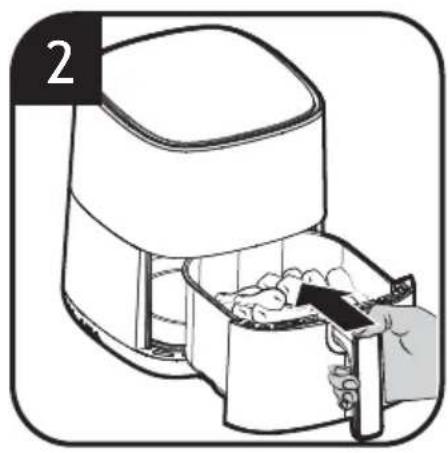

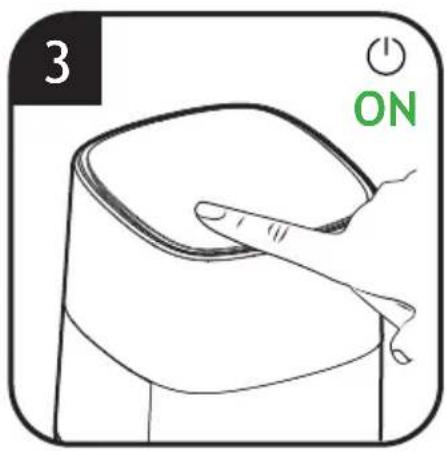

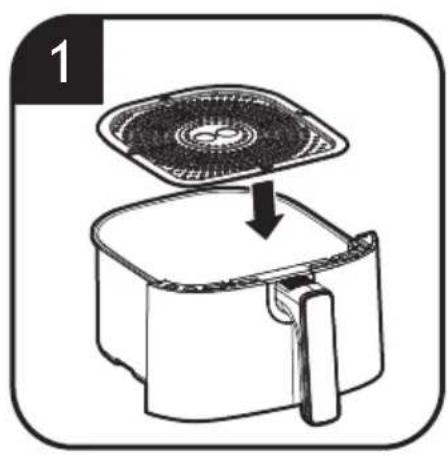

Before placing the ingredients in the frying bucket, place the frying plate in the frying bucket first [1,2]. Press on/off Button to switch the product on [3], ALL leds will light [4].

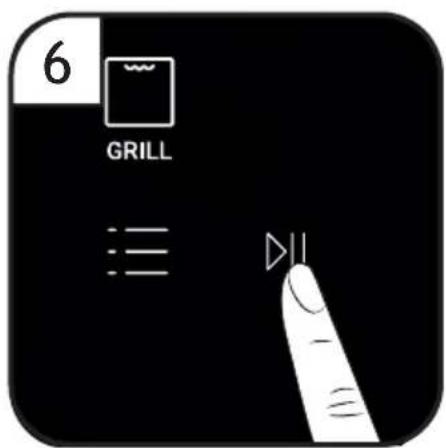

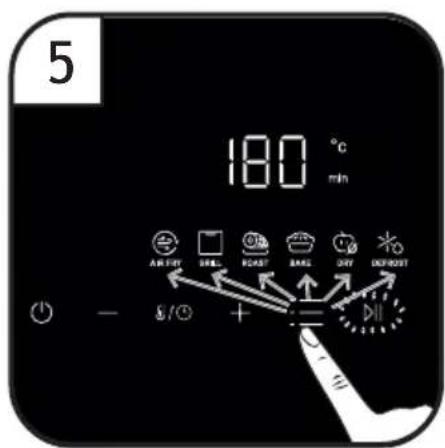

Press the Menu button to select your function [5]. For example, Grill function is selected then press

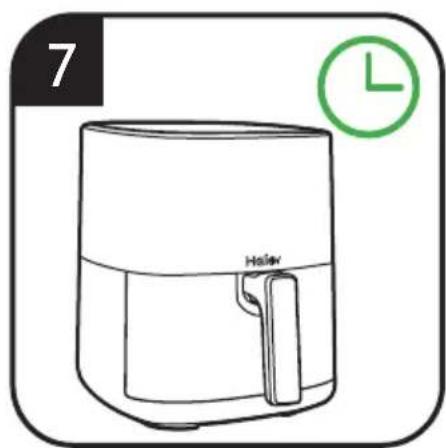

Start/Pause button [6]. Air fryer starts cooking [7]. Please refer to Table 1 for the presets of different menus.
SHAKE ALERT

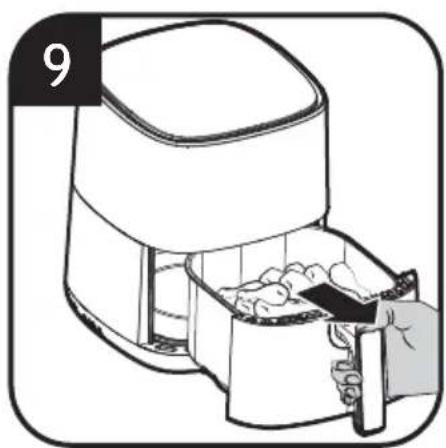

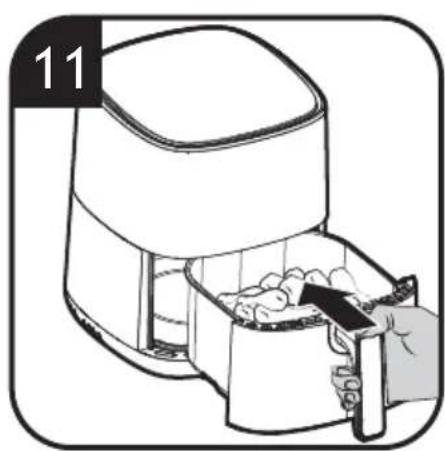

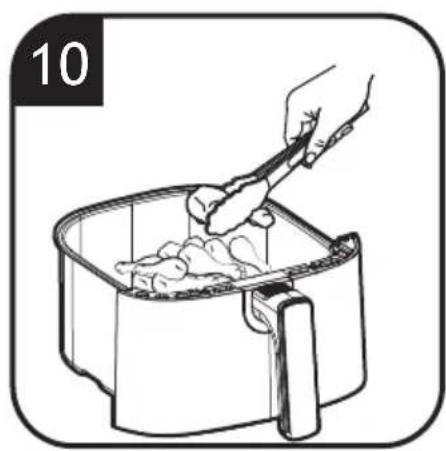

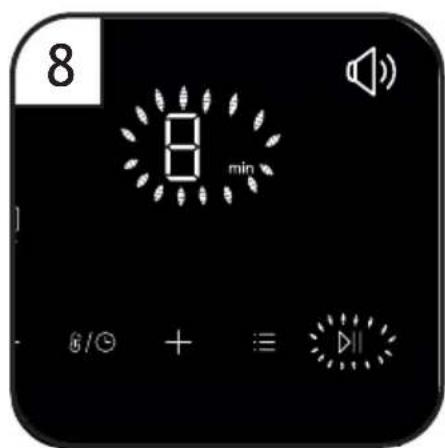

When reaching 2/3 of the cooking time the Display and the Start/Pause Button blinks, with 5 audible beeps, and this is an alert for you to shake the food [8]. You can open the frying bucket [9] to turn the food [10] and put frying bucket back to resume work [11]. You can also ignore it and after 10 seconds, the machine will continue to work automatically.

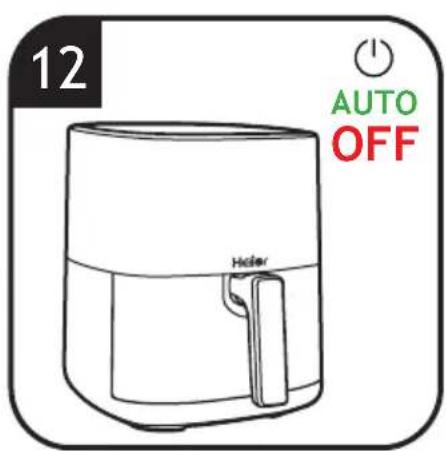

When the cooking process is complete, the buzzer sounded three times, display shows “OFF” the appliance switches off automatically [12].

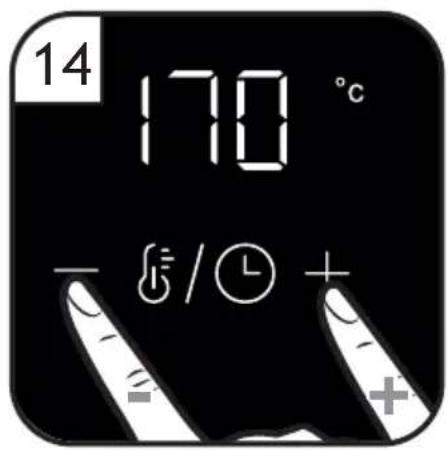

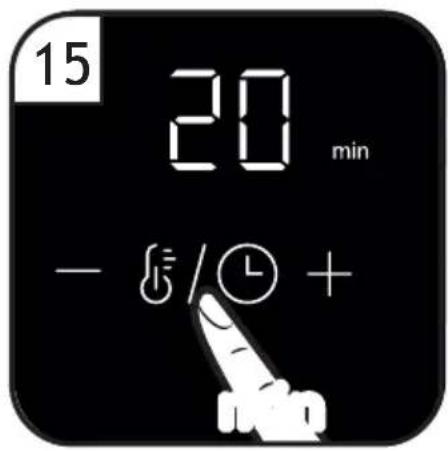

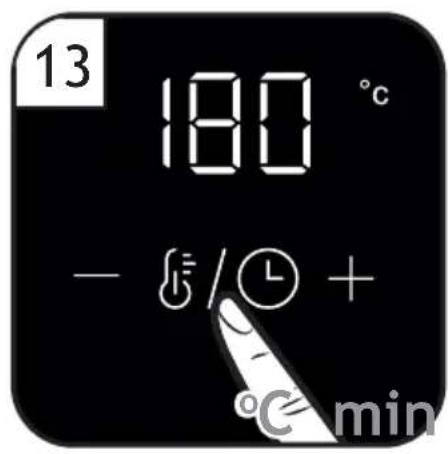

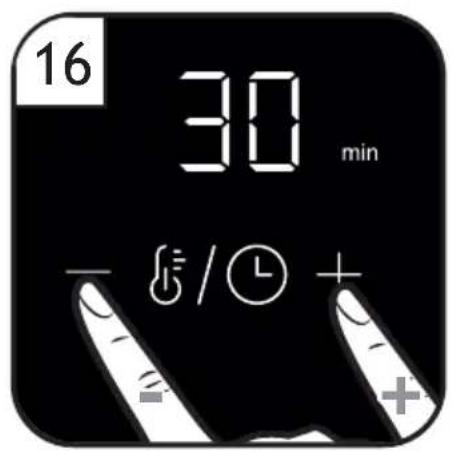

At any time during cooking, you can press and toggle Temperature/Time Button to adjust temperature or time, you can hold press + and - to speed up the adjustment temperature or times, temperature adjustment index 5°C, Time adjustment index 1min [13,14,15,16].
At any time during cooking, you could press start/pause button to pause the cooking process.
At any time during cooking, you can also press on/off button to cancel or stop current process.
At any time during cooking, you can pull out frying bucket to check the ingredients state and put it back to resume work.
5. Cleaning & Maintenance
Warning:
Always unplug the appliance from the power source and let it cool down before cleaning.
The frying bucket and frying plate have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials as this may damage the non-stick coating.
Dry before next use and clean the appliance after every time.
-

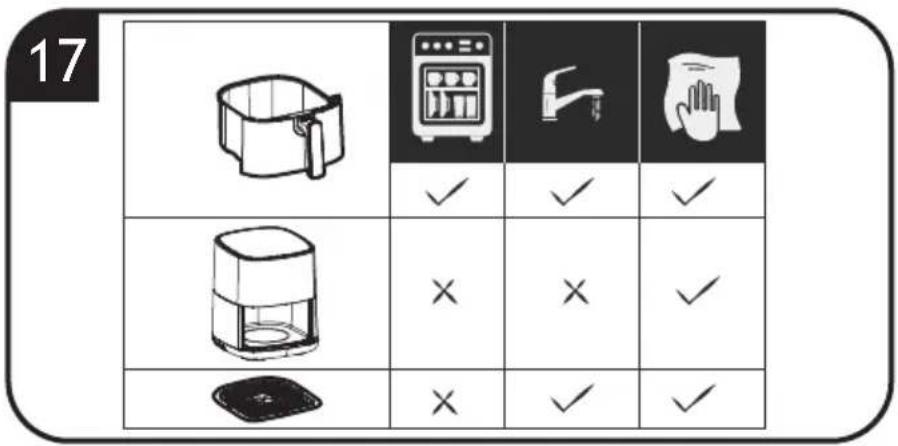

For the frying bucket, you can clean it in a dishwasher or with hot water, dishwasher liquid soap and a nonabrasive sponge [17].
-
For the frying plate, you can clean it in
under hot running water with dishwasher liquid soap and a nonabrasive sponge [17]. To avoid water marking, ensure all parts are completely dry after washing using a soft cloth.
- For the main body, you can use a non-abrasive sponge or soft cloth to clean [17].
7. Technical data
| Electrical connection 220 | -240V~50/60Hz |
| Power 1500W |
8. Important information
Spares and Consumables
Always replace parts with genuine spares.
These are available from your local dealer.
When ordering parts always quote your model number.
Quality
Factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.
Your Guarantee
The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
6. Troubleshooting
This list summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, you could contact the Haier's Customer Support.
| Problem Possible | cause Solution | |
| The Air fryer does not work | The appliance is not plugged in. | Check if the plug is inserted in the wall socket. |
| The frying bucket is not put into the appliance properly. | Push the bucket securely into the appliance's body. | |
| White smoke comes out of the appliance. | You are cooking fatty Ingredients. | Carefully pour off any excess oil or fat from the pan and then continue cooking. |
| The bucket still contains greasy residues from previous use. | Always clean the bucket thoroughly after every use. | |
| Food are not completely cooked. | The set temperature is too low or cooking time is too short. | Increase the cooking temperature and cooking time. |
| Too much ingredients in the bucket. | Decrease or place less batches of ingredients into the bucket for complete frying. | |
| The Display show error code “E-1” | The temperature sensor is disconnected. | Unplug it from the power source and contact the customer support. |
| The Display show error code “E-2” | The Temperature sensor short circuit. | Unplug it from the power source and contact the customer support. |
