WELCOME

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference.

Before installing the oven note the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the oven's features and accessories may vary depending on the model you purchased.

SUMMARY

1. SAFETY INFORMATION

2. PRODUCT INTRODUCTION

2.1. Overview of the product
2.2. Accessories
2.3. Control panel
2.4. Connectivity

3. BEFORE STARTING

3.1. Information to start

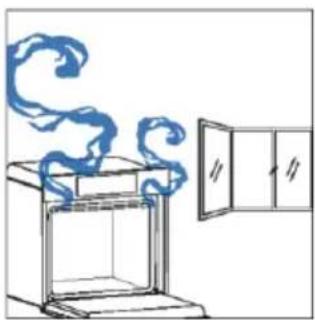

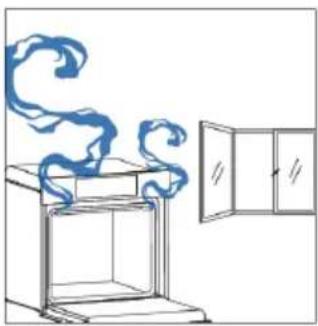

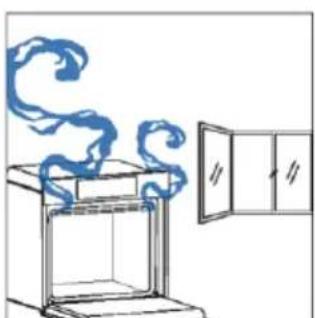

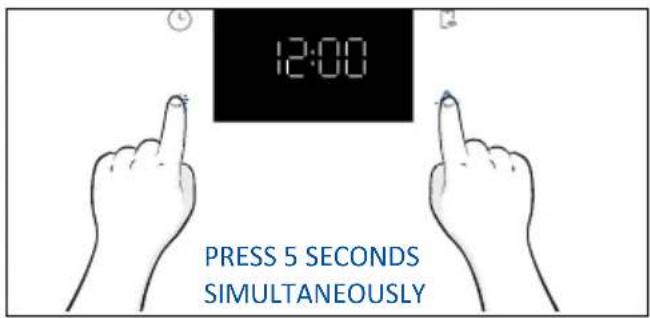

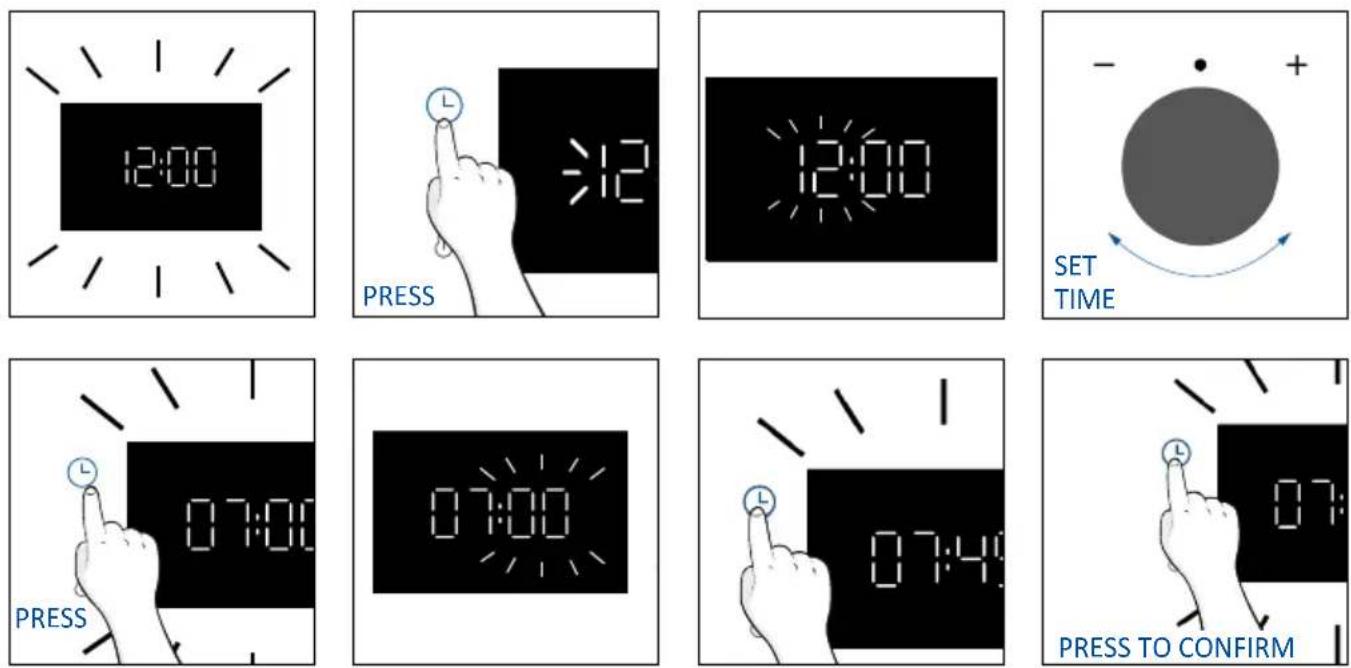

3.2. First usage

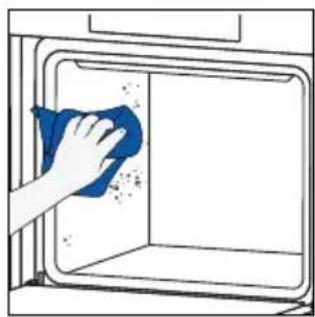

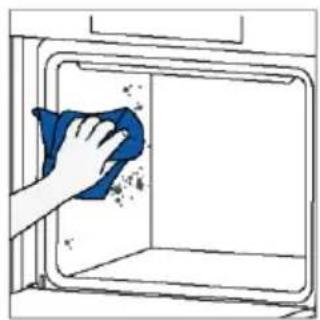

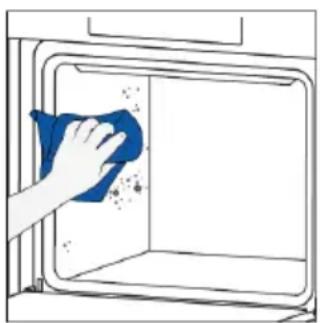

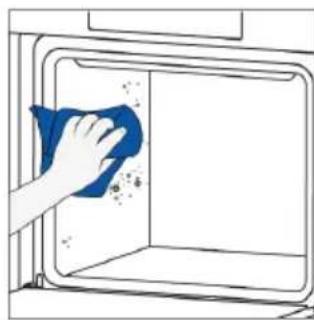

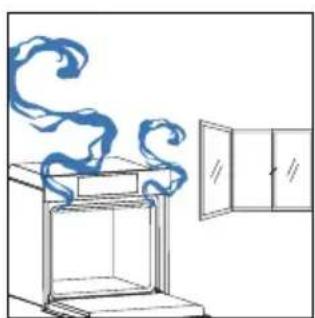

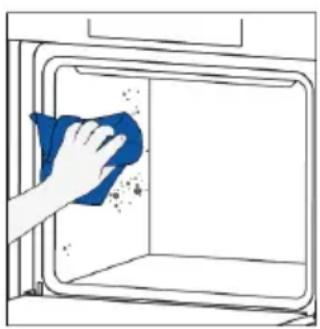

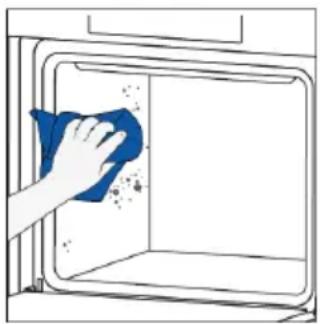

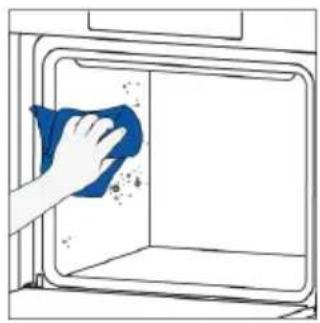

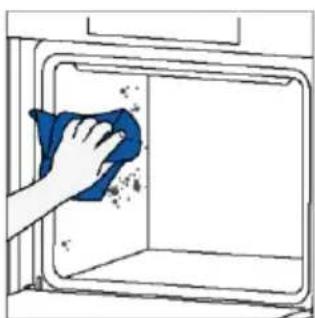

3.3. Preliminary cleaning

4. OPERATION OF PRODUCT

4.1. How the product works
4.2. Cooking functions
4.2.1. Standard functions
4.2.2. Special functions

5. COOKING GUIDELINES

5.1. General Cooking tables
5.2. Everyday Cooking tables

6. CARE & CLEANING

6.1. General recommendations
6.2. Cleaning the oven

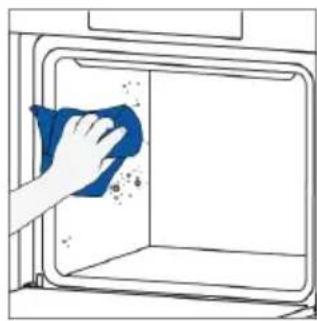

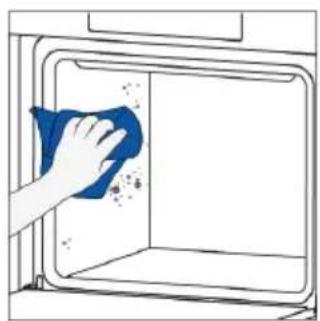

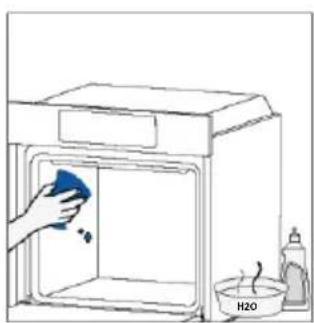

6.2.1. Inside the oven: cleaning functions

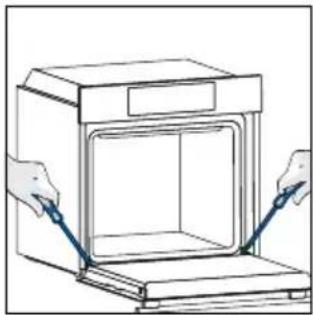

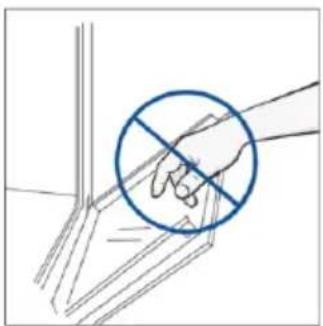

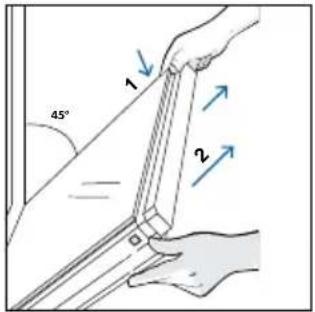

6.2.2. Outside the oven: removal and cleaning the glass door

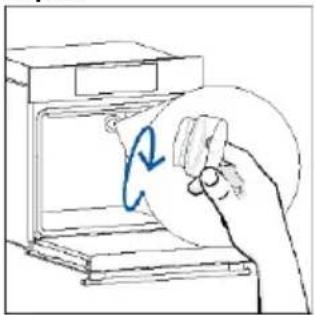

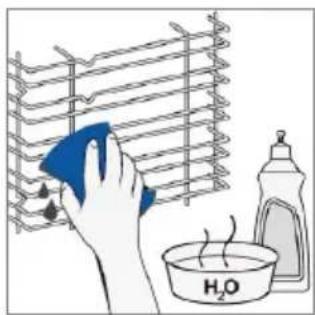

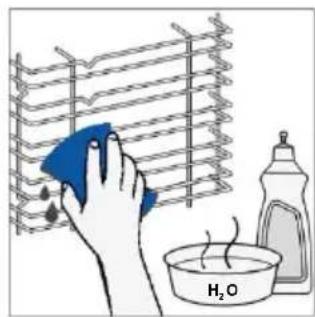

6.3. Cleaning of accessories
6.4. Maintenance

7. TROUBLESHOOTING

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. Appliance disposal
8.2. Saving and respecting the environment

9. INSTALLATION

GENERAL WARNINGS

• Do not use a steam cleaner for cleaning operations.
• CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility
• During use the appliance become hot. Care should be taken to avoid touching heating elements inside the oven.

Use in accordance with attendend use

- Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

Use limitations

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• ⚠WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements

Children less than 8 years of age shall be kept at away unless continuously supervised.

- ⚠ WARNING: Accessible parts may become hot during use. Young children should be kept away.

INSTALLATION WARNINGS

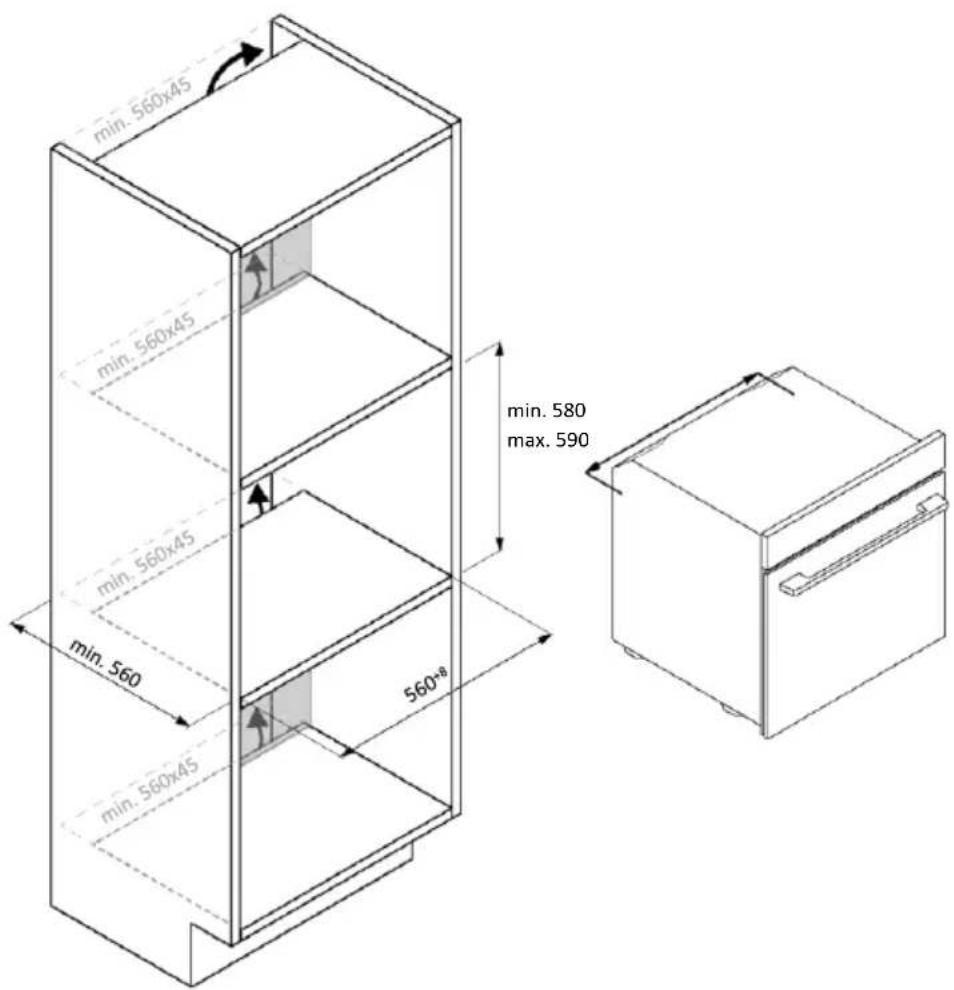

- The oven can be located high in a column or under a worktop.

- Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on the illustrations according to the type of fitting. Always fix the oven to the furniture with screws provided with the appliance.

- No additional operation/setting is required in order to operate the appliance at the rated frequencies.

- The appliance must not be installed behind a decorative door in order to avoid overheating.

- During installation the oven should be disconnected from the mains to avoid overheating.

- If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed.

- Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

- Installation must be carried on by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instruction.

- After unboxing the appliance, always check it is not damaged, in case of issue contact the customer service before installing and do not connect to the power supply.

- Remove the packaging material before operating the appliance.

- During installation do not use the oven door's handle to lift and move the oven.

- The installation furniture and the adjacent ones must with stand temperatures of 95^ .

- It is recommended to wear protective gloves during installation to

avoid cut injuries.

• Do not install the product in open environments exposed to atmospheric agents.
• This appliance is designed to be used at altitude lower than 2000m.

ELECTRICAL WARNINGS

• The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional.
• Connection to the power source can be made by plug or by fixed wiring placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.
• In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country.
• The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.

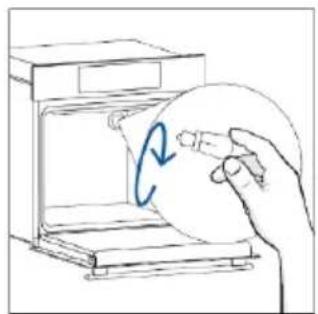

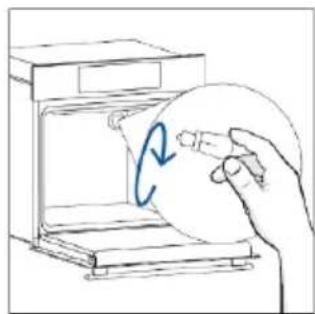

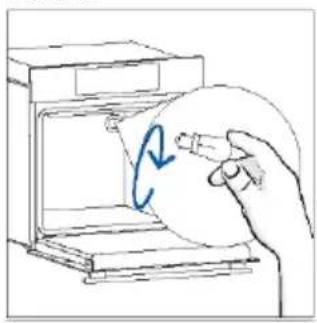

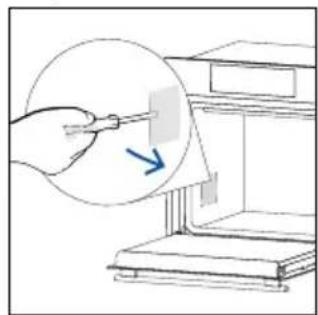

• ⚠ WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.
• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.
• The use of any electrical appliance implies the observance of some fundamental rules:

- do not pull on the power cable to disconnect the appliance from the power source;

- do not touch the appliance with wet or damp hands or feet;

- in general the use of adaptors, multiple sockets and extension cables is not recommended; - in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

• NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed.
• Any repair, installation and maintenance not carried out correctly can seriously endanger the user.
• The manufacturing company hereby states that it does not assume any responsibility for direct or indirect damages caused by incorrect installation, maintenance, or repair work. Furthermore, it is not liable for damages caused by the absence or interruption of the grounding system (e.g., electric shock).
• CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplier through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance is not designed to be activated by an external timer or separate remote control system.

USE & MANTEINANCE

• The dripping pan collects the residues that drip during cooking.
• When you place the grid on the side racks, make sure that the shorter section of the side (between the stop and the extremity) is directed towards the interior of the oven. If the grid has a decorative metal bar, pay attention to position it on the exterior of the oven so that the brand logo can be visible and readable. For the correct positioning refer also to the image in the Accessories section of this user manual.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glasses, since they can scratch the surface, which may result in shattering of the glass.
• Only use the temperature probe recommended for this oven.
• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the

oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.
• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.
• WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.
• WARNING: Never remove the oven door seal.
• CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.
• For a correct use of the oven it is advisable not to put the food in direct contact with the racks and trays, but to use oven papers and/or special containers.

WARNINGS (\*FOR PYRO OVENS)

• Excess spillage must be removed before cleaning.

• ▲ WARNING: before initiating the automatic cleaning cycle:

• Clean the oven door;

• Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;
• Remove all accessories and the sliding rack kit (where present);

• Do not place tea towels.

• In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.

• During the pyrolytic cleaning process (if available), the surfaces may get hotter than usual and children should be kept away.
• If a hob has been fitted above the oven, never use the hob while the Pyrolizer is working, this will prevent the hob from overheating.

2. PRODUCT INTRODUCTION

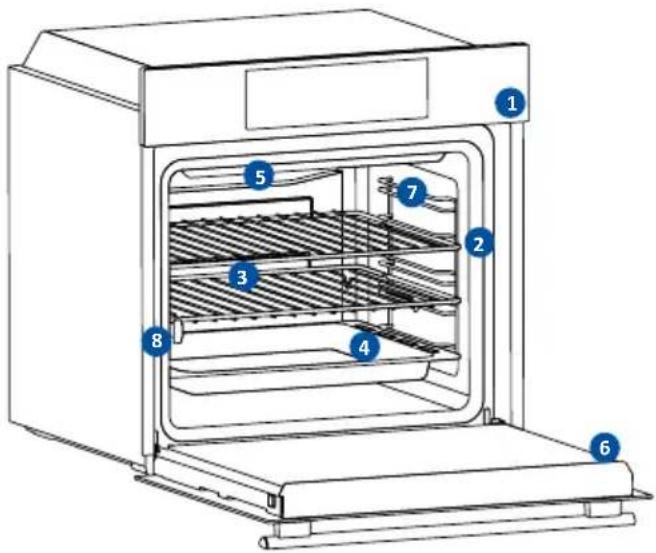

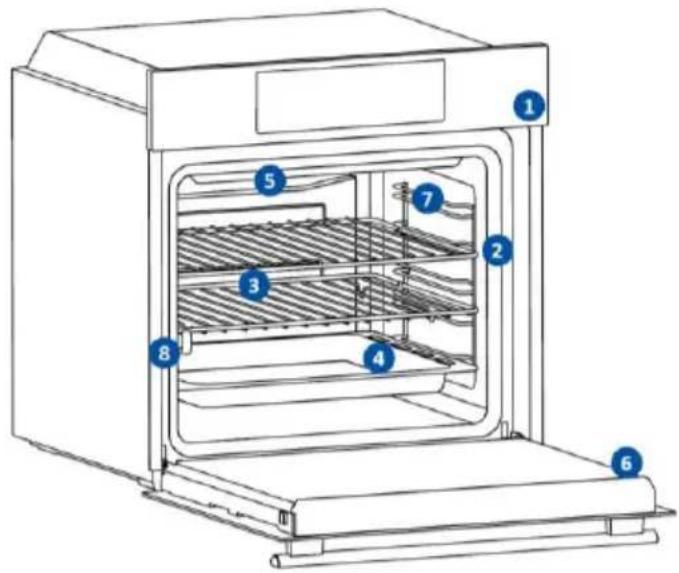

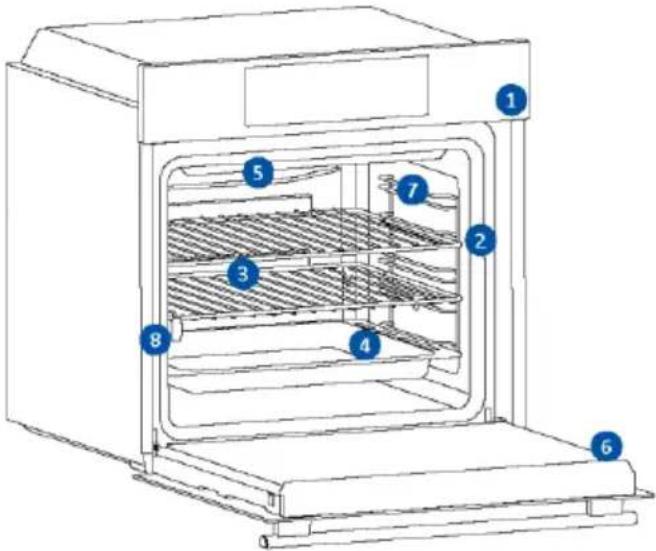

2.1. OVERVIEW OF THE PRODUCT

Diagram of an oven with numbered parts for identification

2.2 ACCESSORIES

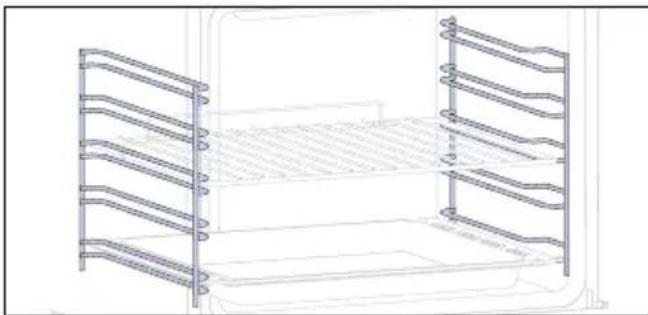

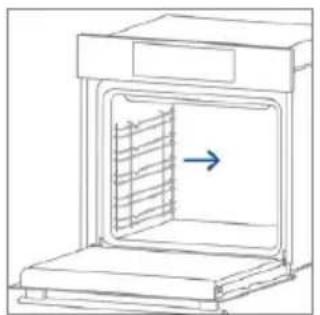

Lateral wire grids (only if present*)

Line drawing of a two-tiered modular bed with horizontal and vertical metal racks (no text or symbols)

Located on both sides of the oven cavity, the side racks are designed for placing baking tray and grids during the cooking.

NOTE: 6 or 7 levels depending on the model.

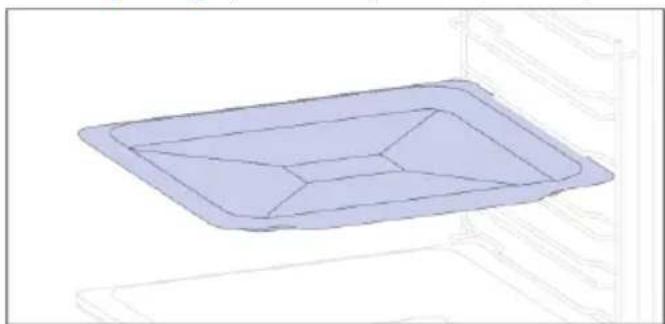

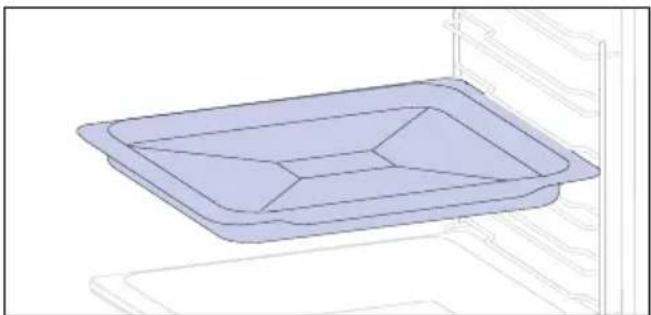

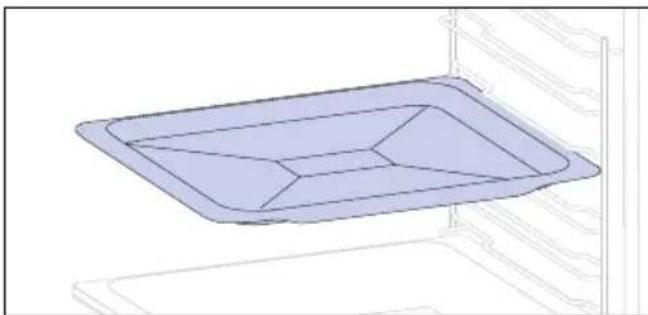

Baking tray (only if present*)

3D diagram of a rectangular tray with internal geometric lines, placed on a shelf (no text or symbols)

A baking tray is ideal for achieving even bottom browning, making it perfect for cookies and pastries due to its shallow, flat design. Additionally, placing it under a cooking grid can help collect drips and prevent messes in the oven.

1. Control panel
2. Shelf positions numbers
3. Grids
4. Trays
5. Fan cover
6. Oven door
7. Lateral wire grids (if present: only for flat cavity)
8. Serial number & QRcode

Empty white rectangle with black border (no text or symbols)

Write here your serial number for future reference.

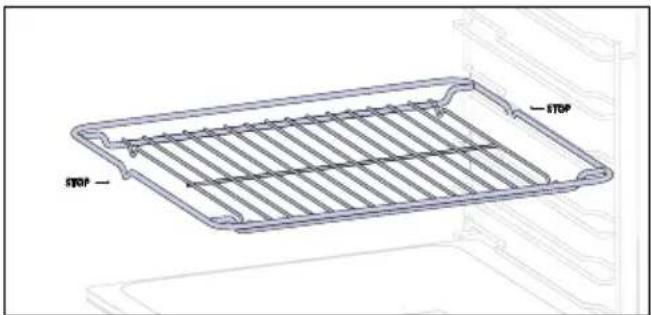

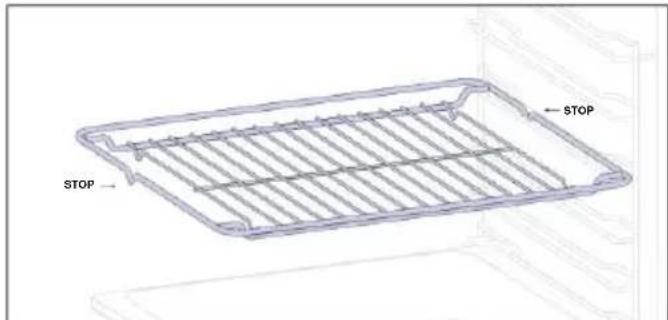

Metal grid

STOP — STOP

A metal grid in an oven is a removable, adjustable shelf that supports cookware, ensuring even cooking, and makes cleaning easy. It can be used to hold plates and pans at different heights for various cooking needs.

Deeper Tray

3D line drawing of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

The deeper tray is ideal for recipes with added liquids or layers, such as casseroles or roasts. Its depth is specifically designed to ensure the desired consistency of the food prepared in it.

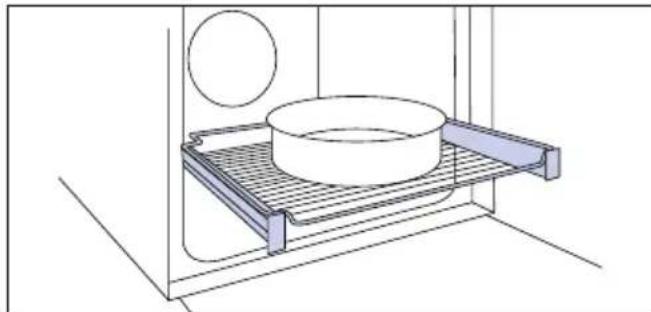

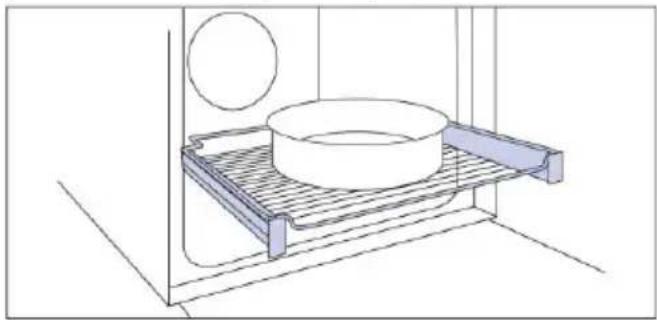

Telescopic Guides (only if present*)

Technical line drawing of a kitchen sink with a bowl, plate, and circular object (no text or symbols)

Telescopic oven rails are shelves that can be extended, making it easier to place or remove items, without the need to reach deep inside a hot oven. They improve safety, stability, and can be adjusted at different level positions.

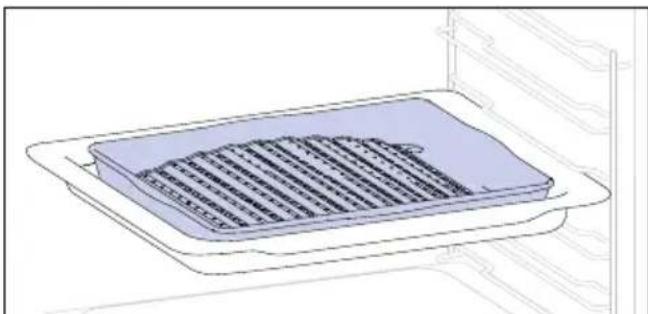

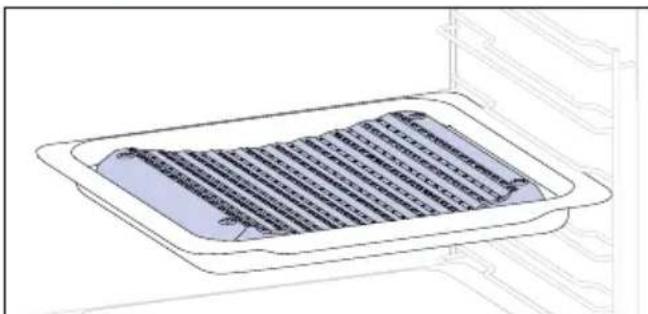

Dual tray – BBQ mode (only if present*)

Technical line drawing of a rectangular tray with horizontal slats inside, mounted on a shelf (no text or symbols)

The concave shape allows a correct circulation of humidity generated in cooking, keeping the food humidity rate high. According to the quantity of water inserted in the tray, a drier or more "wet" cooking will be obtained.

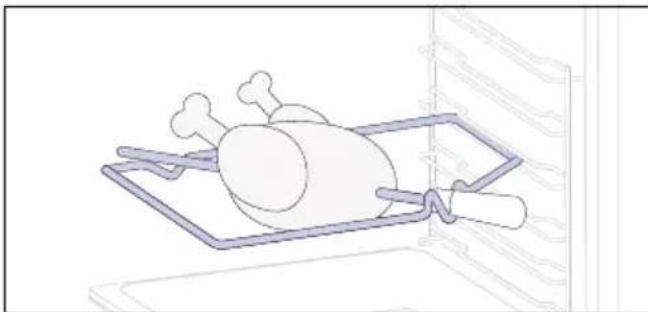

Turnspit (only if present*)

Line drawing of a roasted chicken on a tray with dough and steam (no text or symbols)

The turnspit works together with the top heating element, by rotating the food can be cooked omogeniously. It is best used for medium-sized food. Ideal for rediscovering the taste of traditional roast.

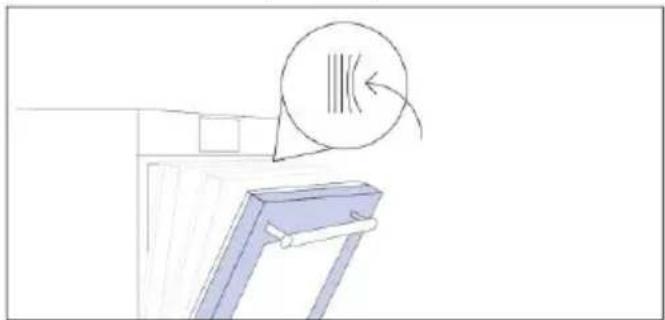

Softclose/Soft open hinges (only if present*)

Simple line drawing of a window with a circular icon and arrow, no text or symbols present

Soft close and open hinges control the door's motion, ensuring smooth movement and preventing slamming.

Dual tray – STEAM mode (only if present*)

3D technical line drawing of a rectangular appliance with internal grating, placed inside an oven (no text or symbols)

The convex shape is suitable for grilling in the oven at high temperature (220°) allowing a BBQ result even at home with little smoke thanks to the drainage action of the fats on the bottom of the tray.

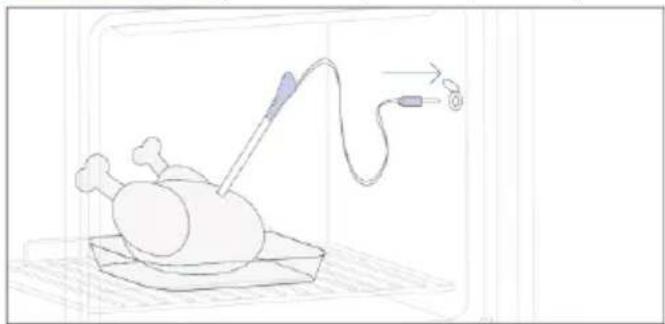

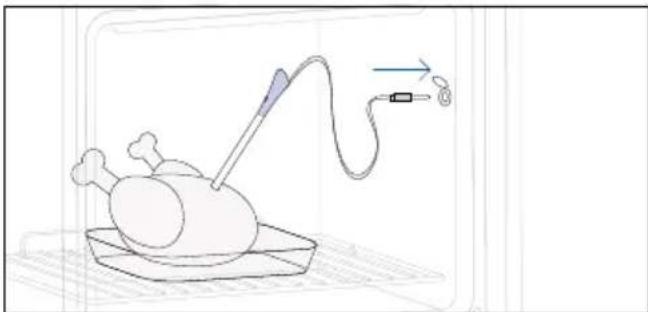

Meat probe (only if present*)

Illustration of a medical procedure involving a surgical instrument and a patient on a plate (no text or symbols)

This Meatprobe is a temperature sensor that, inserted into the food and connected to the oven via cable, allows to control the inner temperature of the food during cooking. It is mainly used for fish and meat.

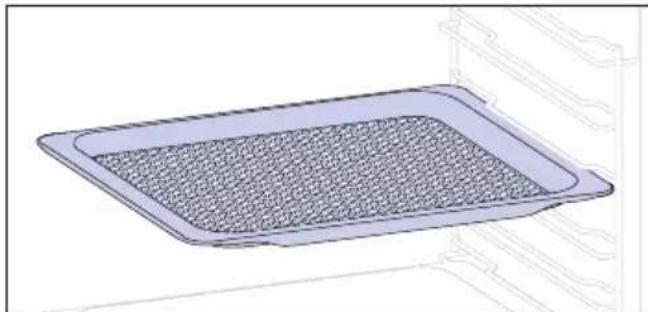

Airfry tray (only if present*)

3D rendering of a rectangular tray with a mesh pattern inside, placed on an open shelf (no text or symbols)

The airfry tray ensures that hot air reaches the food evenly and tridimensionally, resulting in a crispier exterior while maintaining tenderness inside. To collect juices and breading, place it on top of the baking tray.

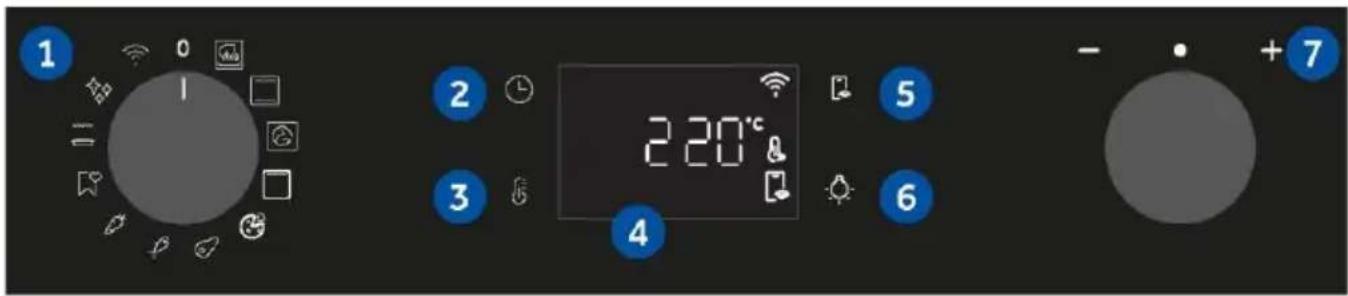

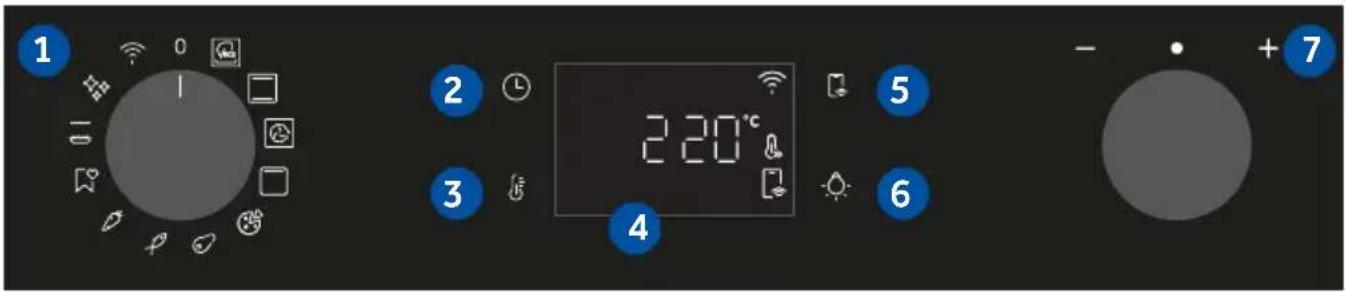

2.3 CONTROL PANEL

1 2 3 4 5 6 - +7

Functions and function ranking can be changed depending on the model.

1. Function selector knob
2. Time
3. Temperature
4. LED display 7
5. Remote control
6. Lamp
7. Dial control

MAIN FUNCTIONS

The display has 4 main functions:

Symbol Function Description

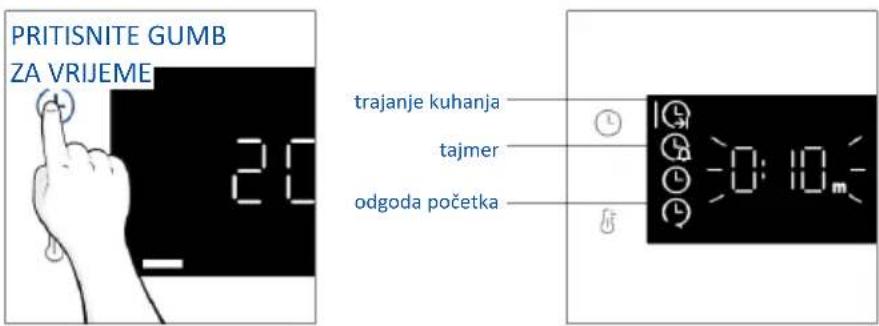

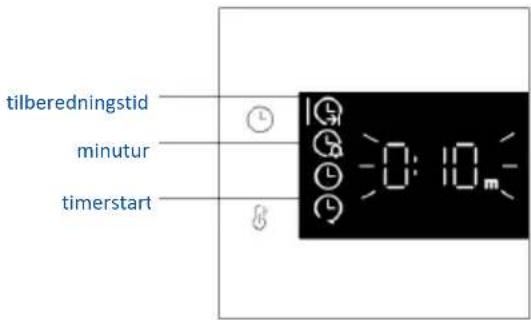

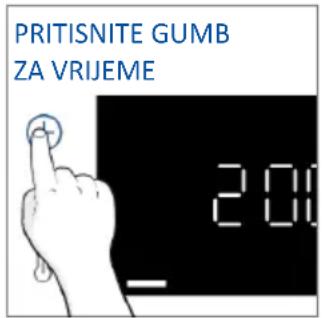

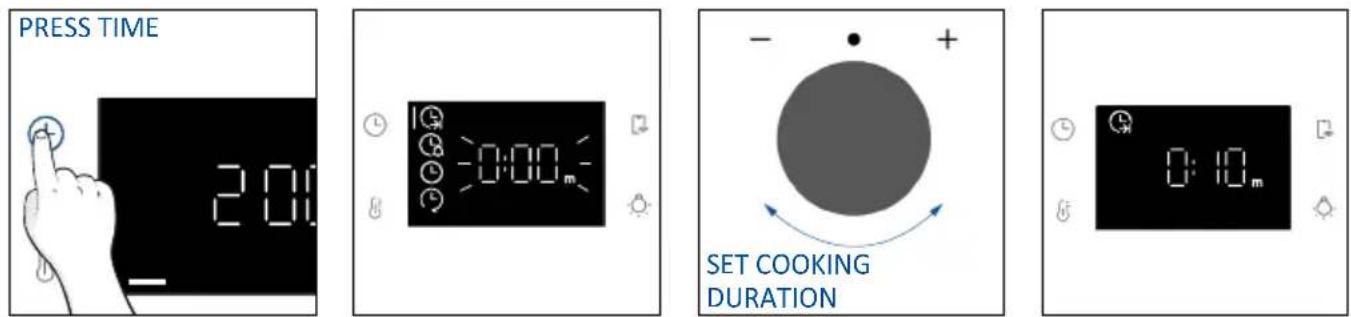

	Time	Press once for cooking duration, twice for the minute minder (available in standby mode), three times for the time of day, and four times for delay start. In standby mode, only the kitchen timer is accessible.
	Temperature	Press once to check the cavity temperature, press and hold for 3 seconds to activate the fast-pre-heating option (only available during the oven's preheat phase). When the preheat is active, the released icon will be shown on the display.

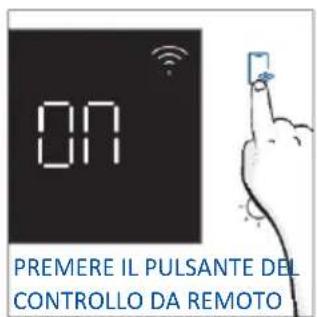

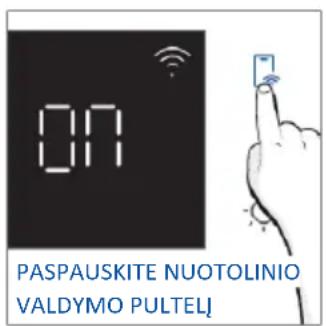

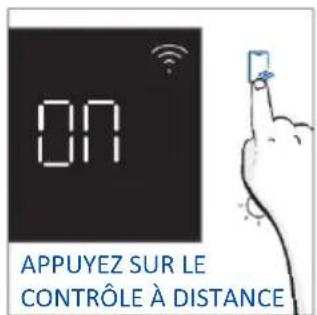

	Remote Control on/off	Press the button to activate remote control, after pairing the oven with the hOn app (through the application).
	Light Press to turn on/off the oven cavity light.

2.4 CONNECTIVITY

Wireless parameters

Technology Wi-Fi Bluetooth
Standard IEEE 802.11	b/g/n Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401 ÷2483 2402÷2480
Maximum Power [mW]	100 10

Product information for networked equipment

Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:

2,0 W.

How to activate wireless network port:

WIFI module switches on as soon as the function knob is set to a position different to zero.

How to deactivate wireless network port:

WIFI module is always off when the function knob is set to zero position.

If the knob is set to different position, go to WIFI menu and select off to deactivate the WIFI.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements for the UK market. The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

HOW TO INTERACT WITH THE APP

Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features.

NOTE

• Once the oven is turned on, the WIFI icons blinks for 30 minutes. During this period it's possible to enroll the product.
• Ensure your home Wi-Fi network is turned on.
• You will be given step by step guidance on both your appliance and mobile device.
• It may take up to 10 minutes to connect your oven.
• For further guidance and troubleshooting, please refer to the app.

Download on your smartphone.

Available on the App Store GET IT ON Google Play

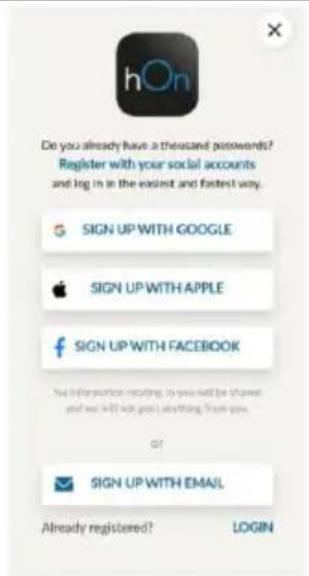

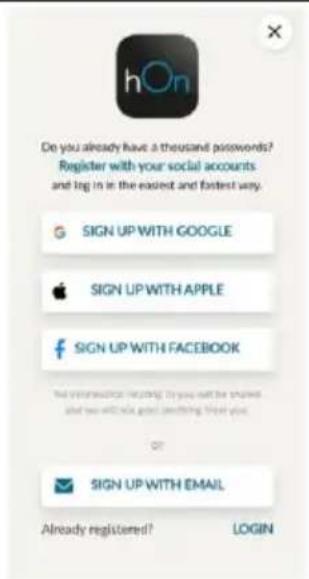

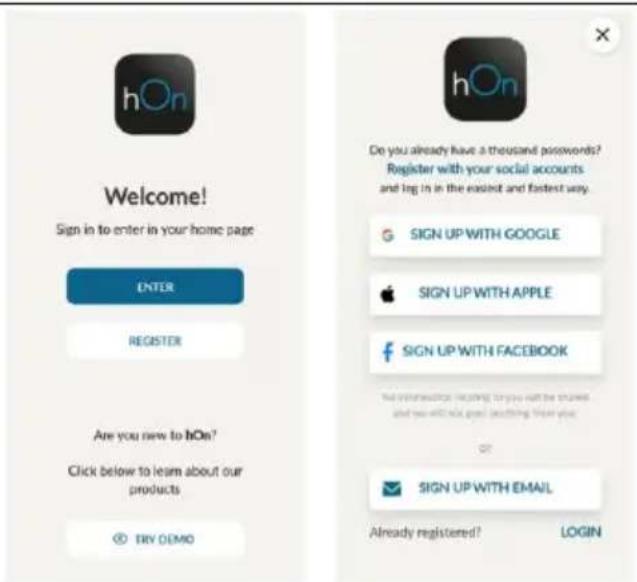

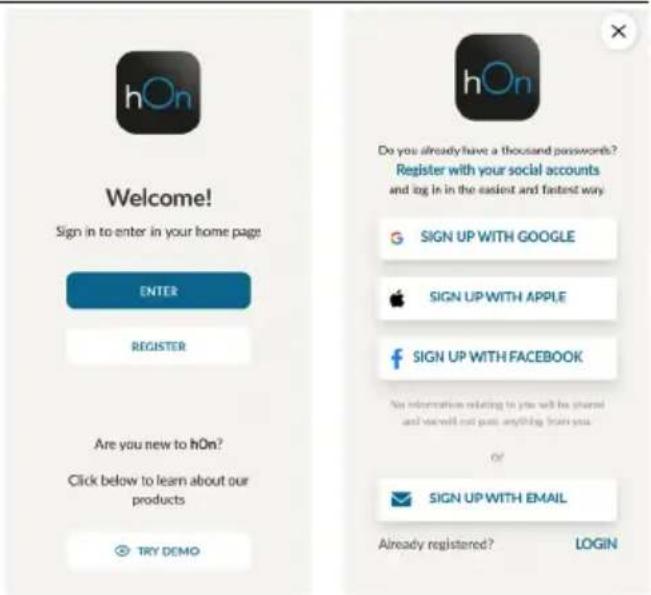

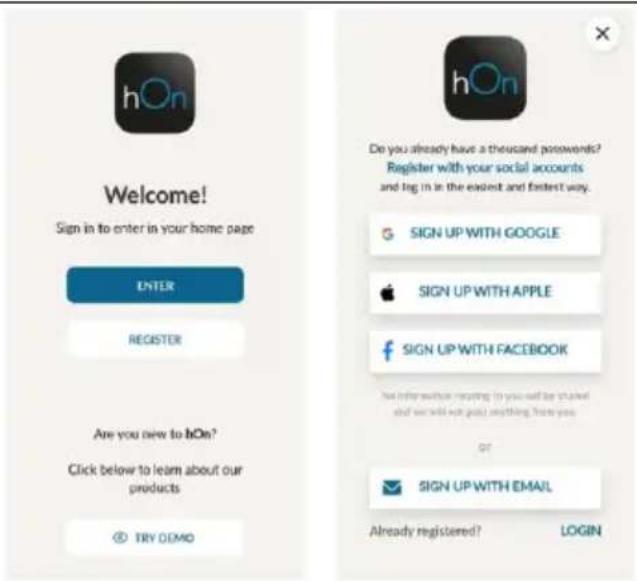

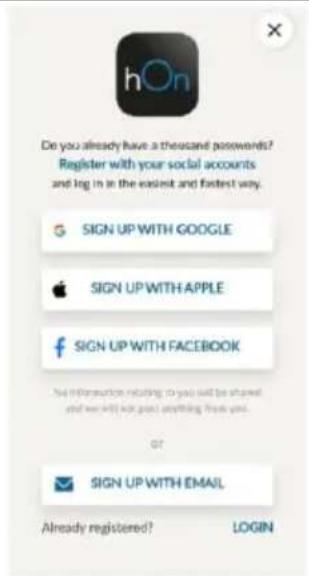

NEW USER REGISTRATION

• Click on "Register"
• You can register through social accounts or sign up with your personal email

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK My information relating to you will be shared and we will not pass anything from you OR SIGN UP WITH EMAIL Already registered? LOGIN

QUICK PAIR ENROLLMENT

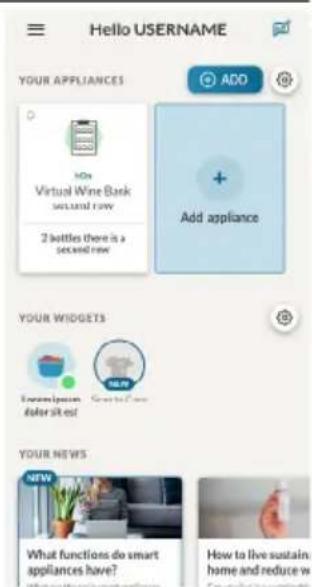

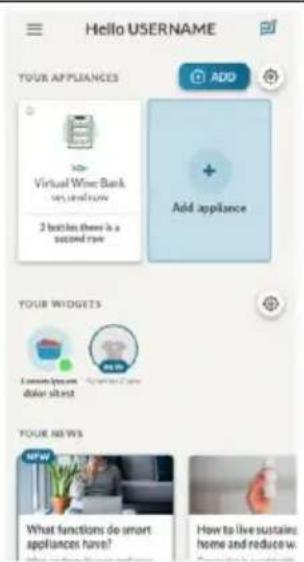

Step 1

- Select "Add appliance".

Hello USERNAME YOUR APPLIANCES ADD Add appliance 10s Virtual Wine Bank several new 2 bottles there is a second new YOUR WIDGETS I am not just afer sit out! New to Close Your NEWS NEW What functions do smart appliances have? How to live sustain home and reduce w

Step 2

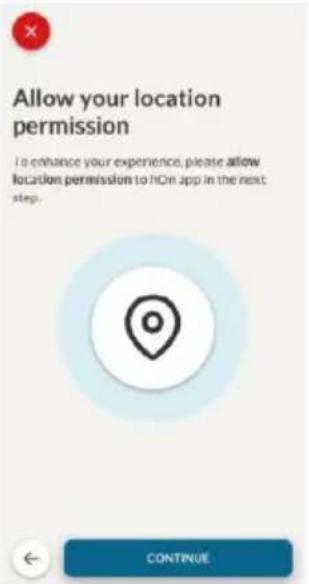

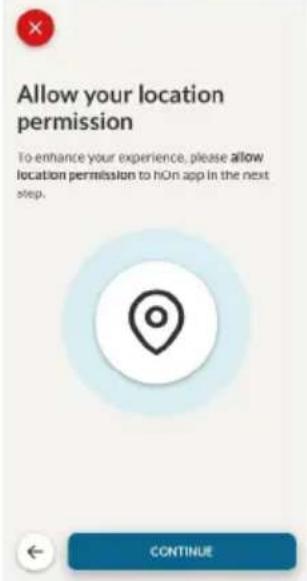

- Allow your location permission.

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

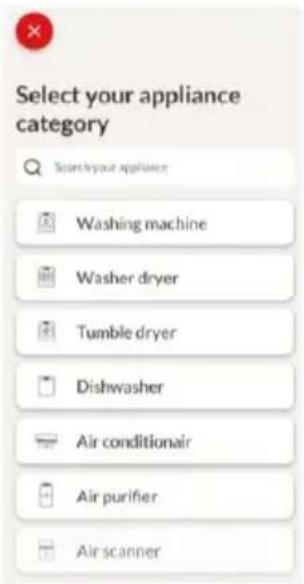

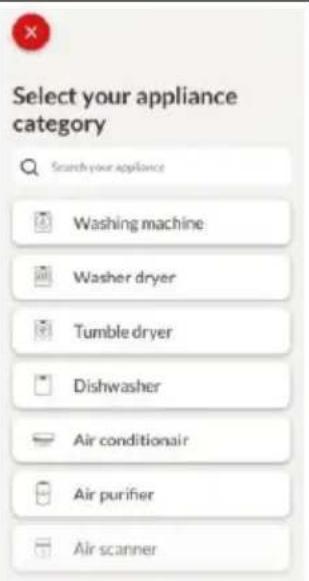

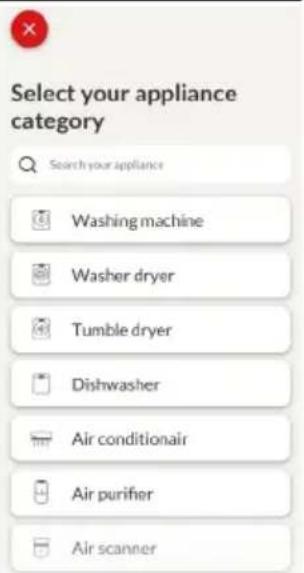

Step 3

- Select oven from the appliance category.

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

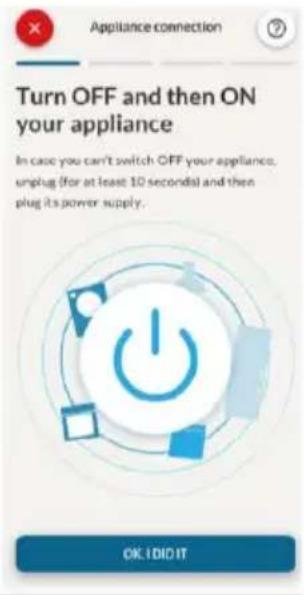

Step 4

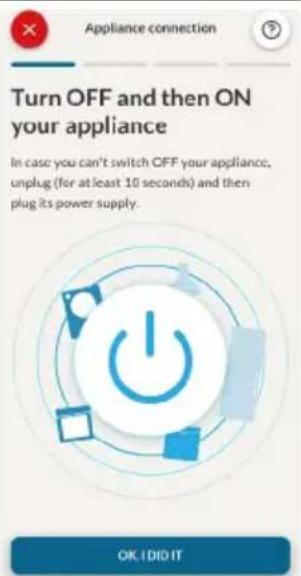

- Turn on your appliance; if it is already on, turn it off and on again.

Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK I DID IT

Step 5

• After turning on, the hOn app will start searching for your home appliance.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. bOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

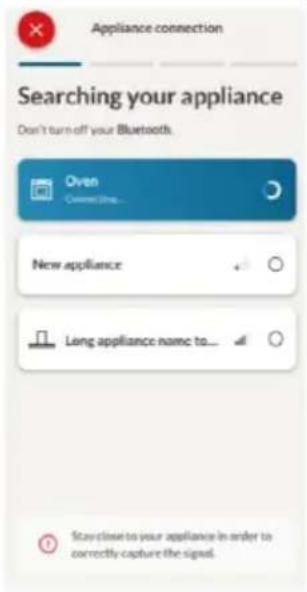

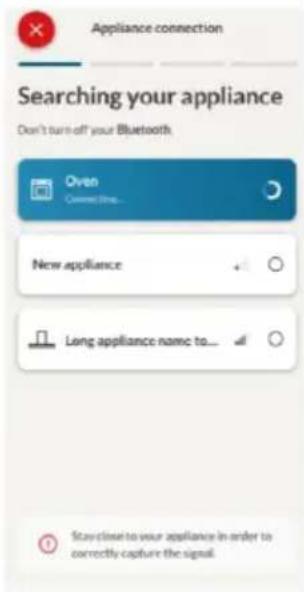

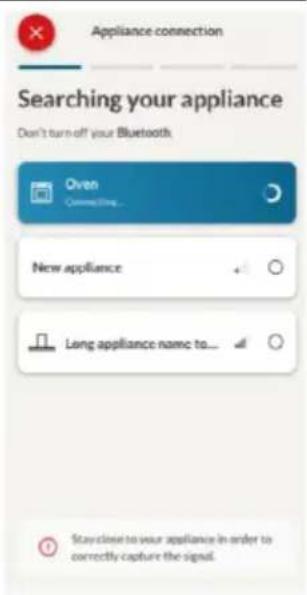

Step 6.1-6.2

- Select your home appliance, tap on "connect" and wait a few seconds.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

Long appliance name to..

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Step 7

- Your Oven will be found and you can control it through hOn.

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1821

Serial number 12345678-1234-1234

Is this your appliance?

YES ITS MY OVEN

NO IT'S NOT

HOW TO CHANGE WIFI SETTINGS

Once the appliance is enrolled, the user can change the WIFI settings between:

• WIFI ON: It is only possible to monitor the oven status by App.
  • WIFI OFF: The oven is not connected but still enrolled with network credentials saved.

• WIFI RESET: The connection is reset and a new enrollment is possible.

• Turn the function knob on WIFI menu.

• On display appears "On".
• Rotate the dial control until "Off" or the reset setting "rSt" will be showed.

Diagram showing a circular device with icons for wireless, audio, and other functions around it, including a blue arrow indicating rotation.

On

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF SET

REMOTE CONTROL

The Remote Control offers numerous advantages for users, enhancing convenience, efficiency, and the overall cooking experience, by giving the capability to control the product directly from both the appliance and hOn App

This function allows, through your device, to enjoy various features, such as: instant or scheduled start of recipes or cooking programs already available in the app; real-time monitoring of the progress of your recipes; adjustment of the cooking parameters in use; monitoring of the cooking process using the probe; managing saved recipes using the "Jolly function" on the product (see related section). Furthermore, it is possible to receive notifications once programs or recipes are completed. The Remote Control can be activated exclusively when the product is enrolled.

NOTE: It is available for all cooking functions on the product, except for Gratin and Supergrill programs.

How to activate Remote Control:

1. Turn the function knob on WIFI menu.
2. Press
3. On display appears "hOn". Both WIFI and Remote Control icons will be shown.
4. Access to the App, select a program and let the cooking starts. During the process is possible to control and change the program parameters from both product and App.

Diagram showing a circular device with icons for signal, Wi-Fi, app icons, and control buttons, indicating a status or operation.

On PRESS REMOTE CONTROL

hOn

It's also possible to activate Remote Control during cooking process by pressing related button

2:00*

PRESS REMOTE CONTROL 2:00

2:00*

How to stop Remote Control:

While the cooking program is in progress, it can be stopped directly from the product itself by rotating the function knob to a different position. These actions interrupt the cooking process. Another way is by pressing the corresponding button of Remote Control that came with your appliance. These actions interrupt the cooking process.

2:00

2:00*

You can also stop the cooking program remotely using the app by clicking the 'STOP' Button on display device. The oven will automatically stop the cooking.

NOTE: If the user stops the cooking in progress from the oven, simultaneously the stopped cooking will be seen in the App.

Cooking SH12MLEFT ADO 1 MIN STOP Current programs PROGRAMS Conventional 200°C 1:1 Protocol (21% SH 80min Officiency Protein (KNE) EDIT DETAILS →

3. BEFORE STARTING

3.1. INFORMATION TO START

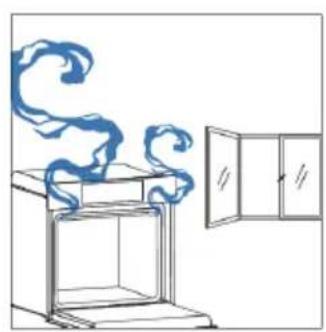

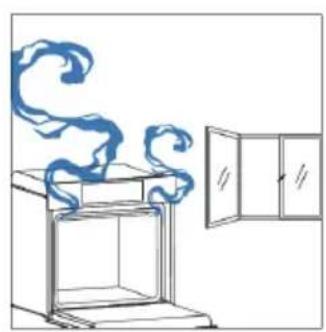

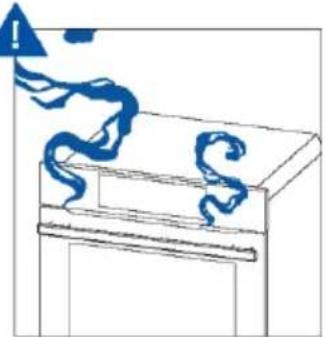

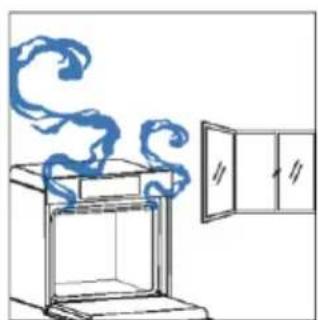

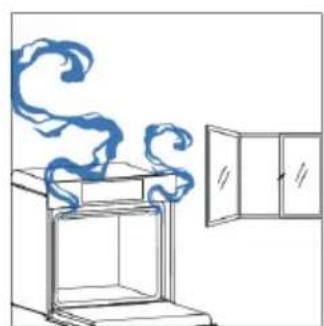

When you first turn on the oven, you might notice some smoke. Don't worry, just wait for the smoke to clear before using the oven.

How door works

For functions that use the grill, thanks to the door switch technology the oven will automatically pause the heating elements when you open the door and continue cooking once you close it.

This feature is available only on specific oven configurations. All the pyro models have it.

During the pyrolytic cleaning process, the oven door remains locked at all times. If it's not locked, the oven will display error code 24 and pause the cleaning function.

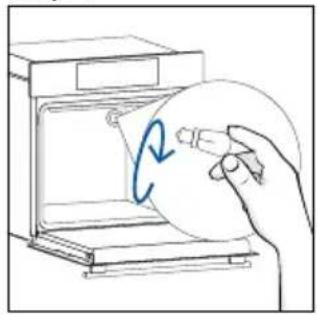

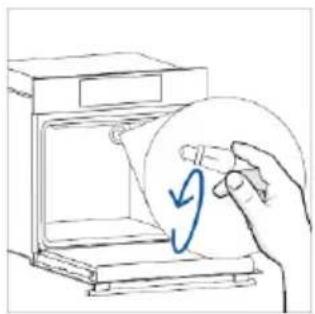

How illumination works

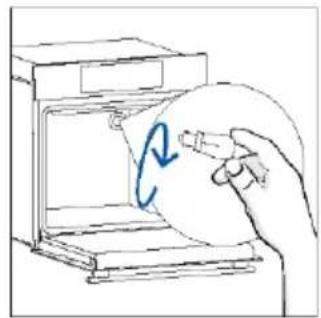

The oven cavity is illuminated by one or more light bulbs, typically activated each time a cooking function begins.

For ovens equipped with a door switch (see below), the light automatically turns on when the door is opened.

For ovens equipped with lamp button, it can also be used to activate the lighting.

If the oven door remains open for more than 10 minutes, the lights will automatically turn off.

During pyrolytic cleaning process light remains off. *

How cooling fan works

The cooling fan is responsible for dissipating the heat, keeping the oven and its surroundings from getting too hot, as well as protecting kitchen appliances from the effects of high temperatures. For this reason, the cooling fan remains audible for a period of time even after the oven is turned off. It operates during and after cooking cycle in relation to the internal temperature of the oven.

When the cooling fan is operational, it usually generates a gentle humming or whirring noise. You may also notice a warm airflow emanating from the gap between the oven door and the control panel.

During pyrolytic cleaning and when door is locked, cooling fan is switched on. *

During ECO function the light will remain off.

(*only for pyro ovens)

How status bar works

The status bar, based on the set programs, simplifies monitoring of temperature and time. Specifically, for functions involving preheating, it displays the temperature increase during this phase. In cooking programs and the pyrolytic cleaning function, it shows the countdown of cooking time and the cleaning cycle, respectively.

3.2. FIRST USAGE

When the appliance is switched On for the first time, the initial step is to set time of day, choose between 13 ampere or 16 ampere, select brightness and sound level.

- SET THE TIME: The display will show the blinking preset time '12:00'. To modify it, press ⏚ and use the right knob to adjust the current hour. Press again ⏚ and follow the same procedure to set the minutes. To confirm, press ⏚ once more.

- AMPERAGE: By default, the oven is set to work with higher power suitable for households with more than 3 kW (16 A). If your home has lower power, you can change this setting to 13 A. This setting affects how quickly the oven heats up. Choosing the higher option (16A) means it heats up faster (because the power absorption is increased). On the display, you'll see two choices: 13A and 16A. Just turn the right knob to pick the one you want, then press ⏻ to confirm.

13A

- + SET AMPERAGE

16.8A

L 0 PRESS TO CONFIRM

NOTE: The option to set the amperage is only available during the initial installation. To modify the set amperage, please refer to the post-installation instructions.

- BRIGHTNESS: The display shows the symbol "br". The numbers represent the level of brightness intensity, editable turning the right knob. To confirm press Ⓛ

br 3

- + SET BRIGHTNESS

br 2 br 1

L 0- PRESS TO CONFIRM

- SOUND: The display shows the symbol "Sn". The numbers represent the level of sound intensity, editable turning the right knob. To confirm press ⏻

Sn3

- • + SET SOUND

Sn2 Sn1

PRESS TO CONFIRM

When oven is in stand-by mode, it is possible to go back to initial settings by pressing simultaneously Temperature and Lamp buttons for 5 sec.

12:00 PRESS 5 SECONDS SIMULTANEOUSLY

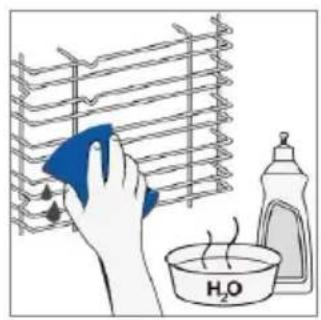

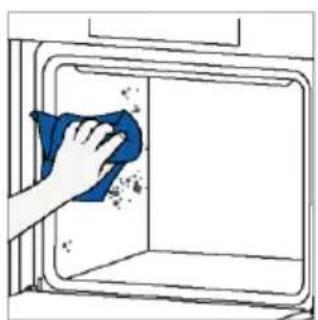

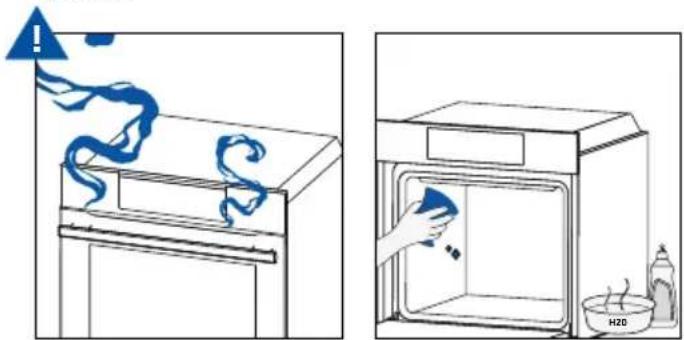

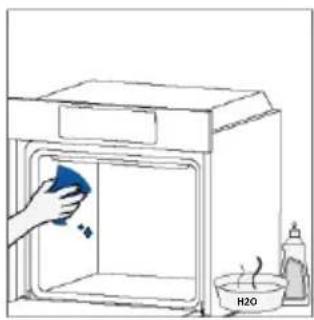

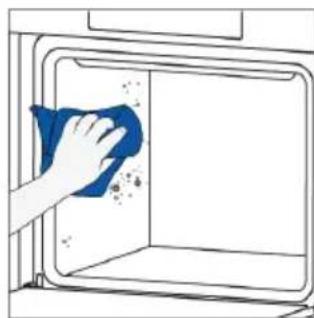

3.2. PRELIMINARY CLEANING

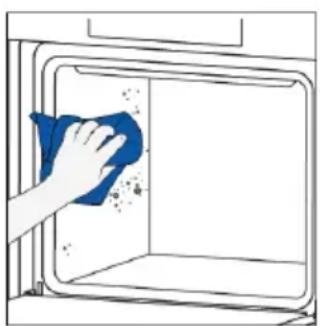

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

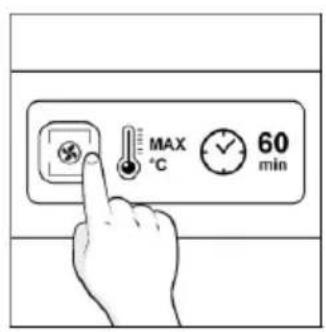

MAX °C 60 min

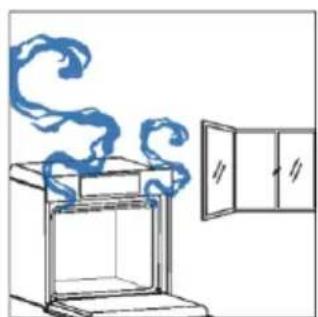

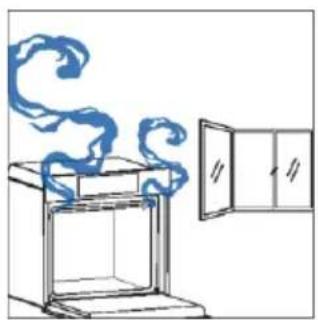

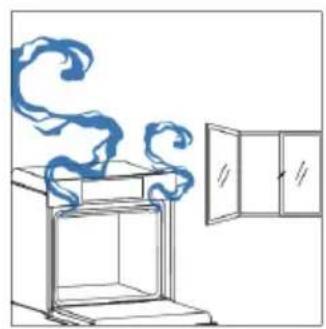

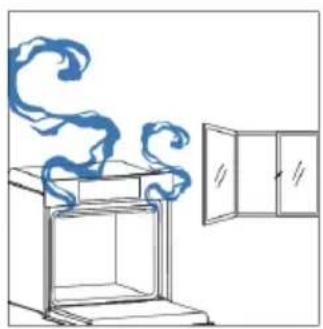

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open door (no text or symbols)

4. OPERATION OF PRODUCT

4.1. HOW THE PRODUCT WORKS

SWITCHING ON/OFF THE OVEN

To turn ON the oven rotate the function knob (clockwise/counterclockwise) and select a cooking program. To turn it OFF, set the function knob to the '0' position.

ON

OFF

SET COOKING PROGRAM

Turn the function knob and select the desired program. On display will appear a default temperature that can be edit in every moment turning the right knob (clockwise to increase and counterclockwise to decrease the temperature).

TIME MENU

Access the Time menu by pressing ⏻. To navigate into tap Ⓐ as many times as is needed to enter in the following settings:

PRESS TIME 20 cooking duration minute minder delay start

NOTE: several parameters cannot be set at the same time, therefore only the last set remains in the memory while the previous one is deleted.

©OOKING DURATION

Allows to preset the cooking time required for the recipe chosen.

ACTIVATION: press ⏻ to enter in the Time menu. Tap ⓐ as many times as you need to select "Cooking duration" function. Then use the dial control to regulate the value.

The countdown starts at the end of preheating (if present). During cooking phase is possible to change the duration value by turning the right knob. When duration is elapsed the cooking stops.

MINUTE MINDER

Allows to use the oven as alarm clock.

ACTIVATION: press Ⓛ to enter in the Time menu. Tap ⓐ as many times as you need to select "Minute minder" function. Then use the dial control to regulate the value.

200° PRESS TIME

- + SET MINUTE MINDER

0:09.m

When the function is set, the primary information showed on display is always the time. To edit the temperature, press ⏻ to enter dedicated edit mode. When duration is elapsed, the cooking continues until the left knob is turned in 0 position.

This function can be set also when the oven is in stand by mode by pressing Ⓤ. When activated, the minute minder operates independently of the oven's cooking functions.

DELAY START

Allows to choose the cooking start time.

ACTIVATION: press ⏻ to enter in the Time menu. Tap as many times as you need to select "Delay start" function. Then use the dial control to set the start time of cooking.

PRESS TIME 2:0

0:30

- + SET DELAY START

20:00

NOTE: Delay start is activable only after setting Cooking Duration and it is not available with grill's functions.

ADDITIONAL FUNCTIONS

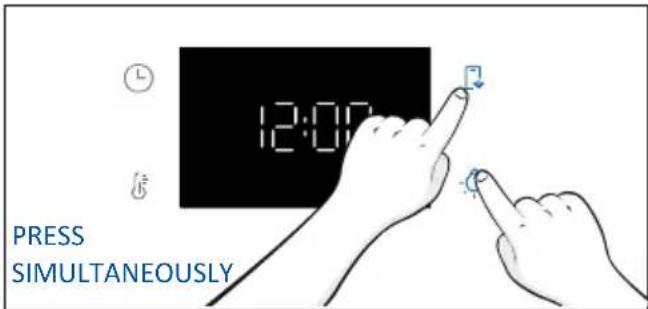

CHILD LOCK

This function allows you to lock the screen to prevent any unwanted use by minors. To activate the screen lock, press and hold down the Remote Control and Lamp buttons simultaneously.

Repeat the same action to deactivate the lock.

12:00 PRESS SIMULTANEOUSLY

4.2. COOKING FUNCTIONS

FAST PREHEATING OPTION

In order to accelerate preheating phase, the fast-preheating option can be selected by pressing the temperature icon for 3s after having selected cooking program and temperature. This option will activate a combination of fan and heating elements regardless of the chosen cooking function.

To save energy, when fast preheating is activated the cavity fan will be turned OFF until the oven reaches the desired temperature.

4.2.1. STANDARD FUNCTIONS

NOTE: for functions that require preheating, ensure all accessories are removed during this phase.

* Tested in accordance with the EN 60350-1 for the purpose of energy consumption declaration and energy class.
**Use with the door closed.
*** Depending on the oven model.

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	Suggestions
	*ECO	190 °C 150-220 °C	L3/L4 NO		IDEAL FOR: cooking meat, fish or vegetablesThis function allows to save energy during cooking keeping the food moist and tender.Cavity lamp is switched off
	*Conventional	200°C 30°C	L2/L3	Yes/Fast preheat	IDEAL FOR: cakes, breads, biscuits, quiches on one level using both upper and lower heating.Can be used with Preci Probe.
	Multi-Level	160°C 50-250°C	L4 (one tray)L2+L5 (two trays)L2+L4+L6 (three trays)	Yes/Fast preheat	IDEAL FOR: cakes, biscuits and pizzas on one or more levels.Ideal to cook different foods.Can be used with Preci Probe.
	**Supergrill	05 01-05	L6 NO		IDEAL FOR: big quantities of sausages, steaks and toast bread.The entire area below the grill element becomes hot. Use with the door closed. Turn food two thirds of the way through cooking (If necessary).
	**Gratin(***)	200°C 150-250°C	L4/L5	Yes/Fast preheat	IDEAL FOR: whole pieces of meat (roasts) or gratinated foods. Use with the door closed. Slide the drip tray under the shelf to collect juices. Turn food over halfway through cooking if needed.
	Airfry(***)	200°C150-250°C	L3/L4 NO		IDEAL FOR: preparing frozen foods or breaded par-cooked foods which are usually fried. Thanks to the dedicated tray, the hot air can flow evenly over the foods.

4.2.2. SPECIAL FUNCTIONS

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	Suggestions
	Pizza	300°C 200-300°C	2/3 NO		IDEAL FOR: all kind of pizzas without preheating the oven. Use lower temperatures for frozen items and 300°C for home-made recipes
	Jolly ---				Add to the preset list of functions your favorite one that's not already present in your oven. You canconfigure it through the hOn app.

Jolly function

Thanks to the Jolly function, this product offers a fully customizable experience, allowing you to store your personalized recipes directly on the oven. You can execute these recipes as often as you like, even without the need to log into the app.

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100°C > Duration 1h-45m > Note It's a slice and easy to make on the starting it's nice and creamy (without using heavy cream), and it's always so busy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

How to Set the Jolly Function:

To set the Jolly function on your oven, open the app's recipe section, select the recipe you want to use, and click 'Use As Jolly Function'.

From this point onward, you can launch it from the product even without interaction with the app. Simply turn the function knob to the Jolly function to start the cooking process.

The display will show the preset temperature.

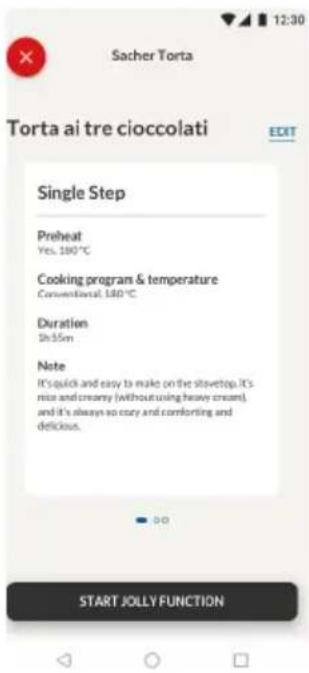

How to edit the Jolly function:

To edit a Jolly function, go to the app's recipe section and select the card of the recipe designated as a Jolly function. Tap the "edit" button to customize the recipe and modify the previously set settings.

A pop-up message will inform you that to save the newly modified Jolly function, you must remove the previous one. If you confirm, the previous Jolly function will be deleted, and the new parameters will be saved on the product and will be visible in the app.

Sacher Torta Torta ai tre cioccolati EEXT Single Step Preheat Yes, 100°C Cooking program & temperature Conventional, 100°C Duration In 35m Note It's quick and easy to make on the sitewop. It's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be lss... CANCEL YES, CONFIRM

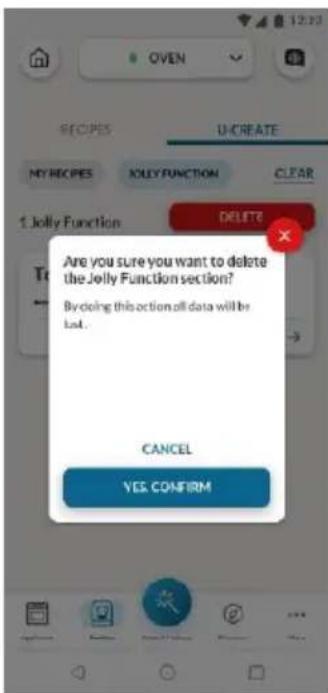

How to Delete the Jolly Function:

To remove the Jolly function from the oven's user interface, access the app's recipe section.

By tapping on the card of the recipe designated as a Jolly function, it's possible to delete it by clicking the red button 'delete button'.

A pop-up will confirm the operation, asking for your confirmation. If you proceed, the Jolly function saved on the oven will be removed, and it will no longer be available in the app.

WIRED PROBE

How to use the probe:

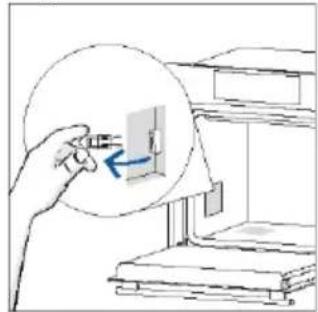

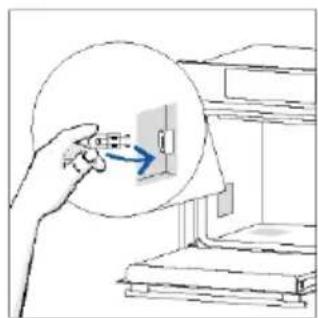

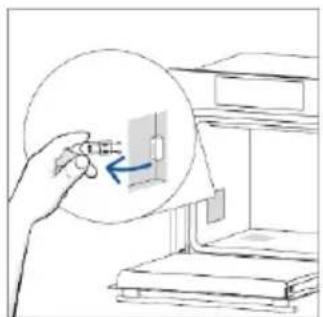

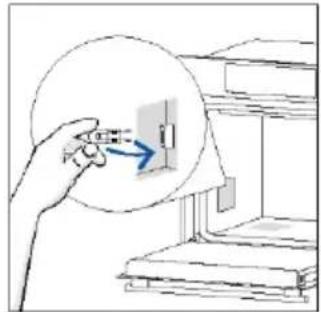

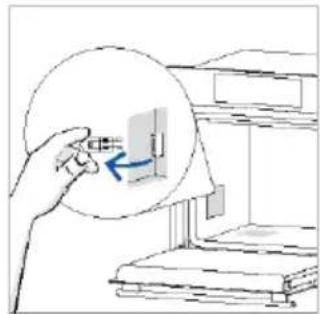

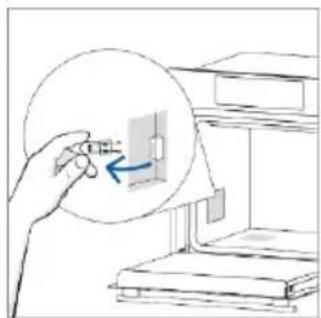

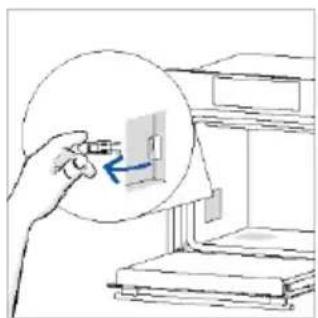

1. Plug the Probe into designed port on the oven and insert the accessory in the food.
2. On display appears the Probe icon. Only dedicated functions or cooking programs are available. From this moment, the displayed temperature will be that of the probe
3. Choose the cooking function and set the Probe target temperature to begin. The oven will then use the Probe data to monitor your food's internal temperature and stop cooking once the desired temperature is reached.

NOTE: When using the probe, there's no need to set a cooking timer; it will automatically stop once the desired temperature is reached.

1. Once the desired internal temperature is reached, the alarm sounds and the oven turns off. Before taking the food out of the oven, be sure to remove the Probe from the food carefully.

Illustration of a medical procedure involving a tool and tubing on a patient's abdomen (no text or symbols)

Camera control panel interface with clock, lock, battery, and weather icons

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating rotation or direction (no text or symbols)

The Probe icon will be displayed on the screen. Only specific functions or cooking programs are accessible when this icon is active. If you attempt to use other functions, the oven will display a message saying "can't use probe."

CAN't USE ProbE

Cooking tips

The Probe is equipped with a single measuring point. Insert it entirely into the food with the metal tip positioned at the centre of the food. Place this point as close as possible to the thickest (coldest) part of the food to accurately monitor the cooking process.

Medical illustration of a surgical instrument with a probe inserted into a patient's abdomen (no text or labels)

The Probe can be used with manual functions (Static, Static + Fan, Grill, Super grill, Gratin, and Multi-level), with FOOD COOKING CATEGORIES (Meat, Fish and Vegetables) and Gentle cooking.

Food category	Suggested core T°C	Suggested positioning
Roast beef	45°C	Diagonally in the thickest part. For cylindrical shape foods (i.e. beef roasts) place the tip as close as possible to the geometric center
Roasted meats 55	°C / 60 °C / 65 °C
Poultry	83-85°C	Into the thickest part of the breast
Fish (whole/steaks)	65°C	Diagonally in the thickest part
Bread/casseroles	90°C	Close to the geometric center of the food

5.1. GENERAL COOKING TABLE

Category	Recipe	N° of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after pre heating*(min)
Sweet bakery	Small cakes /Muffins	1	Static Multilevel	175°C 160°C	Y	Baking tray Baking tray	L3 L4	20-30 30-40
		2 Multilevel 150°C				Baking +Deeper trays	L2+L5 30-40
		3	Multilevel	140°C		Baking trays	L2+L4+L6	40-50
	Sponge cakes (26 cmø)	1	Static Multilevel	170°C 150°C	Y	Metal grid + Cake tin Metal grid + Cake tin	L3 L4	30-40 40-50
		2 Multilevel 150°C				Metal grids + Cake tin	L1+L4 50-60
	Biscuits	1	Static Multilevel	150°C 150°C	Y	Baking tray Baking tray	L3 L4	25-30 30-40
		2 Multilevel 140°C				Baking + Deeper trays	L2+L5 30-40
		3	Multilevel	140°C		Baking trays	L2+L4+L6	35-40
	Choquettes	1	Static	190°C	Y	Baking tray	L4	25-35
		2	Multilevel	170°C		Baking tray	L3	25-35
	Yorkshire pudding	1	Static	200°C	Y	Baking tray	L3	20-30
	Meringues	1	Multilevel	90°C	Y	Baking tray		90-160
	Macaron	1	Static	150°C	Y	Baking tray	L3	15-20
	Apple pie	1 Static 185°C Y				Metal grid + Cake tin	L2 60-70
		1 Multilevel 170°C Y				Metal grid + Cake tin	L4 65-75
	Tarte tatin	1	Static	170°C	Y	Metal grid + Cake tin	L2 40-60
	Chocolate souffle	1 Static 200°C Y				Baking tray + molds	L3 10-15
	Cheesecake	1 Static 150°C Y				Metal grid + Cake tin	L2 50-65
	Frozen croissants	1 Static 180°C			Y	Baking tray L3	20-25
		2 Multilevel		180°C		Baking trays	L2+L5	25-35
		3 Multilevel		160°C		Baking trays	L2+L4+L6	30-40
	Strudel, frozen	1	Static	210°C	Y	Baking tray	L3	30-45
Breads and Flatbread	Toast bread	1	Supergrill	5	N	Metal grid	L6	4-6
	Focaccia	1	Static	200°C	Y	Baking tray	L2 or L3	25-35
	Bread, whole	1	Static	200°C	Y	Baking tray	L3	35-50
Category Recipe		N° of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after pre heating*(min)
Savory pies and casseroles	Salty cakes / Quiches (26 cm ∅)	1 Static 200°C			Y	Metal grid + Quiche tin	L1 or L2 30-50
		2 Multilevel 180°C				Metal grid + Quiche tin	L1+L4 50-70
	Cheese souffle	1 Static 200°C Y				Baking tray + molds	L3 20-35
	Lasagna, fresh	1 Static 200°C Y				Metal grid + ovenproof dish	L3 40-60
	Lasagna, frozen	1 Static 180°C Y				Metal grid + ovenproof dish	L3 50-60
	Cannelloni, frozen	1 Static 180°C Y				Metal grid + ovenproof dish	L3 45-55
	Baked pasta	1 Gratin 200°C Y				Metal grid + ovenproof dish	L4 20-30
Pizza	Pizza, fresh (Tray)	1	Static	250°C	Y	Baking tray	L2 or L3	15-20
	Pizza, fresh (Tray)	1	Pizza	250°C	N	Baking tray	L2 or L3	18-25
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 25-35
	Pizza, fresh (Round)	1	Static	300°C	Y	Baking tray	L2 or L3	8-10
	Pizza, fresh (Round)	1	Pizza	300°C	N	Baking tray	L2 or L3	15-20
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 30-40
	Pizza, frozen (thin crust)	1	Pizza	200°C	N	Metal grid	L2	10-15
	Pizza, frozen (thin crust)	1 Static 220°C			Y	Metal grid	L3	10-15
		2 Multilevel	200°C			Metal grid	L2+L5	15-25
		3 Multilevel	180°C			Metal grid	L2+L4+L6
Meat & Poultry	Roasted whole chicken (1-1.2kg)	1	Gratin	220°C	Y	Metal grid/L4 Place Backing tray at L1 with half cup of water	L4 40-60
	Chicken thighs	1	AirFry**	220°C	N	Air fry tray**	L4	30-50
	Roasted duck	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L3 50-60
	Rooster	1	Gratin	220°C	Y	Metal grid Place baking tray at L1	L4 20-40
	Roasted turkey	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L3 50-60
	Pork ribs (1000-1200g)	1	Static	200°C	Y	Metal grid + Ovenproof dish	L3	80-100
	Sausages	1	Supergrill	4	Y	Metal grid	L5	40-50
Category	Recipe	N° of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after pre heating*(min)
	Beef fillet (1000-1500g)	1	Gentle cooking**	60°C	N	Metal grid + Ovenproof dish	L3 60-80
	Roast beef (500g)	1	Gratin	220°C	Y	Baking tray	L3	20-40
	Meatloaf (1000-1500g)	1	Static	180°C	Y	Baking tray	L3	40-50
	Roasted chicken with potatoes	1	Gratin	200°C	Y	Deeper tray	L4	45-60
Fish and Seafood	Grilled seafood	1	Supergrill	4	N	Metal grid	L5	15-30
	Frozen fish sticks	1	AirFry**	200°C	N	Air fry tray**	L4	20-25
	Baked fish	1	ECO	200°C	N	Metal grid Place baking tray at L1	L3 40-60
Vegetables	Vegetable gratin	1	ECO	200°C	N	Metal grid + Ovenproof dish	L3 80-90
	Frozen french fries (300-500g)	1	AirFry**	220°C	N	Air fry tray**	L4	18-25
	Potato gratin	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L4 15-25
	Roasted potatoes	1	Static	200°C	Y	Baking tray	L4	30-50

Cooking times may vary according to consumer's recipe and ingredients.

*if preheating required

** Depending on the oven model.

NOTE: For cooking cakes, quiches and other recipes that require a mold or a container on 2 levels, place the staggered: the upper tray on the left side and the lower tray on the right side.

5.2. EVERYDAY COOKING TABLE

Food category menu allows to cook a variety of recipes without preheating the oven, thanks to dedicated cooking programs tailored to each category needs.

After selecting the cooking program, the default time will be shown and can be edited by turning the right knob; cooking temperature can be changed by pressing the dedicated icon. Both parameters can be set within a limited range as shown in the table below.

Symbol	Description Preheat		Shelf position	Temperature range (°C)	Time Range (min)	Meat Probe temperature (if available)	Description
	Meat	NO	2-3-4	180-200	20-30	55-85°C	For beef, veal and pork roasts, poultry and cuts of meat.
	Fish	NO	3-4	160-180	15-45	55-65°C	For whole fish and fillets.
	Vegetables	NO	3-4	180-200	30-80	70-90°C	For roasted vegetables and potatoes

NOTE: if, after turning off the oven, there is a need to continue cooking, it's recommended avoiding the use of everyday cooking programs and instead opting for standard functions.

Recipe Serving size		Cooking program	T°C	Cooking accessory	Shelf position	Cooking time (min)
Beef roast	500-800g	Meat	190°C	Metal grid	L3	30-40
Beef fillet	200g	Meat		Metal grid	L3
Meatloaf	1000-1500g	Meat	180°C	Metal grid	L3	40-50
Beef wellington	500g	Meat	200°C	Metal grid	L3	50-80
Port roast	800-1000g	Meat	200°C	Metal grid	L3	40-70
Pork ribs	1000-1200g	Meat	200°C	Metal grid	L3	80-100
Lamb rack	800-1000g	Meat	200°C	Metal grid	L3	60-80
Lamb leg	1500-2000g	Meat	190°C	Metal grid	L3	80-100
Salmon filets	200-600g	Fish	170°C	Baking tray	L3	20-35
Tuna steaks	600g (app. 4 pcs)	Fish	180°C	Metal grid	L3	10-20
Swordfish steaks	700g (app. 4 pcs)	Fish	200°C	Baking tray	L3	15-20
Cod fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Seabream, whole	1	Fish	170°C	Baking tray	L3	35-45
Seabream, fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Seabass fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Salt baked fish	1	Fish	220°C	Baking tray	L3	30-40
Fish skewers	8 pieces	Fish	150°C	Metal grid	L3	20-30
Stuffed squid	4 pieces	Fish	180°C	Baking tray	L3	25-40
Whole bread	1	Bakery	200°C	Metal grid	L3	35-50
Rye bread	1	Bakery	190°C	Metal grid	L3	35-50
Sandwich loaf	1	Bakery	200°C	Metal grid	L3	35-50
Frozen baguettes	1	Bakery	200°C	Metal grid	L3	15-25
Frozen puff pastry snacks	1	Bakery	190°C	Metal grid	L3	20-30
Fennels	1 tray	Vegetables	200°C	Metal grid	L3	30-40
Mixed vegetables	1 tray	Vegetables	190°C	Metal grid	L3	40-45
Cauliflowers	1 tray	Vegetables	190°C	Metal grid	L3	40-50
Pumpkins, cubed	1 tray	Vegetables	200°C	Metal grid	L3	30-40
Stuffed peppers	1 tray	Vegetables	180°C	Metal grid	L3	70-80
Stuffed zucchini	1 tray	Vegetables	190°C	Metal grid	L3	35-45
Carrot sticks	1 tray	Vegetables	180°C	Baking tray	L3	35-40
Broccoli	1 tray	Vegetables	190°C	Baking trat	L3	30-40
Ratatouille	1 tray	Vegetables	190°C	Metal grid	L3	40-45
Vegetable flan	6 ramekins	Vegetables	180°C	Baking tray + molds	L3 25-35

6. CARE & CLEANING

6.1. GENERAL RECOMMENDATIONS

Regular cleaning can extend the lifecycle of your appliance. Wait for the oven to cool before carrying out manual cleaning.

• After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.
- Do not line the oven walls with aluminum foil or single-use protection available from stores.
Aluminum foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides.
- In order to prevent excessive dirt of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little.
- In addition to the accessories supplied with the oven, we advise you only use dishes and baking molds resistant to very high temperatures.

6.2. CLEANING THE OVEN

6.2.1. INSIDE THE OVEN: cleaning functions

Pyrolytic cleaning (*depending on the oven model)

This process relies on the chemical process bearing the same name, which involves the decomposition of complex substances through the application of heat treatment.

Once initiated, it automatically locks the oven door and swiftly elevates the temperature to a searing 410°C.

At the end of the cleaning cycle, all that remains within the cavity is a minimal deposit of dust, easily wiped away with a damp cloth.

How does it work:

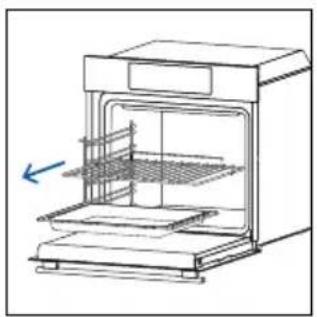

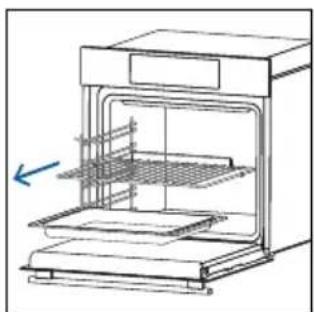

1. Remove any accessories from the oven, such as grids, side racks and side racks screw (*);

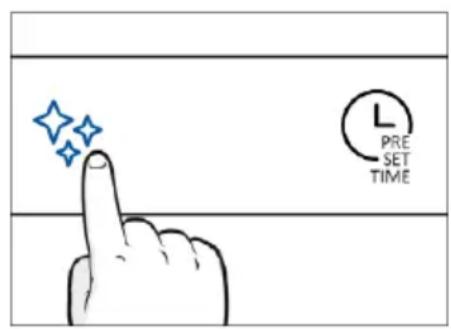

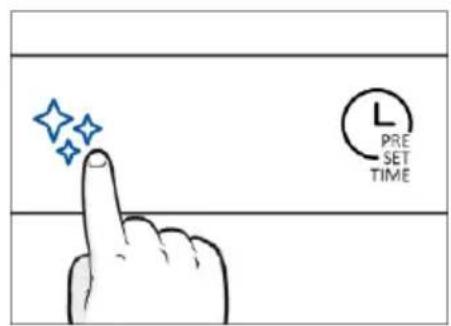

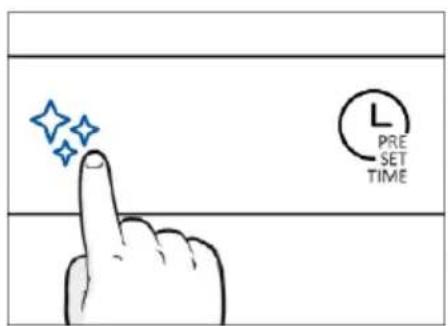

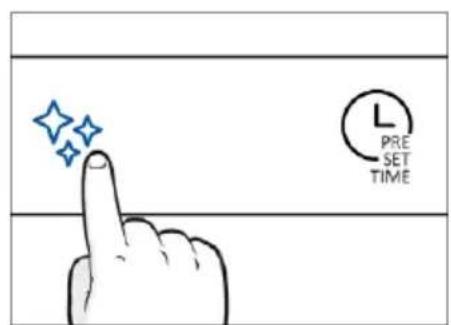

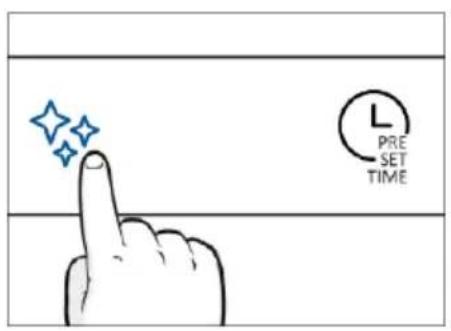

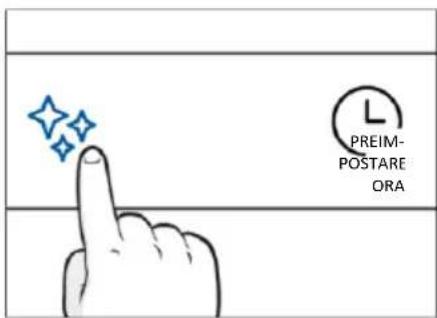

2. Turn function knob on ❖. Turn the dial control to set the Pyrolytic program;
   Allow the function to operate for the preset time. During this process and the following cooling phase, the oven door will remain locked.

3. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

▲ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

(*) only for models with 7 levels.

Line drawing of an oven with a cooling rack inside, showing airflow direction (no text or symbols)

PRE SET TIME

Hand cleaning a window with a blue cloth, no text or symbols visible

H2O cleaning

The H2O cleaning function is designed to effortlessly tackle light dirt and provide a quick and eco-friendly solution for cleaning your oven cavity using the power of steam.

How does it work:

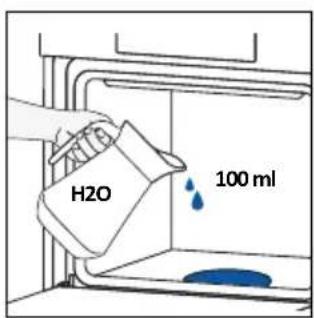

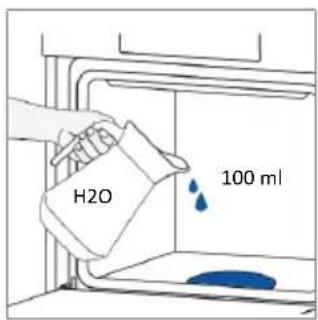

1. Pour 100 ml of water into the bottom embossment of the oven.
2. Turn the knob on ☐/☐. If necessary, turn the dial control to set the Hydro clean program. Allow the function to operate for the preset time.
3. At the end of the cleaning process, allow the oven to cool down.

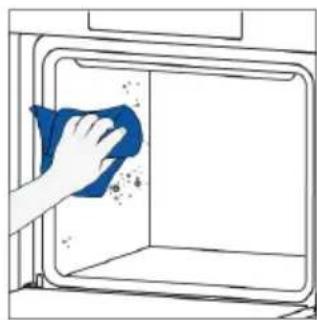

4. When the appliance is cool, clean the inner surfaces of the oven with a cloth.
5. ⚠ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

H2O 100 ml

SET TIME

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a blue cloth inside a microwave oven (no text or symbols visible)

Catalytic cleaning

The Catalytic panels line the oven cavity and grant you the luxury of never having to contend with a dirty oven.

The panels are coated with a specialized enamel that boasts a microporous structure, adept at absorbing absorbs grease from splashes.

Through a catalytic chemical reaction, they efficiently convert the absorbed grease into gaseous elements when exposed to high temperatures.

Recommendation: Consider replacing the catalytic panels after approximately three years of use, especially if you use your oven for two to three cooking cycles per week. This ensures optimal performance and cleanliness.

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

MAX. ℃ 10-20 min

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

6.2.2. OUTSIDE THE OVEN: removal and cleaning the glass door

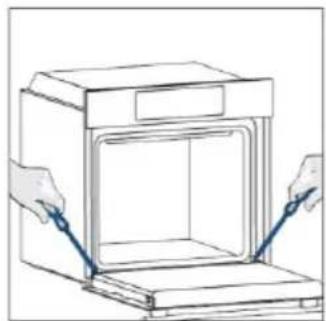

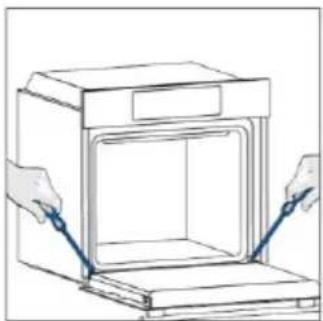

1. Position the door at 90°. Rotate the hinge locking tabs outward from the oven.

Line drawing of a door opening with two hands inserting a blue clip (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

1. Position the door at 45°. Simultaneously press the two buttons on both the sides of the door's lateral shoulders and pull towards yourself to remove the upper glasses' door cover.

45° 1 2

1. Very carefully remove the oven glass, starting with the inner one. During the procedure, firmly hold the glass with both hands and place them on a cushioned flat surface (e.g., on a fabric).

Simple line drawing of a folding chair or stand with arrows indicating direction (no text or symbols)

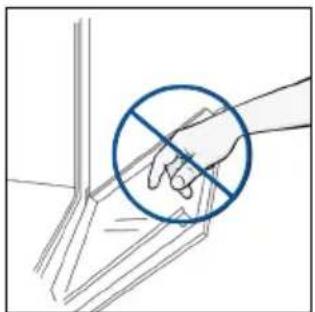

1. ⚠ WARNING: The outer glass is not removable.

Hand holding a hand with a blue prohibition symbol (no text or labels)

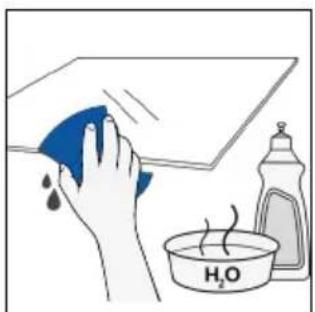

1. Clean the glass using a soft cloth and suitable cleaning products.

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and a bowl labeled H₂O (no text or symbols on the main objects)

1. Insert the glass panels, making sure that the "Low-E" label is correctly readable and positioned on the lower left side of the door, near the left-side hinge. This way, the printed label on the first glass will remain on the inside of the door.

2. Reattach the upper glasses' door cover by pushing it inwards until you hear a click from the two side buttons.

3. Then, bring the door back to 90^ and rotate the hinge locking tabs inward towards the inside of the oven.

LOW-E

Line drawing of a window frame with an open panel and directional arrows indicating movement (no text or symbols)

Line drawing of a door opening with two hands inserting a blue clip (no text or symbols)

Simple line drawing of a mechanical component with a blue tool and arrow indicating direction (no text or symbols)

6.3 CLEANING OF ACCESSORIES

Ensure that you clean the accessories thoroughly after every use and dry them using a towel. For persistent residues, consider soaking the accessories in a mixture of water and soap for approximately 30 minutes before giving them a second wash.

CLEANING OF SIDE RACKS:

- 6 levels model

1. Remove the side racks by pulling them in the direction of the arrows.

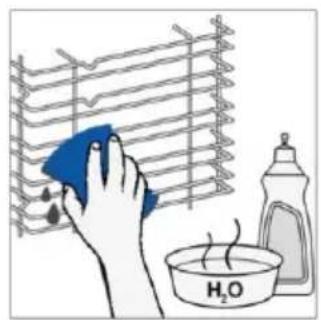

2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order.

Line drawing of an oven with a right vent and internal structure (no text or symbols)

Illustration showing a hand cleaning a rack with a blue cloth, water being washed in a bowl labeled H₂O, and a bottle of liquid nearby.

Line drawing of an oven with a rack inside, showing airflow direction (no text or symbols)

- 7 levels model

1. Remove the side racks by first pulling the front part in the direction of the arrow and detaching the rear part from the screws.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order: positioning the rear part between the screws and push the front part in the direction of the arrow.

6.4 MAINTENANCE

COMPONENTS REPLACEMENT

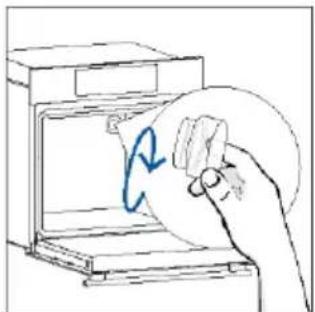

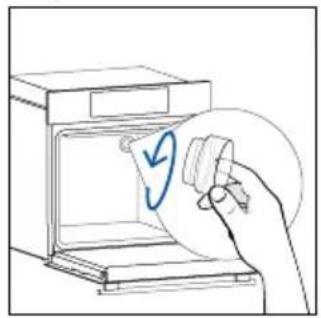

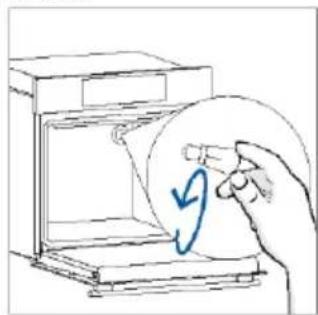

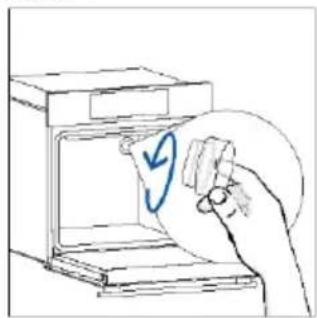

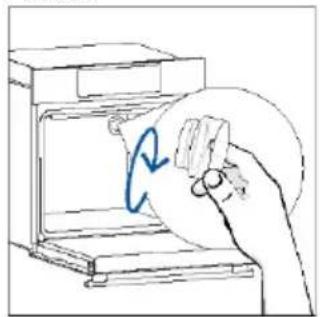

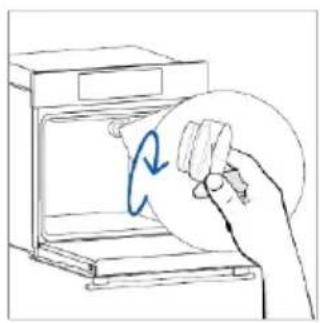

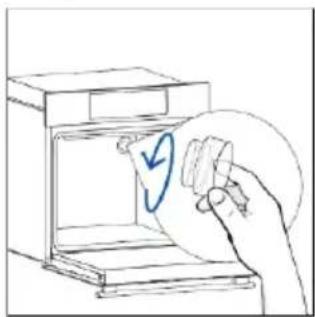

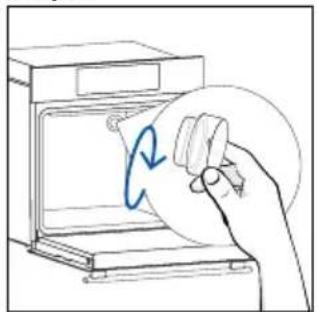

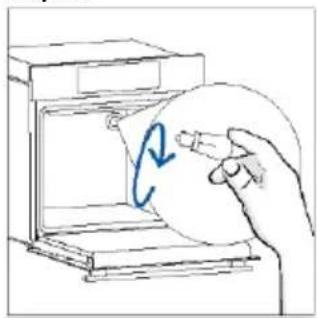

Changing the bulb on top:

1. Disconnect the oven from mains supply.

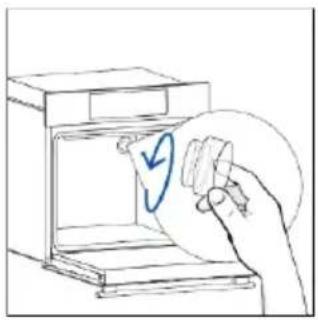

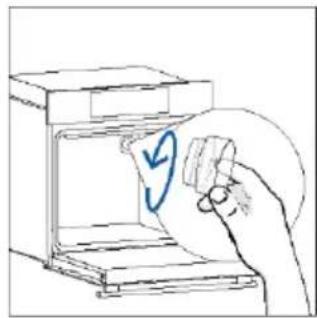

2. Remove the lamp's glass cover.

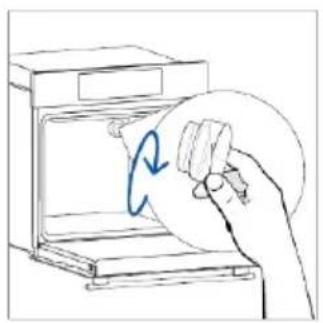

3. Disassemble the bulb.
4. Replace the bulb with a new one of the same type.

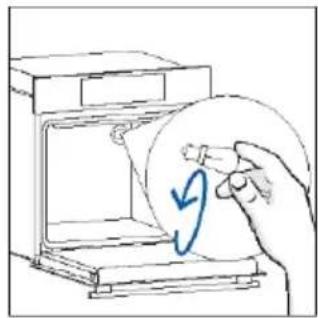

5. Relocate the lamp's glass cover.
6. Reconnect the oven from mains supply.

Step 1

Safety warning diagram showing a plug with fuse and warning symbol, alongside an OFF button labeled 'OFF'

Step 2

Hand holding a circular object with a blue checkmark inside an oven (no text or symbols visible)

Step 3

Line drawing of a hand holding a circular object with a blue arrow, inside an open appliance (no text or symbols)

Step 4

Hand holding a circular object inside an oven with a blue circular arrow indicating rotation (no text or symbols)

Step 5

Hand holding a circular object inside an oven, with a blue arrow indicating rotation (no text or symbols)

Step 6

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

This product contains one or more light sources of energy efficiency class G (Lamp)

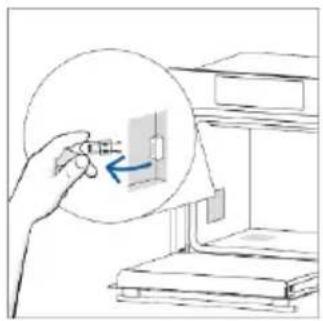

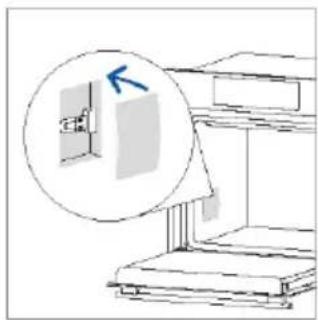

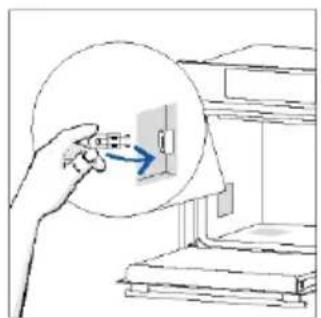

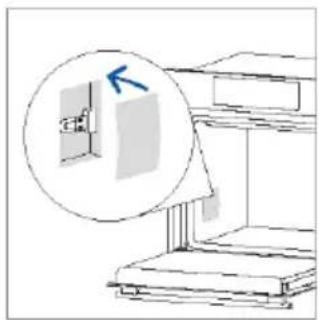

Changing the lateral bulb:

1. Disconnect the oven from mains supply.

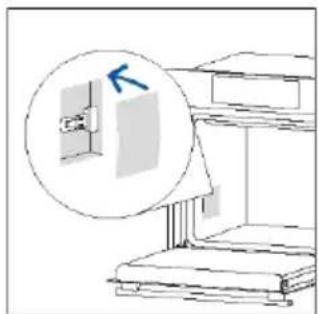

2. Use a flat-head screwdriver by positioning it to the side of the protective glass and gently apply pressure to remove it.
3. Carefully grasp the bulb from its base.

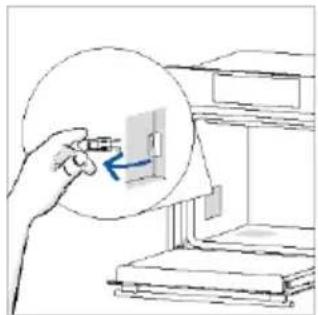

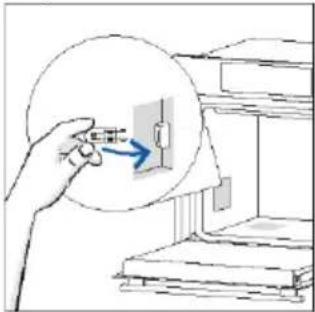

4. Insert the new one.

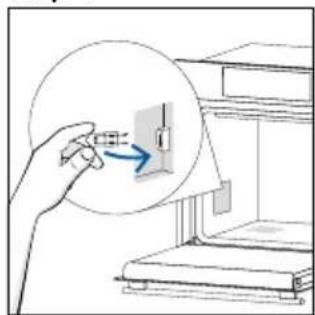

5. Reinstall the protective glass by pressing it gently until it's locked into position.
6. Reconnect the oven from mains supply.

Step 1

Safety warning diagram showing a plug connected to an ON/OFF switch with a warning symbol and directional arrows

Step 2

Illustration of a hand using a tool to clean or store items, with no visible text or symbols

Step 3

Illustration of a hand inserting a small component into a device (no text or symbols visible)

Step 4

Illustration of a hand inserting a component into a device (no text or symbols visible)

Step 5

Diagram of a cabinet with an inset showing a close-up view of a cabinet (no text or symbols present)

Step 6

Electrical warning diagram showing a plug connected to an ON panel with a warning symbol and directional arrows

This product contains one or more light sources of energy efficiency class G (Lamp)

7. TROUBLE SHOOTING

If, during oven use, an error occurs, the display will show the code "ER" followed by two digits, which will identify the error.

Proceed by turn off the oven and un-plug it, wait for a few minutes, and then reconnect it.

If the error disappears, you can resume using the oven. If it doesn't, call customer service and communicate the code (ERXX) you see on the display.

Error

ERXX

Smoke

Diagram illustrating a chemical process with a downward arrow and a hand cleaning a kitchen appliance, labeled H20.

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. APPLIANCE DISPOSAL

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be re-used). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an envi -

ronmental problem; it is essential to follow a few basic rules:

– the WEEE should not be treated as domestic waste;

– the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

8.2. SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it.

Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the “delayed cooking” programme makes energy saving simpler, moving the cooking process to start at the reduced tariff time slot.

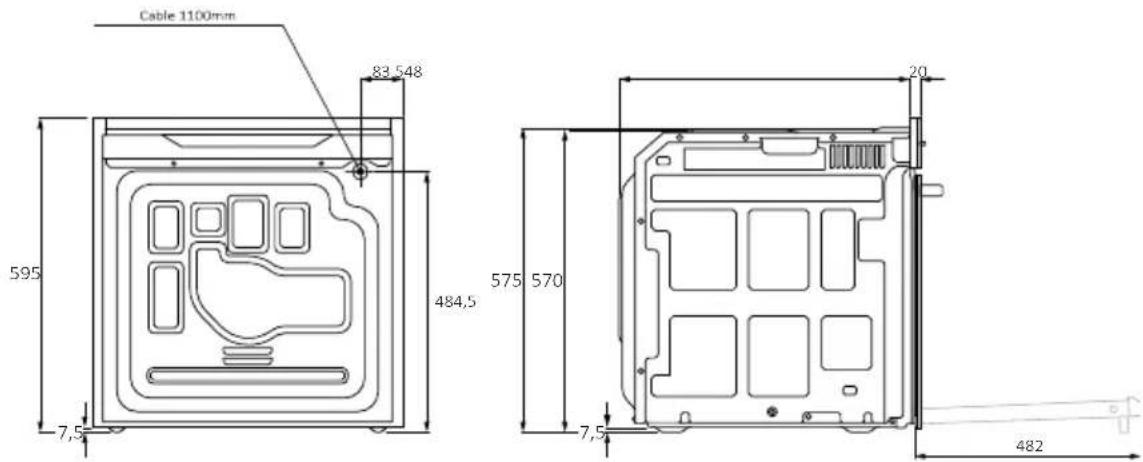

550 568 548 20 9 478,5 575 595 595 100 83 484,5 Cable 1100 m

Cable 1100mm 83,548 595 7,5 484,5 575 570 20 7,5 482

Vista posteriore Vista laterale

Technical diagram of a refrigerator interior with labeled components and an inset showing a bumper mechanism.

WILLKOMMEN

Diagram of an oven with numbered parts for identification

Blank white image with a thin border (no text, symbols, or markings)

Line drawing of a two-tiered storage rack or shelf system (no text or symbols)

STOP STOP

3D wireframe diagram of a rectangular tray or basin with internal partitioning, placed on a shelf (no text or symbols)

3D wireframe diagram of a rectangular tray with internal compartments, placed inside a storage unit (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round object on a metal rack (no text or symbols)

Simple line drawing of a door with a circular arrow and a hanging object, no text or symbols present.

Line drawing of a rectangular tray with a grid pattern inside, placed inside an oven (no text or symbols)

Diagram of a rectangular appliance with internal grating and ventilation slots, placed inside an oven (no text or symbols)

Line drawing of a rooster on a tray with steam rising (no text or symbols)

Illustration of a medical procedure involving a mouse and a catheter, with no visible text or symbols

3D technical illustration of a rectangular tray with a mesh pattern inside, mounted on a shelf (no text or symbols)

COMMENT INTERAGIR AVEC L'APPLICATION

Available on the App Store GET IT ON Google Play

INSCRIPTION D'UN NOUVEL UTILISATEUR

Welcome! Sign is to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK An information resulting to you will be answered and we will not get anything from you OF SIGN UP WITH EMAIL Already registered? LOGIN

APPAIRAGE RAPIDE

Étape 1

Hello USERNAME YOUR APPLIANCES ADD 10% Virtual Wine Bank 2 bottles there is a second new Add appliance YOUR WIDGETS Learn your door at my! What functions do smart appliances have? How to live social home and replace

Étape 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Étape 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Étape 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK I DID IT

Étape 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. HiOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Étape 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Corrects... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Étape 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 2100B486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

COMMENT MODIFIER LES PARAMÈTRES DU WI-FI

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

CONTRÔLE À DISTANCE

Diagram showing a circular device with icons around it, including Wi-Fi, radio, and camera symbols, with an arrow indicating rotation or signal direction.

ON APPUYEZ SUR LE CONTRÔLE À DISTANCE

hOn

Cooking SHROOMLET ADD 5 MIN STOP Current program PROGRAMS Conventional 20°C 31-30m 20°C 31-30m 20°C 31-30m 20°C 31-30m 20°C 31-30m 20°C 31-30m 20°C 31-30m 20°C 31-30m 20°C 31-30m 20°C 31-30m

3. AVANT DE COMMENCER

3.1. INFORMATIONS POUR COMMENCER

Simple line drawing of a cleaning or disinfection setup with a hand washing a blue object and a water bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a window with a door and swirling cloud above (no text or symbols)

4. FONCTIONNEMENT DU PRODUIT

4.1. FONCTIONNEMENT DU PRODUIT

MISE EN MARCHE/ARRÊT DU FOUR

New Jolly Function Torta al 3 cioccolati Step 1 Preheat No > Cooking program Cucumbersal > Temperature 180 °C > Duration 24 hours > Note A menu and your recipe to allow the cooking process. It's study and training method using healthy cooking, and all businesses to ensure and canceling and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat V/m, 100°C Cooking program & temperature Conventional, 100°C Duration 5x 55m Note It's quick and easy to enable on the stoweep. It's nice and creamy (without using heavy cream), and it's always very noisy and comfortable and delicious. START JOLLY FUNCTION

OVEN U-CREATE A##RICHES JOLYFUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be lost. CANCEL YES CONFIRM

Illustration of a medical procedure involving a tool and tubing on a patient's abdomen (no text or symbols)

Camera control panel interface with clock, lock, folder, and weather icons

Simple diagram with a gray circle, a black dot above it, and a curved arrow with blue arrows pointing inward (no text or symbols)

Simple line drawing of a medical procedure with a tool and tubing, no text or symbols present

Line drawing of an oven with internal structure and airflow direction arrow (no text or symbols)

TEMPS PRÉDÉFINI

Hand cleaning a window with a blue cloth, no text or symbols visible

H2O-Clean

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

Technical line drawing of an oven with internal grating and a blue arrow indicating motion (no text or symbols)

MAX °C 10-20 min

Warning symbol with warning triangle, flame icons, and triangular warning triangle

Diagram showing a hand cleaning a kitchen with a blue cloth, emitting H2O from a bottle nearby.

6.2.2. EXTERIEUR DU FOUR : RETRAIT ET NETTOYAGE DE LA PORTE EN VERRE

Illustration of hands operating a box with blue tool pins, no text or symbols present

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

Simple line drawing of a tilted rectangular object with two arrows indicating direction (no text or symbols)

Hand holding a blue circle with a diagonal line through a window frame (no text or symbols)

Illustration of a hand cleaning a blue cloth over a surface with a water bottle and beaker labeled 'H2O' (no text or symbols on main objects)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of hands installing or adjusting a small cabinet or enclosure (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

6.3. NETTOYAGE DES ACCESSOIRES

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

H₂O

Line drawing of an oven with a rack inside, showing airflow direction (no text or symbols)

Diagram showing electrical grounding with a plug, warning symbol, and circuit breaker labeled 'ETEI'

Étape 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Étape 3

Hand holding a circular object with a blue checkmark inside, next to an open device (no text or symbols visible)

Étape 4

Hand holding a circular object with a blue arrow inside, inside an open appliance (no text or symbols)

Étape 5

Hand holding a circular object with a blue arrow inside, next to an open box (no text or symbols visible)

Étape 6

Electrical diagram showing a plug, warning symbol, and circuit breaker with Chinese labels

Diagram showing electrical connections with a plug, warning symbol, and ETEIN device

Étape 2

Hand holding a pen over a circular object, with an arrow pointing to it (no text or symbols present)

Étape 3

Illustration of a hand inserting a small object into a device, with no visible text or symbols

Étape 4

Hand holding a magnifying glass over a wall-mounted electrical component (no text or symbols visible)

Étape 5

Diagram of a printer with a magnified view showing a printer's internal structure (no text or symbols present)

Étape 6

Electrical diagram showing a plug, safety warning symbol, and circuit breaker with directional arrows

Illustration showing a kitchen appliance with a blue swirl and a hand cleaning the interior (no text or symbols)

8.1. ÉLIMINATION DE L'APPAREIL

Isometric line drawing of a rectangular box with a side panel and handle (no text or symbols)

Line drawing of a 3D box with a side panel and handle (no text or symbols)

Technical diagram of a multi-level elevator system with labeled components and an inset showing interior layout and component details.

BENVENUTI

Technical diagram of an oven with numbered components for identification

Empty white rectangle with a thin gray border (no text or symbols)

Line drawing of a two-tiered storage rack system with no text or symbols

STOP STOP

3D wireframe diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

3D wireframe diagram of a rectangular tray with internal compartments (no text or symbols)

Line drawing of a bathroom sink with a bowl and wall-mounted shelf (no text or symbols)

Simple line drawing of a kitchen appliance with a circular button and fan, no text or symbols present

Line drawing of a rectangular tray with a blue slatted interior and a grid pattern on the top (no text or symbols)

Diagram of a rectangular appliance with a mesh grille and lid, placed inside an oven (no text or symbols)

Line drawing of a rooster on a tray with chopsticks and a knife (no text or symbols)

Illustration of a medical procedure involving a mouse and a catheter, with no visible text or symbols

3D rendering of a rectangular tray with a textured inner surface, placed inside a rack (no text or symbols visible)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log is in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not just anything from you. © SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank 2 bottles there is a second row. Add appliance YOUR WIDGETS Lemon's own door sit out You're NEWS What functions do smart appliances have? How to live sustain home and reduce

Passo 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Turn OFF and then ON your appliance. In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

Passo 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. HiOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal

Passo 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connects New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Passo 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 21008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

CONTROLLO DA REMOTO

Diagram showing a circular device with icons for signal, Wi-Fi, app, and other functions around it, indicating a control or interface.

ON PREMERE IL PULSANTE DEL CONTROLLO DA REMOTO

hOn

Cooking ON SIMUZFT ADD 1 MIN STOP Current program PROGRESS Conventional 300 gm 50.30 gm OFFICE Analog(204) EDIT DETAILS →

3. PRIMA DI COMINCIARE

PREMERE PER CONFERMAR

0 PREMERE PER CONFERMARE

PREMERE PER CONFERMARE

Simple line drawing of a cleaning or disinfection setup with a hand cleaning a blue cloth inside a container, and a bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke and a door open (no text or symbols)

4. USO DEL PRODOTTO

New Jolly Function Torta ai 3 cioccolati Step 1 Prcloac Box > Cooking program Commodical > Temperature 180°C > Duration To Be Note A quick and easy to make a food recipe. It's easy and easy enough using frozen Croatia, and It's always easy and comfortable and deficient. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat V/m, 100°C Cooking program & temperature Conventional, 100°C Duration 5x 55m Note It's quick and easy to enable on the stoweep. It's nice and creamy (without using heavy cream), and it's always very noisy and comfortable and delicious. START JOLLY FUNCTION

OVEN U-CREATE A##RICHES JOLYFUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be lost. CANCEL YES CONFIRM

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Weather icon panel showing clock, lock, weather symbol, and temperature reading with sun icons

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating rotation or direction (no text or symbols)

Simple line drawing of a medical or laboratory procedure setup with a bulb, pen, and tubing (no text or symbols)

Line drawing of an oven with internal grating and cooling fins (no text or symbols)

PREIM- POSTARE ORA

Illustration of a hand cleaning a window with a cloth (no text or symbols)

H2O Clean

Illustration of a hand cleaning a window with a cloth (no text or symbols)

Pulizia catalitica

Line drawing of an oven with a blue arrow indicating airflow or movement (no text or symbols)

MAX°C 10-20 min

Warning symbol with warning triangle, lightning bolt, and flame icons indicating hazard or hazard

Diagram showing a hand cleaning a kitchen with a blue cloth, water being washed, and a B2O solution in the bowl.

6.2.2. ESTERNO DEL FORNO: SMONTAGGIO E PULIZIA DELLA PORTA IN VETRO

Line drawing of hands operating a box with a lid, no text or symbols present

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a blue circle with a diagonal line, no text or symbols present

Illustration of a hand cleaning a tiled surface with a blue cloth, accompanied by a small bowl labeled 'H2O' and a bottle (no text or symbols on the main objects)

Simple line drawing of a mechanical or architectural component with arrows indicating direction (no text or symbols)

Line drawing of hands operating a small enclosure with blue tape, no text or symbols present

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

6.3. PULIZIA DEGLI ACCESSORI

Illustration showing three steps of a kitchen oven cleaning process: opening, washing, and drying with water being added.

— Modello a 7 livelli

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button

Passo 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Passo 3

Hand holding a circular object with a blue arrow inside, next to an open appliance (no text or symbols visible)

Passo 4

Hand holding a circular object with a blue arrow inside, inside an open storage unit (no text or symbols visible)

Passo 5

Hand holding a circular object with a blue arrow inside, next to an open appliance (no text or symbols visible)

Passo 6

Safety warning diagram showing electrical plug, warning symbol, and ON/OFF switch symbols on a diagonal line

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button

Passo 2

Illustration of a hand holding a pen near a paper sheet, with an arrow indicating direction (no text or symbols present)

Passo 3

Illustration of a hand holding a circular object with an arrow pointing to a wall-mounted device, next to stacked books (no text or symbols)

Passo 4

Illustration of a hand inserting a component into a device, with no visible text or symbols

Passo 5

Simple line drawing of a cabinet with a magnified inset showing a blue letter 'K' (no text or symbols present)

Passo 6

Electrical circuit diagram showing a plug, warning symbol, and ON panel with directional arrows

Diagram showing a kitchen cleaning process with a warning sign and a hand cleaning the interior of a washing machine.

8.1. SMALTIMENTO DELL'ELETTRODOMESTICO

Isometric line drawing of a rectangular box with a side panel and handle (no text or symbols)

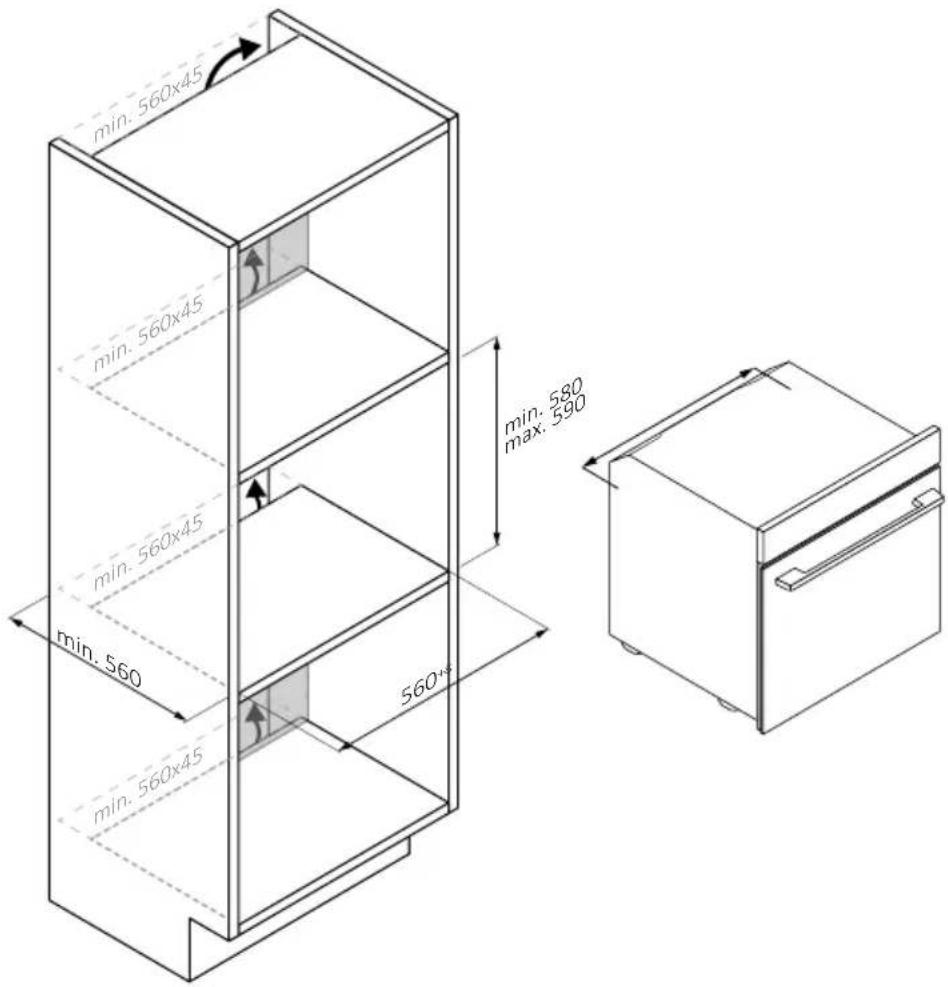

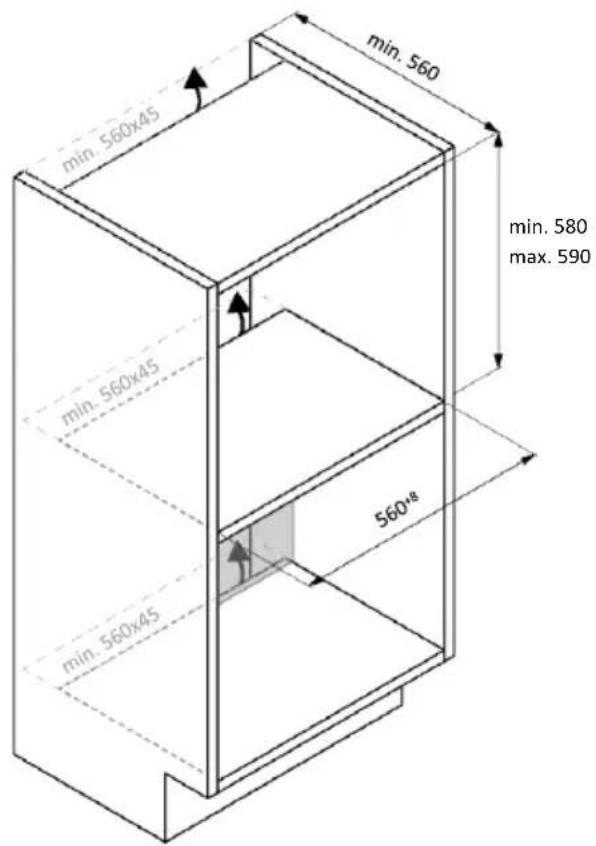

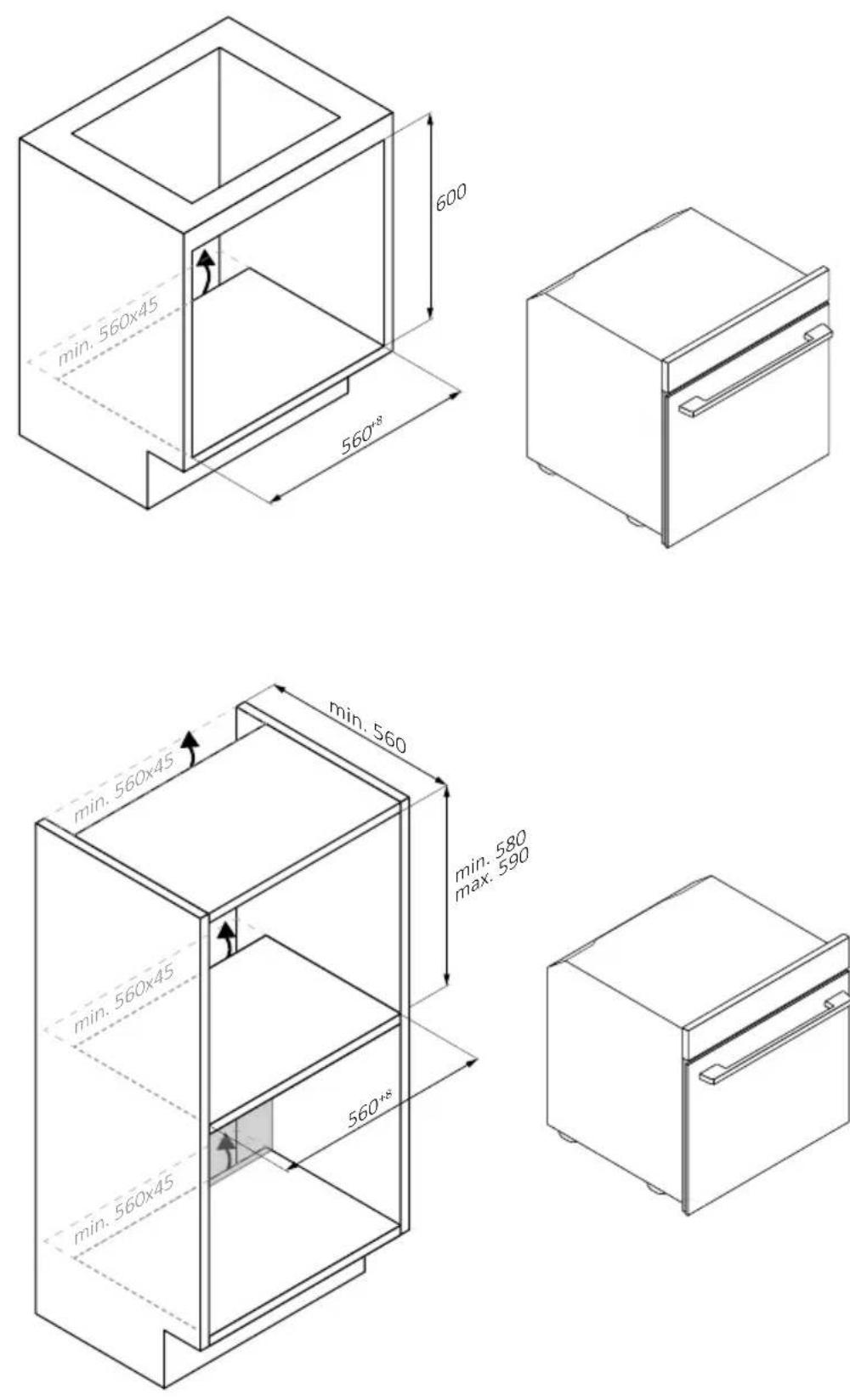

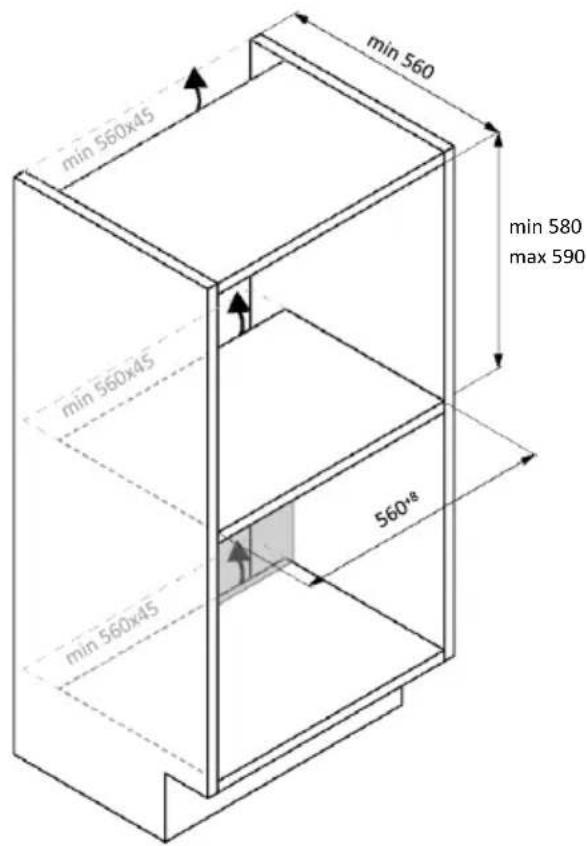

min 560 min 560x45 min 560x45 min 560x45 min 580 max 590 560x8

Line drawing of a 3D rectangular box with a side tab and handle (no text or symbols)

min 560x45 min 560x45 min 560x45 min 560 min 560x45 min 580 max 590 560×8

Technical diagram of an elevator system with labeled components including the Ammortizzatore and a magnified inset showing internal structure.

mm

WILLKOMMEN

Technical diagram of an oven with numbered components for identification

2.2. ZUBEHÖR

Line drawing of a two-tiered storage unit with horizontal racks and a central rack (no text or symbols)

3D diagram of a rectangular tray with internal compartments, no text or symbols present

Empty white rectangle with a thin border (no text or symbols)

STOPP STOPP

3D rendering of a rectangular tray with internal compartments, placed on a shelf (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Technical line drawing of a rectangular tray with internal grid pattern (no text or symbols)

Line drawing of a rooster on a tray with steam rising (no text or symbols)

Simple line drawing of a door with a circular component and a ladder, no text or symbols present

Line drawing of a rectangular appliance with a grid-patterned lid, placed on a tray (no text or symbols)

Illustration of a medical procedure involving a mouse and a catheter, with no visible text or symbols

3D rendering of a rectangular tray with a mesh pattern inside, placed on an inclined shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK or SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD 30% Virtual Wine Bank you will learn 2 bestifies there is a record row Add appliance YOUR WIDGETS 1 new packet darker off out NEW Your NEWS What functions do smart appliances have? How to live sustain: home and reduce w

Schritt 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. € CONTINUE

Schritt 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Schritt 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK/IDIT

Schritt 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On ago is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signel.

Schritt 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn-off your Bluetooth Oven Connective... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Schritt 7

Appliance connection Your appliance has been correctly identified! Br and Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

0:0

Simple diagram with a large gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

FERNSTEUERUNG

Diagram showing a circular device with icons for media, navigation, and UI elements around it

Cooking DH 10945EFT ADD35 MIN STOP Current program FROCKLAHS Conventional 200°C DS-200m 10 Prouled (ON) EDT (Don) Product (OP) EDIT DETAILS →

3. VOR DEM START

3.1. INFORMATIONEN ZUM START

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open door (no text or symbols)

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180°C > Duration 1h after > Note > It's popular and easy to make sure knowledge. It's wise and easy to prepare about using healthy aging, and It's always so easy and comforting and double less. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes: 100 °C Cooking program & temperature Conventional: 100 °C Duration In 55m Note It's quick and easy to make no the skewing. It's nice and creamy (without using heavy Clemson), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

OVEN BEEUPS U-CREATE MY RECONE JOLLY FUNCTION CLEAR 1.Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be test... CANCEL YES. CONFIRM

Simple line drawing of a laboratory setup with a test tube and test tube tip, no text or symbols present.

Camera home screen displaying app icons and status bar with 'c' and 'm' labels

Simple diagram with a large gray circle, a dot, and a plus sign, with curved arrows indicating rotation or direction (no text or symbols)

Line drawing of an oven with cooling fins and a heat sink (no text or symbols)

PRE SET TIME

Hand cleaning a window with a blue cloth (no text or symbols visible)

H2O Clean

Warning symbol with warning triangle, flame icon, and triangular warning symbol

Hand cleaning a blue cloth inside a kitchen appliance (no text or symbols visible)

Line drawing of an oven with a blue arrow indicating airflow or movement (no text or symbols)

MAX °C 10-20 min

Warning symbol with warning triangle, lightning bolt, and three icons: water drop, blue triangle, and lightning bolt

Simple line drawing of a kitchen sink with a hand cleaning it, and a small bottle pouring liquid into a bowl (no text or symbols)

Line drawing of a box with two hands inserting a blue tool into the opening (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Hand holding a tool with a blue prohibition symbol (no text or labels)

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle, no text or symbols present.

Simple line drawing of a ladder leaning against a wall, with arrows indicating direction (no text or symbols)

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Simple line drawing of a hand holding a tool, with no text or symbols present

Illustration showing three steps of a kitchen appliance cleaning process: opening, drying with a blue cloth, and exiting with a water bottle labeled H₂O.

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' button

Schritt 2

Hand holding a paper with a blue checkmark inside a device (no text or symbols visible)

Schritt 3

Hand holding a circular object with a blue arrow inside, next to an open device (no text or symbols visible)

Schritt 4

Hand holding a circular object with a blue arrow inside, inside an open appliance (no text or symbols visible)

Schritt 5

Hand holding a circular object with a blue arrow inside, next to an open box (no text or symbols visible)

Schritt 6

Electrical warning symbol and diagram showing a plug, ON panel, warning symbol, and directional arrows indicating electrical hazard.

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button, indicating electrical hazard.

Schritt 2

Illustration of a hand holding a pen over a document with an arrow indicating direction (no text or symbols present)

Schritt 3

Illustration of a hand holding a small object near a shelf, with no visible text or symbols

Schritt 4

Illustration of a hand inserting a plug into a wall-mounted electrical outlet (no text or symbols)

Schritt 5

Simple line drawing of a printer with a magnified inset showing a printer's screen (no text or symbols)

Schritt 6

Electrical warning symbol and circuit diagram showing a plug, warning sign, and ON/OFF indicators

Illustration showing a chemical reaction between a kitchen appliance and a washing machine, with warning symbols and a hand cleaning the interior.

Technical diagram of a door frame assembly with labeled components including a Stoßfänger and a magnified inset showing interior layout.

ΚΑΛΩΣΗΡΘΑΤΕ

Technical diagram of an oven with numbered components for identification

2.2. E3APTHMATA

Line drawing of a two-tiered storage unit with horizontal metal racks (no text or symbols)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Blank white rectangle with a thin border (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed on a shelf (no text or symbols)

Line drawing of a bathroom sink with a bowl and wall-mounted sink (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the front face (no text or symbols)

Line drawing of a round dough being cut with a rolling pin, placed on a rectangular plate (no text or symbols)

Simple line drawing of a kitchen appliance with a circular button and fan (no text or symbols)

Line drawing of a rectangular appliance with a mesh grille and lid, placed on an oven (no text or symbols)

Illustration of a medical procedure involving a mouse and a syringe, with no visible text or symbols

3D rendering of a rectangular tray with a textured inner surface, placed inside a rack (no text or symbols visible)

Available on the App Store GET IT ON Google Play

ΕΓΓΡΑΦΗ ΝΕΟΥ ΧΡΗΣΤΗ

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK for information relating to your own will be shared and we will not post anything from you or SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD 30% Virtual Wine Bank you will run 2 bestles there is a second row Add appliance YOUR WIDGETS I love your driver get out What functions do smart appliances have? How to live sustain: home and reduce w YOUR NEWS

Βήμα 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Βήμα 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Βήμα 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK.I DID IT

Βήμα 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On ago is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signel.

Βήμα 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn-off your Bluetooth Oven New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Βήμα 7

Your appliance has been correctly identified! Brand/However Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

Diagram showing a circular device with icons for wireless, audio, and app icons around it, indicating a control or navigation system.

ON

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

THΛΕΧΕΙΡΙΣΜΟΣ

Diagram showing a circular device with icons for signal, Wi-Fi, app, and other functions around it, indicating a control or interface.

ON NATHETE TON THAEXEIPISMO

hOn

Cooking SH 10000FT ADD 1 MIN STOP Current program PROGULS Conventional 200°C 15 Prouded (3M) Sh 30m EHTiny Poules (3M) Edit DETAILS →

Simple line drawing of a washing machine with a hand cleaning it, and a small bowl with liquid nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Commercial > Temperature 185°C > Duration 10-40m > Note > It's quick and easy to render on (hard/average), it's nice and very nice (without using healthy cream), and it's always so easy and comforting and double box. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes: 100°C Cooking program & temperature Conventional: 100°C Duration In 55m Note It's quick and easy to make no the skewing. It's nice and creamy (without using heavy Clemson), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

OVEN BEEUPS U-CREATE MY RECONE JOLLY FUNCTION CLEAR 1.Jolly Function DELETS Are you sure you want to delete the Jolly Function section? By doing this action all data will be true... CANCEL YES CONFIRM

Illustration of a laboratory setup with a mouse, a test tube, and a probe inserted into a tray (no text or symbols)

Camera LCD screen interface with control buttons, navigation icons, and a temperature display showing -℃

Simple diagram with a gray circle, plus signs, and curved arrows indicating rotation or direction (no text or symbols)

Medical catheter device with attached tubing and bulbous body (no text or symbols)

Line drawing of an oven with internal grating and cooling unit (no text or symbols)

PRE SET TIME

Hand cleaning a window with a blue cloth (no text or symbols visible)

H2O Clean

Warning symbol with exclamation mark, lightning bolt, and triangular warning symbol

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol diagram with warning triangle, flame icon, and triangular warning symbol

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Simple line drawing of a tilted rectangular object with two arrows indicating direction (no text or symbols)

Hand holding a diagonal line through a window frame, enclosed in a blue circle with a diagonal line crossing through it (no text or symbols)

Illustration of a hand cleaning a blue cloth over a surface with a water bottle and beaker labeled H₂O (no text or symbols on main objects)

Simple line drawing of a ladder leaning against a wall, with arrows indicating direction (no text or symbols)

Line drawing of hands installing or adjusting a door frame inside an oven (no text or symbols)

Simple line drawing of a hand holding a tool, with no text or symbols present

6.3. ΚΑΘΑΡΙΣΜΟΣ ΕΞΑΡΤΗΜΑΤΩΝ

Safety warning diagram showing a plug connected to an OFF button with a warning symbol

Βήμα 2

Hand holding a paper with a blue checkmark inside a device (no text or symbols visible)

Βήμα 3

Hand holding a circular object with a blue arrow inside, next to an open device (no text or symbols visible)

Βήμα 4

Hand holding a circular object with a blue arrow inside, inside an open appliance (no text or symbols visible)

Βήμα 5

Hand holding a circular object with a blue arrow inside, next to an open box (no text or symbols visible)

Βήμα 6

Electrical warning symbol and circuit diagram showing a plug, ON panel, warning symbol, and directional arrows

Safety warning diagram showing a plug and fuse with hazard symbol and OFF switch

Βήμα 2

Illustration of a hand using a tool to interact with a document or paper (no text or symbols visible)

Βήμα 3

Illustration of a hand holding a small object inside a circular frame, with no visible text or symbols.

Βήμα 4

Illustration of a hand inserting a plug into a wall-mounted electrical outlet, with no text or symbols present.

Βήμα 5

Simple line drawing of a cabinet with an inset magnified view showing a blue arrow pointing to the cabinet (no text or symbols)

Βήμα 6

Electrical warning symbol and diagram showing a plug, ON panel, and warning sign with lightning symbol

Illustration showing a kitchen appliance with a blue smokestack emitting vapor and a hand cleaning the interior (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset showing interior layout and component details.

BIENVENIDO/A

Technical diagram of an oven with numbered components for identification

Empty white rectangle with a thin gray border (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal shelves and metal frame (no text or symbols)

3D wireframe diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Technical line drawing of a kitchen sink with a bowl, a sphere, and a mesh rack (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the front face (no text or symbols)

Line drawing of a roasted chicken on a cutting board (no text or symbols)

Simple line drawing of a kitchen appliance with a circular button and fan, no text or symbols present

Line drawing of a rectangular appliance with a grid-patterned lid and base, placed inside an oven (no text or symbols)

Illustration of a mouse being held by a medical or laboratory instrument, with no visible text or symbols

3D rendering of a rectangular tray with a textured inner surface, placed inside a rack (no text or symbols visible)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK or SIGN UP WITH EMAIL Already registered? LOGIN

REGISTRO RÁPIDO PARA EMPAREJAMIENTO

Paso 1

Hello USERNAME YOUR APPLIANCES ADD + Add appliance YOUR WIDGETS I have an app do the out Your NEWS What functions do smart appliances have? How to live sustain: home and reduce w

Paso 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Paso 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Paso 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK!IDIT

Paso 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On ago is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signel.

Paso 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn-off your Bluetooth Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Paso 7

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

00

Simple diagram with a large gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

CONTROL REMOTO

Diagram showing a circular device with icons for signal, Wi-Fi, and camera control, indicating a digital interface or control system.

ON PULSE EL CONTROL REMOTO

hOn

Cooking #1 SIMILEFT ADD 5 MIN STOP Current prep: on PROGRAMS Conventional 200°C 100000000000000000000000000000000000000000000000000000000000000000000000000 61.35m Efficiency Protein(OPE) EXIT DETAILS →

3. ANTES DE EMPEZAR

Simple line drawing of a washing machine with a hand cleaning it and a bowl of water nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a window with a swirling cloud above an open door (no text or symbols)

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 50°C > Duration 16-45m > Note It's good, and being used to prepare cooking. It's clean and cleany (without using heavy cooking), and It's always so easy and comfortable and deficient. ADD STFP USE AS JOLLY FUNCTION SAVE.RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 100 °C Cooking program & temperature Conventional, 100 °C Duration 1h:55m Note It's quick and easy to make on the evening. It's more and creamy (without using heavy cream), and it's always to cozy and comforting and deficitous. START JOLLY FUNCTION

U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1.Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be null. CANCEL YES, CONFIRM

Simple line drawing of a mouse being heated by a tool, no text or symbols present

Weather icon panel showing clock, weather symbols, and temperature reading '℃'

Simple diagram with a gray circle, plus signs, and curved arrows indicating rotation or direction (no text or symbols)

Medical catheter device with attached tubing and bulbous body (no text or symbols)

Line drawing of a laboratory oven with internal grating and cooling unit (no text or symbols)

PRE SET TIME

Hand cleaning a window with a blue cloth (no text or symbols visible)

H2O Clean

Warning symbol diagram with warning triangle, flame icon, and triangular warning symbol

Hand cleaning a window with a blue cloth (no text or symbols visible)

Limpieza catalítica

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

MAX °C 10-20 min

Warning symbol diagram showing warning triangle, flame icon, and blue triangular warning symbol with warning symbols

Simple line drawing of a kitchen sink with a hand cleaning it, and a bottle pouring liquid into a bowl (no text or symbols)

Line drawing of hands installing or adjusting a cabinet interior with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular frame with directional arrows indicating movement or force (no text or symbols)

5.

Hand holding a diagonal line with a blue circle highlighting the construction detail (no text or symbols)

Illustration of a hand cleaning a tiled surface with a blue cloth and a small bowl labeled H₂O (no text or symbols on the main subject)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of hands installing or adjusting a door panel inside an oven (no text or symbols)

Simple line drawing of a tool interacting with a wall-mounted device (no text or symbols)

6.3. LIMPIEZA DE ACCESORIOS

Illustration showing three steps of a kitchen oven with a hand cleaning the interior, water being washed, and cooling by a bottle labeled H2O.

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' button

Paso 2

Hand holding a paper with a blue checkmark inside a device (no text or symbols visible)

Paso 3

Hand holding a circular object with a blue arrow inside, next to an open device (no text or symbols visible)

Paso 4

Hand holding a circular object with a blue arrow inside, inside an open appliance (no text or symbols visible)

Paso 5

Hand holding a circular object with a blue arrow inside, next to an open box (no text or symbols visible)

Paso 6

Electrical warning symbol and circuit diagram showing a plug, ON panel, warning symbol, and directional arrows

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button

Paso 2

Illustration of a hand holding a pen over a document with an arrow indicating direction (no text or symbols present)

Paso 3

Illustration of a hand holding a small object near a shelf, with no visible text or symbols

Paso 4

Illustration of a hand inserting a plug into a wall-mounted electrical outlet (no text or symbols)

Paso 5

Simple line drawing of a printer with a magnified inset showing a printer's screen (no text or symbols)

Paso 6

Electrical warning symbol and circuit diagram showing a plug, warning sign, and ON/OFF indicators

Illustration showing a kitchen cleaning process: before washing a stove with a warning symbol, after cleaning the oven with a hand cleaning it.

Technical diagram of a multi-level storage or lifting device with labeled components and an inset showing a mechanical component.

en mm

WELKOM

2. PRODUCTINTRODUCTIE

4. WERKING VAN HET PRODUCT

ALGEMENE WAARSCHUWINGEN

INSTALLATIEWAARSCHUWINGEN

2. PRODUCTINTRODUCTIE

2.1. OVERZICHT VAN HET PRODUCT

Technical diagram of an oven with numbered components for identification

2.2. ACCESSOIRES

Line drawing of a two-tiered storage unit with horizontal and vertical metal racks (no text or symbols)

3D wireframe diagram of a rectangular tray or vent with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

Technical line drawing of a rectangular metal tray with 'STOP' annotations indicating stop points (no text or symbols beyond labels)

3D wireframe diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl, a sphere, and a tray (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on top, placed inside a storage unit (no text or symbols)

Line drawing of a rooster on a tray with steam rising (no text or symbols)

Simple line drawing of a door with a circular component and directional arrow, no text or symbols present

Line drawing of a rectangular appliance with a slatted lid and internal grating, placed inside an oven (no text or symbols)

Illustration of a mouse being heated by a medical or laboratory device, with no visible text or symbols.

Illustration of a rectangular tray with a textured inner surface, placed inside an oven (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRATIE NIEUWE GEBRUIKER

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK has information relating to you will be shared and we'll not just anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

SNELLE KOPPELING

Stap 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank home at home 2 barfiles there is a second row Add appliance YOUR WIDGETS Lemon's own door at rest NEW What functions do smart appliances have? How to live sustain: home and reduce w

Stap 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Stap 3

- Selecteer 'Oven' in de apparaatcategorie.

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Stap 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK IT DID IT

Stap 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On ago is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signed.

Stap 6.1–6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn-off your Bluetooth Oven New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Stap 7

Appliance connection Your appliance has been correctly identified! Brand & Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

ON

Simple diagram with a gray circle, black dot, and plus sign, and curved arrows indicating direction (no text or symbols)

OFF STK

Circular icon with icons and a curved arrow, no readable text or symbols present

Simple line drawing of a washing machine with a hand cleaning it and a small bowl labeled 'H2D' (no text or symbols on the main diagram)

MAX °C 60 min

Simple line drawing of a kitchen oven with swirling smoke rising from the chimney, next to an open refrigerator (no text or symbols)

4. WERKING VAN HET PRODUCT

4.1. HOE HET PRODUCT WERKT

DE OVEN AAN-/UITZETTEN

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Connecticut > Temperature 100°C > Duration 1 hour > Note It will check at a case to make on the junction. It's and simply be without using heavy cream, and it's always on cake and surfacing and delicce. ADD STEP USE AS JOLLY FUNCTION SAVE RICPIE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 100 °C Cooking program & temperature Conventional, 100 °C Duration 1h 55m Note It's quick and easy to make on the downstop. It's noise and creamy (without using heavy cream), and it's always to cozy and comforting and delicious. START JOLLY FUNCTION

U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be too! CANCEL YES CONFIRM

Simple line drawing of a mouse being heated by a tool, no text or symbols present

Weather interface icons with clock, alarm, weather symbols, and temperature display showing -℃

Simple diagram with a gray circle, plus signs, and curved arrows indicating rotation or direction (no text or symbols)

Medical catheter device with attached rod and bulb, no text or symbols present

Line drawing of a laboratory oven with cooling fins and a blue arrow indicating airflow direction (no text or symbols)

PRE SET TIME

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

H2O-clean

Warning symbol with warning triangle, flame icon, and triangular warning symbol below

Illustration of a hand cleaning a window with a cloth (no text or symbols)

Katalytisch reinigen

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

MAX °C 30-20 min

Warning symbol with warning triangle, lightning bolt, and flame icons indicating hazard or hazard

Simple line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Hand holding a tool with a blue prohibition symbol (no text or labels)

Illustration of a hand cleaning a tiled surface with a blue cloth, accompanied by a bottle and a water bath (no text or symbols)

Simple line drawing of a ladder leaning against a wall, with arrows indicating direction (no text or symbols)

Line drawing of hands installing or adjusting a door frame inside an oven (no text or symbols)

Simple line drawing of a hand holding a tool, with no text or symbols present

6.3. SCHOONMAKEN VAN ACCESSOIRES

Line drawing of an oven with a right vent and internal structure (no text or symbols)

H₂O

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' button

Stap 2

Hand holding a paper with a blue checkmark inside a device (no text or symbols visible)

Stap 3

Hand holding a circular object with a blue arrow inside, next to an open device (no text or symbols visible)

Stap 4

Hand holding a circular object with a blue arrow inside, inside an open appliance (no text or symbols visible)

Stap 5

Hand holding a circular object with a blue arrow inside, next to an open box (no text or symbols visible)

Stap 6

Electrical warning symbol and diagram showing a plug, ON panel, warning symbol, and directional arrows indicating electrical hazard.

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button

Stap 2

Illustration of a hand using a tool to interact with a document or paper (no text or symbols visible)

Stap 3

Illustration of a hand holding a small object inside a circular frame, with a blue arrow pointing to a device (no text or symbols present)

Stap 4

Illustration of a hand inserting a plug into a wall-mounted electrical outlet, with no text or symbols present.

Stap 5

Simple line drawing of a cabinet with an inset magnified view showing a blue arrow pointing to the cabinet (no text or symbols)

Stap 6

Electrical warning symbol and component labels on a conductor line, including a plug, ON panel, and warning symbol with lightning.

Illustration showing a kitchen cleaning process: before and after using a washing machine with a hand cleaning the interior.

8.1. VERWIJDERING VAN APPARATEN

Technical diagram of a refrigerator with labeled components and an inset showing interior layout and airway details.

BEM-VINDO

Technical diagram of an oven with numbered components for identification

Empty white rectangle with a thin border (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal and vertical metal racks (no text or symbols)

3D wireframe diagram of a rectangular tray or basin with internal compartments, placed on an open shelf (no text or symbols)

PARAR PARAR

3D wireframe diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Technical line drawing of a room sink with a circular object on the wall and a bowl on the shelf (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the front face (no text or symbols)

Line drawing of a rooster on a tray with chopsticks, no text or symbols present

Simple line drawing of a door with a circular button and directional arrow, no text or symbols present

Diagram of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols)

Illustration of a mouse being held by a medical device, no text or symbols present

Illustration of a rectangular tray with a textured inner surface, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page

Are you new to hOn? Click below to learn about our products

① TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

f SIGN UP WITH FACEBOOK

The differences are underlying, but you will find yourself and what will get just something. They do you.

of

SIGN UP WITH EMAIL

Already registered?

LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank user store 2 stores, there is a second row Add appliance YOUR WIDGETS Learns quicks door store NEW Your NEWS What functions do smart appliances have? How to live sustain: home and reduce w

Passo 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Passo 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Passo 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK! NOT IT

Passo 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On ago is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signel.

Passo 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Open New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn-off your Bluetooth. Oven Connects... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Passo 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

COMO ALTERAR AS DEFINIÇÕES DE WIFI

Simple diagram with a large gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

CONTROLO REMOTO

Cooking ON 12M/LEFT ADD: 1 MIN SPOP Current program PROGRAINS Conventional 00°C 100% Product(30W) Efficiency Product(40W) EXIT DETAILS →

3. ANTES DE COMEÇAR

3.1. INFORMAÇÕES PARA COMEÇAR

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bowl of water nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a steam rising from a cabinet to an open door (no text or symbols)

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 50°C > Duration 16-45cm > Note > It's quick, and having you made on the kitchen. It's candle and opening (without using the candy cream), and It's always so ready and comforting and delicious ADD STEP USE AS JOLLY FUNCTION SAVE.RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 100 °C Cooking program & temperature Conventional, 100 °C Duration 1h 55m Note It's quick and easy to make on the downstop. It's noise and creamy (without using heavy cream), and it's always to cozy and comforting and delicious. START JOLLY FUNCTION

U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be too! CANCEL YES, CONFIRM

Simple line drawing of a laboratory setup with a mouse, a pen, and a tool (no text or symbols)

Weather icon panel showing clock, weather symbols, and temperature reading '℃'

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating rotation or direction (no text or symbols)

Medical catheter device with attached tubing and bulbous body (no text or symbols)

Line drawing of an oven with internal structure and airflow direction indicator (no text or symbols)

PRE SET TIME

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

H2O Clean

Warning symbol with warning triangle, flame icon, and triangular warning symbol

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

Limpeza catalítica

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 MIN

Warning symbol with warning triangle, flame icon, and triangular warning symbol

Simple line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

Line drawing of hands installing or adjusting a cabinet interior with blue tool tips (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

2.

Simple line drawing of a tilted rectangular object with two blue arrows indicating upward motion (no text or symbols)

5.

Hand holding a tool with a blue prohibition symbol (no text or labels)

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main image)

Simple line drawing of a ladder leaning against a wall, with arrows indicating direction (no text or symbols)

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Simple line drawing of a hand holding a tool, with no text or symbols present

6.3. LIMPEZA DOS ACESSÓRIOS

Safety warning diagram showing a plug connected to an OFF switch with a warning symbol

Passo 2

Hand holding a paper with a blue checkmark inside a device (no text or symbols visible)

Passo 3

Hand holding a circular object with a blue arrow inside, next to an open device (no text or symbols visible)

Passo 4

Hand holding a circular object with a blue arrow inside, inside an open appliance (no text or symbols visible)

Passo 5

Hand holding a circular object with a blue arrow inside, next to an open box (no text or symbols visible)

Passo 6

Electrical warning symbol and diagram showing a plug, ON panel, warning symbol, and directional arrows indicating electrical hazard.

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button

Passo 2

Illustration of a hand inserting a small object into a device (no text or symbols visible)

Passo 3

Illustration of a hand holding a small object inside a circular frame, with no visible text or symbols.

Passo 4

Illustration of a hand inserting a cable into a wall-mounted electrical outlet (no text or symbols)

Passo 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Passo 6

Electrical warning symbol and diagram showing a plug, ON panel, and warning sign with lightning symbol

Illustration showing a person standing on a rising stock chart with a computer displaying 'BILKOMINE' and a masked figure, symbolizing market volatility or financial pressure.

Fumo

[Non-Text]

Simple line drawing of a cabinet with a blue spiral and warning symbol above (no text or labels)

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Technical diagram of a multi-level elevator system with labeled components including Rodapé and a magnified inset showing internal structure.

VITAJTE

Technical diagram of an oven with numbered components for identification

Line drawing of a two-tiered storage unit with horizontal shelves and a central rack (no text or symbols)

3D diagram of a rectangular tray with internal compartments, no text or symbols present

STOP STOP

3D wireframe diagram of a rectangular tray or container with internal compartments, placed on a shelf (no text or symbols)

Line drawing of a bathroom sink with a bowl, a sphere, and a mesh platform (no text or symbols)

Diagram of a rectangular tray with internal grid pattern, no text or symbols present

Line drawing of a rooster rolling out dough on a tray (no text or symbols)

Simple line drawing of a door with a circular arrow indicating airflow or motion (no text or symbols)

Illustration of a rectangular tray with a grid pattern, placed inside a transparent housing (no text or symbols)

Illustration of a mouse being fed with a syringe, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed in a kitchen or storage room environment (no text or symbols visible)

AKO KOMUNIKOVAŤ S APLIKÁCIOU

Available on the App Store GET IT ON Google Play

REGISTRÁCIA NOVÉHO POUŽÍVATEL'A

hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK Sign UP WITH EMAIL Already registered? LOGIN

RÝCHLE PÁROVANIE

Krok 1

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank 3 buttons there is a second type Add appliance YOUR WIDGETS Lemon's your darker shrest Your NEWS What functions do smart appliances have? How to live sustain home and reduce w.

Krok 2

- Povol'te lokalizáciu zariadenia.

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Krok 3

Select your appliance category

Seizetivone appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Krok 4

- Zapnite spotrebič. Ak už je zapnutý, vypnite ho a znova zapnite.

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue power button and surrounding geometric shapes, no text or symbols present.

Krok 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

00:00:40

May close to your appliance in order to correctly capture the signal.

Krok 6.1-6.2

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Open

Convering

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Krok 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVER

NO IT'S NOT

AKO ZMENIČ NASTAVENIA WIFI

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

DIALKOVÉ OVLÁDANIE

Cooking SH 100/LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 30-90m 1:1 Production (40M) Efficiency Protein (ERT) EDIT DETAILS →

3. PRED ZAČATÍM

3.1. INFORMÁCIE PRED SPUSTENÍM

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open door (no text or symbols)

4. OBSLUHA SPOTREBIČA

4.1. FUNGOVANIE SPOTREBIČA

ZAPNUTIE/VYPNUTIE RÚRY

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional Temperature 100°C > Duration Inactive Note If you're doing so I don't know if it's one or more using (fixed using heavy prices), and it's always easy and confounding and deinking. ADD STFP USE AS JOLLY FUNCTION SAVE RECIPE

Ako nastavit funkciu Jolly:

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In 55m Note It's quick and easy to make on the stovelops, it's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES KILLYFUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jelly Function section? By doing this action all data will be bad. CANCEL YES CONFIRM

Line drawing of a medical procedure involving a tool and pressure gauge on a patient's abdomen (no text or symbols)

Camera control panel interface with clock, lock, folder, and weather icons

Simple diagram with a gray circle, a dot, and a curved arrow indicating direction (no text or symbols)

Illustration of a medical procedure with a tool and tubing, no text or symbols present

PRE- SET TIME

Warning symbol with warning triangle, lightning bolt, and triangular warning symbol in a diagram

Hand cleaning a window with a blue cloth, no text or symbols visible

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol diagram with warning triangle, flame icon, and triangular warning symbol

Simple line drawing of a kitchen oven with a hand cleaning it, water being poured into the window (no text or symbols)

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a diagonal line against a vertical wall, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a blue cloth, a water bottle, and a beaker labeled H₂O (no text or symbols on main objects)

Line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

6.3. ČISTENIE PRÍSLUŠENSTVA

Line drawing of an oven with a heat exchanger inside, showing airflow direction (no text or symbols)

H₂O

Line drawing of an oven with a blue arrow pointing to the interior panel (no text or symbols)

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and downward arrow.

Krok 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Krok 3

Hand holding a circular object inside an open appliance (no text or symbols visible)

Krok 4

Hand holding a circular object inside a microwave oven (no text or symbols visible)

Krok 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Krok 6

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Diagram showing electrical connections with a plug, fuse, warning symbol, and circuit breaker labeled OH+

Krok 2

Illustration of a hand using a tool to clean or store items on a shelf, with no visible text or symbols.

Krok 3

Hand inserting a small component into a rack, showing a blue arrow (no text or symbols)

Krok 4

Illustration of a hand inserting a component into a device, showing a blue arrow indicating rotation (no text or symbols present)

Krok 5

Simple line drawing of a cabinet or shelf with an open door and a magnified inset showing a blue arrow labeled 'K' (no text or symbols on the diagram itself)

Krok 6

Electrical safety warning diagram showing plug, ON/OFF switch, and warning symbol with blue arrows

Diagram illustrating a chemical process with a warning triangle and a hand cleaning a kitchen appliance, accompanied by a chemical reaction setup.

8. OCHRANA ŽIVOTNÉHO PROSTREDIA A LIKVIDÁCIA SPOTREBIČA

8.1. LIKVIDÁCIA SPOTREBIČA

Technical diagram of a cabinet with labeled components and an inset showing internal layout and component details.

WITAMY

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal racks and a central grid (no text or symbols)

3D wireframe diagram of a rectangular tray or vent with internal compartments, placed on a shelf (no text or symbols)

STOP STOP

3D wireframe diagram of a rectangular tray or container with internal compartments (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round object on a grater (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and internal striped pattern (no text or symbols)

Line drawing of a roasted chicken on a tray with steam rising (no text or symbols)

Simple line drawing of a cabinet with a circular arrow indicating airflow or motion (no text or symbols)

Line drawing of a rectangular appliance with internal grating, placed inside a rack (no text or symbols)

Illustration of a mouse being fed with a medical device, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed in a technical view (no text or symbols)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK Already registered? LOGIN

SZYBKA REJESTRACJA PAROWANIA

Krok 1

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank 3 buttons there is a second type Add appliance YOUR WIDGETS I can't use your darker shirt. HOW to live sustain home and reduce w. YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w.

Krok 2

Allow your location permission

I do enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Krok 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Krok 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue power button and surrounding geometric shapes, no text or symbols present.

Krok 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

00:00:40

May close to your appliance in order to correctly capture the signal.

Krok 6.1-6.2

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

Connecting.

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Krok 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVEN

NO IT'S NOT

JAK ZMIENIĆ USTAWIENIA WIFI

Simple diagram with a gray circle, a black dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

30FF 56%

ZDALNE STEROWANIE

Cooking SH 10M/LIFT ACID 5 MIN STOP Current program PROGRAMS Conventional 200°C 30.82m 10 Pads (40%) DC/CC/CCy Pads (40%) EDIT DETAILS →

3.1. INFORMACJE NA START

Illustration of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open cabinet (no text or symbols)

4. DZIAŁANIE PRODUKTU

4.1. JAK DZIAŁA PRODUKT

WŁĄCZANIE/WYŁĄCZANIE PIEKARNIKA

New Jolly Function Torta ai 3 cioccolati Step 1 Product No. Cooking program Combinant. Temperature 100 ℃ Duration 1 minute Note It is difficult and easy to make it (the cooking tool is now, pre-cleaning without using heavy imports), and it allows to play and conferring and dark loss. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, $80 °C Cooking program & temperature Conventional, $80 °C Duration In 35m Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be real. CANCEL YES CONFIRM

Line drawing of a medical procedure involving a tool and pressure gauge on a patient's abdomen (no text or symbols)

Weather interface icons with clock, lock, weather symbol, and temperature display showing -℃

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Line drawing of an oven with a rack and vent, showing internal structure and airflow direction (no text or symbols)

PRE SET TIME

Hand cleaning a window with a blue cloth (no text or symbols visible)

H2O Clean

PRET SET TIME

Warning symbol with warning triangle, lightning bolt, and triangular warning symbol in a diagram

Illustration of a hand cleaning a window with a cloth (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol with warning triangle, lightning bolt, and three icons: power plug, blue triangle, and power plug

Simple line drawing of a kitchen oven with a hand cleaning it, no text or symbols present

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a diagonal line against a vertical wall, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration of a hand cleaning a blue cloth over a surface with a water bottle and 20% label (no text or symbols on main objects)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Pure technical line drawing of a mechanical component with a blue tool, no text or symbols present

6.3. CZYSZCZENIE AKCESORIÓW

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

H₂O

Line drawing of an oven with a blue arrow indicating airflow or heat transfer (no text or symbols)

- Model 7-poziomowy

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and downward arrow.

Krok 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Krok 3

Hand holding a circular object inside an open appliance (no text or symbols visible)

Krok 4

Hand holding a circular object inside a microwave oven (no text or symbols visible)

Krok 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols)

Krok 6

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical diagram showing a plug connected to an ON/OH panel with warning symbol and directional arrows

Krok 2

Illustration of a hand holding a pen over a document with an arrow, next to a bookshelf (no text or symbols)

Krok 3

Illustration of a hand inserting a small object into a device inside a circular frame, with no visible text or symbols.

Krok 4

Hand holding a device with an arrow pointing to a wall-mounted component, next to stacked books (no text or symbols visible)

Krok 5

Simple line drawing of a cabinet or rack with an inset magnified view showing a wall-mounted fixture (no text or symbols)

Krok 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Diagram showing a kitchen cleaning process with warning sign and instruction to clean or remove the oven.

8. OCHRONA ŚRODOWISKA I UTYLIZACJA ODPADÓW

8.1. UTYLIZACJA URZĄDZENIA

Architectural diagram of a multi-level building interior with internal fixtures and a close-up inset showing a window (no text or symbols)

VÍTEJTE

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal racks and a grid-patterned base (no text or symbols)

3D wireframe diagram of a rectangular tray or vent with internal grid pattern, placed inside a storage unit (no text or symbols)

3D rendering of a rectangular tray with internal compartments, no text or symbols visible

Line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Diagram of a rectangular tray with internal grid pattern, no text or symbols present

Line drawing of a roasted chicken on a cutting board (no text or symbols)

Simple line drawing of a cabinet with a circular arrow indicating airflow or motion (no text or symbols)

Illustration of a rectangular appliance with a grid pattern on top, placed inside a rack (no text or symbols visible)

Illustration of a mouse being injected with a syringe, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed on a shelf (no text or symbols visible)

Available on the App Store GET IT ON Google Play

REGISTRACE NOVÉHO UŽIVATELE

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK Already registered? LOGIN

RYCHLÉ PÁROVÁNÍ S REGISTRACÍ

Krok 1

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank 3 buttons there is a second type Add appliance YOUR WIDGETS I recommend you do your closest HOW to live sustain home and reduce w. YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w.

Krok 2

Allow your location permission

I do enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Krok 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Krok 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes, no text or symbols present.

Krok 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

00:00:40

May close to your appliance in order to correctly capture the signal.

Kroky 6.1–6.2

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Open Connecting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Krok 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

JAK ZMĚNIT NASTAVENÍ WIFI

Simple diagram with a gray circle, plus sign, and curved arrows indicating direction (no text or symbols)

OFF STK

DÁLKOVÉ OVLÁDÁNÍ

Cooking SH 100/LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 30-90m 1:1 Production (40M) Efficiency Protein (ERT) EDIT DETAILS →

3. NEŽ ZAČNETE

3.1. INFORMACE KE SPUŠTĚNÍ

Simple line drawing of a kitchen oven with a hand cleaning the interior and a water bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising, next to an open door (no text or symbols)

4. OVLÁDÁNÍ SPOTŘEBIČE

4.1. JAK TENTO VÝROBEK FUNGUJE

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100°C > Duration 40min > Note N's aA and easy to make the instructions it's nice and creamy without using heavy material, and it is able to copy and monitoring and deliver. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180°C Cooking program & temperature Conventional, 180°C Duration In 55m Note It's quick and easy to make on the stovelup. It's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN RECIPIES U-CREATE MY RECIES KELLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be real. CANCEL YES CONFIRM

Line drawing of a medical procedure involving a tool and pressure gauge attached to a patient's abdomen (no text or symbols)

Camera LCD screen displaying time, weather, and navigation icons with a '°C' temperature display

Simple diagram with a gray circle, a dot, and a curved arrow indicating direction (no text or symbols)

Medical catheter device with attached tubing and bulbous body (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure (no text or symbols)

PRE SET TIME

Illustration of a hand cleaning a window with a cloth (no text or symbols)

H2O cleaning

PRE SET TIME

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a window with a blue cloth, no text or symbols visible

Katalytické čištění

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol diagram with warning triangle, lightning bolt, and three icons: lightning, flame, and plug

Simple line drawing of a kitchen oven with a hand cleaning it and a water bottle nearby (no text or symbols)

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular frame with directional arrows indicating motion (no text or symbols)

Hand holding a blue circle with a diagonal line crossing through it, no text or symbols present

Illustration of a hand cleaning a blue cloth over a surface with a water bottle and beaker (no text or symbols)

Line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Simple line drawing of a mechanical component with a blue tool and downward arrow, no text or symbols present.

Line drawing of a oven with a heat exchanger inside, showing airflow direction (no text or symbols)

Illustration showing a hand cleaning a rack with a blue cloth, next to a water bottle labeled H2O and a spray bottle.

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and downward arrow.

Krok 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Krok 3

Hand holding a circular object inside an open appliance (no text or symbols visible)

Krok 4

Hand holding a circular object inside a microwave oven (no text or symbols visible)

Krok 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols)

Krok 6

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical diagram showing a plug connected to an ON/OFF switch with warning symbol and directional arrows

Krok 2

Illustration of a hand using a tool to download or write on a document inside a filing cabinet (no text or symbols visible)

Krok 3

Illustration of a hand holding a small electronic component with an arrow pointing to it, next to stacked books (no text or symbols present)

Krok 4

Illustration of a hand inserting a plug into a wall-mounted electrical component (no text or symbols)

Krok 5

Simple line drawing of a staircase with an inset showing a window labeled 'K' (no text or symbols on the diagram itself)

Krok 6

Electrical warning symbol diagram showing a plug, safety warning sign, and ON/OFF switch with directional arrows

Diagram illustrating a chemical process with a downward arrow and a hand cleaning a kitchen oven, showing chemical addition and cleaning steps.

8. OCHRANA ŽIVOTNÍHO PROSTŘEDÍ A LIKVIDACE

8.1. LIKVIDACE SPOTŘEBIČE

Technical diagram of a refrigerator with labeled components and an inset close-up showing internal layout and component details.

BUN VENIT

Diagram of an oven with numbered components for identification

2.2. ACCESORII

Line drawing of a two-tiered bunk bed with horizontal railings and a grid-patterned seat (no text or symbols)

3D wireframe diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments (no text or symbols)

Line drawing of a bathroom sink with a bowl, a sphere, and a mesh platform (no text or symbols)

Line drawing of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Line drawing of a rooster rolling out dough on an oven (no text or symbols)

Simple line drawing of a door with a circular arrow indicating airflow or motion (no text or symbols)

Illustration of a rectangular tray with a grid pattern, no text or symbols present

Illustration of a mouse being injected with a syringe, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed on a shelf (no text or symbols visible)

Available on the App Store GET IT ON Google Play

ÎNREGISTRAREA UNUI NOU UTILIZATOR

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the extent and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not pass anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

ÎNREGISTRAREA RAPIDĂ A ASOCIERILOR

Pasul 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank 2 bottles there is a pcted raw Add appliance YOUR WIDGETS Lower prices dollar prices HOW YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Pasul 2

Allow your location permission I to enhance your experience, please allow location permission to HOn app in the next step. CONTINUE

Pasul 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Pasul 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply: OK | DID IT

Pasul 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

00:00:40

May close to your appliance in order to correctly capture the signal.

Pasul 6.1-6.2

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Own Connecting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Pasul 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVER

NO IT'S NOT

CUM SE SCHIMBĂ SETĂRILE WI-FI

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

CONTROL LA DISTANȚĂ

2:00

200°

C Cooking SH 10M/LIFT ACID 54MN STOP Current program PROGRAMS Conventional 20°C 30.92m TJ Prote A(3PM) Diluency Prote OFFI EDIT DETAILS

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising, next to an open door (no text or symbols)

4. UTILIZAREA PRODUSULUI

4.1. CUM FUNCȚIONEAZĂ PRODUSUL

PORNIREA/OPRIREA CUPTORULUI

New Jolly Function Torta ai 3 cioccolati Step 1 Protocol Aid > Cooking program Commercial > Temperature 100 °C > Duration 1h4/5w > Notes It's split and easy for maintaining the following: it is one and every (if not using heavy snacks), and it's always to buy and conferring and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration On 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy-cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIVES KELLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jelly Function section? By doing this action all data will be bad. CANCEL YES CONFIRM

Line drawing of a medical procedure involving a mouse on a tray with a probe and pressure gauge (no text or symbols)

Weather icon panel with clock, lock, alarm, and weather icons for daily weather analysis

Simple diagram with a gray circle, a dot, and a curved arrow indicating rotation or direction (no text or symbols)

Medical illustration of a surgical procedure with a needle inserted into a patient's chest (no text or labels)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

PRE SET TIME

Hand cleaning a window with a blue cloth (no text or symbols visible)

H2O cleaning

PRE- SET TIME

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a window with a blue cloth, no text or symbols visible

Curățare catalitică

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol with warning triangle, lightning bolt, and three icons below indicating hazard, safety, and hazard symbols.

Simple line drawing of a kitchen oven with a hand cleaning it, no text or symbols present

Line drawing of a cabinet with two hands operating it, no text or symbols present

Diagram of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a diagonal line against a vertical wall, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a blue cloth, a water bottle, and a beaker labeled H₂O (no text or symbols on main objects)

Line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Simple line drawing of a mechanical component with a blue tool and downward arrow, no text or symbols present.

6.3. CURĂȚAREA ACCESORIILOR

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

H₂O

Line drawing of an oven with a blue arrow indicating airflow or heat transfer (no text or symbols)

- Model cu 7 niveluri

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and downward arrow.

Pasul 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Pasul 3

Hand holding a circular object inside an open appliance (no text or symbols visible)

Pasul 4

Hand holding a circular object inside a kitchen appliance (no text or symbols visible)

Pasul 5

Hand holding a circular object above an open kitchen appliance (no text or symbols visible)

Pasul 6

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical diagram showing a plug connected to an ON/OH panel with warning symbol and directional arrows

Pasul 2

Illustration of a hand holding a pen over a document inside a storage cabinet (no text or symbols visible)

Pasul 3

Illustration of a hand inserting a small object into a device inside a circular frame, with no visible text or symbols.

Pasul 4

Hand holding a device with an arrow pointing to a wall-mounted component, next to stacked books (no text or symbols visible)

Pasul 5

Simple line drawing of a cabinet or rack with an inset magnified view showing a wall-mounted fixture (no text or symbols)

Pasul 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered storage bed with horizontal racks (no text or symbols)

3D diagram of a rectangular tray with internal compartments, no text or symbols present

LEALLITAS LEALLITAS

Line drawing of a rectangular tray or container with internal compartments, placed on a shelf (no text or symbols)

Line drawing of a bathroom sink with a bowl, a sphere, and a mesh platform (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the top surface, placed inside a kitchen appliance (no text or symbols)

Line drawing of a rooster rolling out dough on a cutting board (no text or symbols)

Simple line drawing of a door with a circular arrow indicating airflow or motion (no text or symbols)

Line drawing of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Simple line drawing of a chicken being tested with a probe, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed in a kitchen or storage room environment (no text or symbols visible)

Available on the App Store GET IT ON Google Play

ÚJ FELHASZNÁLÓ REGISZTRÁLÁSA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK You know what you want to check and let we will get something from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

GYORS PÁROSÍTÁS

1. lépés

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Back 2 bottles there is a second now Add appliance YOUR WIDGETS Lemon how you darker sit out NEW What functions do smart appliances have? How to live sustaine home and reduce w

2. lépés

Allow your location permission I to enhance your experience, please allow location permission to HOn app in the next step. CONTINUE

3. lépés

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. lépés

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply: OK | DID IT

5. lépés

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

00:00:40

May close to your appliance in order to correctly capture the signal.

6.1-6.2. lépés

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

Connecting.

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

7. lépés

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVEN

NO IT'S NOT

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

TÁVVEZÉRLÉS

ON NYOMJA MEG A TÁVVEZÉRLÉS GOMBOT

hOn

Cooking SH 10M-LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 30-90m 1/2 Preheat (50%) Efficiency Protein (40%) EDIT DETAILS →

3. MIELÓTT ELKEZDENÉ

3.1. KEZDÉSHEZ SZÜKSÉGES INFORMÁCIÓK

NYOMJA MEG A BEÁLLÍTOTT

NYOMJA MEG A BEÁLLÍTOTT

NYOMJA MEG A BEÁLLÍTOTT

Simple line drawing of a kitchen oven with a hand cleaning the interior and a water bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling blue smoke rising from the top, next to an open door (no text or symbols)

4. A TERMÉK MÜKÖDÉSE

4.1. A TERMÉK MÚKÖDÉSE

A SÜTŐ BE- ÉS KIKAPCSOLÁSA

New Jelly Function Torta ai 3 cioccolati Step 1 Product No > Cooking program Conventional > Temperature 100 °C > Duration Inactive > Note It's quick and easy to work in the workshop. It's more and more using (with a new or more) using heavy materials, and it's always ready and comforting and thick lines. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180°C Cooking program & temperature Conventional, 180°C Duration In 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be not. CANCEL YES CONFIRM

Line drawing of a medical procedure involving a mouse, pen, and probe (no text or symbols)

Camera LCD screen displaying app icons with clock, lock, folder, and weather symbols

Simple diagram with a gray circle, a dot, and a curved arrow with blue arrows (no text or symbols)

Medical catheter device with attached tubing and bulbous body (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

PRE SET TIME

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

H2O cleaning

L PRET SET TIME

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a window with a blue cloth, no text or symbols visible

Line drawing of an oven with a rack and vent, showing internal structure (no text or symbols)

MAX °C 10-20 min

Warning symbol diagram with warning triangle, lightning bolt, and three icons indicating hazard or hazard.

Simple line drawing of a kitchen oven with a hand cleaning it, no text or symbols present

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating movement (no text or symbols)

Illustration of a hand holding a diagonal line against a vertical wall, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration showing a hand cleaning a blue cloth over a water bath with H₂O, accompanied by a bottle and spray bottle.

Technical line drawing of a structural bracket with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Pure technical line drawing of a mechanical component with a blue tool, no text or symbols present

Line drawing of an oven with a heat exchanger inside, showing airflow direction (no text or symbols)

H₂O

Line drawing of an oven with a blue arrow pointing to the interior panel (no text or symbols)

- 7 szintes modell

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

1. lépés


Line drawing of a hand holding a circular object with a blue arrow inside, next to an open appliance (no text or symbols)

1. lépés


Hand holding a circular object with a blue arrow inside, next to an open appliance (no text or symbols visible)

1. lépés


Hand holding a circular object inside a kitchen appliance (no text or symbols visible)

1. lépés


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. lépés


Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical diagram showing a plug connected to an ON/OH panel with warning symbol and directional arrows

1. lépés


Illustration of a hand holding a pen over a document with an arrow, next to a bookshelf (no text or symbols)

1. lépés


Illustration of a hand inserting a small electronic component into a rack (no text or symbols)

1. lépés


Hand holding a small electronic component with an arrow indicating rotation, next to stacked books (no text or symbols visible)

1. lépés


Simple line drawing of a cabinet with an open door and a magnified inset showing a blue arrow labeled 'K' (no text or symbols on the diagram itself)

1. lépés


Electrical safety warning diagram showing plug, fuse, and circuit breaker with warning symbol

Technical line drawing of a multi-level cabinet with internal compartments and an inset close-up showing internal components (no text or symbols)

DOBRODOŠLI

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Simple line drawing of a rectangular tray or container with internal compartments, placed on an open shelf (no text or symbols)

STOP STOP

Simple line drawing of a rectangular tray or container with internal compartments (no text or symbols)

Line drawing of a bathroom sink with a bowl, a sphere, and a mesh platform (no text or symbols)

Diagram of a rectangular tray with internal grid pattern, no text or symbols present

Line drawing of a rooster rolling out dough on an open kitchen tray (no text or symbols)

Simple line drawing of a window with a circular arrow indicating airflow or motion (no text or symbols)

Illustration of a rectangular tray with a grid pattern, no text or symbols present

Illustration of a mouse being fed with a syringe, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed on a shelf (no text or symbols visible)

Available on the App Store GET IT ON Google Play

REGISTRACIJA NOVEGA UPORABNIKA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. GT SIGN UP WITH EMAIL Already registered? LOGIN

VPIS S HITRO SEZNANITVIJO

1. korak

- Izberite »Dodaj aparat«.

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank 2 better there is a second row Add appliance YOUR WIDGETS Lemon boxes darker skin Youre news What functions do smart appliances have? How to live sustain: home and reduce w.

2. korak

• Dajte dovoljenje za lokacijo.

Allow your location permission I to enhance your experience, please allow location permission to HOn app in the next step. CONTINUE

3. korak

- Izberite pečico v kategorijah aparatov.

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. korak

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply: OK | DID IT

5. korak

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

00:00:40

May close to your appliance in order to correctly capture the signal.

6.1-6.2 korak

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Own Convesting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

7. korak

Appliance connection

Your appliance has been correctly identified!

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVER

NO IT'S NOT

KAKO SPREMENITI NASTAVITVE WI-FI

ON

Simple diagram with a gray circle, plus sign, and curved arrows indicating direction (no text or symbols)

OFF STK

DALJINSKO UPRAVLJANJE

Cooking SH UNLEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 30-90m 100 Pricke (CM) Efficiency Pricke (GRI) EDIT DETAILS →

3. PRED ZAČETKOM

3.1. INFORMACIJE ZA ZAČETEK

Simple line drawing of a kitchen appliance with a hand cleaning the interior (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling blue smoke rising from the top, next to an open door (no text or symbols)

4. DELOVANJE IZDELKA

4.1. KAKO IZDELEK DELUJE

VKLOP/IZKLOP PEČICE

Za vklop pečice zavrtite funkcijski gumb (v smeri urinega kazalca/v nasprotni smeri urinega kazalca) in izberite program kuhanja. Če jo želite izklopiti, nastavite funkcijski gumb v položaj »0«.

VKLOP 0 1 / 1 Vici Vici Vici Vici Vici

IZKLOP

NASTAVITE PROGRAM KUHANJA

New Jolly Function Torta ai 3 cioccolati Step 1 Perheat No > Cooking program Cyclical Temperature 100 °C > Duration 24 hours > Notes It is english and easy as matter to sit up on top. It is one and more very (without -using heavy material), and it is shown as noisy and conflicting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RICPE

Kako nastaviti funkcijo Jolly:

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In 35m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be not. CANCEL YES CONFIRM

Line drawing of a medical procedure involving a mouse, pen, and probe (no text or symbols)

Camera LCD display screen showing time, clock, weather icons, and temperature reading

Simple diagram with a gray circle, a dot, and a curved arrow indicating direction (no text or symbols)

Medical catheter device with attached tubing and bulbous body (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

PRE SET TIME

Hand cleaning a window with a blue cloth (no text or symbols visible)

H2O cleaning

PRE SET TIME

Warning symbol with warning triangle, lightning bolt, and triangular warning symbol in a diagram

Hand cleaning a window with a blue cloth, no text or symbols visible

Čiščenje s katalizo

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol with warning triangle, flame icon, and triangular warning symbol in a diagram

Line drawing of a kitchen sink with a hand cleaning it, and a bottle nearby (no text or symbols)

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

1. Vrata postavite pod kotom 45°. Hkrati pritisnite oba gumba na obeh straneh stranskih ramen vrat in jih povlecite proti sebi, da odstranite pokrov zgornjih stekel vrat.

45° 1 2

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Hand holding a blue circle with a diagonal line crossing through it, no text or symbols present

1. Očistite steklo z mehko krpo in ustreznim čistilnim sredstvom.

Illustration of a hand cleaning a surface with a blue cloth and a water bottle, no text or symbols present

Line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Simple line drawing of a mechanical component with a blue tool and downward arrow, no text or symbols present.

6.3. ČIŠČENJE DODATKOV

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

H₂O

Line drawing of an oven with a blue arrow indicating airflow or heat transfer (no text or symbols)

- Model s 7 nivoji

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and downward arrow.

1. korak


Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

1. korak


Hand holding a circular object inside an open appliance (no text or symbols visible)

1. korak


Hand holding a circular object inside a kitchen appliance (no text or symbols visible)

1. korak


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols)

1. korak


Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical diagram showing a plug connected to an ON/OFF switch with warning symbol and directional arrows

1. korak


Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

1. korak


Hand holding a small electronic device with an arrow pointing to it, next to stacked books (no text or symbols visible)

1. korak


Illustration of a hand inserting a component into a device (no text or symbols present)

1. korak


Simple line drawing of a staircase with an inset showing a window labeled 'K' (no text or symbols on the diagram itself)

1. korak


Electrical warning symbol diagram showing a plug, safety warning sign, and ON/OFF switch with directional arrows

Diagram illustrating a chemical process with a warning triangle and a chemical reaction diagram showing gas being washed into a washing machine.

8.1. ODSTRANJEVANJE APARATA

Technical line drawing of a multi-level cabinet with internal compartments and an inset close-up showing internal components (no text or symbols)

DOBRO DOŠLI

Technical diagram of an oven with numbered components for identification

1. Kontrolni panel
2. Brojevi pozicija polica
3. Rešetke
4. Plehovi
5. Poklopac ventilatora
6. Vrata pećnice
7. Bočne žičane rešetke

(ako su deo opreme: samo za ravnu šupljinu)

Empty white rectangle with a thin black border (no text or symbols)

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Postavljene na obe strane unutrašnjosti pećnice, bočne rešetke su dizajnirane za postavljanje pleha za pečenje i rešetki tokom kuvanja.

i NAPOMENA: 6 ili 7 nivoa u zavisnosti od modela.

Pleh za pečenje (samo ako je deo opreme*)

3D diagram of a rectangular tray with internal compartments, no text or symbols present

Pleh za pečenje je idealan za postizanje ravnomer nog potamnjivanja sa donje strane, što ga čini savršenim za kolače i peciva zbog svog plitkog ravnog dizajna. Pored toga, ako se postavi ispod rešetke za kuvanje može pomoći u sakupljanju curenja i sprečava prljanje pećnice.

Metalna rešetka

STOP STOP

Simple line drawing of a rectangular tray or container with internal compartments (no text or symbols)

Dublji pleh je idealan za recepte prema kojima se dodaju tečnosti ili slojevi, kao što su duveč ili pečenja. Njegova dubina je posebno dizajnirana da osigura željenu ujednačenost hrane pripremljene u njemu.

Teleskopske vodice

(samo ako su deo opreme*)

Technical line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Diagram of a rectangular tray with a blue patterned lid and grid lines, placed inside a kitchen appliance (no text or symbols)

Line drawing of a rooster on a tray with dough and steam (no text or symbols)

Ražanj funkcioniše zajedno sa gornjim grejnim elementom, a okretanjem se hrana može pripremati ujednačeno. Najbolje se koristi za hranu srednje veličine. Idealno za ponovno otkrivanje ukusa tradicionalnih pečenja.

Šarke za lagano zatvaranje/otvaranje

(samo ako su deo opreme*)

Simple line drawing of a window with a circular arrow indicating airflow or motion (no text or symbols)

Line drawing of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Konveksni oblik je pogodan za pravljenje roštilja u pećnici na visokoj temperaturi (220°), omogućavajući rezultat roštiljanja čak i kod kuće sa malo dima zahvaljujući dejstvu ceđenja masti na dno posude.

Sonda za meso (samo ako je deo opreme*)

Illustration of a mouse being fed with a medical device, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed in a kitchen or storage room environment (no text or symbols visible)

Airfry pleh obezbeđuje da vruć vazduh ravnomerni i trodimenzionalno dođe do hrane, čime se dobija hrskavija spoljašnjost uz održavanje mekoće unutra. Da biste sakupljali sokove i mrvice, stavite ga na vrh pleha za pečenje.

2.3. KONTROLNI PANEL

1 0 1 2 220° 3 4 5 6 - +7

Available on the App Store GET IT ON Google Play

REGISTRACIJA NOVOG KORISNIKA

• Kliknite na „Registrujte se“
• Registrujte se pomoću naloga na društvenim mrežama ili ličnom imejl adresom

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK How information missing to you will be shared and we will not just anything from you OR SIGN UP WITH EMAIL Already registered? LOGIN

PRIJAVLJIVANJE ZA BRZO UPARIVANJE

1. korak

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank 2 bottles there is a second row Add appliance YOUR WIDGETS Lemon's your darker shelf What functions do smart appliances have? How to live sustaine home and reduce w.

2. korak

Allow your location permission I to enhance your experience, please allow location permission to HOn app in the next step. CONTINUE

3. korak

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. korak

Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK I DID IT

5. korak

- Nakon uključivanja, aplikacija hOn počinje da traži vaš kućni uređaj.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

00:00:40

May close to your appliance in order to correctly capture the signal.

6.1-6.2. korak

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Open Connecting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

7. korak

Appliance connection

Your appliance has been correctly identified!

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVEN

NO IT'S NOT

KAKO DA PROMENITE PODEŠAVANJA WI-FI MREŽE

Kada se uređaj registruje, korisnik može da promeni podešavanja Wi-Fi mreže između:

Simple diagram with a gray circle, a dot, and a plus sign, connected by curved arrows (no text or symbols)

OFF STK

DALJINSKO UPRAVLJANJE

2:00

200*

Cooking SH 10M LEDT ACID: 5.4MHz STOP Current program PROGRAMS Conventional 200°C 30-800m 100 MHz (LED) DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/ EDIT DETAILS →

3. PRE POČETKA

3.1. INFORMACIJE VEZANE ZA POČETAK

Kada prvi put uključite pećnicu, možda ćete primetiti dim. Ne brinite, pre upotrebe pećnice samo sačekajte da se dim raščisti.

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open door (no text or symbols)

4. RAD PROIZVODA

4.1. KAKO PROIZVOD RAD

UKLJUČIVANJE/ISKLJUČIVANJE PEĆNICE

Da biste uključili pećnicu, okrenite funkcijsko dugme (u smeru kazaljke na satu/suprotno od kazaljke na satu) i izaberite program pečenja. Da biste je ISKLJUČILI, podesite funkcijsko dugme u položaj „0“.

UKLIJUČENO

ISKLJUČENO

PODESITE PROGRAM KUVANJA

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat Hot Cooking program Compostcast Temperature 100°C Duration On-4 hrs Notes It's quick and easy to be better cut off or stop the time and secure (without using heavy cooking), and its shows on comp and conferring refrigerant. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Kako da podesite funkciju Jolly:

Da biste podesili funkciju Jolly na pećnici, otvorite odeljak sa receptim u aplikaciji, izaberite recept koji želite da koristite i kliknite na „Koristi kao Jolly funkciju“.

Od tog trenutka, možete je pokrenuti iz proizvoda čak i bez interakcije sa aplikacijom. Jednostavno okrenite funkcijsko dugme na funkciju Jolly da biste započeli proces kuvanja.

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, $80 °C Cooking program & temperature Conventional, $80 °C Duration In 35m Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be not. CANCEL YES CONFIRM

Diagram showing a medical device with catheter, temperature measurement, and circular diagram with directional arrows

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Sonda se može koristiti sa ručnim funkcijama (konvekcija, konvekcija + ventilator, roštilj, Super grill, gratiniranje i više nivoa), sa KATEGORIJAMA KUVANJA HRANE (meso, riba i povrće) i Gentle cooking.

Kategorija hrane	Predložena T °C sredine	Predloženo pozicioniranje
Pečena govedina	45 °C	Dijagonalno u najdebljem delu.
Pečeno meso	55 °C / 60 °C / 65 °C	Za namirnice cilindričnog oblika (kao što je goveđe pečenje), postavite vrh što bliže geometrijskom centru
Živinsko meso	83-85 °C	U najdeblji deo grudi
Riba (cela/odresci)	65 °C	Dijagonalno u najdebljem delu
Hleb/musaka	90 °C	Blizu geometrijskog centra hrane

5. SMERNICE ZA KUVANJE

5.1. OPŠTA TABELA KUVANJA

Kategorija	Recept	Br. nivoa	Program kuvanja	T °C	Predgrevanje	Pribor za kuvanje	Položaj police	Vreme kuvanja nakon predgrevanja * (min)
Slatka peciva	Sitni kolači / mafini	1	Konveksni višeslojni	+175 °C~ +160 °C	Da	Pleh za pečenje Pleh za pečenje	L3 L4	20-30 30-40
		2	Više nivoa	150 °C		Pleh za pečenje / dublji pleh	L2+L5	30-40
		3	Više nivoa	140 °C		Pleh za pečenje	L2+L4+L6	40-50
	Vazdušasti kolači (26 cm ∅)	1	Konveksni višeslojni	+170 °C~ +150 °C	Da	Metalna rešetka + kalup za kolače Metalna rešetka + kalup za kolače	L3 L4	30-40 40-50
		2	Više nivoa	150 °C		Metalne rešetke + kalup za kolače	L1+L4	50-60
	Keks	1	Konveksni višeslojni	+150 °C~ +150 °C	Da	Pleh za pečenje Pleh za pečenje	L3 L4	25-30 30-40
		2	Više nivoa	140 °C		Pleh za pečenje + dublji pleh	L2+L5	30-40
		3	Više nivoa	140 °C		Pleh za pečenje	L2+L4+L6	35-40
	Kroketi	1	Konvekcija	190 °C	Da	Pleh za pečenje	L4	25-35
		2	Više nivoa	170 °C		Pleh za pečenje	L3	25-35
	Jorkširski puding	1	Konvekcija	200 °C	Da	Pleh za pečenje	L3	20-30
	Puslice	1	Više nivoa	90 °C	Da	Pleh za pečenje		90-160
	Makaronsi	1	Konvekcija	150 °C	Da	Pleh za pečenje	L3	15-20
	Pita od jabuka	1	Konvekcija	185 °C	Da	Metalna rešetka + kalup za kolače	L2	60-70
		1	Više nivoa	170 °C	Da	Metalna rešetka + kalup za kolače	L4	65-75
	Tart tatin	1	Konvekcija	170 °C	Da	Metalna rešetka + kalup za kolače	L2	40-60
	Čokoladni sufle	1	Konvekcija	200 °C	Da	Pleh za pečenje + modle	L3	10-15
	Čizkejk	1	Konvekcija	150 °C	Da	Metalna rešetka + kalup za kolače	L2	50-65
	Smrznuti kroasani	1	Konvekcija	180 °C	Da	Pleh za pečenje	L3	20-25
		2	Više nivoa	180 °C		Pleh za pečenje	L2+L5	25-35
		3	Više nivoa	160 °C		Pleh za pečenje	L2+L4+L6	30-40
	Štrudla, smrznuta	1	Konvekcija	210 °C	Da	Pleh za pečenje	L3	30-45
Hleb i lepinja	Tost hleb	1	Supergrill	5	Ne	Metalna rešetka	L6	4-6
	Fokača	1	Konvekcija	200 °C	Da	Pleh za pečenje	L2 ili L3	25-35
	Hleb, ceo	1	Konvekcija	200 °C	Da	Pleh za pečenje	L3	35-50
Slane pite i musake	Slani kolači / kiševi (26 cm ∅)	1	Konvekcija	200 °C	Da	Metalna rešetka + Pleh za kiš	L1 ili L2	30-50
		2	Više nivoa	180 °C		Metalna rešetka + Pleh za kiš	L1+L4	50-70
	Sufle od sira	1	Konvekcija	200 °C	Da	Pleh za pečenje + modle	L3	20-35
	Lazanje, sveže	1	Konvekcija	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	40-60
	Lazanje, smrznute	1	Konvekcija	180 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
	Kaneloni, smrznuti	1	Konvekcija	180 °C	Da	Metalna rešetka + posuda za pečenje	L3	45-55
	Pečena testenina	1	Grati-niranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L4	20-30
Pica	Pica, sveža (pleh)	1	Konvekcija	250 °C	Da	Pleh za pečenje	L2 ili L3	15-20
	Pica, sveža (pleh)	1	Pica	250 °C	Ne	Pleh za pečenje	L2 ili L3	18-25
		2	Više nivoa	180 °C	Da	Pleh za pečenje + dublji pleh	L2+L5	25-35
	Pica, sveža (okrugla)	1	Konvekcija	300 °C	Da	Pleh za pečenje	L2 ili L3	8-10
	Pica, sveža (okrugla)	1	Pica	300 °C	Ne	Pleh za pečenje	L2 ili L3	15-20
		2	Više nivoa	180 °C	Da	Pleh za pečenje + dublji pleh	L2+L5	30-40
	Pica, smrznuta (tanka kora)	1	Pica	200 °C	Ne	Metalna rešetka	L2	10-15
	Pica, smrznuta (tanka kora)	1	Konvekcija	220 °C	Da	Metalna rešetka	L3	10-15
		2	Više nivoa	200 °C		Metalna rešetka	L2+L5	15-25
		3	Više nivoa	180 °C		Metalna rešetka	L2+L4+L6
Meso i živina	Pečeno celo pile (1-1,2 kg)	1	Grati-niranje	220 °C	Da	Metalna rešetka/L4 Postavite pleh za pečenje na L1 sa pola šolje vode	L4	40-60
	Pileći karabatak	1	AirFry**	220 °C	Ne	Air fry pleh**	L4	30-50
	Pečena patka	1	Grati-niranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
	Petao	1	Grati-niranje	220 °C	Da	Metalna rešetka Postavite pleh za pečenje na L1	L4	20-40
	Pečena ćurka	1	Grati-niranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
	Svinjska rebra (1000-1200g)	1	Konvekcija	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	80-100
	Kobasice	1	Supergrill	4	Da	Metalna rešetka	L5	40-50
	Goveđi file (1000-1500g)	1	Gentle cooking**	60 °C	Ne	Metalna rešetka + posuda za pečenje	L3	60-80
	Pečena govedina (500g)	1	Grati-niranje	220 °C	Da	Pleh za pečenje	L3	20-40
	Mesna vekna (1000-1500g)	1	Konvekcija	180 °C	Da	Pleh za pečenje	L3	40-50
	Pečena piletina sa krompirom	1	Grati-niranje	200 °C	Da	Dublji pleh	L4	45-60
Riba i morski plodovi	Morski plodovi sa roštilja	1	Supergrill	4	Ne	Metalna rešetka	L5	15-30
	Smrznuti riblji štapići	1	AirFry**	200 °C	Ne	Air fry pleh**	L4	20-25
	Pečena riba	1	ECO	200 °C	Ne	Metalna rešetka Postavite pleh za pečenje na L1	L3	40-60
Povrće	Gratinirano povrće	1	ECO	200 °C	Ne	Metalna rešetka + posuda za pečenje	L3	80-90
	Zamrznuti pomfrit (300-500g)	1	AirFry**	220 °C	Ne	Air fry pleh**	L4	18-25
	Gratinirani krompir	1	Grati-niranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L4	15-25
	Pečeni krompir	1	Konvekcija	200 °C	Da	Pleh za pečenje	L4	30-50

Line drawing of a kitchen oven with a side panel and cooling unit (no text or symbols)

PRE SET TIME

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

H2O Clean

Funkcija H2O Clean je dizajnirana da se bez napora uhvati u koštac sa laganom zaprljanošću i pruži brzo i ekološki prihvatljivo rešenje za čišćenje unutrašnjosti pećnice pomoću snage pare.

Kako funkcioniše:

1. Sipajte 100 ml vode u donji utisnuti deo pećnice.
2. Uključite dugme 🚗️. Ako je potrebno, okrenite kontrolu brojčanika da biste podesili program Hydro Clean. Funkcija će raditi tokom unapred podešenog vremena.
3. Na kraju postupka čišćenja, pustite pećnicu da se ohladi.
4. Kada se uređaj ohladi, očistite unutrašnje površine pećnice krpom.
5. ▲ UPOZORENJE: Proverite da li je uređaj ohlađen pre nego što ga dodirnete. Vodite računa o svim vrućim površinama jer postoji rizik od opekotina. Koristite destilovanu ili pijaću vodu.

H2O 100 ml

0.000 PRE- SET TIME

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a window with a blue cloth, no text or symbols visible

Katalitičko čišćenje

Katalitički paneli oblažu unutrašnjost pećnice i pružaju vam luksuz da se nikada ne borite sa prljavom pećnicom.

Paneli su obloženi specijalizovanim emajlom koji se može pohvaliti mikroporoznom strukturom koja dobro apsorbuje mast koja prska.

Katalitičkom hemijskom reakcijom oni efikasno pretvaraju apsorbovanu mast u gasovite elemente kada su izloženi visokim temperaturama.

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol with warning triangle, flame icon, and triangular warning symbol in a diagram

Simple line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

6.2.2. SPOLJAŠNJOST PEĆNICE: uklanjanje i čišćenje staklenih vrata

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

1. Postavite vrata na 45°. Istovremeno pritisnite dva dugmeta sa obe strane bočnih strana vrata i povucite prema sebi da biste uklonili poklopac gornjih stakala.

45° 1 2

1. Veoma pažljivo uklonite staklo pećnice, počevši od unutrašnjeg stakla. Tokom postupka, čvrsto držite staklo obema rukama i stavite ga na mekanu ravnu površinu (npr. na tkaninu).

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Hand holding a blue circle with a diagonal line crossing through it, no text or symbols present

1. Očistite staklo mekom krpom i odgovarajućim sredstvima za čišćenje.

Illustration of a hand cleaning a blue cloth over a surface with a water bottle and beaker (no text or symbols)

1. Umetnite staklene ploče, vodeći računa da oznaka „Low-E“ bude ispravno čitljiva i postavljena na donjoj levoj strani vrata, u blizini leve šarke. Na taj način će štampana etiketa na prvom staklu ostati na unutrašnjoj strani vrata.

2. Ponovo pričvrstite poklopac vrata gornjeg stakla tako što ćete ga gurati prema unutra do ne čujete klik dva bočna dugmeta.

3. Zatim vratite vrata na 90° i okrenite jezičke za zaključavanje šarki prema unutrašnjosti pećnice.

LOW-E

Technical line drawing of a structural bracket with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Pure technical line drawing of a mechanical component with a blue tool, no text or symbols present

6.3. ČIŠĆENJE DODATNE OPREME

Obavezno temeljno očistite dodatnu opremu nakon svake upotrebe i osušite je peškirom. Za tvrdokorne naslage, natopite dodatnu opremu u mešavini vode i sapuna oko 30 minuta pre nego što je ponovo operete.

ČIŠĆENJE BOČNIH NOSAČA:

- Model sa 6 nivoa

1. Uklonite bočne nosače povlačenjem u pravcu strelica.
2. Da biste očistili žičane nosače, stavite ih u mašinu za pranje sudova ili koristite vlažni suđen i obavezno ih posle osušite.
3. Nakon procesa čišćenja, postavite žičane nosače obrnutim redosledom.

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

H₂O

Line drawing of an oven with a blue arrow indicating airflow or heat transfer (no text or symbols)

- Model sa 7 nivoa

1. Uklonite bočne držače tako što ćete prvo povući prednji deo u smeru strelice i odvojiti zadnji deo od vijaka.
2. Da biste očistili žičane nosače, stavite ih u mašinu za pranje sudova ili koristite vlažni suđen i obavezno ih posle osušite.
3. Nakon postupka čišćenja postavite bočne nosače obrnutim redosledom: postavite zadnji deo između vijaka i gurnite prednji deo u smeru strelice.

6.4. ODRŽAVANJE

ZAMENA KOMPONENTI

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and downward arrow.

1. korak


Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

1. korak


Hand holding a circular object inside an open appliance (no text or symbols visible)

1. korak


Hand holding a circular object inside a kitchen appliance (no text or symbols visible)

1. korak


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. korak


Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical diagram showing a plug, fuse, and circuit breaker with warning symbol and directional arrows

1. korak


Illustration of a hand holding a pen near a document with an arrow, next to a bookshelf (no text or symbols)

1. korak


Illustration of a hand inserting a small object into a device inside a circular frame, with no visible text or symbols.

1. korak


Illustration of a hand holding a small electrical component inside a circular frame, with no visible text or symbols.

1. korak


Simple line drawing of a cabinet or rack with an inset magnified view showing a wall-mounted fixture (no text or symbols)

1. korak


Electrical safety warning diagram showing plug, fuse, and circuit breaker with hazard symbol and directional arrows

Simple line drawing of a cabinet with blue ribbons and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

8. ZAŠTITA ŽIVOTNE SREDINE I ODLAGANJE NA OTPAD

8.1. ODLAGANJE UREĐAJA NA OTPAD

Architectural line drawing of a multi-level building interior with structural details and an inset showing a close-up of a device (no text or symbols present)

SVEIKI

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered modular bed or rack structure (no text or symbols)

3D diagram of a rectangular tray with internal compartments, no text or symbols present

3D wireframe diagram of a rectangular tray or container with internal compartments (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on a metal rack (no text or symbols)

Diagram of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Line drawing of a rooster on a tray with a knife, no text or symbols present

Simple line drawing of a kitchen appliance with a circular label and directional arrow (no text or symbols)

Illustration of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols visible)

Illustration of a mouse being injected with a syringe, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed in a kitchen or storage unit (no text or symbols visible)

Available on the App Store GET IT ON Google Play

NAUJO NAUDOTOJO REGISTRACIJA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK OR SIGN UP WITH EMAIL Already registered? LOGIN

SPARČIOJO SUSIEJIMO REGISTRACIJA

1 veiksmas

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank 3 bottles there is a second row Add appliance YOUR WIDGETS I can't buy any dollar sheet Your NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

2 veiksmas

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

3 veiksmas

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4 veiksmas

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue power button and surrounding geometric shapes, no text or symbols present.

5 veiksmas

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

May close to your appliance in order to correctly capture the signal.

6.1–6.2 veiksmai

Appliance connection

Searching your appliance

Don't burn off your Bluetooth.

Oven New appliance Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Open Connecting... New appliance Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

7 veiksmas

Appliance connection

Your appliance has been correctly identified!

Simple icon of a kitchen oven inside a circular frame (no text or symbols)

Brand Hoover

Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

KAIP PAKEISTI „WI-FI“ NUSTATYMUS

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

NUOTOLINIO VALDYMO PULTELIS

ON PASPAUSKITE NUOTOLINIO VALDYMO PULTELJ

hOn

2:00

200°

Cooking SH 12M-LIFT ACID 54MN STOP Current program PROGRAMS Conventional 200°C 30.82m 100000000000000000000000000000000000000000000000000000000000000000000000000 EDIT DETAILS →

3. PRIEŠ PALEIDŽIANT

3.1. INFORMACIJA PRADEDANT

Illustration of a kitchen oven with a hand cleaning the interior and a bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open door (no text or symbols)

4. GAMINIO VEIKIMAS

4.1. KAIP GAMINYS VEIKIA

ORKAITĖS IJUNGIMAS / IŠJUNGIMAS

New Jolly Function Torta ai 3 cioccolati Step 1 Pivceral Mio Cooking program Commercial Temperature 100 °C Duration Unliver Notes If you're doing so much to do something it is not participating (if you are having a choice) and it's shown to try and pastaking and deinking. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, $80 °C Cooking program & temperature Conventional, $80 °C Duration In 35m Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be not. CANCEL YES CONFIRM

Line drawing of a laboratory procedure showing a mouse on a tray with a probe and tubing, no text or symbols present.

Camera LCD screen status bar with time, battery, and weather icons

Simple diagram with a gray circle, a dot, and a curved arrow indicating rotation or direction (no text or symbols)

Illustration of a medical procedure with a needle inserted into a patient's chest and a blue probe inserted into the ear (no text or symbols)

PRE SET TIME

Warning symbol diagram with warning triangle, lightning bolt, and triangular load icon

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C L 10-20 min

Warning symbol with warning triangle, lightning bolt, and three icons: power plug, blue triangle, and power plug.

Simple line drawing of a kitchen oven with a hand cleaning it, water being washed, and a small bottle nearby (no text or symbols)

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a diagonal line against a vertical wall, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a blue cloth, water being washed in a beaker labeled H₂O (no text or symbols on the main subject)

Technical line drawing of a structural bracket with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Pure technical line drawing of a mechanical component with a blue tool, no text or symbols present

6.3. PRIEDU VALYMAS

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

H₂O

Line drawing of an oven with a blue arrow indicating airflow or heat transfer (no text or symbols)

- 7 lygių modelis

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and downward arrow.

2 veiksmas

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

3 veiksmas

Hand holding a circular object inside an open appliance (no text or symbols visible)

4 veiksmas

Hand holding a circular object inside a kitchen appliance (no text or symbols visible)

5 veiksmas

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols)

6 veiksmas

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical diagram showing a plug connected to an ON/OFF switch with warning symbol and directional arrows

2 veiksmas

Illustration of a hand using a tool to download or write on a document inside a filing cabinet (no text or symbols visible)

3 veiksmas

Hand holding a small electronic device with an arrow pointing to it, next to stacked books (no text or symbols visible)

4 veiksmas

Illustration of a hand inserting a component into a device (no text or symbols present)

5 veiksmas

Simple line drawing of a staircase with an inset showing a window labeled 'K' (no text or symbols on the diagram itself)

6 veiksmas

Electrical warning symbol diagram showing a plug, safety warning sign, and ON/OFF switch with directional arrows

Technical diagram of a refrigerator with labeled components and an inset showing interior layout and ventilation system.

TERE TULEMAST

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered bunk bed with horizontal railings and a flat base (no text or symbols)

3D diagram of a rectangular tray with internal geometric lines, no text or symbols present

STOP STOP

3D wireframe diagram of a rectangular tray or container with internal compartments (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and internal striped pattern (no text or symbols)

Line drawing of a rolling pin on a rectangular plate with dough and steam (no text or symbols)

Simple line drawing of a cabinet with a circular arrow indicating airflow or motion (no text or symbols)

Illustration of a rectangular appliance with internal shelves and a grid pattern (no text or symbols)

Illustration of a mouse being heated by a medical device, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, no text or symbols visible

Available on the App Store GET IT ON Google Play

UUE KASUTAJA REGISTREERIMINE

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK You will not get something from your OR SIGN UP WITH EMAIL Already registered? LOGIN

KIRÜHENDAMINE

1. samm

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank 3 buttons there is a second type Add appliance YOUR WIDGETS I recommend you do your closest HOW to live sustain home and reduce w. YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w.

2. samm

Allow your location permission I to enhance your experience, please allow location permission to HOn app in the next step. CONTINUE

3. samm

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. samm

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply: OK | DID IT

5. toiming

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

00:00:40

May close to your appliance in order to correctly capture the signal.

6.1-6.2. samm

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

7. samm

Appliance connection

Your appliance has been correctly identified!

Simple icon of a kitchen oven inside a light green circular frame (no text or symbols)

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVEN

NO IT'S NOT

KUIDAS WIFI-SEADEID MUUTA

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

KAUGJUHTIMISPULT

Cooking SH UN/LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 30-30min 100 Pricet (CMF) Efficiency Pricet (GRT) EDIT DETAILS →

3. ENNE ALUSTAMIST

3.1. TEAVE ALUSTAMISEKS

Simple line drawing of a kitchen oven with a hand cleaning the interior and a water bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open door (no text or symbols)

4. TOOTE KASUTAMINE

4.1. KUIDAS TOODE TOIMIB

AHJU SISSE-/VÄLJALÜLITAMINE

New Jolly Function Torta ai 3 cioccolati Step 1 Preface No > Cooking program Commercial > Temperature 100/℃ > Duration Divide > Note It's quick and easy to make a clover shape. It's very strong (sufficient using heavy cooking), and It's always very hard and comfortable and dark less. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, $80 °C Cooking program & temperature Conventional, $80 °C Duration In 35m Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be not. CANCEL YES CONFIRM

Line drawing of a medical procedure on a patient's abdomen, showing a tool and device (no text or symbols)

Camera LCD screen status bar with clock, time, and weather icons

Simple diagram with a gray circle, a dot, and a curved arrow indicating rotation or direction (no text or symbols)

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

PRE SET TIME

Hand cleaning a window with a blue cloth (no text or symbols visible)

H2O cleaning

PRE- SET TIME

Warning symbol with warning triangle, lightning bolt, and triangular warning symbol in a diagram

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol with warning triangle, lightning bolt, and three icons: lightning bolt, triangular warning sign, and light bulb

Line drawing of a kitchen sink with a hand cleaning it, no text or symbols present

Line drawing of a cabinet with two hands pulling an open lid (no text or symbols)

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a diagonal line against a vertical wall, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration showing a hand cleaning a blue cloth over a water bath with H₂O, alongside a bottle and spray bottle.

Technical line drawing of a structural bracket with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Pure technical line drawing of a mechanical component with a blue tool, no text or symbols present

6.3. TARVIKUTE PUHASTAMINE

Line drawing of an oven with a heat exchanger inside, showing airflow direction (no text or symbols)

Illustration showing a hand cleaning a rack with a blue cloth, next to a water bottle labeled H2O and a spray bottle.

Line drawing of an oven with a blue arrow indicating airflow or heat transfer (no text or symbols)

- 7 tasemega mudel

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and downward arrow.

1. samm


Line drawing of a hand holding a circular object with a blue arrow inside, next to an open appliance (no text or symbols)

1. samm


Hand holding a circular object with a blue arrow inside, next to an open appliance (no text or symbols visible)

1. samm


Hand holding a circular object inside a microwave oven (no text or symbols visible)

1. samm


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. samm


Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical diagram showing a plug connected to an ON/OH panel with warning symbol and directional arrows

1. samm


Illustration of a hand holding a tool near a document with an arrow, next to a bookshelf (no text or symbols)

1. samm


Illustration of a hand inserting a small object into a device inside a circular frame, with no visible text or symbols.

1. samm


Illustration of a hand holding a small electrical component inside a circular frame, with no visible text or symbols.

1. samm


Simple line drawing of a cabinet or rack with an inset magnified view showing a wall-mounted fixture (no text or symbols)

1. samm


Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Diagram illustrating a chemical process with a downward arrow and a hand cleaning a kitchen oven, showing chemical addition and cleaning steps.

8. KESKKONNAKAITSE JA KÖRVALDAMINE

8.1. SEADME KÖRVALDAMINE

Technical diagram of a refrigerator with labeled components and an inset showing interior layout and door opening details.

LAIPNI LÜDZAM

2.1. PRODUKTA PÄRSKATS

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered storage bed with horizontal racks (no text or symbols)

3D wireframe diagram of a rectangular tray or vent with internal geometric cutouts (no text or symbols)

APTURET APTURET

3D diagram of a rectangular tray with internal compartments, no text or symbols present

Line drawing of a room interior with a circular object on a metal rack and a bowl on a platform (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on top, placed inside an oven (no text or symbols)

Line drawing of a rooster on a cutting board with dough and steam (no text or symbols)

Simple line drawing of a kitchen appliance with a circular arrow indicating airflow or motion (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid (no text or symbols)

Illustration of a medical procedure involving a mouse and a syringe, with no visible text or symbols

3D rendering of a rectangular tray with a mesh pattern inside, placed on a shelf (no text or symbols visible)

Available on the App Store GET IT ON Google Play

JAUNA LIETOTĀJA REGISTRĀCIJA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK Already registered? LOGIN

ĀTRĀ PĀRA REGISTRĀCIJA

1. darbība

- Atlasiet "Pievienot ierīci".

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank 3 buttons there is a second type Add appliance YOUR WIDGETS I recommend you do your closest HOW to live sustain home and reduce w. YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w.

2. darbība

Allow your location permission

I do enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

3. darbība

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4. darbība

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue power button and surrounding icons, no text or symbols present.

5. darbība

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

May close to your appliance in order to correctly capture the signal.

6.1-6.2. darbība

- Atlasiet savu sadzīves tehniku, pieskarieties pie "Savienot" un uzgaidiet dažas sekundes.

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven New appliance Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Open Connective... New appliance Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

7. darbība

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVER

NO IT'S NOT

WI-FI IESTATIJUMU MAINA

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

TÄLVADİBA

Cooking SH UNLEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 30-90m 100 Pricke (CM) Efficiency Pricke (GRI) EDIT DETAILS →

3. PIRMS SĀKŠANAS

3.1. INFORMĀCIJA, LAI SĀKTU

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bowl nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a steam rising from a chimney to an open cabinet (no text or symbols)

4. PRODUKTA DARBİBA

4.1. KÄ PRODUKTS DARBOJAS

CEPEŠKRĀSNS IESLĒGŠANA/IZSLĒGŠANA

New Jolly Function Torta ai 3 cioccolati Step 1 Prekcal No > Cooking program Commercial > Temperature 100 °C > Duration 40 min > Notes It's quick and easy to mark the cooking process, it's new and creating (without using heavy cooking), and it's always so busy and comforting and drinking. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In 35m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using hungry cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be real. CANCEL YES CONFIRM

Illustration of a medical procedure involving a tool and probe inserted into a patient's abdomen (no text or symbols)

Camera LCD screen displaying time, weather, and control icons with 'C' and 'm' labels

Simple diagram with a gray circle, a dot, and a curved arrow indicating direction (no text or symbols)

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Termometru var izmantot ar manuālām funkcijām (statisks, statisks + ventilators, grils, super grill, sacepums un daudzlīmeņu), ar ĕDIENU GATAVOŠANAS KATEGORIJĀM (gaļa, zivis un dārzeni) un Gentle cooking.

Line drawing of a kitchen oven with an open tray and side panel (no text or symbols)

PRE SET TIME

Illustration of a hand cleaning a window with a cloth (no text or symbols)

H2O cleaning

L PRE SET TIME

Warning symbol with warning triangle, lightning bolt, and three icons: triangular warning sign, blue triangle, and lightning bolt

Hand cleaning a window with a blue cloth, no text or symbols visible

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol diagram with warning triangle, lightning bolt, and three icons: lightning bolt, triangular warning sign, and light bulb.

Simple line drawing of a kitchen sink with a hand cleaning it, no text or symbols present

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Hand holding a blue circle with a diagonal line crossing through it, no text or symbols present

Illustration of a hand cleaning a tiled surface with a blue cloth, a water bottle, and a beaker labeled H₂O (no text or symbols on main objects)

Technical line drawing of a structural bracket with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

6.3. PIEDERUMU TİRİŞANA

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

H₂O

Line drawing of an oven with a blue arrow indicating airflow or heat transfer (no text or symbols)

- 7 līmeņu modelis

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and downward arrow.

1. darbība


Line drawing of a hand holding a paper with a circular arrow inside, inside an open box (no text or symbols)

1. darbība


Hand holding a circular object inside an open appliance (no text or symbols visible)

1. darbība


Hand holding a circular object inside a kitchen appliance (no text or symbols visible)

1. darbība


Hand placing a paper into an oven with a circular arrow indicating rotation (no text or symbols)

1. darbība


Electrical diagram showing a plug, warning symbol, and ON/OFF switch on a conductor line

Electrical diagram showing a plug connected to an ON/OH panel with warning symbol and directional arrows

1. darbība


Illustration of a hand holding a pen over a document inside a storage cabinet (no text or symbols visible)

1. darbība


Illustration of a hand inserting a small object into a device inside a circular frame, with no visible text or symbols.

1. darbība


Hand holding a device with an arrow pointing to a wall-mounted component, next to stacked books (no text or symbols visible)

1. darbība


Simple line drawing of a cabinet or rack with an inset magnified view showing a wall-mounted fixture (no text or symbols)

1. darbība


Electrical safety warning diagram showing plug, fuse, and circuit breaker with hazard symbol and directional arrows

Diagram showing a kitchen cleaning process with a warning triangle and a hand cleaning a window, alongside a close-up of the oven with a spray bottle.

8. VIDES AIZSARDZĪBA UN UTILIZĀCIJA

8.1. IERICES UTILIZACIJA

Technical diagram of a refrigerator with labeled components and an inset showing interior layout and ventilation system.

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal racks and a central grid (no text or symbols)

3D diagram of a rectangular tray with internal compartments, no text or symbols present

CTON CTON

3D wireframe diagram of a rectangular tray or basin with internal compartments, placed on a shelf (no text or symbols)

Technical line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and grid lines, placed inside a kitchen appliance (no text or symbols)

Line drawing of a roasted chicken on a cutting board (no text or symbols)

Simple line drawing of a window with a circular arrow indicating airflow or motion (no text or symbols)

Line drawing of a rectangular tray with a grid pattern, placed inside a transparent housing (no text or symbols)

Illustration of a mouse being heated by a medical device, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed in a kitchen or storage room environment (no text or symbols visible)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK You know what you want anything from you. GT SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank 2 better there is a second row Add appliance YOUR WIDGETS Lemon pictures darker slit out HOW to live sustakes: home and reduce w YOUR NEWS What functions do smart appliances have? How to live sustakes: home and reduce w

Стъпка 2

Allow your location permission I to enhance your experience, please allow location permission to HOn app in the next step. CONTINUE

Стъпка 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Стъпка 4

Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK | DID IT

Стъпка 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

May close to your appliance in order to correctly capture the signal.

Стъпка 6.1-6.2

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven New appliance Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting... New appliance Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Стъпка 7

Appliance connection

Your appliance has been correctly identified!

Simple icon of a kitchen oven inside a light green circular frame (no text or symbols)

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVER

NO IT'S NOT

КАК ДА ПРОМЕНЯ НАСТРОЙКИТЕ НА WIFI

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

Cooking SH 10M-LIFT ADD 5-MIN STOP Current program PROGRAMS Conventional 20°C 30.00m H: Make (20%) Efficiency Make (40%) EDIT DETAILS →

3. ПРЕДИ ДА ЗАПОЧНЕТЕ

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a window with a cabinet and swirling blue smoke, no text or symbols present.

New Jolly Function Torta ai 3 cioccolati Step 1 Precoat No > Cooking program Coasternoid Temperature 100 °C > Duration Unknown Notes It's specified way to take into cooking steps. It's more performed every time using heavy cooking, and It's always so busy and conflicting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, $80 °C Cooking program & temperature Conventional, $80 °C Duration In 35m Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be not. CANCEL YES CONFIRM

Illustration of a medical procedure involving a tool and a mouse on a tray (no text or symbols)

Camera LCD display showing time, weather icons, and control buttons

Simple diagram with a gray circle, a dot, and a curved arrow with blue arrows (no text or symbols)

Illustration of a medical procedure with a needle inserted into a patient's abdomen (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure (no text or symbols)

PRE SET TIME

Illustration of a hand cleaning a kitchen appliance with a blue cloth (no text or symbols)

H2O cleaning

PRE- SET TIME

Warning symbol with warning triangle, lightning bolt, and triangular warning symbol in a diagram

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol with warning triangle, lightning bolt, and three icons: power plug, blue triangle, and power plug

Simple line drawing of a kitchen oven with a hand cleaning it, water being poured into the oven (no text or symbols)

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating motion or force (no text or symbols)

Illustration of a hand holding a diagonal line against a vertical wall, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration showing a hand cleaning a blue cloth over a water bottle with H₂O label, likely illustrating a chemical or industrial process.

Technical line drawing of a structural bracket with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Pure technical line drawing of a mechanical component with a blue tool, no text or symbols present

6.3. ПОЧИСТВАНЕ НА ПРИНАДЛЕЖНОСТИ

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

H₂O

Line drawing of an oven with a blue arrow indicating airflow or heat transfer (no text or symbols)

- Модел на 7 нива

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Стъпка 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Стъпка 3

Hand holding a circular object inside a device (no text or symbols visible)

Стъпка 4

Hand holding a circular object inside an oven, with a blue circular arrow indicating rotation (no text or symbols)

Стъпка 5

Hand placing a circular object into an oven with a blue arrow indicating rotation (no text or symbols)

Стъпка 6

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical warning diagram showing a plug connected to an AC panel with a warning symbol and downward arrow

Стъпка 2

Illustration of a hand using a tool to zoom the square on a document or paper (no text or symbols present)

Стъпка 3

Illustration of a hand holding a small electronic component with an arrow pointing to it, next to stacked books (no text or symbols present)

Стъпка 4

Illustration of a hand inserting a plug into a wall-mounted device (no text or symbols)

Стъпка 5

Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

Стъпка 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Diagram showing a kitchen cleaning process with warning sign and cleaning device, including a hand washing a dish.

8. ОПАЗВАНЕ НА ОКОЛНАТА СРЕДА И ИЗХВЪРЛЯНЕ

8.1. ИЗХВЪРЛЯНЕ НА УРЕДА

Technical diagram of a refrigerator with labeled components and an inset close-up showing interior layout and component details.

DOBRO DOŠLI

Hvala što ste odabrali naš proizvod. Radi svoje sigurnosti i najboljih rezultata pažljivo pročitajte ovaj priručnik, uključujući upute u vezi sigurnosti i sačuvajte ga za buduću upotrebu.

Technical diagram of an oven with numbered components for identification

1. Upravljačka ploča
2. Brojevi položaja police
3. Rešetke
4. Plitice
5. Poklopac ventilatora
6. Vrata pećnice
7. Bočne žičane rešetke

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal shelves and vertical supports (no text or symbols)

3D wireframe diagram of a rectangular tray or vent with internal grid pattern (no text or symbols)

ZAUSTAVI ZAUSTAVI

Illustration of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Duboka ladica idealna je za recepte s dodanim tekućinama ili slojevima, kao što su složenci ili pečenja. Njena je dubina posebno dizajnirana kako bi hrana koja se u njenoj priprema imala željenu konzistentnost.

Teleskopske vodilice

Line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Teleskopske vodilice u pećnici police su koje se mogu produljiti, što olakšava postavljanje i uklanjanje predmeta, bez potrebe za posezanjer duboko u vruću pećnicu. Poboljšavaju sigurnost, stabilnost i mogu se postaviti na različite razine.

Dvostruki pladanj - način rada roštilja

Diagram of a rectangular tray with internal grid pattern, no text or symbols present

Line drawing of a rooster on a cutting board with dough balls (no text or symbols)

Ražanj radi zajedno s gornjim grijaćim elementom, hrana se okretanjem peče ravnomjerno. Najbolje ga je upotrebljavati za hranu srednje veličine. Idealno za ponovno otkrivanje okusa tradicionalnog pečenja.

Šarke za postupno zatvaranje / otvaranje

Simple line drawing of a cabinet with a circular arrow indicating airflow or motion (no text or symbols)

Šarke za postupno zatvaranje i otvaranje upravljanju kretanjem vrata koja se zbog njih zatvaraju glatko, bez lupanja.

Dvostruki pladanj – PARNI način rada

Illustration of a rectangular appliance with a grid pattern on top, placed inside a rack (no text or symbols visible)

Konveksni oblik prikladan je za pečenje roštiljanje u pećnici na visokoj temperaturi (220 °), omogućujući rezultate kao na roštilju čak i koc kuće, s malo dima zahvaljujući drenažnom djelovanju masti na dnu ladice.

Illustration of a mouse being heated by a medical device, no text or symbols present

Ova sonda za meso je senzor temperature koji, kada je postavljena u hranu i povezana s pećnicom, putem kabela omogućuje upravljanje unutarnjom temperaturom hrane tijekom njene pripreme. Uglavnom se koristi za ribu i meso.

Airfry tava (samo ako je uređaj opremljen*)

3D rendering of a rectangular tray with a mesh pattern inside, no text or symbols visible

Available on the App Store GET IT ON Google Play

REGISTRACIJA NOVOG KORISNIKA

• Kliknite na „Register“ (Registriraj se)
• Možete se registrirati putem računa društvenih mreža ili se registrirati adresom osobne e-pošte

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK You will not get something from your OR SIGN UP WITH EMAIL Already registered? LOGIN

BRZA REGISTRACIJA ZA UPARIVANJE

1. korak

- Odaberite „Add appliance" (Dodaj uređaj).

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank 3 buttons there is a second type Add appliance YOUR WIDGETS I recommend you do your closest HOW to live sustain home and reduce w. YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w.

2. korak

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

3. korak

- Odaberite pećnicu iz kategorije uređaja.

Select your appliance category

Seizetivone appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4. korak

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue power button and surrounding geometric shapes, no text or symbols present.

5. korak

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

May close to your appliance in order to correctly capture the signal.

Korak 6.1 - 6.2

- Odaberite kućanski uređaj, dodirnite „Connect” (Poveži se) i pričekajte nekoliko sekundi.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Open Connecting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

7. korak

Appliance connection

Your appliance has been correctly identified!

Simple icon of a kitchen oven inside a light green circular frame (no text or symbols)

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

KAKO PROMIJENITI POSTAVKE WIFI MREŽE

Nakon registracije uređaja, korisnik može odabrati sljedeće postavke Wi-Fi mreže:

• WIFI ON (UKLJUČI Wi-Fi): Stanje pećnice može se pratiti samo putem aplikacije.
• WIFI OFF (ISKLJUČI Wi-Fi): Pećnica nije spojena, ali je i dalje registrirana sa spremljenim mrežnim vjerodajnicama.

• WIFI RESET: Veza je ponovno uspostavljena i moguća je nova registracija.

• Okrenite birač funkcija u izborniku Wi-Fi mreže.

• Na zaslonu se prikazuje „On” (Uključeno).
• Okrećite birač dok se ne prikaže „Off” (Isključeno) ili postavka za resetiranje „rSt”.

ON

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

DALJINSKO UPRAVLJANJE

Daljinsko upravljanje nudi brojne prednosti za korisnike, povećava praktičnost, učinkovitost i cjelokupno iskustvo pripreme hrane i pružaj mogućnost upravljanja proizvodom izravno s uređaja i iz aplikacije hOn

Ova funkcija omogućuje da putem uređaja uživate u raznim značajkama, kao što su: trenutno ili planirano pokretanje recepata ili programa kuhanja koji su već dostupni u aplikaciji; praćenje napretka vaših recepata u stvarnom vremenu; podešavanje korištenih parametara kuhanja; praćenje postupka kuhanja pomoću sonde; upravljanje spremljenim receptima pomoću funkcije „Jolly” na proizvodu (pogledajte odgovarajući odjeljak). Nadalje, moguće je primati obavijesti nakon završetka programa ili recepata. Daljinsko upravljanje možete aktivirati isključivo kada je proizvod registriran.

i NAPOMENA: Dostupan je za sve funkcije kuhanja na proizvodu, osim za programe Gratiniranje i Supergrill.

Cooking SH 100+LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 30-90m 1/2 Preheat (50%) Efficiency Protein (40%) EDIT DETAILS →

3. PRIJE POKRETANJA

3.1. INFORMACIJE ZA POČETAK

Line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open door (no text or symbols)

4. UPOTREBA PROIZVODA

4.1. NAČIN RADA PROIZVODA

UKLJUČIVANJE/ISKLJUČIVANJE PEĆNICE

Za uključivanje pećnice okrenite birač funkcija (udesno/ulijevo) i odaberite program pečenja. Želite li je isključiti, postavite birač funkcija u položaj „0”.

UKLJUČENO ISKLJUČENO

PODEŠAVANJE PROGRAMA KUHANJA

Okrenite birač funkcija i odaberite željeni program. Na zaslonu će se pojaviti zadana temperatura koja se može urediti u svakom trenutku okretanjem desnog birača (udesno za povećanje i ulijevo za smanjenje temperature).

IZBORNIK VREMENA

Pristupite izborniku vremena pritiskom na ☐Za navigaciju dodirnite oneliko puta koliko je potrebno za unos sljedećih postavki:

PRITISNITE GUMB ZA VRIJEME 20 trajanje kuhanja tajmer odgoda početka

i NAPOMENA: nije moguće postaviti nekoliko parametara istovremeno, stoga u memoriji ostaje samo posljednji, a prethodni se briše.

TRAJANJE KUHANJA

Omogućuje se prethodno postavljanje vremena kuhanja za odabrani recept.

AKTIVACIJA: pritisnite ⏻ za ulazak u izbornik Time (Vrijeme). Dodirnite ⏻ onoliko puta koliko je potrebno za odabir funkcije „Trajanje kuhanja”. Zatim biračem odaberite vrijednost.

PRITISNITE GUMB ZA VRIJEME 2:00

12 0:00 m

- + POSTAVLJANJE TRAJANJA KUHANJA

0:10.

Odbrojavanje počinje po završetku zagrijavanja (ako je uređaj opremljen). Tijekom faze kuhanja moguće je promijeniti vrijednost trajanja okretanjem desnog birača. Kad istekne vrijeme trajanja, kuhanje se zaustavlja.

TAJMER

New Jolly Function Torta ai 3 cioccolati Step 1 Pretest No > Cooking program Commercial > Temperature 100 °C > Duration 104hrs > Note It's jolly and using the cooking plan (e.g. hot dogs, it is new, and using (sufficient cooking menu) instead), and it's always so easy and comforting and break less. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Kako podesiti funkciju Jolly:

Za podešavanje funkcije Jolly na pećnici otvorite odjeljak s receptima u aplikaciji, odaberite recept koji želite upotrijebiti i kliknite „Use As Jolly Function” (Koristi kao funkciju Jolly).

Od ovog trenutka pa nadalje, možete je pokrenuti s uređaja čak i bez interakcije s aplikacijom. Za početak kuhanja jednostavno okrenite bira funkcija na funkciju Jolly.

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, $80 °C Cooking program & temperature Conventional, $80 °C Duration In 35m Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be not. CANCEL YES CONFIRM

Line drawing of a medical procedure involving a tool and pressure gauge on a patient's abdomen (no text or symbols)

Weather icon panel showing clock, weather symbols, and temperature display with '℃' (°C) and 'm' (m)

Simple diagram with a gray circle, a dot, and a curved arrow indicating direction (no text or symbols)

Na zaslonu će se prikazati ikona sonde. Kad je ova ikona aktivna, dostupne su samo određene funkcije ili programi kuhanja. Ako pokušate koristiti druge funkcije, pećnica će prikazati poruku „can't: use probe” (Nije moguće korištenje sonde).

CAN'T USE ProbE

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Sonda se može koristiti s ručnim funkcijama (Konvencionalna, Konvencionalna + ventilator, Roštilj, Supergrill, Gratiniranje i Više razina), s KATEGORIJAMA HRANE ZA KUHANJE (meso, riba i povrće) i s programom Gentle cooking.

Kategorija hrane	Predložena temperatura u središtu hrane T °C	Predloženi položaj
Pečena govedina	45 °C	Dijagonalno u najdebljoj piti.
Pečeno meso	55 °C / 60 °C / 65 °C	Za namirnice cilindričnog oblika (npr. goveđe pečenje) postavite vrh što je moguće bliže geometrijskom središt
Perad	83 - 85 °C	U najdeblji dio prsa
Riba (cijela/odresci)	65 °C	Dijagonalno u najdebljem dijelu
Kruh/složenci	90 °C	Blizu geometrijskog središta namirnice

5. SMJERNICE ZA PRIPREMANJE HRANE

5.1. OPĆA TABLICA ZA PRIPREMU HRANE

Kategorija	Recept	Br. razina	Program kuhanja	T °C	Zagrijavanje	Pribor za kuhanje	Položaj police	Vrijeme kuhanja nakon zagrijavanja * (min)
Slatki pekarski proizvodi	Mali kolačići / mafini	1	Konvencionalna na više razina	175 °C160 °C	Y	Ladica za pečenjeLadica za pečenje	L3L4	20 - 3030 - 40
		2	Više razina	150 °C		Pečenje + dublje ladice	L2 + L5	30 - 40
		3	Više razina	140 °C		Ladice za pečenje	L2 + L4 + L6	40 - 50
	Biskviti (26 cm ∅)	1	Konvencionalna na više razina	170 °C150 °C	Y	Metalna rešetka + kalup za kolačeMetalna rešetka + kalup za kolače	L3L4	30 - 4040 - 50
		2	Više razina	150 °C		Metalne rešetke + kalup za kolače	L1 + L4	50 - 60
	Keksi	1	Konvencionalna na više razina	150 °C+ 150 °C	Y	Ladica za pečenjeLadica za pečenje	L3L4	25 - 3030 - 40
		2	Više razina	140 °C		Ladice za pečenje + dublje ladice	L2 + L5	30 - 40
		3	Više razina	140 °C		Ladice za pečenje	L2 + L4 + L6	35 - 40
	Francuska peciva s punjenjem	1	Konvencionalna	190 °C	Y	Ladica za pečenje	L4	25 - 35
		2	Više razina	170 °C		Ladica za pečenje	L3	25 - 35
	Jorkširski puding	1	Konvencionalna	200 °C	Y	Ladica za pečenje	L3	20 - 30
	Puslice	1	Više razina	90 °C	Y	Ladica za pečenje		90-160
	Macaron	1	Konvencionalna	150 °C	Y	Ladica za pečenje	L3	15 - 20
	Pita od jabuka	1	Konvencionalna	185 °C	Y	Metalna rešetka + kalup za kolače	L2	60 - 70
		1	Više razina	170 °C	Y	Metalna rešetka + kalup za kolače	L4	65 - 75
	Tarte tatin	1	Konvencionalna	170 °C	Y	Metalna rešetka + kalup za kolače	L2	40 - 60
	Cokoladni nabujak	1	Konvencionalna	200 °C	Y	Ladica za pečenje + kalupi	L3	10 - 15
	Torta sa sirom	1	Konvencionalna	150 °C	Y	Metalna rešetka + kalup za kolače	L2	50 - 65
	Smrznuti kroasani	1	Konvencionalna	180 °C	Y	Ladica za pečenje	L3	20 - 25
		2	Više razina	180 °C		Ladice za pečenje	L2 + L5	25 - 35
		3	Više razina	160 °C		Ladice za pečenje	L2 + L4 + L6	30 - 40
	Savijača, smrznuta	1	Konvencionalna	210 °C	Y	Ladica za pečenje	L3	30 - 45
Kruh i lepinja	Tostirani kruh	1	Supergrill	5	N	Metalna rešetka	L6	4 - 6
	Focaccia	1	Konvencionalna	200 °C	Y	Ladica za pečenje	L2 ili L3	25 - 35
Kategorija	Recept	Br. razina	Program kuhanja	T °C	Zagrija- vanje	Pribor za kuhanje	Položaj police	Vrijeme kuhanja nakon zagrijavanja * (min)
	Kruh, cijeli	1	Konvenci- onalna	200 °C	Y	Ladica za pečenje	L3	35 - 50
Slane pite i složenci	Slani kolači / quichevi (∅ 26 cm)	1	Konvenci- onalna	200 °C	Y	Metalna rešetka + plitica za quiche	L1 ili L2	30 - 50
		2	Više razina	180 °C		Metalna rešetka + plitica za quiche	L1 + L4	50 - 70
	Nabujak od sira	1	Konvenci- onalna	200 °C	Y	Ladica za pečenje + kalupi	L3	20 - 35
	Lazanje, svježe	1	Konvenci- onalna	200 °C	Y	Metalna rešetka + vatrostalna posuda	L3	40 - 60
	Lazanje, smrznute	1	Konvenci- onalna	180 °C	Y	Metalna rešetka + vatrostalna posuda	L3	50 - 60
	Cannelloni, smrznuti	1	Konvenci- onalna	180 °C	Y	Metalna rešetka + vatrostalna posuda	L3	45 - 55
	Pečena tjestenina	1	Grati- niranje	200 °C	Y	Metalna rešetka + vatrostalna posuda	L4	20 - 30
Pizza	Pizza, svježa (ladica)	1	Konvenci- onalna	250 °C	Y	Ladica za pečenje	L2 ili L3	15 - 20
	Pizza, svježa (ladica)	1	Pizza	250 °C	N	Ladica za pečenje	L2 ili L3	18 - 25
		2	Više razina	180 °C	Y	Ladice za pečenje + dublje ladice	L2 + L5	25 - 35
	Pizza, svježa (okrugla)	1	Konvenci- onalna	300 °C	Y	Ladica za pečenje	L2 ili L3	8 - 10
	Pizza, svježa (okrugla)	1	Pizza	300 °C	N	Ladica za pečenje	L2 ili L3	15 - 20
		2	Više razina	180 °C	Y	Ladice za pečenje + dublje ladice	L2 + L5	30 - 40
	Pizza, smrznuta (tanka kora)	1	Pizza	200 °C	N	Metalna rešetka	L2	10 - 15
	Pizza, smrznuta (tanka kora)	1	Konvenci- onalna	220 °C	Y	Metalna rešetka	L3	10 - 15
		2	Više razina	200 °C		Metalna rešetka	L2 + L5	15 - 25
		3	Više razina	180 °C		Metalna rešetka	L2 + L4 + L6
Meso i perad	Pržena cijela piletina (1 do 1,2 kg)	1	Grati- niranje	220 °C	Y	Metalna rešetka / L4, postavite ladicu za pečenje na L1 s pola šalice vode	L4	40 - 60
	Pileća batkovi	1	AirFry**	220 °C	N	Airfry tava**	L4	30 - 50
	Pečena patka	1	Grati- niranje	200 °C	Y	Metalna rešetka + vatrostalna posuda	L3	50 - 60
	Pijetao	1	Grati- niranje	220 °C	Y	Metalna rešetka, postavite ladicu za pečenje na L1	L4	20 - 40
	Pečena puretina	1	Grati- niranje	200 °C	Y	Metalna rešetka + vatrostalna posuda	L3	50 - 60
Kategorija	Recept	Br. razina	Program kuhanja	T °C	Zagrijavanje	Pribor za kuhanje	Položaj police	Vrijeme kuhanja nakon zagrijavanja * (min)
	Svinjska rebra (1000-1200g)	1	Konvencionalna	200 °C	Y	Metalna rešetka + vatrostalna posuda	L3	80 - 100
	Kobasice	1	Supergrill	4	Y	Metalna rešetka	L5	40 - 50
	Goveđi file (1000 do 1500 g)	1	Gentle cooking **	60 °C	N	Metalna rešetka + vatrostalna posuda	L3	60 - 80
	Pečena govedina (500 g)	1	Gratiniranje	220 °C	Y	Ladica za pečenje	L3	20 - 40
	Mesna štruca (1000 do 1500 g)	1	Konvencionalna	180 °C	Y	Ladica za pečenje	L3	40 - 50
	Pečena piletina s krumpirom	1	Gratiniranje	200 °C	Y	Duboka ladica	L4	45 - 60
Riba i morski plodovi	Morski plodovina žaru	1	Supergrill	4	N	Metalna rešetka	L5	15 - 30
	Smrznuti riblji štapići	1	AirFry**	200 °C	N	Airfry tava**	L4	20 - 25
	Pečena riba	1	ECO	200 °C	N	Metalna rešetka, postavite ladicu za pečenje na L1	L3	40 - 60
Povrće	Gratinirano povrće	1	ECO	200 °C	N	Metalna rešetka + vatrostalna posuda	L3	80-90
	Smrznuti pomfri (300 do 500 g)	1	AirFry**	220 °C	N	Airfry tava**	L4	18 - 25
	Gratinirani krumpir	1	Gratiniranje	200 °C	Y	Metalna rešetka + vatrostalna posuda	L4	15 - 25
	Pečeni krumpir	1	Konvencionalna	200 °C	Y	Ladica za pečenje	L4	30 - 50

Line drawing of a kitchen oven with an open tray and side panel (no text or symbols)

PRE SET TIME

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

H2O cleaning

Funkcija H2O cleaning dizajnirana je za lako uklanjanje lagane prljavštine, brzo je i ekološki prihvatljivo rješenje za čišćenje unutrašnjosti pećnice snagom pare.

Kako funkcionira:

1. Ulijte 100 ml vode u donje udubljenje u pećnici.
2. Okrenite birač na 🚗/». Ako je potrebno, okrenite birač za podešavanje programa Hydro Clean. Pričekajte da funkcija odradi svoj posao tijekom postavljenog vremena.
3. Po završetku postupka čišćenja, pričekajte da se pećnica ohladi.
4. Kad se uređaj ohladi, očistite unutarnje površine pećnice krpom.
5. ▲ UPOZORENJE: Provjerite je li se uređaj ohladio prije nego ga dodirnete. Vodite računa o svim vrućim površinama jer postoji opasnost od opeklina. Koristite destiliranu ili pitku vodu.

H2O 100 ml

PRE- SET TIME

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

Katalitičko čišćenje

Katalitičke ploče oblažu pećnicu i pružaju vam luksuz da se ne morate boriti s prljavom pećnicom. Ploče su obložene specijaliziranim emajlom koji se diči mikroporoznom strukturom, vještom u apsorpciji masnih ostataka prskanja.

Katalitičkom kemijskom reakcijom učinkovito pretvaraju apsorbiranu mast u plinovite elemente kada su izloženi visokim temperaturama.

Line drawing of an oven with a rack and door, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol with warning triangle, battery, and three icons: triangular warning sign, triangular warning triangle, and battery.

Line drawing of a kitchen sink with a hand cleaning it, and a bottle nearby (no text or symbols)

6.2.2. VANJSKE POVRŠINE PEĆNICE: uklanjanje i čišćenje staklenih vrata

1. Postavite vrata na 90°. Zakrenite jezičke za zaključavanje šarke tako da su okrenuti od pećnice.

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

2.

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

1. VPOZORENJE: Vanjsko staklo ne može se ukloniti.

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

1. Očistite staklo mekom krpom i odgovarajućim sredstvima za čišćenje.

Illustration of a hand cleaning a blue cloth over a surface with a water bottle and beaker (no text or symbols)

Technical line drawing of a structural bracket with arrows indicating direction (no text or symbols)

1. Zatim vratite vrata na 90° i zakrenite jezičke za zaključavanje šarki tako da gledaju prema unutrašnjosti pećnice.

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Pure technical line drawing of a mechanical component with a blue tool, no text or symbols present

6.3. ČIŠĆENJE PRIBORA

Nakon svake upotrebe temeljito očistite pribor i osušite ga ručnikom. Tvrdokorne je ostatke na priboru pribora možda najbolje namočiti u mješavini vode i sapuna otprilike 30 minuta prije drugog pranja.

ČIŠĆENJE BOČNIH REŠETKI:

- Model sa 6 razina

1. Uklonite bočne rešetke povlačenjem u smjeru strelica.
2. Žičane rešetke prilikom čišćenja stavite u perilicu posuđa ili upotrijebite mokru spužvu, a zatim ih obavezno osušite.
3. Nakon čišćenja postavite bočne police obrnutim redoslijedom.

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Illustration showing a hand cleaning a rack with a blue cloth, next to a water bottle labeled 'H2O' and a spray bottle.

Line drawing of an oven with a blue arrow indicating a directional flow or movement (no text or symbols)

- Model sa 7 razina

1. Uklonite bočne nosače tako što ćete prvo povući prednji dio u smjeru strelice i odvojiti stražnji dio od vijaka.
2. Žičane rešetke prilikom čišćenja stavite u perilicu posuđa ili upotrijebite mokru spužvu, a zatim ih obavezno osušite.
3. Nakon čišćenja postavite bočne police obrnutim redoslijedom: postavite stražnji dio između vijaka i gurnite prednji dio u smjeru strelice.

6.4. ODRŽAVANJE

ZAMJENA DIJELOVA

Safety warning diagram showing a plug connected to an ON/OFF switch with a warning symbol and directional arrows

1. korak


Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

1. korak


Hand holding a circular object inside an open appliance (no text or symbols visible)

1. korak


Hand holding a circular object inside a kitchen appliance (no text or symbols visible)

1. korak


Hand holding a circular object above an open oven with a blue circular arrow indicating rotation (no text or symbols)

1. korak


Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical diagram showing a plug connected to an ON/OH panel with warning symbol and directional arrows

1. korak


Illustration of a hand holding a tool near a document with an arrow, next to a bookshelf (no text or symbols)

1. korak


Illustration of a hand inserting a small object into a device inside a circular frame, with no visible text or symbols.

1. korak


Illustration of a hand holding a small electrical component inside a circular frame, with no visible text or symbols.

1. korak


Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

1. korak


Electrical safety warning diagram showing plug, fuse, and circuit breaker with hazard symbol

Diagram showing a kitchen cleaning process with a warning triangle and a hand cleaning the oven, accompanied by a water bottle labeled M20.

8. ZAŠTITA OKOLIŠA I ZBRINJAVANJE

8.1. ZBRINJAVANJE UREĐAJA

Ovaj uređaj označen je u skladu s Direktivom 2012/19/EZ o otpadnoj električnoj i elektroničkoj opremi (OEEO). Otpadna električna i elektronička oprema sadrži onečišćujuće tvari (koje mogu imati negativan učinak na okoliš) i bazne elemente (koji se mogu ponovno upotrijebiti). Važno je posebno obraditi otpadnu električnu i elektroničku opremu da bi se ispravno uklonili i odložili onečišćivači i vratili svi materijali. Pojedinci mogu imati važnu ulogu u postizanju cilja da otpadna električna i elektronička oprema ne postane ekološki problem. Treba se pridržavati nekoliko osnovnih pravila:

Technical diagram of a refrigerator interior with labeled components and an inset showing a close-up view of the interior space.

VELKOMMEN

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Skriv dit serienummer her til fremtidig reference.

2.2. TILBEH∅R

Line drawing of a two-tiered storage bed with horizontal racks (no text or symbols)

3D diagram of a rectangular tray with internal compartments, no text or symbols present

STOP STOP

3D wireframe diagram of a rectangular tray or container with internal compartments (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Diagram of a rectangular tray with internal grid pattern, no text or symbols present

Line drawing of a rooster rolling out dough on an open kitchen tray (no text or symbols)

Simple line drawing of a window with a circular arrow indicating airflow or motion (no text or symbols)

Illustration of a rectangular appliance with a grid pattern on top, placed inside a rack (no text or symbols visible)

Illustration of a mouse being tested with a syringe and probe, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed on a shelf (no text or symbols visible)

Available on the App Store GET IT ON Google Play

REGISTRERING AF NY BRUGER

• Klik på "Registrer"
• Du kan registrere dig via dine SoMe-konti eller tilmelde dig med din personlige e-mailadresse

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK You are information missing, so you will be shared and we can't get just anything. Then you. GT SIGN UP WITH EMAIL Already registered? LOGIN

TILMELDING TIL HURTIG PARRING

Trin 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank 2 better there is a second now Add appliance YOUR WIDGETS Luxury home darker shirt YOUE NEWS What functions do smart appliances have? How to live sustain home and reduce w.

Trin 2

- Tillad geolokation.

Allow your location permission

I do enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Trin 3

Select your appliance category

Seizetivone appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Trin 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue power button and surrounding icons, no text or symbols present.

Trin 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

May close to your appliance in order to correctly capture the signal.

Trin 6.1-6.2

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

Converting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Trin 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVEN

NO IT'S NOT

SÅDAN AENDRES WI-FI-INDSTILLINGERNE

Simple diagram with a gray circle, plus sign, and curved arrows indicating direction (no text or symbols)

OFF STK

FJERNBETJENING

Cooking SH UNLEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 100 Poles at 100% 50-70m Efficiency Poles (OFF) EDIT DETAILS →

3. INDEN DU STARTER

3.1. OPLYSNINGER FOR AT BEGYNDE

L 0 TRYK FOR AT BEKRÆFTE

- + INDSTIL LYSSTYRKE

br2 br1

01 TRYK FOR AT BEKRÆFTE

- • + INDSTIL LYD

Sn2 Sn1

07 TRYK FOR AT BEKRÆFTE

Line drawing of a kitchen sink with a hand cleaning the interior, next to a washing bottle and a bowl (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open door (no text or symbols)

4. BETJENING AF PRODUKTET

4.1. SÅDAN VIRKER PRODUKTET

TÆND/SLUK FOR OVNEN

TRYK PÅ TID 20

tilberedningstid minutur timerstart

TRYK PÅ TID 2.0

10:30m

- • + INDSTIL TIMERSTART

20:00

New Jolly Function Torta ai 3 cioccolati Step 1 Problem No > Cooking program Conventional > Temperature 100 °C > Duration In-line > Note It's quick and easy to make sure the sleeping. It's one and two being difficult using heavy (snow), and It's always so crazy and confusing and dark loss. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, $80 °C Cooking program & temperature Conventional, $80 °C Duration In 35m Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be real. CANCEL YES CONFIRM

Line drawing of a medical procedure involving a rodent and pressure gauge attached to a patient's abdomen (no text or symbols)

Camera LCD screen displaying time, weather icons, and temperature display

Simple diagram with a gray circle, a dot, and a curved arrow indicating direction (no text or symbols)

Medical illustration of a surgical instrument with a tool and tubing, no text or symbols present

Line drawing of an oven with a rack and vent, showing internal structure and airflow direction (no text or symbols)

PRE SET TIME

Hand cleaning a window with a blue cloth (no text or symbols visible)

H2O Clean

PRE- SET TIME

Warning symbol with warning triangle, lightning bolt, and triangular warning symbol in a diagram

Hand cleaning a window with a blue cloth, no text or symbols visible

Katalyserengøring

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

MAX °C 10-20 min

Warning symbol with warning triangle, lightning bolt, and three icons: warning sign, triangular warning triangle, and lightning bolt

Line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

Line drawing of a cabinet with two hands operating it, no text or symbols present

Pure technical diagram of a mechanical component with a blue arrow indicating direction (no text or symbols)

Simple line drawing of a tilted rectangular frame with directional arrows indicating movement (no text or symbols)

Illustration of a hand holding a diagonal line against a vertical wall, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration of a hand cleaning a blue cloth over a surface with a water bottle and H2O label (no text or symbols on main objects)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a cabinet with two hands inserting a tool into the opening (no text or symbols)

Pure technical line drawing of a mechanical component with a blue tool, no text or symbols present

6.3. RENG∅RING AF TILBEH∅R

RENG∅RING AF SIDESKINNERNE:

- Model med 6 niveauer

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

H₂O

Line drawing of an oven with a blue arrow indicating airflow or heat transfer (no text or symbols)

- Model med 7 niveauer

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and directional arrows.

Trin 2

Hand holding a paper with a circular arrow inside an open box (no text or symbols)

Trin 3

Hand holding a circular object inside a device (no text or symbols visible)

Trin 4

Hand holding a circular object inside an oven, with a blue circular arrow indicating rotation (no text or symbols)

Trin 5

Hand holding a circular object inside an oven, with a blue arrow indicating rotation (no text or symbols)

Trin 6

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Electrical diagram showing a plug connected to an ON/OH panel with warning symbol and directional arrows

Trin 2

Illustration of a hand holding a pen over a document inside a storage cabinet (no text or symbols visible)

Trin 3

Illustration of a hand inserting a small object into a device inside a circular frame, with no visible text or symbols.

Trin 4

Hand holding a device with an arrow pointing to a wall-mounted component, next to stacked books (no text or symbols visible)

Trin 5

Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

Trin 6

Electrical safety warning diagram showing plug, fuse, and circuit breaker with hazard symbol

Diagram showing a kitchen cleaning process with warning label and action illustration

8.1. BORTSKAFFELSE AF APPARATET

Technical diagram of a refrigerator with labeled components and an inset showing a close-up view of the interior panel.

TERVETULOA

4.1. MITEN TUOTE TOIMII
4.2. KYPSENNYSTOIMINNOT
4.2.1. VAKIOTOIMINNOT
4.2.2. ERIKOISTOIMINNOT

5. RUOANVALMISTUSOHJEET

5.1. YLEISET ASETUKSET
5.2. EVERYDAY COOKING -TAULUKKO

6. HOITO JA PUHDISTUS

Technical diagram of an oven with numbered components for identification

Empty white rectangle with a thin black border (no text or symbols)

Line drawing of a two-tiered dormer bed with horizontal bars and a flat top (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments (no text or symbols)

STOP STOP

Simple line drawing of a rectangular tray or container with internal compartments (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on a rack (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and internal grid lines (no text or symbols)

Line drawing of a roasted chicken on an induction tray inside a kitchen (no text or symbols)

Simple line drawing of a door with a circular arrow indicating airflow or motion (no text or symbols)

Line drawing of a rectangular appliance with internal grating and lid, placed on a shelf (no text or symbols)

Illustration of a mouse being fed with a medical device, no text or symbols present

3D rendering of a rectangular tray with a mesh pattern inside, placed on a shelf (no text or symbols visible)

Available on the App Store GET IT ON Google Play

UUDEN KÄYTTÄJÄN REKISTERÖINTI

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information missing (to you will be shared and let you will not want anything from you. ) OR SIGN UP WITH EMAIL Already registered? LOGIN

NOPEA PARILIITOS

Vaihe 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank 2 better there is a second row Add appliance YOUR WIDGETS Lemon you can darker sit out What functions do smart appliances have? How to live sustain heme and reduce w

Vaihe 2

Allow your location permission

I do enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Vaihe 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Vaihe 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue power button and surrounding icons, no text or symbols present.

Vaihe 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. On app is looking for your appliance...

00:00:40

May close to your appliance in order to correctly capture the signal.

Vaihe 6.1-6.2

Appliance connection

Searching your appliance

Don't burn-off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Own Convesting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Vaihe 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVER

NO IT'S NOT

NÄIN MUUTAT WIFI-ASETUKSIA

Simple diagram with a gray circle, a dot, and a plus sign, with curved arrows indicating direction (no text or symbols)

OFF STK

ETÄOHJAUS

2:00

200°

Cooking SH UNLEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 30-90cm 100 Pricke (CM) Efficiency Pricke (GRI) EDIT DETAILS →

3. ENNEN ALOITTAMISTA

3.1. KÄYNNISTYSTÄ KOSKEVAT TIEDOT

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bowl of water nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open door (no text or symbols)

4. TUOTTEEN TOIMINTA

4.1. MITEN TUOTE TOIMII

UUNIN KYTKEMINEN PÄÄLLE/POIS PÄÄLTÄ

4.2. KYPSENNYSTOIMINNOT

NOPEA ESILÄMMITYSVAIHTOEHTO

4.2.2. ERIKOISTOIMINNOT

New Jolly Function Torta ai 3 cioccolati Step 1 Protocol No Cooking program Commercial Temperature LED °C Duration On/4-min Note It is a daily and weekly set of the cookings, it is not, and every (without using heavy materials), and it always so easy and confirming and don't know. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, $80 °C Cooking program & temperature Conventional, $80 °C Duration In 35m Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be real. CANCEL YES CONFIRM

Illustration of a medical procedure involving a tool and pressure gauge on a patient's abdomen (no text or symbols)

Camera LCD screen displaying weather and navigation icons with temperature and mode labels

Simple diagram with a gray circle, a dot, and a curved arrow indicating rotation or direction (no text or symbols)

Medical catheter device with attached tubing and a bone-shaped object (no text or symbols)
