H6 ID2P3T1HTB - Oven HAIER - Free user manual and instructions

Product type	Built-in oven
Brand	Haier
Model	H6 ID2P3T1HTB
Dimensions (H x W x D)	595 x 595 x 550 mm (approx.)
Power supply	220-240 V ~ 50/60 Hz
Capacity	71 L (approx.)
Total power	3200 W (approx.)
Cooking functions	Multi-level, Fan-assisted, ECO, Bottom heat + fan, Natural convection, Supergrill, Pizza, Defrost
Cleaning	H2O-Clean (steam) and catalytic panels
Included accessories	Metal grid, oven tray, deeper tray, side grids, telescopic slides, double barbecue plate, air fryer tray
Lighting	Interior bulb (class G)
Cooling fan	Yes
Safety	Child safety (screen lock), automatic shut-off, soft-close door
Display	LED with main menu, timer, alarm
Settings	Time of day, alarm volume, screen brightness
Installation	Build-in in a column or under worktop
Weight	Approximately 35 kg
EAN code	Not disclosed
Repairability	Spare parts available via customer service

Frequently Asked Questions - H6 ID2P3T1HTB HAIER

How to set the time on the Haier H6 ID2P3T1HTB oven?

When the appliance is in standby, the screen shows 'OFF'. Press '+' to adjust the time. Wait 5 seconds to confirm. To change the time later, press the main menu twice (≡ icon), then use '+' or '-'.

How to activate child safety?

Press the main menu once (≡), then press '+' to confirm. The screen displays '07' to indicate lock. To deactivate, press main menu then '-'.

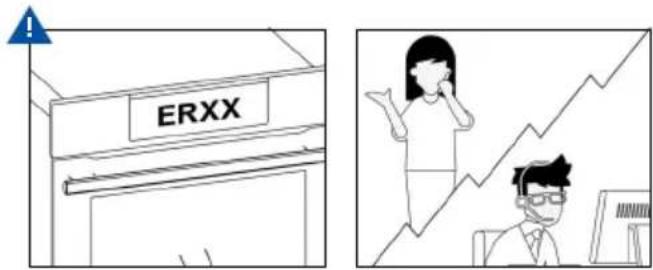

What to do if an error code (ERXX) is displayed?

Turn off the oven and unplug it. Wait a few minutes, then plug it back in. If the error persists, contact customer service and provide the displayed ERXX code.

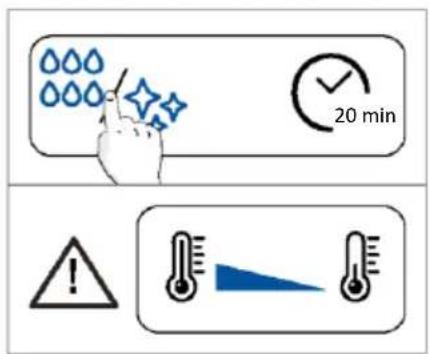

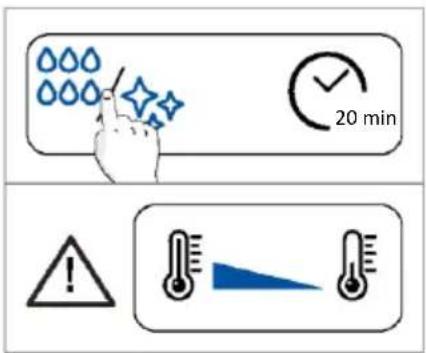

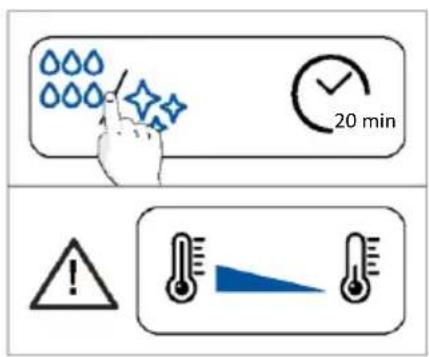

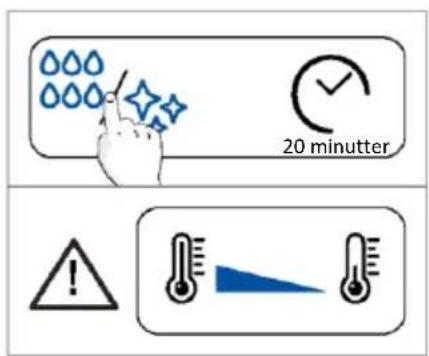

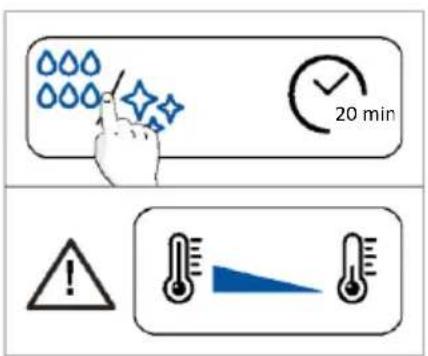

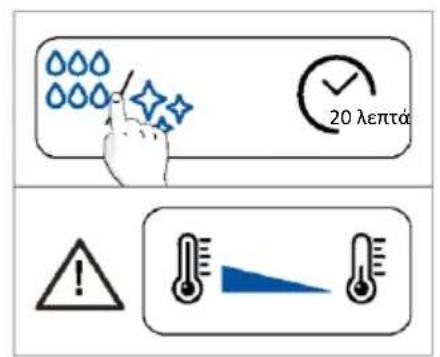

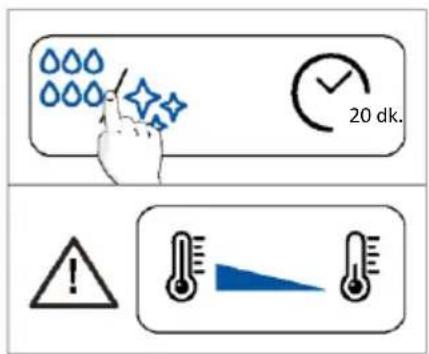

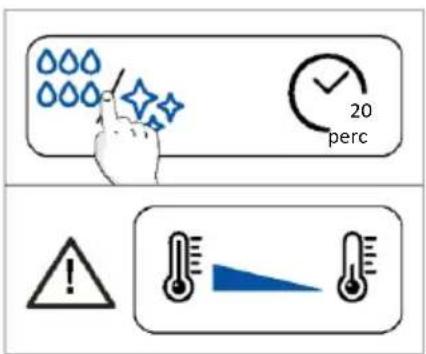

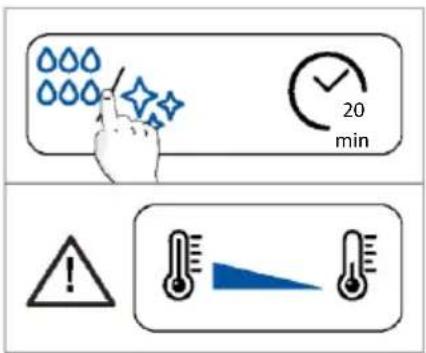

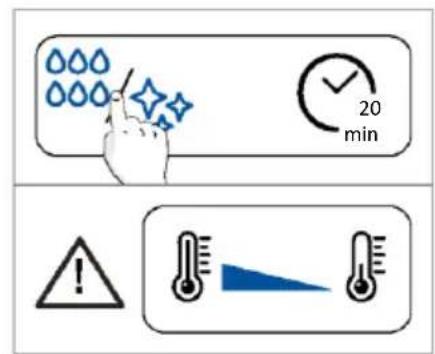

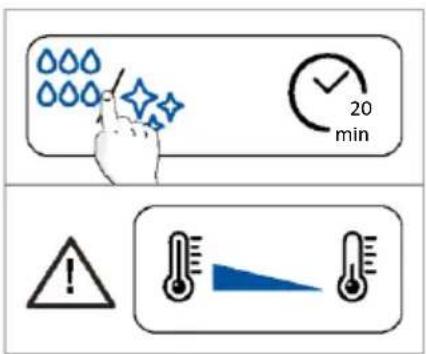

How to use the H2O-Clean steam cleaning function?

Pour 150 ml of water into the bottom of the oven. Turn the function knob to the symbol / ✦ and set temperature to 100 °C. Let it run for 20 minutes. After cooling, wipe the interior with a cloth.

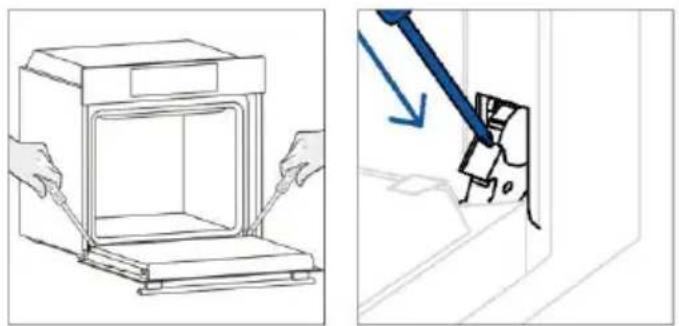

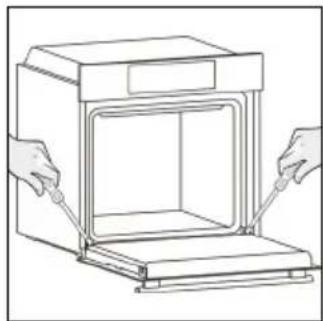

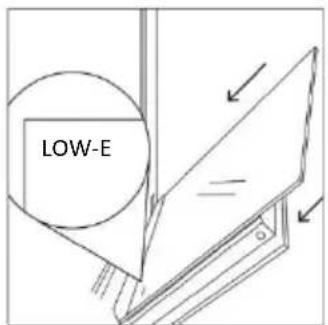

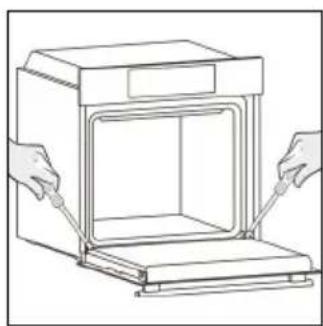

How to remove the oven door for cleaning?

Open the door to 90°, turn the hinge locking tabs outward. Position the door at 45°, press the side buttons and pull to remove the cover. Carefully remove the inner glass. Clean with a soft cloth and reassemble in reverse order.

Do I need to preheat the oven before each cooking?

It depends on the function. Functions like Natural convection or Multi-level require preheating (indicated 'YES' in the table). For ECO, Supergrill, or Bottom heat + fan, preheating is not necessary.

How to set the cooking timer?

Press the timer menu (Ⓤ), use '+' or '-' to set the duration. Confirm by waiting 5 seconds or pressing Ⓤ again. The countdown starts. To cancel, hold Ⓤ for 3 seconds.

Can I use aluminum foil in the oven?

No, it is not recommended to cover the oven walls with aluminum foil as it could melt and damage the enamel. Use parchment paper or suitable containers.

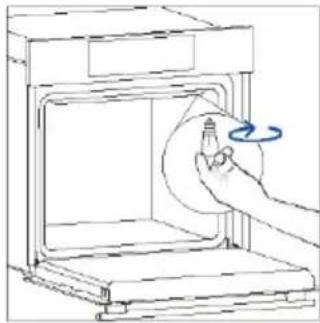

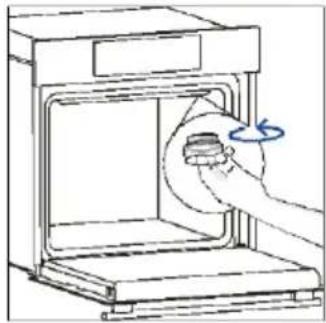

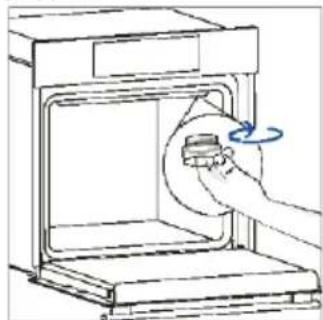

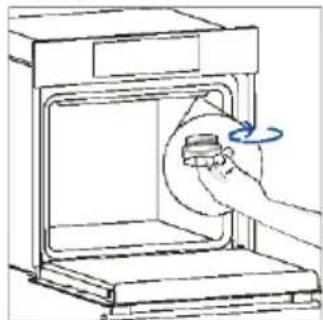

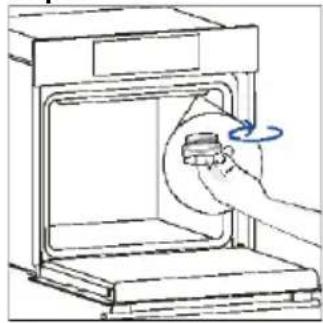

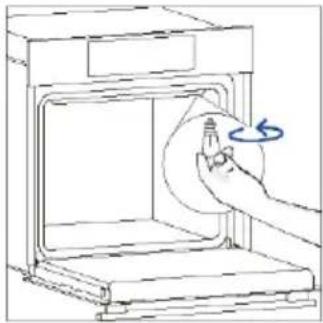

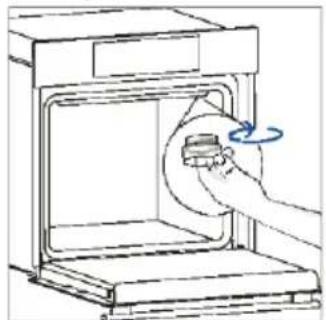

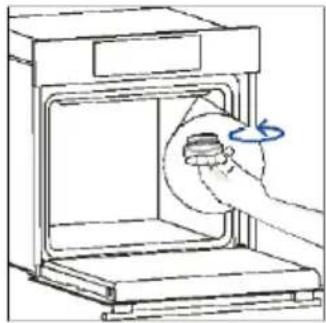

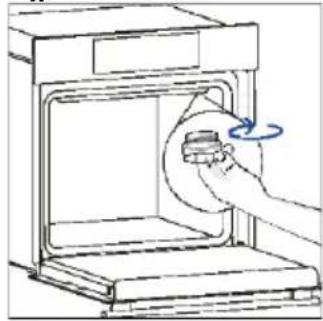

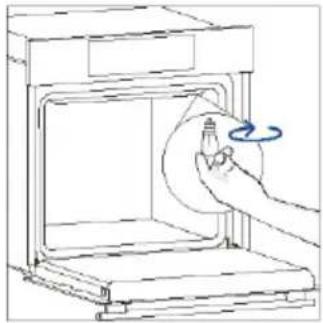

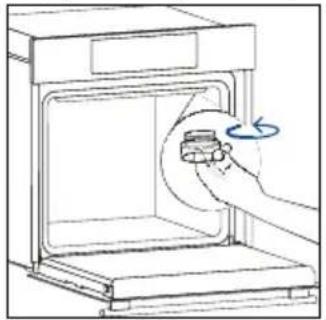

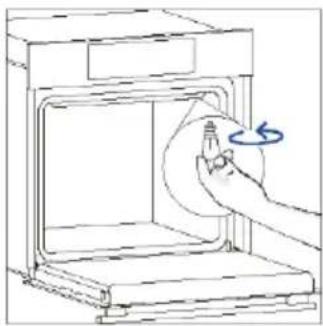

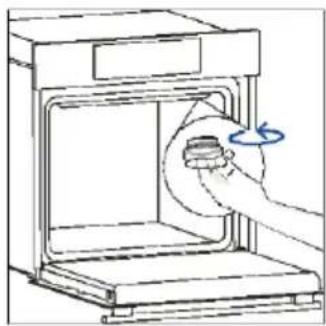

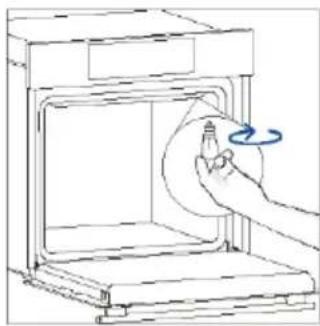

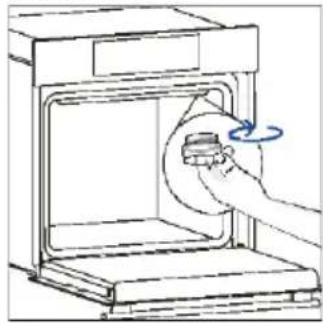

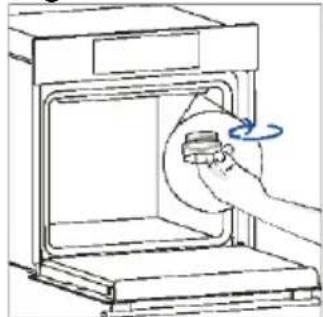

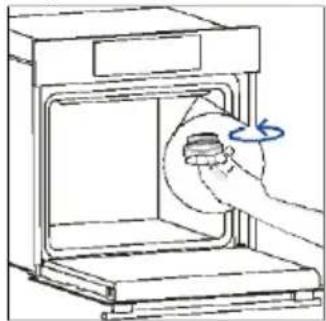

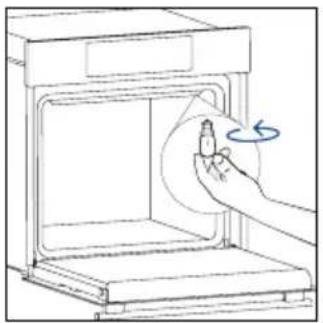

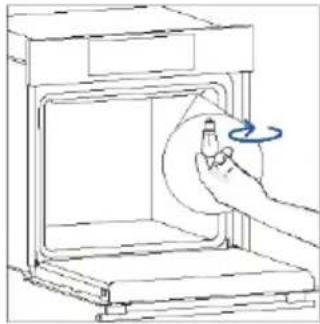

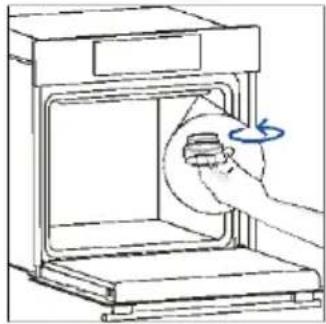

How to change the oven light bulb?

Unplug the oven. Remove the glass cover, unscrew the bulb and replace it with a bulb of the same type (class G). Replace the cover.

What to do if condensation forms on the door?

This is normal. To reduce condensation, wait 10-15 minutes after turning on the oven before placing food inside. Condensation disappears when the cooking temperature is reached.

USER MANUAL H6 ID2P3T1HTB HAIER

Haier.com

WELCOME

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference.

Before installing the oven note the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the oven's features and accessories may vary depending on the model you purchased.

SUMMARY

1. SAFETY INFORMATION

2. PRODUCT INTRODUCTION

2.1. Overview of the product
2.2. Accessories
2.3. Control panel

3. BEFORE STARTING

3.1. Information to start
3.2. First usage
3.3. Preliminary cleanin

4. OPERATION OF PRODUCT

4.1. How the product works
4.2. Cooking functions
4.2.1. Standard functions

5. COOKING GUIDELINES

5.1. General Cooking tables

6. CARE & CLEANING

6.1. General recommendations
6.2. Cleaning the oven
6.2.1. Inside the oven: cleaning functions

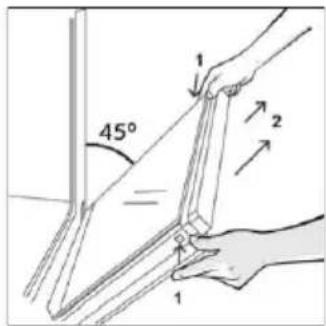

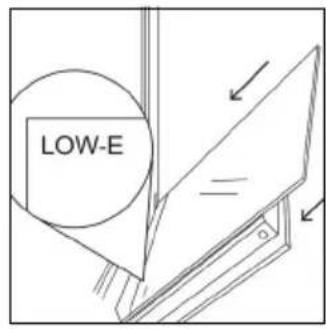

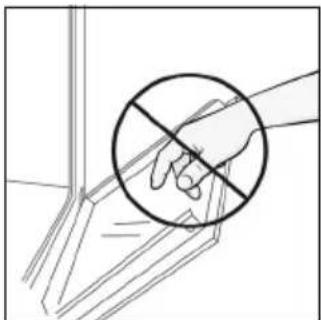

6.2.2. Outside the oven: removal and cleaning the glass door

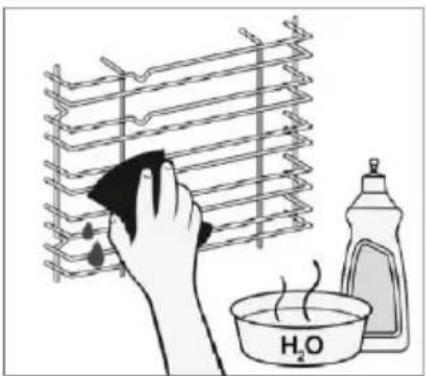

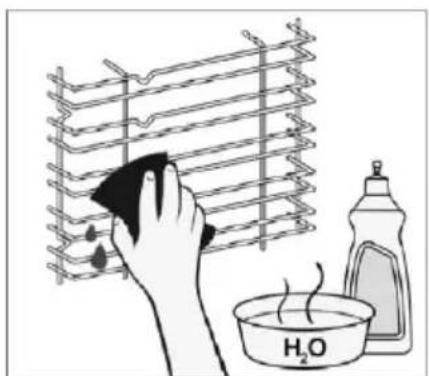

6.3. Cleaning of accessories
6.4. Maintenance

7. TROUBLESHOOTING

8. ENVIRONMENTAL PROTECTION & DISPOSAL

9. INSTALLATION

GENERAL WARNINGS

• Do not use a steam cleaner for cleaning operations.
• During use the appliance become hot. Care should be taken to avoid touching heating elements inside the oven.

Use in accordance with attendend use

- Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

Use limitations

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept at away unless continuously supervised.
• WARNING: Accessible parts may become hot during use. Young children should be kept away.

INSTALLATION WARNINGS

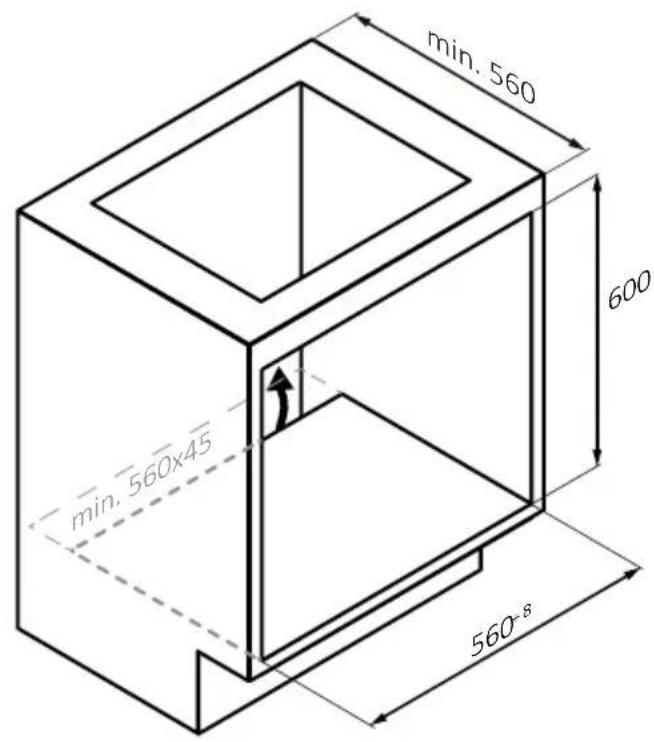

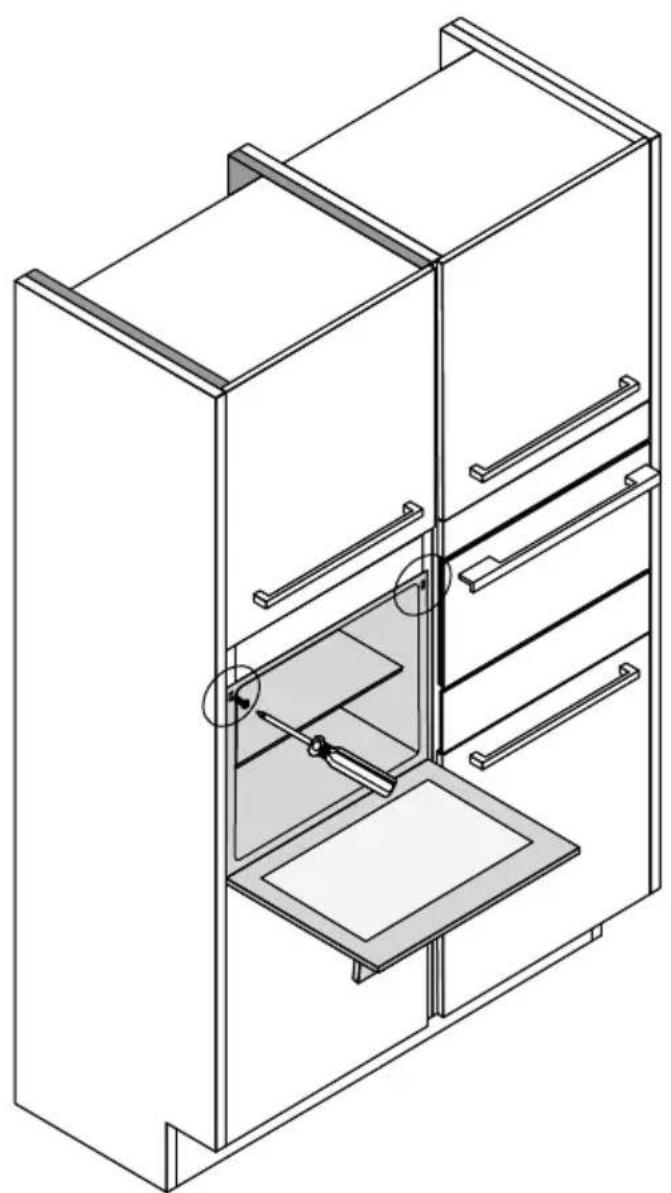

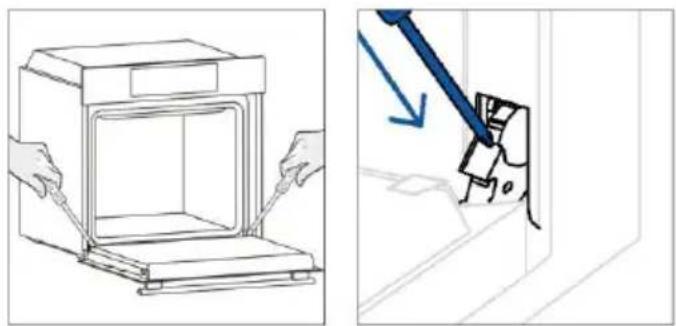

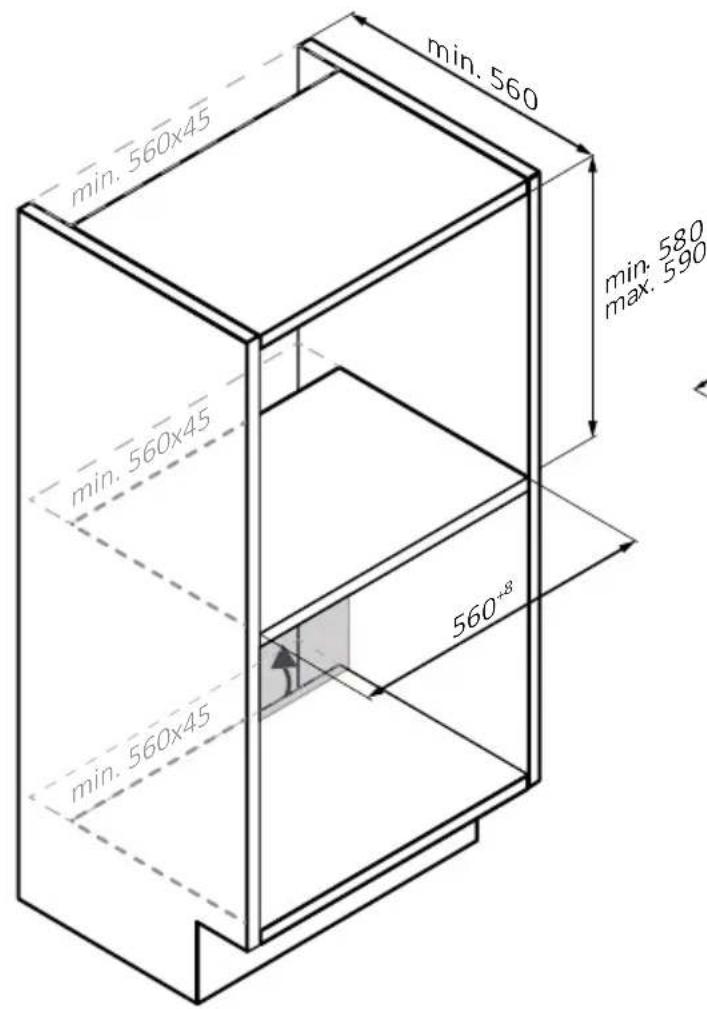

- The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on the illustrations according to the type of fitting. Always fix the oven to the furniture with screws provided with the appliance.

- No additional operation/setting is required in order to operate the appliance at the rated frequencies.

- The appliance must not be installed behind a decorative door in order to avoid overheating.

- During installation the oven should be disconnected from the mains electricity supply.

- If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed.

- Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

- Installation must be carried on by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instruction.

- After unboxing the appliance, always check it is not damaged, in case of issue contact the customer service before installing and do not connect to the power supply.

- Remove the packaging material before operating the appliance.

- During installation do not use the oven door's handle to lift and move the oven.

- The installation furniture and the adjacent ones must withstand temperatures of 95°C.

- It is recommended to wear protective gloves during installation to avoid cut injuries.

- Do not install the product in open environments exposed to atmospheric agents.

- This appliance is designed to be used at altitude lower than 2000m.

ELECTRICAL WARNINGS

- The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional.

Connection to the power source can be made by plug or by fixed wiring placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.

In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country.

The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• For any repairs, refer only to the Customer Care Department and request the use of original spare parts.

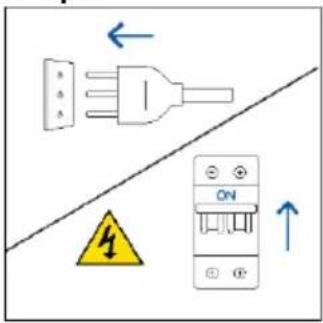

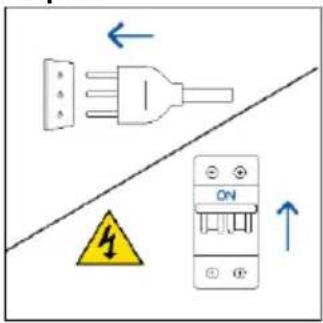

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.
• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.

• The use of any electrical appliance implies the observance of some fundamental rules:

• do not pull on the power cable to disconnect the appliance from the power source;

• do not touch the appliance with wet or damp hands or feet;
• in general the use of adaptors, multiple sockets and extension cables is not recommended;
• in case of malfunction and /or poor operation, switch off the

appliance and do not tamper with it.

• NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed.
• Any repair, installation and maintenance not carried out correctly can seriously endanger the user.
• The manufacturing company hereby states that it does not assume any responsibility for direct or indirect damages caused by incorrect installation, maintenance, or repair work. Furthermore, it is not liable for damages caused by the absence or interruption of the grounding system (e.g., electric shock).
• CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplier through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance is not designed to be activated by an external timer or separate remote control system.

USE & MANTEINANCE

• The dripping pan collects the residues that drip during cooking.

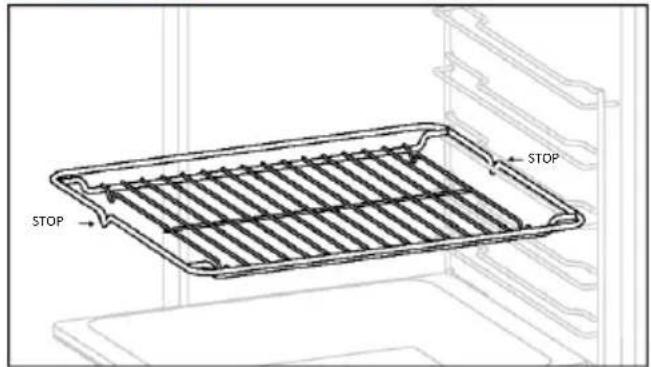

• When you place the grid on the side racks, make sure that the shorter section of the side (between the stop and the extremity) is directed towards the interior of the oven. If the grid has a decorative metal bar, pay attention to position it on the exterior of the oven so that the brand logo can be visible and readable. For the correct positioning refer also to the image in the Accessories section of this user manual.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glasses, since they can scratch the surface, which may result in shattering of the glass.
• Only use the temperature probe recommended for this oven.

• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.

• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.

- WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

- WARNING: Never remove the oven door seal.

- CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.

- For a correct use of the oven it is advisable not to put the food in direct contact with the racks and trays, but to use oven papers and/or special containers.

- Wash all accessories before first use with a solution of hot water and washing up liquid.

2.PRODUCT INTRODUCTION

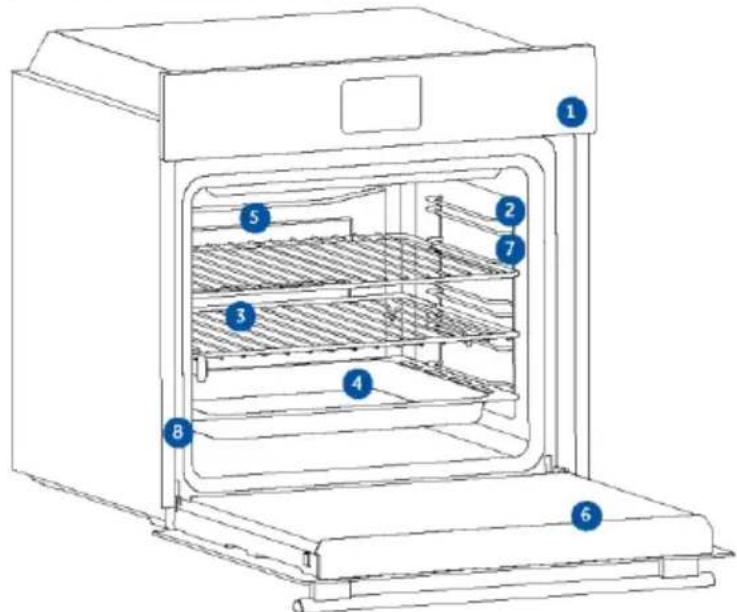

2.1. OVERVIEW OF THE PRODUCT

1. Control panel
2. Shelf positions (lateral wire grid if included)
3. Metal grids
4. Tray
5. Fan cover
6. Oven door
7. Lateral wire grids (if present: only for flat cavity)
8. Serial number & QR Code

Empty white rectangle with a thin black border (no text or symbols)

Write here your serial number for future reference.

2.2. ACCESSORIES

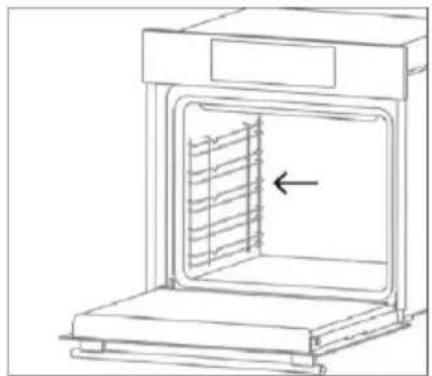

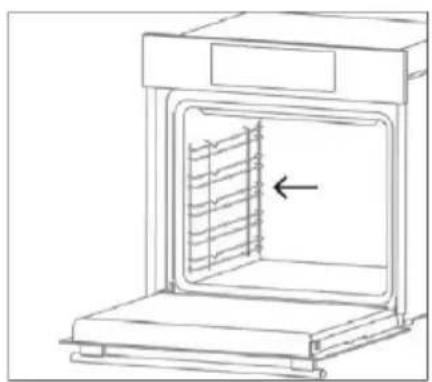

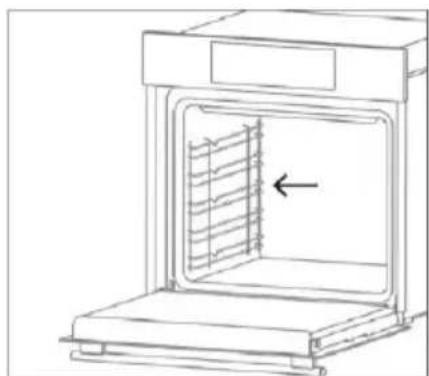

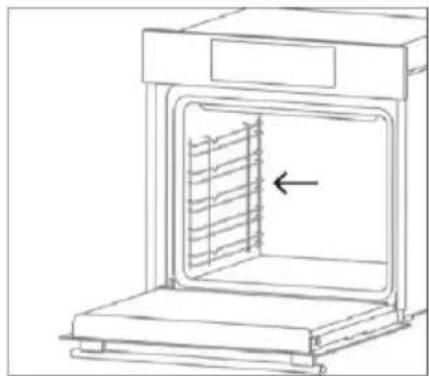

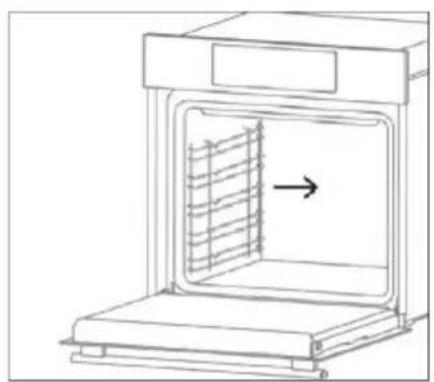

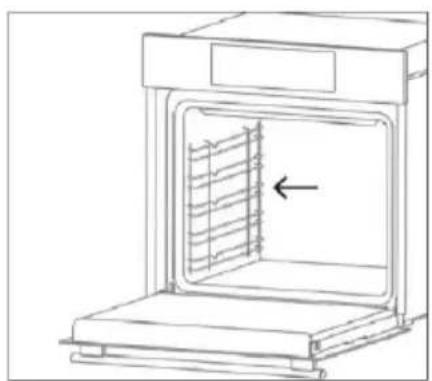

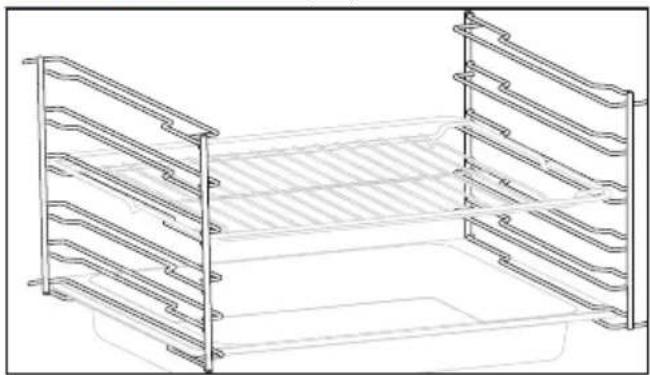

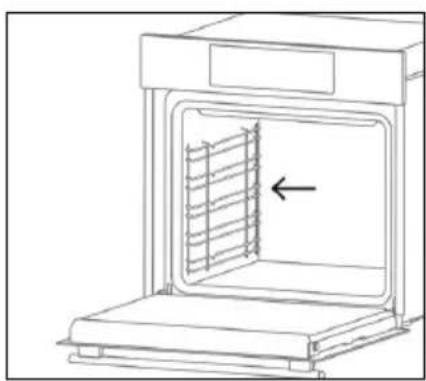

Lateral Wire Grids (only if present*)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Located on both sides of the oven cavity, the side racks are designed for placing baking tray and grids during the cooking.

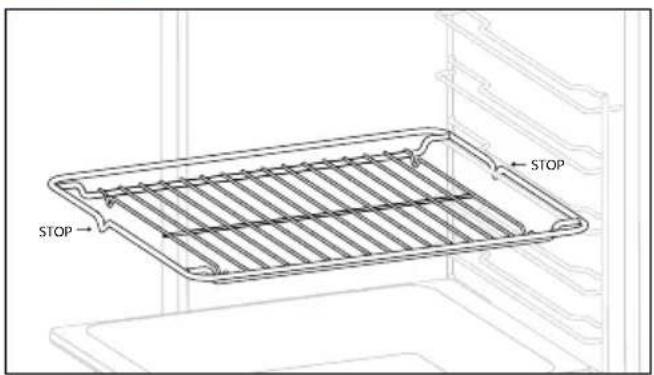

Metal Grid

A metal grid in an oven is a removable, adjustable shelf that supports cookware, ensuring even cooking, and makes cleaning easy. It can be used to hold plates and pans at different heights for various cooking needs.

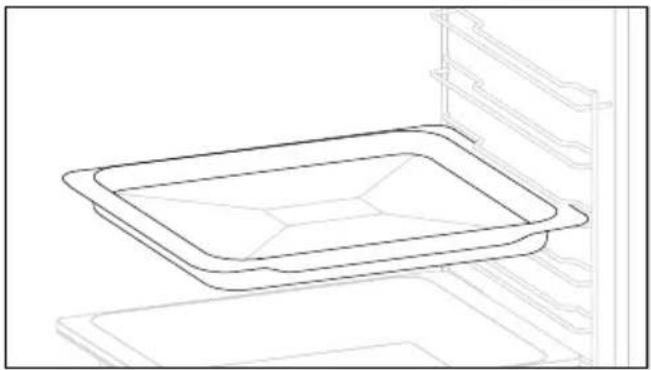

Deeper tray Baking Tray

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

A baking tray is ideal for achieving even bottom browning, making it perfect for cookies and pastries due to its shallow, flat design. Additionally, placing it under a cooking grid can help collect drips and prevent messes in the oven.

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

The deeper tray is ideal for recipes with added liquids or layers, such as casseroles or roasts. Its depth is specifically designed to ensure the desired consistency of the food prepared in it.

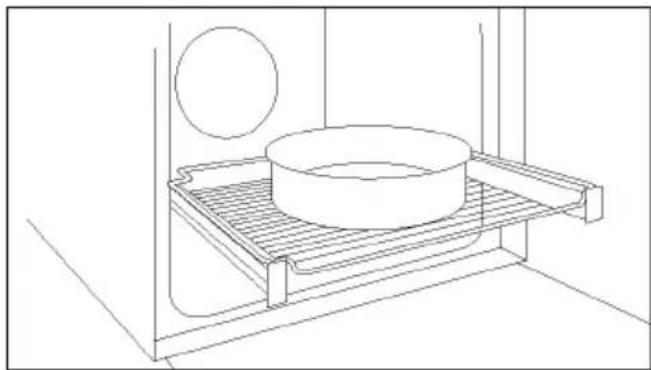

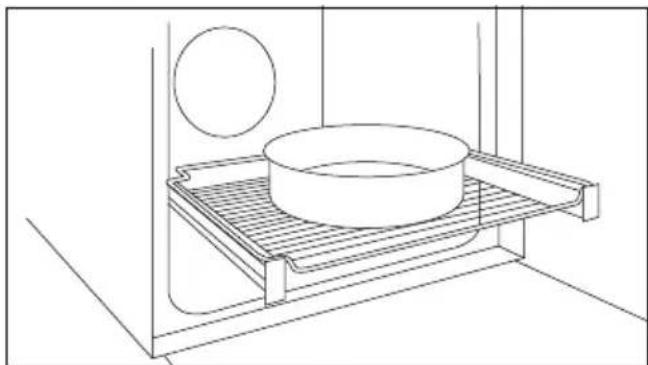

Telescopic Guides

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Telescopic oven rails are shelves that can be extended, making it easier to place or remove items, without the need to reach deep inside a hot oven. They improve safety, stability, and can be adjusted at different level positions.

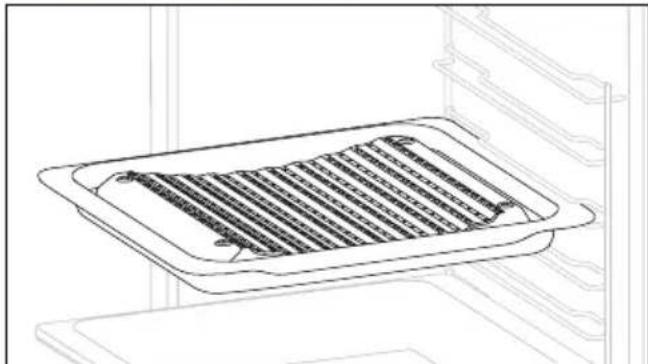

Dual Tray - BBQ Mode (only if present*)

Line drawing of a rectangular appliance with a grating inside, placed on an open shelf (no text or symbols)

The concave shape allows a correct circulation of humidity generated in cooking, keeping the food humidity rate high. According to the quantity of water inserted in the tray, a drier or more “wet” cooking will be obtained.

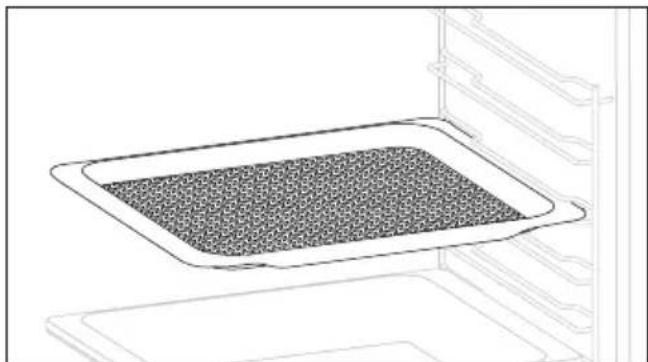

Airfry Tray (only if present*)

Line drawing of a rectangular tray with a mesh pattern inside, placed on an open oven (no text or symbols)

The airfry tray ensures that hot air reaches the food evenly and tridimensionally, resulting in a crispier exterior while maintaining tenderness inside. To collect juices and breading, place it on top of the baking tray.

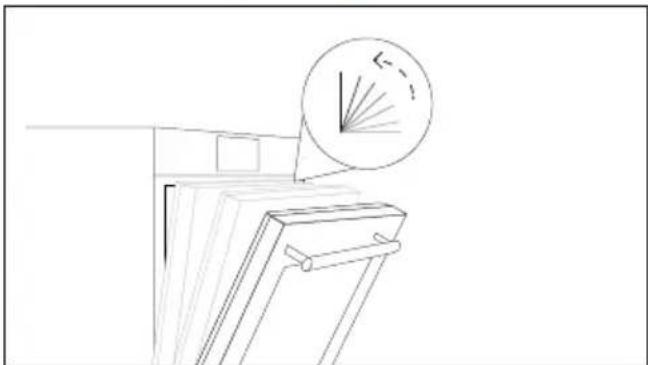

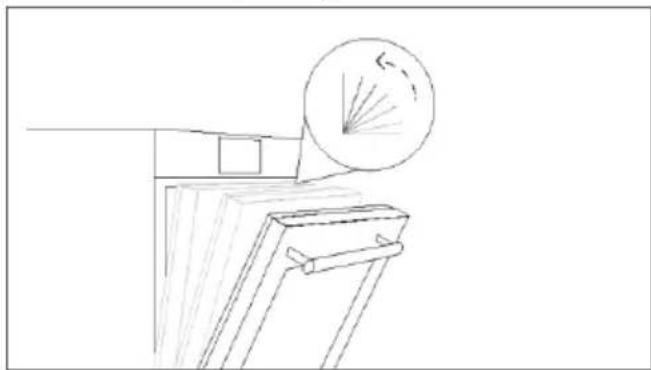

Softclose/Softopen Hinges (only if present*)

Line drawing of a bookshelf with a circular diagram showing a fan or pointer (no text or symbols)

Soft close and open hinges control the door's motion, ensuring smooth movement and preventing slamming.

Dual Tray - STEAM Mode (only if present*)

Line drawing of a rectangular appliance with internal grating or ventilation slots, placed on an oven (no text or symbols)

The convex shape is suitable for grilling in the oven at high temperature (220°) allowing a BBQ result even at home with little smoke thanks to the drainage action of the fats on the bottom of the tray.

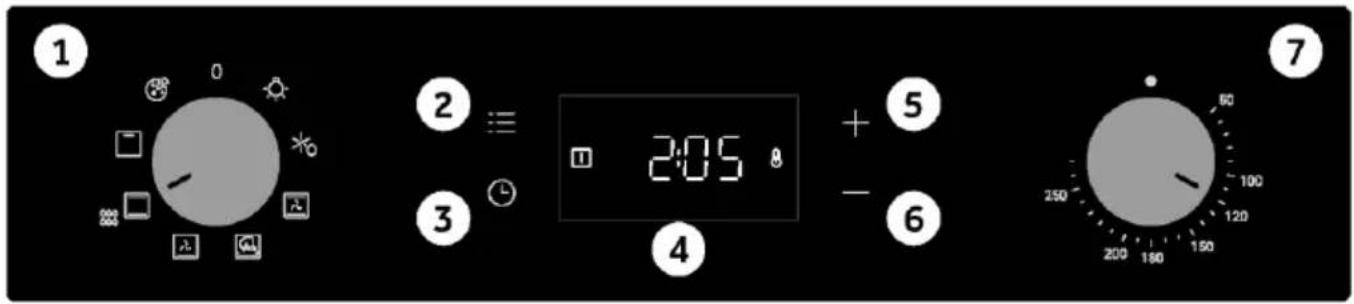

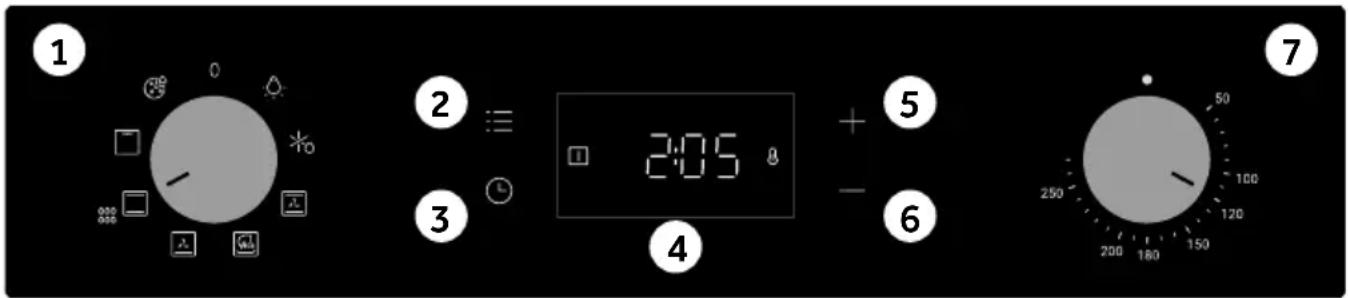

2.3. CONTROL PANEL

Functions and function ranking can be changed depending on the model.

1. Function selector knob
2. Main menu
3. Timer
4. LED display
5. Plus button (+)
6. Minus button (-)
7. Temperature selector knob

MAIN FUNCTIONS

The display has 3 main functions:

Symbol Function Description
	Main menu	Press once to activate Child Lock, twice to access to Time of the day, three times for alarm volume, and four times for brightness adjustment mode.
	Timer menu	Press once for cooking duration, twice for the minute minder
[A63T]	+/-	Press these buttons to increase/decrease the values or to activate/deactivate a function in the adjustment modes.Hold + for 5 sec to activate the Time of the day in the display.

3. BEFORE STARTING

3.1. INFORMATION TO START

When you first turn on the oven, you might notice some smoke. Don't worry, just wait for the smoke to clear before using the oven.

How illumination works

The oven cavity is illuminated by one or more light bulbs, typically activated each time a cooking function begins.

How cooling fan works

The cooling fan is responsible for dissipating the heat, keeping the oven and its surroundings from getting too hot, as well as protecting kitchen appliances from the effects of high temperatures. It operates during and after cooking cycle in relation to the internal temperature of the oven.

When the cooling fan is operational, it usually generates a gentle humming or whirring noise. You may also notice a warm airflow emanating from the gap between the oven door and the control panel.

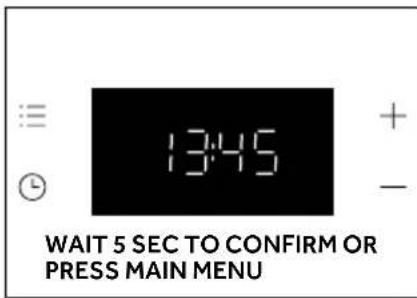

3.2. FIRST USAGE

When the appliance is switched On for the first time, the initial step is to set time of day.

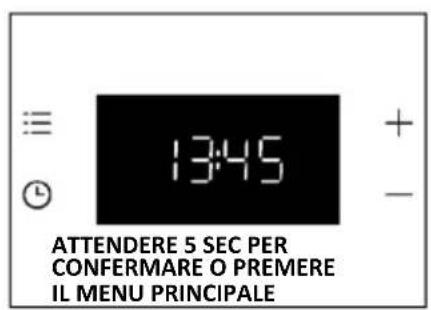

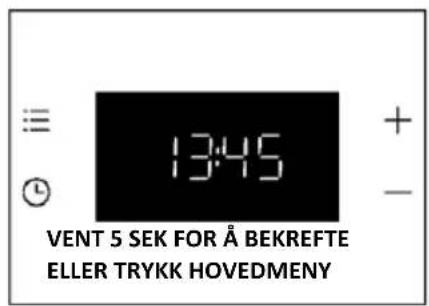

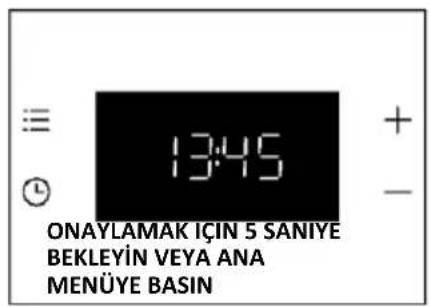

SET THE TIME: The display will show "OFF". Press "+" to adjust the current hour. Wait 5 secs for confirmation.

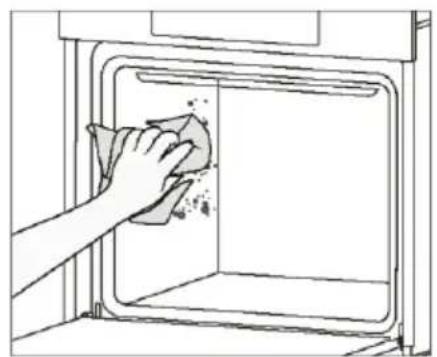

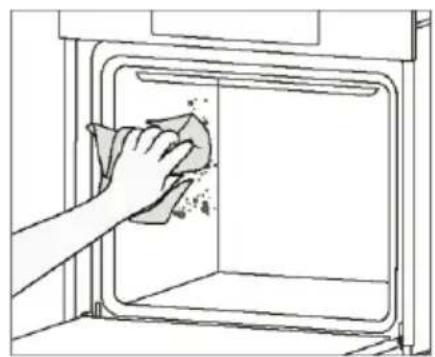

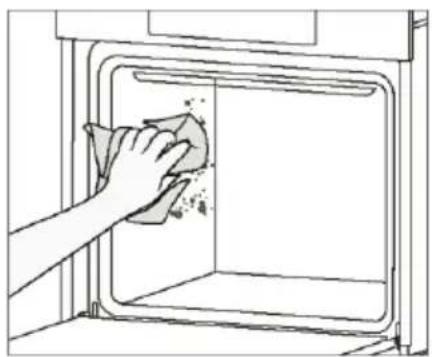

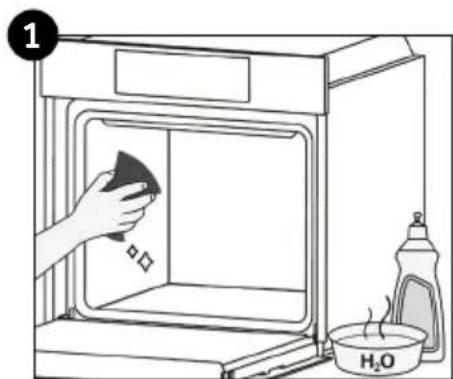

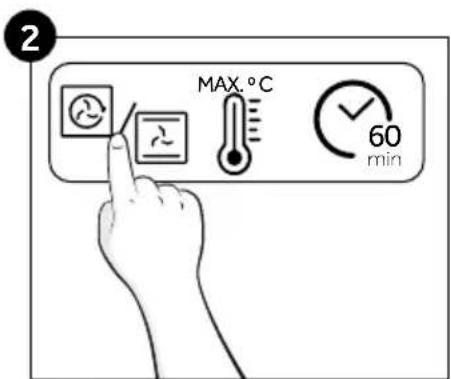

3.3. PRELIMINARY CLEANING

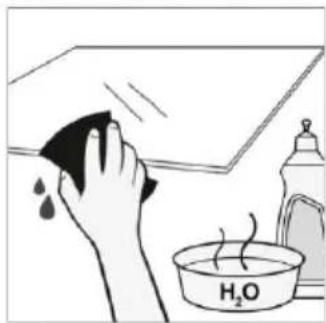

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

Line drawing of a steam-burning machine with a cabinet open, no text or symbols present

4. OPERATION OF PRODUCT

4.1. HOW THE PRODUCT WORKS

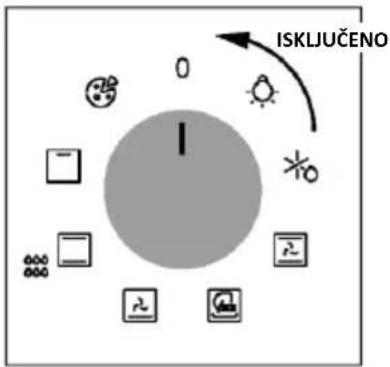

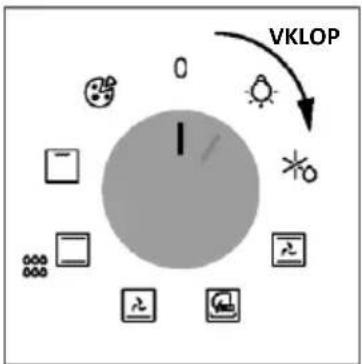

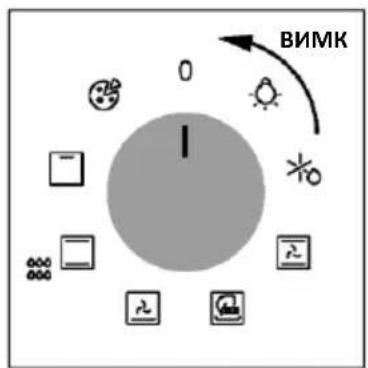

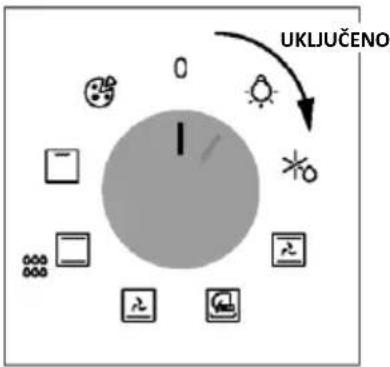

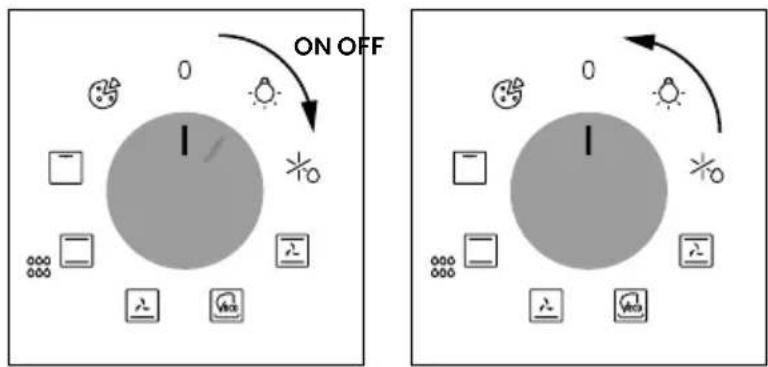

SWITCHING ON/OFF THE OVEN

To turn ON the oven rotate the function knob (clockwise/counterclockwise) and select a program. To turn it OFF, set the function knob to the '0' position.

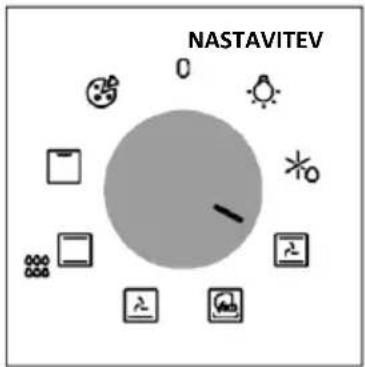

SET COOKING PROGRAM

Turn the function knob to select the desired program and turn the temperature selector knob to set the temperature.

MAIN MENU

Access the Main menu by pressing : . To navigate into tap : as many times as is needed to enter in the following settings:

CHILD LOCK

This function allows you to lock the screen to prevent any unwanted use by minors.

To activate the screen lock, press "Main menu" once, then press "+" to confirm the function.

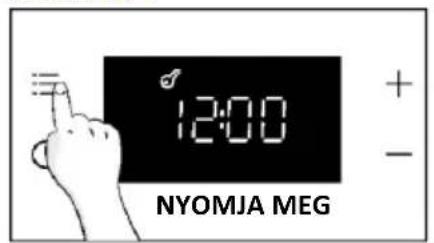

To deactivate the lock, press "Main menu", then press "-".

Activate

Deactivate

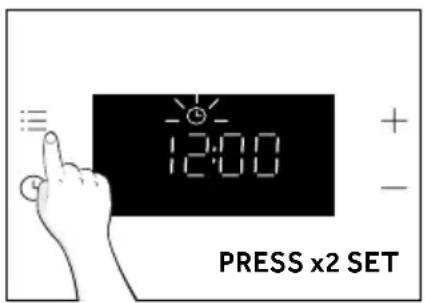

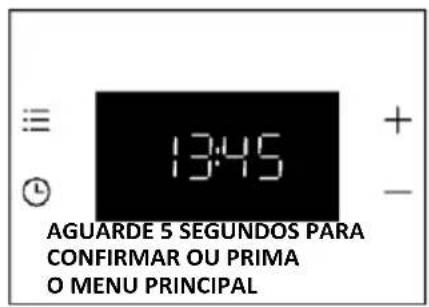

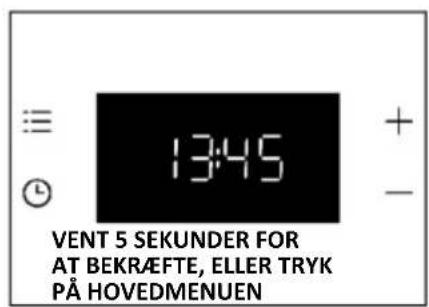

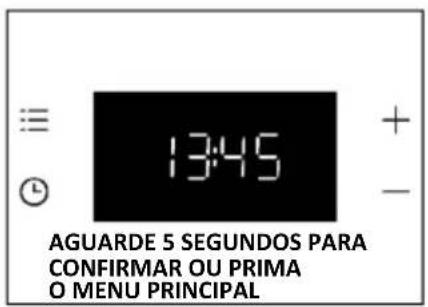

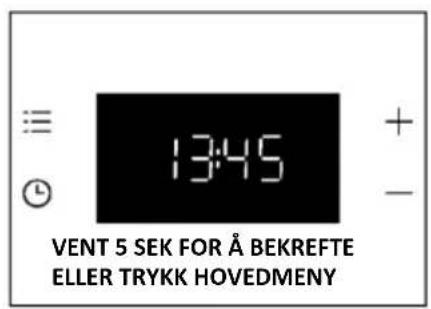

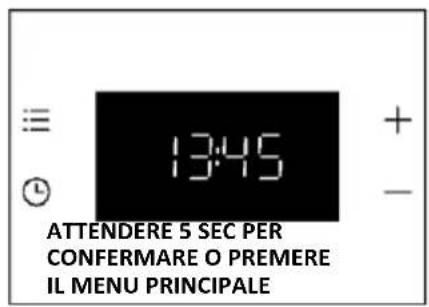

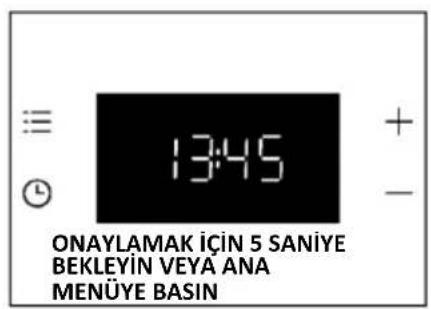

CLOCK SET

Allows to change the time of the day.

Press :≡ to enter in the Main menu. Tap :≡ as many times (x2) as you need to select "Time of day". Then use "+/-" to regulate the value. To confirm wait 5 secs or press Main menu :≡ once.

NOTE: the oven is default set on "24h" mode. To switch to "12h" mode hold "+" for 5 secs while by. Do the same to switch back to "24h" mode.

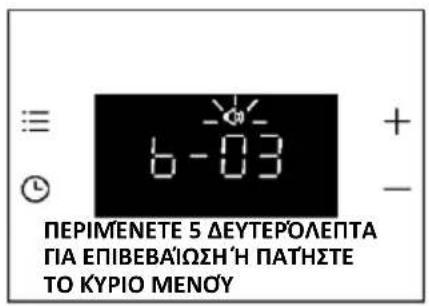

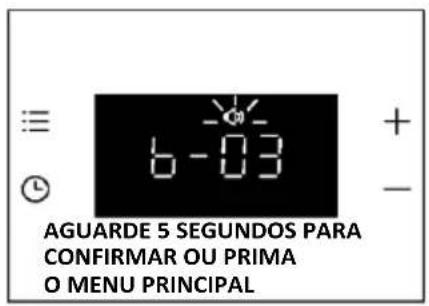

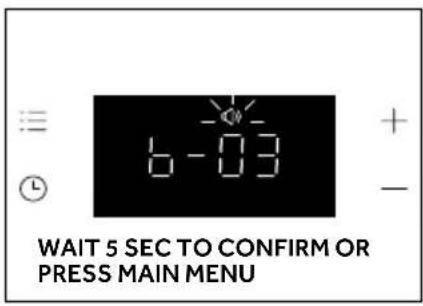

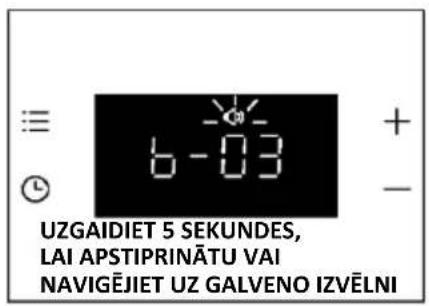

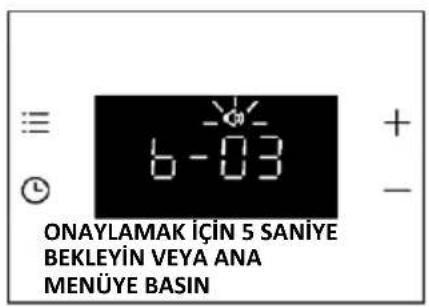

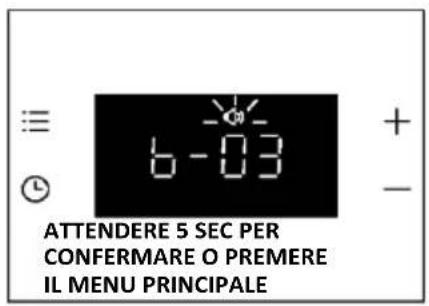

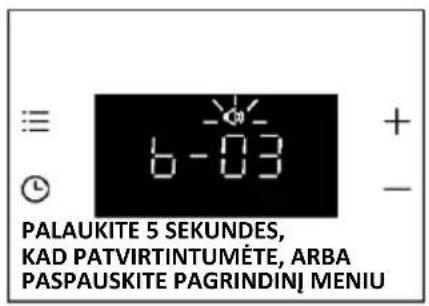

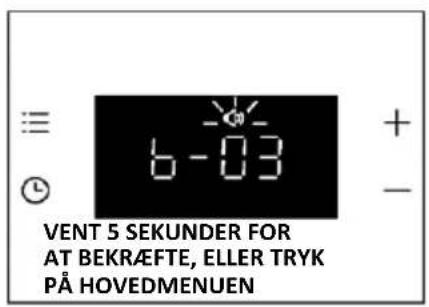

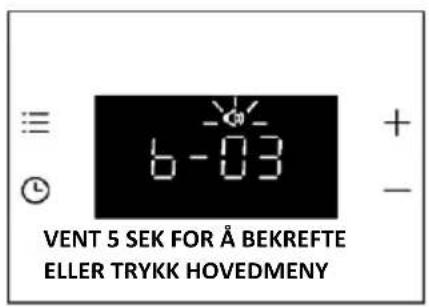

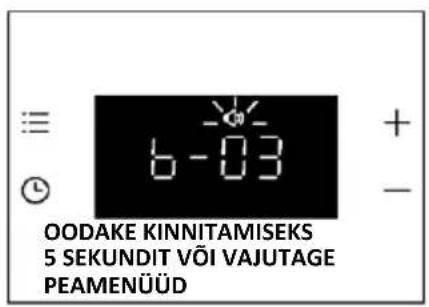

ALARM VOLUME

Allows to change the volume of the warning tone.

Press :≡ to enter in the Main menu. Tap as many times (x3) as you need to select "Alarm volume". On the display will appears "b-01". The numbers represent the level of sound intensity, editable using "+/-". To confirm wait 5 secs or press menu once.

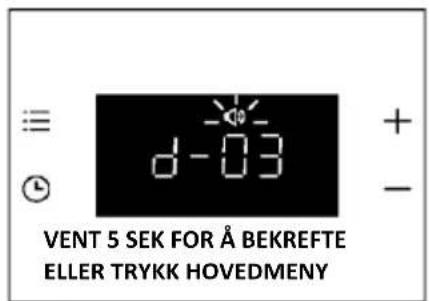

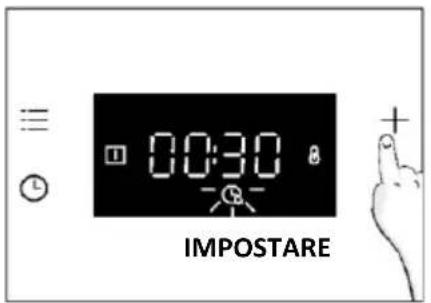

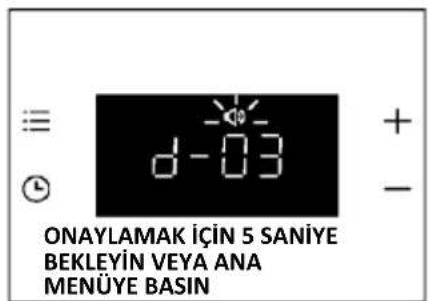

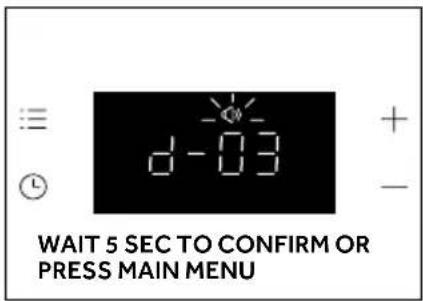

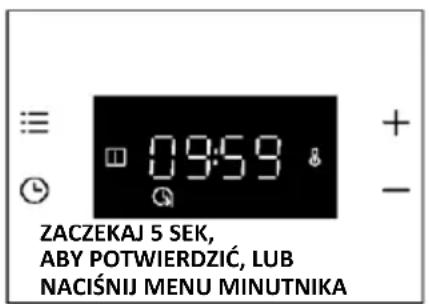

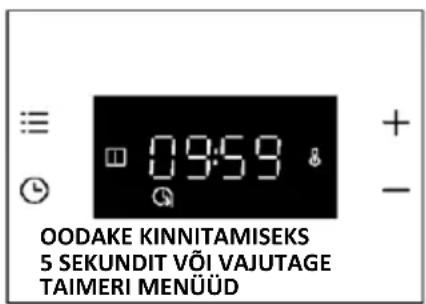

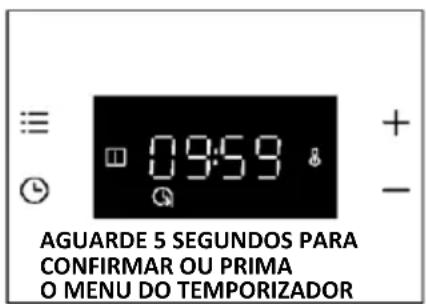

DISPLAY BRIGHTNESS

Allows to change the brightness of the oven display tone.

Press :≡ to enter in the Main menu. Tap as many times (x4) as you need to select "Alarm volume". On the display will appear "d-01". The numbers represent the level of brightness intensity, editable using "+/-". To confirm wait 5 secs or press menu once.

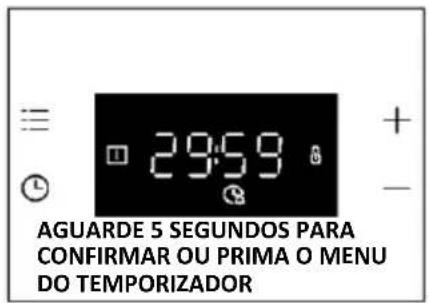

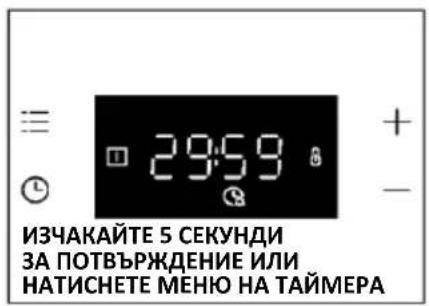

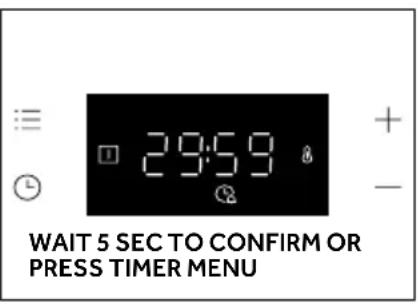

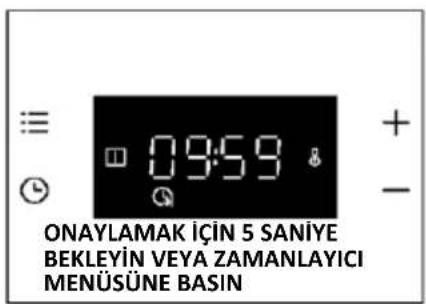

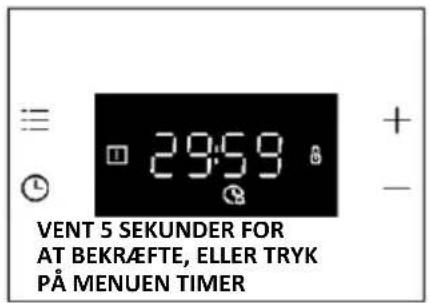

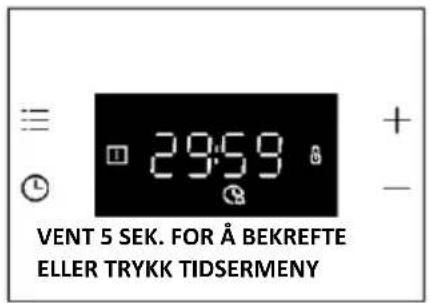

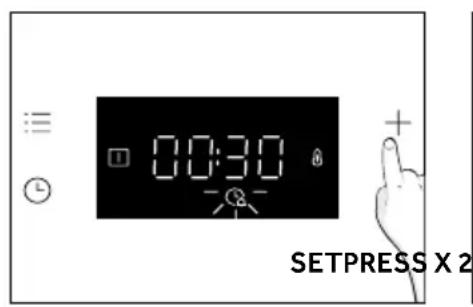

TIMER MENU

Access the Timer menu by pressing ⏻. To navigate into tap ⏻ as many times as is needed to enter in the following settings:

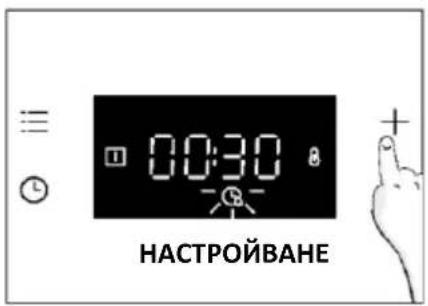

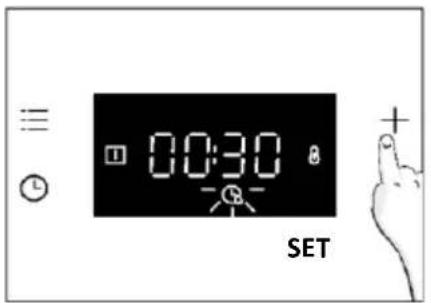

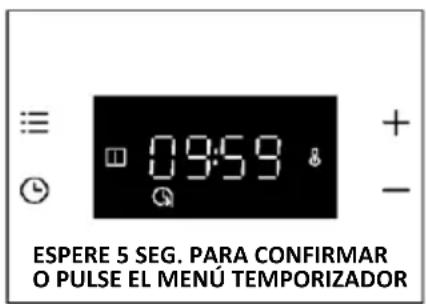

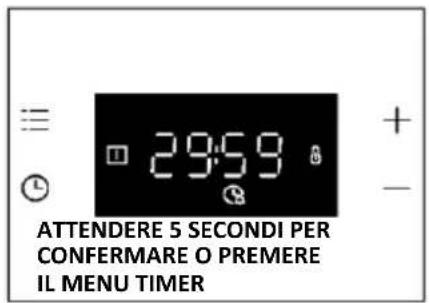

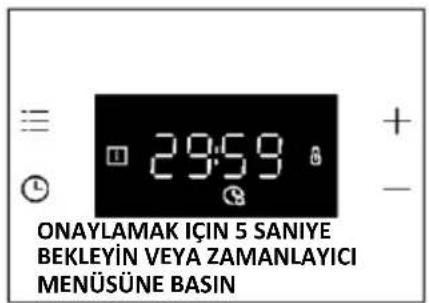

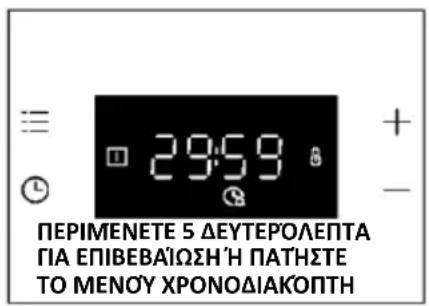

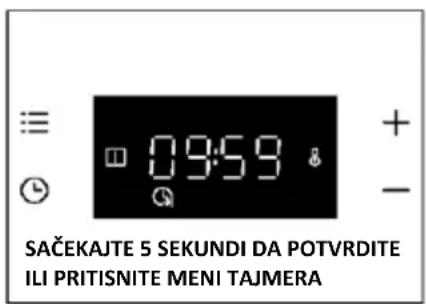

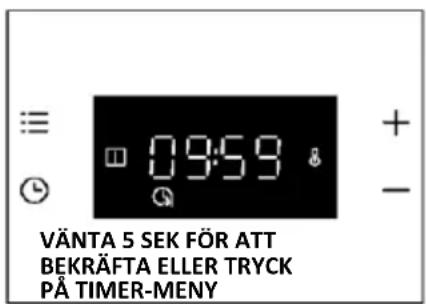

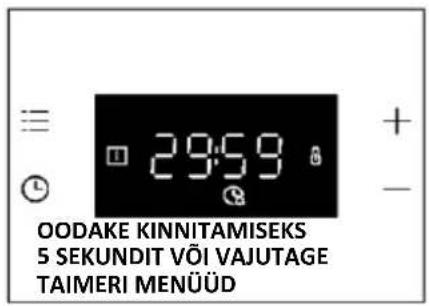

COOKING DURATION

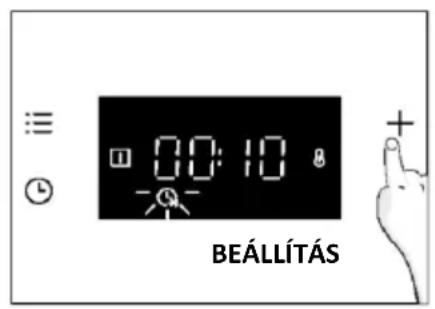

Allows to preset the cooking time required for the recipe chosen.

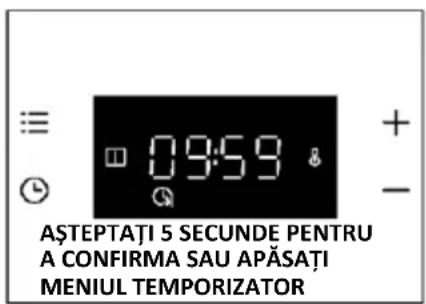

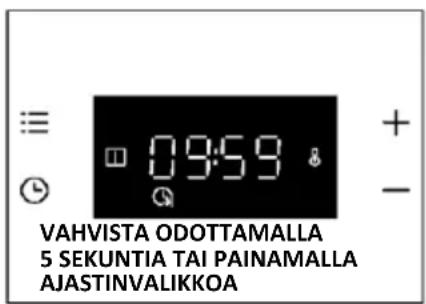

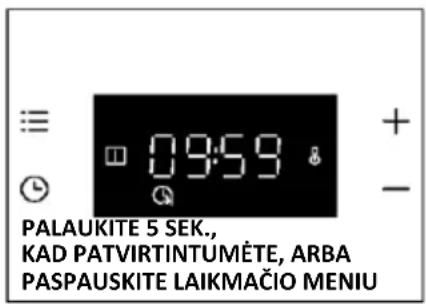

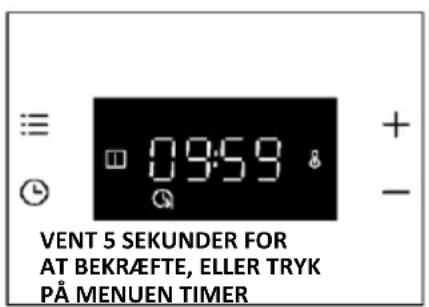

ACTIVATION: press ⏻ to enter in the Timer menu. Then use “+/-” to regulate the value. To confirm wait 5 secs or press “Timer menu”.

The countdown starts when the timer is set. During cooking phase is possible to change the duration value by entering in “Cooking duration” mode and by using “+/-”. When duration is elapsed, the display will show “End”.

To stop the Cooking Duration hold Timer Ⓛ button for 3 secs or reset the timer value using “-”.

When Cooking is Finished:

1. "End" appears on the display, a warning tone will be produced for 30 sec. if not cancelled.
2. Press the "Timer" ⏻ button to cancel the warning tone. "End" will disappear from the display the current time of day will be shown instead.

i WARNING: The oven is now in manual mode, oven function and thermostat commutator should be turned off as well, if not, the oven will go on heating.
NOTE: The warning tone will be muted by any button press other than the Timer ⏻ button, with the "End" remaining on the display and the oven remaining inoperative.

MINUTE MINDER

Allows to use the oven as alarm clock.

ACTIVATION: press ⏻ to enter in the Timer menu. Tap ⏻ as many times (x2) as you need to select "Minute minder". Then use "+/-" to regulate the value. To confirm wait 5 secs or press "Timer menu".

When the countdown is completed:

1. The Alarm 📁 icon flashes on the display and a buzzer tone is produced lasting fot 30 sec. if not cancelled.
2. Press any key to cancel the alarm tone. The current time of day will be shown on the display. Oven will go on operating until the left knob is turned in 0 position.

To stop the Minute Minder hold Timer button Ⓛ for 3 secs or reset the value using “-”.

OVEN COMMUTATOR STATUS INDICATION

Cooking Function Selector:

When the cooking function selector of the oven is turned to anyone of "ON" positions, the (Cooking Function ON) icon appears on the display.

Temperature Selector:

Whenever the oven temperature is lower than the set temperature, the ⚙ (Thermostat ON) icon appears on the display.

4.2. COOKING FUNCTIONS

4.2.1. STANDARD FUNCTIONS

Follow instructions in the table below for what regards preheating.

"YES" means that preheating is required; "NO" means that preheat is not suggested and foods must be inserted with cold oven.

Symbol Function		Suggested Shelf Position	Preheat Suggestions
	Defrost NO			The fan circulates room temperature air around the frozen food, allowing it to defrost slowly without changing the protein content of the food.
	***Multi-Level	3^rd/4^th for single level 2^nd+5^th for double level 2^nd+4^th+6^th for triple level	YES	IDEAL FOR: cakes, biscuits and pizzas on one or more levels.Ideal to cook different foods.
	***Fan Assisted 2	nd/3^rd/4^th level YES		IDEAL FOR: whole chicken, chicken pieces, vegetables, and pastries on one level using the combination of the fan with upper and lower heating elements.
	*ECO 3	rd/4^th level NO		IDEAL FOR: cooking chicken pieces, whole pieces of meat, fish or gratin. Slide the drip tray under the shelf to collect juices. Turn food over halfway through cooking if needed.This function allows to save energy during cooking keeping the food moist and tender.
	Bottom+Fan 3	rd/4^th level NO		IDEAL FOR: tarts, quiches and thin pizzas using fan and lower heating.it helps cook the top part with indirectly radiated heat.
	*Conventional	2^nd/3^rd level	YES	IDEAL FOR: cakes, breads, biscuits, quiches on one level using both upper and lower heating.
	**Supergrill	6^th level	NO	IDEAL FOR: big quantities of sausages, steaks and toast bread.The entire area below the grill element becomes hot. Use with the door closed. Turn food two thirds of the way through cooking (If necessary).
	Pizza	2^nd/3^rd level	YES	IDEAL FOR: all kind of pizzas with or without preheating the oven.

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

Category Recipe		N° of levels	Cooking program	T°C Preheat		Cooking accessory	Shelf position	Cooking time after preheating *(min)
Sweet bakery	Small cakes / Muffins	1	Static Multilevel Fan assisted	170°C 155°C 150°C	Y	Deeper tray	L3 L4 L4	25-30 30-40 20-30
		2 Multilevel 150°C				Deeper + baking trays	L2+L5 35-45
		3 Multilevel 145°C				Deeper + baking + baking trays	L2+L4+L6 40-50
	Sponge cakes (26 cm ∅)	1	Static Multilevel Fan assisted	160°C 160°C 160°C	Y	Metal grid + Cake tin	L2 L3 L2	25-35 30-40 20-30
		2 Multilevel 150°C				Metal grids + Cake tin	L1+L4 40-50
	Biscuits/ Shortbreads	1	Static Multilevel Fan assisted	150°C 150°C 140°C	Y	Deeper tray	L3 L3 L4	30-40 25-35 15-25
		2 Multilevel 140°C				Deeper + baking trays	L2+L5 50-60
	Choquettes	1 Static 190°C		Y	Y	Deeper tray L3 25-35
		2 Multilevel	170°C			Deeper tray	L3	35-45
	Yorkshire pudding	1 Static	200°C	Y	Y	Deeper tray	L3	20-30
	Meringues	1 Multilevel	90°C	Y	Y	Deeper tray	L4	80-100
	Macaron	1 Static	150°C	Y	Y	Deeper tray	L3	15-20
	Apple pie	1 Static 170°C Y				Metal grid + Cake tin	L2 70-80
		1 Fan assisted	160°C	Y	Y	Metal grid + Cake tin	L2 50-70
	Tarte tatin	1 Static	170°C	Y	Y	Metal grid + Cake tin	L4 60-70
	Tarts	2 Bottom+fan	180°C	N	N	Metal grid + Cake tin	L3 30-40
	Chocolate souffle	1 Static 200°C Y				Deeper tray + molds	L3 10-15
	Cheesecake	1 Static	150°C	Y	Y	Metal grid + Cake tin	L2 50-65
	Frozen croissants	1 Static 180°C		Y	Y	Deeper tray L3 20-25
		2 Multilevel	180°C			Deeper tray	L2+L5	25-35
		3 Multilevel	160°C			Deeper tray	L2+L4+L6	30-40
	Strudel, frozen	1 Static	200°C	Y	Y	Deeper tray	L3	30-45
Breads and Flatbread	Toast bread	1	Supergrill	max	N	Metal grid	L6	8-10
	Focaccia	1	Static	200°C	Y	Deeper tray	L3	25-35
	Bread, whole	1	Static	200°C	Y	Deeper tray	L3	30-50
Savory pies and casseroles	Salty cakes / Quiches (26 cm ∅)	1 Static 200°C			Y	Metal grid + Quiche tin	L1 or L2	30-50
		2 Multilevel 180°C				Metal grid + Quiche tin	L1+L4	50-70
	Cheese souffle	1	Static	200°C	Y	Deeper tray	L3	20-30
	Lasagna, fresh	1	Static	200°C	Y	Metal grid + ovenproof dish	L3 30-45
	Lasagna, frozen	1 Static 180°C Y				Metal grid + ovenproof dish	L3	35-50
	Cannelloni, fresh	1	Static	200°C	Y	Metal grid + ovenproof dish	L3 35-50
	Baked pasta	1	ECO	200°C	N	Metal grid + ovenproof dish	L4	25-35
Pizza	Pizza, fresh (Tray)	1	Static	230°C	Y	Deeper tray	L2 or L3	15-25
	Pizza, fresh (Tray)	1	Pizza	230°C	N	Deeper tray	L2 or L3	25-35
		2 Multilevel 180°C Y				Deeper + Baking trays	L2+L5	30-40
	Pizza, fresh (Round)	1	Static	max	Y	Baking tray	L2 or L3	8-15
	Pizza, fresh (Round)	1	Pizza	max	N	Baking tray	L2 or L3	10-25
		2 Multilevel 180°C Y				Deeper + Baking trays	L2+L5	30-40
	Pizza, frozen (thin crust)	1	Pizza	220°C	Y	Metal grid	L3	10-15
	Pizza, frozen (thin crust)				Y
		2	Multilevel	200°C		Metal grids	L2+L5	15-20
		3	Multilevel	180°C		Metal grids	L2+L4+L6	15-25
Meat & Poultry	Roasted whole chicken** (1-1.5kg)	1	ECO	220°C	N	Metal grid Place deeper tray at L1	L3	50-70
		1	Fan assisted	200°C	Y	Deeper tray	L2	45-60
	Chicken thighs	1	ECO	220°C	N	Metal grid Place deeper tray at L1	L4 30-50
		1	Fan assisted	200°C	Y	Deeper tray	L3	30-50
	Roasted Duck**	1	ECO	220°C	N	Metal grid Place deeper tray at L1	L3 50-70
Meat & Poultry	Roasted Turkey**	1 ECO 220°C N				Metal grid + Ovenproof dish	L3 50-70
		1 Fan assisted 200°C Y Deeper tray L2 45-60
	Pork ribs (1000-1200g)	1 Static 200°C Y				Metal grid + Ovenproof dish	L3	80-100
	Sausages** 1 Supergrill 230°C N					Metal grid Place deeper tray at L1	L4	30-40
	Roast beef (500g)	1	Static	220°C	Y	Baking tray	L3	20-40
	Meatloaf (1000-1500g)	1	Static	180°C	Y	Baking tray	L3	40-50
	Roasted chicken with potatoes	1	ECO	220°C	N	Deeper tray	L4	55-75
		1	Fan assisted	200°C	Y	Deeper tray	L2 or L3	50-60
Fish and Seafood	Grilled seafood	1	Supergrill	220°C	N	Metal grid	L4	15-30
	Frozen fish sticks	1	Static	200°C	Y	Deeper tray	L3	20-25
	Fish fillet	1	Static	170°C	Y	Deeper tray	L3	10-25
	Baked fish	1	ECO	200°C	N	Metal grid Place baking tray at L1	L4 20-30
Vegetables	Vegetable gratin	1	ECO	200°C	N	Metal grid + Ovenproof dish	L4 25-35
	Frozen French Fries (300-500g)	1	Multilevel	200°C	Y	Deeper tray	L4	25-35
	Potato gratin 1 ECO 200°C N					Metal grid + Ovenproof dish	L4 25-35
	Roasted potatoes	1 Static 200°C Y Deeper tray L4 50-60
		1 Fan assisted 200°C Y Deeper tray L4 20-30
Complete menu	Chicken pieces + apple pie + baked pasta	3	Multilevel	180°C	N	Deeper tray+ (Metal grid + Cake tin) + (Metal grid + ovenproof dish)	L1+L3+L5	50-60 45-55 35-45

Cooking times may vary according to consumer's recipe and ingredients.

*if preheating required

** Turn food over halfway through cooking if needed.

*** it depends on oven model

NOTE: For cooking cakes, quiches and other recipes that require a mold or a container on 2 levels,

place them staggered: the upper tray on the left side and the lower tray on the right side.

6. CARE & CLEANING

6.1. GENERAL RECOMMENDATIONS

Regular cleaning can extend the lifecycle of your appliance. Wait for the oven to cool before carrying out manual cleaning

• After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.
- Do not line the oven walls with aluminum foil or single-use protection available from stores. Aluminum foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides.
- In order to prevent excessive dirt of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little.
- In addition to the accessories supplied with the oven, we advise you only use dishes and baking molds resistant to very high temperatures.

6.2. CLEANING THE OVEN

6.2.1. INSIDE THE OVEN: cleaning functions

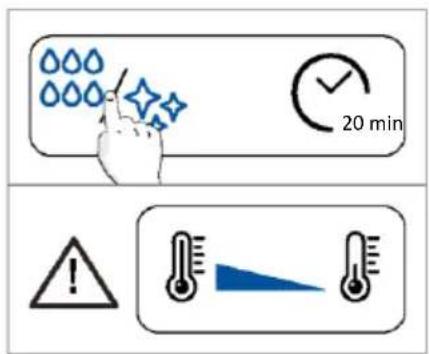

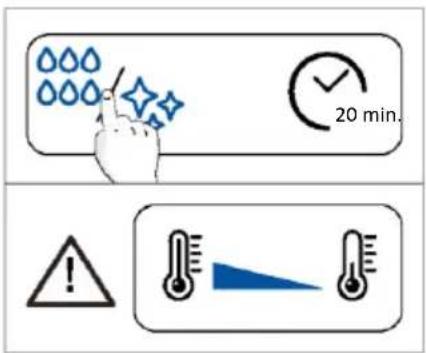

H_2O cleaning

The H2O cleaning function is designed to effortlessly tackle light dirt and provide a quick and eco-friendly solution for cleaning your oven cavity using the power of steam.

How does it work:

1. Pour 150 ml of water into the bottom embossment of the oven.
2. Turn the function knob on / and the temperature knob on "100 °C". Allow the function to operate for 20 min.
3. At the end of the cleaning process, allow the oven to cool down.
4. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

Catalytic cleaning

The Catalytic panels line the oven cavity and grant you the luxury of never having to contend with a dirty oven.

The panels are coated with a specialized enamel that boasts a microporous structure, adept at absorbing absorbs grease from splashes.

Through a catalytic chemical reaction, they efficiently convert the absorbed grease into gaseous elements when exposed to high temperatures.

Recommendation: Consider replacing the catalytic panels after approximately three years of use, especially if you use your oven for two to three cooking cycles per week. This ensures optimal performance and cleanliness.

6.2.2. OUTSIDE THE OVEN: removal and cleaning the glass door

1. Open the door at 90^ , rotate the hinge locking tabs outward from the oven.

Line drawing of hands operating a door oven with a tray (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1. Position the door at 45°. Simultaneously press the two buttons on both the sides of the door's lateral shoulders and pull towards yourself to remove the upper glasses' door cover.

1. Very carefully remove the oven glass, starting with the inner one. During the procedure, firmly hold the glass with both hands and place them on a cushioned flat surface (e.g., on a fabric).

Pure technical line drawing of a mechanical component with no text or symbols

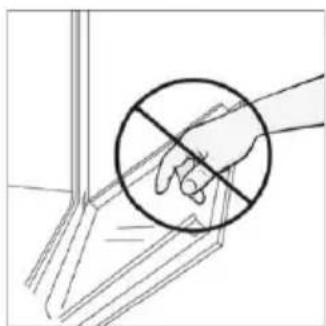

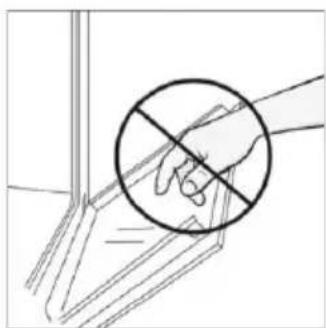

1. ⚠️ WARNING: The outer glass is not removable.

Line drawing of a hand holding a cross symbol, no text or labels present

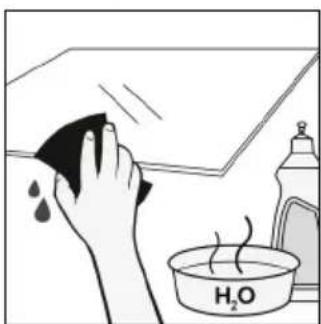

1. Clean the glass using a soft cloth and suitable cleaning products.

1. Insert the glass panels, making sure that the "Low-E" label is correctly readable and positioned on the lower left side of the door, near the left-side hinge. This way, the printed label on the first glass will remain on the inside of the door.

1. Reattach the upper glasses' door cover by pushing it inwards until you hear a click from the two side buttons.

Technical line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

1. Then, bring the door back to 90^ and rotate the hinge locking tabs inward towards the inside of the oven.

Line drawing of hands operating a door frame inside a cabinet (no text or symbols)

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

6.3. CLEANING OF ACCESSORIES

Ensure that you clean the accessories thoroughly after every use and dry them using a towel. For persistent residues, consider soaking the accessories in a mixture of water and soap for approximately 30 minutes before giving them a second wash.

CLEANING OF SIDE RACKS:

- 6 levels model

1. Remove the side racks by pulling them in the direction of the arrows.

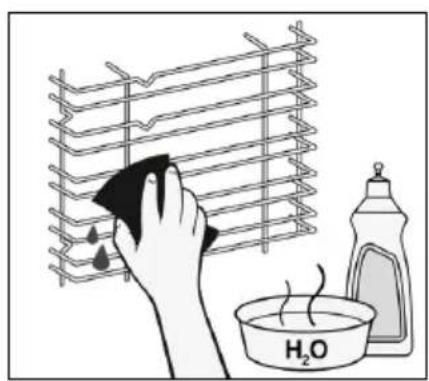

2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order.

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a rack with a cloth, a bottle labeled H₂O, and a bowl of water (no text or symbols on main objects)

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

6.4. MAINTENANCE

COMPONENTS REPLACEMENT

Changing the bulb on top:

1. Disconnect the oven from mains supply.
2. Undo the glass cover, disassemble the bulb and replace it with a new bulb of the same type.
3. Once the defective bulb is replaced, replace the glass cover.

Step 1

Step 2 Step 3 Step 4

Line drawing of a hand inserting a component into an oven with a blue circular arrow indicating rotation (no text or symbols)

Line drawing of a hand inserting a device into a rack, with a blue circular arrow indicating rotation (no text or symbols)

Line drawing of a hand inserting a circular component into a device (no text or symbols)

Step 5 Step 6

Line drawing of a hand inserting a component into a washing machine (no text or symbols)

This product contains one or more light sources of energy efficiency class G (Lamp)

7. TROUBLE SHOOTING

If, during oven use, an error occurs, the display will show the code "ER" followed by two digits, which will identify the error.

Proceed by turn off the oven and un-plug it, wait for a few minutes, and then reconnect it.

If the error disappears, you can resume using the oven. If it doesn't, call customer service and communicate the code (ERXX) you see on the display.

Error

Smoke

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. APPLIANCE DISPOSAL

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- the WEEE should not be treated as domestic waste;

- the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must

accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

8.2. SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it.

Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate.

Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving simpler, moving the cooking process to start at the reduced tariff time slot.

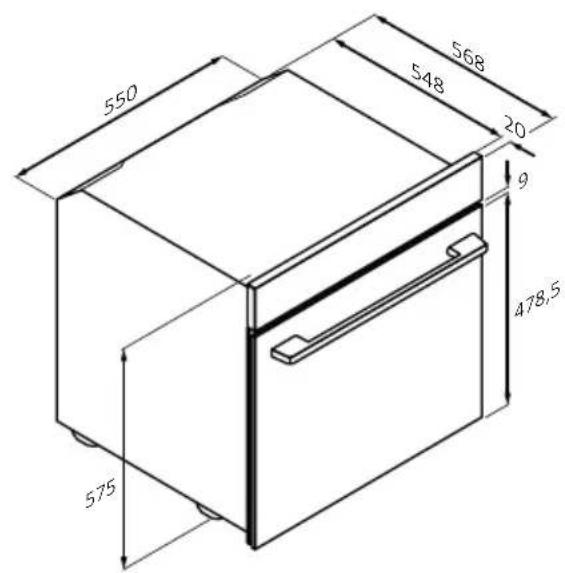

EN If the furniture is covered with a bottom at the back part, provide an opening for the power supply cable.

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

BIENVENUE

Blank white rectangle with a thin border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular kitchen appliance with a tray and shelves (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular appliance with a grating inside, placed on an oven (no text or symbols)

Line drawing of a rectangular appliance with a mesh grille, placed inside an oven (no text or symbols)

Simple line drawing of a window with a magnified circular detail showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open door (no text or symbols)

4. FONCTIONNEMENT DU PRODUIT

4.1. FONCTIONNEMENT DU PRODUIT

MISE EN MARCHE/ARRÊT DU FOUR

Hand cleaning a clean window with a cloth, no text or symbols visible

Line drawing of a box with two hands inserting a tray into the opening (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of a hand holding a diagonal line with a circular crosshair overlay (no text or symbols)

Illustration of a hand cleaning a tiled surface with a cloth, water being washed, and a bottle labeled 'H2O' (no text or symbols on main objects)

Simple line drawing of a mechanical or architectural component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door handle (no text or symbols present)

6.3. NETTOYAGE DES ACCESSOIRES

Line drawing of an oven with a heat exchanger inside, showing airflow direction (no text or symbols)

Line drawing of an oven with a vent and cooling rack inside, showing airflow direction (no text or symbols)

6.4. ENTRETIEN

REMPLACEMENT DES COMPOSANTS

Étape 2

Line drawing of a hand cleaning a kitchen appliance with a scroll wheel (no text or symbols)

Étape 3

Line drawing of a hand cleaning a kitchen appliance with a blue arrow indicating rotation (no text or symbols)

Étape 4

Line drawing of a hand inserting a bulb into an oven (no text or symbols)

Étape 5

Line drawing of a hand inserting a small component into an oven (no text or symbols)

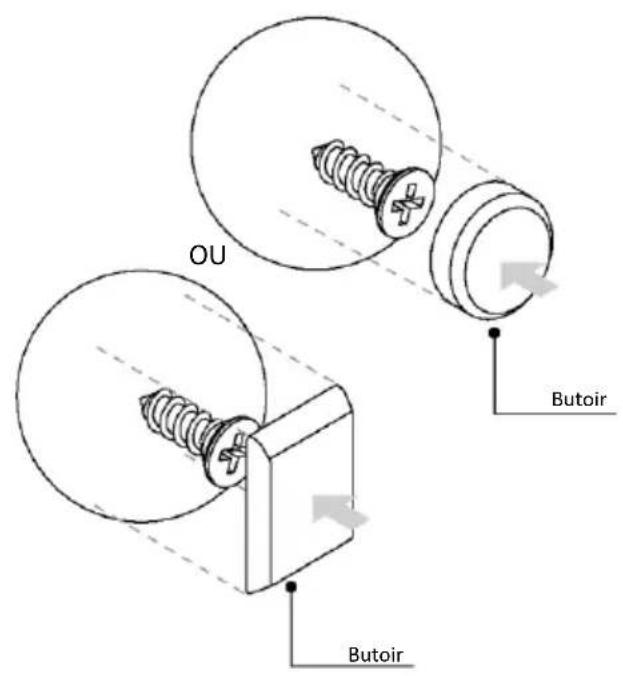

Étape 6

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and drawers (no text or symbols)

BENVENUTI

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan and side table (no text or symbols)

Line drawing of a rectangular appliance with internal grating, placed inside an oven (no text or symbols)

Line drawing of a rectangular tray with a mesh pattern inside, placed on an open oven (no text or symbols)

Simple line drawing of a mechanical component with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

3.3. PULIZIA PRELIMINARE

Line drawing of a steam rising from a stove next to an open door (no text or symbols)

MENU PRINCIPALE

Disattivare

LUMINOSITÀ DEL DISPLAY

Hand cleaning a window with a cloth, showing surface texture and clean material inside (no text or symbols)

Pulizia catalitica

Line drawing of a box with two hands inserting a tray into the opening (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating direction (no text or symbols present)

Simple line drawing of a triangular frame with arrows indicating direction, no text or symbols present

Illustration of a hand holding a diagonal line with a circular prohibition symbol (no text or labels)

Illustration of a hand cleaning a tiled surface with a cloth, water droplets, and a bottle labeled H₂O (no text or symbols on main subject)

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door with a tool (no text or symbols)

6.3. PULIZIA DEGLI ACCESSORI

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. MANUTENZIONE

Passo 2

Line drawing of a hand cleaning a kitchen appliance with a circular button (no text or symbols)

Passo 3

Line drawing of a hand pressing down on an open oven with a blue arrow indicating rotation (no text or symbols)

Passo 4

Line drawing of a hand inserting a circular component into an oven (no text or symbols)

Passo 5

Line drawing of a hand inserting a small component into an oven (no text or symbols)

Passo 6

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan and side table (no text or symbols)

Line drawing of a rectangular appliance with internal grating, placed inside an oven (no text or symbols)

Line drawing of a rectangular tray with a mesh pattern inside, placed on an open shelf (no text or symbols)

Simple line drawing of a mechanical component with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open door (no text or symbols)

Hand cleaning a window with a cloth, showing surface texture and clean material (no text or symbols)

Line drawing of a box with two hands inserting a tray into the opening (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with directional arrows, no text or symbols present

Line drawing of a hand holding a diagonal line, enclosed in a circle with a crossed-out hand (no text or symbols)

Illustration of a hand cleaning a tiled surface with a cloth, water droplets, and a bottle labeled H₂O (no text or symbols on main objects)

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door with a tool (no text or symbols)

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Illustration of a hand cleaning a rack with a water bottle and a bowl labeled H₂O (no text or symbols on main objects)

Line drawing of an oven with a ventilation duct and an arrow indicating airflow direction (no text or symbols)

6.4. WARTUNG

AUSTAUSCH VON KOMPONENTEN

Schritt 2

Line drawing of a hand cleaning a kitchen appliance with a circular button (no text or symbols)

Schritt 3

Line drawing of a hand inserting a bulb into an oven with a blue circular arrow indicating rotation (no text or symbols)

Schritt 4

Line drawing of a hand cleaning a kitchen appliance with a circular component (no text or symbols)

Schritt 5

Line drawing of a hand inserting a small component into an oven (no text or symbols)

Schritt 6

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular tray placed inside a storage unit rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular appliance with a grating inside, placed on an open oven (no text or symbols)

Line drawing of a rectangular appliance with a mesh grille, placed inside an oven (no text or symbols)

Simple line drawing of a wooden frame with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with a grating or ventilation grille, placed inside an oven (no text or symbols)

Line drawing of a steam rising from a cabinet to an open door, with no text or symbols present.

Hand cleaning a clean appliance into a kitchen oven (no text or symbols visible)

Limpieza catalítica

Line drawing of a box with two hands inserting a tray into the opening (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a diagonal line with a circular crosshair overlay (no text or symbols)

Illustration of a hand cleaning a tiled surface with a cloth, water being washed, and a bottle labeled 'H2O' (no text or symbols on the main image)

Simple line drawing of a mechanical or architectural component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door handle (no text or symbols)

6.3. LIMPIEZA DE ACCESORIOS

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. MANTENIMIENTO

Paso 2

Line drawing of a hand washing a small object inside an oven (no text or symbols)

Paso 3

Line drawing of a hand pressing down on a door panel with a blue arrow indicating rotation (no text or symbols)

Paso 4

Line drawing of a hand cleaning a kitchen appliance with a circular component and a blue spiral motion indicator (no text or symbols)

Paso 5

Line drawing of a hand using a tool to clean or wash the interior of an oven (no text or symbols)

Paso 6

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

ΚΑΛΩΣΗΡΘΑΤΕ

Empty white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular kitchen appliance with a tray and shelf (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan and side table (no text or symbols)

Line drawing of a mechanical component with a circular inset showing radial blades (no text or symbols)

Line drawing of a rectangular appliance with a grating inside, placed on an oven (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a rectangular oven with a mesh grille (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Pure technical diagram showing a mechanical component with a blue arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of a hand holding a crosshair over a window frame (no text or symbols)

Illustration of a hand cleaning a tiled surface with a cloth, water being washed, and a bottle labeled H₂O (no text or symbols on main objects)

Simple line drawing of a tilted rectangular object with directional arrows indicating movement or force (no text or symbols)

Two technical diagrams showing a washing machine and a close-up of a door with a blue tool (no text or symbols present)

6.3. ΚΑΘΑΡΙΣΜΟΣ ΕΞΑΡΤΗΜΑΤΩΝ

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Line drawing of an oven with a rack inside, showing airflow direction (no text or symbols)

6.4. ΣΥΝΤΗΡΗΣΗ

Βήμα 2

Line drawing of a hand cleaning a kitchen appliance with a scroll wheel (no text or symbols)

Βήμα 3

Line drawing of a hand cleaning a kitchen appliance with a blue circular arrow indicating rotation (no text or symbols)

Βήμα 4

Line drawing of a hand cleaning a microwave oven with a circular component and a blue spiral motion indicator (no text or symbols)

Βήμα 5

Line drawing of a hand inserting a small component into an oven (no text or symbols)

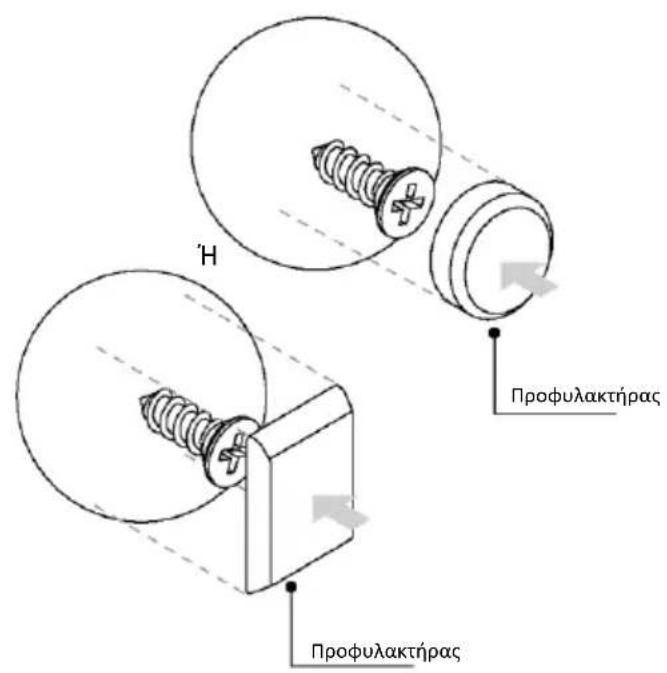

Βήμα 6

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

WELKOM

2. PRODUCTINTRODUCTIE

2.1. OVERZICHT VAN HET PRODUCT
2.2. ACCESSOIRES
2.3. BEDIENINGSPANEEEL

3. VOORDAT U BEGINT

3.1. INFORMATIE OM TE BEGINNEN
3.2. EERSTE GEBRUIK
3.3. VOORAFGAANDE REINIGING

4. WERKING VAN HET PRODUCT

4.1. HOE HET PRODUCT WERKT
4.2. KOOKFUNCTIES
4.2.1. STANDAARDFUNCTIES

ALGEMENE WAARSCHUWINGEN

INSTALLATIEWAARSCHUWINGEN

2. PRODUCTINTRODUCTIE

2.1. OVERZICHT VAN HET PRODUCT

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular appliance with a grating inside, placed on an open oven (no text or symbols)

Line drawing of a kitchen appliance with a mesh-lined tray and drawer (no text or symbols)

Simple line drawing of a wooden frame with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with a grating or ventilation grille inside, placed on an oven (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open door (no text or symbols)

4.1. HOE HET PRODUCT WERKT

DE OVEN AAN-/UITZETTEN

Hand cleaning a window with a cloth, showing surface dust and spray (no text or symbols)

Katalytisch reinigen

Line drawing of a box with two hands inserting a tray into the opening (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of a hand holding a diagonal line with a circular crosshair overlay (no text or symbols)

Illustration of a hand cleaning a tiled surface with a water bottle and steam rising (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Illustration showing a washing machine and a close-up of a door with a blue tool, both without any text or symbols.

6.3. SCHOONMAKEN VAN ACCESSOIRES

Line drawing of an oven with a heat exchanger inside, showing airflow direction (no text or symbols)

Line drawing of an oven with a right vent and internal structure (no text or symbols)

6.4. ONDERHOUD

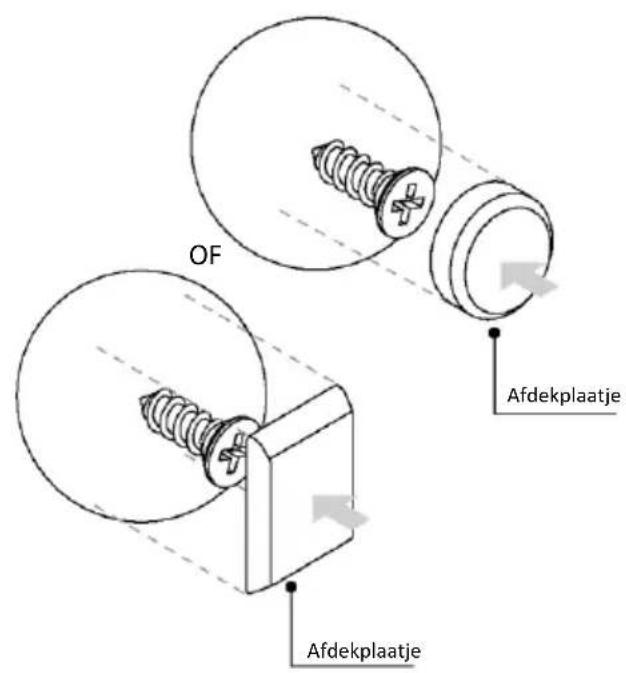

VERVANGING VAN ONDERDELEN

Stap 2

Line drawing of a hand cleaning a kitchen appliance with a scroll wheel (no text or symbols)

Stap 3

Line drawing of a hand inserting a circular component into an oven (no text or symbols)

Stap 4

Line drawing of a hand cleaning a microwave oven with a circular component and a blue spiral motion indicator (no text or symbols)

Stap 5

Line drawing of a hand inserting a small component into an oven (no text or symbols)

Stap 6

Symbol of a trash bin with crossed lines indicating no waste or discharge, plus a solid black rectangle below (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular tray with a grating inside, placed on an oven (no text or symbols)

Line drawing of a rectangular oven with a mesh lid (no text or symbols)

Simple line drawing of a desk with a circular diagram showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots, placed on a tray (no text or symbols)

3.3. LIMPEZA PRELIMINAR

Line drawing of a steam stove with smoke rising, next to an open door (no text or symbols)

Desativar

RELÓGIO PROGRAMADO

Permite alterar a hora do dia.

BRILHO DO ECRÃ

Hand cleaning a clean appliance into a kitchen oven (no text or symbols visible)

Limpeza catalítica

Line drawing of a box with two hands inserting a tray into the opening (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of a hand holding a diagonal line with a circular crosshair overlay (no text or symbols)

Illustration of a hand cleaning a tiled surface with a cloth, water being washed, and a bottle labeled 'H2O' (no text or symbols on main objects)

Pure technical line drawing of a mechanical assembly with no text or symbols

Illustration showing a hand inserting a box into an oven and a close-up of a mechanical component (no text or symbols)

6.3. LIMPEZA DOS ACESSÓRIOS

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. MANUTENÇÃO

Passo 2

Line drawing of a hand cleaning a kitchen appliance with a circular button (no text or symbols)

Passo 3

Line drawing of a hand inserting a bulb into an oven with a blue circular arrow indicating rotation (no text or symbols)

Passo 4

Line drawing of a hand cleaning a window with a blue circular motion indicator (no text or symbols)

Passo 5

Line drawing of a hand inserting a small component into an oven (no text or symbols)

Passo 6

Symbol of a trash bin with crossed lines indicating no waste or discharge, plus a solid black rectangle below (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

VITAJTE

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered storage rack system (no text or symbols)

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular appliance with internal grating, placed inside an oven (no text or symbols)

Line drawing of a kitchen appliance with a gridded tray and rack (no text or symbols)

Simple line drawing of a wooden frame with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4. OBSLUHA SPOTREBIČA

4.1. FUNGOVANIE SPOTREBIČA

ZAPNUTIE/VYPNUTIE RÚRY

Hand cleaning a clean appliance into a microwave oven (no text or symbols visible)

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a hand holding a board with a circular prohibition symbol (no text or labels)

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door with a tool (no text or symbols)

6.3. ČISTENIE PRÍSLUŠENSTVA

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. ÚDRŽBA

VÝMENA KOMPONENTOV

Krok 2

Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

Krok 3

Line drawing of a hand inserting a button into an oven with a blue arrow indicating rotation (no text or symbols)

Krok 4

Line drawing of a hand inserting a bulb into an oven with a circular motion indicator (no text or symbols)

Krok 5

Line drawing of a hand inserting a small object into an open oven (no text or symbols)

Krok 6

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

WITAMY

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan and side table (no text or symbols)

Line drawing of a rectangular appliance with internal grating, placed inside an oven (no text or symbols)

Line drawing of a rectangular tray with a mesh pattern inside, placed on an open oven (no text or symbols)

Line drawing of a mechanical component with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4.1. JAK DZIAŁA PRODUKT

WŁĄCZANIE/WYŁĄCZANIE PIEKARNIKA

JASNOŚĆ WYŚWIETLACZA

Hand cleaning a window with a cloth, showing surface texture and dust (no text or symbols)

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a hand holding a board with a circular prohibition symbol (no text or labels)

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door handle (no text or symbols)

6.3. CZYSZCZENIE AKCESORIÓW

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. KONSERWACJA

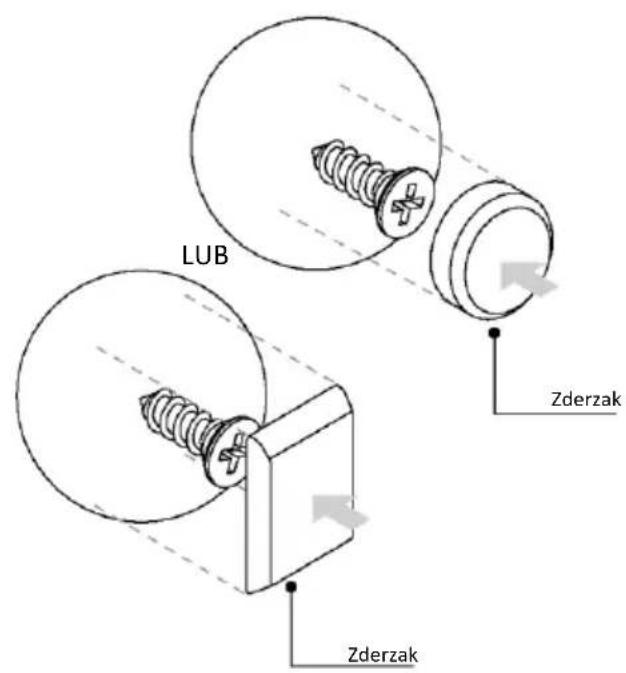

WYMIANA KOMPONENTÓW

Krok 2

Line drawing of a hand washing a small object into a rectangular appliance (no text or symbols)

Krok 3

Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

Krok 4

Line drawing of a hand cleaning a circular object inside a kitchen appliance (no text or symbols)

Krok 5

Line drawing of a hand washing a small object inside an oven (no text or symbols)

Krok 6

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

VÍTEJTE

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular kitchen appliance with shelves on top (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round pan, and a side shelf (no text or symbols)

Line drawing of a rectangular appliance with a grating inside, placed on an open oven (no text or symbols)

Line drawing of a rectangular appliance with a mesh grille, placed inside an oven (no text or symbols)

Simple line drawing of a desk with a circular diagram showing a pointer or pointer (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4. OVLÁDÁNÍ SPOTŘEBIČE

4.1. JAK TENTO VÝROBEK FUNGUJE

NASTAVENÍ PROGRAMU PŘÍPRAVY POKRMU

Hand cleaning a window with a cloth, showing surface texture and clean material inside (no text or symbols)

Katalytické čištění

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a board with a circular prohibition symbol (no text or labels)

Illustration of a hand cleaning a tiled surface with a cloth, water being washed in a bowl labeled H₂O (no text or symbols on the main subject)

Pure technical line drawing of a mechanical assembly with no text or symbols

Two technical diagrams showing a washing machine and a close-up of a mechanical component (no text or symbols present)

Line drawing of an oven with a rack inside, showing airflow direction (no text or symbols)

Line drawing of an oven with a rack inside, showing internal structure and an arrow indicating direction (no text or symbols)

6.4. ÚDRŽBA

VÝMĚNA SOUČÁSTÍ

Krok 2

Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

Krok 3

Line drawing of a hand inserting a circular component into an oven (no text or symbols)

Krok 4

Line drawing of a hand inserting a circular component into an oven with a magnifying glass (no text or symbols)

Krok 5

Line drawing of a hand inserting a small object into an oven with a blue circular arrow indicating rotation (no text or symbols)

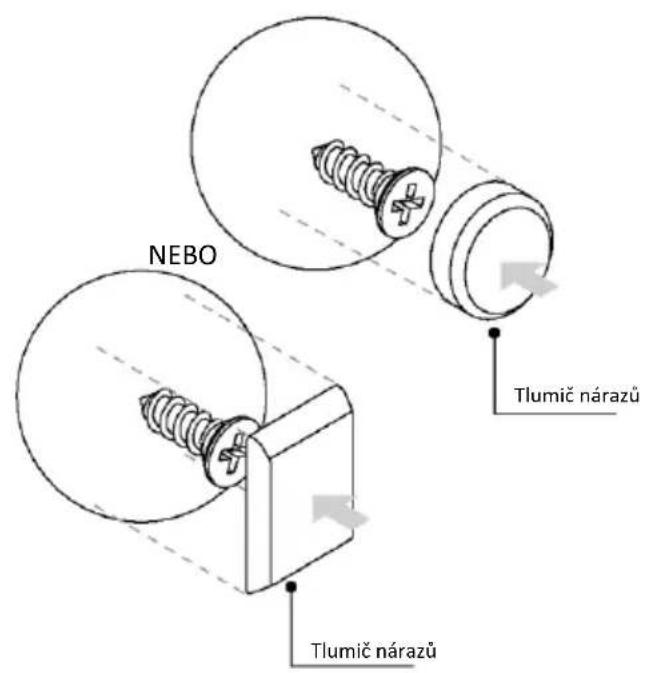

Krok 6

Simple line drawing of a trash bin with two crossed arms and a blank rectangular base (no text or symbols)

Isometric line drawing of a multi-level refrigerator with internal compartments and drawers (no text or symbols)

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular tray placed on a shelf, no text or symbols present

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular appliance with a grating tray inside, placed on an oven (no text or symbols)

Line drawing of a rectangular oven with a mesh grille (no text or symbols)

Simple line drawing of a wooden frame with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4. UTILIZAREA PRODUSULUI

4.1. CUM FUNCȚIONEAZĂ PRODUSUL

PORNIREA/OPRIREA CUPTORULUI

Hand cleaning a window with a cloth, showing surface texture and spray (no text or symbols)

Curățare catalitică

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a board with a circular prohibition symbol (no text or labels)

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door handle (no text or symbols)

6.3. CURĂȚAREA ACCESORIILOR

Line drawing of an oven with a heat exchanger inside, showing airflow direction (no text or symbols)

Line drawing of an oven with a right vent and internal structure (no text or symbols)

6.4. ÎNTRETINEREA

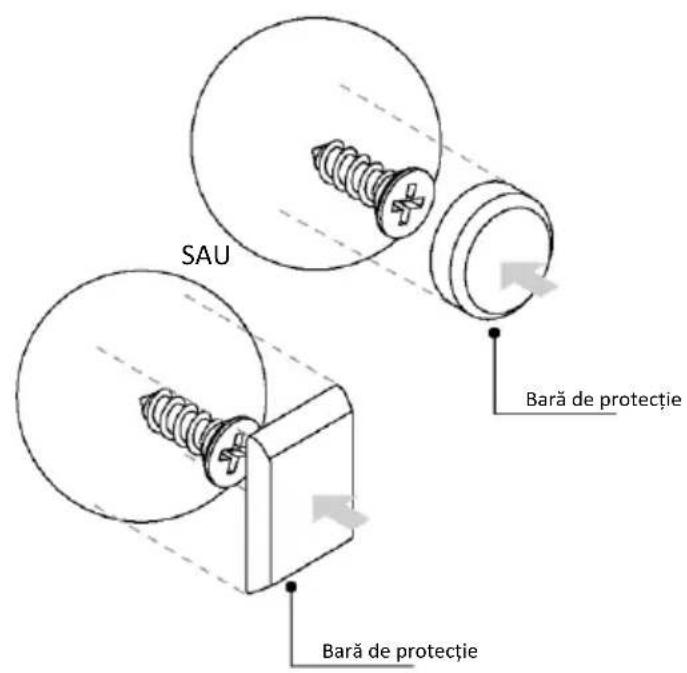

ÎNLOCUIREA COMPONENTELOR

Pasul 2

Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

Pasul 3

Line drawing of a hand inserting a circular component into an oven (no text or symbols)

Pasul 4

Line drawing of a hand inserting a circular component into an oven with a magnifying glass (no text or symbols)

Pasul 5

Line drawing of a hand inserting a small object into an oven with a blue circular arrow indicating rotation (no text or symbols)

Pasul 6

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round pan, and a side shelf (no text or symbols)

Line drawing of a rectangular appliance with a grating inside, placed on an oven (no text or symbols)

Line drawing of a rectangular oven with a mesh lid and rack, no text or symbols present

Simple line drawing of a wooden frame with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4. A TERMÉK MÚKÖDÉSE

4.1. A TERMÉK MÚKÖDÉSE

A SÜTŐ BE- ÉS KIKAPCSOLÁSA

Inaktiválás

ÓRABEÁLLÍTÁS

Hand cleaning a kitchen appliance with a cloth (no text or symbols visible)

Line drawing of a double-bowel oven with hands operating it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a tool, enclosed in a circle with a diagonal line crossing through it (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration showing a hand inserting a box into an oven and a close-up of a mechanical component (no text or symbols)

Line drawing of an oven with a vertical rack inside, showing airflow direction (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. KARBANTARTÁS

ALKATRÉSZEK CSERÉJE

1. lépés


Diagram of a hand inserting a component into an oven with a blue circular arrow indicating rotation (no text or symbols)

1. lépés


Line drawing of a hand pressing down on an open oven with a blue arrow indicating rotation (no text or symbols)

1. lépés


Line drawing of a hand cleaning a microwave oven with a circular button (no text or symbols)

1. lépés


Line drawing of a hand inserting a small component into an oven (no text or symbols)

1. lépés


Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular kitchen appliance with a lid, placed on a shelf (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round pan, and a side shelf (no text or symbols)

Line drawing of a rectangular appliance with a grating tray inside, placed on an open oven (no text or symbols)

Line drawing of a rectangular tray with a mesh pattern inside, placed on an open shelf (no text or symbols)

Simple line drawing of a wooden frame with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a steam stove with a cabinet and door, no text or symbols present

4.1. KAKO IZDELEK DELUJE

VKLOP/IZKLOP PEČICE

Za vklop pečice zavrtite funkcijski gumb (v smeri urinega kazalca/v nasprotni smeri urinega kazalca) in izberite program. Če jo želite izklopiti, nastavite funkcijski gumb v položaj »0«.

NASTAVITE PROGRAM KUHANJA

Z vrtenjem funkcijskega gumba izberite želeni program, z vrtenjem gumba za izbiro temperature pa nastavite temperaturo.

GLAVNI MENI

Hand cleaning a window with a cloth, showing surface texture and clean material inside (no text or symbols)

Čiščenje s katalizo

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with directional arrows, no text or symbols present

Line drawing of a hand holding a board with a circular prohibition symbol (no text or labels)

Illustration of a hand cleaning a tiled surface with a cloth, water being washed in a bowl labeled H₂O (no text or symbols on the main subject)

Pure technical line drawing of a mechanical component with no text or symbols

1. Nato vrnite vrata v položaj 90° in zavrtite jezičke za zaklepanje tečajev navznoter proti notranjosti pečice.

Two-step diagram showing a washing machine and a hand holding a tool, both without any text or symbols.

6.3. ČIŠČENJE DODATKOV

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. VZDRŽEVANJE

ZAMENJAVA DELOV

1. korak


Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

1. korak


Line drawing of a hand inserting a circular component into an oven (no text or symbols)

1. korak


Line drawing of a hand inserting a circular component into an oven with a pointer (no text or symbols)

1. korak


Line drawing of a hand inserting a small object into an open oven (no text or symbols)

1. korak


Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

DOBRO DOŠLI

Hvala vam što ste izabrali naš proizvod. Da biste bili bezbedni i dobili najbolje rezultate, pročitajte pažljivo ovo uputstvo, uključujući bezbednosna uputstva i sačuvajte ih za buduću upotrebu. Pre ugradnje pećnice obratite pažnju na serijski broj koji će vam možda biti potreban za popravke. Proverite da li su prilikom transporta nastala oštećenja i pre upotrebe se obratite serviseru ako niste sigurni. Čuvajte materijale za pakovanje dalje od dece.

1. Kontrolni panel
2. Položaji polica (bočna žičana rešetka, ako je deo opreme)
3. Metalne rešetke
4. Tacna
5. Poklopac ventilatora
6. Vrata pećnice
7. Bočne žičane rešetke (ako su deo opreme: samo za ravnu šupljinu)
8. Serijski broj i QR kod

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered storage rack or rack unit (no text or symbols)

Postavljene na obe strane unutrašnjosti pećnice, bočne rešetke su dizajnirane za postavljanje pleha za pečenje i rešetki tokom kuvanja.

Pleh za pečenje

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Pleh za pečenje je idealan za postizanje ravnomernog potamnjivanja sa donje strane, što ga čini savršenim za kolače i peciva zbog svog plitkog, ravnog dizajna. Po toga, ako se postavi ispod rešetke za kuvanje moži pomoći u sakupljanju curenja i sprečava prljanje pećni

Metalna rešetka

Line drawing of a rectangular kitchen appliance with a lid, placed on an oven (no text or symbols)

Dublji pleh je idealan za recepte prema kojima se dodaj tečnosti ili slojevi, kao što su duveč ili pečenja. Njegova dubina je posebno dizajnirana da osigura željenu ujednačenost hrane pripremljene u njemu.

Teleskopske vodice

Line drawing of a kitchen sink with a bowl, a round pan, and a side shelf (no text or symbols)

Line drawing of a rectangular appliance with a grating inside, placed on an oven (no text or symbols)

Line drawing of a kitchen appliance with a rectangular tray and mesh pattern (no text or symbols)

Airfry pleh obezbeđuje da vruć vazduh ravnomerno i trodimenzionalno dođe do hrane, čime se dobija hrskavija spoljašnjost uz održavanje mekoće unutra. Da biste sakupljali sokove i mrvice, stavite ga na vrh pleha za pečenje.

Šarke za lagano zatvaranje/otvaranje (samo ako su deo opreme\*)

Simple line drawing of a wooden frame with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots, placed on a tray (no text or symbols)

Konveksni oblik je pogodan za pravljenje roštilja u pećnici na visokoj temperaturi (220°), omogućavajući rezultat roštiljanja čak i kod kuće sa malo dima zahvaljujući dejstvu ceđenja masti na dno posude.

2.3. KONTROLNI PANEL

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4.1. KAKO PROIZVOD RADI

UKLJUČIVANJE/ISKLJUČIVANJE PEĆNICE

Da biste uključili pećnicu, okrenite funkcijsko dugme (u smeru kazaljke na satu/suprotno od kazaljke na satu) i izaberite program. Da biste je ISKLJUČILI, podesite funkcijsko dugme u položaj „0“.

PODEŠAVANJE PROGRAMA KUVANJA

Okrenite funkcijsko dugme da biste izabrali željeni program i okrenite dugme za izbor temperature da biste podesili temperaturu.

GLAVNI MENI

Hand cleaning a window with a cloth, showing surface texture and clean material inside (no text or symbols)

Katalitičko čišćenje

Katalitički paneli oblažu unutrašnjost pećnice i pružaju vam luksuz da se nikada ne borite sa prljavom pećnicom.

Paneli su obloženi specijalizovanim emajlom koji se može pohvaliti mikroporoznom strukturom koja dobro apsorbuje mast koja prska.

Katalitičkom hemijskom reakcijom oni efikasno pretvaraju apsorbovanu mast u gasovite elemente kada su izloženi visokim temperaturama.

Line drawing of a microwave oven with hands inserting a tray into the opening (no text or symbols)

Pure technical diagram showing a mechanical component with a blue arrow indicating direction (no text or symbols)

1. Postavite vrata na 45°. Istovremeno pritisnite dva dugmeta sa obe strane bočnih strana vrata i povucite prema sebi da biste uklonili poklopac gornjih stakala.

2. Veoma pažljivo uklonite staklo pećnice, počevši od unutrašnjeg. Tokom postupka, čvrsto držite staklo obema rukama i stavite ga na mekanu ravnu površinu (npr. na tkaninu).

3. UPOZORENJE: Spoljašnje staklo se ne može ukloniti.

4. Očistite staklo mekom krpom i odgovarajućim sredstvima za čišćenje.

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a board with a circular prohibition symbol (no text or labels)

1. Umetnite staklene ploče, vodeći računa da oznaka „Low-E“ bude ispravno čitljiva i postavljena na donjoj levoj strani vrata, u blizini leve šarke. Na taj način će štampana etiketa na prvom staklu ostati na unutrašnjoj strani vrata.

1. Ponovo pričvrstite poklopac vrata gornjeg stakla tako što ćete ga gurati prema unutra dok ne čujete klik dva bočna dugmeta.

Pure technical line drawing of a mechanical assembly with no text or symbols

1. Zatim vratite vrata na 90° i okrenite jezičke za zaključavanje šarki prema unutrašnjosti pećnice.

Illustration showing a washing machine and a close-up of a door with a blue tool, both without any text or symbols.

6.3. ČIŠĆENJE DODATNE OPREME

Obavezno temeljno očistite dodatnu opremu nakon svake upotrebe i osušite je peškirom. Za tvrdokorne naslage, natopite dodatnu opremu u mešavini vode i sapuna oko 30 minuta pre nego što je ponovo operete.

ČIŠĆENJE BOČNIH NOSAČA:

- Model sa 6 nivoa

1. Uklonite bočne nosače povlačenjem u pravcu strelica.
2. Da biste očistili žičane nosače, stavite ih u mašinu za pranje sudova ili koristite vlažni suđer i obavezno ih posle osušite.
3. Nakon procesa čišćenja, postavite žičane nosače obrnutim redosledom.

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a rack inside, showing internal structure and airflow direction (no text or symbols)

6.4. ODRŽAVANJE

ZAMENA KOMPONENTI

1. korak


Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

1. korak


Line drawing of a hand pressing down on an open oven with a blue arrow indicating rotation (no text or symbols)

1. korak


Line drawing of a hand inserting a bulb into an oven with a blue spiral motion indicator (no text or symbols)

1. korak


Line drawing of a hand inserting a small object into an oven with a blue circular arrow indicating rotation (no text or symbols)

1. korak


Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Pojedinci mogu igrati važnu ulogu u osiguravanju da EE ne postane ekološki problem; neophodno je pratiti nekoliko osnovnih pravila:

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

SVEIKI

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan and side shelf (no text or symbols)

Line drawing of a rectangular appliance with internal grating, placed inside an oven (no text or symbols)

Line drawing of a kitchen appliance with a mesh-lined tray and rack (no text or symbols)

Line drawing of a mechanical component with a circular inset showing radial blades (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4. GAMINIO VEIKIMAS

4.1. KAIP GAMINYS VEIKIA

ORKAITĖS IJUNGIMAS / IŠJUNGIMAS

EKRANO RYŠKUMAS

Hand cleaning a window with a cloth, showing surface texture and spray (no text or symbols)

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a tool, enclosed in a circle with a diagonal line crossing through it (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Illustration showing a washing machine and a close-up of a door with a blue tool, both without any text or symbols.

6.3. PRIEDU VALYMAS

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a rack inside, showing internal structure and airflow direction (no text or symbols)

6.4. PRIEŽIŪRA

KOMPONENTŲ KEITIMAS

2 veiksmas

Line drawing of a hand washing a small object inside a kitchen appliance (no text or symbols)

3 veiksmas

Line drawing of a hand pressing down on a kitchen appliance with a circular button (no text or symbols)

4 veiksmas

Line drawing of a hand inserting a circular component into an open appliance (no text or symbols)

5 veiksmas

Line drawing of a hand washing a small object inside an oven (no text or symbols)

6 veiksmas

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

TERE TULEMAST!

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular kitchen appliance with a tray and shelves (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular appliance with internal grating, placed inside an oven (no text or symbols)

Line drawing of a kitchen appliance with a gridded tray and rack (no text or symbols)

Simple line drawing of a window with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4. TOOTE KASUTAMINE

4.1. KUIDAS TOODE TOIMIB

AHJU SISSE-/VÄLJALÜLITAMINE

MÄÄRAKE KÜPSETUSPROGRAMM

PEAMENÜÜ

EKRAANI HELEDUS

Hand cleaning a window with a cloth, showing surface texture and spray (no text or symbols)

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a tool, enclosed in a circle with a diagonal line crossing through it (no text or symbols)

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door with a tool (no text or symbols)

6.3. TARVIKUTE PUHASTAMINE

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a rack with a cloth, a bottle labeled 'H2O', and a bowl of water (no text or symbols on main objects)

Line drawing of an oven with a rack inside, showing internal structure and airflow direction (no text or symbols)

6.4. HOOLDUS

KOMPONENTIDE VAHETAMINE

Lambipirni vahetamine:

1. samm


Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

1. samm


Line drawing of a hand inserting a button into an oven with a blue arrow indicating rotation (no text or symbols)

1. samm


Line drawing of a hand inserting a circular component into an oven with a magnifying glass (no text or symbols)

1. samm


Line drawing of a hand inserting a small object into an open oven (no text or symbols)

1. samm


Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Isometric line drawing of a multi-level refrigerator with internal compartments and drawers (no text or symbols)

LAIPNI LÜDZAM

2.1. PRODUKTA PÄRSKATS

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan and side shelf (no text or symbols)

Line drawing of a rectangular tray with a black lid, placed inside an oven (no text or symbols)

Line drawing of a kitchen appliance with a grid-patterned tray and shelves (no text or symbols)

Simple line drawing of a mechanical component with a circular inset showing radial blades (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots, placed on an oven (no text or symbols)

Funkcijas un funkciju rangu var mainit atkaribā no modela.

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4. PRODUKTA DARBİBA

4.1. KÄ PRODUKTS DARBOJAS

CEPEŠKRĀSNS IESLĒGŠANA/IZSLĒGŠANA

DISPLEJA SPILGTUMS

Hand cleaning a window with a cloth, showing surface texture and spray (no text or symbols)

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with directional arrows, no text or symbols present

Line drawing of a hand holding a board with a circular prohibition symbol (no text or labels)

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door handle (no text or symbols)

6.3. PIEDERUMU TİRİŞANA

Line drawing of an oven with a vertical rack inside, showing airflow direction (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. APKOPE

KOMPONENTU NOMAINA

1. darbība


Line drawing of a hand washing a small object inside a kitchen appliance (no text or symbols)

1. darbība


Line drawing of a hand pressing down on a kitchen appliance with a circular button (no text or symbols)

1. darbība


Line drawing of a hand inserting a circular component into an open appliance (no text or symbols)

1. darbība


Line drawing of a hand washing a small object inside an oven (no text or symbols)

1. darbība


Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

ДОБРЕ ДОШЛИ

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular appliance with a grating inside, placed on an oven (no text or symbols)

Line drawing of a rectangular appliance with a mesh grille, placed inside an oven (no text or symbols)

Simple line drawing of a window frame with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a traditional stove with smoke rising, next to an open cabinet (no text or symbols)

Hand cleaning a window with a cloth, showing surface texture and spray (no text or symbols)

Line drawing of a box with hands inserting or adjusting the interior frame (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating direction (no text or symbols present)

Pure technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a hand holding a horizontal line with a circular prohibition symbol (no text or labels)

Pure technical line drawing of a mechanical assembly with no text or symbols

Two technical diagrams showing a washing machine and a close-up of a mechanical component (no text or symbols present)

6.3. ПОЧИСТВАНЕ НА ПРИНАДЛЕЖНОСТИ

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a rack inside, showing internal structure and airflow direction (no text or symbols)

6.4. ПОДДРЪЖКА

ПОДМЯНА НА КОМПОНЕНТИ

Стъпка 2

Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

Стъпка 3

Line drawing of a hand inserting a button into an oven with a blue arrow indicating rotation (no text or symbols)

Стъпка 4

Line drawing of a hand inserting a bulb into an oven with a circular motion indicator (no text or symbols)

Стъпка 5

Line drawing of a hand inserting a small object into an open oven (no text or symbols)

Стъпка 6

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

1. Upravljačka ploča
2. Položaji polica (bočna žičana rešetka ako je isporučena)
3. Metalne rešetke
4. Ladica
5. Poklopac ventilatora
6. Vrata pećnice
7. Bočne žičane rešetke (ako postoje: samo za ravni prostor za pečenje)
8. Serijski broj i QR kôd

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Duboka ladica idealna je za recepte s dodanim tekućinama ili slojevima, kao što su složenci ili pečenja. Njena je dubina posebno dizajnirana kako bi hrana koja se u njenoj priprema imala željenu konzistentnost.

Teleskopske vodilice

Line drawing of a kitchen sink with a bowl, a round pan, and a side shelf (no text or symbols)

Teleskopske vodilice u pećnici police su koje se mogu produljiti, što olakšava postavljanje i uklanjanje predmeta, bez potrebe za posezanjem duboko u vruću pećnicu. Poboljšavaju sigurnost, stabilnost i mogu se postaviti na različite razine.

Line drawing of a rectangular appliance with a grating tray inside, placed on an open oven (no text or symbols)

Line drawing of a rectangular kitchen appliance with a mesh grille and side shelves (no text or symbols)

Simple line drawing of a wooden frame with a circular inset showing radial lines (no text or symbols)

Šarke za postupno zatvaranje i otvaranje upravljanju kretanjem vrata koja se zbog njih zatvaraju glatko, bez lupanja.

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Konveksni oblik prikladan je za pečenje roštiljanje u pećnici na visokoj temperaturi (220°), omogućujući rezultate kao na roštilju čak i kod kuće, s malo dima zahvaljujući drenažnom djelovanju masti na dnu ladice.

2.3. UPRAVLJAČKA PLOČA

Funkcije i rangiranje funkcija ovise o modelu.

1. Ručica izbornika funkcije
2. Osnovni izbornik
3. Vremenski programator
4. Zaslon LED
5. Gumb plus (+)
6. Gumb minus (-)
7. Gumb za odabir temperature

GLAVNE FUNKCIJE

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4. UPOTREBA PROIZVODA

4.1. NAČIN RADA PROIZVODA

UKLJUČIVANJE/ISKLJUČIVANJE PEĆNICE

Za uključivanje pećnice okrenite birač funkcija (udesno/ulijevo) i odaberite program.

Odbrojavanje započinje kada je vremenski programator postavljen. Tijekom faze kuhanja moguće je promijeniti trajanje pritiskom ulaskom u način rada „Cooking duration” (Trajanje kuhanja) korištenjem gumba „+/-”. Kada istekne trajanje, na zaslonu će se prikazati „End” (Kraj).

Za zaustavljanje trajanja kuhanja, pritisnite i na 3 sekunde zadržite gumb Ⓛ ili resetirajte vrijednost vremenskog programatora koristeći gumb „-”.

Po završetku kuhanja:

1. Na zaslonu se prikazuje „End” (Kraj) i tijekom 30 s oglašavat će se zvuk upozorenja, osim ako ga ne poništite.
2. Pritisnite gumb „Timer” (Vremenski programator) Ⓛ za poništavanje zvuka upozorenja. Poruka „End” (Kraj) nestat će sa zaslona i prikazat će se trenutačno doba dana.

Regulator temperature:

Kada je temperatura pećnice niža od postavljene vrijednosti, na zaslonu se prikazuje ikona ⚙ (termostat uključen).

4.2. FUNKCIJE KUHANJA

4.2.1. STANDARDNE FUNKCIJE

Slijedite upute u donjoj tablici za ono što se odnosi na zagrijavanje.

Hand cleaning a kitchen appliance with a cloth (no text or symbols visible)

Katalitičko čišćenje

Katalitičke ploče oblažu pećnicu i pružaju vam luksuz da se ne morate boriti s prljavom pećnicom. Ploče su obložene specijaliziranim emajlom koji se diči mikroporoznom strukturom, vještom u apsorpciji masnih ostataka prskanja.

Katalitičkom kemijskom reakcijom učinkovito pretvaraju apsorbiranu mast u plinovite elemente kada su izloženi visokim temperaturama.

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a tool, enclosed in a circle with a diagonal line crossing through it (no text or symbols present)

Simple line drawing of a mechanical or architectural component with arrows indicating direction (no text or symbols)

1. Zatim vratite vrata na 90° i zakrenite jezičke za zaključavanje šarki tako da gledaju prema unutrašnjosti pećnice.

Illustration showing a hand inserting a box into an oven and a close-up of a door handle (no text or symbols)

6.3. ČIŠĆENJE PRIBORA

Nakon svake upotrebe temeljito očistite pribor i osušite ga ručnikom. Tvrdokorne je ostatke na priboru pribora možda najbolje namočiti u mješavini vode i sapuna otprilike 30 minuta prije drugog pranja.

ČIŠĆENJE BOČNIH REŠETKI:

- Model sa 6 razina

1. Uklonite bočne rešetke povlačenjem u smjeru strelica.
2. Žičane rešetke prilikom čišćenja stavite u perilicu posuđa ili upotrijebite mokru spužvu, a zatim ih obavezno osušite.
3. Nakon čišćenja postavite bočne police obrnutim redoslijedom.

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a rack inside, showing internal structure and airflow direction (no text or symbols)

6.4. ODRŽAVANJE

ZAMJENA DIJELOVA

1. korak


Line drawing of a hand cleaning a kitchen appliance with a circular motion indicator (no text or symbols)

1. korak


Line drawing of a hand washing a washing machine with a circular arrow indicating rotation (no text or symbols)

1. korak


Line drawing of a hand pressing down on a washing machine with a circular component (no text or symbols)

1. korak


Line drawing of a hand washing a small object inside an oven (no text or symbols)

1. korak


Simple line drawing of a trash bin with two crossed arms and a blank rectangular base (no text or symbols)

Pojedinci mogu imati važnu ulogu u postizanju cilja da otpadna električna i elektronička oprema ne postane ekološki problem. Treba se pridržavati nekoliko osnovnih pravila:

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

VELKOMMEN

Blank white rectangle with a thin gray border (no text or symbols)

Skriv dit serienummer her til fremtidig reference.

2.2. TILBEH∅R

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan and side shelf (no text or symbols)

Simple line drawing of a mechanical component with a circular inset showing radial blades (no text or symbols)

Line drawing of a rectangular appliance with a grating inside, placed on an oven (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots, placed inside an oven (no text or symbols)

Line drawing of a kitchen appliance with a gridded tray and rack (no text or symbols)

3.3. INDLEDENDE RENG∅RING

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4. BETJENING AF PRODUKTET

4.1. SÅDAN VIRKER PRODUKTET

TÆND/SLUK FOR OVNEN

UR INDSTILLET

DISPLAYLYSSTYRKE

MENUEN TIMER

Hand cleaning a window with a cloth, showing surface texture and dust (no text or symbols)

Katalyserengøring

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a tool, enclosed in a circle with a diagonal line crossing through it (no text or symbols)

Illustration of a hand cleaning a tiled surface with a cloth, water being washed in a bowl labeled H₂O (no text or symbols on the main image)

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door handle (no text or symbols)

6.3. RENG∅RING AF TILBEH∅R

RENG∅RING AF SIDESKINNERNE:

- Model med 6 niveauer

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. VEDLIGEHOLDELSE

UDSKIFTNING AF KOMPONENTER

Trin 2

Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

Trin 3

Line drawing of a hand inserting a circular component into an oven (no text or symbols)

Trin 4

Line drawing of a hand inserting a circular component into an oven with a pointer (no text or symbols)

Trin 5

Line drawing of a hand inserting a small object into an open oven (no text or symbols)

Trin 6

Simple line drawing of a trash bin with no text or symbols

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

TERVETULOA

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular appliance placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular appliance with a grating inside, placed on an oven (no text or symbols)

Line drawing of a rectangular appliance with a mesh grille, placed inside an oven (no text or symbols)

Simple line drawing of a window with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

Line drawing of a traditional stove with smoke rising, next to an open cabinet (no text or symbols)

4.1. MITEN TUOTE TOIMII

UUNIN KYTKEMINEN PÄÄLLE/POIS PÄÄLTÄ

4.2. RUOANVALMISTUSTOIMINNOT

4.2.1. VAKIOTOIMINNOT

Hand cleaning a window with a cloth, showing surface texture and spray (no text or symbols)

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with directional arrows, no text or symbols present

Illustration of a hand holding a board with a circular prohibition symbol (no text or labels)

Illustration of a hand cleaning a tiled surface with a cloth, water being washed in a bowl labeled H₂O (no text or symbols on the main subject)

Simple line drawing of a mechanical or architectural component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a hand holding a tool near a wall (no text or symbols)

6.3. LISÄVARUSTEIDEN PUHDISTUS

Line drawing of an oven with a vertical rack inside, showing airflow direction (no text or symbols)

Line drawing of an oven with a rack inside, showing internal structure and an arrow indicating direction (no text or symbols)

6.4. HUOLTO

KOMPONENTTIEN VAIHTO

Vaihe 2

Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

Vaihe 3

Line drawing of a hand inserting a button into an oven with a blue arrow indicating rotation (no text or symbols)

Vaihe 4

Line drawing of a hand inserting a bulb into an oven with a blue spiral motion indicator (no text or symbols)

Vaihe 5

Line drawing of a hand placing a small object into an oven with a blue circular arrow indicating rotation (no text or symbols)

Vaihe 6

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

VELKOMMEN

Blank white rectangle with a thin gray border (no text or symbols)

Skriv her serienummeret for fremtidig referanse.

2.2. TILBEH∅R

Line drawing of a multi-tiered storage rack system (no text or symbols)

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular kitchen appliance with a side panel (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular appliance with internal grating, placed inside an oven (no text or symbols)

Line drawing of a rectangular oven with a mesh grille and rack, no text or symbols present

Simple line drawing of a desk with a circular diagram showing a pointer or pointer (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots (no text or symbols)

3.3. FOREL∅PIG RENGJ∅RING

Line drawing of a steam stove with smoke rising, next to an open cabinet (no text or symbols)

4. DRIFT AV PRODUKTET

4.1. HVORDAN PRODUKTET FUNGERER

SLÅ PÅ/AV OVNEN

DISPLAYETS LYSSTYRKE

TIMERMENY

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a tool, enclosed in a circle with a diagonal line crossing through it (no text or symbols present)

Pure technical line drawing of a mechanical assembly with no text or symbols

Two technical diagrams showing a washing machine and a close-up of a mechanical component (no text or symbols present)

6.3. RENGJ∅RING AV TILBEH∅R

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a rack inside, showing internal structure and an arrow indicating direction (no text or symbols)

6.4. VEDLIKEHOLD

UTSKIFTING AV KOMPONENTER

Trinn 2

Line drawing of a hand cleaning a kitchen appliance with a circular motion indicator (no text or symbols)

Trinn 3

Line drawing of a hand inserting a button into an oven with a blue arrow indicating rotation (no text or symbols)

Trinn 4

Line drawing of a hand inserting a bulb into an oven with a blue spiral motion indicator (no text or symbols)

Trinn 5

Line drawing of a hand washing a small object inside an oven (no text or symbols)

Trinn 6

Dette produktet inneholder én eller flere lyskilder av energieffektivitetsklasse G (lampe).

7. FEILS∅KING

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

VÄLKOMMEN

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan, a circular object, and a mesh rack (no text or symbols)

Line drawing of a rectangular oven with a grater inside, placed on top of a rack (no text or symbols)

Line drawing of a microwave oven with a grid-patterned lid (no text or symbols)

Simple line drawing of a window frame with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular tray with horizontal lines inside, placed on an oven (no text or symbols)

Line drawing of a steam stove with a cabinet open, no text or symbols present

4. DRIFT AV PRODUKTEN

DISPLAYENS LJUSSTYRKA

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a tool, enclosed in a circle with a diagonal line crossing through it (no text or symbols present)

Simple line drawing of a mechanical or architectural component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door handle (no text or symbols)

6.3. RENGÖRING AV TILLBEHÖR

Line drawing of an oven with a rack inside and an arrow indicating direction (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. UNDERHÅLL

BYTE AV DELAR

Steg 2

Line drawing of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

Steg 3

Line drawing of a hand inserting a circular component into an oven (no text or symbols)

Steg 4

Line drawing of a hand inserting a circular component into an oven with a pointer (no text or symbols)

Steg 5

Line drawing of a hand inserting a small object into an oven with a blue circular arrow indicating rotation (no text or symbols)

Steg 6

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

ЛАСКАВО ПРОСИМО

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round pan on a grater (no text or symbols)

Line drawing of a rectangular tray with a grating inside, placed on an oven (no text or symbols)

Line drawing of a rectangular appliance with a mesh grille, placed inside an oven (no text or symbols)

Simple line drawing of a cabinet with a circular pointer and radial lines, no text or symbols present

Line drawing of a rectangular appliance with internal grating and ventilation slots, placed on an oven (no text or symbols)

Line drawing of a steam stove with smoke rising, next to an open door (no text or symbols)

4. ЕКСПЛУАТАЦІЯ ВИРОБУ

Hand cleaning a kitchen appliance with a cloth (no text or symbols visible)

Line drawing of a double-bowel oven with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a board with a circular prohibition symbol (no text or labels)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration showing a washing machine and a close-up of a door with a blue tool, both without any text or symbols.

Line drawing of an oven with a vertical rack inside, showing airflow direction (no text or symbols)

Line drawing of an oven with a rack inside, showing internal structure and airflow direction (no text or symbols)

Крок 2

Illustration of a hand cleaning a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

Крок 3

Line drawing of a hand inserting a circular component into an oven (no text or symbols)

Крок 4

Line drawing of a hand inserting a circular component into an oven with a pointer (no text or symbols)

Крок 5

Line drawing of a hand inserting a small object into an oven with a blue circular arrow indicating rotation (no text or symbols)

Крок 6

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)

HOŞ GELDİNİZ

Blank white rectangle with a thin gray border (no text or symbols)

Line drawing of a multi-tiered rack or storage unit with no text or symbols

Line drawing of a rectangular tray placed inside a rack (no text or symbols)

Line drawing of a rectangular tray placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan and side shelf (no text or symbols)

Simple line drawing of a mechanical component with a circular inset showing radial blades (no text or symbols)

Line drawing of a rectangular tray with a black lid, placed inside an oven (no text or symbols)

Line drawing of a rectangular appliance with internal grating and ventilation slots, placed on an oven (no text or symbols)

Line drawing of a rectangular appliance with a mesh grille, placed inside an oven (no text or symbols)

3.3. ÖN TEMİZLİK

Line drawing of a traditional stove with smoke rising, next to an open cabinet (no text or symbols)

4. ÜRÜNÜN ÇALIŞTIRILMASI

4.1. ÜRÜN NASIL ÇALIŞIR?

FIRININ AÇILMASI/KAPATILMASI

Devre dışı bırak

SAAT AYARI

EKRAN PARLAKLIĞI

ZAMANLAYICI MENÜSÜ

Hand cleaning a window with a cloth, showing surface texture and clean material inside (no text or symbols)

Katalitik temizleme

Line drawing of a cabinet with hands inserting or connecting it (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a tool, enclosed in a circle with a diagonal line crossing through it (no text or symbols)

Simple line drawing of a mechanical or architectural component with arrows indicating direction (no text or symbols)

Illustration showing a hand inserting a box into an oven and a close-up of a door handle (no text or symbols)

6.3. AKSESUAR TEMİZLİĞİ

Line drawing of an oven with a heat exchanger inside, showing airflow direction (no text or symbols)

Line drawing of an oven with a right vent and internal grating (no text or symbols)

6.4. BAKIM

Adim 2

Line drawing of a hand cleaning a kitchen appliance with a circular motion indicator (no text or symbols)

Adim 3

Line drawing of a hand pressing down on an open oven with a blue arrow indicating rotation (no text or symbols)

Adim 4

Line drawing of a hand inserting a bulb into an oven with a blue spiral motion indicator (no text or symbols)

Adim 5

Line drawing of a hand washing a small object inside an oven (no text or symbols)

Adim 6

Symbol of a trash bin crossed with no visible text or labels

Isometric line drawing of a multi-level refrigerator with internal compartments and doorways (no text or symbols)
