USER MANUAL Soundgear Frames JBL

Profile portrait of a person wearing sunglasses with red lighting (no text or symbols visible)

SOUNDGEAR FRAMES

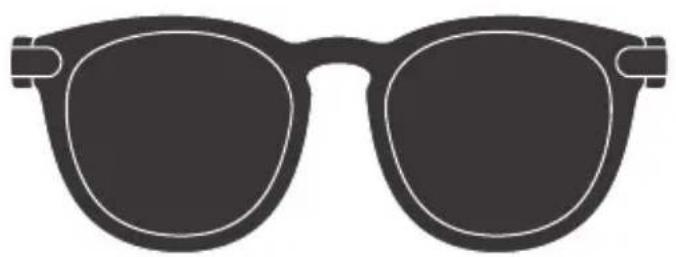

WHAT'S IN THE BOX

Silhouette of a pair of dark-framed sunglasses with white outlines (no text or symbols)

JBL

Pure electrical cable diagram without any text, numbers, or symbols

APP

JBL

JBL HEADPHONES

GET IT ON Google Play

Download on the App Store

Get even more control and personalization of your listening experience with this free app.

Red QR code with central logo containing 'JBL' and a circular emblem, likely for digital access or payment.

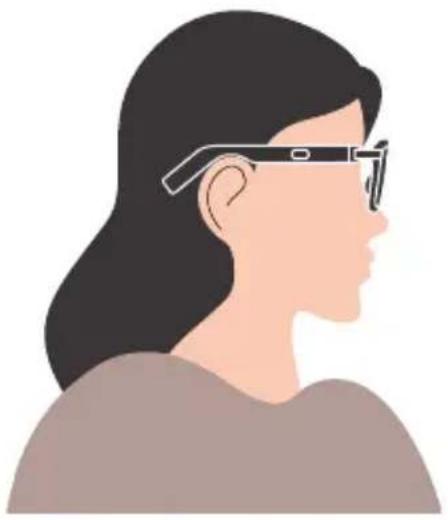

HOW TO WEAR

Profile illustration of a person wearing a smart glasses (no text or symbols)

Illustration of a pair of black-framed sunglasses with white outlines and dotted line below (no text or symbols)

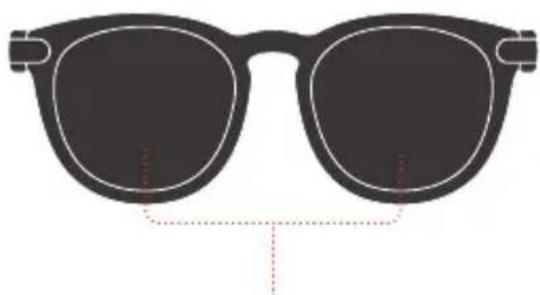

Consult a professional optician If you need to replace the lens.

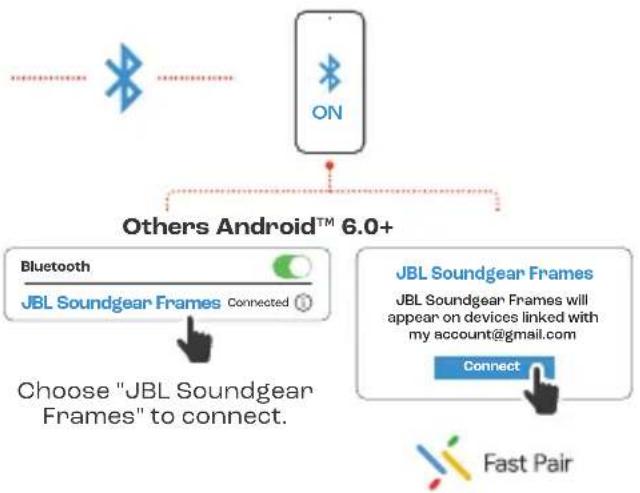

POWER ON & CONNECT

Diagram of a pair of eyeglasses with dotted lines indicating motion or force directions (no text or symbols)

ON

Windows 10 v1803+

Bluetooth New JBL SG Frames found If this is your device, connect to it. Connect Dismiss

Microsoft Swift Pair

CONTROLS

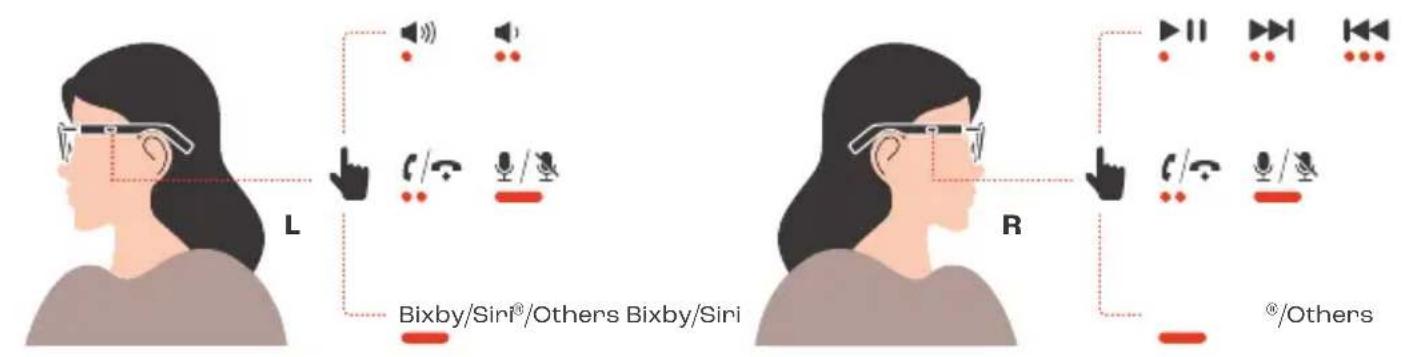

L Bixby/Siri®/Others Bixby/Siri R ®/Others

- Tap × 1

Tap × 2

Tap × 3

Hold (2s)

* Enable advance controls by connecting your JBL SOUNDGEAR FRAMES to JBL Headphones app

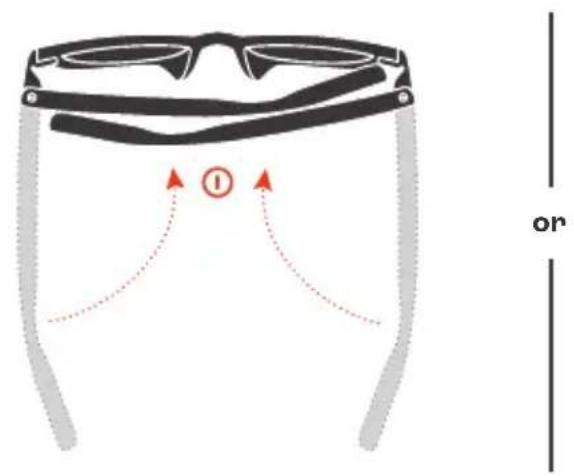

POWER OFF

|

on

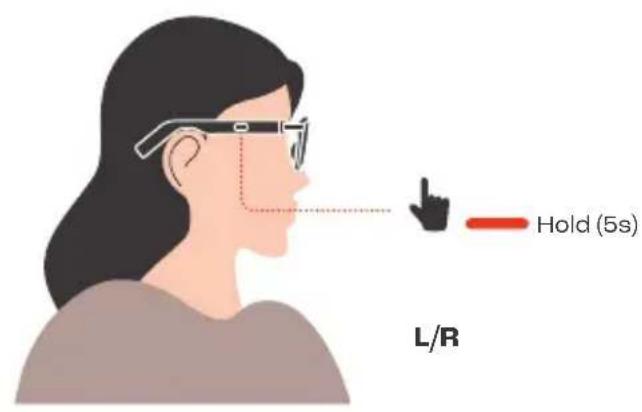

Hold (5s) L/R

MANUAL SETUP

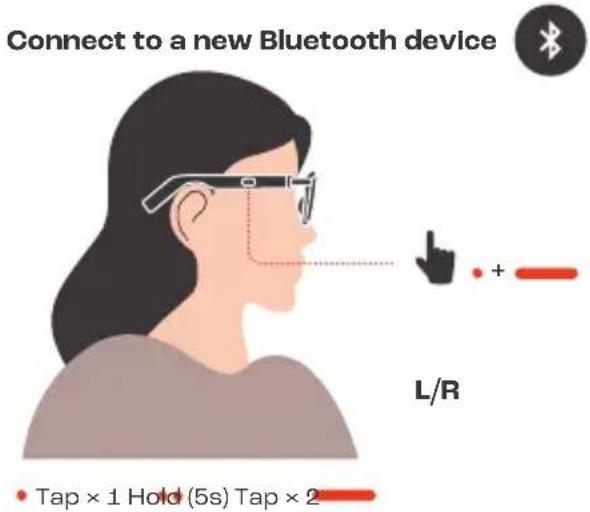

Connect to a new Bluetooth device L/R Tap × 1 Hold (5s) Tap × 2

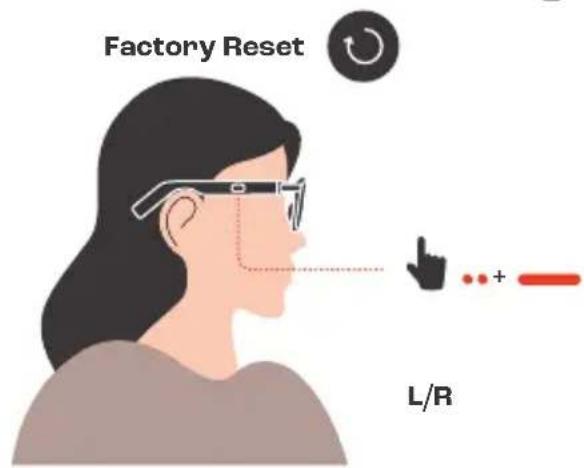

Factory Reset L/R

DO MORE WITH THE APP

JBL Soundgear Frames Equalizer JAZ

Gestures Left Right Customized Gesture: Tape/face texture Tap Play/face Double Tap Snap 3200 Triple Tap Play/face 3200 Tap & hold Actifying Nature Nature Aperture 3

JBL HEADPHONES JBL

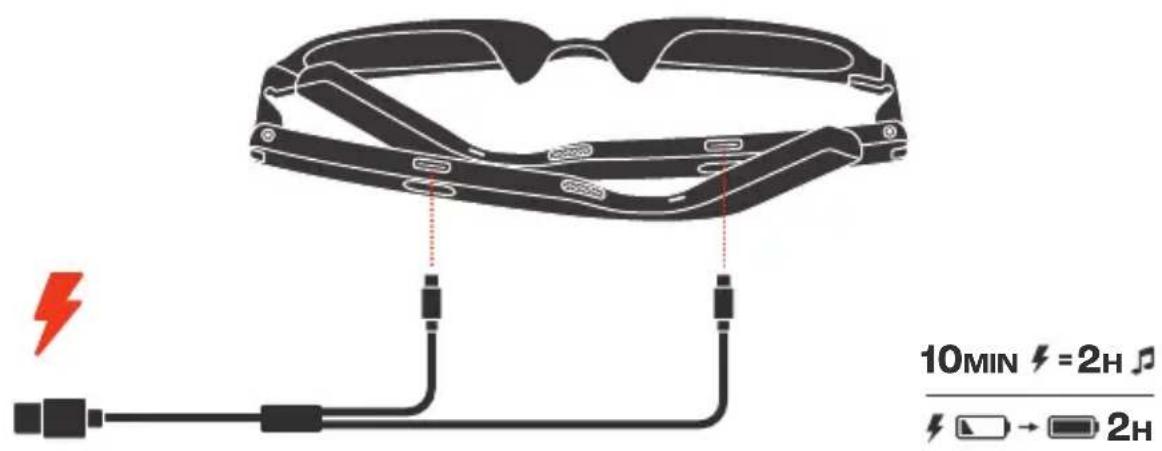

CHARGING

10MIN =2H 2H

LED BEHAVIORS

Silhouette of a UBL-branded mechanical device with a handle and bracket (no text or symbols)

BT connecting BT connected BT not connected

Low battery Charging Fully charged

TECH SPEC

Model: SOUNDGEAR FRAMES

Driver size: 25 mm x 9 mm/0.98" x 0.35" Dynamic Driver

Power supply: 5 V

= 0.5A × 2

Material: Frame-Plastic (TR90), Hinge-metal (SUS316),

Temple housing- Plastic (PC)

Dimensions (L x W x H): 160.87 mm x 150.54 mm x 53.68 mm/

6.33"×5.93"×2.11"

Weight: 52.0 g/0.115 lbs

Battery type: Lithium-ion battery (110 mAh/ 3.8 V)

Charging time: 2 hrs from empty

Frequency response: 100 Hz - 18 kHz

Impedance: 20 ohm

Sensitivity: 114 dB SPL@1 kHz

Maximum SPL: 90 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.2

Bluetooth transmitter

frequency range: 2.4 GHz – 2.4835 GHz

Bluetooth transmitter power: <12 dBm (EIRP)

Bluetooth transmitter

modulation:

GFSK, π/4-DQPSK, 8DPSK

Maximum operation

temperature:

45°C

IP54

FRD

CONTENU DE LA BOÎTE APPLICATION

HVAD ER DER I AESKEN

APPEN

6.33" x 5.93" x 2.11"

Súly: 52.0 g / 0.115 lbs

JBL Headphones Uygulamasina

KEGUNAAN LAIN APLIKASI

PENGISIAN DAYA

POLA LED

BT menyambungkan

BT tersambung

BT tidak tersambung

Daya baterai lemah

Mengisi daya

Daya terisi penuh

SPESIFIKASI TEKNIS

Model: SOUNDGEAR FRAMES

Ukuran driver: Driver Dinamis 25 mm x 9 mm/

0,98" x 0,35'

Catu daya: 5 V =0,5 A x 2

Bahan: Frame-Plastik (TR90), Engsel-logam

53.68mm/6.33" x 5.93" x 2.11"

중량:52.0g/0.115lbs

배터리 유형:

범위:2.4GHz\~2.4835GHz

To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.

FR pour protéger la vie de la batterie, chargez-la complètement au moins une fois tous les 3 mois. La durée de vie de la batterie varie en fonction des modes d'utilisation et des conditions environnementales.
DA For at optimere batteriets levetid skal du oplade fuldt ud mindst en gang i kvartalet. Batteriets levetid afhænger af brugsmønstre og omgivelser.
DE Lade zum Schutz des Akkus diesen mindestens einmal alle 3 Monate vollständig auf. Die Akkulebensdauer kann aufgrund von Nutzungsverhalten und Umgebungsbedingungen variieren.
EL Για να προστατεύσετε τη διάρκεια ζωής της μπαταρίας, φορτίστε την πλήρως τουλάχιστον μία φορά κάθε 3 μήνες. Η ζωής της μπαταρίας ποικίλλει ανάλογα με τη χρήση και τις περιβαλλοντικές συνθήκες.
ES Para proteger la duración de la batería, cárgala completamente al menos una vez cada 3 meses. La duración de la batería depende de los patrones de uso y las condiciones ambientales.
FI Akun käyttöiän turvaamiseksi, lataa täyteen ainakin kerran 3 kuukauden välein. Akun käyttöikä vaihtelee käyttötapojen ja ympäristöolosuhteiden mukaan.

HU Az akkumulátor élettartamának védelme érdekében teljesen töltse fel 3 havonta legalább egyszer. Az akkumulátor élettartama a használattól, és a környezeti feltételektől függ.
IT Per preservare la durata della batteria, effettuare una carica completa almeno una volta ogni 3 mesi. La durata della batteria varia a seconda del tipo di utilizzo e delle condizioni ambientali.
NL Voor een optimale levensduur de batterij minstens om de 3 maanden volledig opladen. De levensduur van de batterij is afhankelijk van gebruikspatronen en omgevingscondities.
NO For å beskytte batteriets levetid må det lades helt opp minst én gang hver 3. måned. Batteriets levetid vil variere etter bruksmønster og omgivelsesforhold.
PL Aby zachować czas eksploatacji akumulatora, należy go ładować co najmniej raz na trzy miesiące. Żywotność akumulatora zależy od sposobu jego użycia i warunków otoczenia.
PT-BR Para garantir a durabilidade da bateria, carregue-a totalmente pelo menos uma vez a cada três meses. A vida útil da bateria depende dos padrões de uso e das condições do ambiente.
SV För att förbättra batteriets livslängd ska det laddas det fullt minst en gång var tredje månad. Batteriets livslängd varierar beroende på användning och miljöförhållanden.
TR Pil ömrünü uzatmak için en az 3 ayda bir tam olarak şarj edin. Pil ömrü kullanım şekline ve çevresel şartlara bağlı olarak değişiklik gösterebilir.
RU Чтобы продлить срок службы аккумулятора, полностью заряжайте его по меньшей мере раз в 3 месяца. Срок службы аккумулятора зависит от способов использования и условий окружающей среды.

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

해당무선설비는전파혼신가능성이있으므로인명안전과관련된서비스는할수없음.

Description: Sunglasses for general use

Filter Category: CAT.3

High protection against sunglare, Good UV protection

• NOT SUITABLE FOR DRIVING IN TWILIGHT OR AT NIGHT.

- Only lenses approved by Harman should be used with the Audio Frame products.

• Not for direct observation of the sun.

- Not for protection against artificial light sources, e.g. solaria.

• Not for use as eye protection against mechanical impact hazards.

- When not in use, store the product in the carry case provided.

FR

• NE CONVIENNENT PAS POUR LA CONDUITE AU CRÉPUSCULE OU LA NUIT.

•Harman ￥ 2500000000000000000000000000000000000000000000

###

- 05886:88694 058 040783267945945945945945945945945945945945945945945945945945945945945945945945945945945945945945945945945945945

This product complies with the requirements of European Union PPE Regulation (EU) 2016/425.

This product complies with the EN ISO 12312-1:2013+A1:2015, BS EN ISO 12312-1:2013+A1:2015, AS/NZS 1067.1:2016, GB 39552.1-2020, ABNT NBR ISO 12312-1:2018 and CNS 15067-2017.

Instructions for storage, use and cleaning: Store in such a way as to prevent scratching of the lenses. Clean lenses with soapy water and dry with a soft cloth.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

FR

Product specifications and app screens are subject to change without notice.

HP_JBL_Soundgear Frames (Round)_Global_QSG_SOP_V6
