USER MANUAL Mikros 70 Martin Logan

Line drawing of a Martin Logan hair dryer with a curved cord (no text or symbols on the device itself)

MARTIN LOGAN®

Made for

iPod

iPhone

iPad

IMPORTANT SAFETY AND OPERATING INSTRUCTIONS. PLEASE READ BEFORE USING YOUR EARPHONES.

Before inserting earphones into the ear canal, set volume to the lowest level then gradually increase until desired volume level is reached. • Avoid listening at high volume levels for long periods of time. Noise levels are measured in decibels (dB). Regular exposure to noise at or above 85dB can cause hearing loss. Monitor your listening as hearing loss happens over time. Refer to the guidelines on the Consumer Electronics Association's website relating to safe listening levels: http://www.

ce.org/PDF/ListenLifetime_spread.pdf • Do not use earphones at times when your attention is required—such as driving, operating heavy machinery, bicycling, or jogging. It is dangerous and in many jurisdictions illegal to drive wearing noise-isolating earphones because it dramatically decreases your chance of hearing life saving sounds around you such as car horns or emergency sirens.

- Flying at high altitudes may cause pressure build up in your ears. While

in-flight, remove earphones periodically to relieve pressure. • This product generates strong permanent magnetic fields that could cause interference with cardiac pacemakers and implanted defibrillators (ICDs). Maintain a distance of at least 4-inches (10cm) between the earphones and the medical device. • Do not expose product to heat (hair dryer, radiators, etc.) and do not store in direct sunlight for extended periods of time. • Protect product from moisture. • In rare instance an ear tip may come off in the ear canal when removing the earphones. If this should occur and the ear tip cannot be easily removed, it is recommended that you promptly contact a medical professional. A professional can use blunt tweezers to remove the ear tip. • Consult a medical professional if you have excessive ear wax, difficulty inserting the ear tips, or discomfort after prolonged use. • Avoid dropping and strong impact. • Do not use in-ear earphones without a proper ear tip. • Do not pull the cord to remove the earphones from the ear or from the audio device. • Clean or replace ear tips prior to use by other persons.

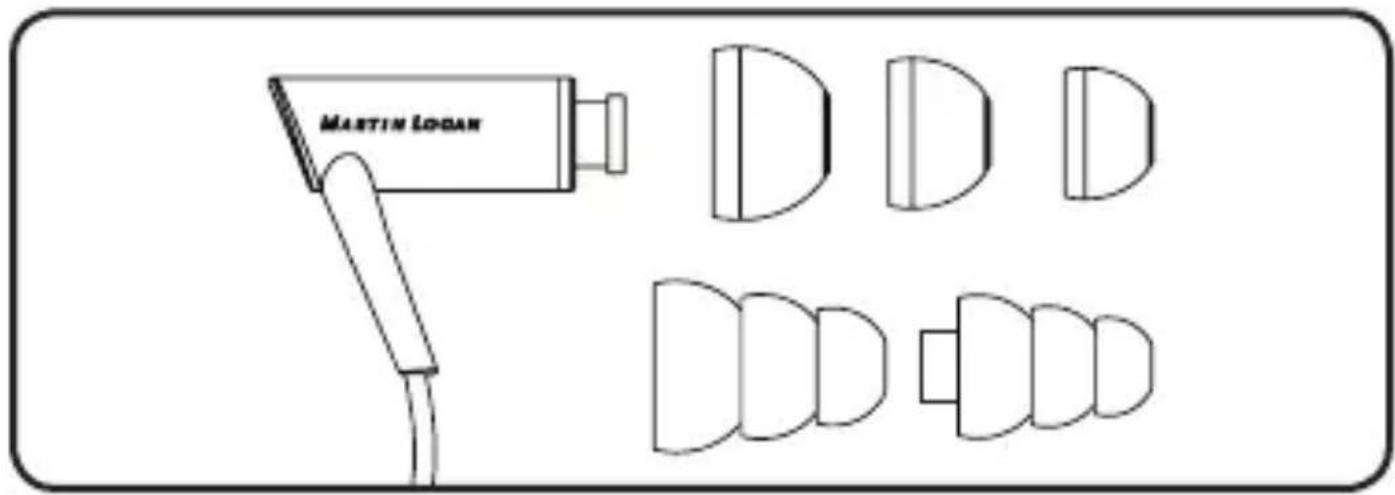

CONTENTS

(1) Earphone with remote
(3) Bulb ear tips (small, medium, large)
(2) Flange ear tips (small, large)
(1) Travel case
(1) Manual

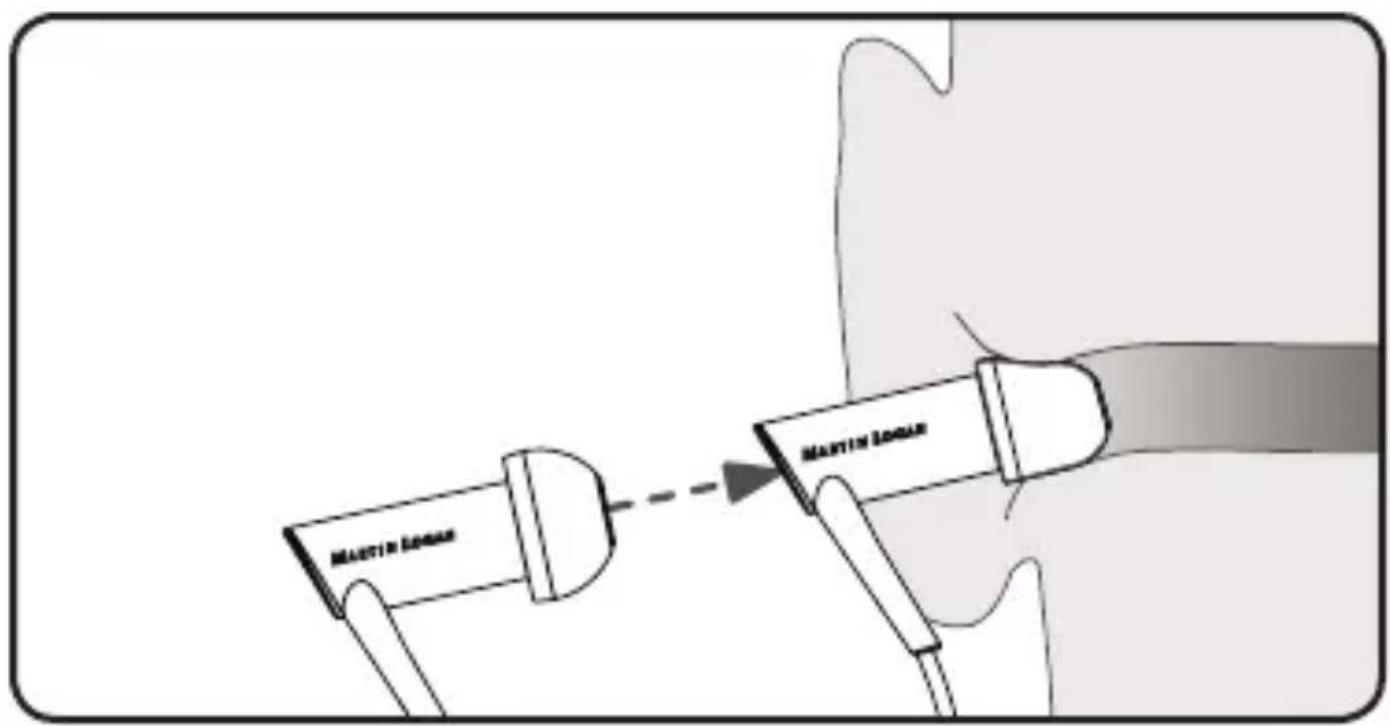

SELECTING AND INSERTING EAR TIPS

Select an ear tip that fits comfortably and forms a good seal in your ear canals. Tips should fit snugly but not tightly. When properly inserted, with the volume down, you should not be able to easily hear nearby people talking. With the volume up, you should have good sound quality with deep, extended bass. Carefully insert tips by pushing them into place. Some users may find it easiest to insert by pulling up on the back of the ear. Other users may find a slow twisting motion aides with insertion.

MARTIN LOCAN

MARTIN LOGO MARTIN LOGO

The earphone with an 'R' is for the right ear. The earphone with an 'L' is for the left ear. You can also use the red/white colored ear tips to quickly distinguish between the right and left earphone. We recommend always putting the red ear tip on the right earphone.

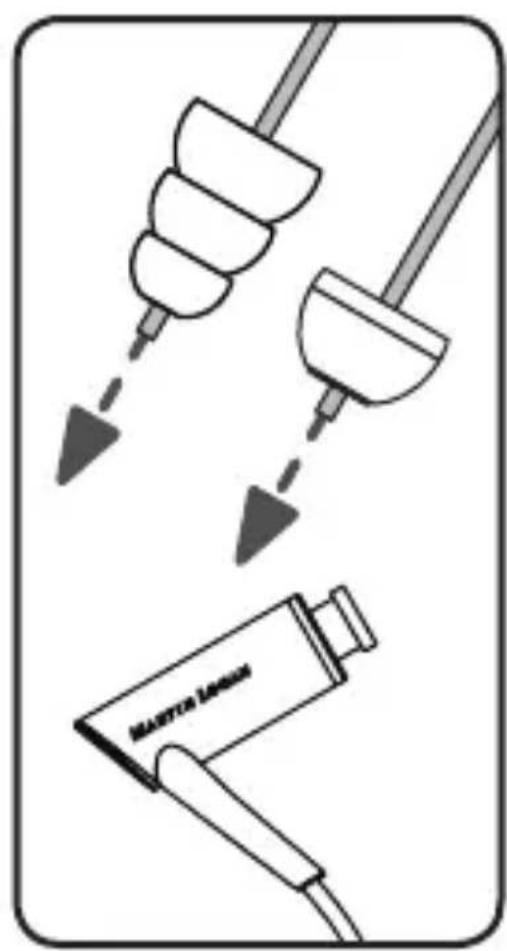

REMOVING EAR TIPS

Never remove the earphones by pulling the cord. Remove by grasping the body of the earphone between your fingers and slowly pulling out until the seal is broken. Some users may find that a slow twisting motion will ease removal.

A cable slider is included to help assure a comfortable fit and reduce tangles. The cable slider is located immediately above the area where the cord splits and can slide up and down the cord to customize fit. To reduce tangles we recommend positioning the slider at top of the cord near the remote when in storage.

REMOTE: AUDIO FUNCTIONS (SELECT APPLE PRODUCTS)\*

Volume up/down press top button/press bottom button

Play/pause press middle button

Next track press middle button two times (rapidly)

Previous track** press middle button three times (rapidly)**

Voice control press and hold middle button for two seconds when

the iPhone, iPod, or iPad home screen is displayed

REMOTE: PHONE FUNCTIONS (SELECT APPLE PRODUCTS)\*

Answer/end call press middle button

Reject call press and hold middle button for two seconds

*The remote and mic are supported only by iPod nano (4th, 5th, and 6th generation), iPod classic, iPod touch (2nd, 3rd, and 4th generation), iPhone 4S, iPhone 4, iPhone 3GS, iPad (3rd generation), iPad 2, and iPad. The remote is supported by iPod shuffle (3rd and 4th generation). Audio is supported by all iPod models.

**Pressing the middle button three times will go to beginning of the current track. Pressing the middle button three times during the first few seconds of a track will go to the previous track.

MICROPHONE AND REMOTE (NON-APPLE PRODUCTS)

The earphones will play audio from any source with a standard 3.5mm 3-conductor (stereo headphone) socket. The microphone will function with most smart phones and similar devices with a standard 3.5mm 4-conductor socket (stereo headphone + microphone). The remote control will function with some non-Apple smart phones, digital media players, and similar devices. Exact functions of the remote will vary by make and model and MartinLogan cannot guarantee compatibility with specific brands or models.

BREAK IN

Allow approximately 15–30 hours of break in at moderate listening levels before any critical listening. Like most high-performance audio reproduction devices, a

break-in period should result in improved performance. For rapid break-in you may choose to leave the earphones connected to an audio source playing music during the night or when otherwise not in use.

CLEANING

To clean the earphones lightly wipe the ear piece and cord with a slightly damp cloth. If the ear tips become clogged, remove the ear tips and gently squeeze the clog out of the ear tip shaft or extract using a pin. Never attempt to remove clogs while the ear tips are installed on the earphone. Never get the earphones wet. Never use solvents and other harsh cleaning products as they will permanently damage the earphones.

MARTIN LAMBO

SPECIFICATIONS (subject to change without notice)

Frequency response . . .8–19,000 Hz

Impedance....22 Ohms

Maximum output.....111.46dB SPL

Sensitivity....98dB (at 1kHz with 1mW input)

Max input power.....20mW

Transducer ....6.6mm dynamic driver

Noise isolation .....97.8% (-33dB SPL, at 1kHz with 1mW input, 30cm)

Weight.....13.4g (0.5oz.)

Connector .... Right angle gold-plated 3.5mm (1/8") 4-conductor plug

Cord....4 foot (1.2m) cable

SPECIFICATIONS: MICROPHONE (subject to change without notice)

Frequency response ...180Hz—10kHz (-5dB; 3dB)

Pickup pattern.....Omnidirectional

Sensitivity....-42dB (as per 121 R 9-5)

PROBLEMS WITH YOUR EARPHONES?

Please do not return earphones to the retailer. Contact MartinLogan customer service directly at [phone] or email [e-mail].

WARRANTY

MartinLogan warrants this product against defects in materials and workmanship under normal use and operation for a period of one (1) year from the date of retail purchase by the original end-user purchaser. Maintain your original sales receipt for proof of purchase. For complete warranty information visit our website at www.martinlogan.com/warranty.

DECLARATION OF CONFORMITY

This product is in compliance with the essential requirements and other relevant provisions of directives: EMC 2004/108/EC, RoHS 202/95/EC, WEEE 202/96/EC.

EUROPEAN RECYCLING AND REUSE GUIDELINES

In accordance with the European Union WEEE (Waste Electrical and

Electronic Equipment) directive effective August 13, 2005, we would like to notify you that this product may contain regulated materials which upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Martin Logan has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you. To find your local distributor please contact the dealer from whom you purchased this product, email [e-mail] or visit the distributor locator at www.martinlogan.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

Made for

iPod

iPhone

iPad

iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

The remote and mic are supported only by iPod nano (4th, 5th, and 6th generation), iPod classic, iPod touch (2nd, 3rd, and 4th generation), iPhone 4S, iPhone 4, iPhone 3GS, iPad (3rd generation), iPad 2, and iPad. The remote is supported by iPod shuffle (3rd and 4th generation). Audio is supported by all iPod models.

"Made for iPod", "Made for iPhone", and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

Inspired by the clarity and detail of MartinLogan's legendary high-end electrostatic loudspeakers.

n

MARTIN LOGAN®

Designed by MartinLogan. Made in China.

©2012 MartinLogan Ltd. Lawrence, Kansas. All rights reserved.

www.martinlogan.com

rev. 061112

MIKROS™ 70

Line drawing of a master Logan hair dryer with a cord and bulb (no text or symbols on the device itself)

MARTIN LOGAN®

Conçu pour

iPod

iPhone

iPad

DIRECTIVES IMPORTANTES EN MATIÈRE DE SÉCURITÉ

ET D'UTILISATION. VEUILLEZ LIRE CE QUI SUIT AVANT

D'UTILISER VOS ÉCOUTEURS.

Illustration of three different tools: a spiral tool, a NAND gate, and a handheld device (no text or symbols present)

Frequency response .....180 Hz—10 kHz (-5 dB; 3 dB)

DÉCLARATION DE CONFORMITÉ
