Product type	Passive audio speaker
Brand	Martin Logan
Model	ElectroMotion C2
Frequency response	55 - 25 000 Hz ±3 dB
Dispersion	80° horizontal x 30° vertical
Sensitivity	94 dB at 2.83 V/m
Impedance	4 Ohms
Crossover frequencies	2 300 Hz and 900 Hz
Tweeter	Folded motion transducer with 4.5 x 2.75 in (11.4 x 6.9 cm) diaphragm
Woofers	Two 5.25 in (13.3 cm) paper cones, cast aluminum basket
Enclosure type	Bass reflex
Recommended amplifier power	20 - 250 watts
Connection terminals	Binding posts (accept bare wires, pins)
Dimensions (approx.)	Height: 38 cm, Width: 23 cm, Depth: 27 cm
Weight (approx.)	12 kg
Cleaning	Soft lint-free cloth or soft-bristle brush; do not use liquid cleaners
Safety	Turn off amplifier before connection; do not expose to moisture; do not exceed rated power
Warranty	Limited 90 days automatic; 5-year extension conditional (registration within 30 days)
Customer service	[phone], [e-mail]
Country of manufacture	United States

Frequently Asked Questions - ElectroMotion C2 Martin Logan

How to clean the ElectroMotion C2 speakers?

Use a dust-free cloth (microfiber) or a soft-bristle brush to remove dust. Never spray cleaning products on or near the speakers.

Can I place the speakers near a CRT television?

No, these speakers are not magnetically shielded. Keep a distance of at least 60 cm from a CRT screen to avoid interference.

Is exposure to sunlight harmful to the speakers?

Yes, UV rays can damage the cabinet and cones. Avoid prolonged direct exposure. Glass filtering reduces negative effects.

What is the recommended break-in time?

A break-in period of about 72 hours at moderate listening level (around 90 dB) is necessary before critical listening.

What amplifier power should be used?

The recommended amplifier power is 20 to 250 watts. Impedance is 4 ohms, compatible with 4, 6, or 8 ohm amplifiers.

How to connect the speakers to the amplifier?

Use the binding posts: bare wires or pins. For banana plugs, remove the rubber caps. Observe polarity (+ terminal to +). Turn off the amplifier before any connection.

What to do if there is no sound?

Check that the amplifier and source are on, and that speaker and interconnect cables are properly connected. If the problem persists, contact customer service.

Where is the serial number located?

The serial number is located under the connection terminals on the back of the speaker, and also on the product packaging.

What is the warranty for the ElectroMotion C2?

The automatic limited warranty is 90 days. You can obtain a 5-year extension by completing the registration certificate within 30 days of purchase, online at martinlogan.com.

How to contact MartinLogan customer service?

Call [phone] Monday to Friday from 8 am to 5 pm (Central Standard Time) or email [e-mail].

USER MANUAL ElectroMotion C2 Martin Logan

ElectroMotion™ C2 MARTIN LOGAN

user's manual

MARTIN LOGAN

The Great American Speaker Company

WARNING!

• Refer servicing to a qualified technician.
• To prevent fire or shock hazard, do not expose this module to moisture.
- Turn amplifier off should any abnormal conditions occur.
- Do not drive speaker beyond its rated power.

The lightning bolt flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of potentially "dangerous voltage" within the product's enclosure that may be sufficient to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we would like to notify you that this product may contain regulated materials which upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Martin Logan has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you.

To find your local distributor please contact the dealer from whom you purchased this product, email [e-mail] or visit the distributor locator at www.martinlogan.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

Connection

Installation . . . . . . . . . . . . . . . . .

Break In 4

Installing On A Flat Surface ..... 4

Removing the Logo Badge....4

Frequently Asked Questions. . . . . . . . . . .

Troubleshooting . . . . . . . . . . . . . . . .

Contacting Customer Service . . . . . . . . . . .

General Information . . . . . . . . . . . . .

Warranty Information 6

Serial Number....6

Service 6

Specifications

Dimensional Drawings . . . . . . . . . . . .

MartinLogan Electro Motion C2 .....8

Serial Number:

Record your serial number here for easy reference. You will need this information when filling out your warranty registration. The serial number is located near the binding posts and on the product carton.

CONNECTION

WARNING! Turn your amplifier off before making or breaking any signal connections!

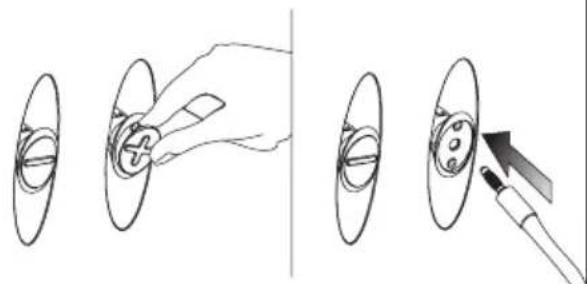

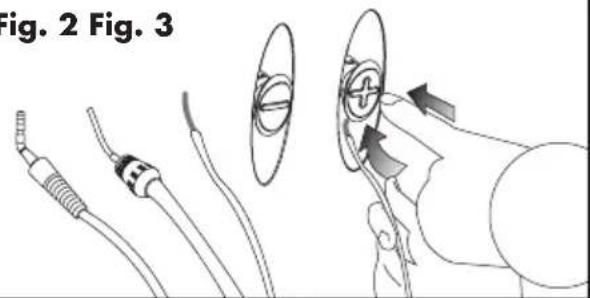

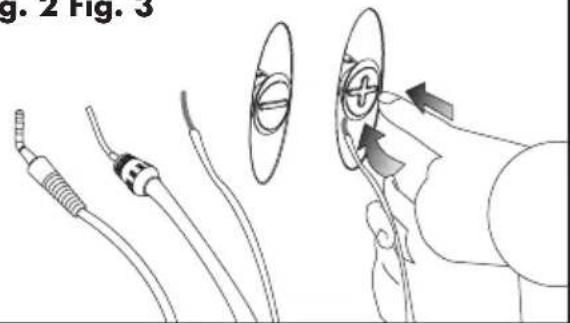

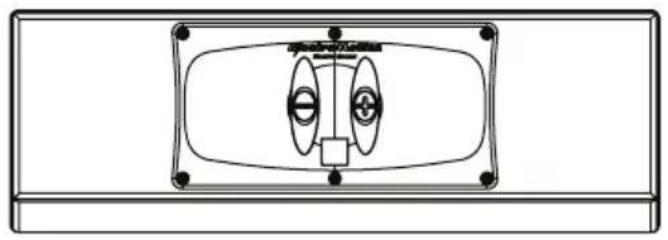

These speakers are designed with easy-to-use push-style binding posts that accept bare wire or pins (fig. 2). Additionally, by removing the rubber inserts, they will accept banana plugs (fig. 3)

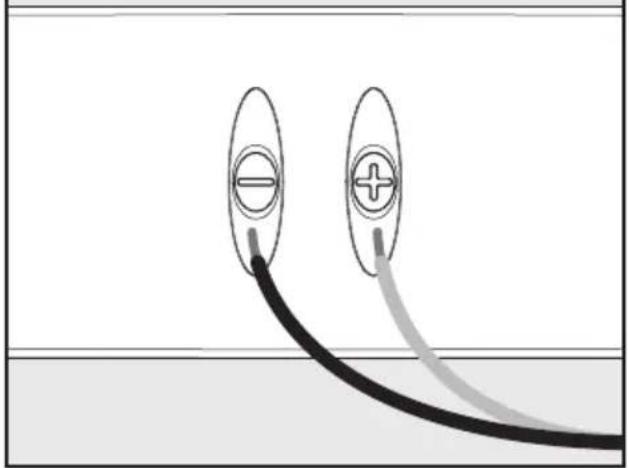

Assign the same color to the (+) and (−) terminals on both the speaker and the amplifier. Make certain that all connections are tight.

Fig. 1

Fig. 2 Fig. 3

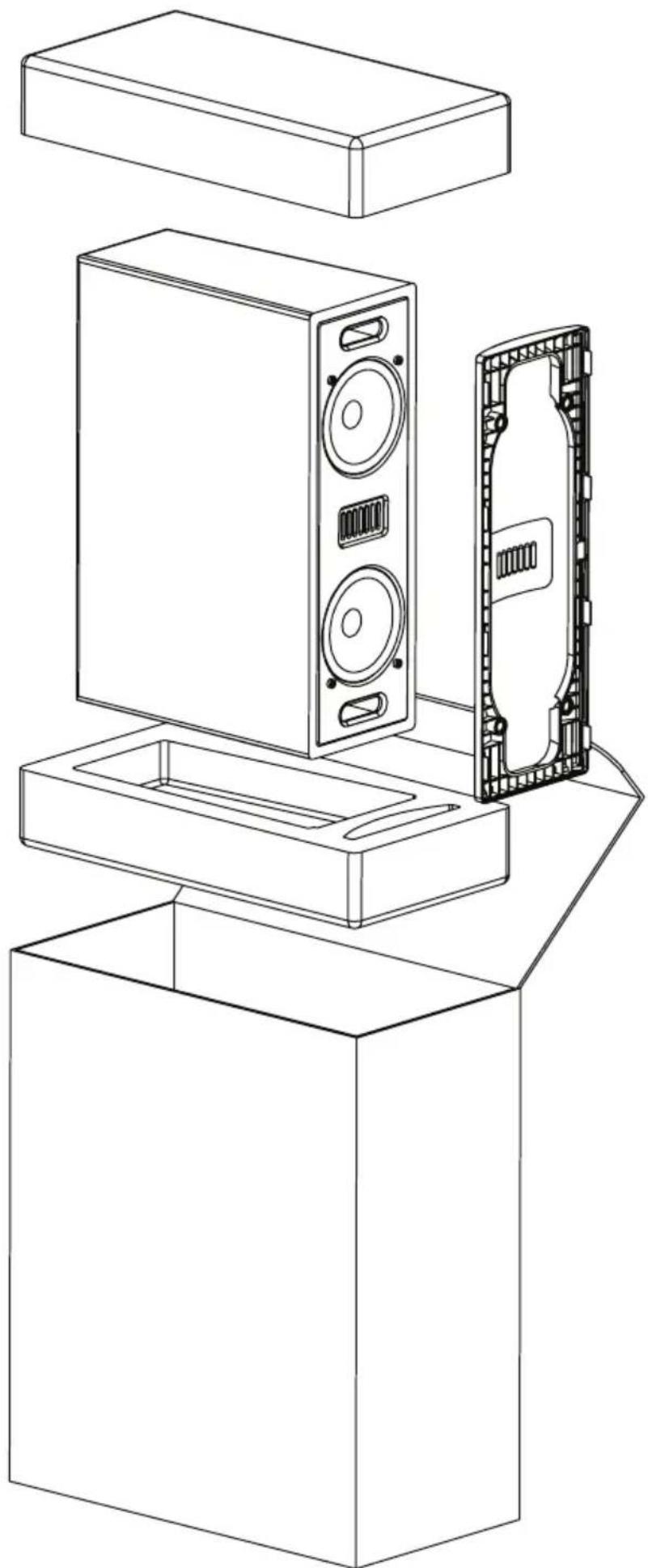

INSTALLATION

WARNING! Installation other than that described in the body of this document requires specific documentation from MartinLogan.

BREAK IN

Allow approximately 72 hours of break-in at 90 dB (moderate listening levels) before any critical listening.

INSTALLING ON A FLAT SURFACE

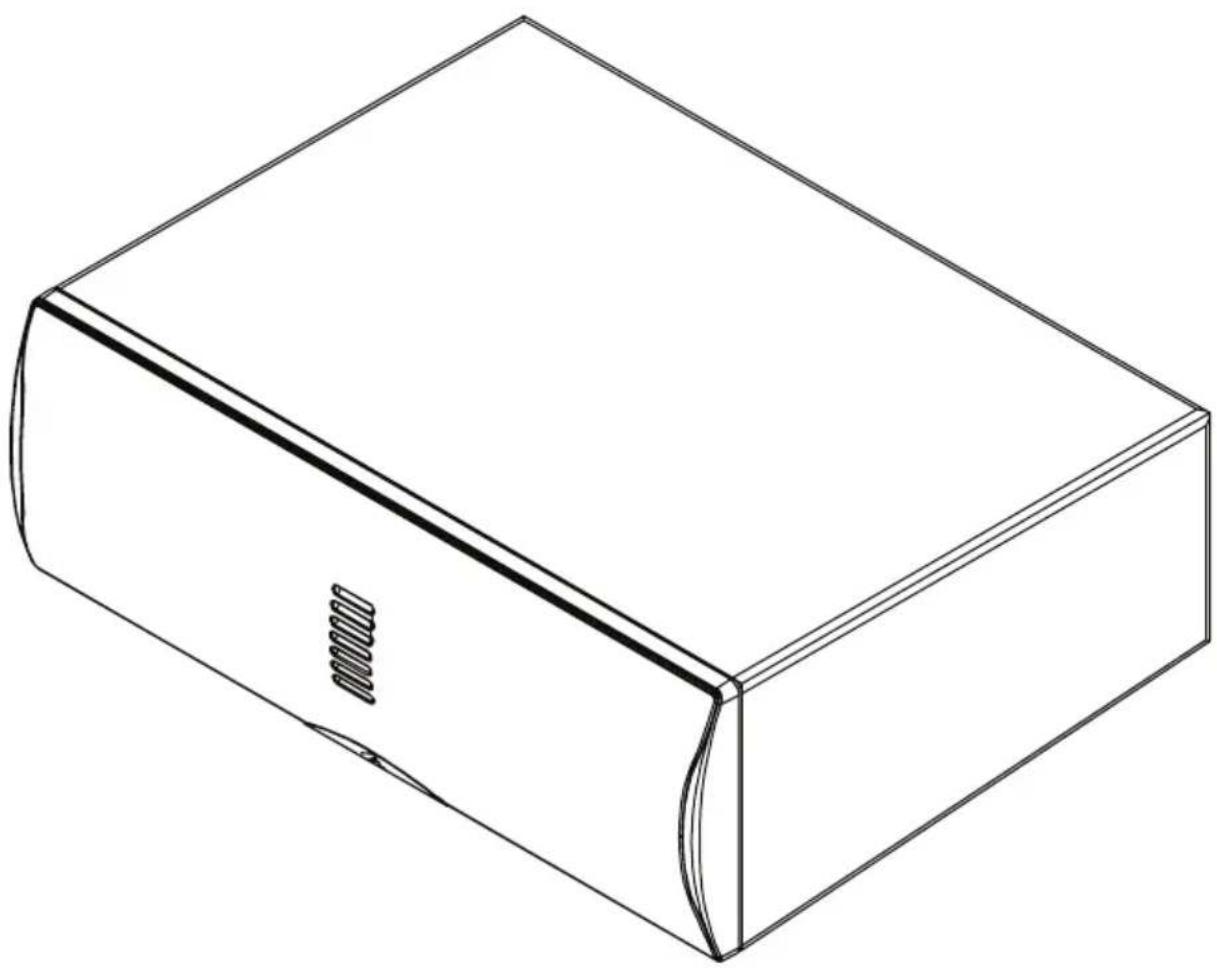

If you have a surface that provides a wide, level, and stable platform, the speaker can be placed directly on top. When using the speaker in this configuration, affix the pads to the bottom of the speaker at the rear contact points. Note: This

speaker is not magnetically shielded and therefore should not be placed directly beside or atop a CRT television.

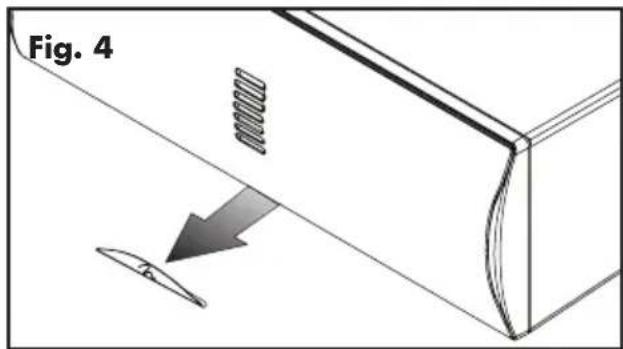

REMOVING THE LOGO BADGE

To remove the logo badge unbend the tab on the back side of the logo then gently pull it away from the speaker grill (fig. 8).

FREQUENTLY ASKED QUESTIONS

How do I clean my speakers?

Use a dust free cloth (such as a micro fiber cloth) or a soft brush to remove dust from your speakers. Do not spray any kind of cleaning agent on or in close proximity to the drivers.

Could you suggest a list of suitable electronics and cables ideal for MartinLogan speakers?

We have no favorites and use electronics and cables quite interchangeably. We would suggest listening to a number of brands—and above all else—trust your ears. Dealers are always the best source for information when purchasing additional audio equipment.

Is there likely to be any interaction between my speakers and the television in my A/V system?

Yes. These speakers are not shielded and should be kept at least 2 feet away from a CRT television.

Will exposure to sunlight affect the life or performance of my speakers?

We recommend against placing any loudspeaker in direct sunlight. Ultraviolet (UV) rays from the sun can cause deterioration of cabinet, speaker cones, etc. Small exposures to UV will not cause a problem. Filtering of UV rays through glass will greatly reduce the negative effects.

TROUBLESHOOTING

No Output

• Check that all system components are turned on and source material is playing.
• Check speaker wires and connections.
• Check all interconnecting cables.
• If you are unable to resolve your problem, please contact your dealer or MartinLogan customer service (see below).

CONTACTING CUSTOMER SERVICE

MartinLogan customer service is available Monday–Friday between the hours of 8am–5pm (central time) by calling [phone] or by emailing [e-mail].

GENERAL INFORMATION

WARRANTY INFORMATION

Your speakers are provided with an automatic Limited 90 Day Warranty coverage. You have the option, at no additional charge, to receive a Limited 5 Year Warranty coverage. To obtain the Limited 5 Year Warranty coverage you need to complete and return the Certificate of Registration to MartinLogan within 30 days of purchase. For your convenience MartinLogan also offers online warranty registration at www.martinlogan.com.

MartinLogan may not honor warranty service claims unless we have a completed Warranty Registration card on file! If you did not receive a Certificate of Registration with your new speakers you cannot be assured of having received new units. If this is the case, please contact your authorized MartinLogan dealer.

SERIAL NUMBER

The serial number is located on back of the speaker, directly beneath the binding posts. The serial number may also be found on the product carton.

SERVICE

Should you use your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following:

1 The appointed MartinLogan distributor for any given country is responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.

2 Should a MartinLogan product require servicing in a country other than the one in which it was originally purchased, the end user may seek to have repairs performed by the nearest MartinLogan distributor, subject to that distributor's local servicing policies, but all cost of repairs (parts, labor, transportation) must be borne by the owner of the MartinLogan product.

3 If, after owning your speaker for six months, you relocate to a country other than the one in which you purchased your speaker, your warranty may be transferable. Contact MartinLogan for details.

SPECIFICATIONS*

MARTINLOGAN ELECTRO MOTION C2

Frequency Response . . . . . . . . . . . 55-25,000.Hz±3 dB . . .

Dispersion. 80° .(horizontal) × 30° .(vertical).

Sensitivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94.dB @.2.83.volts/.meter. . . . .

Impedance . . . . . . . . . . . . . . . 4 Ohms. Compatible with 4, 6 or 8 Ohm rated amplifiers.

Crossover Frequency. . . . . . . . . . . 2,300 Hz, 900 Hz. . . .

High Frequency Driver . . . . . . . . . . . 1.27" × 2.4" (3.22cm × 6.09cm) Folded Motion Transducer with 4.5" × 2.75" (11.4cm × 6.9cm) diaphragm.

Low Frequency Drivers. . . . . . . . . . Two.5.25" (1.3.3cm) paper cone with cast-aluminum basket. Non-resonant asymmetrical chamber format.

Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ported.

Components . . . . . . . . . . . Custom air core coil inductors, polyester film capacitors in series and low DF electrolytic capacitors. Tweeter thermal/current protection.

Recommended Amplifier Power. . . . . . 20-250 watts.

Binding Post Inputs . . . . . . . . . . . . . . Push style with banana jacks . .

Weight. 24.5 lbs.(1.1.2 kg).

Dimensions (HxWxD) . . . . . . . . . . . . . . . 6.4" x 18.9" x 14.3". . . (16.4cm x 48.2cm x 36.5cm)

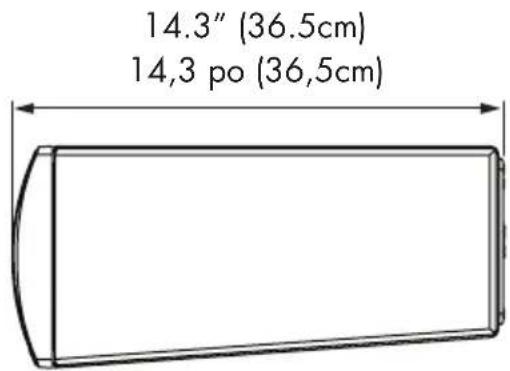

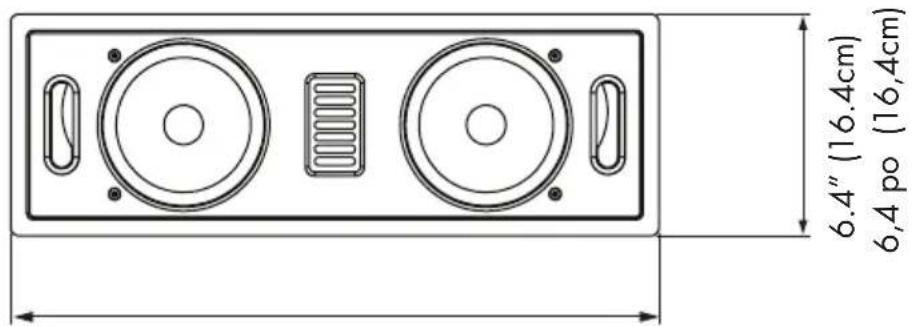

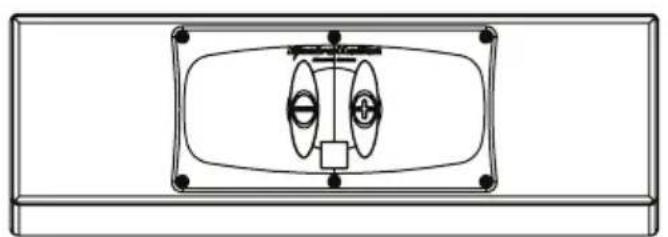

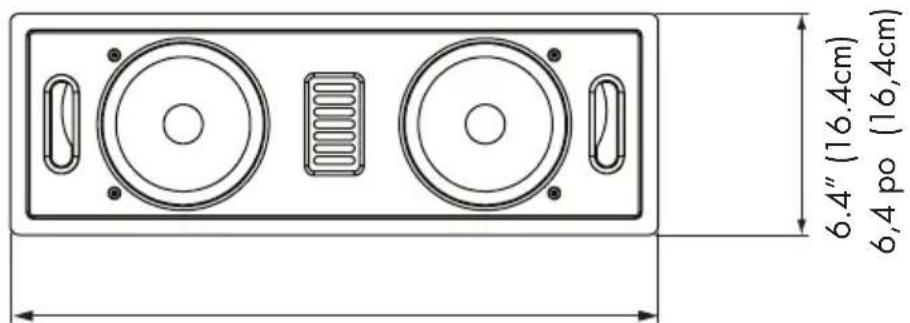

DIMENSIONAL DRAWINGS MARTINLOGAN ELECTROMOTION C2

18.9" (48.2cm) 18,9 po (48,2cm)

The Great American Speaker Company

Lawrence, Kansas, USA tel [phone] fax [phone] www.martinlogan.com

ElectroMotion™ C2 MARTIN LOGAN

MARTIN LOGAN

RACCORDEMENT

INSTALLATION

FOIRE AUX QUESTIONS

Poids. 24,5 lbs. (11,12 kg)

Dimensions (HxLxP) 6,4po.x 18,9po x.14.3po . (16,4cm x 48,2cm x 36,5cm)

PLANS DIMENSIONNELS

MARTINLOGAN ELECTROMOTION C2

14.3" (36.5cm)

14,3 po (36,5cm)

18.9" (48.2cm)

18,9 po (48,2cm)
