7121745 Rev C 10/2023 96800-KG

ASSEMBLY, CARE AND USE INSTRUCTIONS Model CM61351

READ CAREFULLY

IMPORTANT: RETAIN THESE INSTRUCTIONS AND ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE.

WARNING: This product can expose you to chemicals including lead, DEHP, DINP, Molybdenum trioxide which is known to the State of California to cause cancer and or lead to birth defects. For more information go to www.P65Warnings.ca.gov

244964

Questions, problems, missing parts?

If your pressure washer is not working or if there are parts missing or broken, please DO NOT RETURN IT TO THE PLACE OF PURCHASE. Contact our Customer Service Department by calling 1-877-362-4271 or emailing [e-mail]

TABLE OF CONTENTS

Product Specifications....2

Package Contents.... 3

Hardware Contents 3

Safety Information 4

Assembly Instructions....7

Operating Instructions....11

Care and Maintenance....12

Pump Guard....14

Troubleshooting.... 15

Limited Warranty 16

PRODUCT SPECIFICATIONS

SPECIFICATIONS

Model	Rated pressure (PSI) (MPa)	Working Pressure (PSI) (MPa)	Working Flow (GPM) (LPM)	Cold Water	Volts F	Frequency (Hz)	Amps	Weight (lbs.)
CM61351 1700		1300	1.0	√	120 60	11 16.1
	(11.7)	(9.0)	(3.8)

PACKAGE CONTENTS

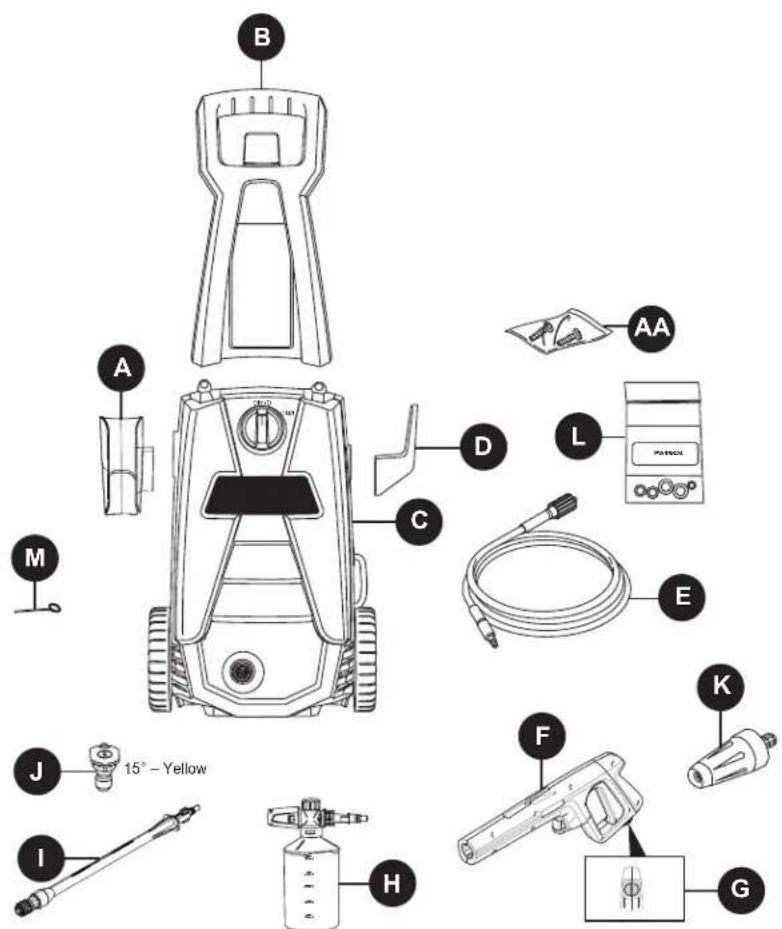

B A M C D AA L PINOU E J 15° - Yellow I H F K G

PART DESCRIPTION QUANTITY
A Spray Gun Holster		1
B	Handle	1
C	Power Washer Unit	1
D Cord Hook		1
E High Pressure Hose		1
F Spray Gun		1
G Trigger Safety Lock		1

PART DESCRIPTION QUANTITY
H Foam Cannon 1
I Extension Lance 1
J 15° Quick Connect Nozzle 1
K	Rotary Nozzle	1
L O-Ring Kit 1
M Nozzle Cleaning Wire 1
AA Screws 2

HARDWARE CONTENTS

Screws

Qty. 2

Note: Screws are located in

package with manual.

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble and operate the product.

This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it thoroughly before using the product. The symbols listed below are used to indicate this information.

DANGER

Potential hazard that will result in serious injury or loss of life.

WARNING

Hazard that could result in serious injury or loss of life.

CAUTION

Potential hazard that may result in moderate injury or damage to equipment.

Note: The word "Note" is used to inform the reader of something the operator needs to know about the tool.

WARNING

To reduce the risk of injury, the user must read and understand the instructions before using this product.

1. Warning – When using this product, basic precautions should always be followed, including the following.
2. Read all the instructions before using the product.
3. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
4. Keep operating area clear of persons.
5. Do not overreach or stand on unstable support. Keep good footing and balance at all times.
6. Follow the maintenance instructions as specified in the manual.
7. To avoid personal injury and/or damage to property and to maximize your power washer experience, carefully follow all of the safety tips, instructions, warnings and safeguards and become familiar with all of the controls. Be sure you know how to quickly bleed off the pressure from all parts of your power washer and how to turn off the power washer.
8. This power washer conforms to CSA and other safety and consumer standards. DO NOT modify or rebuild any part of your power washer.
9. DO NOT use your power washer when you are under the influence of alcohol or drugs. Use this power tool carefully and only when you are alert.
10. Watch your balance and footing while using your power washer. Surfaces become slippery when wet and are extra

slippery when using a detergent or cleaner.

1. NEVER operate the power washer in bare feet, sandals, or open-toed shoes.
2. When using the power washer near children, make sure they are closely supervised by an adult to avoid injury. NEVER let a child use the power washer.
3. Keep fingers, hands, feet and any part of your body clear of the stream of high pressure water. The powerful spray can cause blindness or blast holes in the skin. It can break a window if you are too close when you pull the trigger on the spray gun.
4. ALWAYS wear eye protection to prevent injury to eyes when operating the power washer.
5. To avoid mishaps or injury, ALWAYS use the trigger safety lock when not using the power washer even if only stopping briefly.
6. The power washer is equipped with a Ground Fault Circuit Interrupter (GFCI) (For US unit only) which greatly reduces the chance of electric shock while the unit is in use. If replacement of the plug or cord is needed, use only identical replacement parts.
7. Point the spray gun in a safe direction when beginning a power washer session.
8. Warning- NEVER spray directly at a person, animal, electrical device or the unit itself.
9. When first using the spray gun, hold the spray gun and lance with two hands when pulling the trigger (one hand to pull the trigger and the other to stabilize the gun assembly) until you get used to the "kickback" from the spray gun.
10. When you turn the power switch off, water pressure may remain in the system. To discharge the pressure, point the spray gun in a safe direction and pull the trigger.
11. NEVER spray flammable liquids.
12. NEVER use the power washer in areas that contain combustible dust, liquids or vapors.
13. Avoid contact of the pressure hose with sharp objects and examine the hose regularly. Replace if damaged. Due to the high pressure involved, it cannot be repaired if cut or damaged.
14. Only use detergent specifically formulated for power washers and follow instructions on the detergent's label. Dish or laundry soap is too thick and will clog the nozzle of your foam cannon.
15. Protect eyes, lungs, and skin from exposure to detergent.
16. Warning-If connection is made to a potable water system, the system Should be protected against backflow.

Store the power washer indoors to prevent the water in the unit from expanding under freezing conditions.

When the water freezes and expands, your power washer will be damaged and become inoperable. Or, if storing

SAFETY INFORMATION

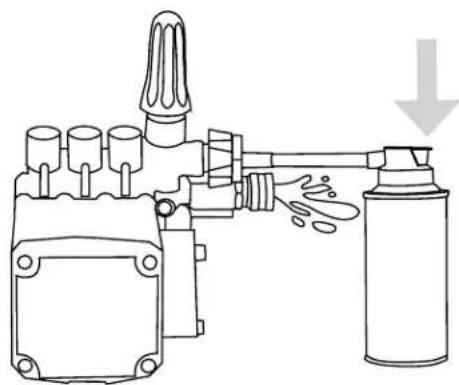

outdoors, it is recommended you use pump saver (not included) to protect pumps.

1. NEVER use hot water with your power washer. It will overheat and damage the high pressure pump.
2. NEVER leave the power washer unattended while it is powered "ON".
3. ALWAYS turn the water supply on before turning the power washer power to on. Running the pump dry will cause damage to the internal components.
4. NEVER use a water supply to your power washer that exceeds 100 PSI maximum.
5. NEVER disconnect the high pressure hose from the power washer while the system is pressurized.
6. NEVER permanently engage the trigger mechanism on the spray gun.
7. NEVER operate the power washer unless all components are properly and securely connected.
8. NEVER allow the power washer pump to run for more than one minute after you have turned off the water supply. This can cause the motor and pump to overheat and fail.
9. NEVER use lances or other parts that are not compatible for this specific SIMPSON unit.
10. NEVER spray any electrical outlet with your power washer.
11. Inspect the power cord before using. DO NOT use it if it is damaged.
12. Stay alert - watch what you are doing.

! DANGER:

ELECTROCUTION HAZARD

Improper connection of the equipment grounding conductor can result in the risk of electrocution. Check with a qualified electrician if you are in doubt as to whether the receptacle is properly grounded. DO NOT modify the plug provided with this product. If it will not fit the receptacle, have a proper receptacle installed by a qualified electrician. DO NOT use any type of adapter with this product.

CAUTION:

POWER SUPPLY

This pressure washer shall only be used with a dedicated receptacle/plug rated 120vAC, 60 Hz at 15-or-20 amperes. Any other appliances on the circuit should be turned off or unplugged when using the pressure washer. Never use the pressure washer with an adapter that may lead to higher voltage or excessive current. Excessive current may trip circuit breaker. Consult a qualified electrician if unsure of the desired power supply receptacle's ability to safely power this pressure washer.

IT IS NOT RECOMMENDED TO USE AN EXTENSION

CORD. If, however, an extension cord is required, it must be an OUTDOOR RATED 3-PRONG CORD, that is no longer than 50 feet (15M) and has a minimum of 14 AWG (2.5mm ^2 ) conductors. Always uncoil the extension cord when in use.

DO NOT use an extension cord that has its ground pin damaged or missing.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Servicing of a Double-Insulated Appliance

Ground Fault Circuit Interrupter Protection (For US unit only):

This pressure washer is equipped with a ground fault circuit interrupter (GFCI) built into the plugs of the power supply cord. This device provides additional protection from the risk of electric shock and have automatic detection function to detect whether the additional protection function is invalid. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

In a double-insulated product, two systems of insulation are provided instead of grounding. Grounding means are not provided for a double insulated product, nor should grounding means be added to the product.

Servicing a double insulated product requires extreme care and knowledge of the system, and should only be done by qualified service personnel.

Replacement parts for a double insulated product must be identical to the original parts.

A double insulated product is marked with the words "Double Insulation" or "Double Insulated". Product may also be marked with symbol shown here.

Line drawing of a plug with two connectors and a terminal outlet, no text or symbols present

Simple geometric diagram with a square inside a larger square (no text or symbols)

Double Insulated Product

CAUTION

TRIPPING HAZARD Hoses may pose a tripping hazard that can cause injuries resulting from a fall.

SLIP / TRIP HAZARDS

When pressure washing in public areas, signs should be posted that indicate to stay clear of the area as high-pressure washing is being performed. Also, signs should be posted that the surface may be slippery and trip hazards may be present.

Special consideration needs to be made to the safety of not just the operator of the pressure washer, but also people who may be adjacent to the area being cleaned. The best way to warn unsuspecting individuals is with signage and barriers.

Barriers can be as simple as plastic traffic cones or barricades to using barrier belts around the area being cleaned. Remember, pressure washing can dislodge weak or broken pavement turning it into projectiles that may injure others. Keeping people clear of the area is the best way to avoid injury.

Wet pavement can be slippery to unsuspecting individuals causing injury from slips and falls. High-pressure and low-pressure hoses can be trip hazards. Segregating the area and placing appropriate signage can reduce injury.

Sign examples

CAUTION Watch your step CAUTION Slippery when wet.

KEEP OUT HIGH PRESSURE WASHING IN PROGRESS

CAUTION SLIPPERY WHEN WET

Barrier examples

Illustration of a construction barrier with orange and white stripes, topped with a yellow circular symbol (no text or labels)

Illustration of two orange traffic cones with black caps connected by a red-and-white striped line (no text or symbols)

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, DO NOT attempt to assemble the product. Please contact our Customer Service Department by calling 1-877-362-4271 or emailing [e-mail].

Estimated Assembly Time: 5 minutes.

Tools Required for Assembly (not included): #2 Phillips screwdriver.

Line drawing of a screwdriver with a flat blade and threaded end (no text or symbols)

ASSEMBLY INSTRUCTIONS

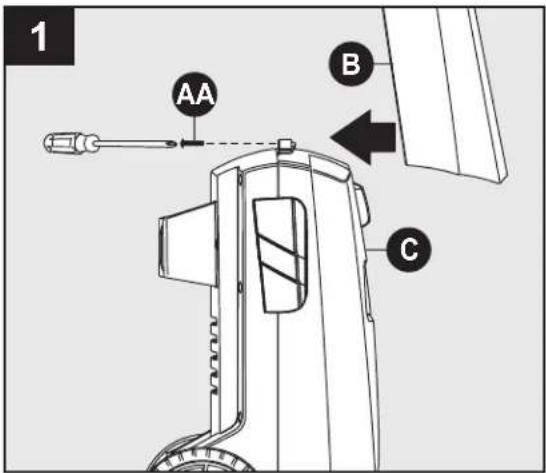

1 AA B C

Power Unit Assembly

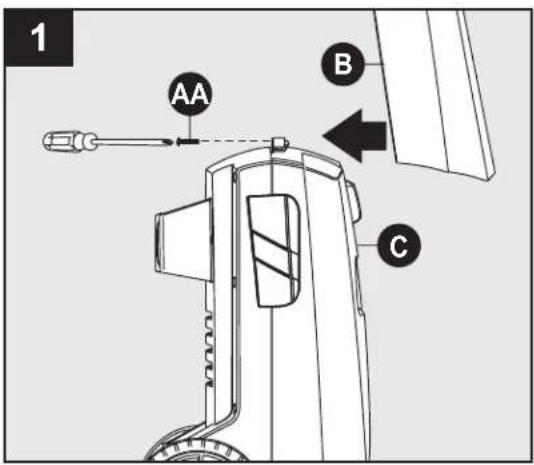

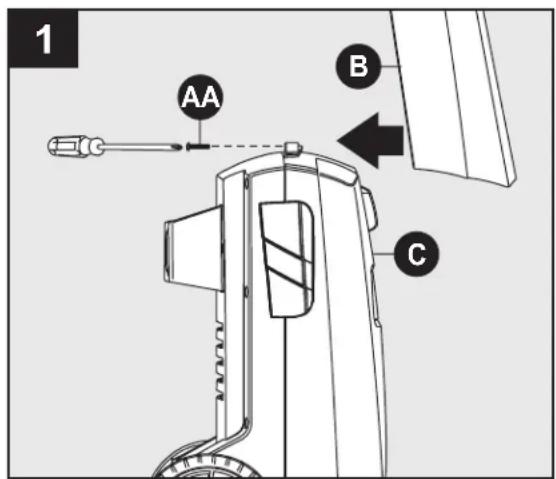

Install handle (B) to power washer unit (C). Secure with screws (AA).

Note: DO NOT use a power screwdriver. When the screw is completely tight, give a small final clockwise twist of the screwdriver.

DO NOT overtighten.

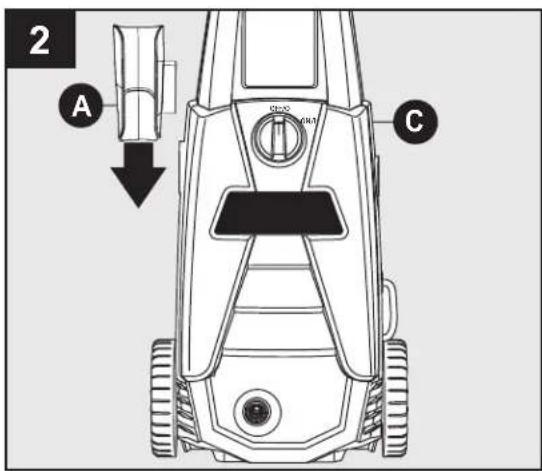

2 A C

Slide spray gun holder (A) onto left side, when facing the power washer unit (C) as shown.

Note: This step does not require any screws.

Hardware Used:

Screws x 2

ASSEMBLY INSTRUCTIONS

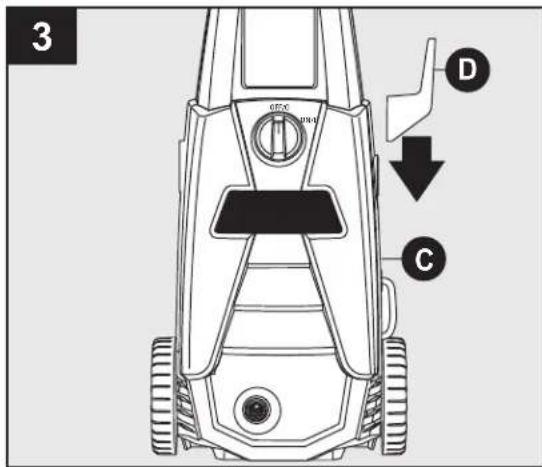

3 D C

Slide cord hook holster (D) onto right side, when facing the power washer unit (C) as shown.

Note: This step does not require any screws.

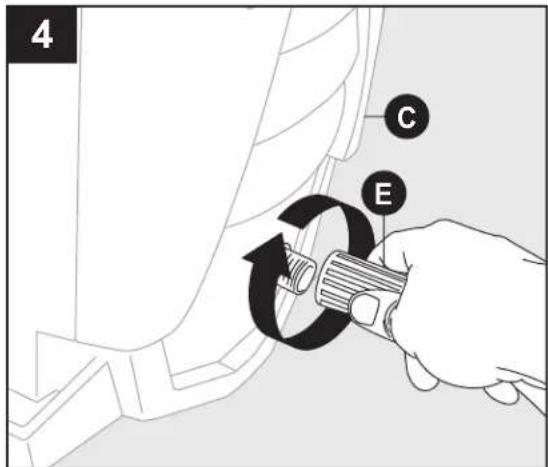

4 C E

High Pressure Hose Assembly

The high-pressure hose (E) connects to the pump connector on the front, bottom of the power washer unit (C). Pull back on the high-pressure hose collar, then insert the O-ring fitting into the pump outlet deep enough for the collar to be threaded. DO NOT CROSS THREAD. If needed, position the power washer so you can observe that the threads are started correctly. Twist the collar clockwise until tight; at least six turns. WARNING: Failure to properly tighten the high-pressure hose will result in the hose slipping and popping off upon turning the unit on.

Note: DO NOT use pliers or locking pliers to tighten.

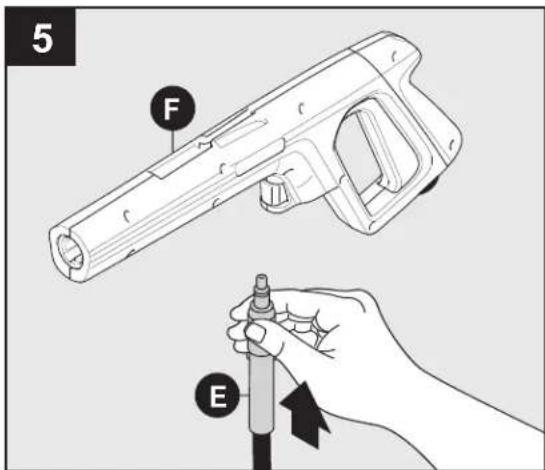

5 F E

Connect the other end of high pressure hose (E) to spray gun (F) by inserting the silver metal tip of high pressure hose into the fitting just ahead of trigger guard. It will lock into spray gun with a "click". Confirm hose is locked into spray gun by slightly pulling on hose. The hose is now securely attached to spray gun.

Note: DO NOT press button on underside of gun when connecting hose to gun.

6 F E 2

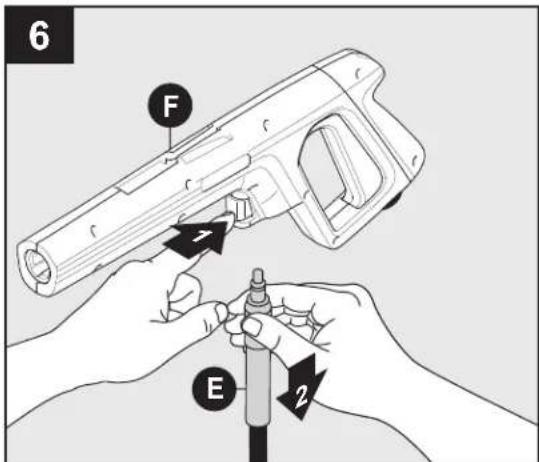

To release the high-pressure hose (E) from the spray gun (F), press button (1) on the underside of the gun toward the trigger guard. The hose (2) will slide out from the connection.

ASSEMBLY INSTRUCTIONS

7 F UnlockedLocked

Locking Trigger (Before Lance Installation)

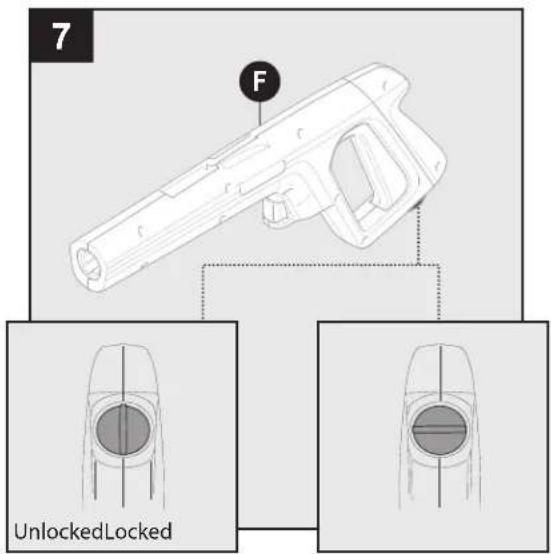

To lock trigger of spray gun (F), point gun away from you and turn dial to lock ("3" and "9" position). Squeeze or pull trigger to make sure it is locked. If the trigger does not move, it is locked.

ALWAYS leave the trigger lock in the LOCKED position when not in use. This ensures the gun is in "safe" mode until it is ready for use. Turn dial to unlock ("12" and "6" position) to release spray gun trigger.

Note: The trigger lock prevents trigger from being accidentally engaged.

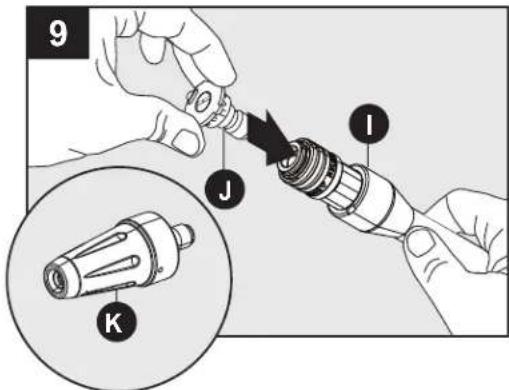

9 J I K

Attach nozzle (J) or rotary nozzle (K) into end of lance (I) by pressing selected nozzle into place. It will make a "click" sound when firmly in place.

DO NOT use if a "click" sound was not heard. The nozzle may not be secured.

Note: Always turn the safety lock dial to lock trigger when changing lances and nozzles to ensure that they do not accidentally eject with force during removal.

8 I F 2

Extension Lance Installation

With spray gun (F) in locked position, attach extension lance (I) directly to spray gun. Insert lance extension into gun, pushing together and turning clockwise simultaneously. Turn the extension collar clockwise to lock into place. To remove extension lance (I), turn extension collar counterclockwise to unlock, then push together and turn counterclockwise to release.

Note: The extension lance must be inserted in gun before using any of the other attachments, and in place for storage. It is recommended that once extension is connected to leave it in place.

10 J 2 I 1 K

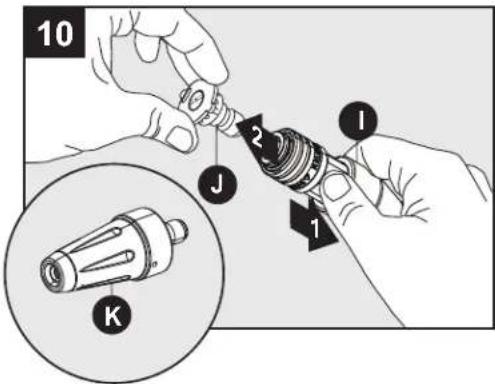

To remove nozzle (J) or rotary nozzle (K) pull back on collar of lance (I) and pull out nozzle.

ASSEMBLY INSTRUCTIONS

11 1 H 2 750ml 600ml 400ml 300ml 150ml

Foam Cannon Installation

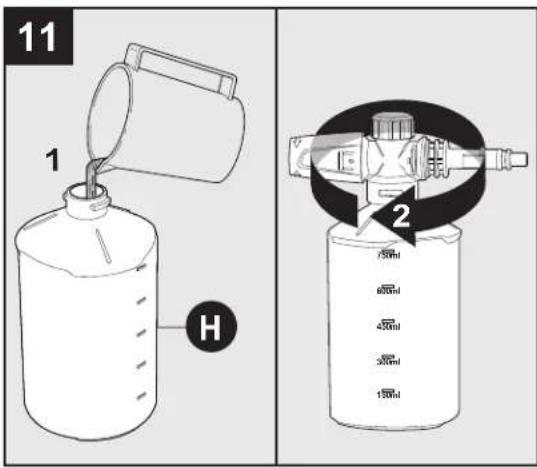

The foam cannon comes with a straw which is fitted into high pressure top. If you do not see the straw, look inside the foam cannon and attach it to the high pressure top. When using foam cannon, fill it with a properly formulated detergent or cleaner with a water ratio according to instructions on the container.

• Pressure washer detergents are recommended. See page 12 for more information.
• DO NOT use thick or gel-like detergents as they will clog the foam cannon and can cause damage.

12 F H 2

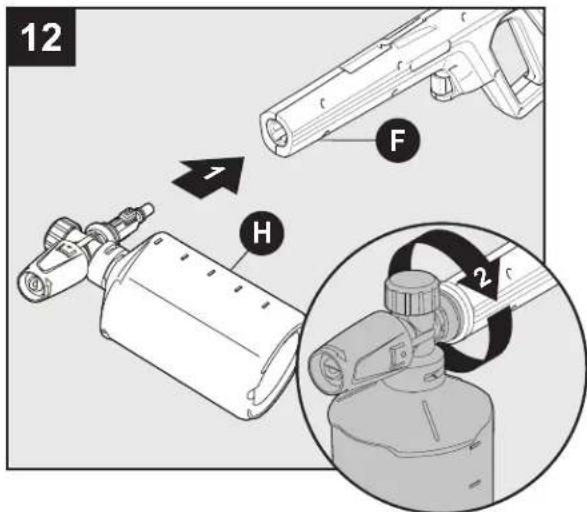

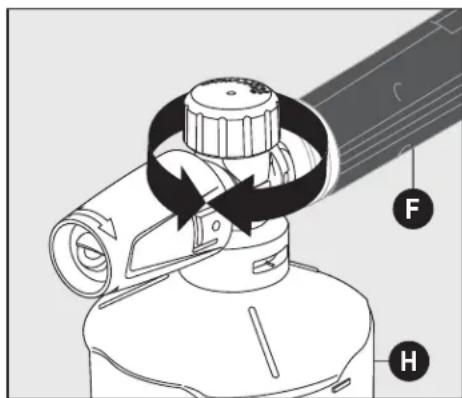

Insert foam cannon (H) into spray gun (F), push in and turn clockwise.

Note: Always lock spray gun when changing the foam cannon to ensure it does not eject with force.

13 H 品品品品 C

Foam Cannon Storage

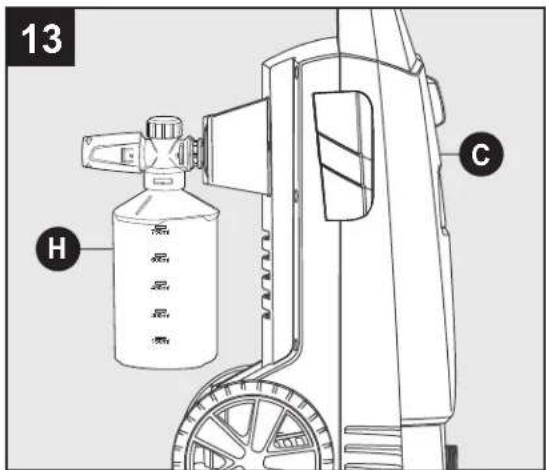

Store the foam cannon (H) on the back of the power washer unit (C).

Note: Once completed, rinse the foam cannon bottle with fresh water before storage.

Technical line drawing of a vehicle's internal components, showing tire, wheel, and hose assembly (no text or symbols)

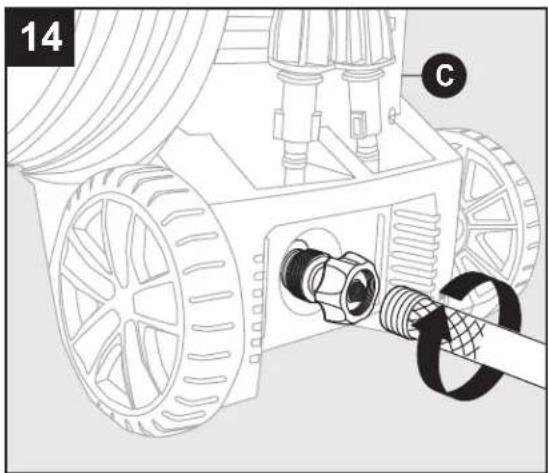

Attach a standard garden hose to the black collar of the garden hose adapter located on the back of the power washer unit (C). The water is now connected to your power washer.

Note: Flush out garden hose before connecting to garden hose adapter.

OPERATING INSTRUCTIONS

! DANGER:

ELECTROCUTION HAZARD

Improper connection of the equipment grounding conductor can result in the risk of electrocution. Check with a qualified electrician if you are in doubt as to whether the receptacle is properly grounded. DO NOT modify the plug provided with this product. If it will not fit the receptacle, have a proper receptacle installed by a qualified electrician. DO NOT use any type of adapter with this product.

CAUTION:

POWER SUPPLY

This pressure washer shall only be used with a dedicated receptacle/plug rated 120vAC, 60 Hz at 15-or-20 amperes. Any other appliances on the circuit should be turned off or unplugged when using the pressure washer. Never use the pressure washer with an adapter that may lead to higher voltage or excessive current. Excessive current may trip circuit breaker. Consult a qualified electrician if unsure of the desired power supply receptacle's ability to safely power this pressure washer.

IT IS NOT RECOMMENDED TO USE AN EXTENSION

CORD. If, however, an extension cord is required, it must be an OUTDOOR RATED 3-PRONG CORD, that is no longer than 50 feet (15M) and has a minimum of 14 AWG (2.5mm²) conductors. Always uncoil the extension cord when in use. DO NOT use an extension cord that has its ground pin damaged or missing.

• Make sure the "ON/OFF" switch is in the "OFF" position. The power switch has international symbols for 'on' and 'off': On (I) Off (O).
• Unwind the power cord completely and plug the GFCI (For US unit only) into a grounded 120 volt outlet.

ON

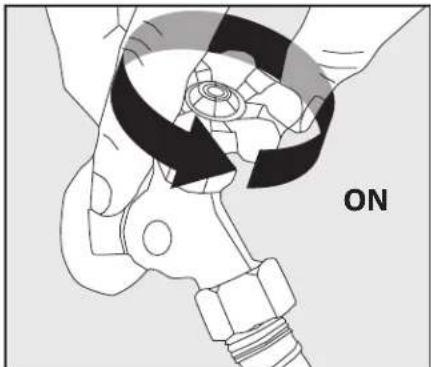

• Turn on water supply at the faucet to completely open.
• Release safety push trigger lock up and back into trigger. While pointing the spray gun in a safe direction, squeeze the trigger on the spray gun until there is a steady stream of water, letting the water and air out of the hose. Push trigger lock back down to lock back into place.

OFF/0 ON/I OFF/0 ON/I

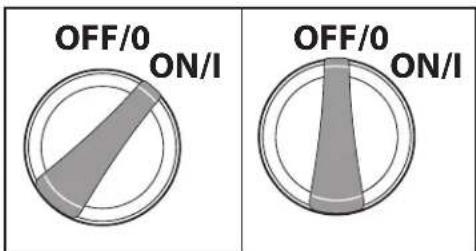

• Turn the power switch to the "ON" (|) position. The unit will turn on for 1 - 2 seconds and shut off. This is a normal function of the auto start feature.
• Begin power washing by squeezing the trigger on the spray gun all the way into the handle.
  • Release the spray gun trigger to stop the power washer
• Allow the motor to come to a complete stop before squeezing the trigger again.
• Squeezing rapidly will cause the auto start feature to miss an on/off cycle that may prevent it from turning on while squeezing trigger after rapid squeezing. Use slow deliberate trigger pulls to avoid such symptoms.

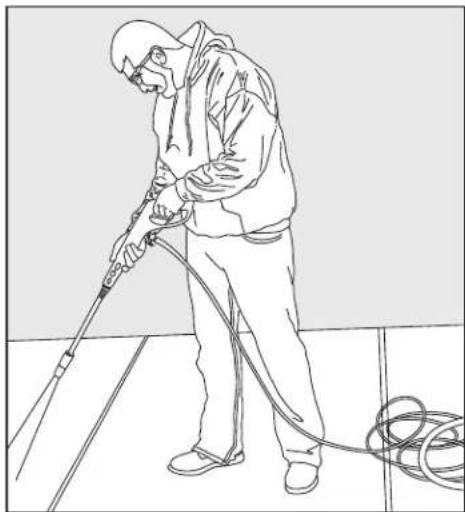

Line drawing of a person cleaning a tiled floor with a hose and coiled cable (no text or symbols)

• Always test a small area to avoid chance of damaging the surface.

OPERATING INSTRUCTIONS

Operation Tips

- Note: Test the GFCI (For US unit only) before each use:

1. Plug GFCI into power outlet. Indicator should turn green to show that cord has power.
2. Press test button, green indicator should turn off to verify that GFCI cut off power to the cord.
3. Press reset button – green indicator should turn on to show that cord has power again.

4. When GFCI is working properly, green indicator will turn on when power is applied. If green indicator turns off, it has detected electric leakage and the GFCI cut off power to the appliance.

5. If you hear the motor run intermittently when the trigger is not being squeezed, that is normal. The pump is priming itself so it is ready to operate when the trigger is squeezed. Turn off the power washer if not being used after five minutes.

6. The o-rings on the bayonet end of the nozzle lance should be cleaned regularly and lubricated with non-water soluble grease such as petroleum jelly.

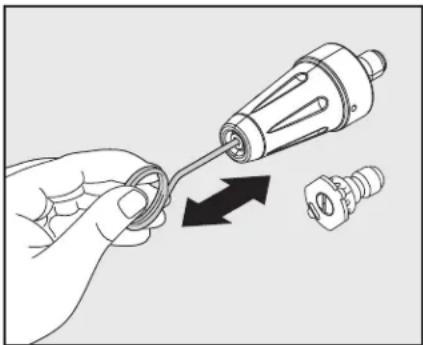

7. Keep the nozzle cleaning wire for use in unclogging the nozzle. If you lose the cleaning wire, a straightened paper clip also works.

How to Avoid Damaging Surfaces

- Damage to surfaces being cleaned occurs because the impact force of the water pressure exceeds the durability of the surface. Bare wood can be penetrated; paint can be peeled

off, etc. You can vary the force of your power washer by controlling:

1. The angle of the surface being cleaned.
2. The distance of the nozzle from the surface being cleaned.

- NEVER use a narrow high pressure stream of water on soft surfaces susceptible to damage.

Diagram of a mechanical device with labeled parts F and H, showing rotational motion arrows around a cylindrical component.

Adjusting Soap Levels on Foam Cannon

Twist knob to adjust the level of soap as indicated on the top of the Foam Cannon (H). Turn it clockwise for more concentration, or turn it counter-clockwise for less concentration.

CARE AND MAINTENANCE

Detergents

• Use detergents designed for power washers. These can be purchased online at our website [e-mail]. Hardware stores or home centers also have power washer detergents for different cleaning projects. The cleaning solution should be the consistency of water in order to prevent clogging your detergent bottle and nozzle.
• This system applies detergent under low pressure. The cleaning power of the detergents is enhanced when applied with low pressure and enough time is given to break down dirt and grime. The combination of low pressure and chemical action is very effective and can be better than scrubbing if applied properly. ALWAYS spray detergent on a dry surface.

DO NOT pre-soak area. Wetting the surface first dilutes the detergent and reduces its cleaning ability. DO NOT allow detergent to dry on surface. On vertical surfaces being cleaned, apply detergent to lower surfaces and work your way up to prevent detergent from causing streaks in the dirt and grime. Rinse detergent by pressure washing from bottom up for same reason.

- If a stain is particularly tough, it may be necessary to reapply the detergent and use a bristled brush to scrub the stain. Subsequent power washing after brushing should successfully complete your cleaning job.

Technical illustration of a mechanical valve with a mesh insert and directional arrow (no text or symbols)

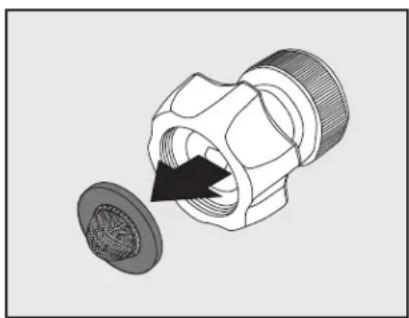

Cleaning Garden Hose Adapter

- The screen inside the adapter should be cleaned periodically. Remove it by dragging a thumb over the screen with enough pressure to pull the screen and washer out. Rinse it with clean water and then place it back in the adapter.

CARE AND MAINTENANCE

Illustration of a hand holding a screwdriver with an arrow indicating direction (no text or symbols)

Cleaning Nozzles

• A clogged or partially clogged nozzle can cause significant reduction of water pressure coming out of the nozzle and/or cause the unit to pulsate while spraying.
• Turn off the unit.
• Turn off the water supply to the unit.
• Relieve any pressure trapped in the hose by squeezing the trigger 2-3 times, and then lock the spray gun by pushing the lock button from left to right.
• Remove nozzle from lance.
• Using the nozzle tip cleaner provided (or an unfolded paper clip), insert the wire into the nozzle hole and move back and forth until debris is dislodged.
• Tap quick connect end of lance on hard surface several times.
• Back flush water through the nozzles using garden hose and highest pressure available (either standard water nozzle or use your thumb over the nozzle to create water pressure for back flush).

Storage

• When your pressure washer session has been completed, turn off the power switch located on the front of the power washer. Unplug the power cord from the outlet. Turn off the water supply. Pull the trigger on the spray gun 2-3 times to drain out the excess water and to release any remaining water pressure. Disconnect the garden hose adapter from the water inlet. DO NOT allow the power washer to run with no water flowing through it.
• Remove high pressure hose from spray gun.
• Remove lance from the gun. Place the gun in the holster on the side. Lances are placed into any of the slots in the back of the unit.
• Make sure to discard any remaining detergent from the bottle. Residual chemical will stick to the container which could become cotaminated, and can cause the detergent injector to clog and not function properly. Flush the bottle and nozzle head with fresh water to prevent clogging.
• Hook the power cord around the cord hook on the right side of the machine when facing it.
• The pressure hose is stored on the hose hook located on the back of the handle.
• DO NOT store the power washer where it is exposed to freezing temperatures unless you use SIMPSON
  Pump Guard. Store the power washer indoors to prevent water in the unit from expanding under freezing conditions. When the water freezes and expands, your pressure washer will be damaged and become inoperable. OR, if storing outdoors, it is recommended you use SIMPSON Pump Guard (not included) to protect the pump.

USING SIMPSON® PUMP GUARD

NOTICE

PUMP DAMAGE

Leaving water inside the pump during freezing weather will cause severe damage to the pump. To avoid costly damage, always treat the pump with SIMPSON® Pump Guard to remove the trapped water and to fill the pump with a lubricating, antifreeze solution.

SIMPSON® Pump Guard (purchase separately) is formulated to protect your pump during long-term storage and from freezing damage. Pump Guard should be used throughout the season to keep the seals pliable and well lubricated. Before storing the unit for winter or for when there is a chance of freezing weather, use pump guard to remove all traces of water from the internal cavities while filling them with an antifreeze solution. Pump Guard is insurance for your investment, use it.

Simply use Pump Guard by following these easy steps:

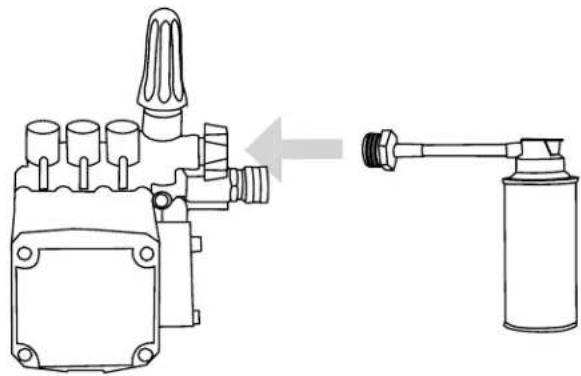

1. Screw the Pump Guard adapter into the garden hose input on the pump.

Technical line drawing of a mechanical device with a cylindrical component and a gas cylinder connected by a pipe (no text or symbols)

1. Press and hold down on the button until all the water and the Pump Guard starts to come out of the high pressure port.

Technical line drawing of a mechanical device with spray bottle and pump assembly (no text or symbols)

1. Unscrew the Pump Guard from the pump then prepare the pressure washer for storage as outlined in STORAGE AND TRANSPORTATION.

TROUBLESHOOTING

If you have any questions regarding this product, please contact our Customer Service Department by calling 1-877-362-4271 or emailing [e-mail].

PROBLEM CORRECTIVE ACTION
Unit will not turn on. 1. The GFCI module on the end of the power cord must be plugged into the electrical source.2. With the GFCI Connected make sure the power switch is turned on.3. Press the TEST, then RESET buttons on the GFCI unit.Note:When power switch is turned on, the power washer will turn on by itself for 1-2 seconds and shut off. This is normal.
The high pressure (HP) hose will not connect/ stay connected to the spray gun. Is this a spray gun problem?	In most cases, the spray gun is not the problem. The problem is the rubber sleeve covering the fitting at the end of the high pressure hose. It has likely slipped up toward the metal tip. To fix: wiggle, twist and/or pull the rubber sleeve down until the entire tip is visible plus an 1/8 in. of the metal fitting below the tip. Now try to insert the hose tip into the spray gun. It should "click" into place and will not come out until the hose is released by pushing in the lever on the underside of the gun. You may cut away the end of the sleeve with a sharp knife if unable to move the sleeve down. Be careful not to cut or puncture the hose.Do not push in the release button when connecting the high pressure hose.
The unit is running but there is no water flow.	Power should NOT be turned on until water comes through the spray gun. Doing so will damage the motor.Check the water source.Remove the nozzle from the lance to determine if clog is coming from the nozzle (If nozzle is clogged, see nozzle cleaning instructions under "Cleaning nozzles").Take off the lance and just spray out of the spray gun. This will indicate if the problem is with the lance.Check Garden Hose Adapter for loose connection and the filter for debris.
Why is water leaking where the high pressure hose connects to the spray gun?	Make sure there is an o-ring at the end of the metal tip of the high pressure hose. If no o-ring is present, the connection between the hose and spray gun will leak. O-Ring Replacement Kit (L) is included with purchase.
I can't remove the lance from the spray gun. What should I do?	All lances and the detergent bottles are attached and removed from the extension lance in the same manner. Insert the quick-release end of the lance/detergent bottle into the extension lance. Press the extension lance and lance together (about a 1/8") and turn clockwise. The lance will lock in place. Remove the lance by reversing this procedure. Press the extension lance and lance together and turn counter clockwise. The lance will slide out.Or, hold the extension lance and lance in an upright position with the nozzle end on the floor. Push the whole assembly straight down to loosen the connection, and then follow the removal process again. You may also spray soapy water or a lubricant in the area where the lance connects to the extension lance.
The power washer turns on for 2 seconds, shuts off, and will not turn back on. Do I have a defective unit?	It sounds like your power washer is working just fine. When the water is connected, the accessories are assembled properly, and the power switch is turned on, the power washer may turn on for 1 - 2 seconds to prime the pump. It automatically shuts off and waits for the spray gun trigger to be pressed. When the trigger is pressed, water starts flowing through the pump. The water sensor in the pump "senses" the moving water and automatically turns the power washer on.Turn the power switch to off, hold in the trigger on the spray gun, so that you have a steady stream of water. While you are holding the trigger open on the spray gun, at the same time, turn the power switch on.

LIMITED WARRANTY

The Warranty of this product is covered by SIMPSON.

This product has the following warranty coverage periods from the date of purchase:

HIGH-PRESSURE PUMP – 1 year

ELECTRIC MOTOR - 1 year

FRAME - 1 year

ACCESSORIES – 90 days (nozzles, hoses, spray guns, wands, tires, rubber feet)

Please read the following carefully to understand what each warranty entails:

This product is under warranty to the original retail consumer against defects in material and workmanship. The warranty is not transferable or assignable. This limited warranty applies only to products used in consumer applications and is void in rental or any commercial application. Reasonable care must be used in conformity with operation and maintenance instructions in the owner's manual and quick start guide. Failure to follow these instructions will void this warranty. This warranty gives you special legal rights and you may also have other rights which vary from state to state.

Warranty Process

Keep your original receipt of purchase in case of warranty claim.

To process a warranty claim on your SIMPSON ^® pressure washer, report the concern to 1-877-362-4271 or [e-mail] for authorization and direction to the nearest authorized service center in your area.

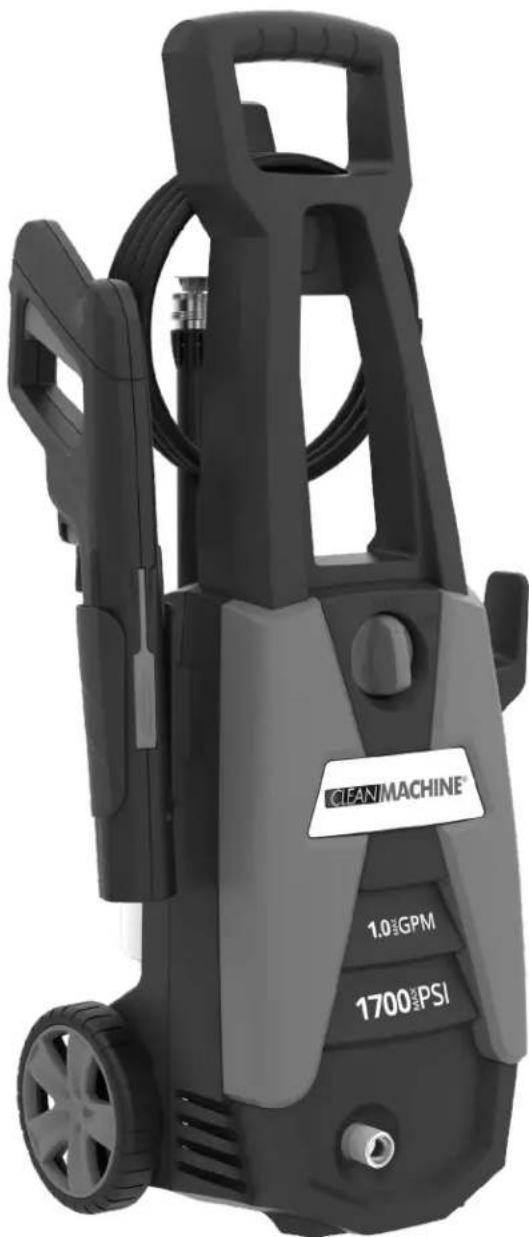

SIMPSON®

Exterior view of a CLEAN MACHINE 1.03 GPM and 1700 PSI water heater (no additional text or symbols visible)

7121745 Rev C 10/2023 96800-KG

SPÉCIFICATIONS DU PRODUIT

SPÉCIFICATIONS

B A M C D AA L PAX304 E J 15°-Jaune I H F K G

Technical line drawing of an electrical plug with a square socket and terminal block, shown above with a separate schematic view (no text or symbols)

Hoses may pose a tripping hazard that can cause injuries resulting from a fall.

RISQUES DE GLISSEMENT ET DE TRÉBUTS

Watch your step

CAUTION

Slippery when wet.

KEEP OUT HIGH PRESSURE WASHING IN PROGRESS

CAUTION SLIPPERY WHEN WET

Illustration of a ladder with orange and white striped bars, topped with a yellow coin (no text or symbols)

Illustration of two orange traffic cones with black caps connected by a dashed orange line (no text or symbols)

PRÉPARATION

Line drawing of a screwdriver with a flat blade and threaded end (no text or symbols)

INSTRUCTIONS D'ASSEMBLAGE

1 AA B C

10 J 2 I 1 K

Technical line drawing of a vehicle's internal components, showing hoses and a tool inserted into a housing (no text or symbols)

OFF/0 ON/I OFF/0 ON/I

Line drawing of a person cleaning or disinfecting a wall with hoses and ropes (no text or symbols)

Mechanical component diagram showing a lever mechanism with labeled parts F and H (no text or symbols beyond labels)

3D mechanical component diagram showing a threaded fitting with a meshed inner part (no text or symbols)

Illustration of a hand holding a screwdriver with an arrow indicating direction (no text or symbols)

Nettoyage des buses

Technical line drawing of a mechanical device with a cylindrical container and a pipe fitting (no text or symbols)

Technical line drawing of a mechanical device with spray bottle and pump assembly (no text or symbols)

Exterior view of a CleanMACHINE 1.03GPM and 1700g PSI power supply unit (no additional text or symbols visible)

INSTRUCCIONES DE MONTAJE, CUIDADO Y USO Modelo CM61351

LEA CUIDADOSAMENTE

B A M C D AA L P03204 E J 15°- Amarillo I H F K G

Line drawing of a plug with two connectors and a separate square symbol below (no text or labels)

TRIPPING HAZARD Hoses may pose a tripping hazard that can cause injuries resulting from a fall.

PELIGROS DE RESBALÓN / TROPIEZO

Watch your step

KEEP OUT HIGH PRESSURE WASHING IN PROGRESS

CAUTION SLIPPERY WHEN WET

CAUTION

Slippery when wet.

Illustration of a ladder with orange-and-white striped barrier and a small yellow coin on top (no text or symbols)

Illustration of two orange traffic cones with black caps connected by a diagonal stripe (no text or symbols)

PREPARACIÓN

Line drawing of a screwdriver with a flat blade and wooden handle (no text or symbols)

INSTRUCCIONES DE MONTAJE

1 AA B C

10 J 2 I 1 K

11 1 H 2 750m 600m 450m 300m 150m

Technical line drawing of a mechanical assembly with labeled component (C), showing a motor and hoses inserted into a housing (no text or symbols present)

OFF/0 ON/I

OFF/0 ON/I

Line drawing of a person cleaning or disinfecting a surface with hoses and a hose (no text or symbols)

Diagram of a mechanical device with labeled parts F and H, showing rotational motion arrows (no text or symbols beyond labels)

Technical illustration of a mechanical connector with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a screwdriver with an arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a gas cylinder, showing no text or symbols.

Technical line drawing of a mechanical device with spray bottle and pump assembly (no text or symbols)
