USER MANUAL PSS6EUSB50 HQ Power
HQ POWER™
V. 01 - 16/04/2024
1
©Velleman Group nv
PSS6EUSB50
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your
local waste disposal authorities.
Thank you for choosing Velleman Group! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision. • Do not disassemble the
PSS6EUSB50
device. • Keep away from high temperatures in order to avoid danger. • In order to prevent electric shock, do not expose the device to rain or moisture. • The device will become hot when in use. This is normal and will not affect product safety and service life. • Unplug from the mains after use. • Only use this device within the technical specifications to avoid danger.
Description of symbols
This product must only be used in dry, enclosed indoor areas. It must not become damp or wet, as this may cause a fatal electric shock!
This symbol indicates that this product is built according to protection class II. It is equipped with reinforced or dual insulation between the mains circuit and the output voltage.
This symbol indicates that the product meets the energy efficiency requirements for Class VI.
This product has been CE tested and therefore complies with the necessary national and European regulations.

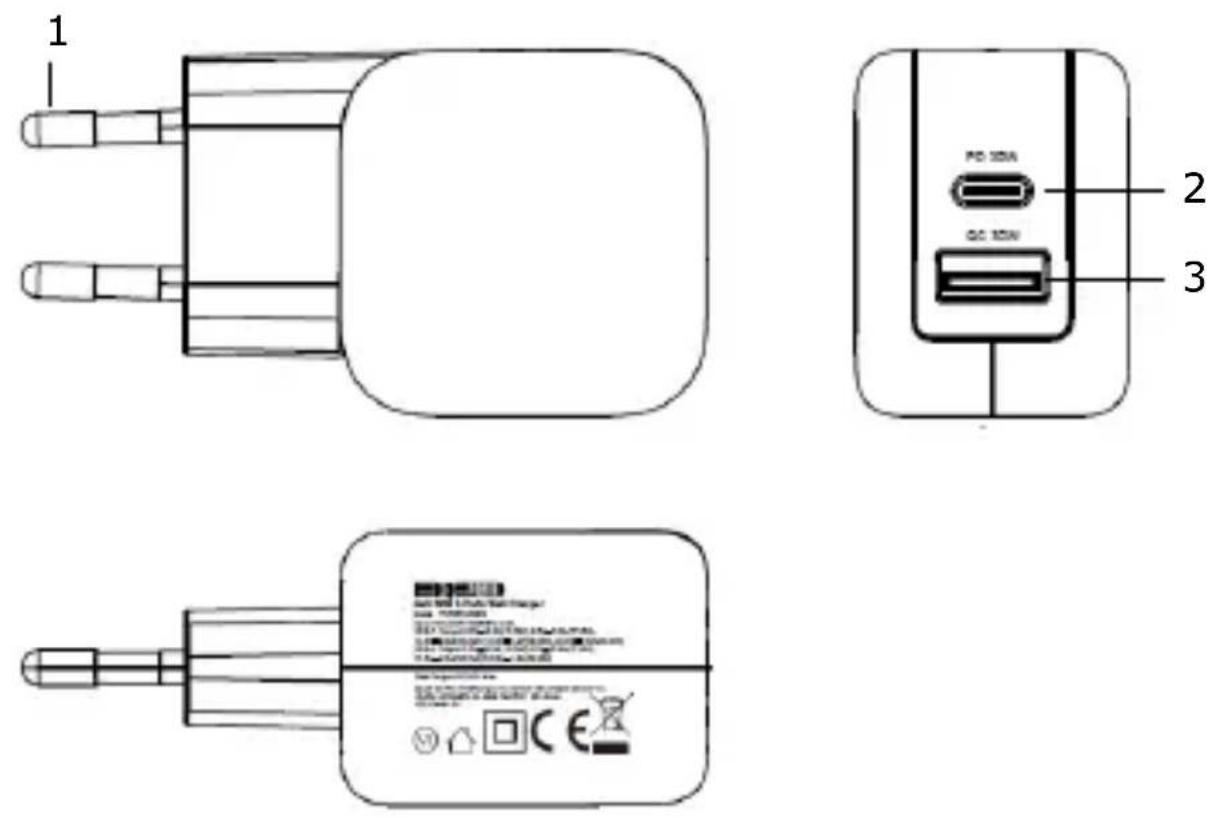

3. Product overview
• Refer to the drawing on page 2
V. 01 - 16/04/2024
4
©Velleman Group nv
PSS6EUSB50
- Mains plug
- USB Type-C with 30W PD (Power delivery) output
- USB Type-A with 30W QC (Quick Charge) output
4. General Guidelines
- Refer to the Velleman Group® Service and Quality Warranty on www.velleman.eu.
5. Maintenance
- Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.
6. Specifications
USB-C Output: 5.0V 3.0A(15.0W), 9.0V 3.0A(27.0W), 12.0V 2.5A(30.0W), 15.0V 2.0A(30.0W), 20.0V 1.5A(30.0W)
- USB-A Output: 5.0V 3.0A(15.0W), 9.0V 3.0A(27.0W), 12.0V 2.5A(30.0W), 20.0V 1.5A(30.0W)
output power....max. 30 W
power supply 100-240V\~, 50/60 Hz
dimensions....80.64 x 30.2 x 45.03 mm
Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage
V. 01 - 16/04/2024
5
©Velleman Group nv
PSS6EUSB50
or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
