Product type	Refrigerator
Brand	Wisberg
Model	WBKK143EW
Dimensions (W×H×D)	54.4 × 142.6 × 55.6 cm
Net weight	Approximately 35 kg (estimated)
Power supply	220-240 V ~ 50 Hz
Climate class	N, ST (16°C to 38°C)
Refrigerant	R600a (isobutane)
Net refrigerator capacity	Approximately 200 L (estimated)
Temperature control	Rotary knob from 1 (warm) to 7 (cold), recommended 4
Defrost type	Automatic (evaporation)
Main functions	Refrigeration, extra-cold compartment (-2°C), interior lighting
Included accessories	Glass shelves, door bins, vegetable crisper, handle
Reversible door	Possible (tools required)
Adjustable feet	Yes, at the front
Noise level	Approximately 40 dB(A) (estimated)
Annual energy consumption	Approximately 150 kWh (estimated)
Housing material	Painted steel / plastic
Care and cleaning	Clean with warm water and mild soap; do not use abrasive products
Safety	Child lock not available; grounded outlet required; do not use extension cord
Warranty	2 years
Spare parts and repairability	Available at wisberghome.com; repair by authorized technician only
Customer service contact	wisberghome.com

Frequently Asked Questions - WBKK143EW Wisberg

How to adjust the temperature of the Wisberg WBKK143EW refrigerator?

Turn the thermostat knob located inside. The positions range from 1 (warmest) to 7 (coldest). The recommended setting is 4. To turn off, set to 0.

What to do if the appliance does not cool?

Check that the thermostat is not set to 0, the plug is properly inserted, and the outlet is powered. If the ambient temperature is below 16°C, place the appliance in a warmer room.

How to reverse the door opening direction?

Unplug the appliance, empty it, and tilt it backward. Follow the steps in the manual: remove the hinges, move the door, and reassemble the hinges on the other side. Use a Phillips and flathead screwdriver.

Why is there water inside or at the back?

Water at the back is normal during automatic defrosting. If inside, ensure food items are not touching the back wall and the water drain is not blocked. Clean it if necessary.

How to clean the refrigerator?

Unplug the appliance. Remove shelves and drawers, wash them with warm water and mild soap. Wipe the interior with a soft cloth. Never use abrasive products or solvents. Dry thoroughly before plugging back in.

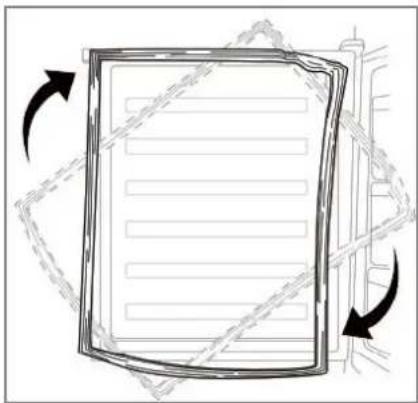

The door gasket does not seal well, what to do?

Clean the gasket with soapy water. If deformed, gently heat it with a hair dryer and reshape it. If necessary, turn the gasket 180° after removing it. Replace it if worn.

Why is there frost or excessive ice?

This may be due to a poorly closed door, a defective gasket, or a temperature setting that is too cold. Check the closure, clean the gasket, and set the thermostat to a less cold position.

The appliance makes noise, is that normal?

Slight compressor and fluid circulation noise is normal. If the noise is loud, check that the appliance is level and not touching furniture. If the noise persists, contact customer service.

What foods can be stored in the extra-cold compartment?

The extra-cold compartment (at the top) is designed for products requiring a temperature of -2°C, such as certain fish or meats. Do not use it for freezing food.

How to save energy with this refrigerator?

Do not open the door too often, do not leave it open for long, set the thermostat to 4, ensure good ventilation around the appliance (5 cm at the top, 10 cm on the sides), and place it away from sunlight and heat sources.

USER MANUAL WBKK143EW Wisberg

Climate classification N / ST
Electric shock classification Class I
Voltage 220-240V~
Frequency 50Hz
Rated current 0.55A
Power consumption 90W
Net volume 242L
Insulating agent Cyclopentane
Refrigerant R600g J30g
Product code 942090

Serial Number:

Wisepick Productions B.V.
Weena 664
3012CN, Rotterdam
The Netherlands
Made in China

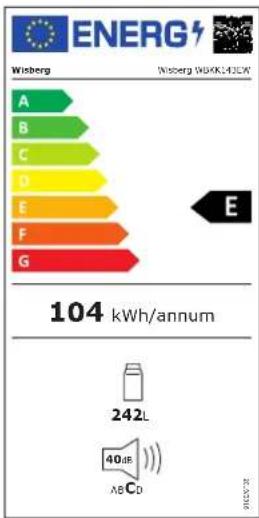

ENERG Wisberg Wisberg WKKK-43CW A B C D E F G 104 kWh/annum 242L 40dB ABCD

Climate classification -	Klimaatklasse / Classification climatique / Klimaklassifizierung
Electric shock classification -	Classificatie van elektrische schokken / Classement des chocs électriques / Elektroschock-Klassifizierung
Voltage -	Spanning / Tension / Spannung
Frequency -	Frequentie / Fréquence / Frequenz
Rated current -	Nominale spanning / Tension nominale / Nennspannung:
Power consumption -	Totaal ingangsvermogen / Puissance d'entrée totale / Gesamteingangsleistung
Net volume -	Netto inhoud / Volume de stockage total / Gesamtspeichervolumen
Insulating agent -	Isolatiemiddel / Agent isolant / Isoliermittel
Refrigerant -	Koelmiddel / Réfrigérant / Kältemittel
Product code -	Productcode / Code produit / Produktcode

INHOUDSOPGAVE

Voorwoord 4

1. Veiligheid 5

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

Made in China

1. VEILIGHEID

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

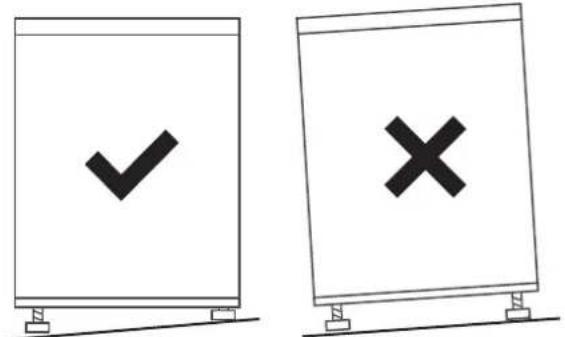

Simple line drawing of a rectangular frame with a black 'X' symbol on the top and two small blocks at the bottom (no text or labels)

Simple line drawing of a rectangular frame with a black checkmark on top and two small blocks at the bottom (no text or symbols)

4. Reinig

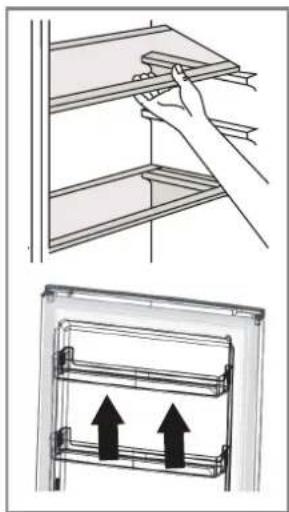

Illustration showing a hand installing or adjusting a shelf panel and its internal structure with two upward arrows (no text or symbols)

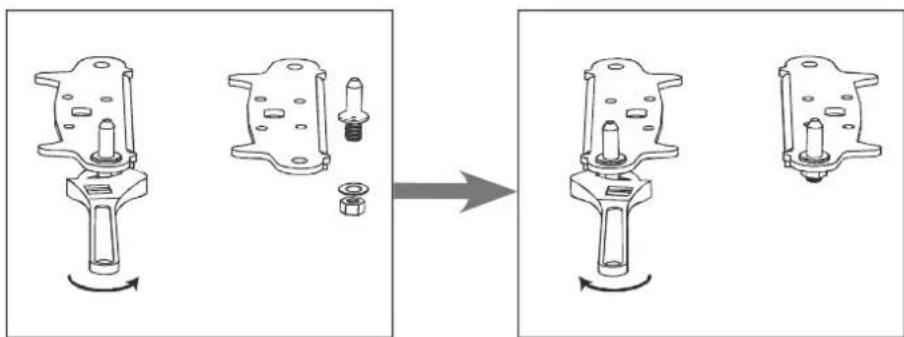

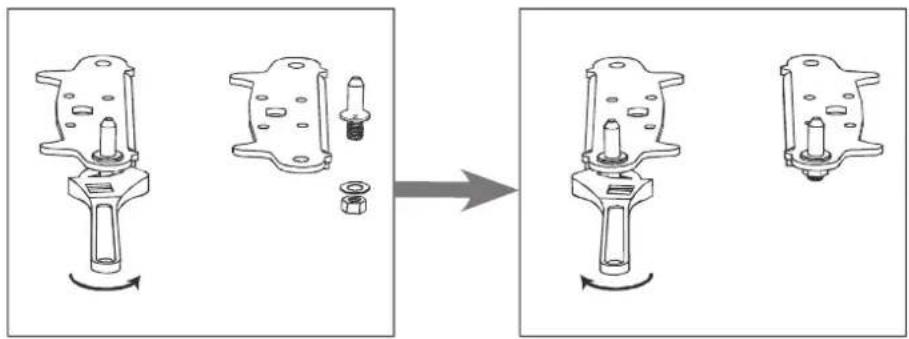

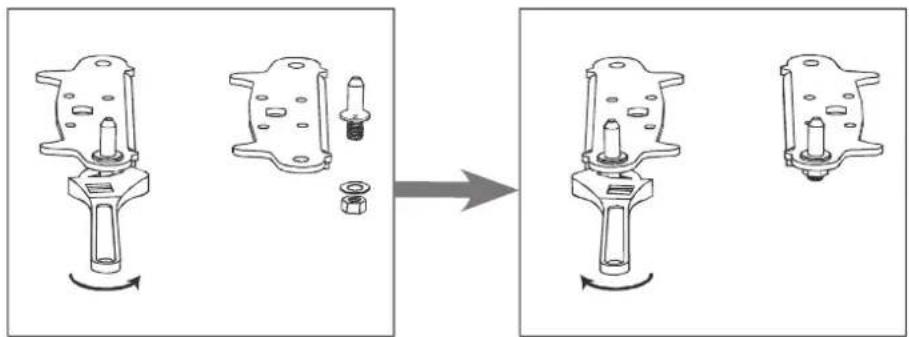

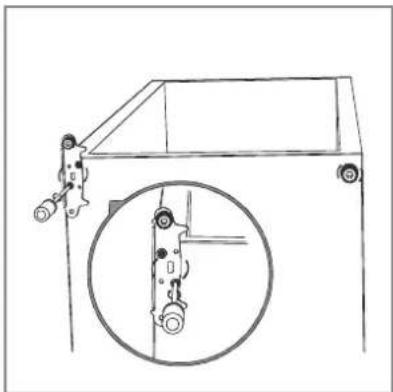

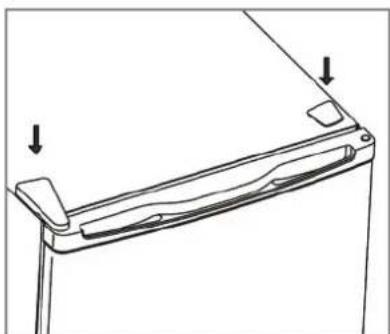

3.2 DE DRAAIRICHTING VAN DE DEUR OMKEREN

Diagram of a tool interacting with a mechanical component, showing a handle and a downward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Mechanical diagram showing a tool interacting with a bracket (no text or symbols visible)

Pure geometric diagram showing a curved dashed line and a small circle on a solid horizontal line, without any text or symbols.

Mechanical assembly diagram showing a valve mechanism before and after rotation, with no visible text or symbols.

Technical line drawing of a vehicle suspension system with an inset showing a mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Technical line drawing of a mechanical bracket or frame assembly with two downward arrows indicating force or movement (no text or symbols present)

Diagram of a document with arrows indicating rotational movement (no text or symbols)

Pure diagram of a tool or connector with no text, numbers, or symbols

Pure technical line drawing of a mechanical bracket or mounting bracket without any text, numbers, or symbols

Technical diagram showing two labeled mechanical components with directional arrows indicating movement or force

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

Made in China

INSTRUCTIONS FOR USE

REFRIGERATOR

WBKK143EW

WISBERG

TABLE OF CONTENTS

Foreword 21

1. Safety 22

1.1. Intended use and anticipated unintended use 22
1.2. Safety warnings and regulations 22
1.3. Safety instructions: installation 23
1.4. Safety instructions: use 24

2. Product features 25

2.1. Dimensions 25
2.2. Guarantee 26
2.3. Technical Data 26

3. Installation 26

3.1. Installing the appliance 26
3.2. Door reversal instructions 28

4. Use 31

4.1. Setting the temperature 31
4.2. Tips for daily use 31
4.3. Saving energy 31

5. Maintenance and cleaning 32

6. Troubleshooting 33

7. Taking out of service 35

8. Safe disposal 35

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Wisepick Productions B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
	DANGER!	Fire hazard and/or flammable materials
	WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
	CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
	ATTENTION!	Indicates a situation related to material damage.
	NOTE	Indicates useful additional information.

NOTE

You can also find the latest version of this manual online, at wisberghome.com if you search for the article number.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Wisepick Productions B.V. and/or the third party to whom the data belong.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

1. SAFETY

1.1. INTENDED USE AND ANTICIPATED UNINTENDED USE

• This appliance is only intended for use indoors.
- This appliance is not intended for use as a built-in appliance.
- This appliance is intended for domestic use and similar applications such as: - staff kitchens in shops, offices and other work environments; - farms and guests in hotels, motels, B&B and other residential environments; - catering and similar non-retail applications.

- This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

- Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people's property and the expiry of the warranty.

1.2. SAFETY WARNINGS AND REGULATIONS

WARNING!

• Keep the vents in the appliance housing open.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.
• Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.
• It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

DANGER!

• Do not use this appliance with extension leads or power strips.
• Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off. Do not connect the appliance to an earthed power socket that is regularly switched on or off.
• Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.
• Never pull on the power cable to move the appliance or to unplug it from the earthed socket.
• Keep the power cable away from heat, oil, sharp edges or moving parts.
• Do not use the appliance if the power cable is damaged. Never replace the power cable yourself. The power cable may only be replaced by an authorised service technician.
• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~ 50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

- Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
  • Always place the appliance on a moisture-resistant and dry surface.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Do not touch the appliance or power cable with wet hands.

1.3. SAFETY INSTRUCTIONS: INSTALLATION

! CAUTION!

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.
• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

ATTENTION!

• Use only the original accessories provided for the installation.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.
  • Make sure that the power cable of the installed appliance is always easily accessible.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).
• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.
• Do not install the appliance near radiators, stoves, ovens or hobs.
• Do not install the appliance in direct sunlight.

• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.

• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m3. The amount of refrigerant contained in the appliance can be found on the type plate.

• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the "Climate Range" table.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range N, ST.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST From +16°C to +38°C
T From +16°C to +43°C

1.4. SAFETY INSTRUCTIONS: USE

! CAUTION!

• Food storage times recommended by the food manufacturer must be observed.
• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

2. PRODUCT FEATURES

2.1. DIMENSIONS

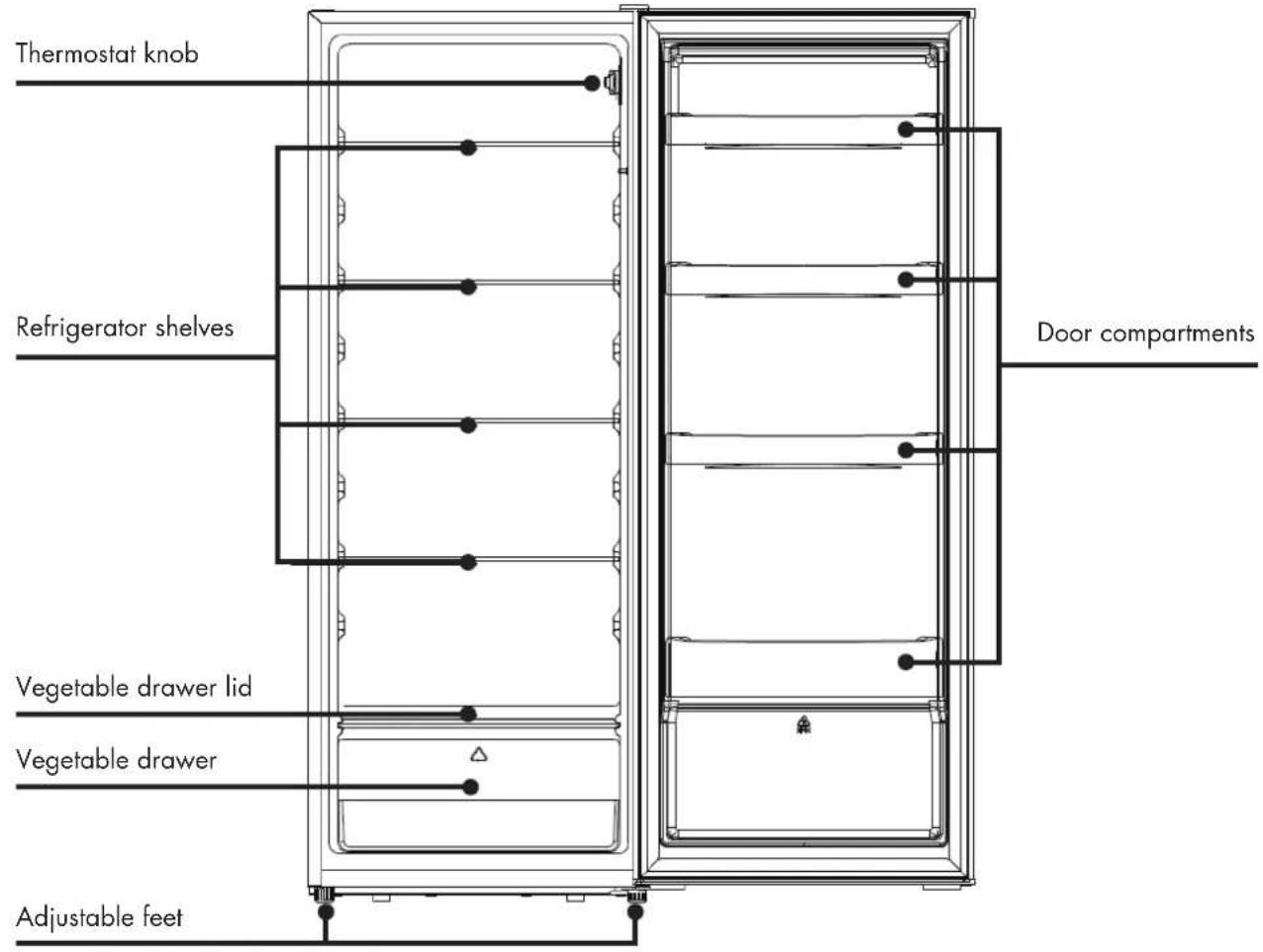

Thermostat knob Refrigerator shelves Door compartments Vegetable drawer lid Vegetable drawer Adjustable feet

W G H

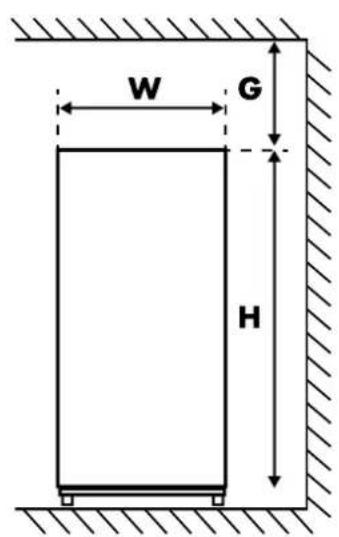

• Figure 1. Front view

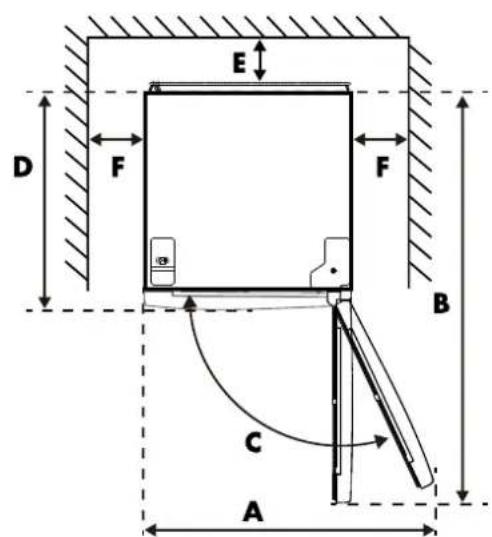

E D F F B C A

• Figure 2. Top view

WDHABC(°) EFG
54,4cm 55	6cm 142,6	cm 80 cm 1	4,5cm 135	min. 5cm min.	5cm min. 1	0cm

*Figures 1 and 2 illustrate the space required for the appliance.

2.2. GUARANTEE

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit wisberghome.com. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit wisberghome.com

2.3. TECHNICAL DATA

Does not contain freon

The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

3. INSTALLATION

3.1. INSTALLING THE APPLIANCE

Before installing the appliance, carefully review the safety information (chapter 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Location

• The location where you place your appliance should be well ventilated.
  • Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.
• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.
• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.
• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.
• Use only the original accessories provided for the installation.
• To reverse the direction in which the door opens, go to section 3.2.
• During operation, the appliance emits heat to the environment. Therefore there must be at least 5 cm clearance on the top, at least 10 cm on both sides and at least 5 cm on the back of the appliance (see also section 2.1).
• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.

• Always place the appliance on a moisture-resistant and dry surface.
- Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

4. Clean

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

Two identical diagrams showing checkmark and cross symbols on a board, likely indicating approval or cancellation.

5. Wait

On first installation (or after turning the door) wait at least four hours before plugging in the appliance. This allows the oil to flow back into the compressor.

6. Switch on

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

7. Mounting accessories

- Adjustable shelves

The walls of the appliance are equipped with a series of guide profiles so that the shelves can be inserted if desired.

- Installing the door compartments

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

8. Storing food

See Section 4 "Use".

Illustration showing a hand installing or adjusting a wooden shelf panel and its internal structure with two upward arrows (no text or symbols)

3.2. DOOR REVERSAL INSTRUCTIONS

• To remove the door, the appliance must be tilted backwards. We recommend doing this with two people. Rest the appliance on a firm surface so that it does not slip away as you reverse the door.
• Do not lay the appliance down flat. This can damage the cooling system. If the appliance does have to be placed on its back or side for some time during this process, it must be able to stand upright for four hours before connecting it to prevent damage to the internal components.
• Keep all removed parts to remount the door later.

Necessary tools:

• Crosshead screwdriver

- Flat head screwdriver

Parts included:

Technical line drawing of a vertical metal bracket with mounting flanges (no text or symbols)

• Handle 1x

• Unplug and empty the appliance.

• Remove the cover from the top right hinge.

• Loosen the screws. Then remove the hinge.

Diagram of a tool interacting with a mechanical component, showing a handle and a downward arrow (no text or symbols)

Line drawing of a screwdriver inserted into a small electronic component (no text or symbols)

1. Remove the cover on the left-hand side of the appliance.

Diagram of a tool being adjusted with a screwdriver, showing a handle and adjustment (no text or symbols)

1. Move the cover left at the top of the door to the right at the top of the door. Then lift the door and place it on a soft surface to prevent scratches.

2. Loosen the pin on the bottom hinge, turn the hinge bracket around and screw the pin back in.

Pure geometric diagram showing a curved dashed line and two marked points on a horizontal line (no text or symbols)

Mechanical assembly diagram showing a valve mechanism before and after rotation, with no visible text or symbols.

1. Mount the bracket on the lower hinge pin. Screw on both levelling feet.

Technical line drawing of a mechanical assembly with a circular inset showing a component detail (no text or symbols)

1. Place the door on the bottom hinge again. Make sure that the door is aligned horizontally and vertically so that the seals on all sides fit tightly onto the door before permanently mounting the top hinge. Place the top left hinge on top of the appliance and screw tight. Use a spanner to tighten it, if necessary.

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

1. Replace the hinge cover and the screw.

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

1. After tightening the hinges, check that the door seals are in good alignment with the refrigerator casing throughout. If this is not the case, the rubber seal can easily be pulled off, turned 180^ and then pressed back into the rebate.

Diagram of a document with arrows indicating rotational movement around it, no text or symbols present

1. Checking and cleaning the rubber seals

A. Method 1: Clamp a thin piece of paper in various places. The paper should be difficult to pull out in all these places.
B. Method 2: Place a torch on a shelf inside the appliance and aim the light at the seal; close the door and see if you can see any light.

If the seal is uneven, heat the seal rubber in the affected areas with a hairdryer and shape them with your fingers.

Keep the door seals clean. Sticky food and drink can make the seals stick to the cabinet and then tear when you open the door. Clean the seal with a mild detergent and warm water. After cleaning, rinse well and dry. Caution! Do not switch on the appliance until the door seals are completely dry.

Install the handle

Pure technical line drawing of a mechanical tool or screw (no text or symbols)

1. Remove the covers from the screw holes.

Technical line drawing of a mechanical bracket with a pencil inserted, no text or symbols present

1. The handle is in a freezer drawer. Screw the handle to the door using the screws supplied.

Technical diagram showing two labeled components (① and ②) with directional arrows indicating movement or force.

1. Place the handle covers over the screws.

4. USE

Carefully review the safety information (Section 1) before you start using the appliance.

4.1. SETTING THE TEMPERATURE

You can set the temperature of the appliance by turning the thermostat button.

• The thermostat can be set between 1 and 7.
  • 1 is the warmest setting.
• 7 is the coldest setting.
  • The recommended setting is 4.
• Turn the dial to 0 to turn the appliance off.

4 5 3 6 2 7 1 0

The internal temperature of the appliance may vary due to the ambient temperature, the amount of products stored and the frequency with which the door is opened. Under normal operating conditions we recommend setting the temperature to 4. In summer, when the ambient temperature is high, we recommend setting the temperature to 5 - 6. In winter, when the ambient temperature is low, we recommend setting the appliance to 2 - 3.

This appliance is not suitable for freezing food. At the top, you will find an additional cold compartment. This is where you store products with a temperature of -2 degrees Celsius.

4.2. TIPS FOR DAILY USE

Cooling food

• Always refer to the expiry date of the products to know how long they can be stored.
- Pack food in resealable plastic bags, especially if it has a strong taste, and place on the glass shelves above the crisper drawer. Store food only one or at most two days in this way.
- Store raw meat and fish in appropriate food containers in the refrigerator so that it does not leak or come into contact with other foods.
- Do not place hot food or hot plastic parts in the appliance. Make sure it has cooled to room temperature before putting it in the appliance.
- Cooked food that has cooled sufficiently must be covered and can then be placed on any shelf.
- Do not place foods containing a lot of water too close to the back wall of the refrigerator to prevent them from freezing to the inner wall.
- It is best to clean and dry food before storing it in the appliance. It is advisable to store food in sealed packaging in the appliance. This prevents evaporation of water, which keeps fruit and vegetables fresh and also prevents odours.

4.3. SAVING ENERGY

• The most efficient use of energy is ensured in the configuration with the drawers in the lower part of the appliance and with the shelves evenly distributed. The position of the door trays does not affect energy consumption.
• Do not open the door or leave it open more often than necessary.
• Do not set the temperature too high to save energy unless the characteristics of the food require it.
• If the ambient temperature is high, the temperature control is set to a low temperature and the appliance is fully filled, the compressor can be on continuously, causing ice to form on the evaporator. In this case, set the temperature control to a higher temperature to enable automatic defrosting to save energy.
• Ensure proper ventilation. Do not cover the vents or holes.
• Replace the door gasket in good time to prevent poor door closing.

! ATTENTION!

• The manufacturer's storage recommendations must be strictly followed. Please refer to the respective instructions.
• Do not keep the door open for too long; this can cause a sharp increase in temperature in the compartments of the appliance.

5. MAINTENANCE AND CLEANING

Before cleaning the appliance, carefully review the safety information (Section 1).

CAUTION!

• Always remove the plug from the earthed socket before cleaning the appliance.
- Cleaning and user maintenance must not be carried out by children without supervision.
- Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
- Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.
- Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

ATTENTION!

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised service technician.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• The electrical parts of the appliance may only be cleaned with a dry cloth.

NOTE

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

INTERIOR AND EXTERIOR CLEANING

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly.
• Remove all drawers, shelves, door compartments etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
  • Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service: wisberghome.com

Only an authorised service technician may solve the malfunctions that are not listed in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all	- The temperature control knob is in the Coldest position.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- Where is the device installed? Is it located on a balcony, in a garage, storage room or other place where the ambient temperature is less than 16°C?	- Switch the thermostat to another position.- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 16°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
Water runs over the back of the appliance	- During the automatic defrosting process, icing thaws against the back wall.	- Wipe up the water with a soft cloth.
Water enters the appliance	- Products prevent water from entering the water collection container.- The water collection channel is blocked.	- Ensure products do not touch the back wall.- Clean the water collection channel.
There is too much condensation on the back wall of the appliance.	- The door has been opened too often.- The door is not completely closed- The stored food was not packed.	- Only open the door if necessary.- Make sure the door is completely closed.- Pack food in suitable material before putting it in the appliance.
There is water on the floor.	- The defrost water collection channel is not connected to the evaporator container above the compressor.	- Secure the defrost water collection channel to the evaporator container.
The appliance freezes or cools too much.	- The temperature is set too cold or the appliance is in the coldest position.	- Temporarily set the temperature control knob to a warmer position.
PROBLEM POSSIBLE CAUSE SOLUTIONS
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food in the fridge is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the refrigerator	- There is spoiled food in the fridge.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
There is too much frost and ice.	- The door is not closed properly.- The door gasket is deformed or dirty.- The products are not packed correctly.- The temperature is set incorrectly.- The appliance is fully loaded and set to the lowest temperature.- The set temperature in the appliance is too low and the ambient temperature is too high.	- Find the cause of the door not closing properly, remove or move possible obstacles.- As a result, the door does not close properly. Clean the seal and repair the deformation. If necessary, replace the seal, contact customer service.- Pack the products better.- Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.
The compressor works continuously.	- The temperature is set incorrectly.- Many products are placed at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Please refer to Section 4.- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the previous section.
The lamp does not work.	- The lamp is broken.- The lamp is in the standby position.	- Please contact our customer service.- Close and open the door.
The side panels are hot.	- This is normal. The heat exchanger components are on the side.

7. TAKING OUT OF SERVICE

Switching off and storage

• If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.
  • Make sure the appliance is completely thawed.
• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
• The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

DANGER!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Wisepick Productions B.V. if you no longer wish to use the device or to return the device.

ATTENTION!

• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

MANUEL D'UTILISATION

RÉFRIGÉRATEUR

WBKK143EW

WISBERG

TABLE DES MATIÈRES

Avant-propos 38

1. Sécurité 39

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

1. SÉCURITÉ

1.1. UTILISATION PRÉVUE ET UTILISATION INVOLONTAIRE PRÉVISIBLE

Simple line drawing of a rectangular frame with a black checkmark on the wall, supported by two legs (no text or symbols)

Simple line drawing of a monitor with a black 'X' symbol on its screen (no text or labels)

Illustration showing a hand holding a shelf and a close-up of a mechanical device with two upward arrows (no text or symbols)

3.2. INVERSION DU SENS DE ROTATION DE LA PORTE

Technical line drawing of a vertical metal frame with mounting brackets (no text or symbols)

Diagram of a tool interacting with a cylindrical object, showing a handle and an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Mechanical diagram showing a tool inserted into a bracket with a downward arrow indicating force or direction (no text or symbols present)

Pure geometric diagram showing a curved dashed line and a small circle on a solid line, without any text or symbols.

Mechanical assembly diagram showing a valve mechanism before and after rotation, with no visible text or symbols.

Technical line drawing of a mechanical device with an inset circular detail showing a vertical component (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Technical line drawing of a mechanical bracket or bracket with two arrows indicating direction (no text or symbols present)

Diagram of a document with arrows indicating rotational movement around it, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical bracket with a pin inserted, no text or symbols present

Technical diagram showing a mechanical joint or clamping mechanism with labeled components ① and ②, including directional arrows indicating movement.

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

GEBRAUCHSANLEITUNG

KÜHLSCHRANK

WBKK143EW

WISBERG

INHALTSVERZEICHNIS

Vorwort 55

1. Sicherheit 57

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Die Niederlande

Made in China

1. SICHERHEIT

Simple line drawing of a monitor with a black checkmark on the screen (no text or symbols)

Simple line drawing of a monitor with a black 'X' symbol on its screen (no text or labels)

5. Warten

Illustration showing a hand installing or adjusting a shelf panel and a mechanical device with two upward arrows (no text or symbols)

Technical line drawing of a vertical metal bracket with mounting holes (no text or symbols)

Diagram of a tool interacting with a cylindrical object, showing a handle and an arrow indicating direction (no text or symbols present)

Technical line drawing of a screwdriver inserted into a component, showing tool path and mounting bracket (no text or symbols)

Diagram of a tool being adjusted with a screwdriver, showing a downward arrow (no text or symbols present)

Pure geometric diagram showing a curved dashed line and two marked points on a horizontal line (no text or symbols)

Mechanical assembly diagram showing a valve mechanism before and after rotation, with no visible text or symbols.

Technical line drawing of a mechanical device with an inset circular detail showing a bracket and wheels (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted, showing a rotating component (no text or symbols)

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Diagram of a document with arrows indicating rotational movement around it, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical bracket with a pin inserted, no text or symbols present

Technical diagram showing two labeled mechanical components with directional arrows indicating movement or force.

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Die Niederlande

Made in China

Wisberg contact details

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China
