USER MANUAL INVICTUS Therma Boost GENIUS

Close-up of a USB cable with a connector, labeled with number 2 (no text or symbols on the cable itself)

7 8 TRENEER BOODAY

Inhalt

Produktkomponenten......4

Allgemeines....5

Diagram showing four types of mechanical or electrical components with checkmarks indicating assembly or inspection (no text or symbols present)

Line drawing of a mechanical device with a central housing and mounting base (no text or symbols)

General information....13

Read the instructions for use and

keep them in a safe place!....13

Explanation of symbols....13

Security....13

Intended use....13

Safety instructions....13

Before first use....16

Commissioning 16

Selector switch Auto (A) / Manual (M) 17

Indication in the display....17

Cleaning and User maintenance....18

Waste disposal 18

Technical details....19

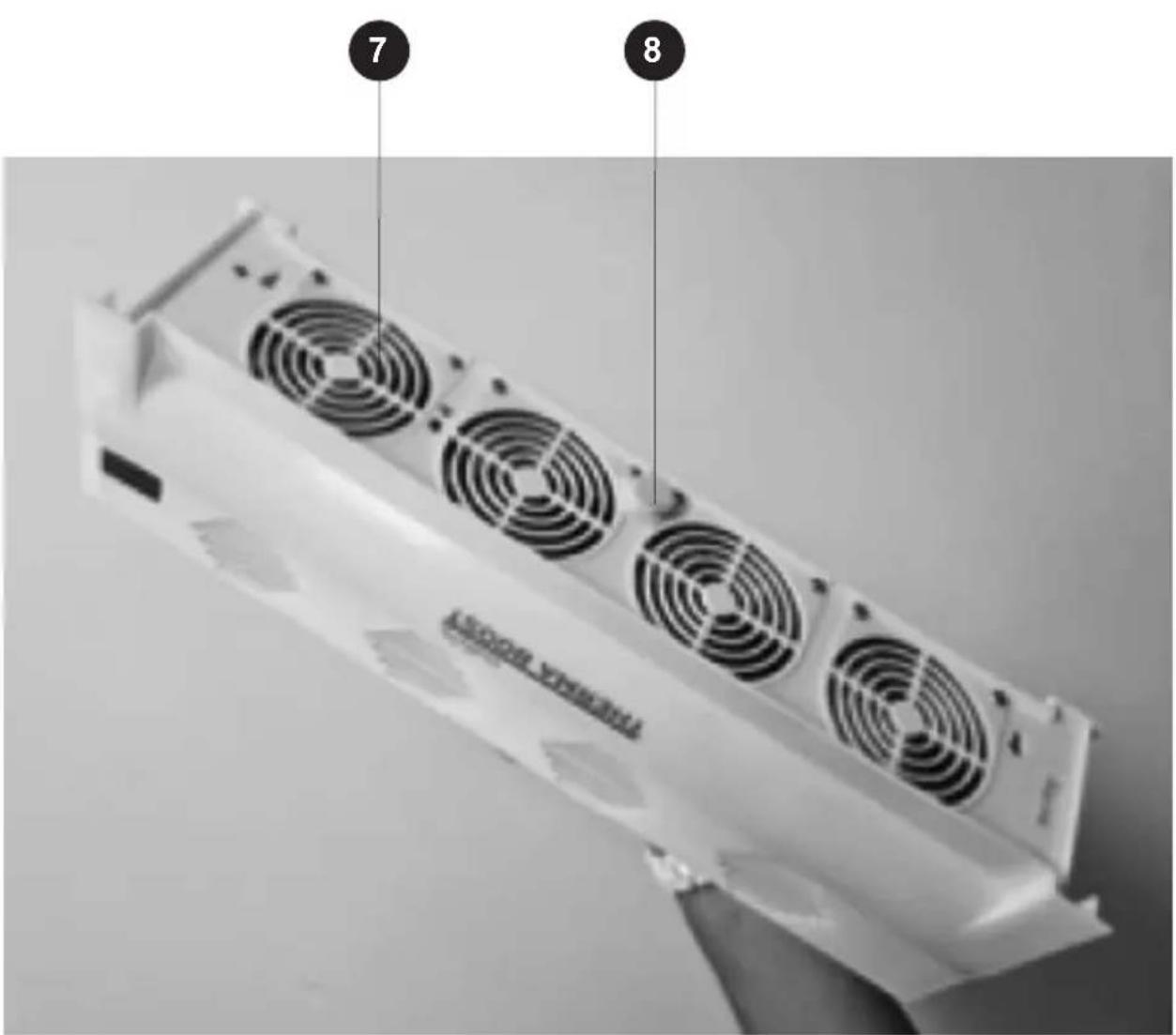

Product components

1 INVICTUS Therma Boost

2 Charging cable

3 Mains connection socket

4 Switch - On/Off / Intensity

5 Switch - Auto / Manual

6 Air outlet

7 Air inlet

8 Magnet

General information

Read the instructions for use and keep them in a safe place!

The instructions for use are part of this INVICTUS Therma Boost. It contains important information on safety and use. Read the operating instructions carefully, especially the safety instructions, before using the appliance. Failure to observe the operating instructions may result in serious injury or damage to the appliance.

The instructions for use are based on the standards and regulations applicable in the European Union. Please also observe country-specific guidelines and laws abroad. Keep the operating instructions in a safe place for future use. If you pass the appliance on to a third party, be sure to include these instructions for use.

Explanation of symbols

The following symbols and signal words are used in the operating instructions, on the appliance or on the packaging.

WARNING!

This signal symbol/word indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION!

This signal symbol/word indicates a hazard with a low level of risk which, if not avoided, may result in minor or moderate injury.

CAUTION!

This signal word warns of possible material damage.

Security

Intended use

The INVICTUS Therma Boost is a fan that optimises the distribution of warm heating air in the room and can also be used as a ventilator. It is designed to be mounted on a standard radiator. The temperature of the radiator must not exceed 70°C.
The appliance is intended for domestic use only. It is not suitable for commercial or industrial use.
■Only use the appliance as described in the instructions. Any other use is considered improper use.

Safety instructions

WARNING!

RISK OF ELECTRIC SHOCK OR FIRE

Incorrect electrical installation or excessive mains voltage can lead to electric shocks.

Only connect the appliance if the mains voltage of the socket matches the specification on the rating plate of the power supply unit (not included in the scope of delivery).

■ Only connect the mains adapter (not included in the scope of delivery) to an easily accessible socket so that you can quickly disconnect it from the mains in the event of a fault.

The appliance may only be operated with safety extra-low voltage (SELV).

- Do not use the appliance if it is visibly damaged, has been dropped or the mains cable is defective.

■ Do not use extension cables or multiple sockets.

the mains cable of the appliance is damaged, it must be replaced with a mains cable of the same type.

Never open the housing of the appliance, but leave the repair to specialists. Contact a specialised workshop for this purpose. Liability and warranty claims are excluded for repairs carried out independently, improper connection or incorrect operation.

- Do not immerse the appliance or the mains cable in water or other liquids.

■ Do not use it near a bath or shower.

■Keep the appliance and the power cable away from naked flames and hot surfaces.

- Do not use the appliance in the vicinity of flammable or explosive materials.

■ay the mains cable so that it does not become a tripping hazard. Do not kink the mains cable and do not lay it over sharp edges.

■ Only use the device indoors. Do not operate it in damp rooms or outdoors.

■ Do not leave the appliance unattended during operation.

■ you are not using the appliance, cleaning it or if a fault occurs, always switch off the appliance and disconnect the mains plug from the socket.

WARNING!

HAZARDS FOR CHILDREN AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES (E.G. PARTIALLY DISABLED PERSONS, OLDER PERSONS WITH REDUCED PHYSICAL AND MENTAL CAPABILITIES) OR LACK OF EXPERIENCE KNOWLEDGE (E.G. OLDER CHILDREN).

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance.
■cleaning and user maintenance must not be carried out by children without supervision.
Keep children and animals away from the packaging material - risk of suffocation.

CAUTION!

RISK OF INJURY

You could injure yourself or others if the appliance is handled incorrectly.

• Do not touch the housing when the appliance is in operation: Make sure that the appliance is cool before switching it off and storing it.
• Do not insert any objects into the appliance through the ventilation grilles.

CAUTION!

RISK OF DAMAGE TO THE APPLIANCE

Never charge the battery at temperatures below 0^ C. Use, charge and store the device at a temperature between 5^ C and 35^ C.
■Keep the device out of the reach of children and animals in a cool, dry place and protect it from direct sunlight.
■never charge the battery continuously for longer than 48 hours.
■ use a power supply unit that meets the stated specifications for charging.
■ Only for use above the radiator. Do not cover the air inlet and outlet openings.

WARNING!

RISK OF EXPLOSION AND CHEMICAL BURNS!

This device contains rechargeable Li-ion batteries that are not replaceable.
- liquid from a battery cell comes into contact with skin or eyes, rinse the affected area with plenty of water and seek medical attention.
■protect batteries from excessive heat.
Explosion hazard - do not throw batteries into a fire!
Do not disassemble, open or crush batteries.
- Batteries must be charged correctly before use. The information in the operating instructions for correct charging must always be observed.

Before first use

NOTE!

RISK OF DAMAGE

If you open the packaging carelessly with a sharp knife or other pointed objects, the appliance may be damaged.

• Check that the delivery is complete. The scope of delivery of the set you have purchased can be found on the packaging.
• Check whether the appliance is damaged. If this is the case, do not use the appliance. Contact the service address specified in the Customer Service section.
  ■ Fully charge the device.

Commissioning

For optimum results, the appliance should be placed flat and level in the centre of the radiator.
The front edge protrudes over the radiator, but should be as close as possible to the front of the radiator.
There is a safety magnet in the centre of the underside of the appliance. Make sure that this is in contact with the top of the radiator. This reduces the risk of falling.

NOTE!

The appliance was developed for use on radiators with a flat surface. The performance of the device may be lower on radiators with an uneven surface.

The device is compatible with the following radiators:

■deal for double convector radiators
Suitable for most radiators such as
East iron radiator
■Modern tubular radiators
■individual wall radiators

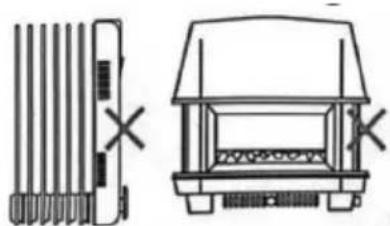

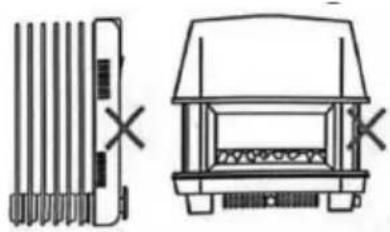

Not suitable for:

Oil radiators
Powelradiator
Electric radiators or fireplaces

Diagram showing four types of mechanical linkages with checkmarks indicating assembly or inspection (no text or symbols present)

Technical line drawing of a mechanical component with cross marks indicating assembly or inspection (no text or symbols present)

1. Fully charge the device. The charge status is shown in % on the display. When fully charged, the device displays 99%.
2. Place the appliance on the radiator.
3. Select the appropriate mode.

Selector switch Auto (A) / Manual (M)

■ automatic mode (A), the appliance switches on automatically if the temperature on the radiator is above 33°C or switches off automatically if the temperature is below 33°C.

With manual control (M), you decide yourself when to switch on the appliance.

Auto / Manual switch Switch on/off / intensity Result
A 0 Device switched off
	1	Device switches on / off automaticallyLow fan speed
	2	Device switches on / off automaticallyHigh fan performance
M 0 Device switched off
	1	Device switched onLow fan speed
	2	Device switched onHigh fan performance

Indication in the display

■C displays the radiator temperature in °C.
% indicates the charge status of the battery.
■i / Lo → Display for fan speed (HI = high / LO = low).

Cleaning and User maintenance

WARNING!

Risk of electric shock

Switch off the appliance before cleaning or user maintenance and disconnect it from the power supply.

Never hold the appliance under running water and do not immerse it in water or other liquids.

■Before cleaning, make sure that the appliance has cooled down completely.
- Clean the appliance by wiping the surfaces with a damp cloth.
- Do not use harsh or abrasive cleaning agents or cleaning pads.
To store the appliance, disconnect it from the power supply and store it in a dry, ventilated place.

Waste disposal

Packaging

The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and take it to the recycling centre.

Electrical appliances

The crossed-out wheelie bin symbol indicates that this product must not be disposed of with normal household waste. Please dispose of electrical and electronic devices via your local take-back system. For more information on the disposal and recycling of this appliance, please contact your local waste disposal service, the shop where you purchased the product or the manufacturer.

Rechargeable batteries and batteries must be removed before disposing of the device and disposed of separately from the device. In the interests of environmental protection, batteries and rechargeable batteries must not be disposed of with normal household waste, but must be handed in at appropriate collection points. Please inform yourself about the local regulations for the separate disposal of rechargeable and non-rechargeable batteries.

Technical details

ModelIINVICTUS Therma Boost INVICTUS Therma Boost MAX
Model TB04B TB04X
Dimensions 38,7 x 11,5 x 9,7 cm 38,7 x 11,5 x 9,7 cm
Battery Li-Ion battery	3,7 V / 4.500 mAh / 16,65 Wh	Li-Ion battery3,7 V / 6.300 mAh / 24,42 Wh
Performance 10 W 10 W
Runtime 4-6 hours 6.5 - 8.5 hours
Charging time 4,5 h 6,5 h
Noise 49-55 db 49-55 db
Power supply unit (not included in the scope of delivery)	IN 100-240 V ~50-60 HzOUT 5 V DC, max 2 A	IN 100-240 V ~50-60 HzOUT 5 V DC, max 2 A

Customer service

If you have any questions about the device or spare parts/accessories, please contact your local retailer.
