USER MANUAL 2In1 Mixer 303062 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for choosing an Arendo product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of supply

• Base station
• User manual
• 1x blender jar + lid
• 2x Smoothie jar + lid
• Blade unit

2. Technical data

Power supply 220-240V AC 50/60 Hz
Power consumption 700W
Dimensions (H x W x D) approx. 1	70mm x 138mm x 125mm
Capacity • approx. 570ml (smoothie jar)	• approx. 1200ml (blender jar)
Features • Anti-skid base	• Safety lock

3. First start-up

Take the device out of the package and remove all packaging material. Clean the blender jar, the smoothie jar as well as the blade unit. You can clean the blender jar, smoothie jar and the blender lid in the dishwasher or in soapy water. The blade units are not suitable for dishwashers. Do not use any aggressive or strong cleaning agents.

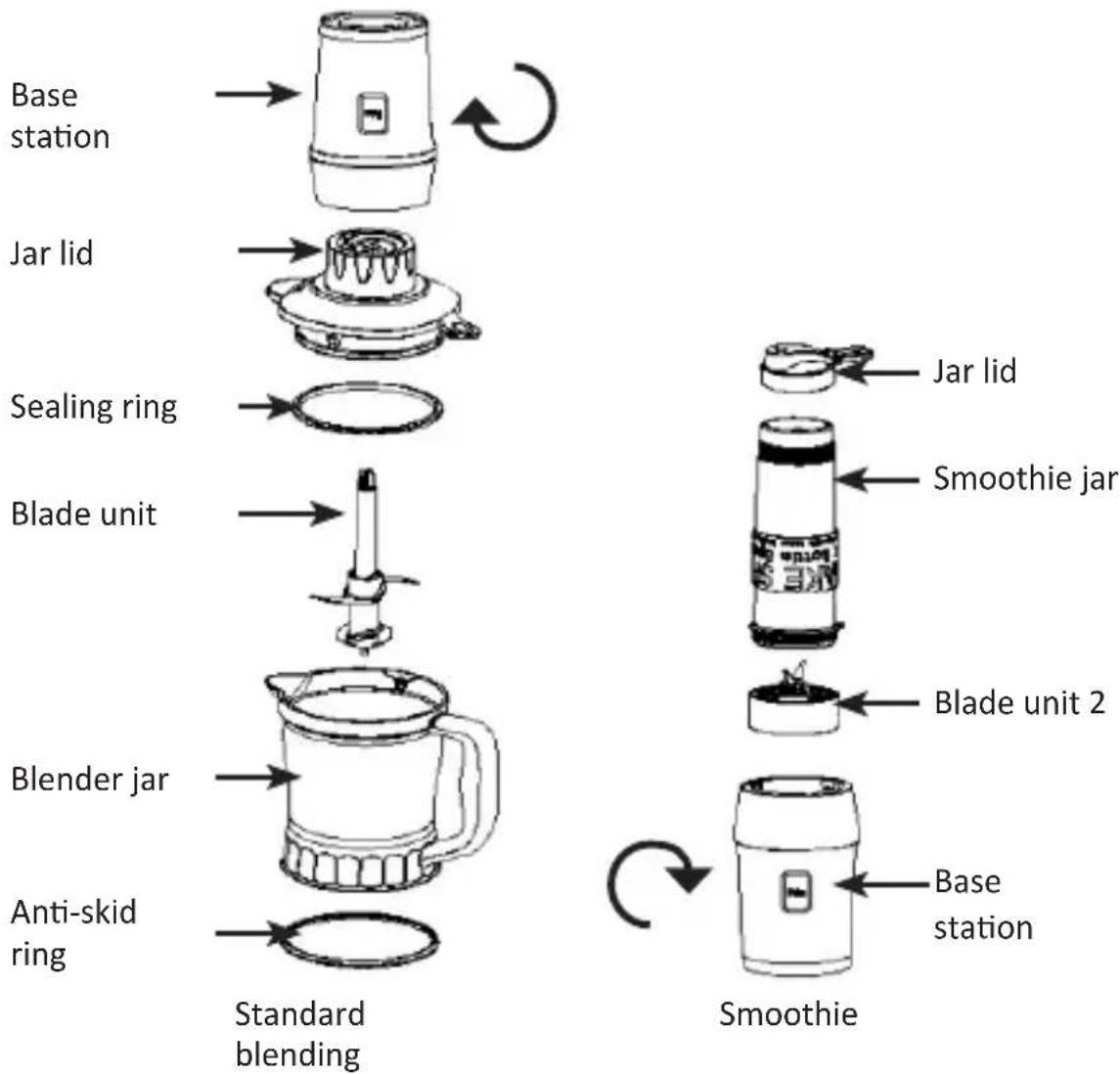

4. Product details

Ensure that the device is operated as shown in the figure above! When using the smoothie blender, make sure that the base station is attached at the bottom. When using the blender jar, place the base station on the lid of the blender jar!

5. Safety switches

The device can be operated only if the blender and smoothie jar are properly seated. Make sure the jar is properly seated. Only then can the device be operated.

6. Brief operation

The device is designed only for brief periods of operation. You can use the blender continuously for about 2-3 minutes. After this time, you must allow the motor to cool down for approx. 5 minutes. Do not exceed the operating time in any case!

7. Commissioning

7.1 Blender jar

Remove the protective cover from the blade unit. Place the blade unit in the blender jar on the middle jar axle so that it is firmly secured. Subsequently, add the desired ingredients in the blender jar and close the jar lid properly. Put the base unit on the jar lid. Then connect the power plug of the device into a properly installed power socket.

7.2 Smoothie jar

Open the smoothie jar and fill it with the required ingredients. It is advisable to start by adding liquids. You can then add the ingredients (e.g., fruits) and finally add yoghurt or ice cream.

Now fix the blade unit onto the blender jar 2. Then connect the power plug of the device into a properly installed power socket.

Place the blender jar with the blade unit onto the base unit. Ensure that the smoothie jar is properly placed on the base station.

7.3 Operation

A switch is located at the front of the device. The blender is switched on as long as you press the switch. The prescribed operating time (short time operation) should be observed. If you wish to blend in pulsating steps, press the on/off button repeatedly. This allows you to vary even the pulsing interval. Then remove the blender jar from the base unit.

Note: The device is designed only for brief periods of operation. You must allow the device to cool down sufficiently after 2-3 minutes of continuous operation before you start operating it again!

8. Cleaning and maintenance

Unplug the power cord from the outlet. Clean the base unit with a slightly dampened soft cloth. Caution! Do not use liquids to clean the base unit and the power connections. Do not use any aggressive, strong or abrasive cleaning agents.

You can clean the blender jar and the smoothie jar, the lid and the blade unit in soapy water. The blender jar, smoothie jar and the lid can also be cleaned in a dishwasher at low temperatures.

To clean the device quickly and immediately after use, fill the blender jar with warm water up to about 60%, add some dishwashing liquid and let the appliance run briefly. Then, take the blender jar and shake it. Finally, rinse only the blender jar and the blade unit using clean water until all residue and traces of the detergent are removed.

Allow all parts of the device to dry completely.

9. important safety guidelines for this device

- Never use this device without the lid placed! There is a risk of injury!

- Always check the device for any damage before operating it. Do not operate the device if the cable, the plug or the device show any visible signs of damage.

- Do not make any modifications or repairs to the device.

- Caution! The blade unit is very sharp!

- Plug the device only into a properly installed power socket.

- Never leave the blender unattended and choose a location in which the device is out of reach of animals and/or children.

• Children should not play with the device.

- Children above 8 years of age and persons with restricted physical, sensory and mental abilities may use the device only if they are instructed or supervised by a person who is responsible for their safety.

- Keep the blender out of reach of children under 8 years of age.

- Keep it on an appropriate surface so that it does not tip over.

- Do not keep the blender next to heat sources (e.g., electric stove).

- Unplug the power plug when the device is not in operation or during cleaning.

• Do not move the device when it is being operated.
• Ensure that the power cable does not come into contact with any hot surfaces.
• If you want to pull out the plug from the socket, pull by holding the plug and not the cable.
• Never touch the plug with wet hands.
• Protect the device against fire.
• Do not immerse the cable, the plug or the entire device in water or any other liquids.
• The device should not be used by children. Keep the device and the power plug out of reach of children.
• Switch off the device and pull the power plug when you want to replace any accessories or to move the device to another location.
• Remove the power plug from the socket when the device is not in operation, as well as during cleaning and assembly.
• If the power cord is damaged, this must be replaced by the manufacturer or by a qualified person in the event of a defect, in order to prevent damage.
• Never insert body parts, or objects which are not defined for it, in the blender.

10. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

11. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303062 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
