USER MANUAL Exersaucer Moovin' & Groovin' Evenflo

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.

Assembling the ExerSaucer 1

Attaching the Toys 5

Care and Maintenance. 5

Limited Warranty 5

Tray (1)

Base (1)

Seat Pad (1)

Seat Ring (1)

Upper Leg (3)

Lower Leg (3)

(1) Hardware Kit Bag

1 Instructions

3 Large springs

6 Seat Wheels

3 Stabilizer Feet

(1) Toy Kit Bag

5 Toys
1 Toy Bar
1 Mirror
3 Spring Domes

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at:

www.evenflo.com/registerproduct.

For future reference, record the Model Number and Date of Manufacture below.

Model Number: Date of Manufacture:

ParentLink.

answers, advice, affirmation.

www.evenflo.com • USA: 1-800-233-5921 8 AM - 5 PM E.T.

Canada: 1-937-773-3971 - Mexico: 01-800-706-12-00

WARNING

TO AVOID INJURY, FOLLOW THESE INSTRUCTIONS IN THE ORDER PRESENTED!

NEVER leave child unattended.
- ALWAYS keep child in view while in product.
- For use by children at least four months old who can hold up their head and neck unassisted.
- FALL HAZARD! DO NOT use with children who can walk.
DO NOT use until baby can sit up by him or herself.
- Stop using this product when your child reaches any of the following developmental stages:

• Is walking;

• Is over 30^ (76 cm) tall;

• Can climb out of the product;

• Can stand flat-footed in the unit when adjusted to its highest level.

• Keep children away from unassembled product.

• DO NOT adjust height while baby is sitting in ExerSaucer.
  DO NOT allow child to sleep in ExerSaucer.
• DO NOT spin baby in seat. Only permit baby to rotate the seat.
  NEVER use near stairs.
• Keep child away from ranges, radiators, space heaters, fireplaces.
  NEVER use in or near swimming pools or other bodies of water.
• NEVER use as a flotation device.
  NEVER use as a sled.
  The ExerSaucer should not be left outdoors in direct sunlight, or any place where temperatures are likely to exceed 100^ (38^)
  DO NOT fill ExerSaucer with water.
  DO NOT use this product if it is damaged, broken, or missing parts.
• To avoid tip over, place product on flat, level ground or floor.

• DO NOT allow unit to get wet.
  STRINGS CAN CAUSE STRANGULATION! :

• DO NOT place the ExerSaucer anywhere near cords from window blinds, draperies, phone, etc.

• DO NOT place items with a string around your child's neck such as hood strings or pacifier cords.
• DO NOT suspend strings over product or attach strings to toys.

Assembling the ExerSaucer

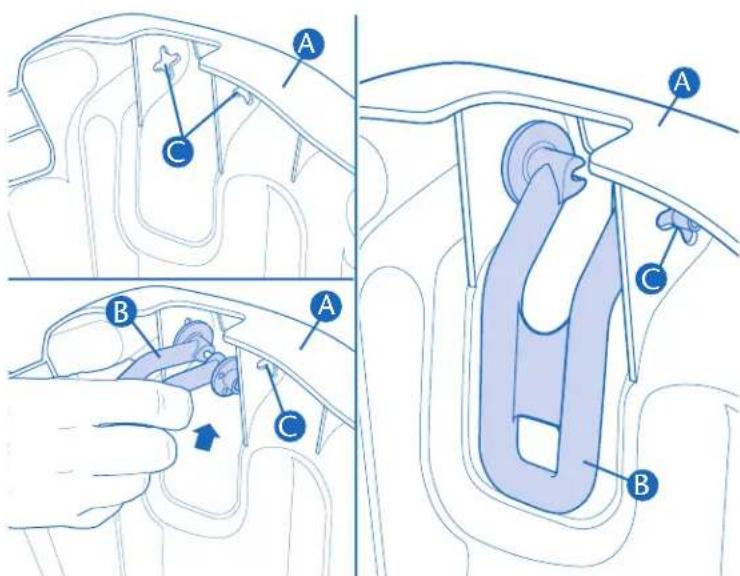

1. Turn ExerSaucer base A upside down and locate three (3) stabilizer feet B. Insert one side of foot into the foot bracket hole C and twist the foot until the other side snaps into the opposite hole C. Repeat until all three (3) stabilizer feet are installed.

To use stabilizer feet:

Flip the three (3) stabilizer feet out from beneath base to prevent ExerSaucer from rocking.

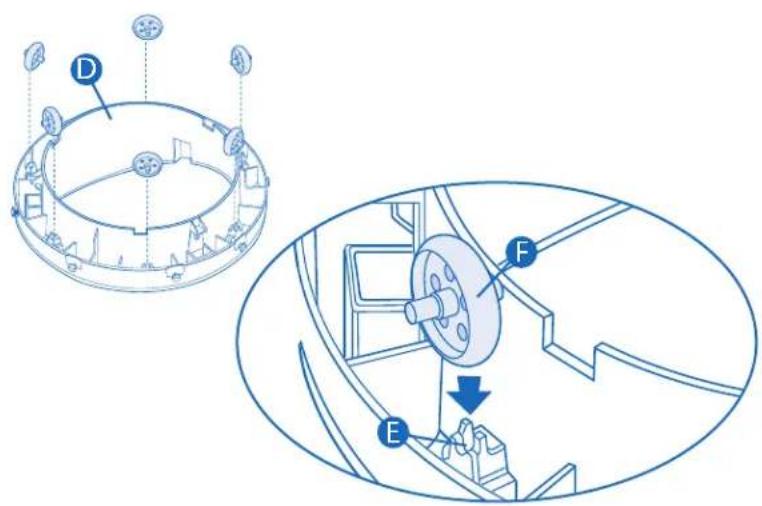

1. Place seat ring upside down and locate the wheel holders . Snap six (6) seat wheels into wheel holders, as shown.

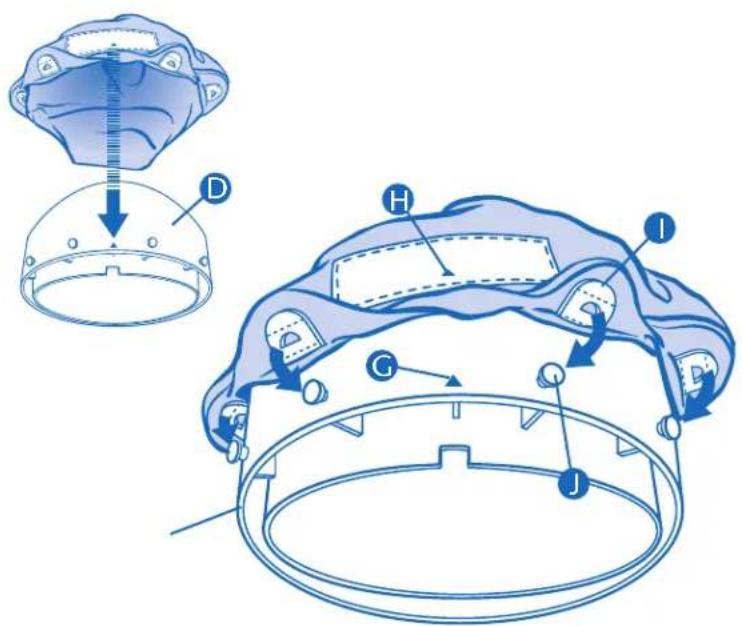

1. Turn seat ring right side up.

Align triangle on the back of the seat ring with the triangle on the seat pad label.

Snap the plastic tabs 1 on the pad over the pegs 0 on the seat ring.

Continue this process until all tabs are attached to all pegs, then push the seat pad down inside the seat ring.

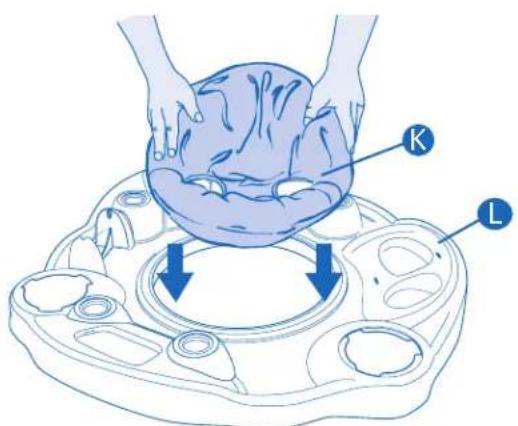

1. Press assembled seat ring K down firmly onto the top of the tray 1 until it snaps into place and spins freely.

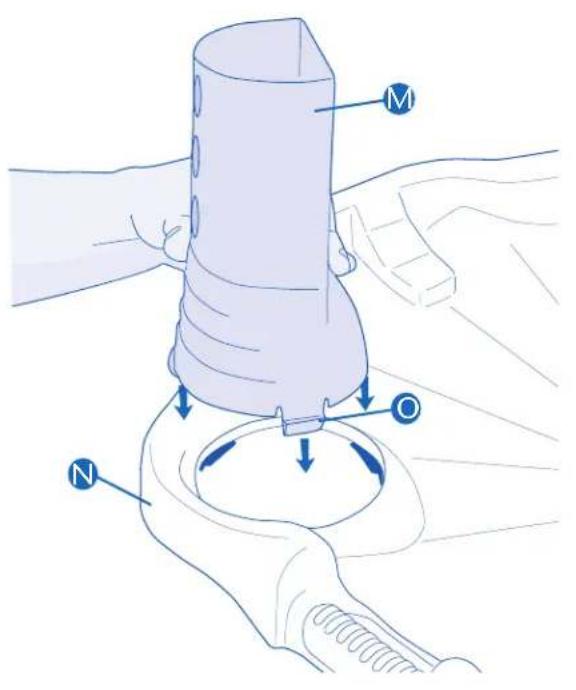

1. Locate three lower legs and the base . Align the tabs on the lower legs with the slots in the base, then snap the lower legs onto the base. Repeat for all three lower legs.

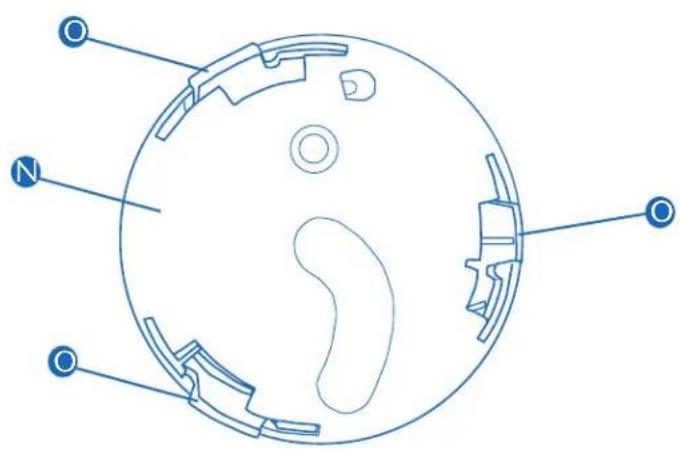

Note: Make sure the tabs on the lower legs have locked completely into the base, as shown, by moving the legs from side-to-side. If they are not completely locked in place, repeat this step until they are locked securely.

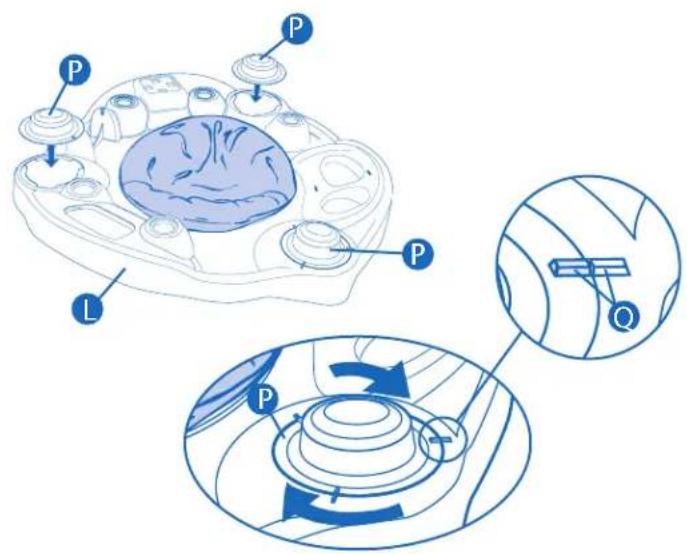

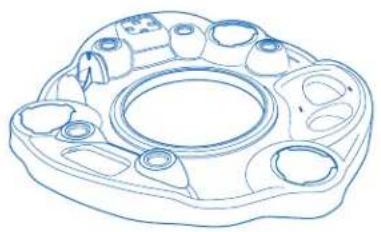

1. Locate the tray and three spring domes . Place each spring dome onto the tray over a leg opening, as shown. Press the spring dome downward while turning until it locks into place.

WARNING

If you don't line up the alignment guides properly, the spring dome may come off of the tray and cause injury.

Make sure the alignment guides line up properly, as shown.

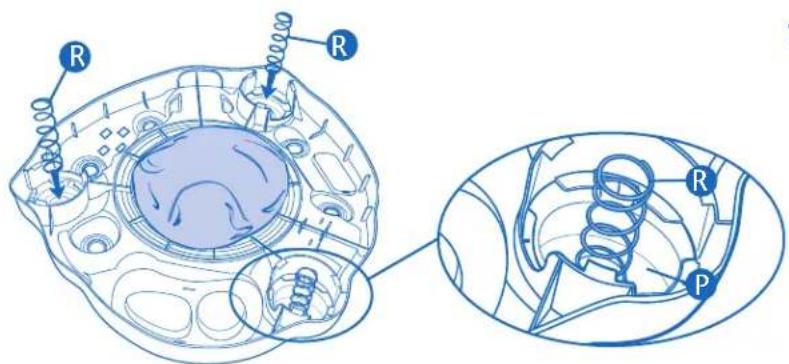

1. Turn the tray over and place three large springs into the center of each spring dome P.

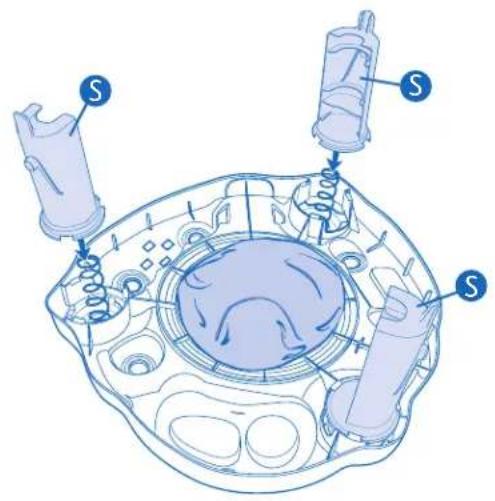

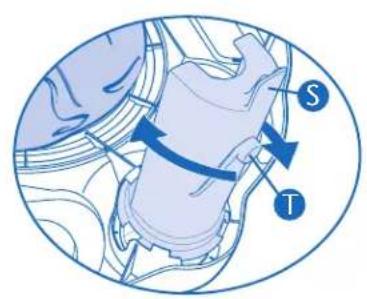

1. Insert three upper legs over the springs and onto the tray. Twist each upper leg, as shown. Make sure height adjustment button is facing outward.

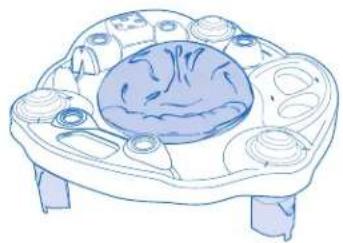

After all three upper legs are installed, turn tray over to the upright position.

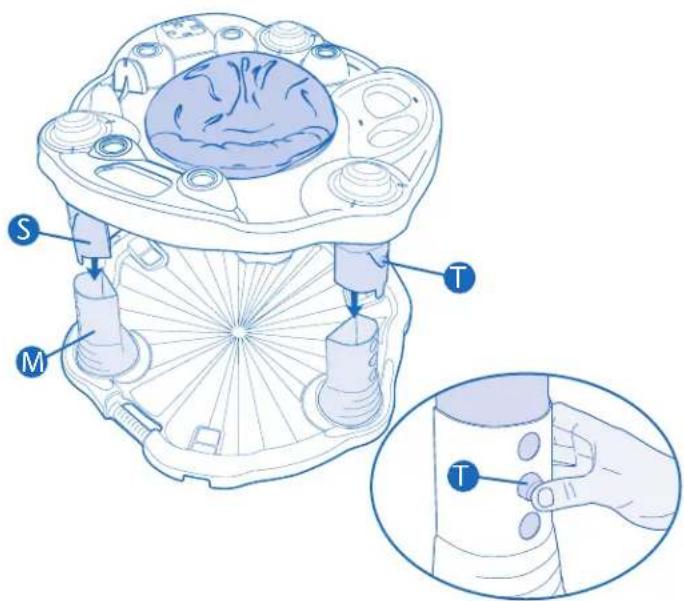

1. Align and start each upper leg S into the lower leg M. Push button T and guide upper leg into lower leg until upper leg snaps into place.

To adjust height:

ALWAYS remove baby from ExerSaucer before adjusting. Push button 1 until the desired position is obtained. Make sure that all three legs are adjusted to the same position.

WARNING

During use, allow the baby's toes only to touch the base. DO NOT allow the baby to stand flat-footed on the base. As baby grows and becomes more active, raise the tray to the next level so that baby enjoys the most comfortable fit and maximum use of the rock, spin, and bounce features.

Care and Maintenance

Machine wash pad in cold water, delicate cycle. Tumble dry, low heat, for 10 to 15 minutes. DO NOT use harsh detergents or bleach. DO NOT dry clean. Wipe plastic parts with mild soap and water.

Limited Warranty

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user ("Purchaser") this Product (including any accessories) against defects in material or workmanship. Evenflo's sole obligation under this express limited warranty shall be, at Evenflo's option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenflo's ParentLink Consumer Resource Center at [phone] or www.evenflo.com.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW. OTHER THAN THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE, THERE ARE NO OTHER WARRANTY TIES THAT
