USER MANUAL 4-in-1 Eat & Grow Evenflo

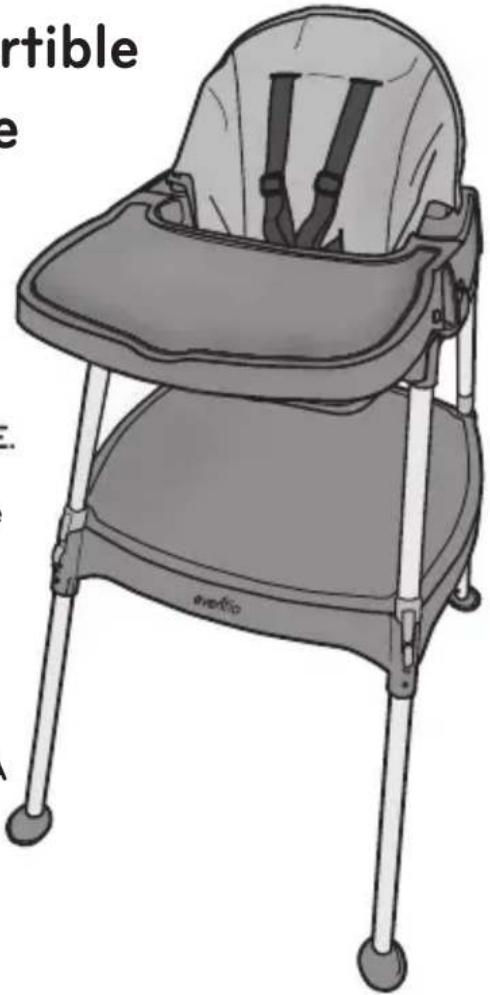

4-in-1 Eat & Grow™ Convertible High Chair

Chaise Haute Convertible Silla Alta Convertible

Read all instructions before assembly and use of this product.
KEEP INSTRUCTIONS FOR FUTURE USE.

Important Information . Below
Assembly Parts Identification 1
Warnings 2
Assembling the High Chair 3
Removing the Tray 6
Installing the Tray. 7
Infant High Chair - Stage 1 8
Toddler Dining Chair & Tray - Stage 2 . . . . . . . . . . . . . . . . . . . . . . .
Toddler Standalone Chair - Stage 3 . 10
Big Kid Table & Chair - Stage 4 . 10
Removing the Restraint System Assembly & Seat Pad. 11
Care and Maintenance 12
Warranty 13

Important Information

Child Requirements:

• Stage 1 – Infant High Chair: Approximately 6 months old (MUST be capable of sitting upright unassisted) and no more than 18kg (40 lbs).
• Stage 2 - Toddler Dining Chair & Tray: Approximately 8 months old and no more than 22.6kg (50 lbs).
• Stage 3 - Toddler Standalone Chair: For use only if the child is able to walk unassisted and less than 22.6kg (50 lbs). Use of the restraining harness is not required.
• Stage 4 – Big Kid Table & Chair: For children who are walking age and no more than 22.6kg (50 lbs).

IMPORTANT: Read instructions carefully before use. Save these instructions for future reference. It is very important to assemble the high chair according to these instructions.

DO NOT USE YOUR HIGH CHAIR UNTIL YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS.

If you are missing parts, do not use high chair and call Evenflo ParentLink at 1-800-233-5921 (U.S.A.), 1-937-773-3971 (Canada), or 800-706-1200 (Mexico) to order replacement parts.

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at

www.evenflo.com/registerproduct

For future reference, record the Model Number and Date of Manufacture below.

You can find this information on the underside of the Chair Base Assembly.

Model Number:

Date of Manufacture:

Assembly Parts Identification

Table

Chair Base Assembly

Chair Back

Table Leg (4)

Chair Leg (4)

WARNING

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
• To prevent a possible choking hazard, remove and discard packing material before using this product.
• FALL HAZARD: Children have suffered severe head injuries including skull fractures when falling from high chairs. Falls can happen suddenly if child is not restrained properly.
• ALWAYS use restraints, and adjust to fit snugly.
• Tray is NOT designed to hold child in chair.
• NEVER leave child unattended. ALWAYS keep child in view while in the high chair.
• The child should be secured in the high chair and Toddler Dining Chair & Tray at all times by the restraining system.
• DO NOT use high chair with children who weigh more than 18 kg (40 lbs).
• DO NOT use high chair if it is broken in any manner or parts are missing.
• NEVER move the high chair while it is occupied.
  The high chair is ONLY for use with children who are capable of sitting upright unassisted (approximately 6 months old).
  DO NOT use on an uneven surface.
• MAKE SURE product is completely assembled before using.
• DO NOT allow child to stand on the high chair, Toddler Dining Chair & Tray, and the table and chair. These items may tip over and injure the child.
• DO NOT allow child to play on or around the high chair, Toddler Dining Chair & Tray, and the table and chair.
• DO NOT allow child to climb in or out of high chair or Toddler Dining Chair & Tray unassisted.

Assembling the High Chair

1

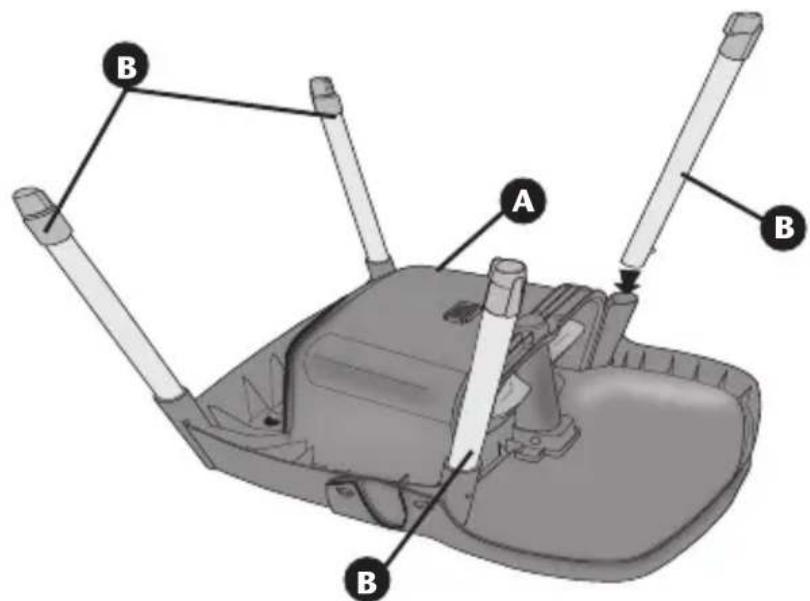

Turn the seat A over and install four chair legs B, as shown. Make sure each one installs with an audible click. Pull each leg to make sure it is installed securely.

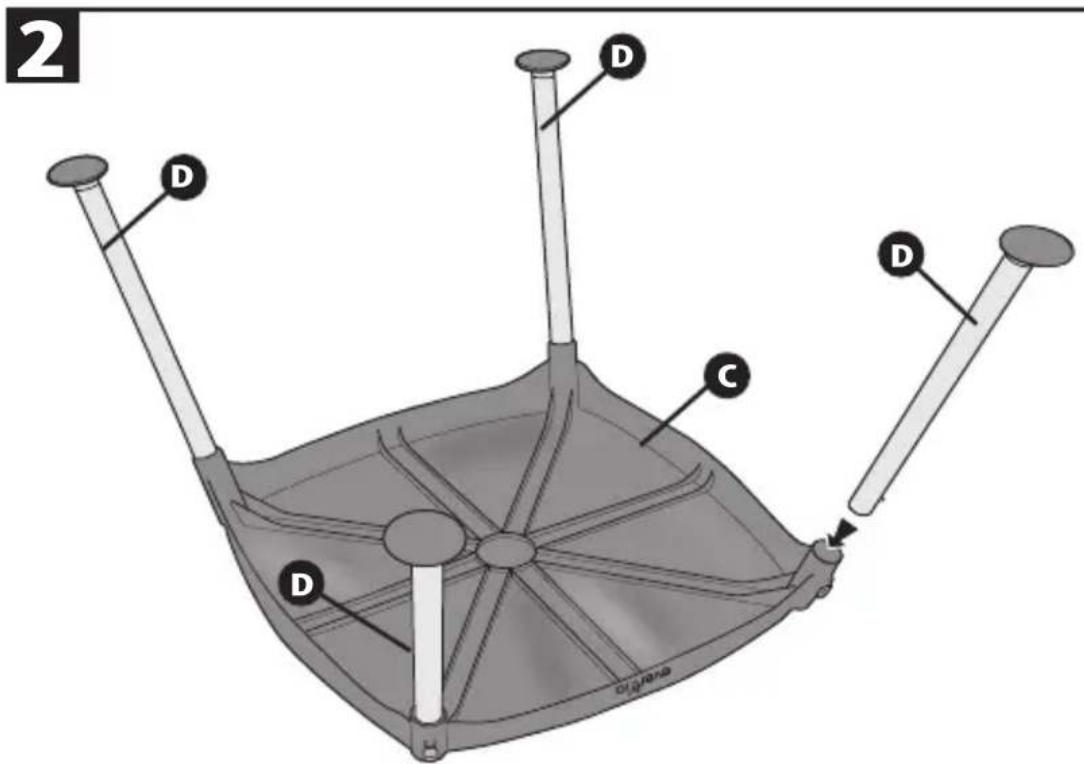

Turn the table over and install four table legs D, as shown. Make sure each one installs with an audible click. Pull each leg to make sure it is installed securely.

Place the table assembly E so that the Evenflo logo F is facing toward the front.

Note: The chair base assembly will not install to the table unless the front of the chair and front of the table are aligned, as shown.

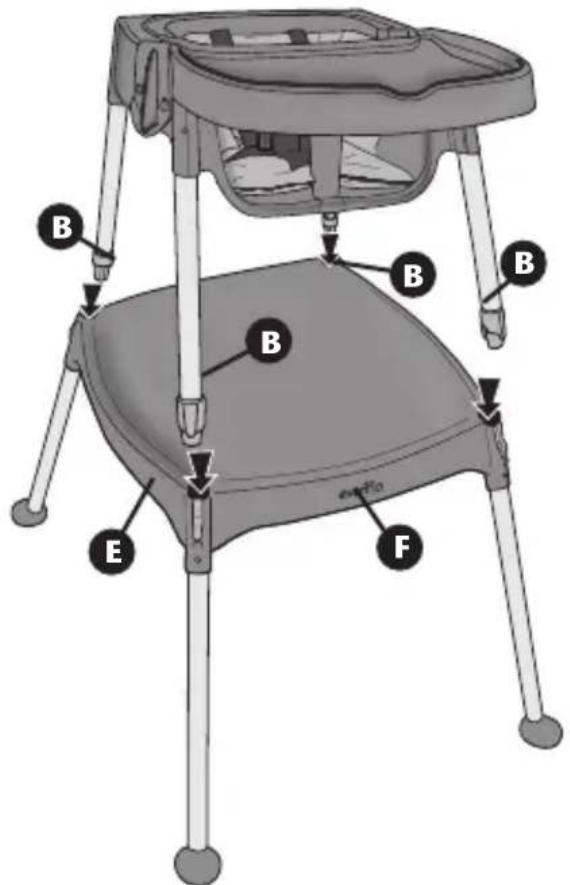

Insert four chair legs into the table assembly E. Pull the chair base assembly upward to make sure it is installed securely.

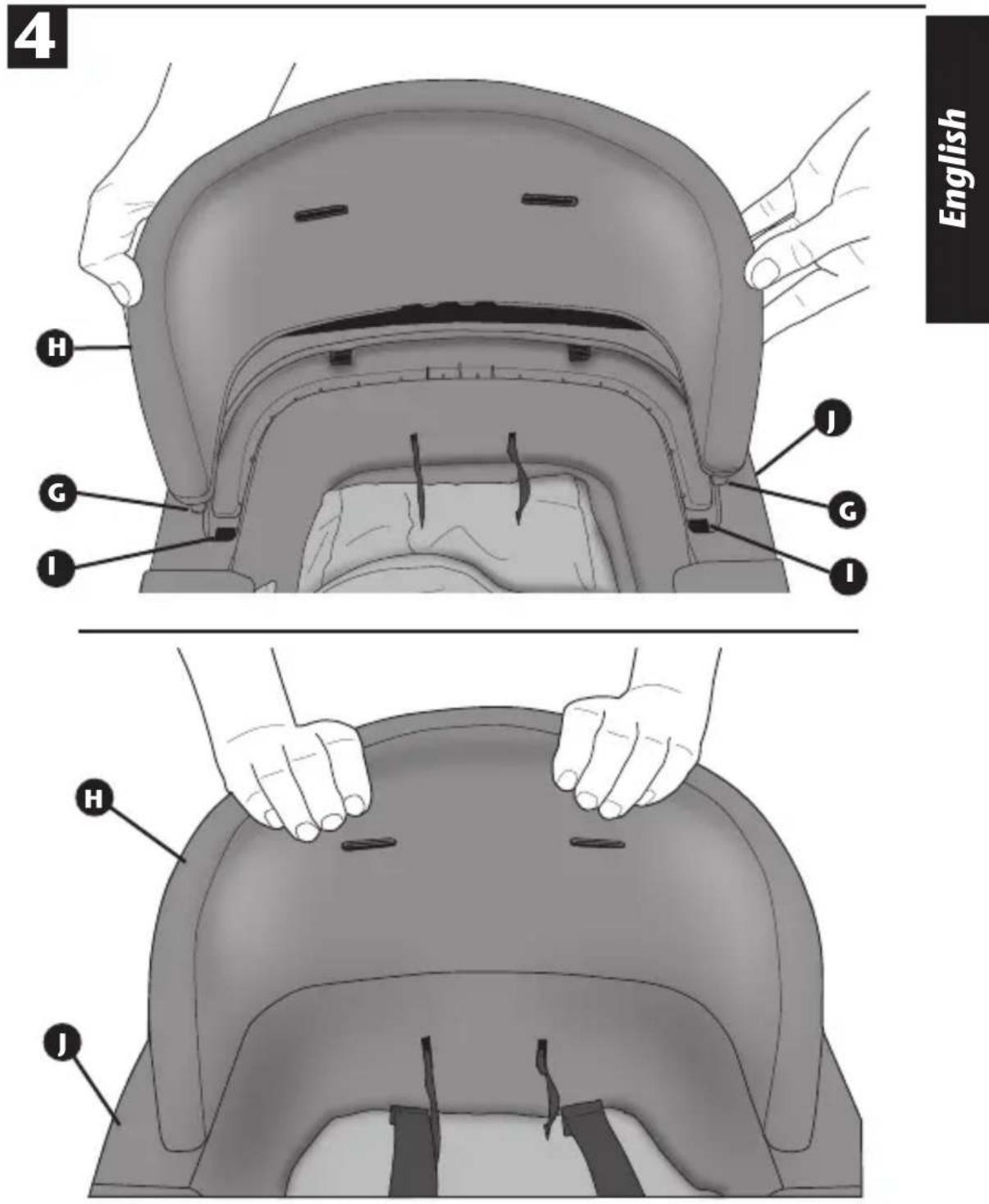

Insert the tabs G on the chair back H into the slots I in the arms of the chair base assembly J, then push down on the chair back to install it to the assembly J. Make sure the two chair parts install with an audible click. Pull on the chair back H to make sure it is installed securely.

Assembling the High Chair

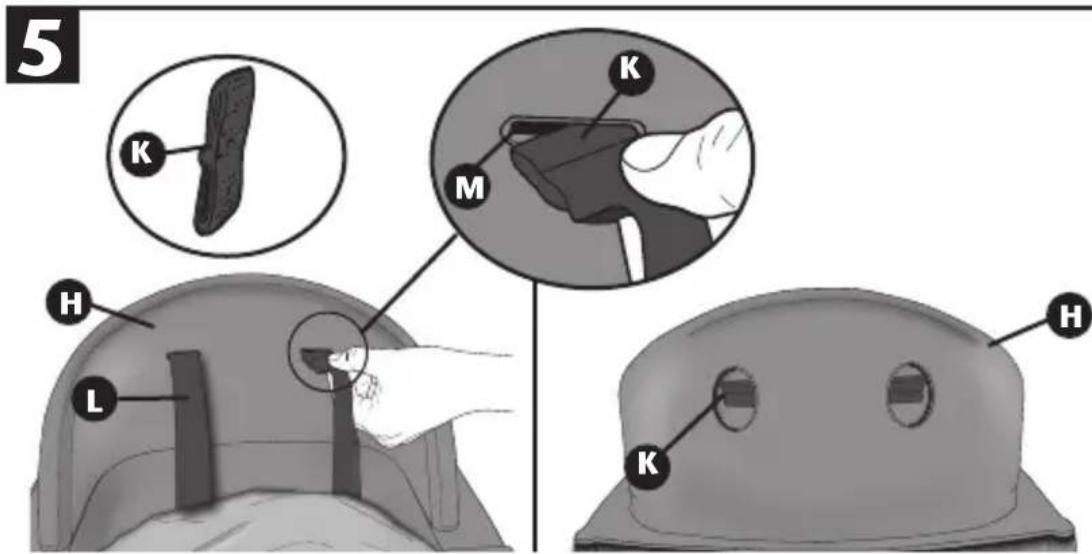

Push the restraint anchor on one of the shoulder straps through the corresponding slot in the chair back. Repeat with the other shoulder strap. Pull on each shoulder strap to make sure it is installed securely.

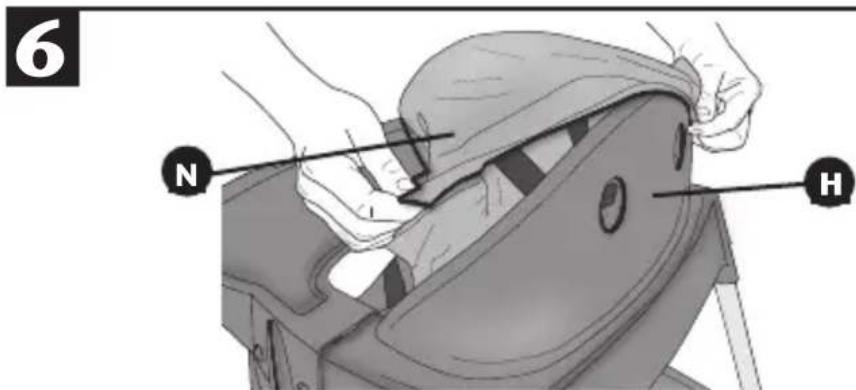

Insert waist tabs and crotch tabs, then place the seat pad cover over the chair back.

Removing the Tray

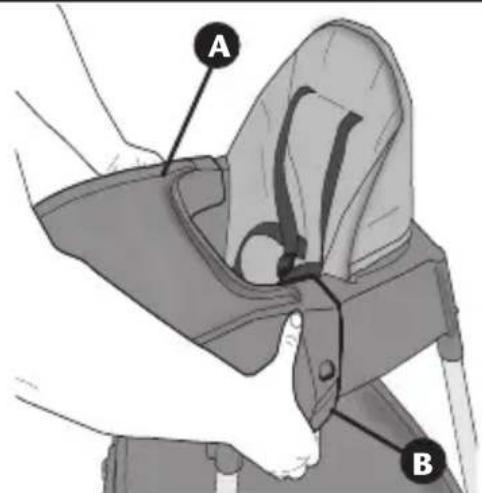

To remove the tray A, pull out the flange B on each side while lifting the tray away.

1

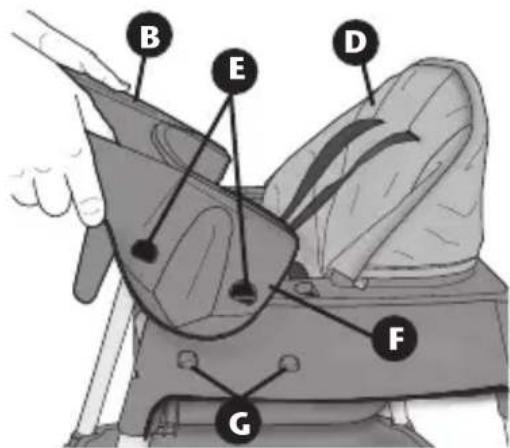

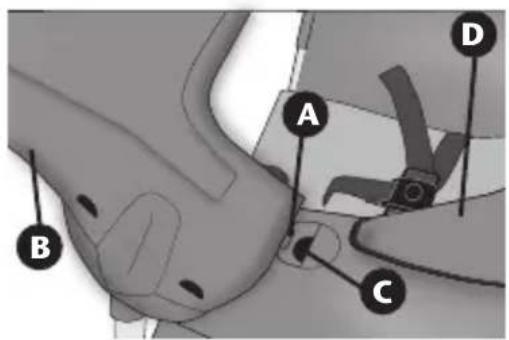

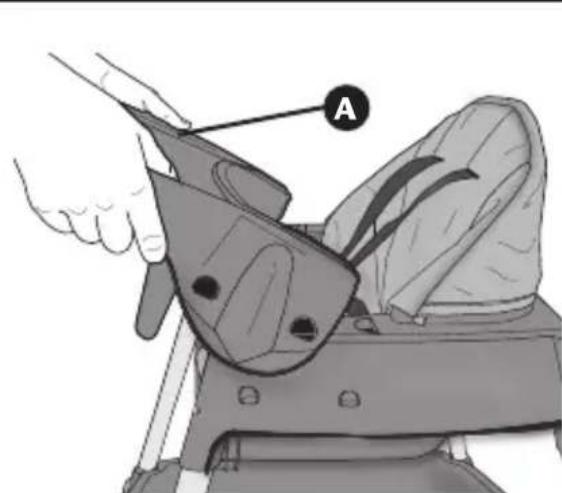

Insert the tabs A on the tray B into the slots C in the chair D. Make sure to position the slots E in the flanges F of the tray B over the tab S G in the chair D.

2

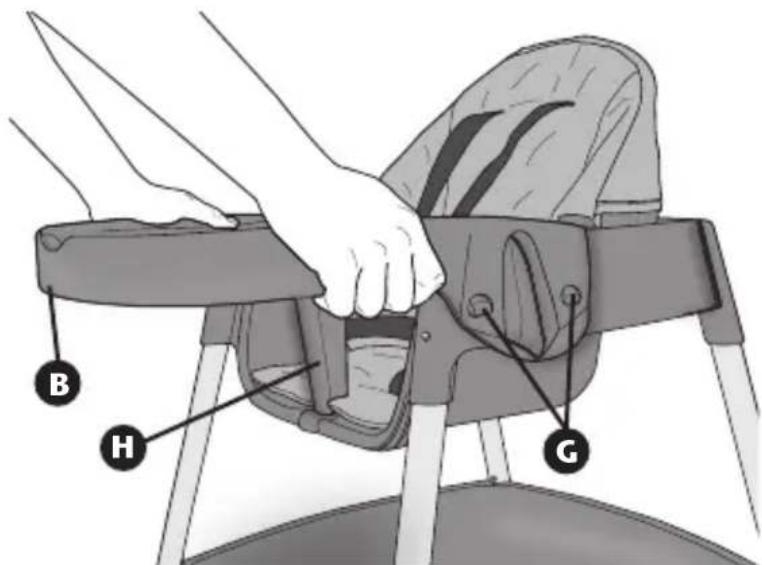

Push tray down firmly with both hands until it snaps in place on the tabs G . Check to make sure the horn H is properly seated in the pocket in the seat bottom. Pull up on the front of the tray and on each side to make sure tray is secure.

WARNING

Avoid serious injury from falling or sliding out.

ALWAYS use the restraining system.

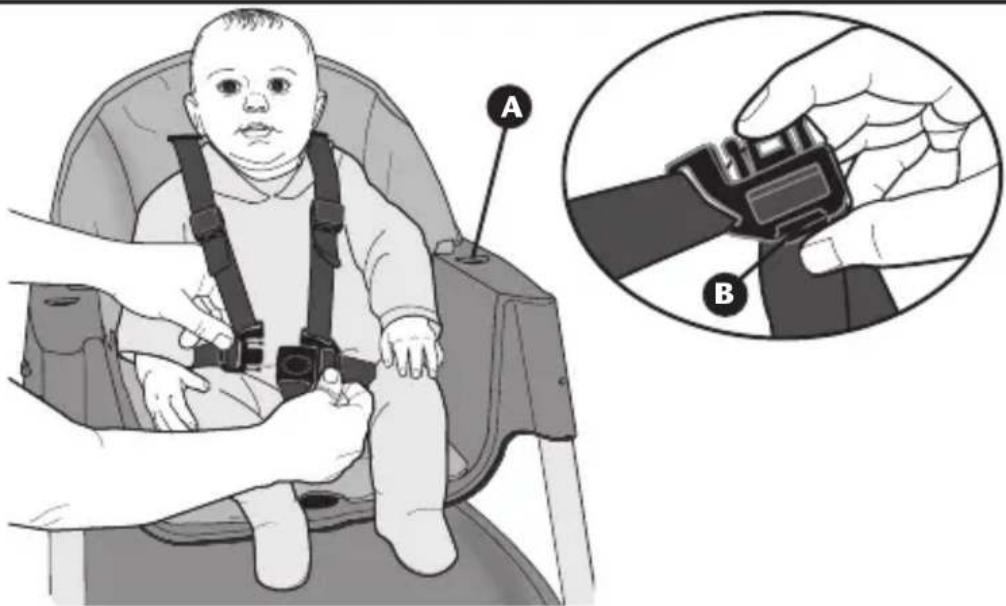

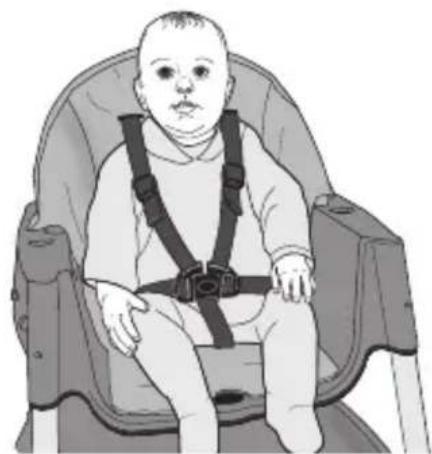

Remove the tray (page 6). Place baby in the high chair A and bring the crotch strap up between the child's legs. Fasten each buckle and pull on each to make sure it is securely locked. Pull the straps to adjust the restraint system for a snug, comfortable fit and to verify they are securely installed.

Install tray and pull up on the front of the tray and on each side to make sure tray is secure (page 7).

Note: To loosen the straps, push in the release button on the buckle and pull.

IMPORTANT: MAKE SURE product is completely assembled before using.

Toddler Dining Chair & Tray - Stage 2

For children who are approximately 8 months old and no more than 22.6kg (50 lbs).

Remove tray (page 6), then remove the baby from the high chair.

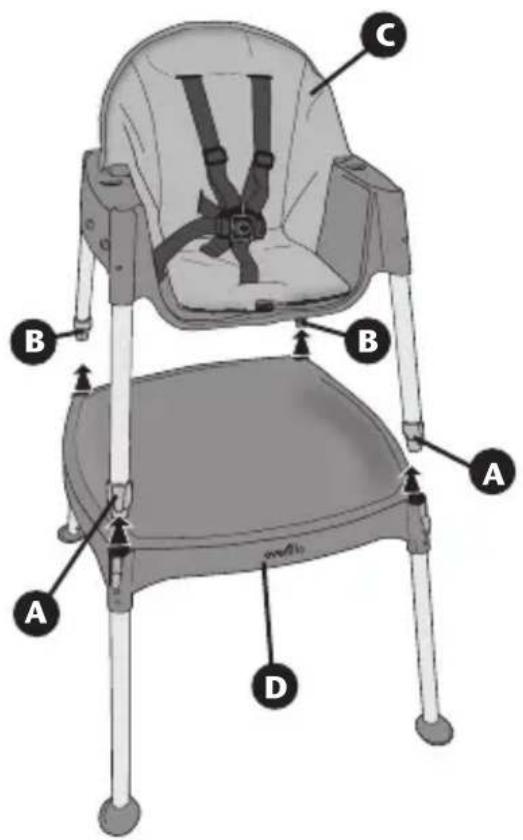

Pull up the front lock releases A on the lower portion of the two front legs. Let them sit unlocked while reaching back and pulling on the rear lock releases B. Remove the chair assembly C from the table D.

WARNING

The child should be secured in the Toddler Dining Chair & Tray at all times by the restraining system.

Place and restrain child in chair the same as when using as a high chair (page 8).

Install tray and pull up on the front of the tray and on each side to make sure tray is secure (page 7).

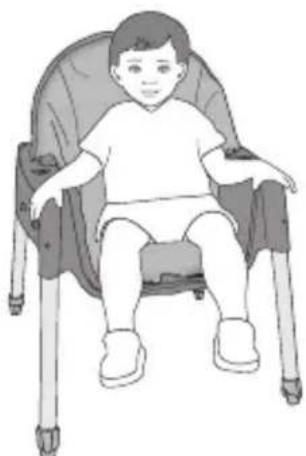

Toddler Standalone Chair - Stage 3

For children who are walking age and no more than 22.6kg (50 lbs).

Remove tray (page 6), then remove the baby from the high chair.

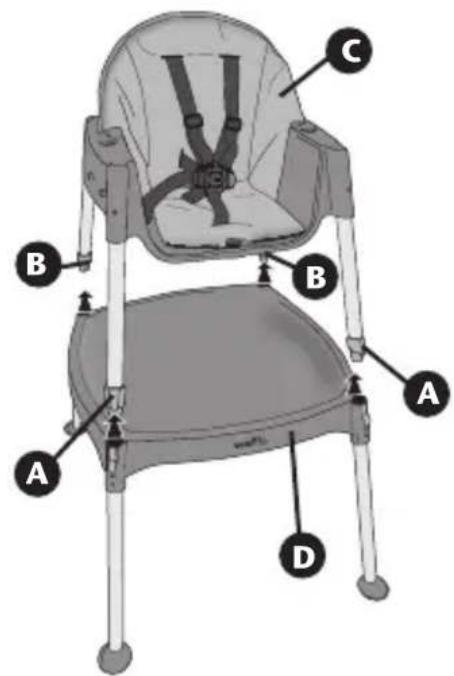

Pull up the front lock releases A on the lower portion of the two front legs. Let them sit unlocked while reaching back and pulling on the rear lock releases B. Remove the chair assembly C from the table D.

When using as a table and chair, remove the restraint system assembly from the chair (page 11), but keep for possible future use.

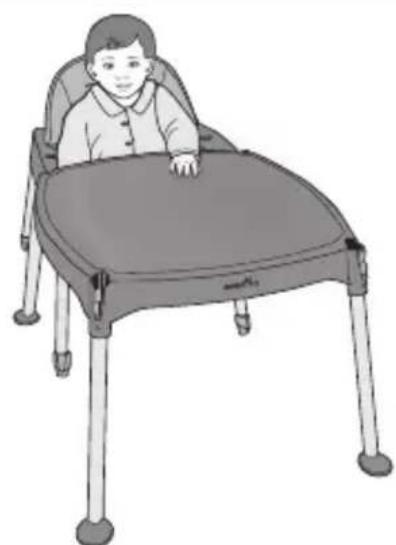

Big Kid Table & Chair - Stage 4

Removing the Restraint System Assembly & Seat Pad

Note: Remove the seat pad cover from the chair back (see page 6).

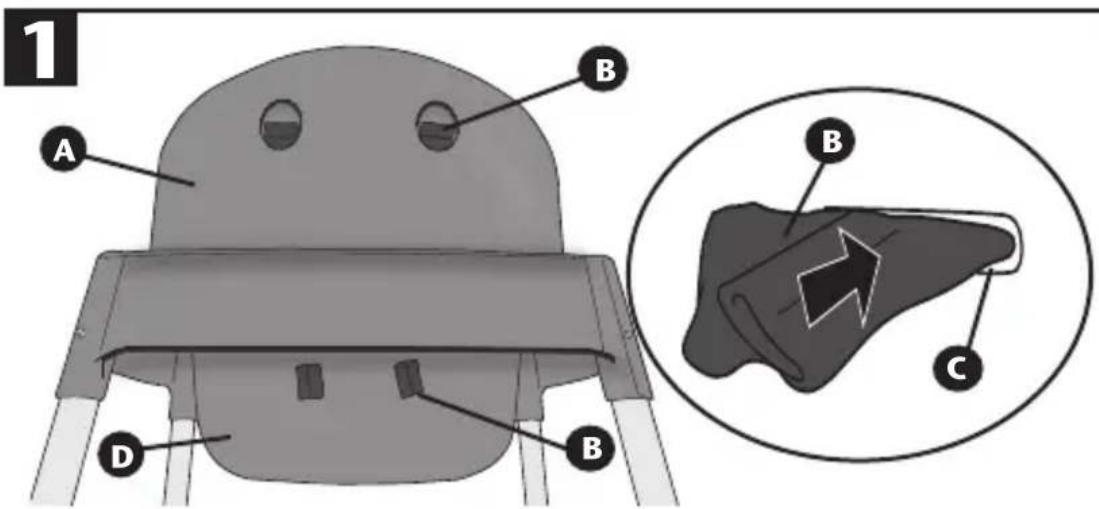

From the back of the chair back A, push the restraint anchor B on one of the shoulder straps through the slot C in the chair back and through the corresponding slot in the seat pad on the front of the high chair.

Repeat with the other shoulder strap.

Repeat this step with both waist straps' restraint anchors on the chair base

2

From underneath the seat of the chair base E , push the restraint anchor F on the center waist restraint strap G up through the slot H in the seat and through the corresponding slot in the seat pad.

Remove the waist restraint and seat pad.

Note: To install the waist restraint and seat pad, reverse the removal steps. Pull on each strap to make sure it is installed securely.

Metal and plastic parts can be wiped clean with mild soap and warm water. DO NOT use harsh detergents. DO NOT clean any part of the high chair in the dishwasher.

To clean the tray: Wash tray with mild soap and warm water. Dry thoroughly before using. DO NOT immerse in water. DO NOT wash tray in dishwasher.

To clean seat pad: Wipe seat pad clean with mild soap and warm water or machine wash. Allow to air dry thoroughly before using. DO NOT dry clean.

To clean the restraint: Wash by hand in cool water. DO NOT use bleach. Allow to air dry.

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user ("Purchaser") this Product (including any accessories) against defects in material or workmanship. Evenflo's sole obligation under this express limited warranty shall be, at Evenflo's option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenflo's ParentLink Consumer Resource Center at 1-800-233-5921 or www.evenflo.com.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW. OTHER THAN THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE, THERE ARE NO OTHER WARRANTYES THAT ACCOMPANY THIS PRODUCT, AND ANY ORAL, WRITTEN OR ANY OTHER EXPRESS REPRESENTATION OF ANY KIND IS HEREBY DISCLAIMED.
