USER MANUAL Pivot Vizor Evenflo

Up to 55 lbs (25 kg)

Up to 40 in (101.6 cm)

POUSSETTE

Line drawing of a baby stroller with decorative panels and wheels (no text or symbols)

Read all instructions before assembly and use of product. KEEP INSTRUCTIONS FOR FUTURE USE.

Identification of Parts....8

Choosing Mode of Use 9

Assembling Your Stroller.... 10

Using Your Stroller 14

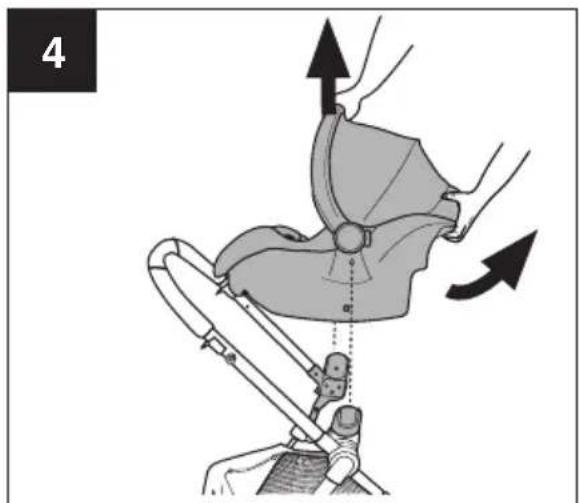

Using your Stroller with the Recommended Infant Car Seats on your Stroller Frame 23

Care and Maintenance.... 25

Limited Warranty 25

ParentLink®

answers. advice. affirmation.™

- www.evenflo.com • USA: 1-800-233-5921 8 AM – 5 PM E.T.

• Canada: 1-937-773-3971 • México: 800-706-1200

Holds Evenflo SafeMax™ or LiteMax™ Infant Car Seats Only

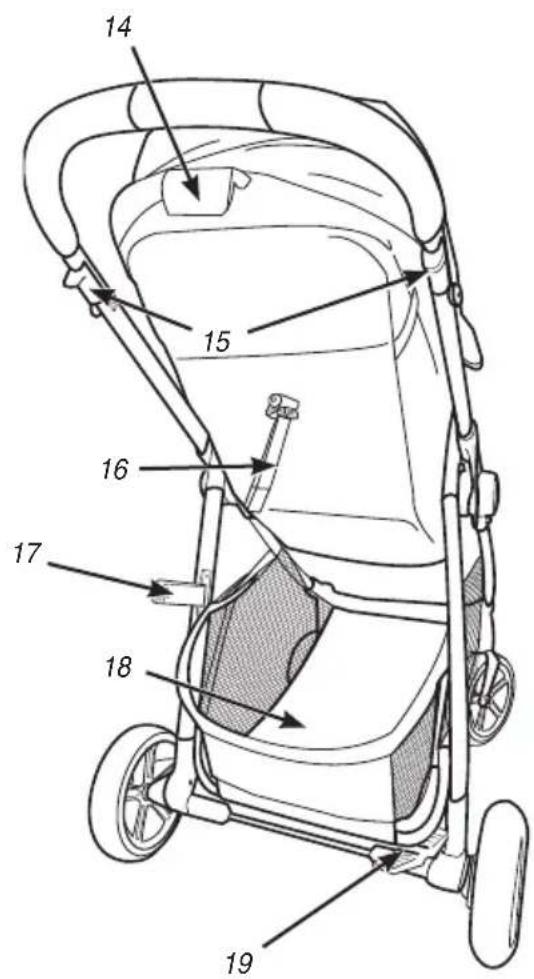

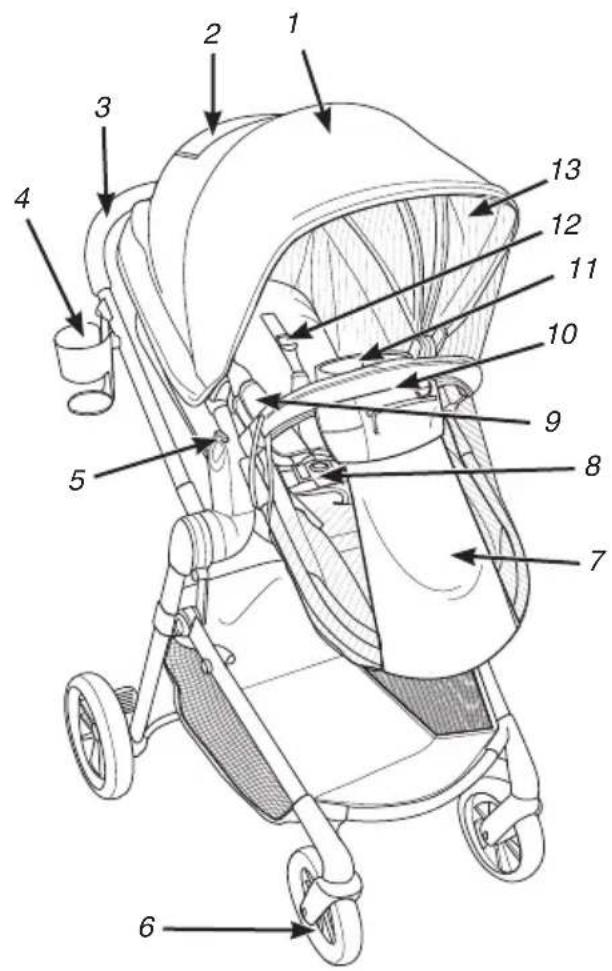

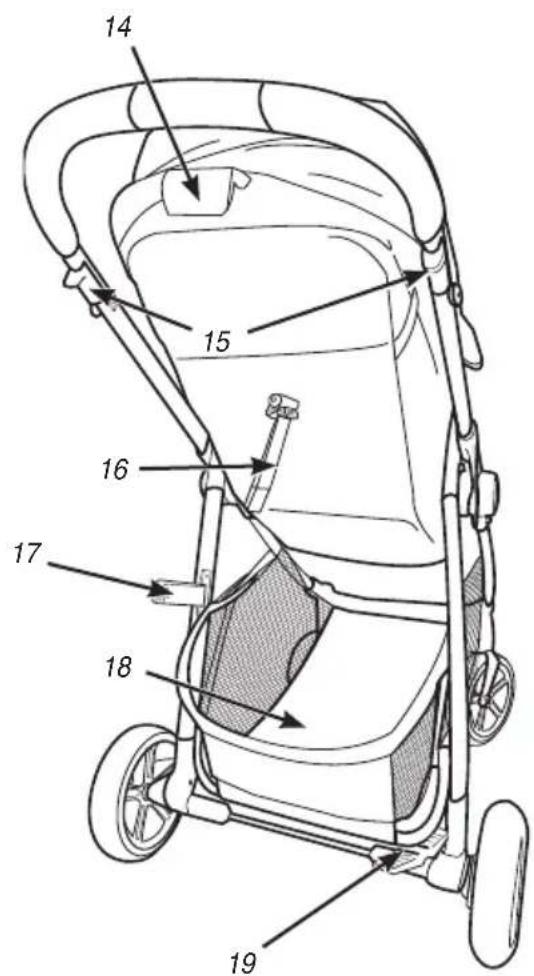

Technical diagram of a stroller with numbered parts for identification

14 15 16 17 18 19

1. Canopy
2. Canopy Window
3. Parent Handle
4. Cupholder
5. Toddler Seat Release Button
6. Swivel Wheel

7. Lower Privacy Cover

8. Buckle

9. Harness Covers (only on certain models)
   10.Bumper Bar/Storage Pouch
10. Child Tray
11. Shoulder Straps

12. Upper Privacy Cover

13. Multi-Position Recline Handle

14. Fold Latch
15. Multi-Position Recline Strap
16. Side Frame Lock
17. Storage Basket
18. Brakes

WARNING!

DEATH or SERIOUS

INJURY can occur.

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

- Only use Evenflo SafeMax™ and LiteMax™ infant car seats with this stroller.

Other infant car seats or carriers are not designed to fit the stroller frame and if used with this stroller may result in serious injury to your child.

- NEVER leave child unattended. ALWAYS keep child in view while in the stroller.

- Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.

- To prevent a possible choking hazard, remove and discard packing material before using this product.

- Avoid serious injury from falling or sliding out. ALWAYS use waist restraint.

- DO NOT carry or roll stroller on stairs or escalators with child in it.

- DO NOT hang items on handle bar or place them on the canopy as they can tip stroller over and injure child.

- Be sure stroller is fully assembled and locked in unfolded position before using.

- ALWAYS exercise care when going over curbs or steps, and never use stroller for anything other than transporting your child. Push stroller at a normal walking pace only; faster strolling can cause a loss of control and injury to the child.

- DO NOT place hot liquids in cup holder. Spills can burn you or your child.

- To avoid serious injury from child falling out of stroller, DO NOT raise or recline seat with child in stroller.

- DO NOT use stroller if any parts are missing or broken.

- DO NOT allow child to climb on, into, out of, or around stroller.

- DO NOT allow child to stand on the footrest. Stroller may tip over and injure child.

WARNING! DEATH or SERIOUS INJURY can occur.

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• DO NOT carry additional children, goods, or accessories in or on this stroller except as advised in these instructions. The stroller is intended for use with one child and to accommodate only the additional weights in storage as listed in these instructions.
• Care must be taken when folding or unfolding stroller to prevent finger injury to you or your child in hinge areas. Make sure child is not in the seat or near the stroller when folding or unfolding.
• NEVER leave stroller on a hill or incline, even with brakes set. Stroller may tip, injuring the child.
• To avoid accidental rolling, ALWAYS set brakes when stroller is not being pushed.

•AVOIDSTRANGULATION:

• DO NOT suspend strings or toys from the canopy.
• DO NOT place stroller anywhere near cords from window blinds, draperies, phone, etc.
• DO NOT place items with a string around your child's neck such as hood strings or pacifier cords.

• If not properly secured, the child may slip into leg openings and strangle.

• When making adjustments to the stroller, ALWAYS ensure that all parts of the child's body are clear of any moving parts of the stroller.

• The canopy is not intended to provide UV protection.
• Sharp or heavy objects placed in pockets may cause damage to the stroller, or injury to the child.
• To ensure safety for your baby, please refer to the manufacturer's instructions for the use of your recommended infant car seats and keep all instructions available for reference.
• DO NOT lift stroller by using the infant car seat handle when installed on stroller.

WARNING!

DEATH or SERIOUS

INJURY can occur.

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• If unable to securely attach the infant car seat to this stroller, remove the car seat and contact Evenflo ParentLink at 1-800-233-5921 (USA), 1-937-773-3971 (Canada), or 800-706-1200 (México).
• To avoid stroller instability and tip-overs, DO NOT load cup holder with over 1 lb (0.45 kg), and the main cargo basket with over 10 lbs (4.5 kg).
• NEVER use the toddler seat without the canopy attached.
• NEVER lift or carry the toddler seat by the bumper bar.
• NEVER use the stroller frame without the toddler seat or car seat attached.
• NEVERuse toddler seat in a motor vehicle or use it as a booster seat.
• To avoid falls, never remove toddler seat from the stroller with child in it.
• To avoid falls, always make sure the toddler seat or car seat is securely attached into the seat mounts on both sides of the stroller before placing child in the seat.
• When stroller seat is in carriage mode, it is intended for a child up to 6 months of age.
• NEVER use seat in the carriage mode position unless the straps under the seat are unbuckled and the seat is set up in carriage mode as per the instructions.
• To avoid overheating, make sure to open the canopy window when using privacy cover in toddler seat mode or carriage mode.
• To avoid serious injury or death, DO NOT use privacy cover when installing Infant Car Seat in vehicle rear facing without the base.

Child Requirements - When stroller is in carriage mode, it is intended for a child up to 6 months of age. Only use the stroller in the upright position with a child who is capable of sitting upright unassisted.

• Maximum weight: 55 lbs (25 kg)
• Maximum height: 40 inches (101.6 cm)

IMPORTANT: Read instructions carefully before use. Save these instructions for future reference. It is very important to assemble the stroller according to these instructions. If you are missing parts, do not use stroller and call Evenflo ParentLink at 1-800-233-5921 (U.S.A.), 1-937-773-3971 (Canada), or 800-706-1200 (México) to order replacement parts.

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at www.evenflo.com/registerproduct.

For future reference, record the Model Number and Date of Manufacture below. You can find this information on one of the rear stroller legs.

Model Number: ____ Date of Manufacture: ____

Identification of Parts

Line drawing of a bicycle steering wheel (no text or symbols)

Front Wheel Assembly (2)

Technical line drawing of a mechanical assembly with no visible text or symbols

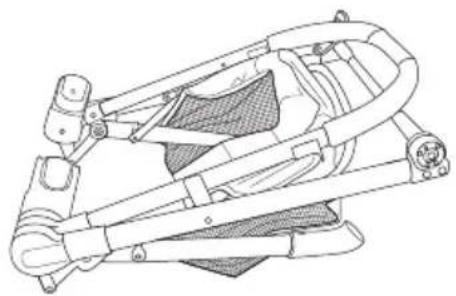

Frame

Line drawing of a car wheel with spokes and a handle (no text or symbols)

Rear Wheel (2)

Technical line drawing of a mechanical component with no visible text or symbols

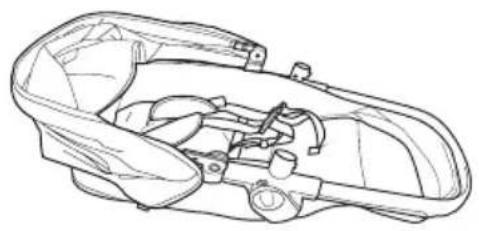

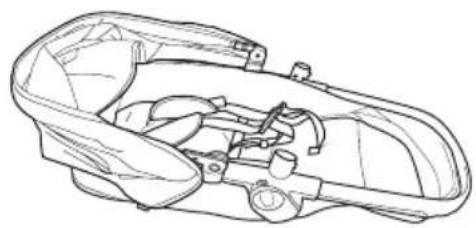

Toddler Seat

Line drawing of a curved mechanical component with connectors (no text or symbols)

Bumper Bar, Storage Pouch and Upper Privacy Cover

Simple line drawing of a bowl with two curved compartments (no text or symbols)

Child's Tray

Simple line drawing of a bag with mesh handles and a curved handle (no text or symbols)

Lower Privacy Cover (Stores in Bumper Bar Storage Pouch)

Cupholder (1)

YOUR STROLLER SEAT CAN BE USED IN TWO DIFFERENT MODES.

TODDLER SEAT MODE OR CARRIAGE MODE.

Your stroller seat is shipped in carriage mode with the buckles unfastened under the footrest. You will need to follow the instructions completely to make sure you set up your stroller in your preferred mode of use.

After the frame and the wheels have been assembled, you can choose to set the stroller up in Carriage Mode or Toddler Seat Mode by following instructions on pages 12 - 16.

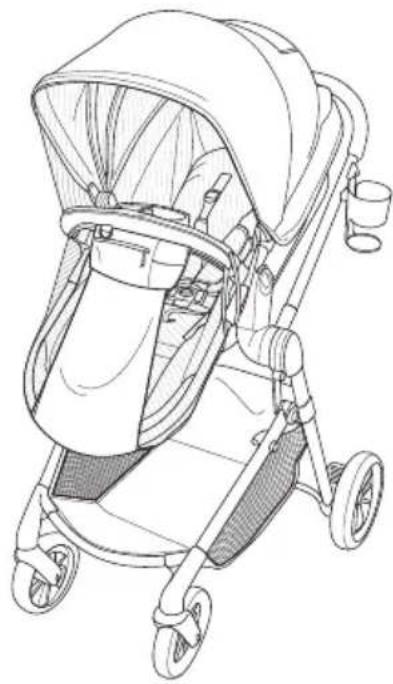

Toddler Seat Mode

Line drawing of a baby stroller with adjustable seat and front panel (no text or symbols)

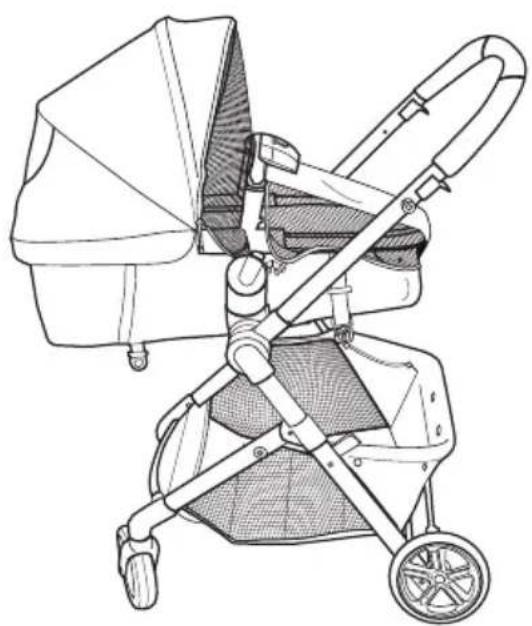

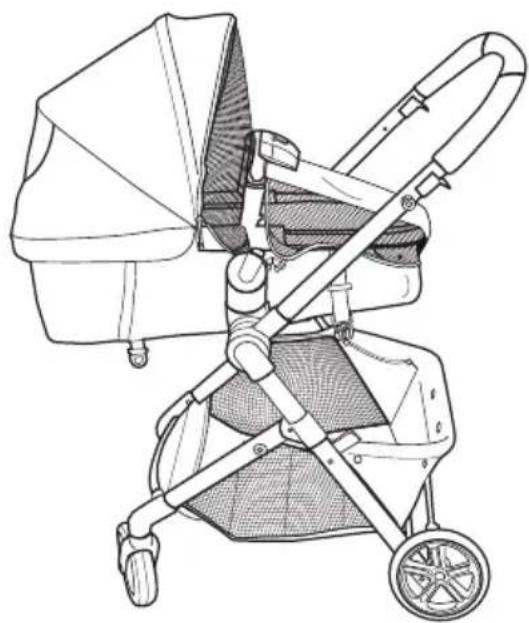

Carriage Mode

Line drawing of a baby stroller with adjustable canopy and wheels (no text or symbols)

Assembling Your Stroller - Frame

WARNING! DEATH or SERIOUS INJURY can occur.

Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.

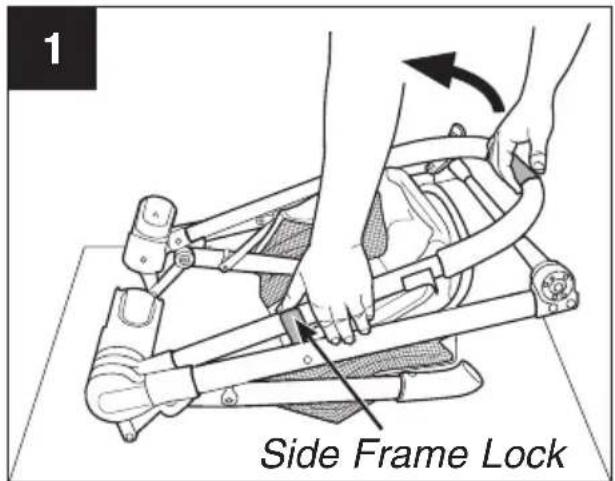

1 Side Frame Lock

To protect flooring, place a protective covering (carton) beneath the stroller during assembly.

Unlatch side frame lock. Continue holding the lock open while unfolding the stroller.

2 CLICK!

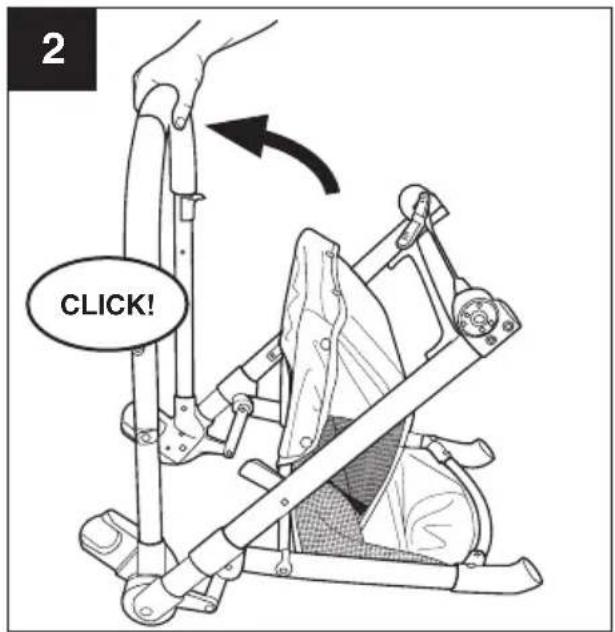

Grab the parent's handle and pull upward until the stroller opens fully with an audible click.

Illustration of a hand gripping a cable with a mesh net, showing a downward force arrow (no text or symbols)

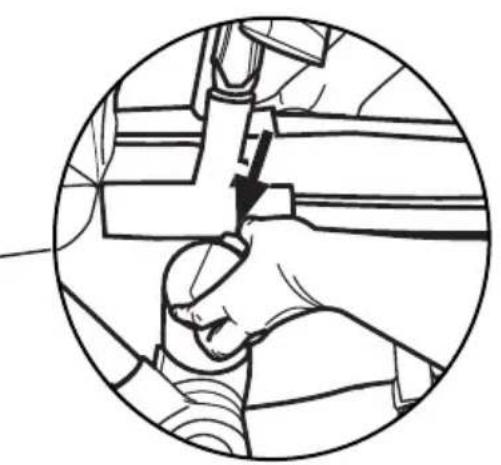

Make sure the stroller is locked in the open position by pushing down on the parent's handle.

Assembling Your Stroller - Wheels

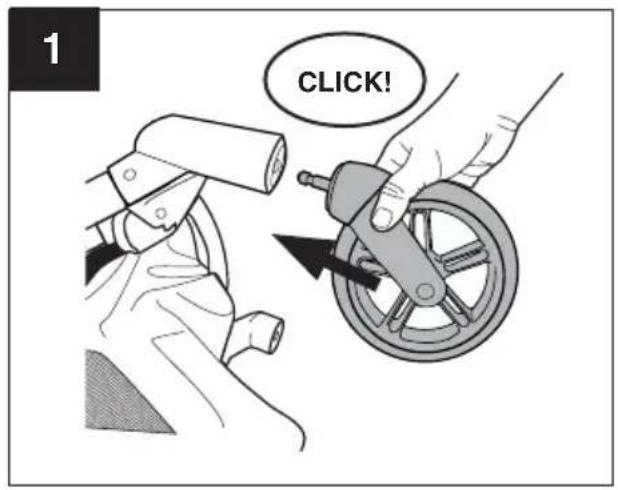

1 CLICK!

Turn the stroller so the front of the stroller is facing upwards as shown.

To attach front wheels, push wheel onto front leg tube until it clicks into place. Repeat on other side.

Pull on wheels to make sure both of them are securely attached.

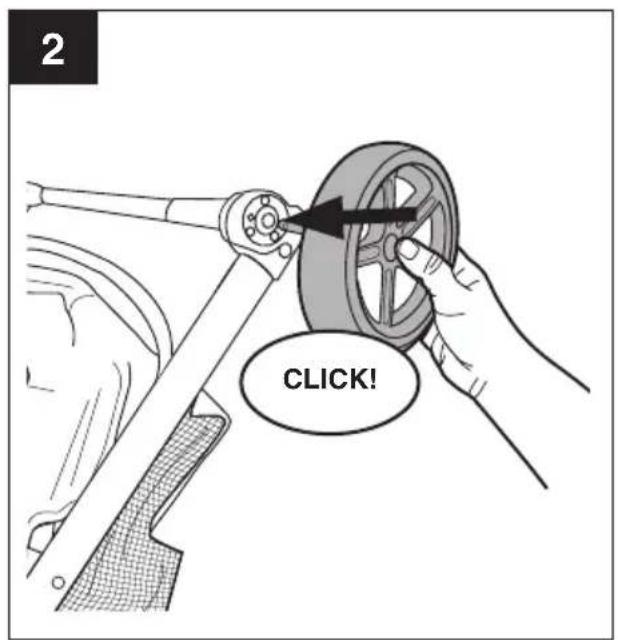

2 CLICK!

Turn the stroller upside down as shown so the rear of the stroller is facing upwards.

To attach rear wheels, push wheel onto rear leg tube until it clicks into place. Repeat on other side.

Pull on wheels to make sure both of them are securely attached.

Assembling Your Stroller - Toddler Seat Mode

1 CLICK!

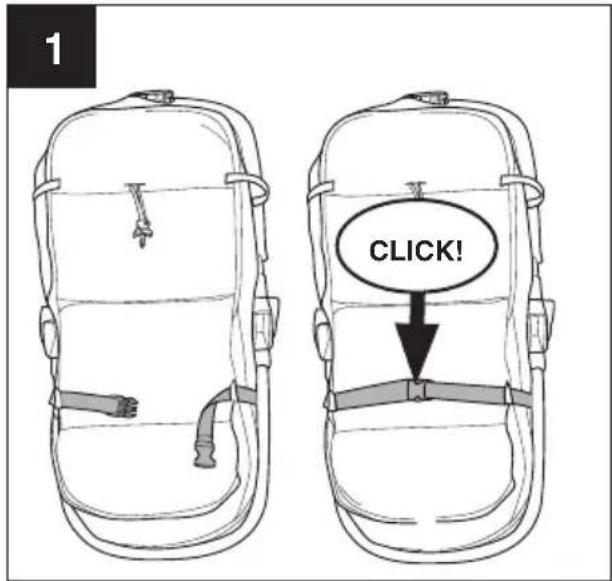

To set up seat in toddler seat mode, flip toddler seat over and attach the buckle on the seat as shown.

2 CLICK! CLICK!

Illustration of a hand using a tool to lift a seatbelt, with an upward arrow indicating force (no text or symbols present)

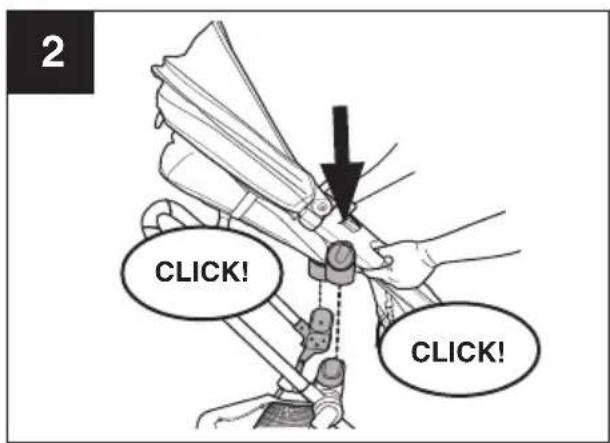

To attach toddler seat, slide seat onto the mounts until they both click into place on both sides of the frame. The toddler seat may be attached forward or rear-facing.

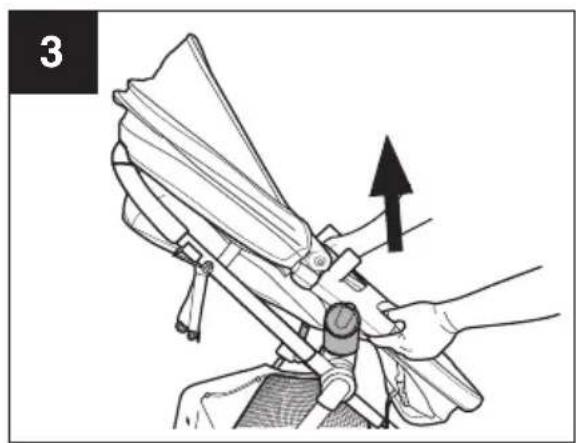

CHECK to make sure it is securely attached by pulling up on it. NOTE: Stroller cannot be folded with seat in rear-facing position.

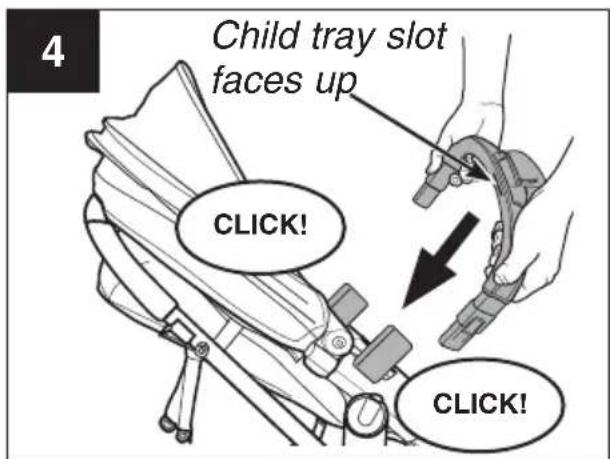

4 Child tray slot faces up CLICK! CLICK!

To attach bumper bar, push tabs into openings on stroller on either side of frame until it clicks into place.

Pull on the bumper bar to make sure it is locked into place.

Assembling Your Stroller - Toddler Seat Mode

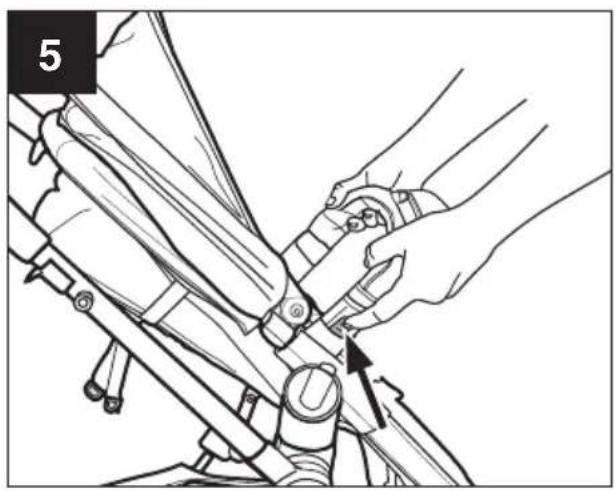

Line drawing of hands operating a mechanical device with a knob and lever (no text or symbols)

To remove the bumper bar, push both tabs and remove the bumper bar from the stroller.

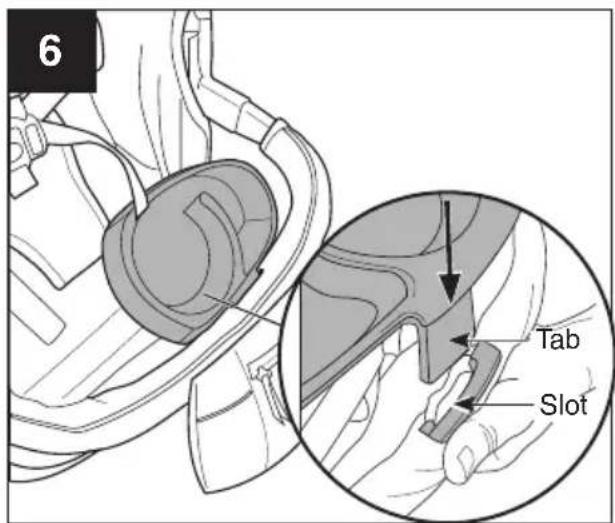

6 Tab Slot

To attach child tray, insert the tab on the tray into the slot on the bumper bar as shown.

To remove child tray, pull up and remove from the slot.

Line drawing of a hand adjusting a car seatbelt, showing a curved arrow indicating rotation (no text or symbols)

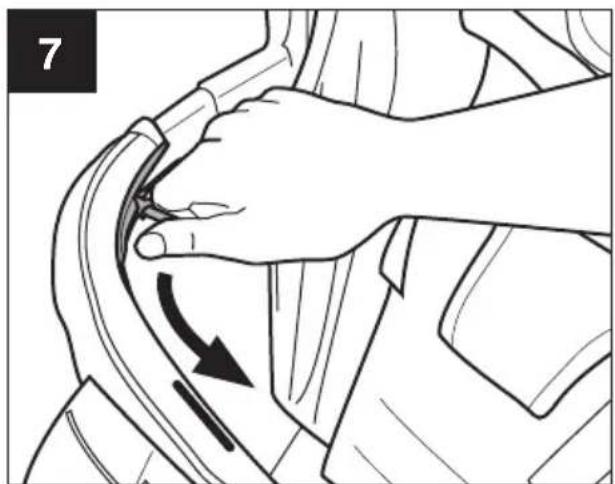

To remove storage pouch from bumper bar, unzip storage pouch as shown.

Using Your Stroller - Toddler Seat Mode to Carriage Mode

WARNING! DEATH or SERIOUS INJURY can occur.

NEVER use seat in a reclined carriage position unless straps under seat are unbuckled and seat is set up in reclined carriage mode as per the instructions.

Line drawing of a baby stroller with no text or symbols

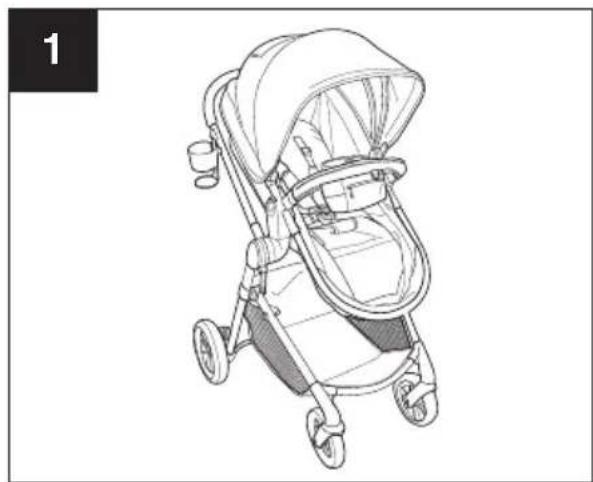

If you are in Toddler Seat Mode as shown, follow these steps to convert to Carriage Mode.

Illustration of a hand holding a tool inside a car seat, with arrows indicating direction of movement (no text or symbols present)

To recline seat, squeeze button and pull down the recline strap on the rear of seat.

Using Your Stroller - Toddler Seat Mode to Carriage Mode

Illustration of a stroller with hand holding a knife, shown in two views: one magnified and one detailed (no text or symbols)

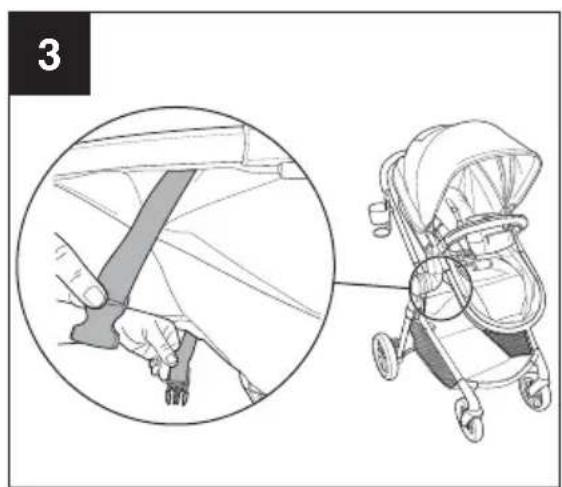

Unfasten buckle behind leg rest on toddler seat. Refer to page 12 Step 1 for buckle location.

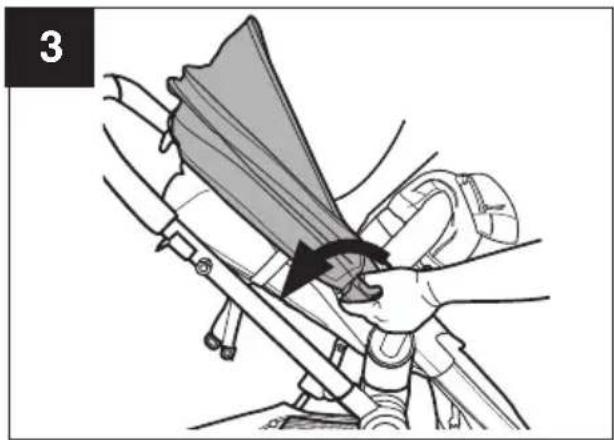

Illustration of a person using a seatbelt to adjust the seat area, with a hand adjusting the seat (no text or symbols present)

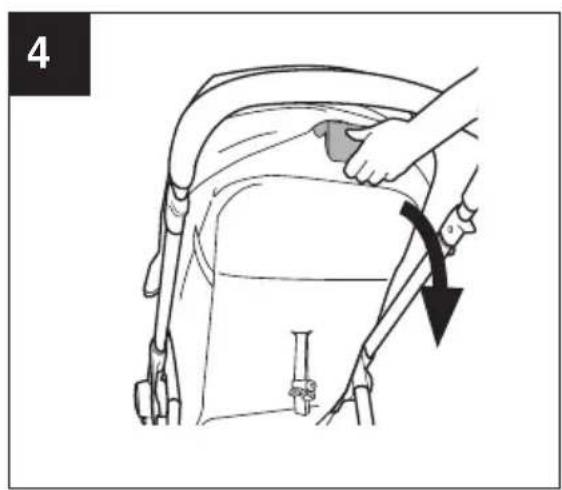

Lift handle and rotate seat all the way down so that it is flat.

IMPORTANT: To avoid spills, remove child tray when reclining the toddler seat.

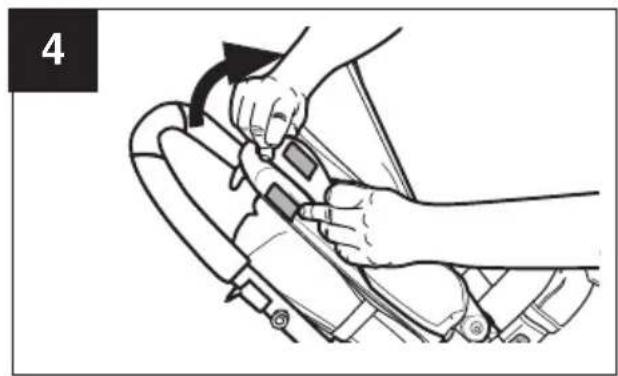

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

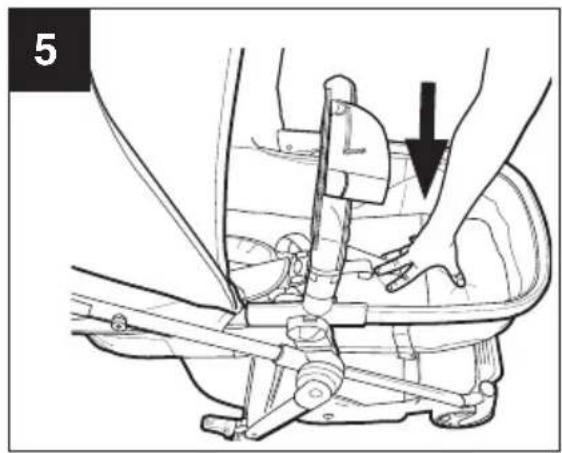

Press down on the inside of the toddler seat to flatten out the inside.

Using Your Stroller - Toddler Seat Mode to Carriage Mode

WARNING! DEATH or SERIOUS INJURY can occur.

NEVER lift or carry toddler seat by the bumper bar.

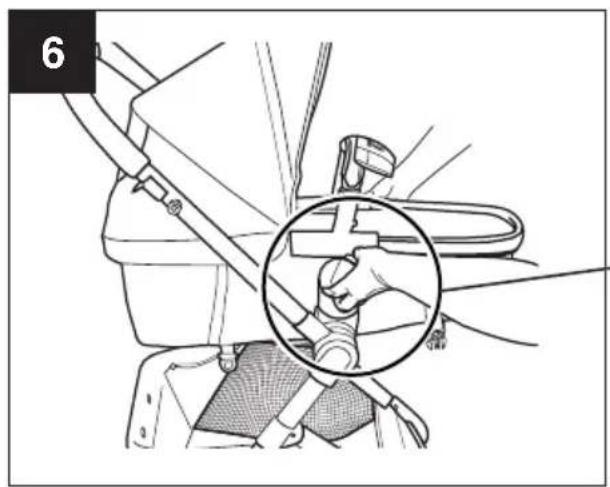

Diagram of a car seatbelt with a magnified inset showing the wheel and seat (no text or symbols)

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

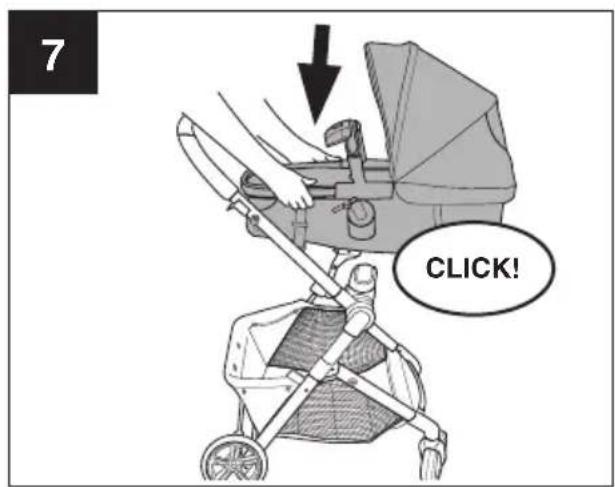

7 CLICK!

To remove and use in rear facing mode: Press the release buttons on both sides of toddler seat, lift seat off stroller frame and turn it around and re-attach.

Line drawing of a baby stroller with an arrow indicating motion or force (no text or symbols)

CHECK to make sure it is securely attached on both sides by pulling up on it.

WARNING! DEATH or SERIOUS INJURY can occur.

ALWAYS lock brakes. Make sure brakes are on by trying to push the stroller.

1 CLICK!

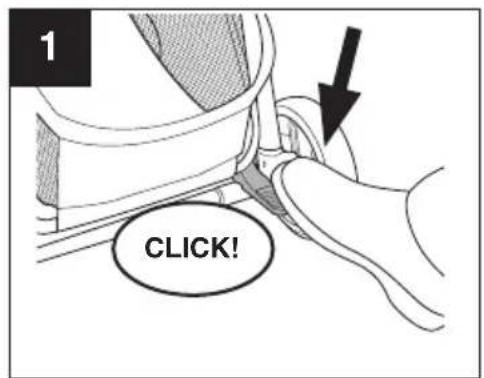

To lock, press brake lever DOWN on rear wheel brake as shown.

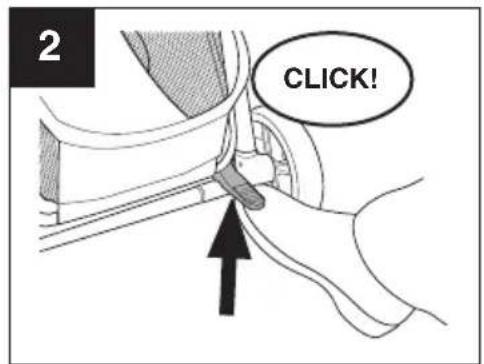

2 CLICK!

To unlock, lift brake lever UP on rear wheel brake as shown.

Using Your Stroller - Cupholder

Illustration of a hand adjusting a car seatbelt with a black arrow indicating the mechanism (no text or symbols present)

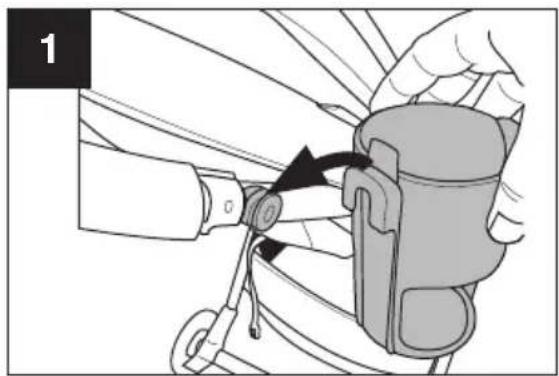

To attach cupholder, slide down on the mount on either side of stroller as shown.

Illustration of a hand holding a cylindrical container with an arrow indicating rotation (no text or symbols)

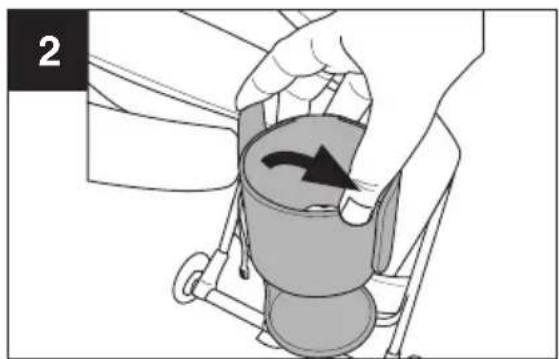

To remove cupholder, press tab towards center and slide up as shown.

Using Your Stroller - Harness

WARNING! DEATH or SERIOUS INJURY can occur.

To avoid serious injury from falling or sliding out, ALWAYS use waist restraint.

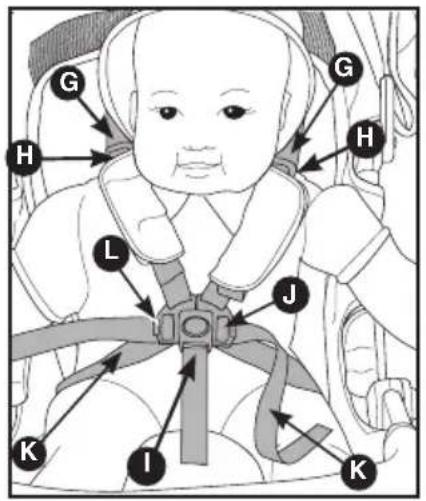

G H L J K I K G H

NOTE: Verify the stroller is locked in the open position by pushing down on the parent's handle.

Lock the rear brakes and remove the bumper bar.

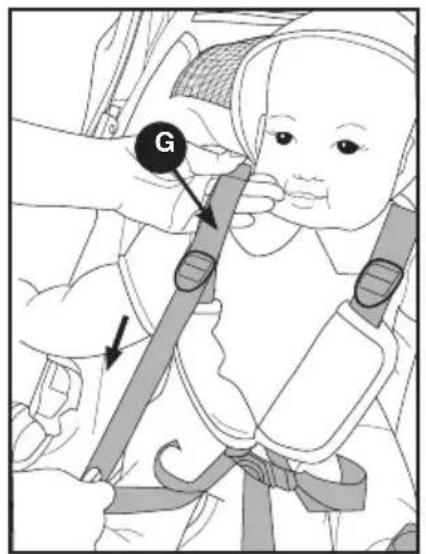

The harness shoulder straps Ⓖ must be at shoulder height or lower, closest to the baby's shoulders Ⓗ.

G

Place the baby in the seat and bring the crotch panel ① up between the child's legs. Fasten each buckle ②. For a snug, comfortable fit, pull the shoulder straps ③ to tighten the shoulder restraint and pull the waist restraint straps ④ to tighten the waist restraint.

NOTE: To loosen the waist straps ⚪, push in the release button Ⓛ on the buckle and pull.

M

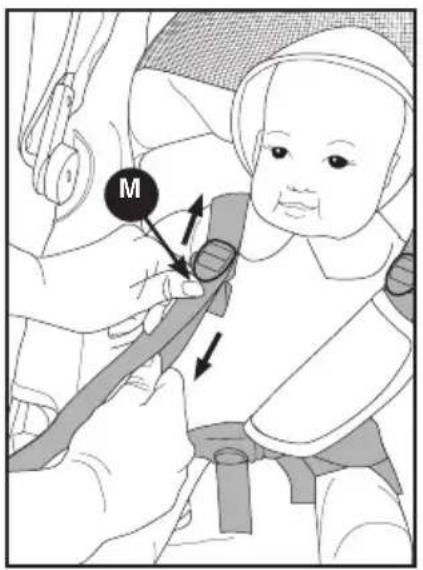

To loosen shoulder straps push up on the retainer Ⓜ while pulling down on the shoulder strap.

Once the child is properly restrained, re-attach the bumper bar.

Make sure the bumper bar locks into position with audible clicks.

Pull on the bumper bar to make sure it is locked into place.

Diagram of a mechanical device with a folded cover and directional arrows indicating rotation (no text or symbols)

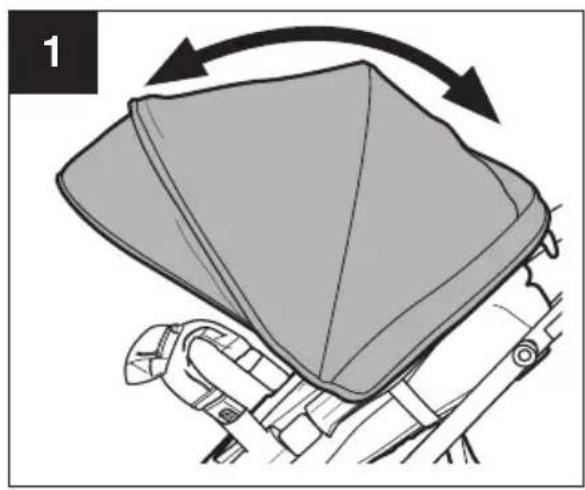

To open or close canopy, push to the front or the rear of the stroller.

Diagram of a car seatbelt mechanism showing angle and rotation (no text or symbols)

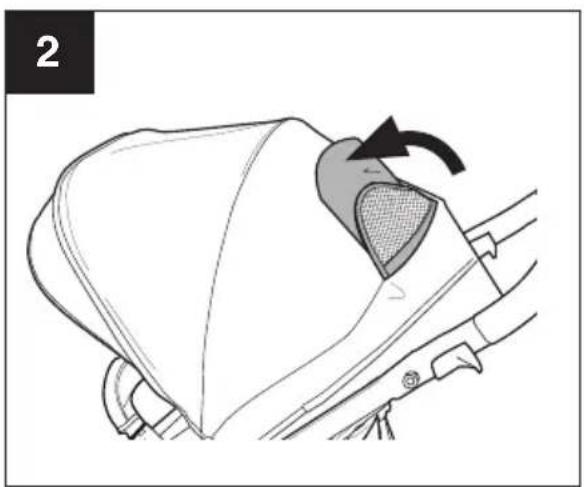

Canopy has a window that can be rolled back so you can view child.

Illustration of a person using a device to adjust or install a component, with no visible text or symbols.

To remove canopy, unfasten canopy mounts from sides of toddler seat as shown.

Line drawing of hands using a device to interact with a seatbelt (no text or symbols)

Unfasten hook and loop tape from top edge of canopy as shown. Repeat on other side of canopy.

Using Your Stroller - Attaching Privacy Cover to Toddler Seat

Illustration of a hand adjusting a bicycle seatbelt with a black arrow indicating rotation (no text or symbols)

NOTE: Bumper bar must be installed in order to use privacy cover.

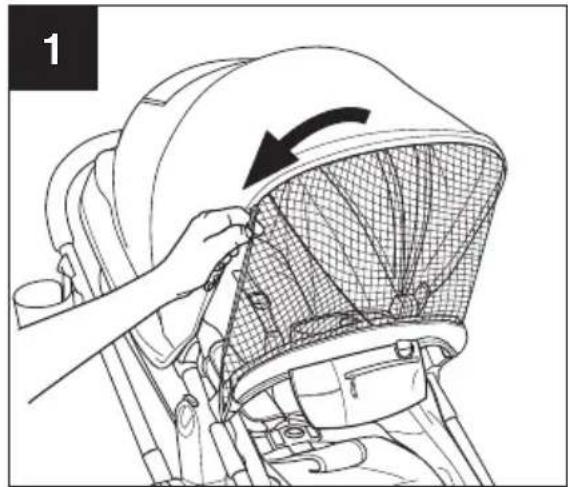

To attach privacy cover to toddler seat, unzip bumper bar and pull upper privacy cover out. Fully extend canopy and zip upper privacy cover to canopy as shown.

IMPORTANT: Canopy must be fully extended before attaching upper privacy cover to toddler seat.

Illustration of a person adjusting a seatbelt using a belt, with no visible text or symbols

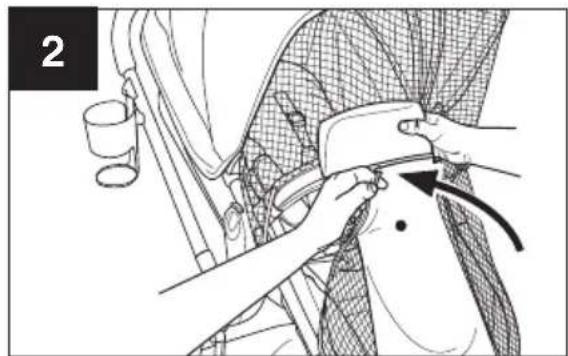

Remove lower privacy cover from storage pouch and zip to lower section of storage pouch as shown.

Mechanical assembly diagram showing gear and valve components with a magnified inset of a hand mechanism (no text or labels)

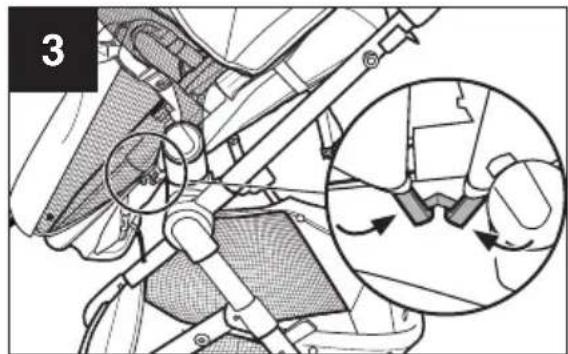

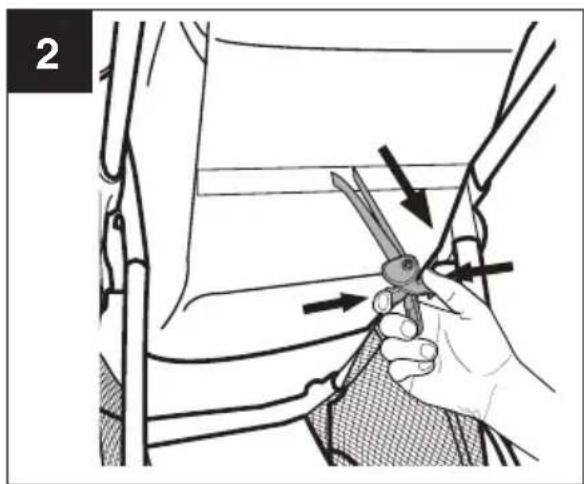

Attach side hooks from upper and lower privacy covers to fabric loops on the sides of toddler seat.

Mechanical assembly diagram showing a hand adjusting a component with an arrow indicating rotation (no text or symbols present)

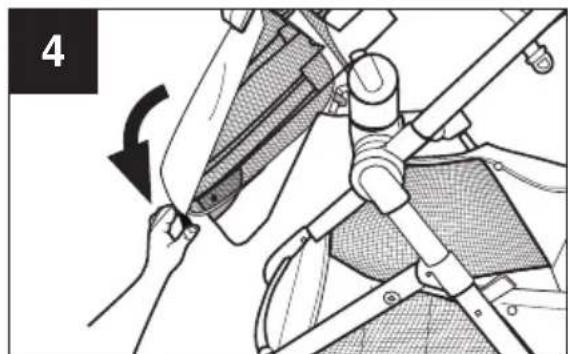

Pull lower privacy cover over bottom of toddler seat and attach hook and loop straps to fabric.

NOTE: When using Privacy Cover in toddler seat mode or carriage mode, make sure to open the canopy window.

Using Your Stroller - Attaching Privacy Cover to Infant Car Seat

Illustration of a person adjusting a helmet with an arrow indicating motion (no text or symbols)

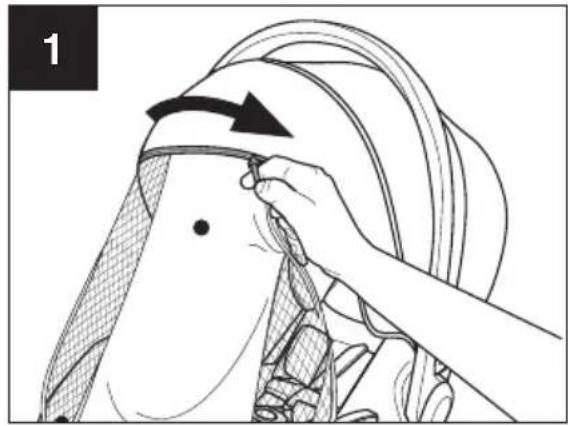

To attach privacy cover to infant car seat, remove lower privacy cover from storage pouch and zip to fully extended infant car seat canopy as shown.

IMPORTANT: Canopy must be fully extended before attaching privacy cover to infant car seat.

Medical illustration showing a hand holding a tool interacting with internal anatomical structures (no text or labels)

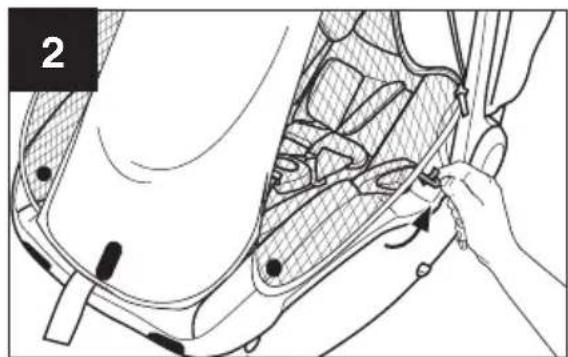

Attach side hooks from lower privacy cover to fabric loops on the sides of infant car seat.

3

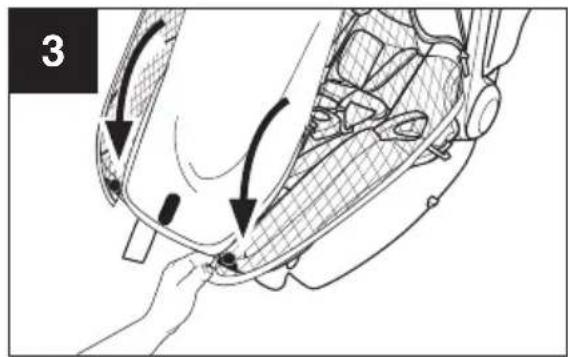

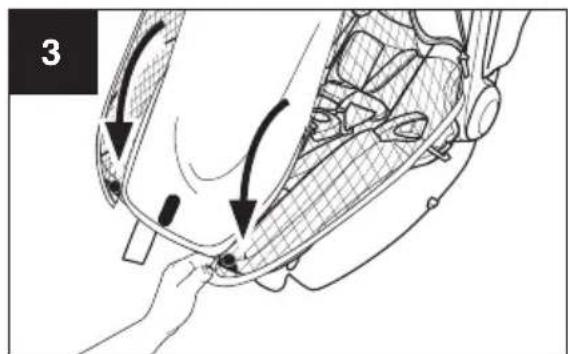

Pull lower privacy cover over bottom of infant car seat and attach hook and loop strap as shown.

Diagram of a person adjusting a seatbelt device, showing mechanical components and directional arrows (no text or symbols)

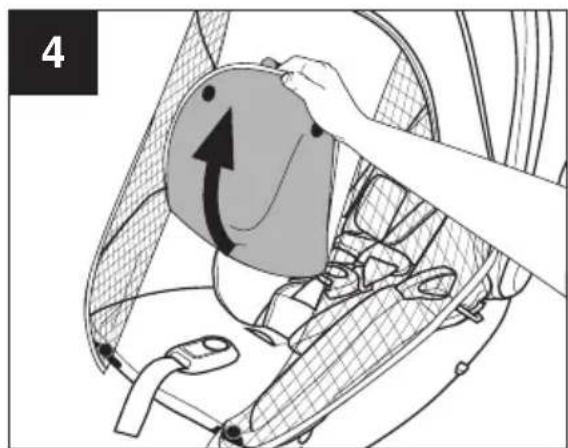

To remove child from infant car seat without removing the privacy cover, disconnect hook and loop attachments from front of seat and disconnect side hooks from infant car seat. Lift front of privacy cover and attach hook and loop strap to back of canopy.

For more room for legs, attach hook and loop strap to middle and fold open as shown.

Using Your Stroller - Folding Stroller

WARNING! DEATH or SERIOUS INJURY can occur.

Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.

Technical line drawing of a mechanical device with lever and gear assembly (no text or symbols)

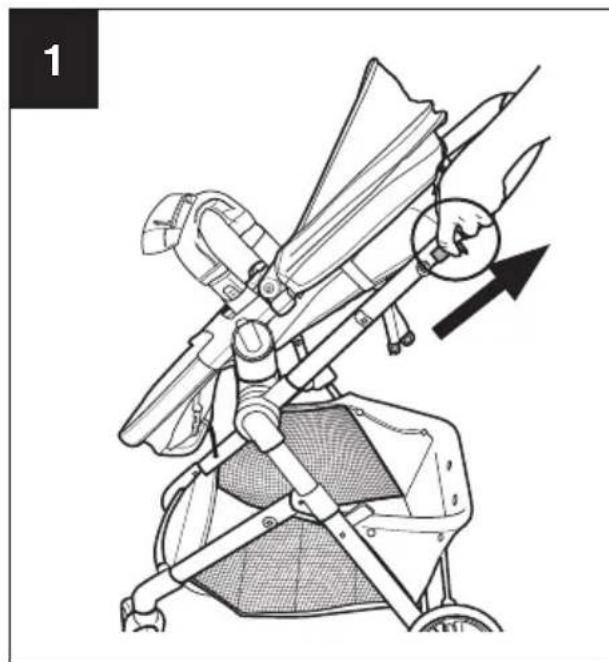

To fold the stroller, remove your child, adjust seat back to upright position, lock the rear brakes, and close the canopy.

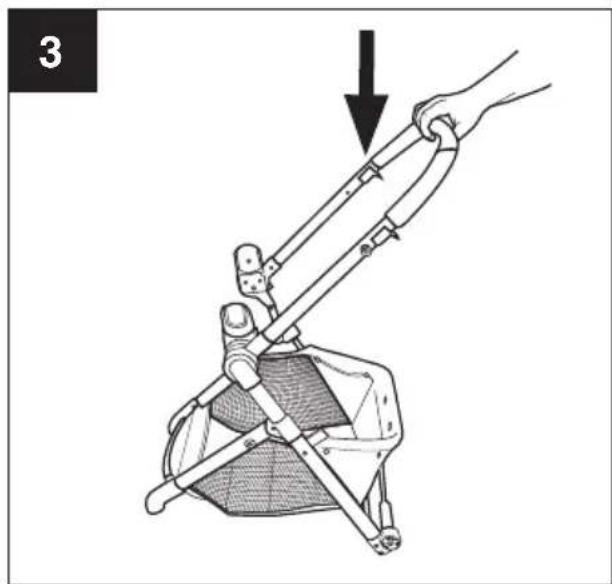

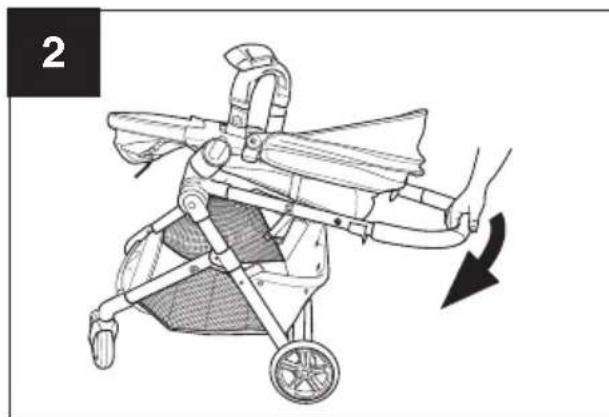

Pull the levers on both sides of the stroller and lower frame until the side frame lock clicks into place.

NOTE: Stroller cannot be folded with seat in rear-facing position or with upper privacy cover zipped onto canopy.

Line drawing of a baby stroller with hand and arrow indicating motion (no text or symbols)

3 CLICK!

For more compact fold, you can remove the toddler seat before folding the stroller frame.

NEVER fold the stroller when the toddler seat is in the carriage mode.

WARNING! DEATH or SERIOUS INJURY can occur.

• Only use Evenflo SafeMax™ infant car seats or any version of the LiteMax™ infant car seat with this stroller. Other infant car seats or carriers are not designed to fit the stroller frame and if used with this stroller may result in serious injury to your child.
• Before using the infant car seat with this stroller, read all the instructions provided with it and keep the instructions stored properly for future use.
• DO NOT lift stroller by using the infant car seat handle when installed on stroller.
• If unable to securely attach your infant car seat to this stroller, remove the car seat and contact Evenflo ParentLink at 1-800-233-5921 (USA), 1-937-773-3971 (Canada), or 800-706-1200 (México).
• To avoid serious injury, make sure the infant car seat is securely snapped onto the car seat mounts.
• Some Evenflo SafeMax™ and LiteMax™ infant car seats have a blanket/boot option that must be removed for proper attachment to this stroller.
• To avoid serious injury or death, DO NOT use privacy cover when installing Infant Car Seat in vehicle rear facing without the base.

Illustration of a hand using a cable to lift a seatbelt, showing mechanical components and motion direction (no text or symbols)

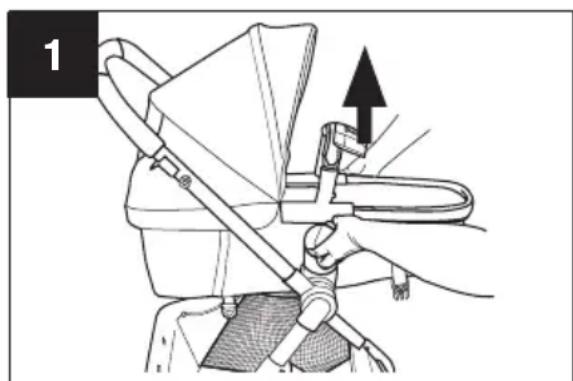

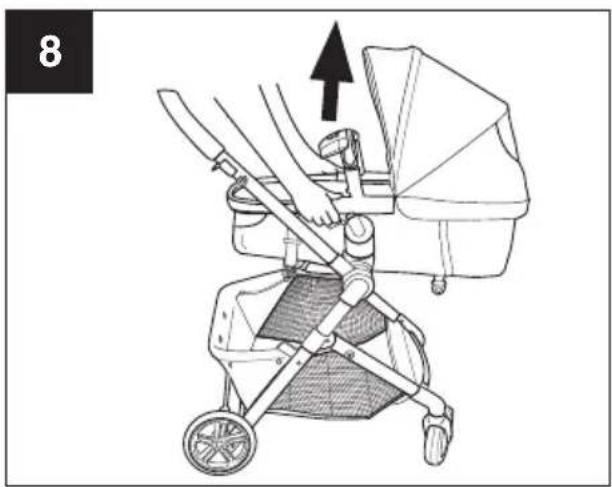

To remove the toddler seat, press the release buttons down on both sides of the toddler seat and lift seat off stroller frame.

Illustration of a hand using a bicycle seatbelt device to lift a seatbelt, with no text or symbols present.

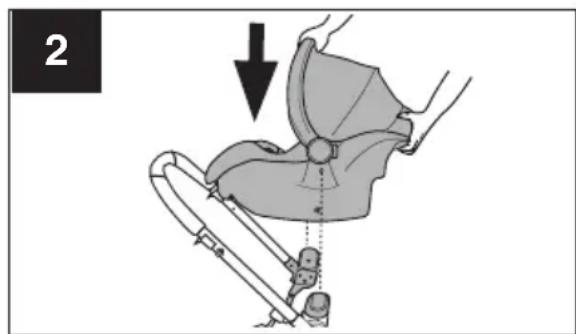

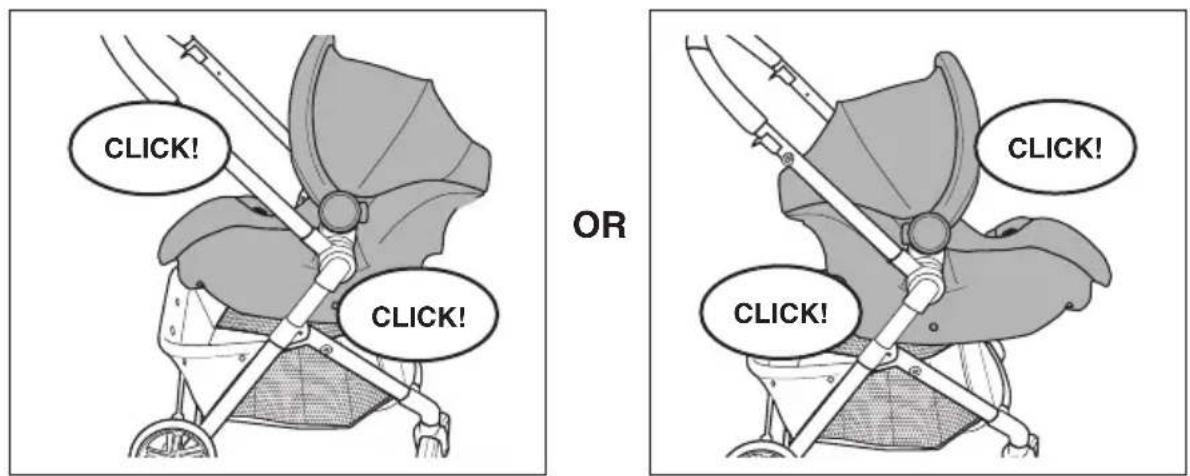

To attach car seat, insert car seat into the mounts until they both click into place on both sides of the frame.

Using your Stroller with the Recommended Infant Car Seats on your Stroller Frame

NOTE: The infant car seat may be installed facing the parent or facing forward on the stroller frame.

Illustration of a baby stroller with a hand holding a tray, showing posture and movement (no text or symbols)

Pull up on the front and back of the infant car seat to test that it is properly locked into place.

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion direction (no text or symbols)

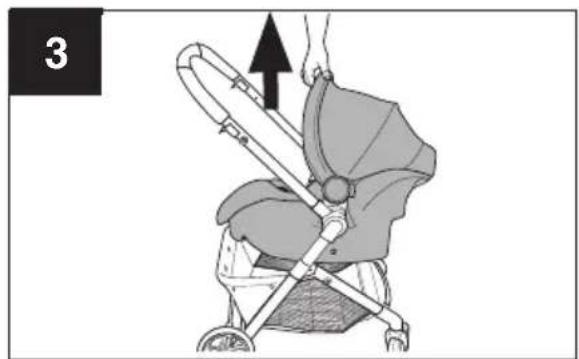

TO REMOVE, squeeze handle on rear of seat and pull car seat up off of the stroller.

• Clean minor spills and stains on cloth or plastic surfaces with cold water and mild soap. Air dry.
• Metal and plastic parts can be wiped clean with a soft damp cloth and dried with a soft cloth. DO NOT use abrasive cleaners or solvents.

Limited Warranty

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenflo’s sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenflo's ParentLink Consumer Resource Center at 1-800-233-5921 or www.evenflo.com.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW. OTHER THAN THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE, THERE ARE NO OTHER WARRANTIES THAT ACCOMPANY THIS PRODUCT AND ANY ORAL, WRITTEN OR ANY OTHER EXPRESS REPRESENTATION OF ANY KIND IS HEREBY DISCLAIMED.

ParentLink®

answers. advice. affirmation.™

www.evenflo.com

USA: 1-800-233-5921 8 AM - 5 PM E.T.

Canada: 1-937-773-3971

México: 800-706-1200

Table des matières

answers. advice. affirmation.™

Technical diagram of a stroller with numbered parts for identification

14 15 16 17 18 19

Line drawing of a bicycle steering wheel with a handle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Châssis

Line drawing of a car wheel with six spokes and a handle (no text or symbols)

Roue arrière (2)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a curved mechanical component with connectors (no text or symbols)

Simple line drawing of a bowl with two curved compartments (no text or symbols)

Plateau pour enfant

Simple line drawing of a bag with handle and side panels, no text or symbols present

Line drawing of a baby stroller with adjustable arms and wheels (no text or symbols)

Mode landau

Line drawing of a baby stroller with adjustable arms and wheels (no text or symbols)

Illustration of a hand gripping a cable with a mesh net, showing a downward force (no text or symbols)

Illustration of a hand using a device to lift a seatbelt, with an upward arrow indicating force (no text or symbols present)

Line drawing of hands operating a mechanical device with a knob and lever (no text or symbols)

Line drawing of a hand adjusting a car seatbelt, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of a baby stroller with no text or symbols

Illustration of a hand holding a tool inside a car seat, with arrows indicating direction of movement (no text or symbols present)

Illustration of a stroller with a hand operating the seatbelt, shown in two views: one close-up and one enlarged (no text or symbols)

Illustration of a hand adjusting a seatbelt with a black arrow indicating force or movement (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Diagram of a car seatbelt with a magnified inset showing the interior seatbelt area (no text or symbols present)

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

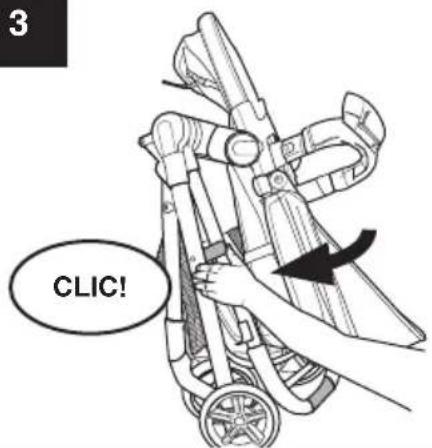

7 CLIC!

Line drawing of a baby stroller with hand positioning and an arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a belt switch mechanism with no visible text or symbols

Illustration of a hand holding a cylindrical container with an arrow indicating rotation (no text or symbols)

G H L J K I K G H

Diagram of a mechanical device with a folded cover and directional arrows indicating rotation (no text or symbols)

Diagram of a car seatbelt mechanism showing angle and rotation (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of hands using a device to interact with a car (no text or symbols visible)

Illustration of a hand adjusting a bicycle seatbelt with a black arrow indicating rotation (no text or symbols)

Illustration of a person adjusting a seatbelt using a device, with no visible text or symbols

Mechanical assembly diagram showing gear and valve components with a magnified inset highlighting a detail (no text or symbols)

Mechanical assembly diagram showing a hand adjusting a component with an arrow indicating rotation (no text or symbols present)

Illustration of a person adjusting a helmet with a hand, showing the motion of the seat (no text or symbols present)

Medical illustration showing a hand holding a tool interacting with internal anatomical structures (no text or labels)

3

Diagram of a bicycle seatbelt mechanism with hand and arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with lever and gear assembly (no text or symbols)

Line drawing of a stroller with hand operating it, showing body positioning and motion direction (no text or symbols)

3 CLIC!

Illustration of a hand using a cable to lift a seatbelt, with an upward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a hand holding a seatbelt with a downward arrow indicating motion (no text or symbols)

Illustration of a baby stroller with a hand holding a tray, showing posture and movement (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion direction (no text or symbols)

answers. advice. affirmation.™

www.evenflo.com

answers. advice. affirmation.™

- www.evenflo.com • EUA: 1-800-233-5921, 8 AM a 5 PM, hora del Este

- Canadá: 1-937-773-3971 • México: 800-706-1200

Technical diagram of a stroller with numbered parts for identification

14 15 16 17 18 19

Line drawing of a bicycle steering wheel with a handle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Armazón

Line drawing of a car wheel with spokes and a handle (no text or symbols)

Ruedas traseras (2)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a curved mechanical component with connectors (no text or symbols)

Simple line drawing of a bowl with two side compartments (no text or symbols)

Charola infantil

Simple line drawing of a bag with handle and side panels, no text or symbols present

Line drawing of a baby stroller with adjustable seat and front wheels (no text or symbols)

Modo de moisés

Line drawing of a baby stroller with adjustable arms and wheels (no text or symbols)

Illustration of a hand gripping a cable with a mesh net, showing a downward force arrow (no text or symbols)

Illustration of a person using a device to lift a seatbelt, with an upward arrow indicating force (no text or symbols present)

Line drawing of hands operating a bicycle wheel assembly (no text or symbols)

Line drawing of a hand adjusting a car seatbelt with an arrow indicating clockwise motion (no text or symbols)

Line drawing of a baby stroller with four wheels and a canopy cover (no text or symbols)

Illustration of a hand holding a tool inside a car, with arrows indicating motion or force direction (no text or symbols)

Illustration of a stroller with handrail and seatbelt, shown in two views: one magnified (no text or symbols)

Illustration of a person using a device to adjust the seat area (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Diagram of a car seatbelt with a magnified inset showing the interior seatbelt area (no text or symbols present)

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

7 ¡CLIC!

Line drawing of a baby stroller with an arrow indicating motion or force (no text or symbols)

Illustration of a hand adjusting a seatbelt device with a black arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a cup with a black arrow indicating rotation (no text or symbols)

G H L J K I K G H

Diagram of a mechanical device with a folded cover and directional arrows indicating rotation (no text or symbols)

Diagram of a car seatbelt mechanism showing the wheel and seat area with an arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a hand operating a belt switch mechanism (no text or symbols visible)

Line drawing of a person using a device to interact with another person (no text or symbols present)

Illustration of a hand adjusting a bicycle seatbelt with an arrow indicating rotation (no text or symbols present)

Illustration of a person adjusting a seatbelt using a belt, with no visible text or symbols

Mechanical assembly diagram showing gear and valve components with a magnified inset highlighting a specific mechanism (no text or labels present)

Mechanical assembly diagram showing a hand adjusting a component with an arrow indicating rotation (no text or symbols present)

Illustration of a person adjusting a helmet with a hand, showing the motion of the seat (no text or symbols present)

Medical illustration showing a hand operating a surgical tool to adjust internal anatomy (no text or labels present)

Diagram of a person adjusting a seatbelt with a hand holding the helmet, showing mechanical components (no text or symbols)

Technical line drawing of a mechanical device with lever and gear assembly (no text or symbols)

Illustration of a baby stroller with hand positioning and motion arrow indicating rotation (no text or symbols)

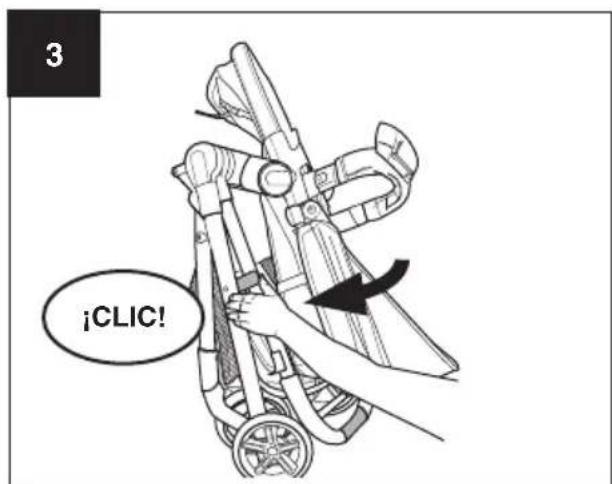

3 ¡CLIC!

Illustration of a hand using a cable to lift a seatbelt, showing mechanical components and a directional arrow (no text or symbols)

Illustration of a person using a bicycle seatbelt device, showing the seatbelt and hand positioning (no text or symbols)

Illustration of a baby stroller with an upward arrow indicating motion (no text or symbols)

Illustration of a mechanical device with arrows indicating motion or force direction (no text or symbols)

answers. advice. affirmation.™

www.evenflo.com

EUA: 1-800-233-5921, 8 AM a 5 PM, hora del Este

answers, advice, affirmation.™

www.evenflo.com

USA: 1-800-233-5921 8 AM - 5 PM E.T.

Canada: 1-937-773-3971

México: 800-706-1200
