Paradise Silent - Humidifier TAURUS - Free user manual and instructions

USER MANUAL Paradise Silent TAURUS

Line drawing of a portable air purifier with lid and side-mounted ports (no text or symbols)

EN. Instructions for use

FR. Mode d'emploi

Line drawing of a kitchen appliance with three views: top view, front view, and side view (no text or symbols)

Simple line drawing of a conical frustum (no text or symbols)

Fig. 2

Line drawing of a teapot with lid and handle, no text or symbols present

Simple line drawing of a container with a pipette and a cross mark, no text or symbols present

Fig. 3

Line drawing of a portable water heater with a circular top and side ports (no text or symbols)

Fig. 4

Line drawings of a kitchen appliance showing exploded and assembled views (no text or symbols)

_

| _

一

1

ES

English (Original instructions)

HUMIDIFIER

PARADISE SILENT

DESCRIPTION

A 360° mist outlet

B Tank cover

C Water tank

D Mist flow tube

E Noise filter

F Base

G ON/OFF / mist flow knob and light

H Essence compartment

I Water tank anchorage

J Floater

K Atomizer

L Non-slip feet

M Supply cord

N Filter

O Filter lid

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE

- Fully extend the appliance's supply cord before each use.

- Do not use the appliance if its accessories are not properly fitted.

- Do not switch the appliance on without water.

- Do not use the appliance if the ON/OFF knob does not work.

- Do not move the appliance while in use.

- Do not use the appliance if it is tipped up and do not turn it over.

- Do not turn the appliance over while it is in use or connected to the mains.

- Respect the MAX level indicator.

- Unplug the appliance from the mains when not in use and before undertaking any cleaning task.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Do not expose the appliance to extreme temperatures.

- Keep the appliance in a dry, dust-free place, out of direct sunlight.

• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Only use water with the appliance.
• Always fill the tank with clean water. We recommend you use filtered or distilled water. Do not use mineral water. NEVER POUR WATER IN THE STEAM CHAMBER
• Check that the lid is closed properly before starting the appliance.

CAUTION: Water condensation may appear on the surfaces and objects around this appliance.

• Place on a flat, firm shelf about 0.5m or 1 m from the floor. Never use on the floor. Never tip. Secure the appliance to prevent it tipping over.
• Make sure the surface on which the appliance is installed/placed is moisture resistant.
• Do not place the steam outlet closet to furniture, a wall, a TV or any other appliance that could be damaged by the moisture. Excessive use or misuse of the appliance could over-saturate the air humidity and cause water to condense around the humidifier.
• Do not use the appliance when relative air humidity exceeds 80% . Using a hygrometer, regular check that the room's relative humidity is between 40% - 60% .
• The recommended comfortable room temperature is from 18-22 °C. Use the appliance within this range temperature. Below this temperature, the air in the room cannot absorb more moisture and condensation is more likely.
• Do not leave the appliance unattended when switched on.

INSTRUCTIONS FOR USE

BEFORE USE

• Make sure that all product's packaging has been removed.
• Remove the foam used to fix the floater (J) when you use it for the first time.
• Please read carefully the "Safety advice and warnings" booklet before first use.

FILLING WITH WATER

• You must fill the water compartment before turning on the appliance.
  • There are two ways of filling the water.

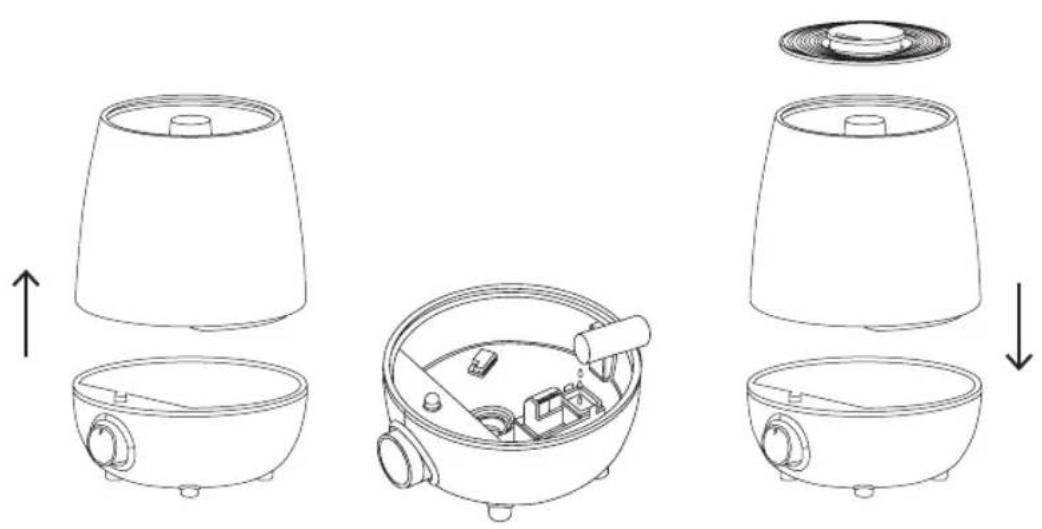

METHOD 1 (FIG. 1)

• Remove the tank cover (B).

• Remove the water tank (C) from the base (F).

• Place the water tank under the tap and add water according to the illustration.

• Fill the water tank taking care to observe the MAX level in the mist flow tube (D).
• Put the water tank back into its housing, ensuring that it is inserted properly fitting the water tank anchorage (I) with the corresponding recess in the water tank.
• Put the tank cover (B) back to it's place.

METHOD 2 (FIG. 2)

• Remove the tank cover (B).
• Pour water directly into the tank with the help of a glass, bottle or filling cup.
• Fill the water tank taking care to observe the MAX level in the mist flow tube (D).
• Put the tank cover (B) back to it's place.

USE

• Extend the supply cord completely before plugging it in.
• Connect the appliance to the mains.
• Guide the mist outlet to direct the flow of air in the desired direction (Fig. 3)
• Turn the appliance on, by using the ON/OFF knob.
• Choose the desired mist flow with the control knob between MIN a MAX flow position.
• If there is insufficient water in the tank, the knob light will change from blue (the appliance is in operating state) to red light and will turn off automatically. Before turning the device back on, follow the “Stand-by function” section steps.

AROMATHERAPY FUNCTION (FIG. 4)

• If you wich to use a water-based aroma essence, pour a few drops (3-5) in the essence compartment (H).
• Do not pour the aroma essence directly into the water tank.

MIST FLOW CONTROL

- The appliance has a control knob (G) that allows getting the control of the steam flow.

STAND-BY FUNCTION

• If the appliance runs out of water or there is a water shortage it will turn off automatically and the knob (G) will light in red.
• Disconnect the appliance and fill with water.

ONCE YOU HAVE FINISHED USING THE APPLIANCE

- Select the minimum position (OFF) using the control knob (G).

• Unplug the appliance from the mains.
• Remove the water from the water tank.
• Clean the appliance.

ATTENTION: The water tank must be cleaned every 72 hours.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never immerse the appliance in water or any other liquid or place it under running water.
• Never immerse the connector in water or any other liquid or place it under running water.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• Then dry all parts before its assembly and storage.
• There may be some scale deposits in the atomizer (K), particularly in areas with hard water. Overcome this drawback by cleaning the atomizer (K).
• Rub down with a dry cloth and remove remains of moisture.
• Do not place the atomizer (K) directly under the tap.
• Do not rub the atomizer (K) with hard or metal objects.
• Do not clean with chemical products.

CLEAN THE FILTER:

• Remove the filter (N) by opening the filter lid (O) pulling the latch inwards.
• Remove the filter (N) from the appliance and clean it by placing it under the tap.
• Leave it to dry.
• Once dry, put it back onto the appliance and close the filter lid (O) by pressing it until you hear a click.

HOW TO DEAL WITH LIME SCALE INCRUSTATIONS

• For the appliance to work correctly it should be kept free of limescale or magnesium incrustations caused by the use of hard water.
• To prevent this kind of problem, we recommend the use of water with low lime or magnesium mineralisation.
  • However, if it is not possible to use the kind of water recommended above, you should periodically remove the limescale from the appliance:
• Every 6 weeks if the water is "very hard".
• Every 12 weeks if the water is "hard".
• A specific anti-lime scale product should be used on this kind of product.
• Fill the tank with water plus the anti-lime product, leave about 30 minutes, drain and clean with water.
• Homemade solutions are not recommended in the decaling of this appliance, such as the use of vinegar.
