DOC301 - Barbecue LIVOO - Free user manual and instructions
Find the device manual for free DOC301 LIVOO in PDF.
| Product type | Portable charcoal barbecue |
| Brand | Livoo |
| Model | DOC301 |
| Use | Outdoor only, not for indoor use |
| Fuel type | Charcoal or briquettes conforming to NF EN1860-2 standard |
| Maximum fuel quantity | 1 kg or 50% of the tank capacity |
| Recommended ignition | Solid firelighters conforming to EN 1860-3 standard |
| Heating time before first cooking | At least 30 minutes, until a layer of ash forms |
| Main material | Steel |
| Cooking grate | Removable metal grate |
| Included accessories | Charcoal holder (charcoal chimney), cooking grate |
| Main safety instructions | Do not use indoors; do not move when hot; keep away from children and pets; use on flat, heat-resistant surface; do not block ventilation openings |
| Maintenance and cleaning | Wait for complete cooling, empty ashes 24 hours after use, clean after each use with a non-abrasive degreaser |
| Storage | In a dry, sheltered place, frost-free, preferably with a protective cover |
| Repairability and spare parts | Cooking grate and charcoal holder replaceable, contact Livoo after-sales service for parts |
| Manual available in multiple languages | FR, DE, EN, ES, IT, NL, PT |
Frequently Asked Questions - DOC301 LIVOO
User questions about DOC301 LIVOO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Barbecue in PDF format for free! Find your manual DOC301 - LIVOO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DOC301 by LIVOO.
USER MANUAL DOC301 LIVOO


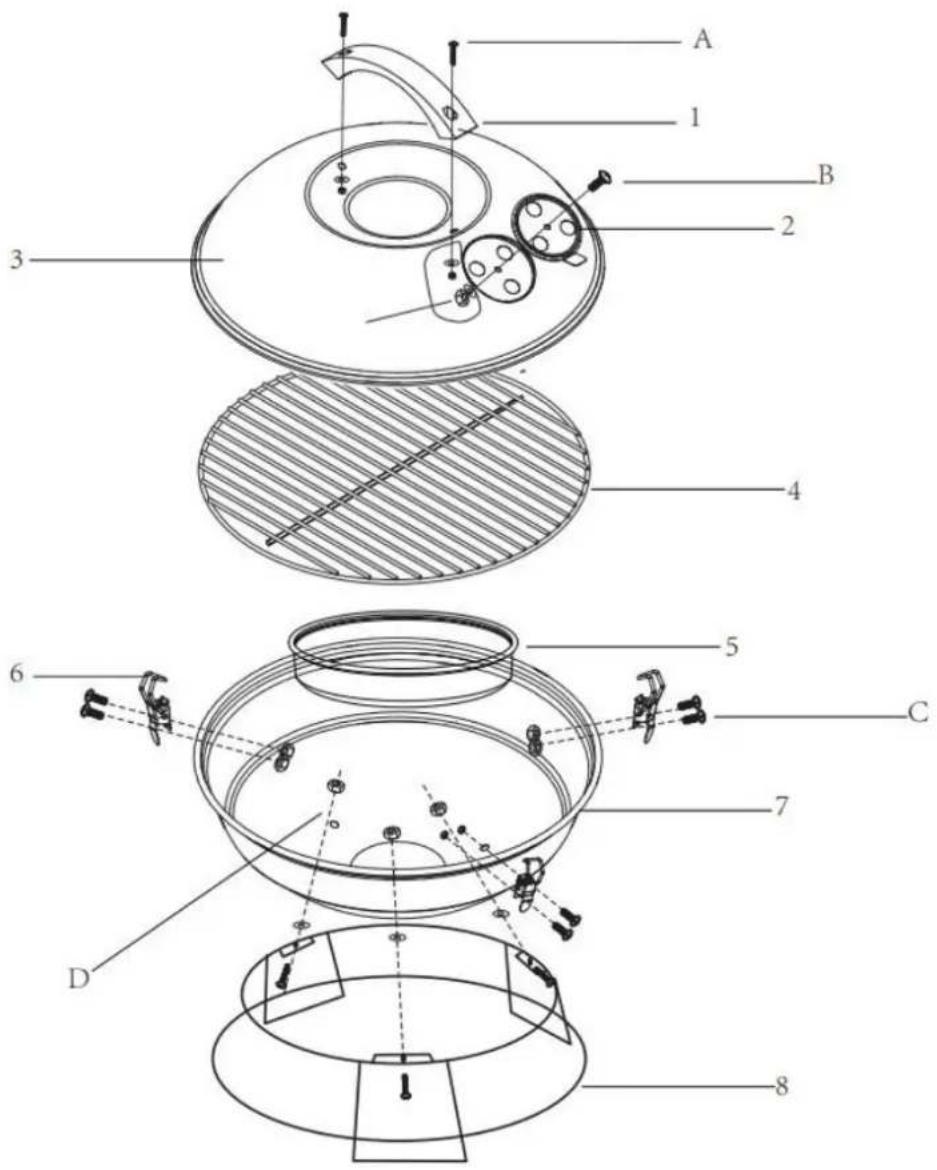

| Part No. | Photo | QTY | Part No. | Photo | QTY |
| 1 |  | 1 | 7 |  | 1 |
| 2 |  | 1 | 8 |  | 1 |
| 3 |  | 1 | A |  | 2sets |
| 4 |  | 1 | B |  | 1set |
| 5 |  | 1 | C |  | 6sets |
| 6 |  | 3 | D |  | 3sets |
Your blender, your barbecue, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer barbecue. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day.
That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible.
Find our entire collection on our website www.livoo.en.
Livoo, your daily companion till social networks
@Livoo
@livoo_officiel
@Livoo
Safety Instructions
Please, take time to read well the instruction sheet before the first use and keep them for a future use.
A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.
-
⚠️ CAUTION: This barbecue will become very hot. Do not move it during use.
-
CAUTION: Do not leave the barbecue within the reach of children and pets.
-
⚠️ WARNING! Do not use the barbecue in a confined and/or habitable spaces such as houses, sheds, caravan, tents, camper vans, garages, arbours, boat, etc. Risk of fire and
suffocation, death by carbon monoxide poisoning.
- The barbecue must be installed on a flat, level, stable and heat-resistant surface or floor before and during use.
- Use the appliance only for its intended purpose.
- Incorrect use or action and non-compliance with the safety instructions in this manual can result in serious injury or death.
- Incorrect use or action and failure to observe the safety instructions in this manual may result in fire or explosion, causing serious material damage.
- Never leave the appliance unattended during use.
- Do not attempt to limit flare-ups or extinguish charcoal with water.
- Do not obstruct the ventilation openings of the barbecue
- The appliance is intended for outdoor use only and in accordance with local regulations
-
Do not use near flammable materials or substances. Do not use within 1.5 metres of combustible material.
-
CAUTION: Do not use alcohol, gasoline or similar liquids to start or rekindle a fire. Only use fire starters if they comply with EN 1860-3!
- The barbecue must be heated up and the fuel kept glowing for at least 30 minutes before the first cooking.
- Before starting to cook, wait for a layer of ash to cover the fuel.
- Only use charcoal or charcoal briquettes that comply with the EN1860-2 standard as fuel in the pan.
- Do not place the charcoal directly on the bottom of the tank. Use the charcoal holder provided (springform pan).
- The amount of charcoal to be used should not exceed 50% of the maximum capacity of the tank.
- Do not wear loose clothing when lighting or using the barbecue.
- This appliance is for private use only. Do not use at events or in public places.
- Do not modify the appliance.
- Do not cover the appliance during use.
-
Do not use the barbecue in strong winds.
-
Do not use the barbecue if all parts are not in place. Refer to the parts list and assembly diagrams to assemble your barbecue. Incorrect assembly can be dangerous.
- Use appropriate heat-resistant barbecue utensils to handle cooking food. Wear protective gloves when using the barbecue to avoid burns. Some accessible parts can be very hot.
- Do not cover the cooking grate with foil, dish or container to avoid heat build-up. Do not cook in foil.
- Allow the barbecue, ashes and accessories or parts to cool completely before cleaning and storing. It is recommended to empty the ashes 24 hours after using the barbecue.
- Always allow to cool before storing or cleaning.
- Clean the appliance and its accessories after each use to avoid the accumulation of grease (risk of fire).
- Please store the appliance in a dry and sheltered place.
- The max. charcoal used shall be 1 kg.
Refer to the parts list and assembly diagrams to assemble your barbecue. Make sure that no parts or pieces are missing or damaged/broken, which could impair the proper functioning of the appliance. The guarantee for this appliance cannot be applied for abnormal conditions of use, incorrect storage conditions, lack of maintenance, modification of the product, professional use".
Lighting
Make sure the barbecue is positioned on a stable and level surface. Put a single layer of charcoal in the bowl, making sure that the charcoal rack is positioned correctly. The appliance must not be filled with fuel to more than 50% of its capacity.
An overfilled vessel will deteriorate very quickly and the temperature reached will be too high to cook your food and potentially dangerous (burns or fire).
Position solid fire starters and light.
Do not use liquid firelighters or fire lighting gel. Use only solid cubes
Wear protective gloves and open the vents wide (if the model has them) so that air can flow in and accelerate combustion.
The barbecue must be heated and the fuel kept glowing for at least 30 minutes before the first cooking.
Before starting to cook, wait for a layer of ash to cover the fuel.
For subsequent use, wait until there are sufficient embers and use a poker to spread the charcoal evenly over the entire surface of the pan.
CAUTION: This barbecue will become very hot. Do not move it during use.
When reloading the barbecue, wear suitable protective gloves, remove all food from the cooking grate, remove the cooking grate and reload the pan with the recommended fuels. Do not add firelighters. You can then reposition the cooking grate.
Use of the device
Never grill your food in the flames.
Make sure that the fire starters are completely burned out before you start cooking your food.
Cleaning and maintenance
After each cooking, wait for the fuel to burn out and the barbecue to cool down completely.
Empty the pan and/or ash pan and clean your barbecue and utensils after each use to avoid a highly flammable and toxic grease deposit.
Do not use sharp objects or abrasive cleaners for the cooking grate or the pan. It is preferable to use a strong degreaser.
Do not leave standing water in the pan, as this can cause rust and rapid deterioration of the materials.
Protect your appliance with a cover if you leave it outside in fine weather. Protect from rain and moisture when not in use for long periods of time.
• Non contractual illustration
- Product information is subject to change without prior notice.
