WK 500 - Kettle BRAUN - Free user manual and instructions

Product type	Electric kettle
Brand	Braun
Model	WK 500
Capacity	1.7 liters
Automatic shut-off	Yes (boiling, water shortage, open lid, removal from base)
Overheat protection	Yes
Scale filter	Removable, dishwasher safe
Base with cord storage	Yes
Indicator light	Yes (on switch)
Lid opening	Unlock button
Water level indicator	Marked on side
Power	2200 W (estimated)
Voltage	220-240 V (estimated)
Frequency	50-60 Hz (estimated)
Materials	Stainless steel and plastic
Dimensions (approx.)	22 x 15 x 25 cm
Weight (approx.)	0.8 kg
Care and cleaning	Exterior: damp cloth; interior: brush; regular descaling with vinegar
Safety	Do not immerse, do not open while boiling
Spare parts and repairability	Removable filter; power cord replaceable by a professional
General information	Household use only, water only

Frequently Asked Questions - WK 500 BRAUN

How to use the kettle for the first time?

Before first use, fill the kettle with fresh water to the maximum level, bring to a boil, then discard the water. Repeat this process 3 times.

Can I open the lid while the water is boiling?

No, never open the lid while boiling to avoid risk of burns from steam or boiling water.

What to do if the kettle accidentally turns on empty?

The overheat protection system automatically cuts off the power. Let the kettle cool down for 10 minutes before adding water.

How to descale the kettle?

Boil 0.8 L of water, turn off the kettle, add 0.4 L of vinegar (4% acidity). Let it sit overnight, then empty, rinse thoroughly, and boil clean water once.

Is the scale filter dishwasher safe?

Yes, the removable scale filter can be cleaned in the dishwasher. It can also be soaked in diluted vinegar.

Why is there condensation on the base after use?

This is normal. After several uses, a little condensation may form on the base. Simply wipe it with a dry cloth.

Can I use the kettle to heat something other than water?

No, this kettle is designed only for boiling water. Do not put milk, tea, or other liquids in it.

What is the maximum capacity of the kettle?

The maximum capacity is 1.7 liters of water. Do not exceed the indicated maximum level to avoid overflow of boiling water.

How to reduce the length of the power cord?

The cord can be wound in the storage compartment under the base. Make sure the cord does not hang from the worktop.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, an authorized technician, or a qualified person to avoid any danger. Do not use the appliance with a damaged cord.

USER MANUAL WK 500 BRAUN

Register your product

www.braunhousehold.com/register

WK 500

WK311

WK310

WK300

Deutsch 4

English 6

Francais 9

Espanol 11

Portugues 13

Italiano 15

Nederlands 17

Dansk 19

Norsk 21

Swedish 23

Finnish 25

Polish 27

Czech 30

Slovak 32

Hungarian 34

Croatian 36

Slovenian 38

Turkish 40

Romanian (MD) 42

Greek 44

Kazakh 46

Russian 49

Ukrainian 52

Copyright 2020. All rights reserved

De'Longhi Braun Household GmbH

Carl-Ulrich-Straße 4

63263 Neu-Isenburg/Germany

Deutsch

Thank you for purchasing the Braun Multiquick, we hope that the design and the rapid boil feature give you many years of pleasure.

Before use

Please read instructions carefully and completely before using the appliance.

Caution

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
• Children younger than 8 years shall be kept away from the appliance and its mains cord.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The kettle is only to be used with the stand provided.
• If the kettle is overfilled, boiling water may be ejected.
• Never immerse the unit in water or other liquids.
• This appliance is designed for household use only and for processing normal household quantities.
• Do not use the appliance for any purpose other than the intended use described in this user manual. Any misuse may cause potential injury.
• Avoid spillage on the connector.
• Please clean all parts before first use or as required, following the instructions in the Care and Cleaning section.
• Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bottom of the appliance.
• Only use the kettle to heat water.
• Only operate the kettle on a dry, flat and fixed surface.
• Never let the cord hang down from the worktop. The cord length may be reduced by winding it up with the cord storage facility.
• The base, the kettle or the cord must never get in contact with hot surfaces (e.g. stove plates).
• In case the empty kettle is switched on accidentally, the overheating protection will cut it off automatically. In this case, allow the kettle 10 minutes to cool down before filling it with water.

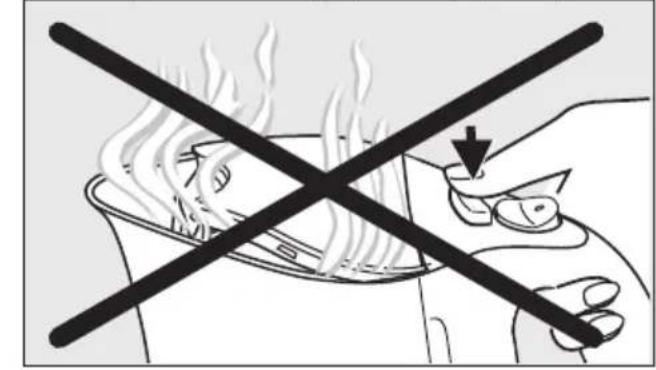

• Do not open the lid while water is boiling.
• During operation, the kettle will get hot and is subject to residual heat after use. Therefore only use the handle to carry it. Always hold the kettle in an upright position, to avoid boiling water comes out.
• Model WK 500 only: Make sure not to operate too many other electric appliances when using the kettle.
• Socket fuse at least: 16 A

Description

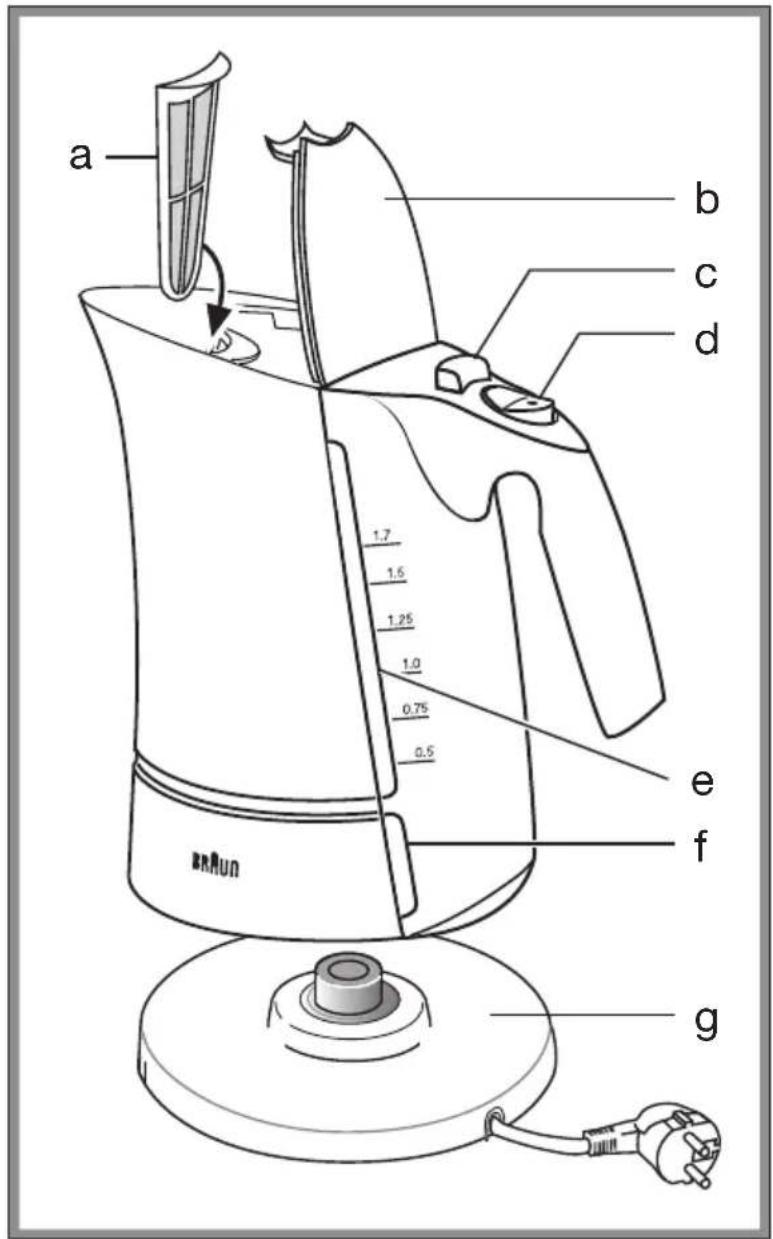

a Scale filter (removable) b Lid c Lid release button d On/off switch e Water level indicator f Pilot light g Base with cord storage

Max. capacity: 1.7 I water

Before first use

Before using the water kettle for the first time, fill it to the maximum level with fresh water, boil, then pour the water away. Repeat this procedure 3 times. After repeatedly boiling water it is normal

that some condensation may have formed on the base of the water kettle.

If this happens, just wipe dry with a cloth.

Setting into operation

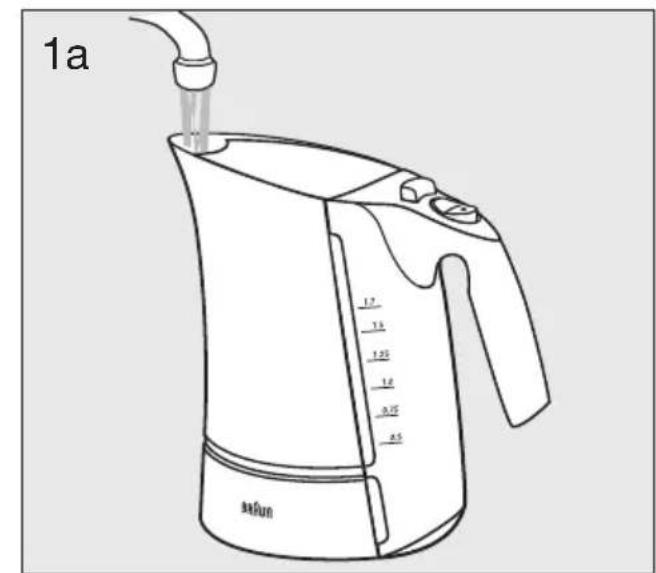

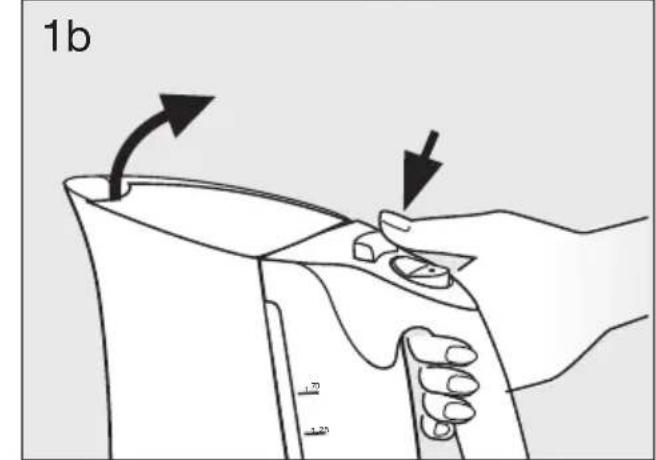

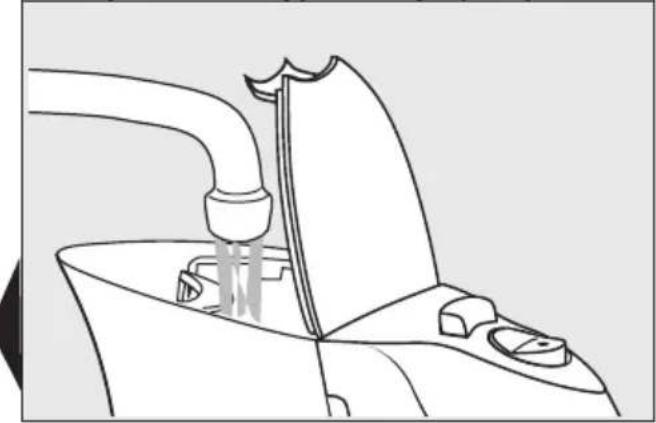

1a Fill the kettle through the spout with the lid closed, or 1b press the lid release button (c), open the lid, fill with water and close the lid again (the kettle will not work with the lid open). 2 Place the kettle on the dry base and plug in the base. 3 Press the on/off switch (d), the pilot light will come on (do not open the lid when the kettle is switched on). 4 When the water has boiled, the kettle automatically switches off.

You may also stop the heating procedure at any time by pressing the on/off switch (d).

1. Empty the water kettle after each use.

Note: If you have not used the water kettle for more than 2 days, rinse it with fresh water.

Automatic cut-off feature

The kettle switches off when .. the water has boiled, it contains no water (in case of accidental switching o the lid is opened, it is taken off the base.

If the scale filter is not installed, the automatic cut-off will be delayed.

Cleaning

Before cleaning, unplug the base.

Kettle or base must never be immersed in water. Clean the outside of the kettle with a damp cloth, the inner part can be cleaned by means of a brush. The removable scale filter is dishwasherproof.

Descaling

• To extend the kettle's lifetime and save energy, we recommend the following descending frequency:
• Every 3 months in case of normal use (up to 5 times a day) with low to medium water hardness.
• Every month in case of more frequent usage or with hard water.
• The water hardness you can check with your local water supplier.
• Boil 0.8 l water in the kettle.
• Important: Switch off the kettle and add 0.4 I household vinegar (4% acid). Do not boil the contents as it may cause spilling being a danger of scalding.
• Let the mix of water and vinegar sit in the kettle overnight.
• Empty the kettle and rinse the inside thoroughly with fresh water. Fill the kettle with fresh water and boil it.
• Empty the kettle and rinse it again with fresh water.
• If the kettle still contains scale, repeat this procedure.
• To remove any scale from the scale filter, you may soak it in diluted vinegar.

Subject to change without notice.

Please do not dispose of the product in the household waste at the end of its useful life.

Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Materials and accessories coming into contact with food conform to EEC regulation 1935/2004.

For UK Only

Guarantee Information

All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected.

Please keep your receipt as this will form the basis of your guarantee.

In the unlikely event of a breakdown you have access to professional help from our team simply by calling:

02392 392333

For service in the Republic of Ireland please call: 012475471

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

We are promptly informed of the defect. The product is used and maintained in accordance with the User Instructions. - The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household. - No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use. - Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee. - The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.

Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.

Braun Household, New Lane, Havant, Hampshire PO9 2NH

www.braunhousehold.co.uk

Français

• Heri3dH aIbIHFaH XaFdaIJa.

If the device is not working, it may be necessary to contact the service center.

Cleaning

Clean the device regularly.

Do not use aggressive cleaning agents.

The cleaning method depends on the type of contamination. Use a soft cloth for cleaning. Do not use solvents or abrasive materials.

Disposal

• To increase the service life and preserve the device, it is necessary to dispose of it properly: do not throw it into household waste; hand it over to a special collection point (within 5 working days).
• Do not dispose of the device with household waste. You can get information about proper disposal from your local waste management authority.
• Pour 0.8 liters of water into the device. Then: pour out the water, add 0.4 liters of vinegar (4% solution). Pour it into the container, leave it for a while, then pour it out. Rinse with clean water.
• Pour out the water, then wipe the inside with a dry cloth. Pour water into the device, close it, and pour it out.
• Pour out the water and rinse it with clean water.
• If the device is dirty, clean it as described above.

To remove the taste from the device, you can rinse it with water or a vinegar solution.

From the container

The product must be used within 5 days after opening. The opening date should be written on the label. The next 2 days after opening should be considered as the expiration date. The last 2 days of 1992 are considered as the production date. Example: 30421 - produced on the 4th of April 2013.

Ylrgi	WK 300, WK 500
Kephey 220 - 240 B
Tepu 50 - 60 Tc
Batt	WK 300: 1920-2280 Bt WK 500: 3000 Bt
Сатушартысы:	Tempepatya: +5°C xəne +45°C ылгалдыльк: < 80%

Remove

Remove

Manufacturer:

Remove

Remove

The product must be stored in a cool, dry place.

The product's shelf life is 2 years from the date of manufacture.

Importer:

Remove

Shelf life: specified

Storage conditions: store in a cool place

Comply with storage conditions

Disposal: Dispose of in accordance with local regulations.

Sales conditions: Sales conditions are determined by the seller, but they must comply with national and international standards.

Акayльк Себебі Шевimi
Шаінек жуmbісICTемід.	Куат кOK. Шаінектін рocзеткаfa косылfasьінTekсерінiz3.Шаінектін КУСТБИРБИн Дурьс OpнатылfasьінTekсерінiz3. YИИДERI сakтандырБИТы/КыICKaТУВКТБИSTБI Tekсерінiz3.Еreamжогарыларын,Eшkaісысы anbікталмасa,«Тexнікальк КыЗМETКерсETYЖЕНТУТБИHNYBILAPДыKOДay»белIMINКараньiz3.
Шаінеккайнанан кeіинавTomatы Турdeшпейдіnomeceэшу укытBi TыМУЗК.	Сузri cy afaTbIHшумekke дəлкentipimerehen.
Суаftыншумekteh cyшш�райд.	Шаінекke cy Тымасырka КИьлФан.
	Сузri cy afaTbIHшумekke дəlкentipimerehen.
Шаінек жуmbісICTen{Tурын ошinКалады.	КыздырБИТаКТаFAэК/Minepal'dы 3aTTapТузilген
	Шаінекteri cydlnketytckiiKoJIJIcɪsɪЗбolybHa6aIIaHbICTbI CdyblnKaihan TApTbIylnbHAnKopFauTbHФУHKUЯIcke KOSBILFaH.

Operating Instructions

Thank you for purchasing the Braun Multiquick hand blender. We hope that its high quality will give you satisfaction for many years.

Before use

Before using the appliance, please read the instructions carefully and completely.

Caution!

- This appliance can be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - This appliance is not intended for children. Cleaning and user maintenance shall not be performed by children, unless they are older than 8 years and supervised by an adult. - The appliance and its cord should be kept out of reach of children under 8 years. To prevent hazardous situations, if the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person. - The hand blender is intended for use only with the base supplied. - If the hand blender is overfilled, hot liquid may spill out. - Do not immerse the appliance in water or any other liquid. - This appliance is intended exclusively for domestic use, for processing food in quantities normal for a household. - Use of the appliance for purposes other than those specified in this manual is strictly prohibited. Any misuse may result in injury. - Take precautions to avoid splashing onto the base. Before first use, clean all parts properly as described in the section “Care and Cleaning”.

• Before first use, clean all parts properly as described in the section “Care and Cleaning”.
• Before plugging into the outlet, check that the mains voltage matches the voltage indicated on the bottom of the appliance.
• The hand blender is intended exclusively for heating water.
• Operation of the hand blender is only permitted on a dry, flat, stable surface.
• During use, make sure the cord is not below the level of the countertop. The cord length can be shortened by winding it in the cord storage compartment.
• The base, hand blender, and cord must not come into contact with hot surfaces (e.g., hot plates). In case of accidental switching on of the empty hand blender, the overheat protection will automatically switch off the appliance. In this case, let the hand blender cool down for 10 minutes before filling it with water. Do not open the lid while water is boiling.
• During operation, the hand blender heats up and retains residual heat after use. Therefore, hold it only by the handle. Always keep the hand blender in a vertical position to prevent splashing of boiling water. Only for model WK 500. When using the hand blender, make sure that not too many other electrical appliances are connected to the same socket.
• Rated power of the socket: nominal current not less than 16A

Description and package contents

a Filter against scale (replaceable) b Lid with button for releasing the lid c Switch on/off d Water level indicator e Indicator f Base with cord storage compartment

Maximum capacity: 1.7 liters of water

Before first use

Before first use, fill the kettle with fresh water to the maximum level, boil it, and then pour out the water. Repeat this procedure 3 times. Repeat this procedure once more. After several boils, condensation may form on the base of the kettle. In this case, simply wipe the base with a dry cloth.

How to use the kettle

1a Fill the kettle with water through the spout with the lid closed, or 1b Press the lid release button (c), lift the lid, fill the kettle with water, and close the lid again (the kettle will not work with the lid open). 2 Place the kettle on the base and connect it to the power supply. 3 Press the on/off switch (d), the indicator will light up (do not open the kettle lid while it is on). 4 When the water boils, the kettle switches off automatically. You can also switch off the kettle at any time by pressing the on/off switch (d). 5 After each use, empty the kettle.

Note: If the kettle has not been used for more than 2 days, rinse it with fresh water.

Automatic shut-off system

The kettle switches off automatically when:

Water boils - The kettle is switched on without water - The kettle lid is open - The kettle is switched on but not placed on the base.

If the scale filter is not installed, the automatic shut-off system will operate later.

Cleaning the kettle

During cleaning, the base can be disconnected from the electrical network. Never immerse the kettle or its base in water during cleaning. Wipe the external surface of the kettle with a damp cloth; the internal surface can be wiped with a soft cloth.

Removing scale

To extend the service life of your kettle, it is recommended to regularly remove scale. Boil 0.8 L of water in the kettle.

• Important: Turn off the kettle and add 0.4 liters of vinegar (4%). Do not boil the contents, as boiling water may splash and cause burns.
• Leave the mixture of water and vinegar in the kettle overnight. Then rinse it with the maximum amount of clean water.
• After that, pour out the water and rinse the kettle with clean water.
• If after this the kettle still contains scale, repeat these procedures again. To clean the filter from scale, you can immerse it in diluted vinegar.

Changes may be made to the product without notice.

Manufacturing date

To find out the production date, look at the product's serial number (near the table with the series designation). The first digit indicates the last digit of the year of manufacture. The next two digits are the calendar week. The last two digits indicate the edition (automatically counted since 1992).

Example: 30421 - the product was released in 2013 (in week 4).

Transport conditions: During transport, do not drop or subject to excessive vibration.

Terms of sale: The seller has not established specific terms of sale, but they must comply with regional, national, and international norms and standards.

Manufacturer: De'Longhi Braun Household GmbH, Carl-Ulrich-Strasse 4, 63263 Neu Isenburg, Germany

Troubleshooting

Maximum capacity: 1.7 liters

Before first use

Before first use, fill the kettle with fresh water up to the maximum mark, boil it, and then pour out the water. Repeat this procedure 10 times.

After several boils, limescale may form on the base of the kettle. In this case, simply wipe the base with a dry cloth.

Using the kettle

1. Fill the kettle with water through the spout with the lid closed, or press the lid release button (c), open the lid, fill the kettle with water again, and close the lid (the kettle will not operate with the lid open).

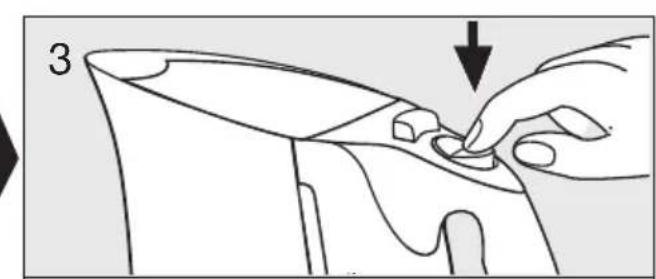

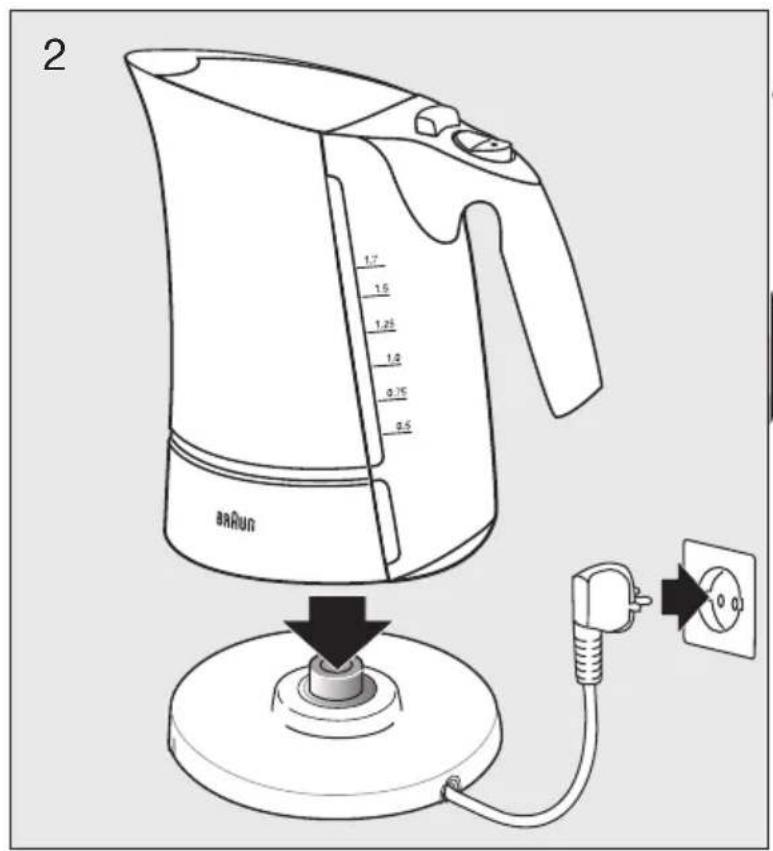

2. Place the kettle on its base and connect it to the power supply. 3. Press the on/off switch (d); the indicator will light up (do not open the lid while the kettle is on). 4. When the water boils, the kettle will turn off automatically. You can also turn off the kettle at any time by pressing the on/off switch (d). 5. Empty the kettle after each use.

Note: If you do not use the kettle for more than 2 days, rinse it with fresh water.

The manufacturer reserves the right to make changes without prior notice. The product complies with the technical regulations on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Hotline: [phone] Toll-free telephone.

Automatic kettle topic

The kettle will turn on automatically when:

• Water boils
• The kettle was turned on accidentally
• The kettle lid is open
• The kettle was turned on, but not placed on the base.

If the filter is not installed, the automatic system will turn off later.

Descaling

Before descaling the kettle, you must disconnect the base from the mains. During descaling, never immerse the kettle and its base in water. Wipe the outside of the kettle with a damp cloth; the inside may be cleaned with a brush.

Descaling procedure

To extend the service life of your kettle, it is recommended to regularly perform the descaling procedure. Pour 0.8 liters of water into the kettle. Important: turn off the kettle and add 0.4 liters of vinegar (4%). Do not boil the contents, as hot water may splash and cause burns. Leave the mixture in the kettle for a while. - Rinse the kettle and fill it with the maximum amount of clean water. - After that, pour out the water and rinse again with clean water. - If after this the kettle still contains scale, repeat the procedure again. - To clean the filter from scale, you can immerse it in a diluted vinegar solution.

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

i

. 111111111111111111111111111111111
