USER MANUAL WX844.9 WORX

18cA NAIL FORCE AIR IMPACT TECHNOLOGY 20

20V Cordless Narrow Crown Stapler	EN	P08
20V Kabelloses Schmalkronenheftgerät	D	P15
Agrafeuse à couronne étroite sans fil 20 V	F	P23
Sparachiodi a corona stretta a batteria 20V	I	P31
Grapadora de corona estrecha sin cable de 20V	ES	P39
Agrafador de coroa estreita sem fios de 20V	PT	P47
20V Snoerloze smalle nietmachine	NL	P55
20 V smal akku-hæftemaskine	DK	P63
20V batteridrevet stiftemaskin med smal krone	NOR	P70
20V Sladdlös smal kronhäftapparat	SV	P77
Bezprzewodowy zszywacz do zszywek z wąską koroną 20 V	PL	P84
Karpfwtikó για συνδετήρες στενής στεφάνης μπαταρίας 20V	GR	P92
20 V-os vezeték nélküli keskeny koronás tűzőgép	HU	P101
Capsator pentru capse înguste, cu accumulator 20V	RO	P109
20V bezšňúrová sponkovačka na spony 1/4"	CZ	P117
20 V akumulátorová úzka zošívačka Crown	SK	P125
20V Brezžični ozek kronski spenjač	SL	P133
Аккумуляторный степлер	RU	P141

Completely black image with no visible content, text, or symbols.

Original instructions	EN
Originalbetriebsanleitung	D
Notice originale	F
Istruzioni originali	I
Manual original	ES
Manual original	PT
Oorspronkelijke gebruiksaanwijzing	NL
Original brugsanvisning	DK
Opprinnelige Instruksjonene	NOR
Bruksanvisning i original	SV
Instrukcja oryginalna	PL
Прωτοτυπο οδηγιων χρησης	GR
Eredeti használati utasítás	HU
Instrucțiuni originale	RO
Původní návod k používání	CZ
Pôvodný návod na použitie	SK
Izvirna navodila	SL
Оригинальное руководство по эксплуатации	RU

18GA NAIL FORCE AIR IMPACT TECHNOLOGY 201 NAIL FORCE AIR IMPACT TECHNOLOGY 13 4 5 6 7 8 9 10 11 12 13 14

A1 201

A2 ① ② 301

A3 A3

B 201

C1 ② ①

C2 3/4" 1"25mm 1-1/4"32mm 1-1/2"38mm 1-5/8"40mm 19mm ② ①

D NAIL FORCE 18mm TITR WOR VITRG 20 LEEP CDD

E1 ① ② ③

E2 1 2

F

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges

or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power

tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, staples, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

STAPLER SAFETY WARNINGS

1. Always assume that the tool contains fasteners. Careless handling of the stapler can result in unexpected firing of fasteners and personal injury.
2. Do not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge the

fastener causing an injury.

1. Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.
2. Disconnect the tool from the battery when the fastener jams in the tool. While removing a jammed fastener, the stapler may be accidentally activated if it is plugged in.
3. Do not use this stapler for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, staples, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.

d) Do not subject battery pack to mechanical shock.

e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Keep battery pack clean and dry.

g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

i) Do not maintain battery pack on charge when not in use.

j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.

k) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.

I) Do not use any battery pack which is not designed for use with the equipment.

m) Keep battery pack out of the reach of children.

n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.
s) Warning! Do not use non-rechargeable batteries.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Warning
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Make sure the battery is removed prior to changing accessories or making any adjustments to the tool.
	Wear protective gloves
	Do not burn
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

Li-Ion battery. This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

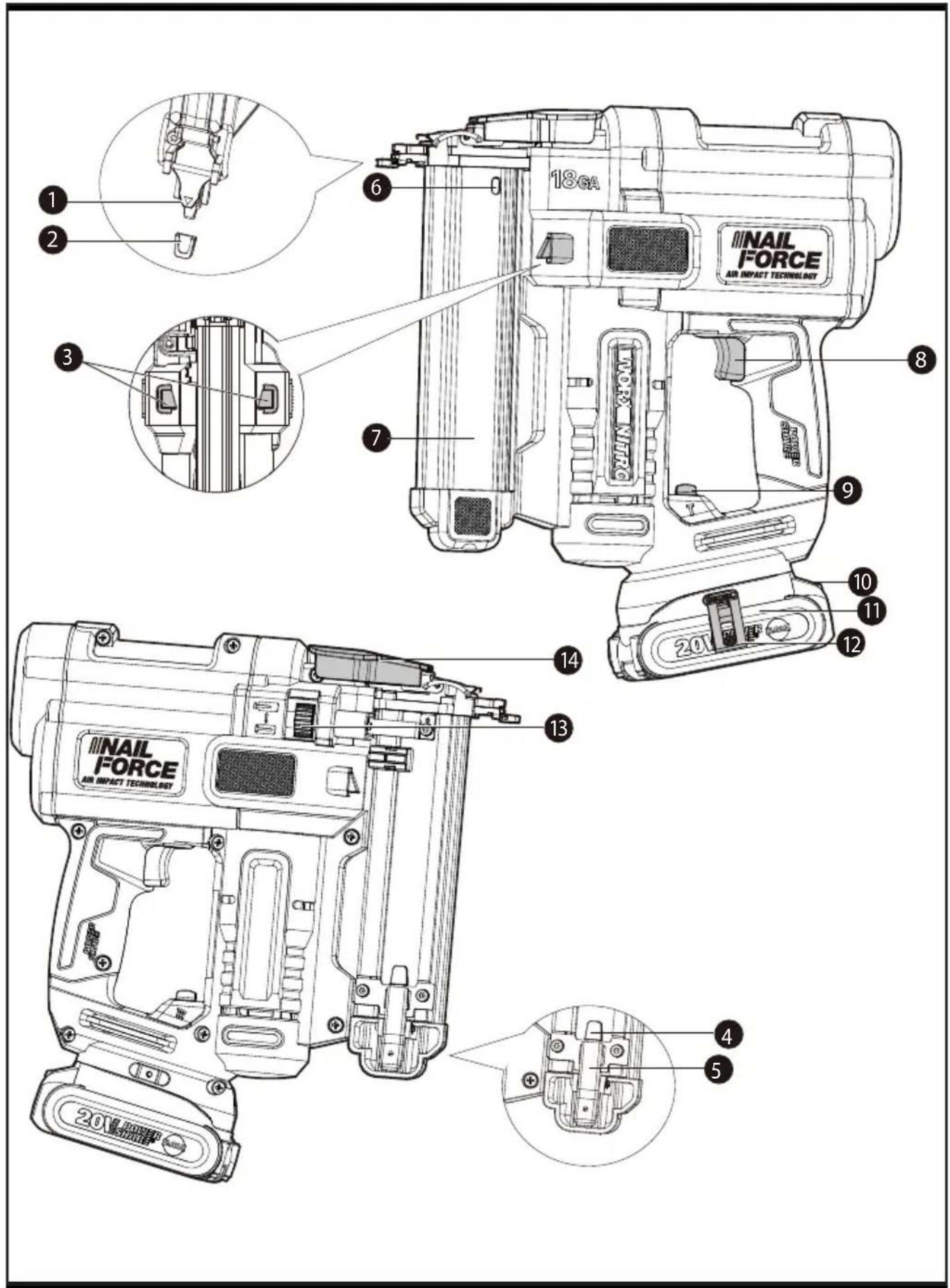

1. COMPONENT LIST

1. WORKPIECE CONTACT

2. NO-MAR PAD **

3. LED WORKLIGHTS

4. SPARE NO-MAR PAD

5. MAGAZINE RELEASE BUTTON

6. LOW STAPLE INDICATOR WINDOW

7. SIDE-LOADING MAGAZINE

8. ON/OFF TRIGGER

9. MODE SELECTOR SWITCH

10. BATTERY PACK RELEASE BUTTON *

11. BATTERY PACK *

12. BELT HOOK

13. TOOL-FREE DEPTH OF DRIVE ADJUSTMENT

14. TOOL-FREE JAM RELEASE

* Not all the accessories illustrated or described are included in standard delivery.
**If this component is severely worn, it can be replaced with a SPARE NO-MAR PAD.

3. TECHNICAL DATA

Type WX844 WX844.X (844 - designation of machinery, representative of crown staple)

** X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models.
***Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

	WX844 WX844.X **
Voltage	20 V-Max. ***
Magazine capacity 100 staples
Stapler speed 80 staples/min
Staple type 18 gauge
Staple length(18Ga narrow crown staple)	19 mm - 40 mm
Machine weight (bare tool)	2.8 kg

SUGGESTED BATTERIES AND CHARGERS

Category	Type Capacity
20V Battery WA3639 2.0 Ah
20V Charger	WA3880 2.0 A

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

NOISE INFORMATION

A weighted sound pressure L	_pA = 81.5 dB(A)
A weighted sound power L	_wA = 92.5 dB(A)
K_pA & K_wA	3 dB(A)

Wear ear protection.

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:

Vibration emission value:	a_h = 3.742 m/s
	Uncertainty K = 1.5 m/s2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)

If the tool is to be used regularly then invest in anti vibration accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

4. INTENDED USE

This tool is intended for finishing and trimming (interior and exterior), such as door & window casing, door jambs, baseboard, crown molding, cabinetry, cap and shoe molding, molding, staircases, door & window trimming, chair rail, brickmolding, hardwood flooring, paneling, furniture, etc..

5. OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

WARNING: Keep the tool pointed away from yourself and others when loading staples.

Always remove the staples and battery pack when tool is not in use. Failure to do so could result in possible serious personal injury

ASSEMBLY AND OPERATION

ACTION FIGURE
BEFORE OPERATION

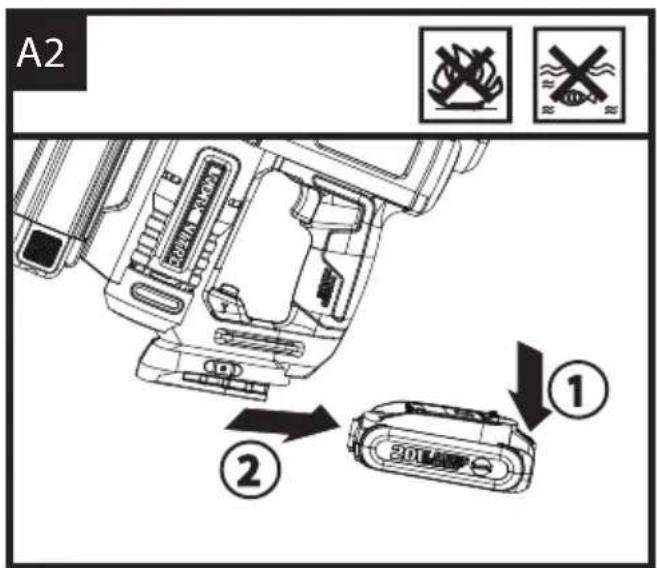

Installing/removing the battery pack	See Fig. A1, A2

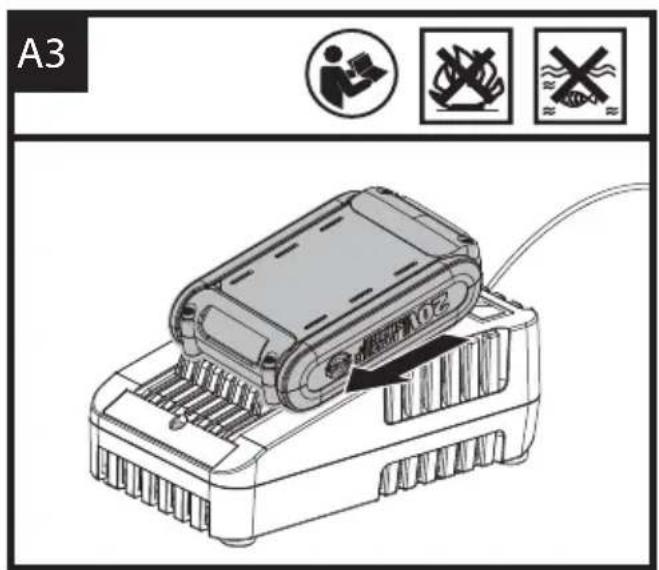

Charging the battery pack See Fig.	A3
ASSEMBLY

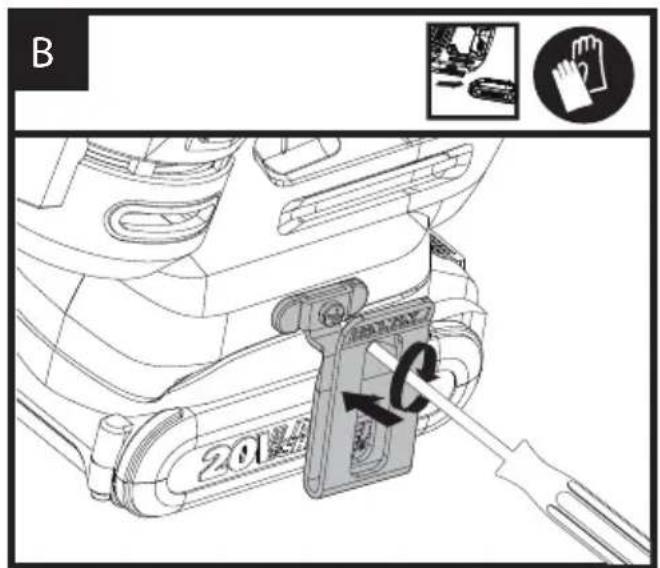

Installing the belt hookNOTE: The belt hook can be installed on the left or right side of the stapler.	See Fig. B

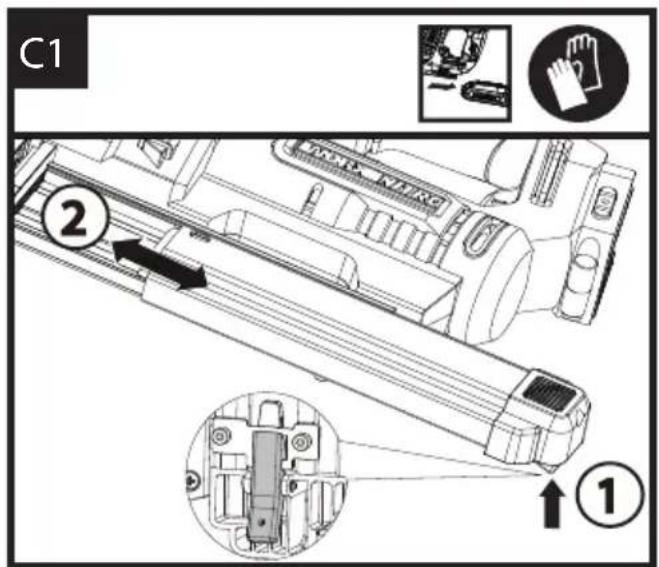

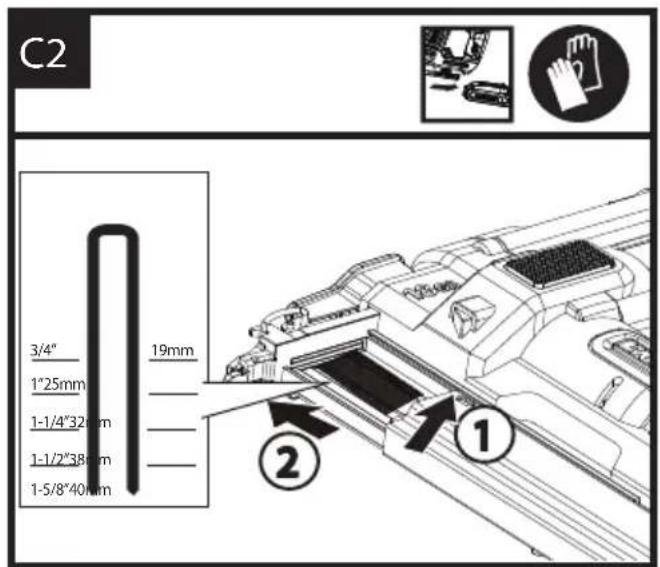

Loading the tool with crown staples1. Remove the battery pack if installed.2. Squeeze the magazine release button located on the rear of the magazine and slide the magazine cover open3. Place crown staples in the upper left corner of channel4. Push the magazine cover closed until it securely snaps into place, you may now reinstall battery packWARNING: Use safety gloves. Keep the tool pointed away from yourself and others when loading staples. Failure to do so could result in possible serious personal injury.	See Fig. C1, C2
OPERATION

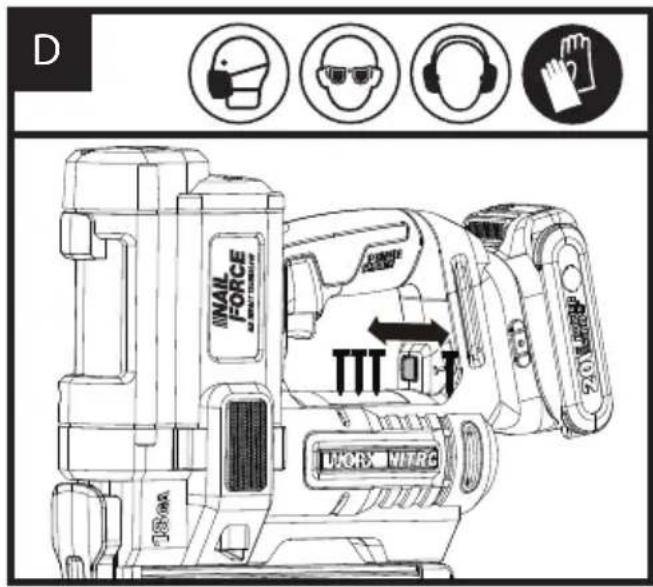

Selecting the stapling modeSingle sequential actuation mode: Provides accurate staple placement↑Contact actuation mode: Allows for fast repetitive staple placementITTWARNING: The stapler will not function properly if the selector is not securely seated in either position. Always assure the selector is seated properly to avoid an unexpected staple discharge and possible serious personal injury.	See Fig. D

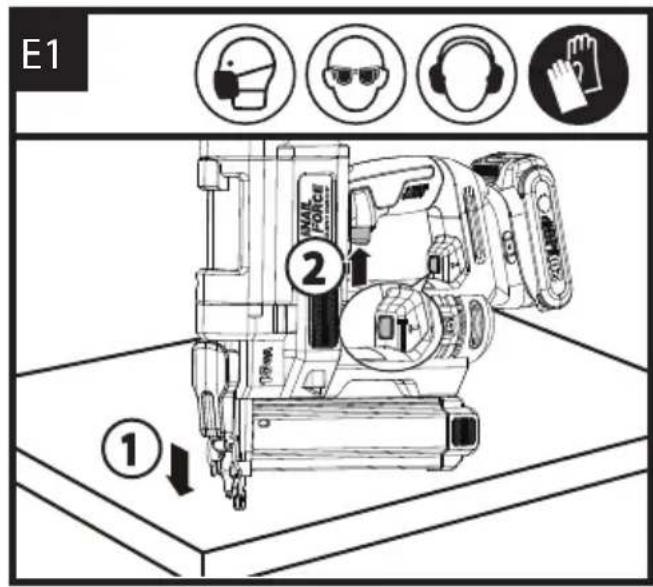

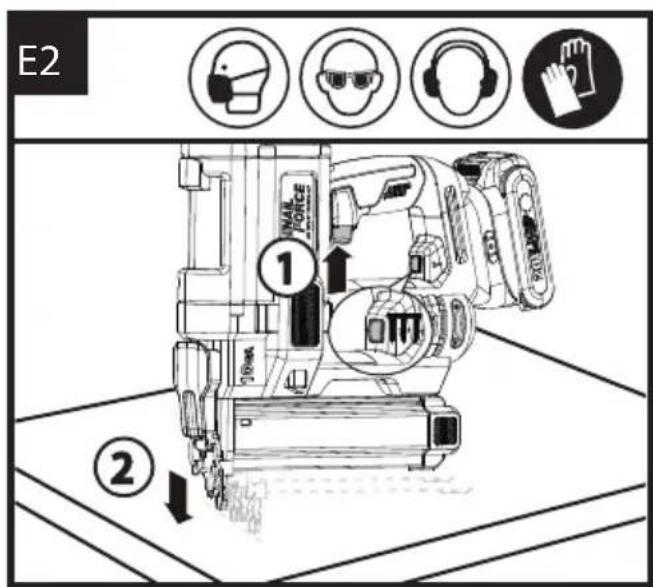

Using the on/off trigger in two different modesSingle sequential actuation mode:-Push the workpiece contact against the work surface first and then squeeze the on/off trigger-Relase the on/off trigger and the workpiece contact.Contact actuation mode:-Squeeze and hold the trigger.Push the tool against the work surface to depress the workpiece contact and drive a staple.-Release the workpiece contact once after each stapling action.-Move the tool and then push the workpiece contact again.NOTE: The stapler will operate only when squeezing the on/ off trigger and pushing the work piece contact against the work surface simultaneouslyNOTE: If there is no stapling action within 5 seconds after pressing the on/off trigger or pushing the workpiece contact, release the on/off trigger or the workpiece contact once and then operate again.WARNING: Never wedge or hold back the workpiece contact mechanism during operation of the tool. Doing so could result in possible serious injury.	See Fig. E1, E2

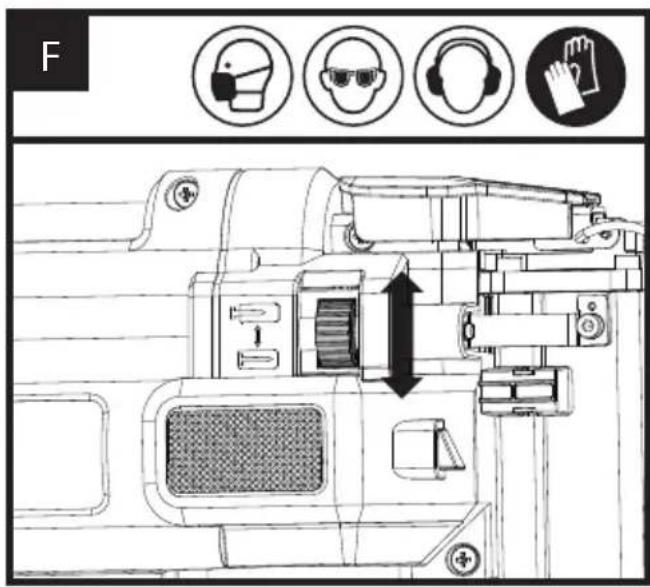

Depth of drive adjustmentTurn the depth of drive adjustment knob up or down to change the driving depth.NOTE: Drive a test staple after each adjustment until the desired depth is set.	See Fig. F

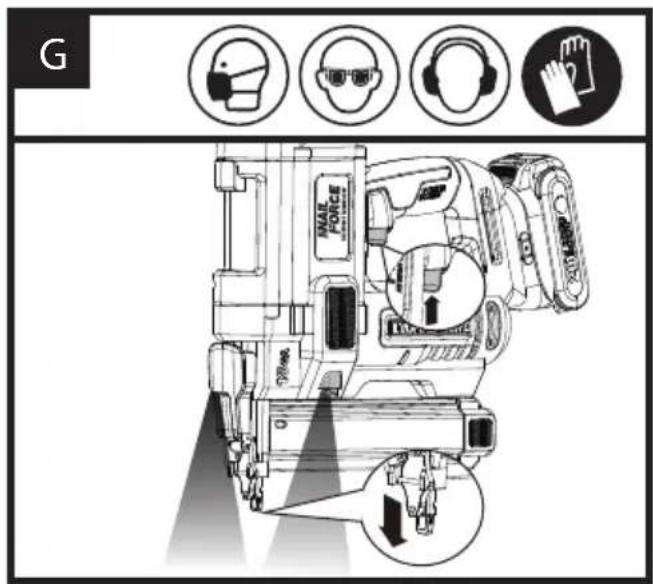

LED worklightNOTE: The LED worklights will be activated when pressing the on/off trigger or pushing the workpiece contact.NOTE: The LED Worklights provide feedback to indicate whether the tool is functioning properly.(See troubleshooting)	See Fig. G

Removing a jammed staple Try to operate the tool for two more times to confirm the staple is jammed.

NOTE: Before removing a jammed staple, open the magazine(see fig. C1) and remove all the staples.

WARNING: Always remove the battery pack

first and wear safety gloves.

• Keep the magazine open.
• Pull up on the tool free jam release and unhook the latch
• Make sure the tip of the driving mechanism is in the initial position, if not, insert a flat head screwdriver into the tip of the driving mechanism and push back.
• Remove any bent staples
• Close the jam release and latch
• Reinstall crown staples and reactivate the tool

See Fig. H1, H2, H3

6. MAINTENANCE

Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

FOR BATTERY TOOLS

The ambient temperature range for tool and battery use and storage is (0 °C-45 °C).

The recommended ambient temperature range for the charging system during charging is (0 °C-40 °C).

Details regarding safe disposal of used batteries

At the end of the life of the appliance, remove the battery pack safely before disposing of the appliance. Do not throw batteries away or throw them in the normal trash can. Also do not dispose of the battery with the machine. Remove the used battery pack from the appliance and dispose of it at the nearest or convenient dedicated recycling facility. If in doubt, consult your local environmental protection department. Batteries may enter water cycle if disposed improperly, which can be hazardous for

ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

7. ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your authorities or retailer for recycling advice.

8. TROUBLESHOOTING

Symptom	Possible Causes	Possible Solution
Tool does not operate properly:
LED light flashing 5 times	No staples Replenish staples
LED light flashing 2 times	Battery is low	Charge the battery pack
LED light flashing 3 times	Tool is hot Wait until the tool cools down
Tool operates properly, but fasteners do not drive fully	Depth of drive isn't deep enough Staple is too long for wood hardness	Adjust depth of drive Use staple length that is appropriate for wood
Tool operates properly, but fasteners are driven too deep	Depth of drive is too deep	Adjust depth of drive
Frequent empty stapling Jammed	staples or damaged staples	Pull up on the tool free jam release and unhook the latch. Check whether there are jammed staples or damaged staples inside. If so, remove the jammed staples or damaged staples in time.
Tool jams frequently	Incorrect staples Damaged staples Dirty magazine	Verify that staples are the correct size Replace staples Clean magazine

9. DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product

Description WorxNITRO Cordless Crown Staple

Type WX844 WX844.X (844 - designation of

machinery, representative of crown staple)

Function Fastening various materials

Complies with the following Directives:

2006/42/EC

2014/30/EU

2011/65/EU&(EU)2015/863

Standards conform to

EN 60745-1

EN 60745-2-16

EN IEC 55014-1

EN IEC 55014-2

EN IEC 63000

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

A#

C€

2023/08/22

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHALTSVERZEICHNIS

Vibrationsemissions-wert:	a_h = 3.742 m/s^2
	Uncertainty K = 1.5 m/s2

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

The recommended ambient temperature range for the charging system during charging is 0^ C à 40^ C.

DÉTAILS CONCERNANT L'ÉLIMINATION SÛRE DES BATTERIES USAGÉES :

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

9. DÉCLARATION DE CONFORMITÉ

Nous,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

VEILIGHEIDSWAARSCHUW- INGEN NAGELPISTOOL

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

9. CONFORMITEITVERKLARING

Wij,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

9. KONFORMITETSERKLÆRING

Vi,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNEHÅLLSFÖRTECKNING

1. SÄKERHETSINSTRUKTIONER
2. KOMPONENTER
3. TEKNISK INFORMATION
4. ÄNDAMÅLSEN LIG ANVÄNDNING
5. BRUKSANVISNING
6. UNDERHÅLL
7. MILJÖSKYDD
8. FELSÖKNING
9. DEKLARATION OM ÖVERENSSTÄMMELSE

1. SÄKERHETSINSTRUKTIONER GENERELLA SÄKERHETSVARNINGAR FÖR ELVERKTYG

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

9. DEKLARATION OM ÖVERENSSTÄMMELSE

Vi,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

9. DEKLARACJA ZGODNOŚCI

My,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

Vibration total values (triax vector sum) determined according to EN 60745:

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

9. MEGFELELŐSÉGI NYILATKOZAT

A gyártó:

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OBSAH

1. BEZPEČNOSTNÍ POKYNY
2. SEZNAM SOUČÁSTEK
3. TECHNICKÉ ÚDAJE
4. ÚČEL POUŽITÍ
5. NÁVOD K POUŽITÍ
6. ÚDRŽBA
7. ODSTRANĚNÍ ZÁVAD

8. PROHLÁŠENÍ O SHODĚ

9. OCHRANA ŽIVOTNÍHO PROSTŘEDÍ

1. BEZPEČNOSTNÍ POKYNY OBECNÁ BEZPEČNOSTNÍ UPOZORNĚNÍ PRO ELEKTRICKÉ NÁSTROJE

Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OBSAH

1. BEZPEČNOSTNÉ POKYNY
2. ZOZNAM SÚČASTÍ
3. TECHNICKÉ ÚDAJE
4. ÚČEL POUŽITIA
5. NÁVOD NA POUŽITIE
6. ÚDRŽBA
7. OCHRANA ŽIVOTNÉHO PROSTREDIA
8. ODSTRÁNENIE ZÁVAD
9. PREHLÁSENIE O ZHODE

1. BEZPEČNOSTNÉ POKYNY VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA NA POUŽÍVANIE ELEKTRICKÉHO NÁRADIA

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

KAZALO VSEBINE

1. VARNOSTNA NAVODILA
2. LISTA DE COMPONENTES
3. TEHNIČNI PODATKI
4. NAMEN UPORABE
5. NAVODILA ZA UPORABO
6. VZDRŽEVANJE
7. VAROVANJE OKOLJA
8. RESOLUÇÃO DE PROBLEMAS
9. DECLARAÇÃO DE CONFORMIDADE

1. VARNOSTNA NAVODILA SPLOŠNA VARNOSTNA NAVODILA ZA ELEKTRIČNA ORODJA

OPOZORILO! Preberite vsa opozorila in

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ОГЛАВЛЕНИЕ

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Copyright © 2023, Positec. All Rights Reserved.

AR01732001
