Table of Contents

IMPORTANT NOTICE....3

Safety information .... 3

Precautions....6

Parts and Controls 8

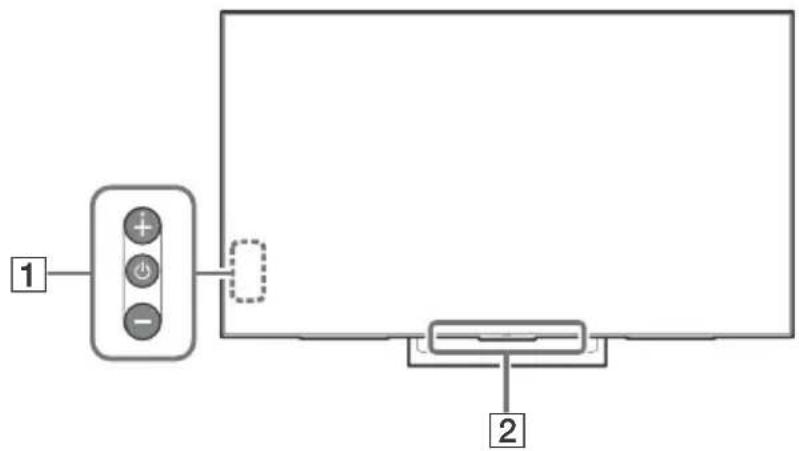

Controls and Indicators 8

Using Remote Control 9

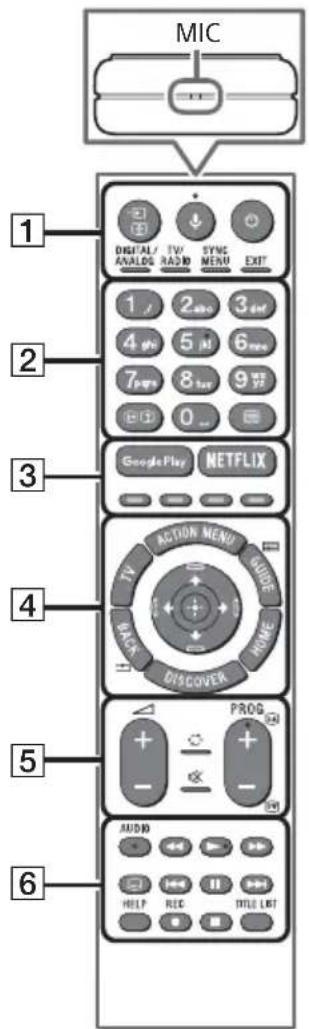

Remote Control Parts Description.....9

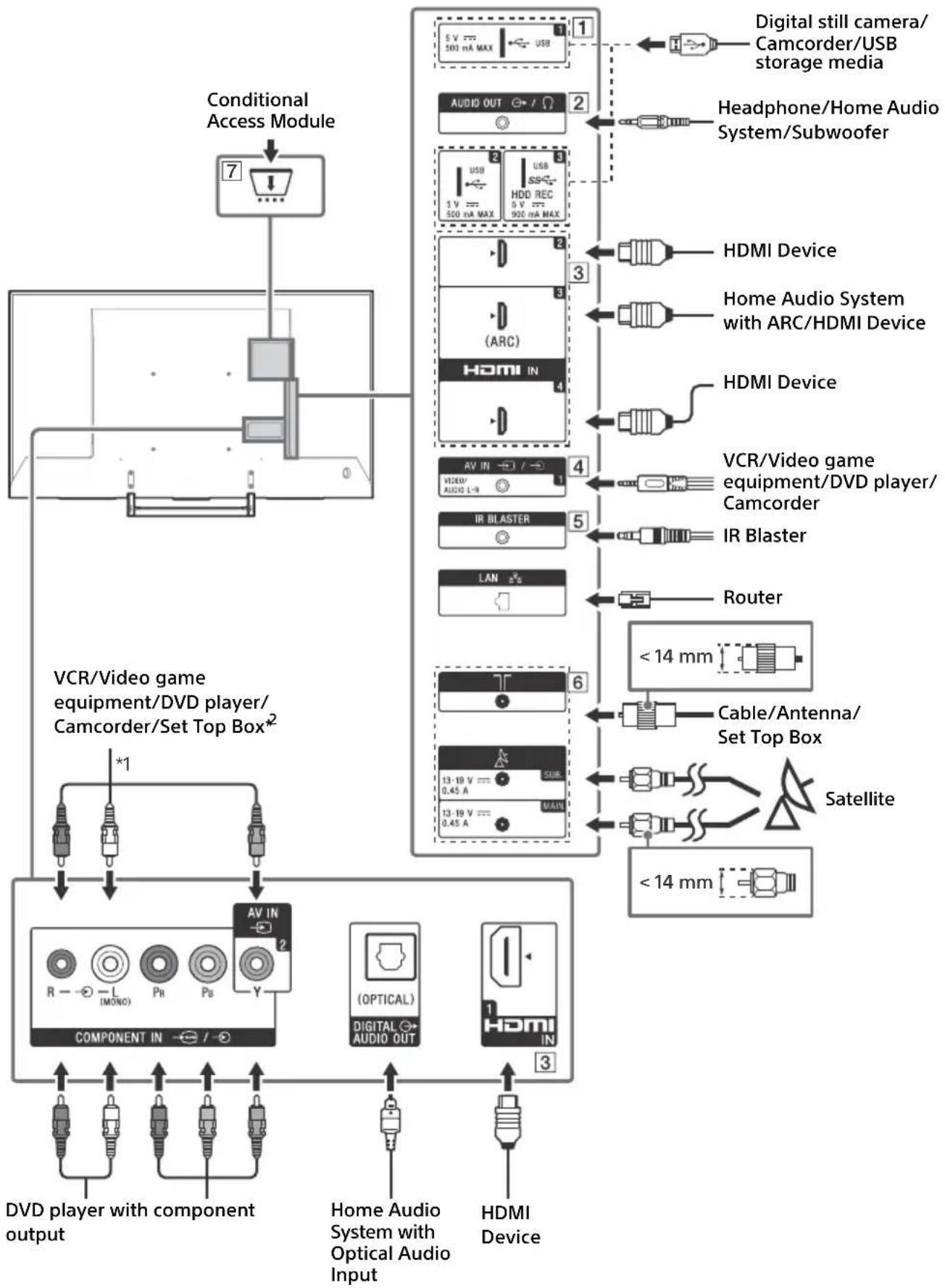

Connection Diagram .....11

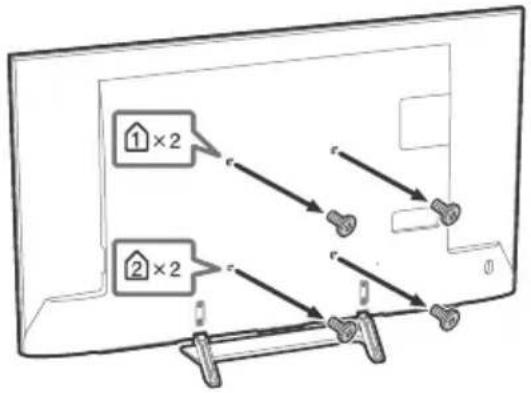

Installing the TV to the Wall ..... 13

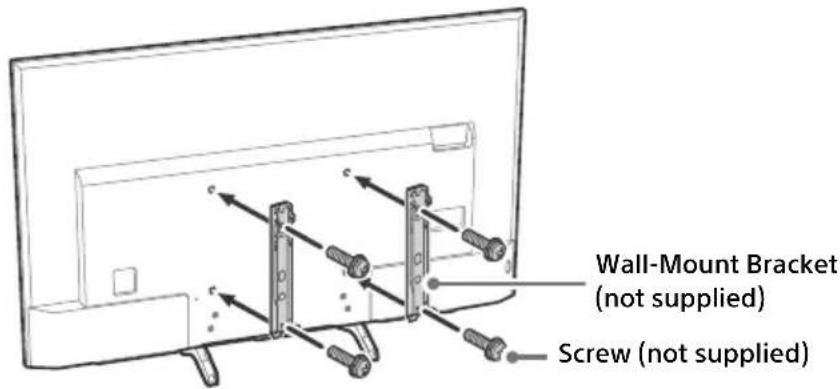

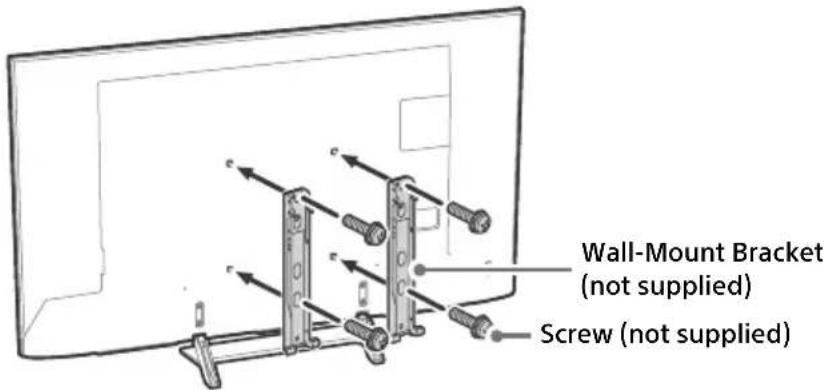

Using the optional Wall-Mount Bracket . . . 13

KD-75/65/55XE90xx,

FW-75/65/55XE90xx, KD-75XE85xx,

FW-75XE85xx only.....14

Troubleshooting....16

Troubles and Solutions 16

Specifications 17

Internet Connection and Data Privacy

This product connects to the internet during initial setup as soon as a network is connected in order to confirm internet connection, and later to configure the Home screen. Your IP address is used in these and all other internet connections. If you do not want your IP address be used at all, do not set-up the wireless internet function and do not connect an internet cable. Please refer to the privacy information presented in the set-up screens for further details of internet connections.

Introduction

Thank you for choosing this Sony product.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

Note

• Before operating the TV, please read the "Safety information" (page 3).
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the Setup Guide

Setup Guide is placed on top of the cushion inside the TV carton.

Help/Help Guide

Help feature offers a lot of information about your TV. To use the Help feature, press HELP on the remote control. You can find how to and troubleshooting from the list or keyword search. Select [Help Guide] on Help menu to view the manual. If you connect your TV to the internet, the Help feature and information will be updated.

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package. For models with supplied mains adaptor:

Labels for the mains adaptor Model No. and Serial No. are located on the bottom of the mains adaptor.

WARNING

TO PREVENT THE SPREAD OF FIRE, KEEP

CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced with the same rating of fuse approved by ASTA or BSI to BS 1362 (i.e., marked with (or) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

FUSE

How to replace the fuse

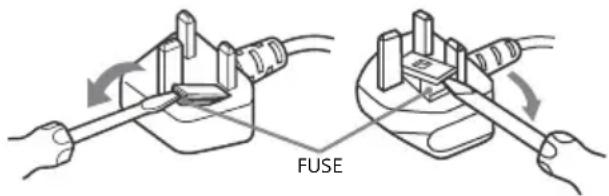

Open the fuse compartment with a blade screwdriver, and replace the fuse.

Please refer to the illustration that actually equipped with the product.

IMPORTANT NOTICE

This product has been manufactured by or on behalf of Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Sony Belgium, bijkantoor van Sony Europe Limited, Da Vincilaan 7-D1, 1935 Zaventem, Belgium. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents.

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-75XE9005,

KD-75XE8596, KD-65XE9005,

KD-65XE8599, KD-65XE8596, KD-65XE8588, KD-65XE8577,

KD-65XE8505, KD-55XE9005, KD-55XE8599, KD-55XE8596,

KD-55XE8588, KD-55XE8577, KD-55XE8505, KD-49XE9005,

FW-75XE9001, FW-75XE8501, FW-65XE9001, FW-65XE8501,

FW-55XE9001, FW-49XE9001 are in compliance with the essential

requirements and other relevant provisions of Directive

1999/5/EC. For details, please access the following URL:

http://www.compliance.sony.de/

This radio equipment can be operated in the EU without

infringing applicable requirements on the use of radio spectrum.

Notice for customers: the following information is only applicable

to equipment sold in countries applying EU directives.

TV wireless system may be operated in following countries:

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT,

NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK,

MD, RS, ME, Kosovo

This equipment can be operated in other non-European

countries.

Safety information

WARNING

Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

— Using cabinets or stands recommended by the manufacturer of the television set.

- Only using furniture that can safely support the television set. - Ensuring the television set is not overhanging the edge of the supporting furniture.

- Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

- Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

— Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

- The TV set should be installed near an easily accessible mains socket.

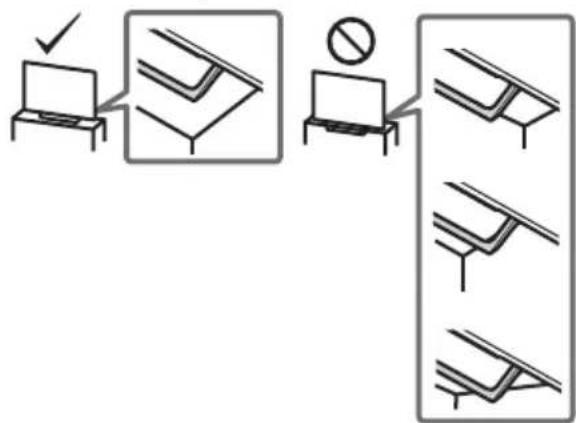

- Place the TV on a stable, level surface to prevent it from falling over and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked over.

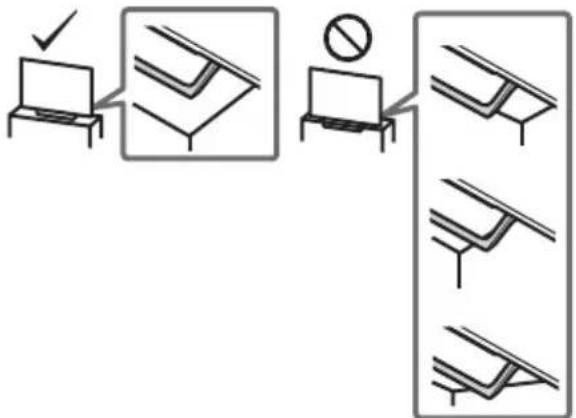

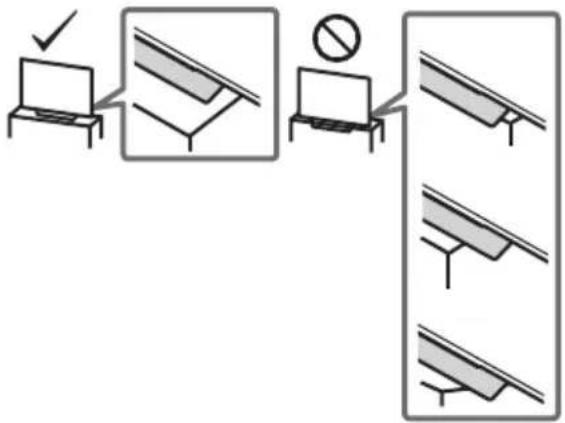

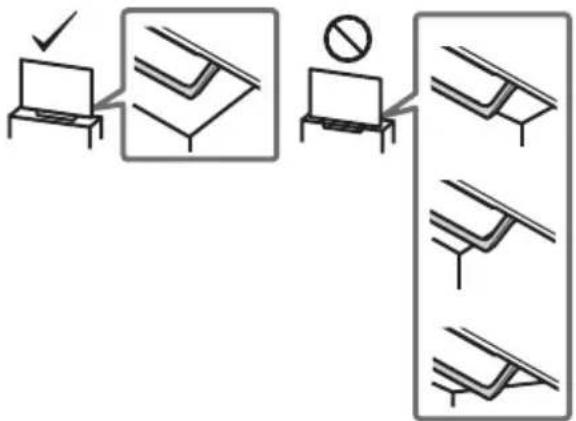

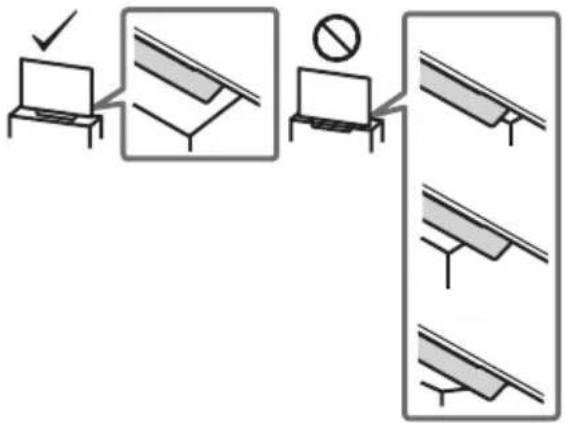

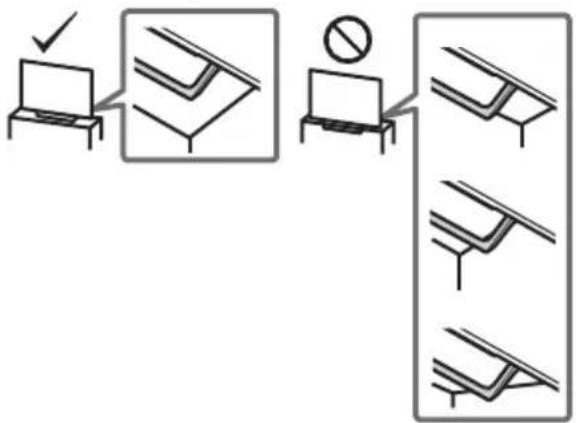

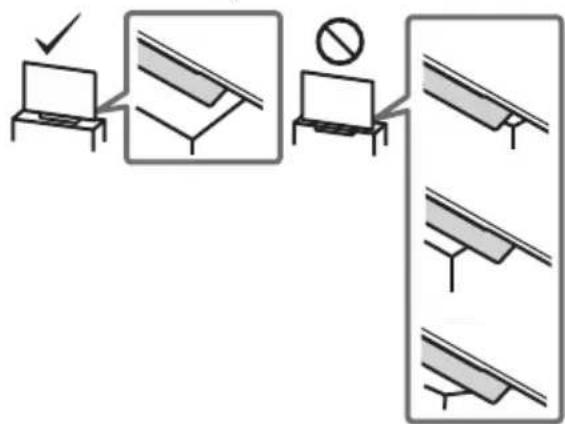

- Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a mechanical or structural modification process with labeled steps and symbols indicating removal or disassembly.

- Only qualified service personnel should carry out wall-mount installations.

- For safety reasons, it is strongly recommended that you use Sony accessories, including:

— Wall-Mount Bracket SU-WL450 (Except KD-75XE90xx, KD-75XE85xx, FW-75XE90xx, FW-75XE85xx)

- Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model.

Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8 mm - 12 mm

Screw (M6) Wall-Mount Bracket TV's rear cover

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or three people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two people holding a rectangular electronic device (no text or symbols visible)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

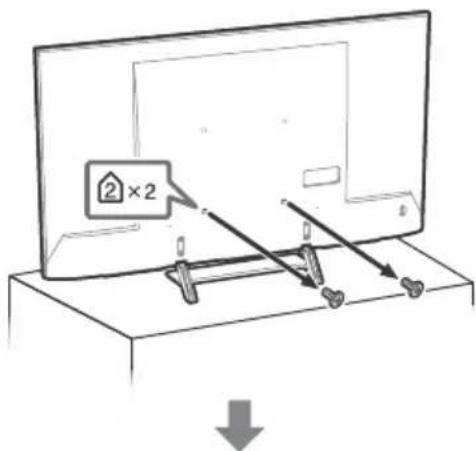

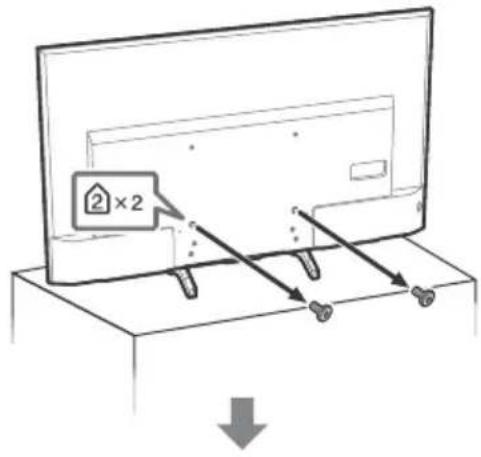

Topple prevention

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

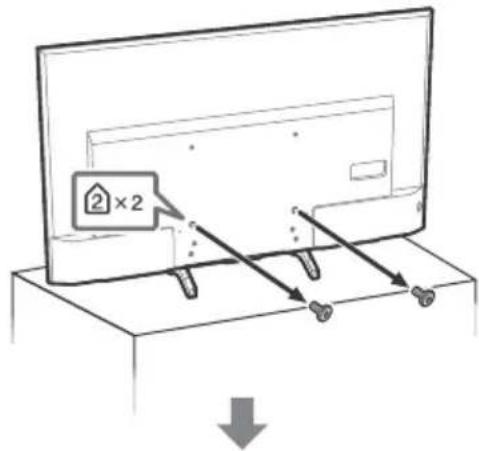

2×2

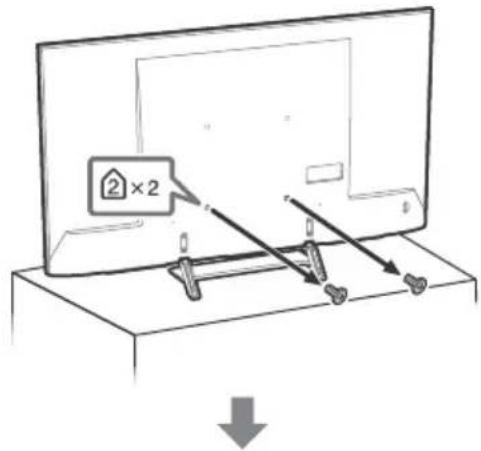

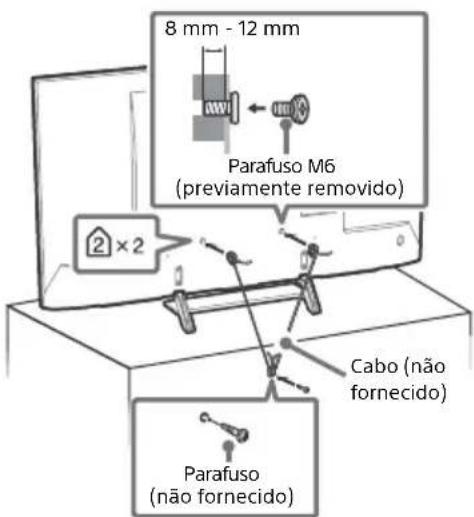

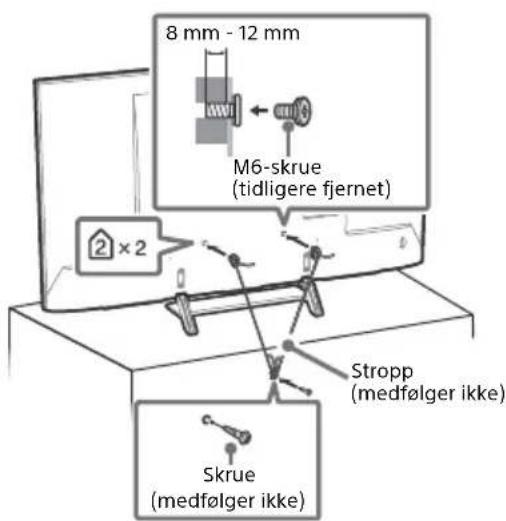

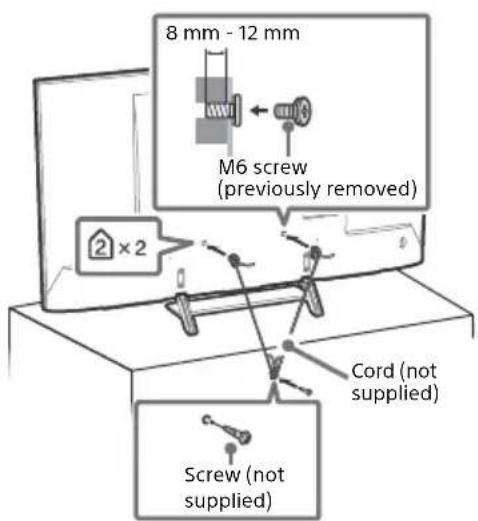

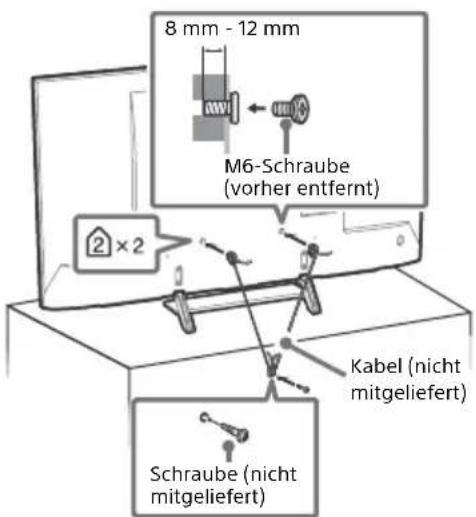

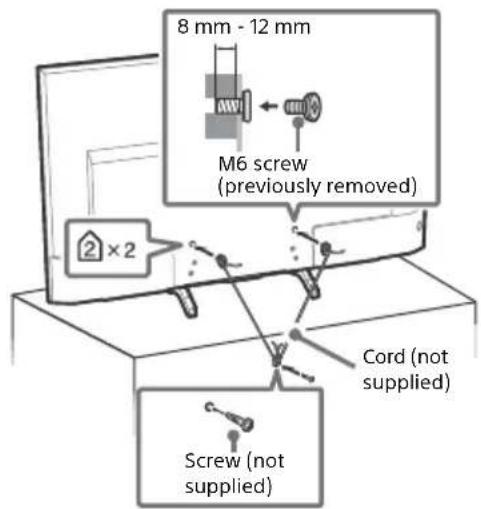

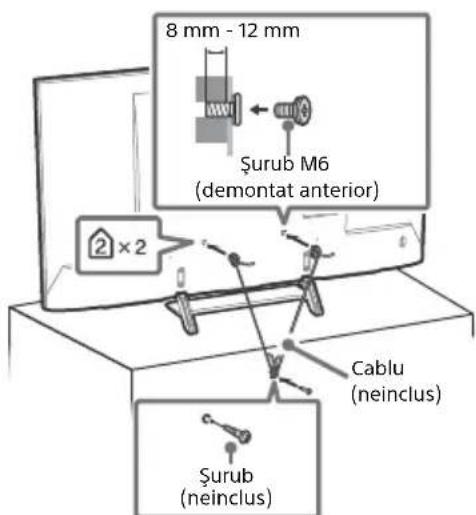

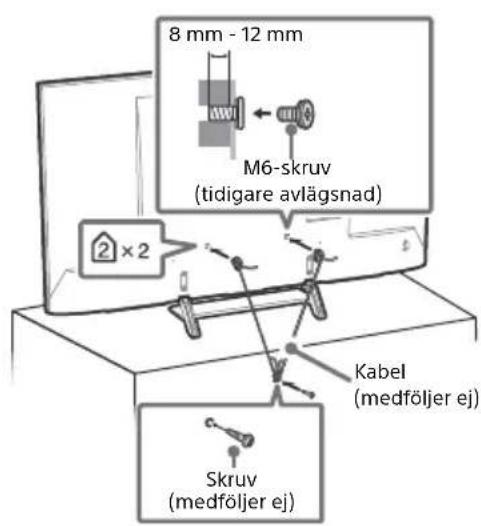

8 mm - 12 mm M6 screw (previously removed) 2 x 2 Cord (not supplied) Screw (not supplied)

KD-75/65/55XE85xx, FW-75/65XE85xx

2×2

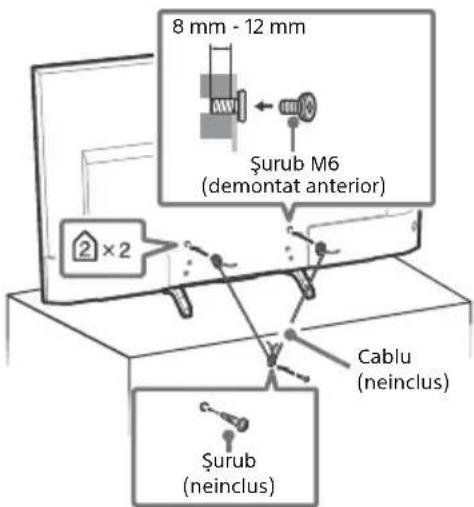

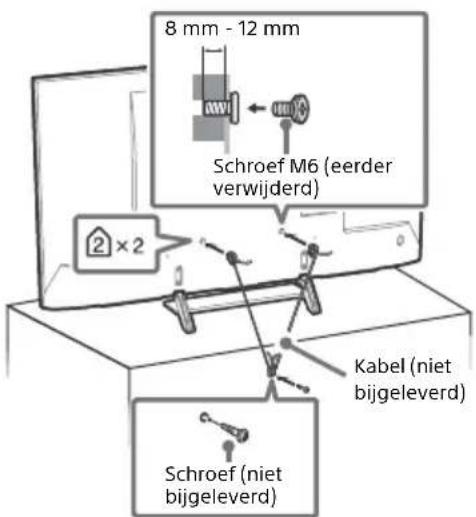

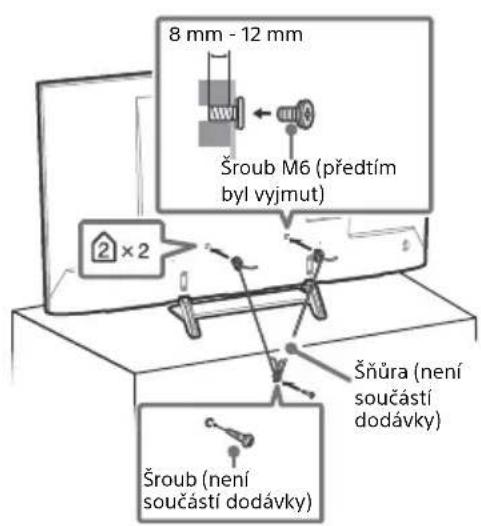

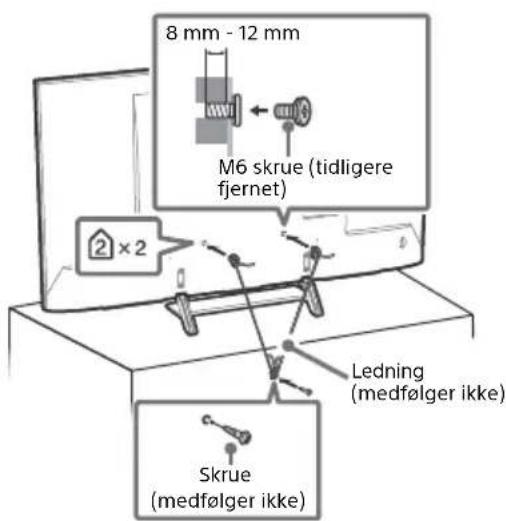

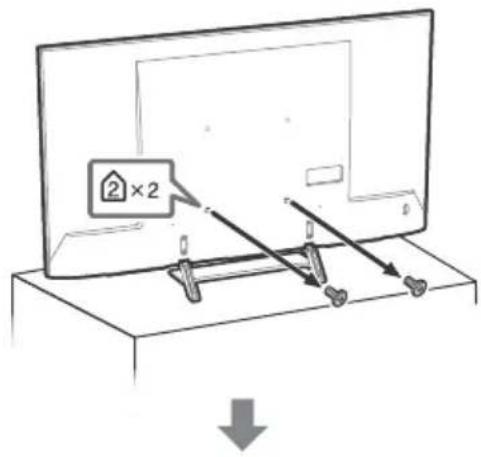

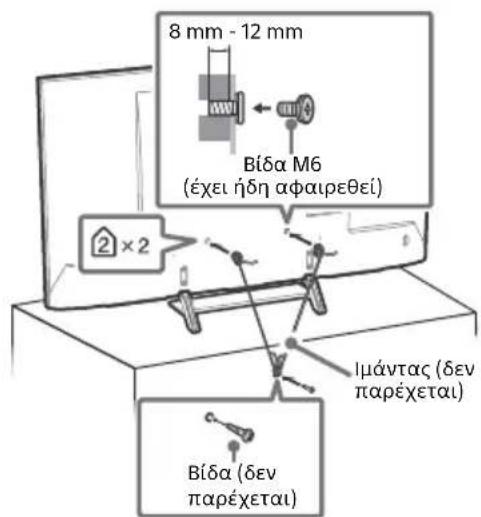

8 mm - 12 mm M6 screw (previously removed) 2 x 2 Cord (not supplied) Screw (not supplied)

Ventilation

• Never cover the ventilation holes or insert anything in the cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation.

Installed on the wall

30 cm 10 cm 10 cm 10 cm have at least this space around the set.

Installed with stand

10 cm 30 cm 10 cm 6 cm Leave at least this space around the set.

• To ensure proper ventilation and prevent the collection of dirt or dust:

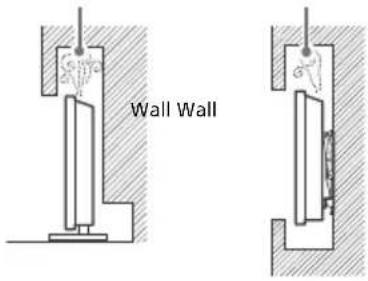

— Do not lay the TV set flat, install upside down, backwards, or sideways.
— Do not place the TV set on a shelf, rug, bed or in a closet.
— Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.
— Do not install the TV set as shown below.

Air circulation is blocked.

Wall Wall

Mains lead

Handle the mains lead and socket as follows in order to avoid any risk of fire, electric shock or damage and/or injuries:

— Use only mains leads supplied by Sony, not other suppliers.
— Insert the plug fully into the mains socket.
— Operate the TV set on a 220 V - 240 V AC supply only.
— When wiring cables, be sure to unplug the mains lead for your safety and take care not to catch your feet on the cables.
- Disconnect the mains lead from the mains socket before working on or moving the TV set.
— Keep the mains lead away from heat sources.
— Unplug the mains plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Note

• Do not use the supplied mains lead on any other equipment.
• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken.
• Do not modify the mains lead.
• Do not put anything heavy on the mains lead.
• Do not pull on the mains lead itself when disconnecting the mains lead.
• Do not connect too many appliances to the same mains socket.
• Do not use a poor fitting mains socket.

NOTE ON MAINS ADAPTOR (models with supplied mains adaptor only)

Warning

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. Do not install this equipment in a confined space, such as a bookshelf or similar unit.

• Please ensure that the mains socket is installed near the equipment and shall be easily accessible.
• Be sure to use the supplied mains adaptor and mains lead.
• Do not use any other mains adaptor. It may cause a malfunction.
• Connect the mains adaptor to an easily accessible mains socket.

• Do not coil the mains lead around the mains adaptor. The core wire may be cut and/or it may cause a malfunction of the media receiver.

• Do not touch the mains adaptor with wet hands.

• If you notice an abnormality in the mains adaptor, disconnect it from the mains socket immediately.
• The set is not disconnected from the mains source as long as it is connected to the mains socket, even if the set itself has been turned off.
• As the mains adaptor will become warm when it is used for a long time, you may feel hot when touching it by hand.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electric shock, damage and/or injuries.

Locations:

- Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

Environments:

- Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situations:

• Use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from mains socket and aerial during lightning storms.
  • Install the TV so that it sticks out into an open space. Injury or damage from a person or object bumping into the TV may result.

Illustration of a person reacting to a TV screen and a small object on a table (no text or symbols present)

• Place the TV in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.
  • Install the TV in places subject to extreme temperature such as in direct sunlight, near a radiator or a heating vent. The TV may overheat in such condition which can cause deformation of the enclosure and/or TV malfunction.

- If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.
• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow moisture to evaporate completely before powering the TV on.

Broken pieces:

• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.
• If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise this may cause an electric shock.

When not in use

• If you will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons.
• As the TV set is not disconnected from the mains when the TV set is just turned off, pull the plug from the mains to disconnect the TV set completely.
• Some TV sets may have features that require the TV set to be left in standby to work correctly.

For children

• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the mains lead immediately if any of the following problems occur.

Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

— Mains lead is damaged.
— Poor fitting of mains socket.
— TV set is damaged by being dropped, hit or having something thrown at it.
— Any liquid or solid object falls through openings in the cabinet.

About LCD TV Temperature

When the LCD TV is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

Precautions

Viewing the TV

• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the mains lead connected to the TV set from mains socket before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
• Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.

• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• Do not touch the TV if your hand is covered in any chemical substance such as hand cream or sunblock.
• Periodic vacuuming of the ventilation openings is recommended to ensure proper ventilation.
• When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.

Optional Equipment

• Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.
• This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection signal cable shorter than 3 meters.
• This equipment has been tested and found to comply with the limits set out in the EMC Directive using a RF cable shorter than 30 meters for terrestrial/Satellite/CATV terminal.

Recommendation of F-type plug

Projection of the inner wire from the connection part must be less than 1.5 mm.

(Reference drawing of the F-type plug)

Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker, etc.), as this may result in the malfunction of the medical equipment.
• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result.
• This equipment should be installed and operated keeping a separation distance of 20 cm or more between the antenna of this device and a person's body.

Caution about handling the remote control

• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.
• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the

recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this

product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005 % mercury or 0.004 % lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Parts and Controls

Controls and Indicators

1 + - 1 2

1 ⏻ (Power) /+/-

When the TV is off,

Press ⏻ to power on.

When the TV is on,

Press and hold ⏻ to power off.

Press ⏻ repeatedly to change the function,

then press + or - button to:

• Adjust the volume.
• Select the channel.
• Select the input source of TV.

2 Remote Control sensor* / Light

sensor* / Illumination LED

The illumination LED lights up or blinks according to the status of the TV.

For more information, refer to the Help Guide.

* Do not place anything near the sensor.

Using Remote Control

Remote Control Parts Description

The remote control shape, location, availability and function of remote control button may vary depending on your region/country/TV model.

MIC 1 DIGITAL/ANALOG TV/RADIO SYME MENU EXIT 2 1 2 3 det 4 5 6 mem 7 bus 8 9 ff 0 ... 3 Google Play NETFLIX 4 ACTION MENU BACK DISCOVER 5 PROG - - 6 AUDIO HELP REC TITLE LIST

1 → /÷(Input select/Text hold)

In TV mode: Display and select the input source.

In Text mode: Hold the current page.

(Microphone)

Use Voice Function. (e.g., Search various content by voice.)

(TV standby)

Turn on or turn off the TV (standby mode).

DIGITAL/ANALOG

Switch between digital and analogue mode.

TV/RADIO

Switch between TV or RADIO broadcasts.

SYNC MENU

Display the BRAVIA Sync Menu.

EXIT

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

2 Number buttons

i+/info/Text reveal)

Display information.

(Text)

Display text information.

3 Google Play

Access the "Google Play" online service.

NETFLIX (Only on limited region/country/TV model)

Access the "NETFLIX" online service.

Colour buttons

Execute corresponding function at that time.

4 ACTION MENU

Display a list of contextual functions.

TV

• Switch to a TV channel or input from other applications.
• Turn on the TV to display TV channel or input.

GUIDE/

Display the digital programme guide.

BACK/←

Return to previous screen.

HOME

Display the TV Home Menu.

DISCOVER

Bring up the Content Bar to search for content.

//// (Item select/Enter)

5 ∠ +/- (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

※ (Muting)

Mute the sound. Press again to restore the sound.

PROG +/−/▲/▼

In TV mode: Select the channel. In Text mode: Select the next (▲) or previous (▼) page.

6 AUDIO

Change the language for the programme currently being viewed.

◀/▶/▶/◀/■/▶/■

Operate media contents on TV and connected BRAVIA Sync-compatible device.

(Subtitle setting)

Turn subtitles on or off (when the feature is available).

HELP

Display Help menu. Help Guide can be accessed from here.

● REC

Record the current programme with the USB HDD recording function.

TITLE LIST

Display the Title list.

Connection Diagram

For more information on connections, refer to the Help Guide by pressing HELP on the remote control.

    H["1: Digital still camera/Camcorder/USB storage media"] --> I["2: Audio OUT / USB"]
    I --> J["3: USB SSD / HDD REC 5 V 500 mA MAX 900 mA MAX"]
    J --> K["4: HDMI Device"]
    K --> L["5: Home Audio System with ARC/HDMI Device"]
    L --> M["6: AV IN / VIDEO/AUDIO L-R"]
    M --> N["7: IR BLASTER"]
    N --> O["8: LAN P/S"]
    O --> P["9: Router"]
    P --> Q["10: <14 mm Cable/Antenna/Set Top Box"]
    Q --> R["Satellite"]
    R --> S["11: <14 mm"]

    T["2: Headphone/Home Audio System/Subwoofer"] --> U["3: HDMI Device"]
    U --> V["4: VCR/Video game equipment/DVD player/Camcorder"]
    V --> W["5: IR Blaster"]
    W --> X["6: <14 mm Cable/Antenna/Set Top Box"]
    X --> Y["7: Satellite"]
    Y --> Z["8: <14 mm"]

    AA["3: HDMI Device"] --> AB["4: HDMI Device"]
    AB --> AC["5: IR Blaster"]

1 USB 1/2, USB3(HDD REC)\*

3

• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 port.

2 AUDIO OUT

• Supports 3-pole stereo mini jack only.
- To listen to the TV's sound through the connected equipment, press HOME. Select [Settings] → [Sound] → [Headphone/Audio out] and then select the desired item.

③ HDMI IN 1/2/3/4

- If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 3. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

< 12 mm < 21 mm

4 →/→ AV IN 1

- For a composite connection, use an Analogue Extension Cable (not supplied).

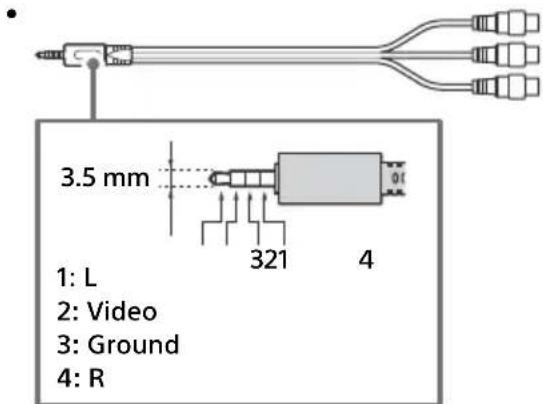

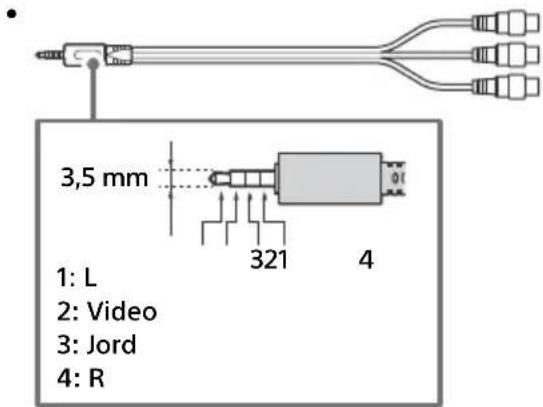

3.5 mm 1: L 2: Video 3: Ground 4: R

5 IR BLASTER ^2*

6 (RF input), (Satellite input)

• Connections for terrestrial/cable and satellite. Connection steps: SUB. → Antenna → MAIN
• For SUB. jack, connect only when you are using twin tuner mode except for Single Cable Distribution EN50494.

7 CAM (Conditional Access Module)

• Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM.
• Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer.
  • CAM is not supported in some countries/areas. Check with your authorised dealer.
• A CAM message may appear when you switch to a digital programme after using the Internet video.

*1 When connecting mono equipment, connect to the L (MONO) audio jack (socket).
*2 For an external device which has only SCART AV OUT, use a SCART-RCA adapter.
*3 Only on limited region/country/TV model.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket

This TV's instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) (Except KD-75XE90xx, KD-75XE85xx, FW-75XE90xx, FW-75XE85xx) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

Note

- Be sure to store the removed screws in a safe place, keeping them away from children.

For instructions on Wall-Mount Bracket installation of your TV model, refer to the following website: www.sony.eu/tv/wall-mount-bracket-manual

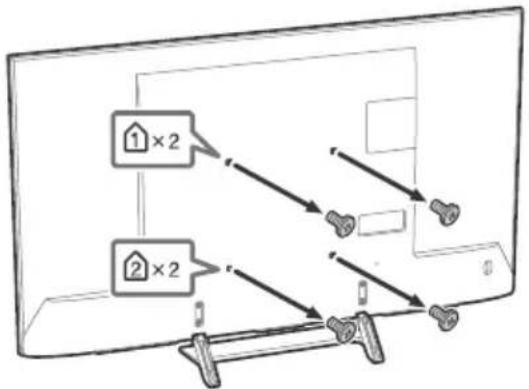

Remove the screws from the rear of the TV.

KD-65/55/49XE90xx, FW-65/55/49XE90xx only

KD-65/55XE85xx, FW-65XE85xx only

1×2 2×2

KD-75/65/55XE90xx, FW-75/65/55XE90xx, KD-75XE85xx, FW-75XE85xx only

Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged.

Prepare the TV for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that installation of your TV on the wall be performed by qualified professionals. Do not attempt to install it yourself.

• Follow the instructions provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

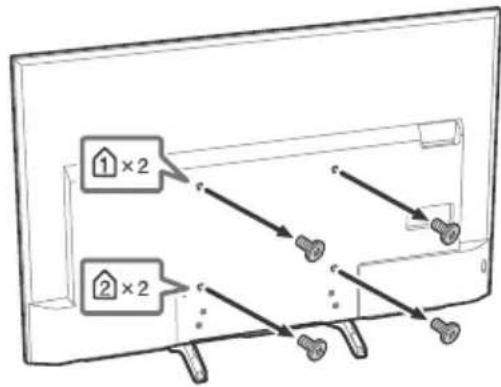

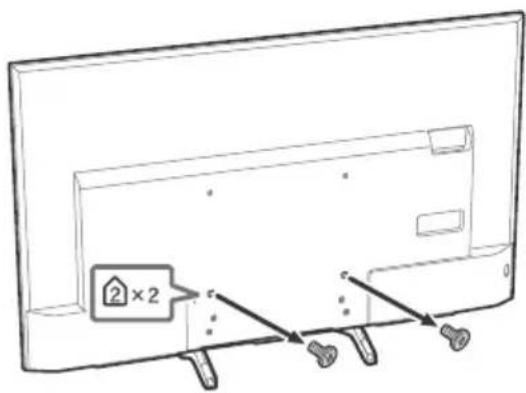

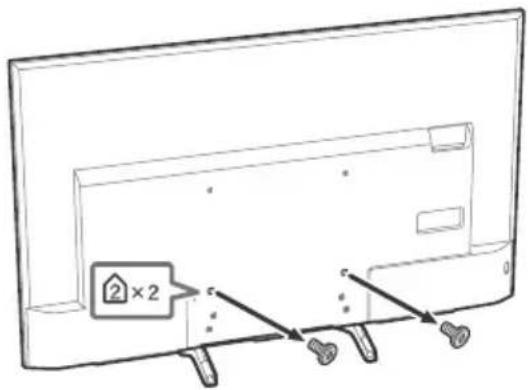

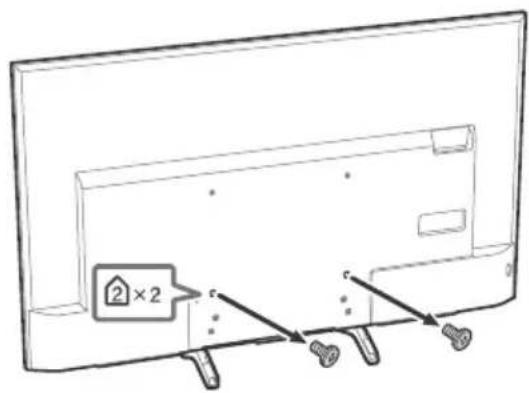

1 Remove the screws from the rear of the TV.

KD-75/65/55XE90xx, FW-75/65/55XE90xx

KD-75XE85xx, FW-75XE85xx

1×2 2×2

2×2

2 Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied). KD-75/65/55XE90xx, FW-75/65/55XE90xx

Wall-Mount Bracket (not supplied) Screw (not supplied)

KD-75XE85xx, FW-75XE85xx

Wall-Mount Bracket (not supplied) Screw (not supplied)

Note

- If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

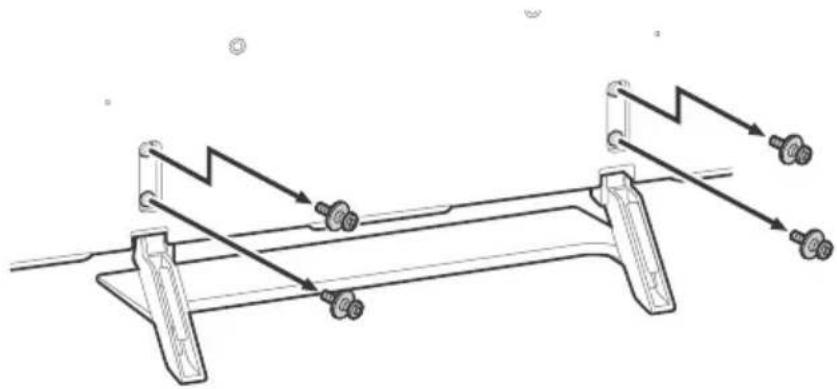

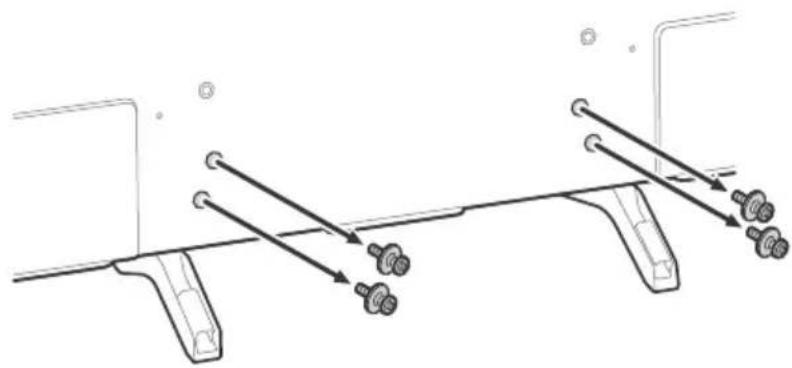

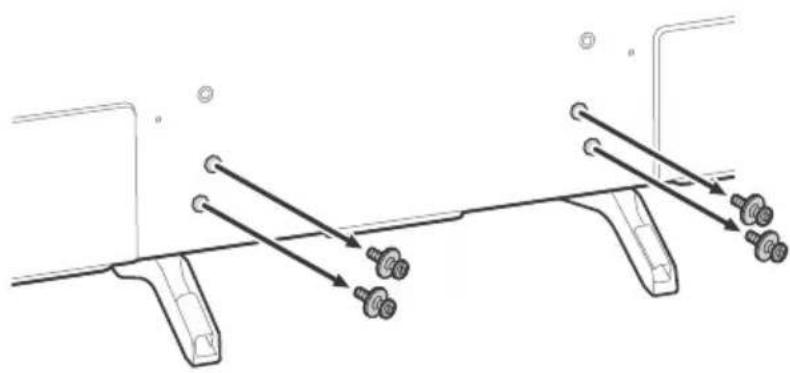

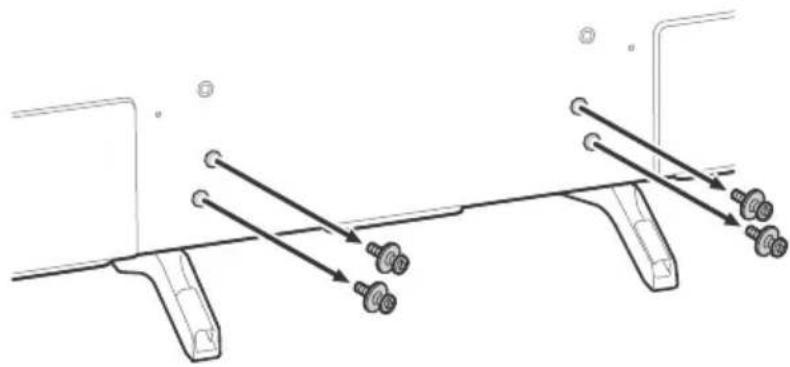

3 Detach the Table-Top Stand from the TV.

KD-75/65/55XE90xx, FW-75/65/55XE90xx

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the TV from the mains lead for two minutes and then plug it in again.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update.
4 Visit Sony support website (information provided on the back cover).

When [A new TV system software update is available...] message is displayed.

Sony strongly recommends you to update the TV software by selecting [Update Now]. These software updates improve your TV performance or add new features.

The following screen with [Updating...] will appear and the illumination LED flashes white while software is updating.

Updating...

Do not unplug the mains lead during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 15 minutes.

When you plug in TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV. It takes time to initialize the system. Wait for about one minute, then operate it again.

Troubles and Solutions

When the illumination LED is flashing in red.

• Count how many times it flashes (interval time is three seconds).
  Reboot the TV by disconnecting the mains lead for two minutes, then turn on the TV. If the problem persists, disconnect the mains lead, and contact your dealer or Sony service centre with the number of times the illumination LED flashes.

Terrestrial/cable service cannot be received.

• Check the antenna (aerial)/cable connection and booster settings.
• Select terrestrial/cable service by pressing DIGITAL/ANALOG on the remote control. If the broadcasting service is not displayed, press TV and then press DIGITAL/ANALOG.
• Terrestrial signal might be suppressed if there is a strong signal supplied nearby. Set [LNA (CH ---)] to [Off] in digital tuning settings.
• After moving to a new house or trying to receive new services, attempt a service search by selecting [Digital Tuning].

Satellite service cannot be received.

• Check the satellite cable connection.
• When [No signal. LNB overload detected...] message is displayed, unplug the mains lead. Then, ensure the satellite cable is not damaged and the satellite signal line is not short-circuited in the satellite connector.

The remote control does not function.

- Replace the batteries.

The parental lock for broadcast password has been forgotten.

- Enter 9999 for the PIN code and select [Change PIN Code].

The TV surrounds become warm.

- When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Depending on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C DVB-T2*

Satellite*: DVB-S/DVB-S2

Colour system

PAL, SECAM, NTSC3.58 (Video only), NTSC4.43 (Video only)

Channel coverage

Depending on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite*: IF Frequency 950-2,150 MHz

Sound output

10 W + 10 W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n

(IEEE802.11ac may not be available depending on countries/regions.)

Bluetooth Version 4.1

Frequency band(s): WLAN 2.4 GHz/5 GHz, Bluetooth 2.4 GHz

Radio frequency power transmitter: 100 mW MAX

TV software version:

PKG. . . EUA

Press HELP on the remote control to know the software version.

* Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F-Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single Cable Distribution EN50494.

→/→ AV IN 1

Video/Audio input (mini jack)

→/→ COMPONENT IN

YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Audio input (phono jacks)

→ AV IN 2

Video input (common phono pin with Y input)

HDMI IN 1, 2, 3, 4 (support 4K resolution,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats

*1 3840 × 2160p is displayed when 4096 × 2160p is input.

*2 HDMI IN 2 / 3 only.

Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital, Dolby Digital Plus and DTS

ARC (Audio Return Channel) (HDMI IN 3 only)

(Two channel linear PCM: 48 kHz, 16 bits, Dolby Digital, Dolby Digital Plus, DTS)

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz, 16 bits, Dolby Digital, DTS)

Headphone, Audio output, Subwoofer

1, 2, 3 (HDD REC)*

USB device port (3USB HDD device for REC feature)

USB port 1 and 2 support High Speed USB (USB2.0).

USB port 3 supports Super Speed USB (USB3.0).

↓

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

- C+ DC IN 24 V (KD-65XE90xx only)

- C + DC IN 19.5 V (KD-55/49XE90xx only)

Mains adaptor input

IR BLASTER*1

IR Blaster Cable input (mini jack)

Others

Optional accessories

Wall-Mount Bracket: SU-WL450 (Except

KD-75XE90xx, KD-75XE85xx)

Operating temperature

0^ C - 40^ C

Operating humidity

10% - 80% RH (non-condensing)

Power, Product Fiche and others

Power requirements

except models with supplied mains adaptor

220 V - 240 V AC, 50 Hz

models with supplied mains adaptor only

24 V DC with mains adaptor (KD-65XE90xx /

FW-65XE90xx)

19.5 V DC with mains adaptor (KD-55/49XE90xx /

FW-55/49XE90xx)

Rating: Input 220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-75XE90xx / FW-75XE90xx: A

KD-75XE85xx / FW-75XE85xx: A+

KD-65XE90xx / FW-65XE90xx: A

KD-65XE85xx / FW-65XE85xx: A+

KD-55XE90xx / FW-55XE90xx: A

KD-55XE85xx: A

KD-49XE90xx / FW-49XE90xx: B

Screen size (measured diagonally) (Approx.)

KD-75XE90xx / FW-75XE90xx: 189.3 cm / 75 inches

KD-75XE85xx / FW-75XE85xx: 189.3 cm / 75 inches

KD-65XE90xx / FW-65XE90xx: 163.9 cm /

65 inches

KD-65XE85xx / FW-65XE85xx: 163.9 cm /

65 inches

KD-55XE90xx / FW-55XE90xx: 138.8 cm /

55 inches

KD-55XE85xx: 138.8 cm / 55 inches

KD-49XE90xx / FW-49XE90xx: 123.2 cm /

49 inches

Power consumption

in [Standard] mode

KD-75XE90xx / FW-75XE90xx: 182 W

KD-75XE85xx / FW-75XE85xx: 130 W

KD-65XE90xx / FW-65XE90xx: 129 W

KD-65XE85xx / FW-65XE85xx: 114 W

KD-55XE90xx / FW-55XE90xx: 109 W

KD-55XE85xx: 100 W

KD-49XE90xx / FW-49XE90xx: 102 W

in [Vivid] mode

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

Average annual energy consumption ^2

KD-75XE90xx / FW-75XE90xx: 252 kWh

KD-75XE85xx / FW-75XE85xx: 180 kWh

KD-65XE90xx / FW-65XE90xx: 179 kWh

KD-65XE85xx / FW-65XE85xx: 158 kWh

KD-55XE90xx / FW-55XE90xx: 151 kWh

KD-55XE85xx: 139 kWh

KD-49XE90xx / FW-49XE90xx: 141 kWh

Standby power consumption ^3*4

0.50 W (27 W in software/EPG update mode)

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2: 5 V, =500 mA MAX

USB 3: 5 V, =900 mA MAX

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KD-75XE90xx: 167.4 × 102.1 × 29.6 cm

KD-75XE85xx: 167.7 × 103.2 × 28.4 cm

KD-65XE90xx: 144.7 × 89.5 × 25.9 cm

KD-65XE85xx: 145.4 × 90.5 × 26.6 cm

KD-55XE90xx: 122.8 × 77.2 × 25.9 cm

KD-55XE85xx: 123.2 × 77.2 × 25.2 cm

KD-49XE90xx: 109.3 × 68.5 × 23.6 cm

without Table-Top Stand

KD-75XE90xx: 167.4 × 95.9 × 6.6 cm

KD-75XE85xx: 167.7 × 96.8 × 5.3 cm

KD-65XE90xx: 144.7 × 83.0 × 6.0 cm

KD-65XE85xx: 145.4 × 84.0 × 4.4 cm

KD-55XE90xx: 122.8 × 70.7 × 6.0 cm

KD-55XE85xx: 123.2 × 71.7 × 5.7 cm

KD-49XE90xx: 109.3 × 63.1 × 6.2 cm

Mass (Approx.)

with Table-Top Stand

KD-75XE90xx: 35 kg

KD-75XE85xx: 35.2 kg

KD-65XE90xx: 23.2 kg

KD-65XE85xx: 22.1 kg

KD-55XE90xx: 18.1 kg

KD-55XE85xx: 19.5 kg

KD-49XE90xx: 13.8 kg

without Table-Top Stand

KD-75XE90xx: 33.2 kg

KD-75XE85xx: 34.1 kg

KD-65XE90xx: 22 kg

KD-65XE85xx: 21 kg

KD-55XE90xx: 16.9 kg

KD-55XE85xx: 18.6 kg

KD-49XE90xx: 12.6 kg

*1 Only on limited region/country/TV model.

*2 Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*3 Specified standby power is reached after the TV finishes necessary internal processes.

*4 Standby power consumption will increase when your TV is connected to the network.

Note

- Do not remove the cover from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.

- Optional accessories availability depends on countries/region/TV model/stock.

- Design and specifications are subject to change without notice.

Notes on Digital TV function

- Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

- This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• Manufactured under license from Dolby Laboratories.

Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• "BRAVIA" and BareTrademarks of Sony Corporation.
• Gracenote, Gracenote eyeQ, Gracenote VideolD, Gracenote Video Explore, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.
• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.
• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi Protected Setup and Wi-Fi CERTIFIED Logo are trademarks or registered trademarks of Wi-Fi Alliance.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. SS

Table des matières

AVIS IMPORTANT....2

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark and prohibition symbols, showing steps to switch or replace a device.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular TV (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two human figures holding a rectangular electronic device (no text or symbols visible)

< 12 mm < 21 mm

4 →/→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Dépannage

Updating...

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, Formats PC

DIGITAL AUDIO OUT (OPTICAL)

C IN 19.5 V (KD-55/49XE90xx

uniquement)

10% - 80% HR (sans condensation)

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a process with laptop, panel, and switch symbols indicating absence or prohibition of a device.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process of installing or adjusting a roof structure, with labeled steps and visual indicators.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular TV (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two people carrying a large rectangular device (no text or symbols visible)

Pared Pared

< 12 mm < 21 mm

4 →/→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Updating...

Digital: UHF/VHF/Cable

DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos canales: 48 kHz, 16 bits, Dolby Digital, DTS)

AUDIO OUT /∩ (minitoma estéreo)

Auriculares, salida de audio, subwoofer

KD-49XE90xx / FW-49XE90xx: 102 W

En el modo [Viva]

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Peso (Aprox.)

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a process with laptop, panel, and switch symbols indicating absence or prohibition of a device.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process of installing or adjusting a roof structure, with labeled steps and visual indicators.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two human figures holding a rectangular electronic device (no text or symbols visible)

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

2×2

Illustration of a person reacting to a TV screen and a small dish on a table (no text or symbols)

< 12 mm < 21 mm

4 →/→ AV IN 1

Technical line drawing of a mechanical clamp or bracket assembly with two springs and a roller, no text or symbols present.

KD-75XE85xx, FW-75XE85xx

Technical diagram showing mechanical assembly with rods and bolts (no text or labels)

Problemen oplossen

Updating...

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, Pc-formaten

DIGITAL AUDIO OUT (OPTICAL)

KD-49XE90xx / FW-49XE90xx: 102 W

in de stand [Levendig]

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Gewicht (Ong.)

met tafelstandaard

KD-75XE90xx: 35 kg

KD-75XE85xx: 35,2 kg

KD-65XE90xx: 23,2 kg

KD-65XE85xx: 22,1 kg

KD-55XE90xx: 18,1 kg

KD-55XE85xx: 19,5 kg

KD-49XE90xx: 13,8 kg

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a process with laptop, panel, and switch symbols indicating correct and incorrect states of viewing or dissection.

KD-75/65/55XE85xx, FW-75/65XE85xx

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two human figures holding a rectangular electronic device (no text or symbols visible)

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

2×2

Illustration of a person reacting to a TV screen and a small dish on a stove (no text or symbols)

< 12 mm < 21 mm

4 → /→ AV IN 1

2×2

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Störungsbehebung

Updating...

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Computerformate

DIGITAL AUDIO OUT (OPTICAL)

KD-49XE90xx / FW-49XE90xx: 102 W

im Modus [Brillant]

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Gewicht (Ca.)

mit Tischständer

KD-75XE90xx: 35 kg

KD-75XE85xx: 35,2 kg

KD-65XE90xx: 23,2 kg

KD-65XE85xx: 22,1 kg

KD-55XE90xx: 18,1 kg

KD-55XE85xx: 19,5 kg

KD-49XE90xx: 13,8 kg

ohne Tischständer

KD-75XE90xx: 33,2 kg

KD-75XE85xx: 34,1 kg

KD-65XE90xx: 22 kg

KD-65XE85xx: 21 kg

KD-55XE90xx: 16,9 kg

KD-55XE85xx: 18,6 kg

KD-49XE90xx: 12,6 kg

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a process with laptop, panel, and switch symbols indicating absence or prohibition of a device.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark and prohibition symbols, showing steps to switch from a laptop to a monitor.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures carrying a large rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two people holding a large rectangular device (no text or symbols visible)

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

2×2

Parede Parede

Cabo de alimentação

Diagram showing a device connected to a screen with labeled ports and a dashed box, likely illustrating a system or interface setup.

< 12 mm < 21 mm

4 →/→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Updating...

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Formatos PC

→ DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz, 16 bits, Dolby Digital, DTS)

AUDIO OUT ⊕/∩ (Mini-tomada estéreo)

- C + DC IN 19.5 V (Apenas KD-55/49XE90xx)

KD-49XE90xx / FW-49XE90xx: 102 W

no modo [Vívido]

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

Consumo de energia anual médio ^2

KD-75XE90xx / FW-75XE90xx: 252 kWh

KD-75XE85xx / FW-75XE85xx: 180 kWh

KD-65XE90xx / FW-65XE90xx: 179 kWh

KD-65XE85xx / FW-65XE85xx: 158 kWh

KD-55XE90xx / FW-55XE90xx: 151 kWh

KD-55XE85xx: 139 kWh

KD-49XE90xx / FW-49XE90xx: 141 kWh

Consumo de energia no modo de espera ^3*4

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Peso (Aprox.)

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a process with laptop, panel, and switch symbols indicating absence or prohibition of a device.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark and prohibition symbols, showing steps to switch from a laptop to a monitor.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Two silhouettes of people holding a rectangular TV (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two silhouetted figures holding a rectangular electronic device (no text or symbols visible)

Parete Parete

Illustration of a person reacting to a TV screen and a small object on a table (no text or symbols present)

< 12 mm < 21 mm

4 →/→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Updating...

PAL, SECAM, NTSC3.58 (Solo video), NTSC4.43 (Solo video)

Gamma di sintonia

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, Formati PC

ARC (Audio Return Channel) (solo HDMI IN 3)

(PCM lineare due canali: 48 kHz, 16 bit, Dolby Digital, Dolby Digital Plus, DTS)

→ DIGITAL AUDIO OUT (OPTICAL)

- C + DC IN 19.5 V (Solo KD-55/49XE90xx)

KD-49XE90xx / FW-49XE90xx: 102 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a device setup with labeled components and directional arrows, including a checkmark and prohibition symbol.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark and prohibition symbols, showing steps to switch or replace a device.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two people carrying a large rectangular device (no text or symbols visible)

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

2×2

Diagram showing a device connected to a screen with labeled ports and a dashed box, likely illustrating a system or interface setup.

1 ⏻ (Strömbrytare) /+/-

< 12 mm < 21 mm

4 → /→ AV IN 1

2×2

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Felsökning

Updating...

PAL, SECAM, NTSC3.58 (Endast video), NTSC4.43

(Endast video)

Kanaltäckning

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,

PC-format

→ DIGITAL AUDIO OUT (OPTICAL)

Dimension (Cirka) (b × h × d)

med bordsstativ

KD-75XE90xx: 167,4 × 102,1 × 29,6 cm KD-75XE85xx: 167,7 × 103,2 × 28,4 cm KD-65XE90xx: 144,7 × 89,5 × 25,9 cm KD-65XE85xx: 145,4 × 90,5 × 26,6 cm KD-55XE90xx: 122,8 × 77,2 × 25,9 cm KD-55XE85xx: 123,2 × 77,2 × 25,2 cm KD-49XE90xx: 109,3 × 68,5 × 23,6 cm

utan bordsstativ

KD-75XE90xx: 167,4 × 95,9 × 6,6 cm KD-75XE85xx: 167,7 × 96,8 × 5,3 cm KD-65XE90xx: 144,7 × 83,0 × 6,0 cm KD-65XE85xx: 145,4 × 84,0 × 4,4 cm KD-55XE90xx: 122,8 × 70,7 × 6,0 cm KD-55XE85xx: 123,2 × 71,7 × 5,7 cm KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Vikt (Cirka)

med bordsstativ

KD-75XE90xx: 35 kg KD-75XE85xx: 35,2 kg KD-65XE90xx: 23,2 kg KD-65XE85xx: 22,1 kg KD-55XE90xx: 18,1 kg KD-55XE85xx: 19,5 kg KD-49XE90xx: 13,8 kg

utan bordsstativ

KD-75XE90xx: 33,2 kg KD-75XE85xx: 34,1 kg KD-65XE90xx: 22 kg KD-65XE85xx: 21 kg KD-55XE90xx: 16,9 kg KD-55XE85xx: 18,6 kg KD-49XE90xx: 12,6 kg

PRODUKTET SKAL HOLDES VÄEK FRA

NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK,

MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark and prohibition symbols, showing steps to switch or replace a device.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Two human figures holding a rectangular device with internal components, no text or symbols visible

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two people holding a rectangular electronic device (no text or symbols visible)

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

2×2

Illustration of a person reacting to a TV screen and TV set (no text or symbols)

< 12 mm < 21 mm

4 → /→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Fejlfinding

Updating...

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Pc-formater

*1 Når 4096 × 2160p er input, vises 3840 × 2160p.

(to-kanals lineær PCM: 48 kHz, 16 bit, Dolby

Digital, Dolby Digital Plus, DTS)

→ DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM: 48 kHz,

16 bit, Dolby Digital, DTS)

AUDIO OUT / (Mini-stereostik)

Hovedtelefon, lydudgang, subwoofer

1, 2, 3 (HDD REC)*

KD-49XE90xx / FW-49XE90xx: 102 W

i [Kraftig] tilstand

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Vægt (Ca.)

Inkl. tv-fod

KD-75XE90xx: 35 kg

KD-75XE85xx: 35,2 kg

KD-65XE90xx: 23,2 kg

KD-65XE85xx: 22,1 kg

KD-55XE90xx: 18,1 kg

KD-55XE85xx: 19,5 kg

KD-49XE90xx: 13,8 kg

Uden tv-fod

KD-75XE90xx: 33,2 kg

KD-75XE85xx: 34,1 kg

KD-65XE90xx: 22 kg

KD-65XE85xx: 21 kg

KD-55XE90xx: 16,9 kg

KD-55XE85xx: 18,6 kg

KD-49XE90xx: 12,6 kg

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a process with laptop, monitor, and cable termination symbols indicating absence or prohibition.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process of installing or adjusting a roof structure, with labeled steps and visual indicators.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Two silhouettes of people holding a rectangular TV (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two people holding a large rectangular device (no text or symbols visible)

Illustration of a person reacting to a TV screen and a small object on a table (no text or symbols present)

< 12 mm < 21 mm

4 →/→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Vianetsintä

Updating...

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,

PC-muodot

→ DIGITAL AUDIO OUT (OPTICAL)

KD-49XE90xx / FW-49XE90xx: 102 W

[Kirkas] -tilassa

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Paino (Noin)

- Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a process with a laptop, panel, and prohibition symbol, showing steps to resolve or replace.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark and prohibition symbols, showing steps to switch from a laptop to a monitor.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Two human figures holding a rectangular device with a grid pattern, no text or symbols visible

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two people holding a large rectangular device (no text or symbols visible)

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

2×2

Diagram showing a device connected to a screen with labeled ports and a dashed box, likely illustrating a system or interface setup.

1 ⏻ (Strøm) /+/-

Vis TV-ens home-meny.

DISCOVER

(Teksting-innstilling)

< 12 mm < 21 mm

4 → /→ AV IN 1

- For kompositt-tilkobling må en analog forlengelseskabel brukes (medfølger ikke).

3,5 mm 1: L 2: Video 3: Jord 4: R

5 IR BLASTER ^2*

6 (RF-inngang), (Satellittinngang)

• Tilkoblinger for bakke/kabel og satellitt. Tilkoblingstrinn: SUB. → Antenne → MAIN
• For SUB. plugg, koble bare när du bruker dobbel tuner-modus, unntatt for én kabel EN50494.

7 CAM (Conditional Access Module)

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Feilsøking

Updating...

Lydinngang (phonoplugger)

→ AV IN 2

(24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC-formater

*1 3840 × 2160p vises när 4096 × 2160p mates inn. *2 kun HDMI IN 2 / 3.

Lyd: 5,1 kanal lineær PCM: 32, 44,1, 48, 88,2, 96,

(tokenals lineær PCM: 48 kHz, 16 biter, Dolby

Digital, Dolby Digital Plus, DTS)

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM:

48 kHz, 16 biter, Dolby Digital, DTS)

AUDIO OUT /∩ (stereomini-kontakt)

Hodetelefon, lydutgang, subwoofer

1, 2, 3 (HDD REC)* 1

- Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

The Heights, Brooklands

Weybridge, Surrey, KT 13 0XW

United Kingdom.

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a process with laptop, panel, and switch symbols indicating absence or prohibition of a device.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark and prohibition symbols, showing steps to switch from a monitor to a laptop.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two human figures holding a rectangular electronic device (no text or symbols visible)

Diagram showing a device connected to a screen with labeled ports and a dashed box, likely illustrating a system or interface setup.

1 ⏻ (Włącznik) /+/-

< 12 mm < 21 mm

4 → /→ AV IN 1

Technical line drawing of a mechanical clamp or bracket assembly with two bolts and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Updating...

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Formaty komputerowe

DIGITAL AUDIO OUT (OPTICAL)

KD-49XE90xx / FW-49XE90xx: 102 W

w trybie [Żywy]

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Waga (Ok.)

z podstawą

KD-75XE90xx: 35 kg

KD-75XE85xx: 35,2 kg

KD-65XE90xx: 23,2 kg

KD-65XE85xx: 22,1 kg

KD-55XE90xx: 18,1 kg

KD-55XE85xx: 19,5 kg

KD-49XE90xx: 13,8 kg

bez podstawy

KD-75XE90xx: 33,2 kg

KD-75XE85xx: 34,1 kg

KD-65XE90xx: 22 kg

KD-65XE85xx: 21 kg

KD-55XE90xx: 16,9 kg

KD-55XE85xx: 18,6 kg

KD-49XE90xx: 12,6 kg

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a device setup with monitor, panel, and warning symbol indicating absence or prohibition.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark and prohibition symbols, showing steps to switch from a laptop to a monitor.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two people carrying a large rectangular device (no text or symbols visible)

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

2×2

Illustration of a person reacting to a TV screen and a small dish on a table (no text or symbols present)

Diagram showing a device connected to a screen with labeled ports and a dashed box, likely illustrating a system or interface setup.

1 ⏻ (Napájení) /+/-

Při vypnuté TV,

< 12 mm < 21 mm

4 →/→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Řešení problémů

Updating...

PAL, SECAM, NTSC3.58 (Pouze video), NTSC4.43

(Pouze video)

Výběr kanálů

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC formáty

→ DIGITAL AUDIO OUT (OPTICAL)

1, 2, 3 (HDD REC)* 1

- C + DC IN 19.5 V (Pouze modely

KD-55/49XE90xx)

KD-49XE90xx / FW-49XE90xx: 102 W

v režimu [Živý]

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Hmotnost (přibl.)

se stolním stojanem

KD-75XE90xx: 35 kg

KD-75XE85xx: 35,2 kg

KD-65XE90xx: 23,2 kg

KD-65XE85xx: 22,1 kg

KD-55XE90xx: 18,1 kg

KD-55XE85xx: 19,5 kg

KD-49XE90xx: 13,8 kg

- Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a device operation with labeled steps and prohibition symbols

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark and prohibition symbols, showing steps from setup to assembly or repair.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two human figures holding a rectangular electronic device (no text or symbols visible)

Illustration of a person reacting to a TV screen and a small dish on a stove (no text or symbols)

< 12 mm < 21 mm

4 → /→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Riešenie problémov

Updating...

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, Formáty PC

*1 Ked'je vstup 4096 × 2160 pixelov, zobrazené je 3840 × 2160 pixelov.

*2 Iba HDMI IN 2 / 3.

Zvuk: 5,1 lineárny kanál PCM: 32, 44,1, 48, 88,2, 96, 176,4 a 192 kHz, 16, 20 a 24 bitov, Dolby Digital, Dolby Digital Plus a DTS

ARC (Audio Return Channel) (iba HDMI IN 3)

(dvojkanálový lineárny PCM: 48 kHz, 16 bitov, Dolby Digital, Dolby Digital Plus, DTS)

→ DIGITAL AUDIO OUT (OPTICAL)

- C + DC IN 24 V (Len KD-65XE90xx)

- C + DC IN 19.5 V (Len KD-55/49XE90xx)

KD-49XE90xx / FW-49XE90xx: 102 W

v režime [Živý]

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

- Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a process with laptop, panel, and switch symbols indicating absence or prohibition of a device.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark and prohibition symbols, showing steps to switch from a laptop to a monitor.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a large rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two silhouetted figures holding a rectangular electronic device (no text or symbols visible)

< 12 mm < 21 mm

4 → /→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

HU

Hibaelhárítás

Updating...

(24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC formátumok

→ DIGITAL AUDIO OUT (OPTICAL)

KD-49XE90xx / FW-49XE90xx: 102 W

[Élénk] üzemmódban

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Tömeg (Kb.)

asztali állvánnyal

KD-75XE90xx: 35 kg

KD-75XE85xx: 35,2 kg

KD-65XE90xx: 23,2 kg

KD-65XE85xx: 22,1 kg

KD-55XE90xx: 18,1 kg

KD-55XE85xx: 19,5 kg

KD-49XE90xx: 13,8 kg

- Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

INFORMATIE IMPORTANTĂ 2

INFORMATIE IMPORTANTĂ

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a process with laptop, panel, and switch symbols indicating absence or prohibition of a device.

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a process with checkmark, magnified views, and prohibition symbol on a device

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two silhouetted figures carrying a large rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two people holding a large rectangular device (no text or symbols visible)

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

2×2

8 mm - 12 mm Şurub M6 (demontat anterior) 2 x 2 Cablu (neinclus) Şurub (neinclus)

KD-75/65/55XE85xx, FW-75/65XE85xx

2×2

8 mm - 12 mm Şurub M6 (demontat anterior) 2 x 2 Cablu (neinclus) Şurub (neinclus)

Ventilatie

↑/↓/←/→/ ⊕ (Selectare element/Introducere)

5 ∠ +/- (Volum)

Reglează volumul.

(Salt)

< 12 mm < 21 mm

4 →/→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

RO

Depanare

Updating...

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C

DVB-T2*

Satelit*: DVB-S/DVB-S2

Sistem culoare

PAL, SECAM, NTSC3.58 (Numai video), NTSC4.43 (Numai video)

Acoperire canale

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

Satelit*: Frecvență IF 950 - 2.150 MHz

leşire audio

10 W + 10 W

Tehnologie wireless

Protocol IEEE802.11ac/a/b/g/n

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, Formate PC

DIGITAL AUDIO OUT (OPTICAL)

KD-49XE90xx / FW-49XE90xx: 102 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Masa (Cca.)

cu suport de masă

KD-75XE90xx: 35 kg

KD-75XE85xx: 35,2 kg

KD-65XE90xx: 23,2 kg

KD-65XE85xx: 22,1 kg

KD-55XE90xx: 18,1 kg

KD-55XE85xx: 19,5 kg

KD-49XE90xx: 13,8 kg

fără suport de masă

KD-75XE90xx: 33,2 kg

KD-75XE85xx: 34,1 kg

KD-65XE90xx: 22 kg

KD-65XE85xx: 21 kg

KD-55XE90xx: 16,9 kg

KD-55XE85xx: 18,6 kg

KD-49XE90xx: 12,6 kg

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a device setup with monitor, panel, and warning symbol indicating absence or prohibition.

KD-75/65/55XE85xx, FW-75/65XE85xx

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two human figures holding a rectangular electronic device (no text or symbols visible)

< 12 mm < 21 mm

4 →/→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Updating...

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC формати

ARC (Audio Return Channel) (camo HDMI IN 3)

(Двуканален линеен PCM: 48 kHz, 16 бита, Dolby Digital, Dolby Digital Plus, DTS)

DIGITAL AUDIO OUT (OPTICAL)

Цифров оптичен жак (Двуканален линеен PCM: 48 kHz, 16 бита, Dolby Digital, DTS)

AUDIO OUT ⚡ (Стерео мини жак)

KD-49XE90xx / FW-49XE90xx: 102 W

в [Ярък] режим

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Тегло (прибл.)

с поставка за маса

KD-75XE90xx: 35 kg

KD-75XE85xx: 35,2 kg

KD-65XE90xx: 23,2 kg

KD-65XE85xx: 22,1 kg

KD-55XE90xx: 18,1 kg

KD-55XE85xx: 19,5 kg

KD-49XE90xx: 13,8 kg

без поставка за маса

KD-75XE90xx: 33,2 kg

KD-75XE85xx: 34,1 kg

KD-65XE90xx: 22 kg

KD-65XE85xx: 21 kg

KD-55XE90xx: 16,9 kg

KD-55XE85xx: 18,6 kg

KD-49XE90xx: 12,6 kg

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

KD-75/65/55XE85xx, FW-75/65XE85xx

Diagram illustrating a folding or disassembly process with labeled steps and visual icons for folding and disassembly.

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Illustration of two human figures holding a rectangular device (no text or symbols visible)

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two human figures holding a rectangular electronic device (no text or symbols visible)

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

2×2

< 12 mm < 21 mm

4 →/→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

GR

Updating...

(24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Μορφές υπολογιστή

DIGITAL AUDIO OUT (OPTICAL)

KD-49XE90xx / FW-49XE90xx: 102 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Βάρος (Περίπου)

KD-55XE8577, KD-55XE8505, KD-49XE9005, FW-75XE9001,

FW-75XE8501, FW-65XE9001, FW-65XE8501, FW-55XE9001,

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Diagram illustrating a device setup with monitor, panel, and warning symbol indicating absence or prohibition.

KD-75/65/55XE85xx, FW-75/65XE85xx

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

Two human figures holding a rectangular device with a grid pattern, no text or symbols visible

KD-75/65/55XE85xx, FW-75/65XE85xx

Illustration of two people holding a rectangular electronic device (no text or symbols visible)

KD-75/65/55/49XE90xx, FW-75/65/55/49XE90xx

2×2

Duvar Duvar

Ana elektrik kablosu

1-7-1 Konan, Minato-ku,

Tokyo 108-0075 Japan

Telefon: [phone]

< 12 mm < 21 mm

4 → /→ AV IN 1

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

KD-75XE85xx, FW-75XE85xx

Mechanical assembly diagram showing two connected components with bolts and rods (no text or labels)

Sorun Giderme

Updating...

Dijital: DVB-T/DVB-C

DVB-T2*

Uydu*: DVB-S/DVB-S2

Renk Sistemi

PAL, SECAM, NTSC3.58 (Sadece video), NTSC4.43

(Sadece video)

Kanal kapsamı

Dijital: UHF/VHF/Kablolu

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formatlari

DIGITAL AUDIO OUT (OPTICAL)

Kulaklık, Ses Çıkışı, Subwoofer

1, 2, 3 (HDD REC)\*

1

KD-49XE90xx / FW-49XE90xx: 102 W

[Canlı] modunda

KD-75XE9005: 331 W

KD-75XE8596: 246 W

FW-75XE9001: 331 W

FW-75XE8501: 246 W

KD-65XE9005: 230 W

KD-65XE8599: 195 W

KD-65XE8596: 195 W

KD-65XE8588: 195 W

KD-65XE8577: 195 W

KD-65XE8505: 195 W

FW-65XE9001: 230 W

FW-65XE8501: 195 W

KD-55XE9005: 189 W

KD-55XE8599: 180 W

KD-55XE8596: 180 W

KD-55XE8588: 180 W

KD-55XE8577: 180 W

KD-55XE8505: 180 W

FW-55XE9001: 189 W

KD-49XE9005: 173 W

FW-49XE9001: 173 W

KD-65XE90xx: 144,7 × 83,0 × 6,0 cm

KD-65XE85xx: 145,4 × 84,0 × 4,4 cm

KD-55XE90xx: 122,8 × 70,7 × 6,0 cm

KD-55XE85xx: 123,2 × 71,7 × 5,7 cm

KD-49XE90xx: 109,3 × 63,1 × 6,2 cm

Ağırlık (Yaklaşık)
