USER MANUAL WX372.9 WORX

Line drawing of a WORX electric drill with visible branding and handle (no text or symbols beyond brand name)

Lithium-Ion cordless hammer drill	EN	P06
Schnurloser Lithium-Ionen-Schlagbohrer	D	P15
Perceuse à percussion sans fil Lithium-Ion	F	P24
Trapano a percussione con batteria agli ioni di litio	I	P33
Martillo perforador con batería de iones de litio	ES	P42
Snoerloze boorhamer op lithiumionbatterij	NL	P51
Bezprzewodowa wiertarka z udarem z baterią litowo-jonową	PL	P60
Lítium-ion vezeték nélküli ütvefúró	HU	P69
Maşină roto-percutoare fără fir, cu accumulator pe bază de litiu-ion	RO	P78
Bezšňůrová lithium-ionová příklepová vrtačka	CZ	P87
Príklepová vrtačka poháňaná litiovo-iónovým akumulátorom	SK	P96
Berbequim de percussão sem fios com bateria de iões de lítio	PT	P105
Sladdlös slagborrmaskin med litiumjonbatteri	SV	P114
Brezžični udarni vrtalnik z litijevim akumulatorjem	SL	P123

Technical illustration of a mechanical device with a labeled section A2, showing internal components and an arrow indicating assembly (no text or symbols on the device itself)

Diagram showing a battery being inserted into a device, with no visible text or symbols

B1 ① ② ③

B2 ② ③ ①

C1

Technical line drawing of a mechanical component with a lock and mounting bracket (no text or symbols)

C3

D MOR

E T 1.0 T 2.0 T 3.0 T 4.0 T 5.0 T 6.0 T 7.0 T 8.0 T 9.0 T 10.0 T 11.0 T 12.0 T 13.0 T 14.0 T 15.0 T 16.0 T 17.0 T 18.0 T 19.0 T 20.0 T 21.0 T 22.0 T 23.0 T 24.0 T 25.0 T 26.0 T 27.0 T 28.0 T 29.0 T 30.0 T 31.0 T 32.0 T 33.0 T 34.0 T 35.0 T 36.0 T 37.0 T 38.0 T 39.0 T 40.0 T 41.0 T 42.0 T 43.0 T 44.0 T 45.0 T 46.0 T 47.0 T 48.0 T 49.0 T 50.0 T 51.0 T 52.0 T 53.0 T 54.0 T 55.0 T 56.0 T 57.0 T 58.0 T 59.0 T 60.0 T 61.0 T 62.0 T 63.0 T 64.0 T 65.0 T 66.0 T 67.0 T 68.0 T 69.0 T 70.0 T 71.0 T 72.0 T 73.0 T 74.0 T 75.0 T 76.0 T 77.0 T 78.0 T 79.0 T 80.0 T 81.0 T 82.0 T 83.0 T 84.0 T 85.0 T 86.0 T 87.0 T 88.0 T 89.0 T 90.0 T 91.0 T 92.0 T 93.0 T 94.0 T 95.0 T 96.0 T 97.0 T 98.0 T 99.0 T10.0

F

G =

PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings, instructions, illustrations and

specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention

while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have

the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

DRILL SAFETY WARNINGS

1) Safety instructions for all operations
a) Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
b) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring. Cutting accessory or fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
2) Safety instructions when using long drill bits
a) Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
b) Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
c) Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the

correct charging procedure.

j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature ( 20^ ± 5^ ).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.
t) Do not mix cells of different manufacture, capacity, size or type within a device.
u) Do not remove battery pack from its original packaging until required for use.
v) Observe the plus (+) and minus (−) marks on the battery and ensure correct use.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual		Hammer drilling
	Warning		Screwdriving
	Wear ear protection		Drilling
[Y2HG]	Wear eye protection		Wood
	Wear dust mask		Metal
	Wear protective gloves		Brick
	Do not expose to rain or water.		High speed
	Do not burn		Low speed
	Do not dispose of batteries, Return exhausted batteries to your local collection or recycling point.
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

COMPONENT LIST

1.	CHUCK
2.	TORQUE ADJUSTMENT RING
3.	TWO-SPEED GEAR CONTROL
4.	FORWARD/REVERSE ROTATION CONTROL
5.	SOFT GRIP HANDLE
6.	BATTERY PACK *
7.	BATTERY PACK RELEASE BUTTON *
8.	SIGHT LIGHT
9.	ON/OFF SWITCH

* Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX372 WX372.1 WX372.2 WX372.3 WX372.4 WX372.5 WX372.6 WX372.7 WX372.8 WX372.9 WX372.10 WX372.11 WX372.12 (3-designation of machinery, representative of hammer drill)

		WX372 WX372.1 WX372.2WX372.3 WX372.4 WX372.5WX372.6 WX372.8 WX372.10WX372.11 WX372.12	WX372.7	WX372.9
Rated voltage 20V		--- Max**
No load speed 0-550 / 0-1800/min
Impact rate 0-8800 / 0-28800/min
Number of clutch position 22+1+1
Max torque 50N.m
Chuck capacity 13mm
Max. drilling capacity	Steel 13mm
	Wood	40mm
	Brickwork	16mm
	Concrete	13mm
Machine weight		1.65kg	1.98kg	1.29kg

**Voltage measured without workload. Initial battery voltage reaches Maximum of 20volts. Nominal voltage is 18volts.

NOISE INFORMATION

A weighted sound pressure L	_pA :85.2dB(A)
A weighted sound power L	_wA :96.2dB(A)
K_pA & K_wA 3.0dB(A)

Wear ear protection.

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:
Impact drilling into concrete	Vibration emission value a_h,ID = 11.0m/s^2
	Uncertainty K = 1.5m/s2
Drilling into metal	Vibration emission value a_h,D = 2,8m/s^2
	Uncertainty K = 1.5m/s2

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.

WARNING: The vibration and noise emissions during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind of workpiece is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained.

The use of the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration and noise accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when

it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration and noise exposure risk.

Always use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration and noise accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	WX372 WX372.1 WX372.2 WX372.3 WX372.4
Charger 11111
Battery Pack 21222
Double Ended Bit 1 1 / 1 1
158pc Accessories // 1 //
30pcs Accessories /	/	/	/	/
55pcs Accessories /	/	/	/	/
Tool box /	/	/	/	/

		WX372.5	WX372.6	WX372.7	WX372.8	WX372.9
Charger 1	1	1	1	/
Battery Pack 2	1	2	2	/
Double Ended Bit 1 1 1 / 1
158pc Accessories /// 1 /
30pcs Accessories /	/	/	/	/
55pcs Accessories /	/	/	/	/
Tool box /	/	/	/	/

	WX372.10	WX372.11	WX372.12
Charger 1 1 1
Battery Pack 1 2 2
Double Ended Bit	///
158pc Accessories / 1 /
30pcs Accessories	1 //
55pcs Accessories	/	/	1
Tool box	/	/	1

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and plastic.

ASSEMBLY AND OPERATION

ACTION	FIGURE
BEFORE OPERATION
Removing the battery pack See Fig. A1
Charging the battery See Fig. A2

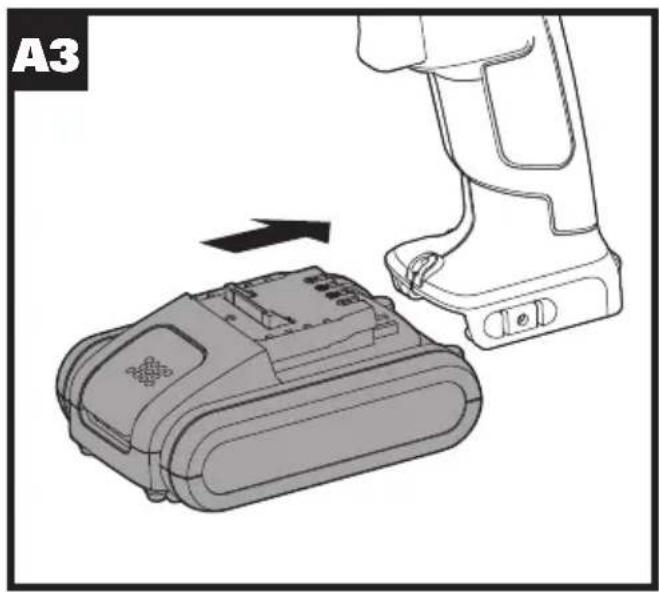

Installing the battery pack See Fig. A3
ASSEMBLY

CHUCK ADJUSTMENT

WARNING: Always lock off trigger switch and disconnect tool from power source when changing accessories. Always ensure the bit is secure before starting the tool. Damage to the Chuck or a loose bit may cause possible personal injury.

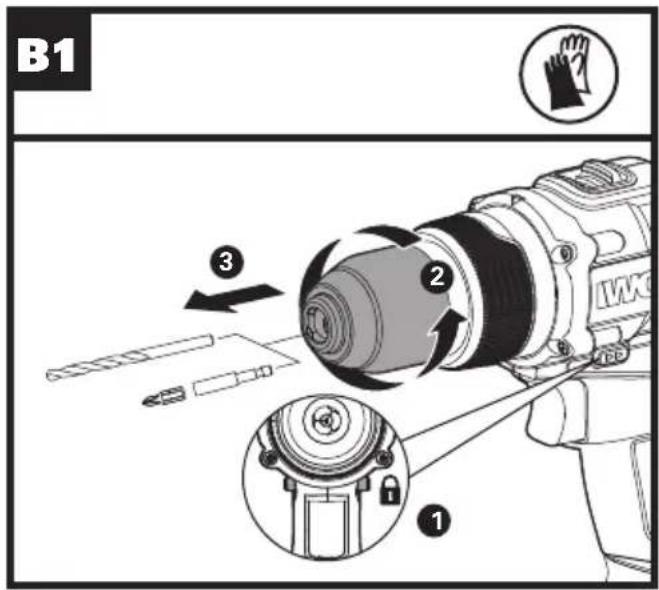

--Removing the bits See Fig. B1

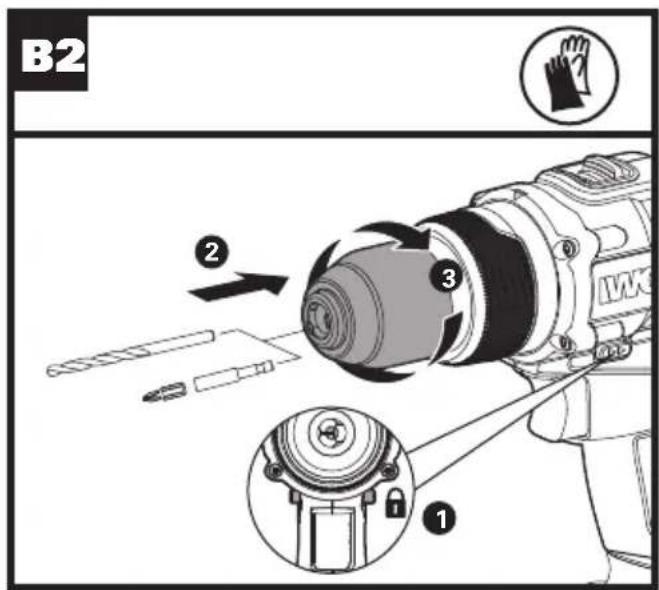

--Inserting the bits See Fig. B2
OPERATION

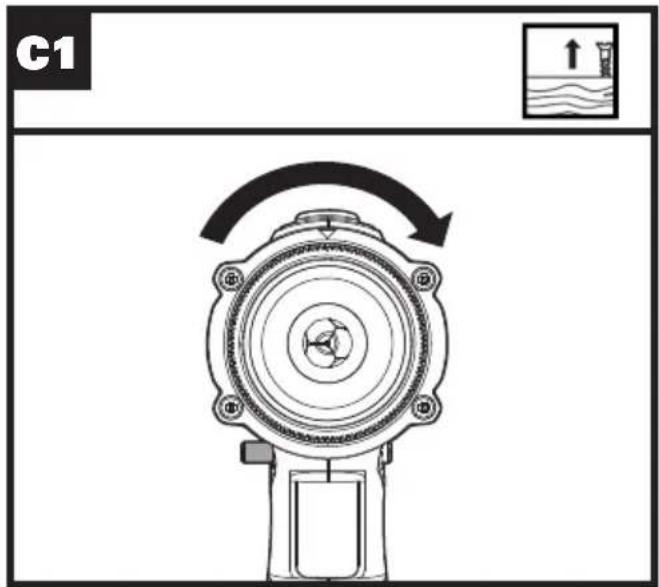

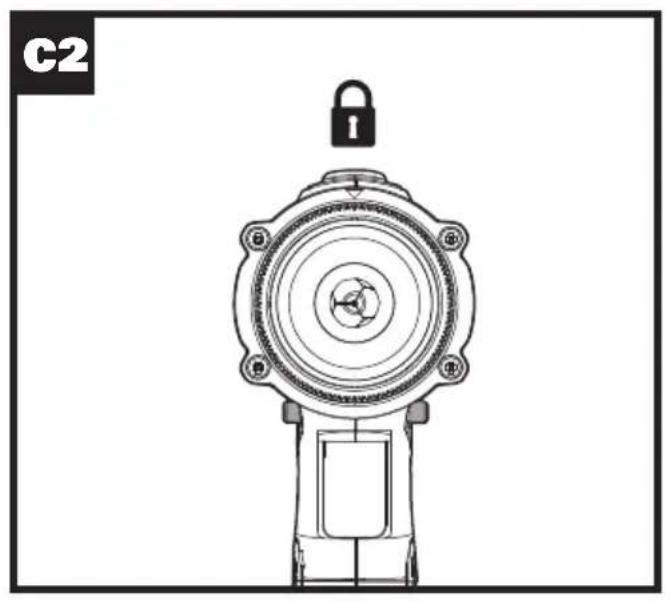

FORWARD/REVERSE ROTATION CONTROLWARNING: Never change the direction of rotation when the chuck is rotating, wait until it has stopped!	See Fig. C1, C2, C3

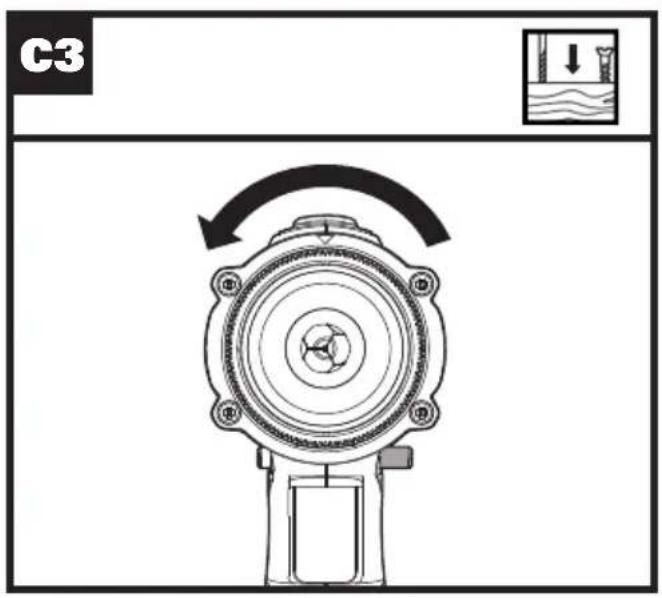

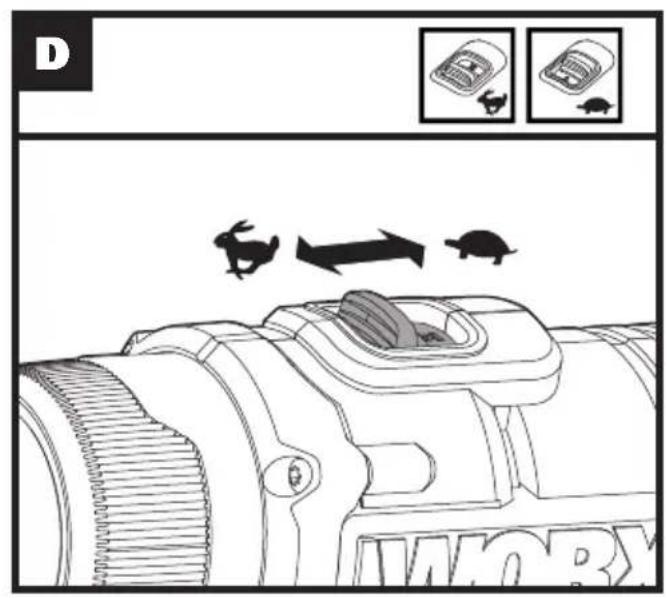

TWO-SPEED GEAR CONTROL	See Fig. D

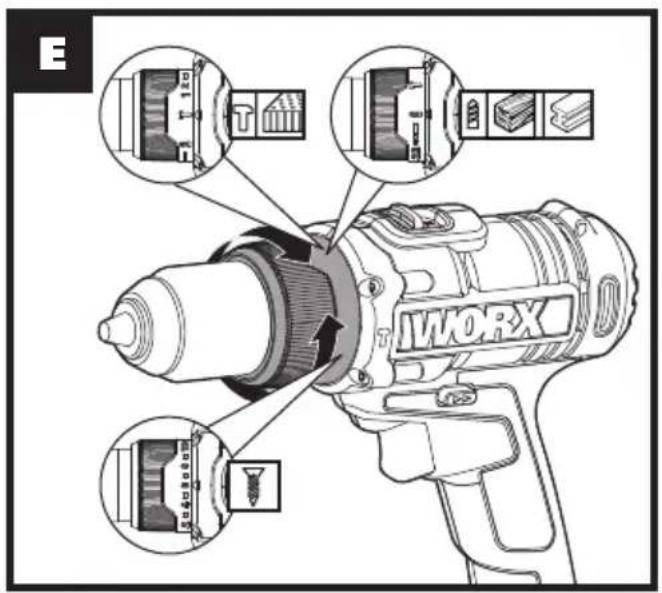

TORQUE ADJUSTMENT SCREWDRIVING, DRILLING, HAMMER DRILLING	See Fig. E

WARNING: Do not operate for long periods by speed because excess will be produced internally.

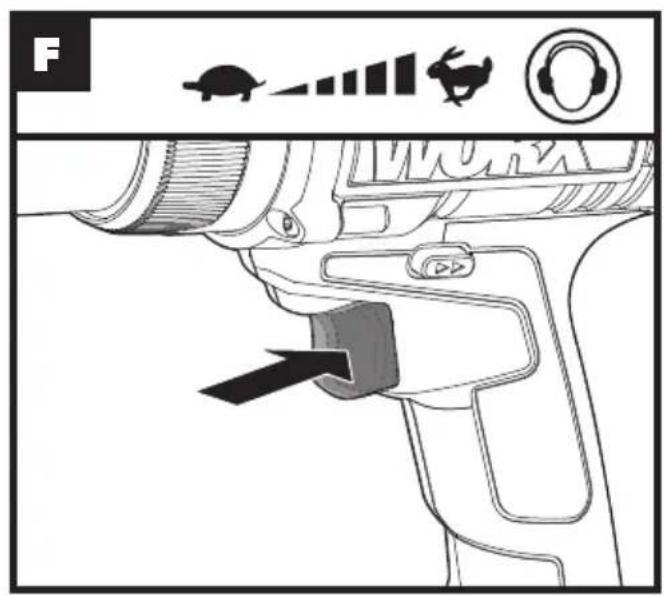

See Fig. F

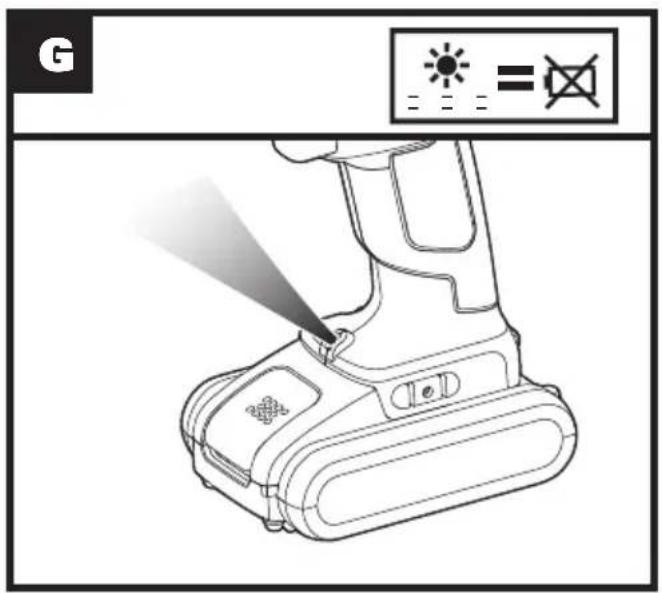

LED LIGHT INDICATOR (See Fig. G)

Before operation, the LED light will be activated when the On/Off switch is slightly depressed The tool and battery are equipped with a protection system. When the LED Light is quickly flashing 60 seconds and turn off, the system will automatically cut off power to the tool to extend battery life. The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

• Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the Trigger Switch on the tool and stop the application that caused the tool to become overloaded. Then pull the Trigger Switch again to restart.

- Overheated: Under the condition above, if the tool does not start, the Tool and Battery are overheated. In this situation, let the Tool and Battery cool before pulling the Trigger Switch again. - Low battery voltage: The remaining Battery capacity is too low and the tool will not operate. In this situation, remove and recharge the Battery.

WARNING: To turn on the light, press the On/Off switch and make sure the Forward/Reverse on Control is on right/left position.

PROBLEM SOLUTION

1. WHY DOES THE DRILL NOT TURN ON WHEN YOU PRESS THE SWITCH?

The Forward and Reverse Switch, which is on top of the trigger, is positioned in the lock function. Unlock the Forward and Reverse Switch putting it into the required rotation position. Push the trigger and the drill will start to rotate (See Fig.C1 C2 C3).

2. THE DRILL STOPS BEFORE THE SCREW IS COMPLETELY TIGHTENED. WHY?

Verify the torque position of the Torque Adjustment Ring, you can find the Torque Adjustment Ring between the Chuck and the drill body. Position 1 is the lowest torque (screw driving force) and position 22 is the highest torque (screw driving force). Position 3 is for drill operation. Position 4 is for hammer drill operation. Regulate the Torque Adjustment Ring to a higher position to reach the best result (See Fig. E).

3. I CAN NOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?

The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the red LED Light should turn on when the battery is charging.

4. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, as above, and having not used a Battery Pack for a prolonged time will reduce the Battery Pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the Battery Pack energy faster than lighter working conditions. Do not re-charge your Battery Pack below 0°C and above 30°C as this will affect performance.

MAINTENANCE

Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

14

FOR BATTERY TOOLS

The ambient temperature range for tool and battery use and storage is 0^ C- 45^ C.

The recommended ambient temperature range for the charging system during charging is 0^ C- 40^ C.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your

local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

Declare that the product,

Description WORX Lithium-Ion cordless hammer drill

Type WX372 WX372.1 WX372.2 WX372.3

WX372.4 WX372.5 WX372.6 WX372.7

WX372.8 WX372.9 WX372.10 WX372.11

WX372.12 (3-designation of machinery, representative of Hammer drill)

Function Drilling

Complies with the following Directives,

2006/42/EC

2011/65/EU&(EU)2015/863

2014/30/EU

Standards conform to

EN 55014-1

EN 55014-2

EN 62841-1

EN 62841-2-1

The person authorized to compile the technical file,

Name Marcel Filz

Address POSITEC Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

M A

2019/03/05

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SÉCURITÉ DU PRODUIT AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX POUR L'OUTIL

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

DÉCLARATION DE CONFORMITÉ

Nous,

POSITEC Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

WX372.4 WX372.5 WX372.6 WX372.7

WX372.8 WX372.9 WX372.10 WX372.11

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SICUREZZA DEL PRODOTTO AVVISI GENERALI PER LA SICUREZZA DEGLI UTENSILI A MOTORE

Codice WX372 WX372.1 WX372.2 WX372.3 WX372.4 WX372.5 WX372.6 WX372.7 WX372.8WX372.9 WX372.10 WX372.11 WX372.12 (3-designazione del macchinario rappresentativo del Trapano a percussione a batteria)

Codice WX372 WX372.1 WX372.2 WX372.3

WX372.4 WX372.5 WX372.6 WX372.7

WX372.8 WX372.9 WX372.10 WX372.11

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUCTVEILIGHEID ALGEMENE VEILIGHEIDSWAARSCHUWING- EN VOOR VERMOGENSMACHINE

WAARSCHUWING Lees alle

VEILIGHEIDSWAARSCHUWIN- GEN VOOR BOOR

Type WX372 WX372.1 WX372.2 WX372.3

WX372.4 WX372.5 WX372.6 WX372.7

WX372.8 WX372.9 WX372.10 WX372.11

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

C€

BEZPIECZEŃSTWO PRODUKTU OGÓLNE OSTRZEŻENIA DOTYCZĄCE BEZPIECZEŃSTWA PODCZAS PRACY Z ELEKTRONARZĘDZIAMI

Typ WX372 WX372.1 WX372.2 WX372.3

WX372.4 WX372.5 WX372.6 WX372.7

WX372.8 WX372.9 WX372.10 WX372.11

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

TERMÉKBIZTONSÁG ELEKTROMOS KÉZISZERSZÁMOK BIZTONSÁGOS HASZNÁLATÁVAL KAPCSOLATOS ÁLTALÁNOS FIGYELMEZTETÉSEK

WX372.4 WX372.5 WX372.6 WX372.7

WX372.8 WX372.9 WX372.10 WX372.11

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SECURITATEA PRODUSULUI AVERTISMENTE GENERALE DE SIGURANTĂ PENTRU UNELTE ELECTRICE

Tip WX372 WX372.1 WX372.2 WX372.3 WX372.4 WX372.5 WX372.6 WX372.7 WX372.8WX372.9 WX372.10 WX372.11 WX372.12 (3 - denumirea echipamentului, reprezentând Ciocan perforator)

Tip WX372 WX372.1 WX372.2 WX372.3

WX372.4 WX372.5 WX372.6 WX372.7

WX372.8 WX372.9 WX372,10 WX372.11

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPEČNOST VÝROBKU OBECNÁ BEZPEČNOSTNÍ UPOZORNĚNÍ PRO ELEKTRICKÉ NÁSTROJE

Typ WX372 WX372.1 WX372.2 WX372.3

WX372.4 WX372.5 WX372.6 WX372.7

WX372.8 WX372.9 WX372.10 WX372.11

WX372.12 (3- označenie zariadenia, zástupca

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SEGURANÇA DO PRODUTO AVISOS GÉRAIS DE SEGURANÇA DE FERRAMENTAS ELECTRICAS

Tipo WX372 WX372.1 WX372.2 WX372.3 WX372.4 WX372.5 WX372.6 WX372.7 WX372.8 WX372.9 WX372.10 WX372.11 WX372.12 (3- designação de máquinas, representantes do martelo perfurador)

Tipo WX372 WX372.1 WX372.2 WX372.3

WX372.4 WX372.5 WX372.6 WX372.7

WX372.8 WX372.9 WX372.10 WX372.11

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSÄKERHET GENERELLA SÄKERHETSVARNINGAR FÖR ELVERKTYG

Vrsta WX372 WX372.1 WX372.2 WX372.3 WX372.4 WX372.5 WX372.6 WX372.7 WX372.8 WX372.9 WX372.10 WX372.11 WX372.12 (3- oznaka naprave, predstavnik udarnih vrtalnikov)

		WX372WX372.1 WX372.2 WX372.3WX372.4 WX372.5 WX372.6WX372.8 WX372.10 WX372.11WX372.12	WX372.7	WX372.9
Napetost 20V		Max**
Št. vrt. brez obremenitve 0-550 / 0-1800/min
Udarno razmerje 0-8800 / 0-28800/min
Število stopenj 22+1+1
Maks. navor 50N.m
Kapaciteta čeljusti 13mm
Maks. kapaciteta vrtanja	Jeklo 13mm
	Les 40mm
	Opeka 16mm
	Beton	13mm
Teža strojčka		1.65kg	1.98kg	1.29kg

Vrsta izdelka WX372 WX372.1 WX372.2

WX372.3 WX372.4 WX372.5 WX372.6

WX372.7 WX372.8 WX372.9 WX372.10

WX372.11 WX372.12 (3- oznaka naprave, predstavnik udarnih vrtalnikov)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

WORX you've got the power

www.worx.com

Copyright © 2020, Positec. All Rights Reserved. AR01024808
