WX183.1 - Screwdriver WORX - Free user manual and instructions

Product Type	Cordless Impact Drill/Driver
Brand	Worx
Model	WX183.1
Rated Voltage	20V Max (18V nominal)
No Load Speed	0-500 / 0-1700 rpm
Number of Clutch Positions	18+1
Max Torque	50 Nm
Chuck Capacity	13 mm
Max Drilling Capacity Steel	13 mm
Max Drilling Capacity Wood	35 mm
Weight	1.66 kg
Sound Pressure Level	73.8 dB(A)
Sound Power Level	84.8 dB(A)
Vibration Level Drilling Metal	3.74 m/s² (K=1.5 m/s²)
Power Source	20V Max Lithium-ion Battery
Battery Type	Lithium-ion
Charger Included	Yes (depending on model)
Double Bits Included	Yes (depending on model)
Functions	Drilling, Screwdriving, Hammer
Maintenance	Clean with a dry cloth; do not use water or solvents
Safety	Wear hearing and eye protection
Compliance	CE, directives 2006/42/EC, 2011/65/EU, 2014/30/EU
Repairability	No user-serviceable parts; contact customer service
Application	Drilling in wood, metal, concrete, brick, stone, plastic

Frequently Asked Questions - WX183.1 WORX

Why does the tool not work when I press the trigger?

The direction switch above the trigger is likely in the locked center position. Slide it left or right, then press the trigger (see Fig. C1, C2, C3).

Why does the drill stop before the screw is fully tightened?

Check the position of the torque ring between the chuck and the body. Position 1 is the lowest torque, position 18 the highest. Use a higher position for full tightening. The drilling position (drill symbol) is for drilling.

Why can't I insert the battery into the charger?

The battery can only be inserted one way. Rotate it until it slides in freely. The red light should then turn on, indicating charging is in progress.

What are the reasons for differences in battery runtime?

Issues with charging time and prolonged storage can reduce runtime. This can be corrected after several charging and discharging cycles. Severe working conditions, such as driving large screws into hardwood, will discharge the battery faster. Do not recharge the battery below 0°C or above 30°C.

How to adjust the tool speed?

Use the two-speed selector (Fig. D) to choose between low speed (0-500 rpm) for screwdriving and high speed (0-1700 rpm) for drilling.

How to use the hammer function?

Set the torque ring to the hammer drilling position (hammer symbol). Use this function to drill into brick, concrete, and natural stone.

How to change the direction of rotation?

Use the direction switch above the trigger. Push it left for forward rotation, right for reverse rotation, and center to lock the trigger. Never change direction while the chuck is rotating.

How to maintain the tool?

Remove the battery before any maintenance. Clean with a dry cloth. Keep ventilation slots clean. Do not use water or chemicals. No special lubrication is required.

What to do if the LED indicator flashes quickly?

This indicates overheat or overload protection. Release the trigger and let the tool and battery cool down. If the problem persists, remove and recharge the battery.

Is the tool compatible with other Worx batteries?

Use only batteries and chargers specified by Worx for this model (20V Max lithium-ion battery). Do not use other batteries, as this could cause fire or damage to the tool.

USER MANUAL WX183.1 WORX

Technical line drawing of a handheld device with internal components and an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a lock and housing (no text or symbols)

1. CHUCK
2. TORQUE ADJUSTMENT RING
3. TWO-SPEED GEAR CONTROL
4. FORWARD/REVERSE ROTATION CONTROL
5. SOFT GRIP HANDLE
6. BATTERY PACK
7. BATTERY PACK RELEASE BUTTON
8. LED LIGHT
9. ON/OFF SWITCH

* Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX183 WX183.1 WX183.9 (1-designation of machinery, representative of drill)

		WX183 WX183.1 WX183.9
Rated voltage 20V Max**		---
No load speed 0-500 / 0-1700 /min
Number of clutch position 18+1
Max torque 50N.m
Chuck capacity 13mm
Max. drilling capacity	Steel 13mm
	Wood 35mm
Machine weight		1.66kg

**Voltage measured without workload. Initial battery voltage reaches Maximum of 20volts. Nominal voltage is 18volts.

NOISE INFORMATION

A weighted sound pressure L	_pA : 73,8dB(A)
A weighted sound power L	_wA : 84,8dB(A)
K_pA & K_wA	3.0dB(A)

Wear ear protection when sound pressure is over 80dB(A)

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:
Drilling into metal	Vibration emission value a_h,D = 3.74m/s^2
	Uncertainty K = 1.5m/s2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the using examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool

is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ C or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	WX183 WX183.1 WX183.9
Charger 1 1 /
Battery Pack 1 2 /
Double Ended Bit 1 1 1

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

DRILL SAFETY WARNINGS

1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
2. Use auxiliary handles, If supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SCREW DRIVER AND IMPACT WRENCH SAFETY WARNING

1. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or

fire. Avoid storage in direct sunlight.

d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature ( 20^ ± 5^ ).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual	[SY8A]	Screwdriving
	Warning		Drilling
	Wear ear protection		Wood
	Wear eye protection		Metal
[XXKS]	Wear dust mask		Lock
	Wear protective gloves		LED light is a battery capacity indicator and will flash when power gets low.
	Do not expose to rain or water.		High speed
	Do not burn		Low speed
	Do not dispose of batteries, Return exhausted batteries to your local collection or recycling point.		xINR18/65-y: Cylindrical lithium lon battery cells with max diameter of 18mm and max height of 65mm; “x” represents a number cells serial connected, blank if 1; “-y” represents a number of cells paralleled connected, blank if 1.
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The machine is intended for impact drilling in wood and metal.

ASSEMBLY AND OPERATION

ACTION FIGURE
BEFORE OPERATION
Removing the battery pack See Fig. A1
Charging the battery See Fig. A2

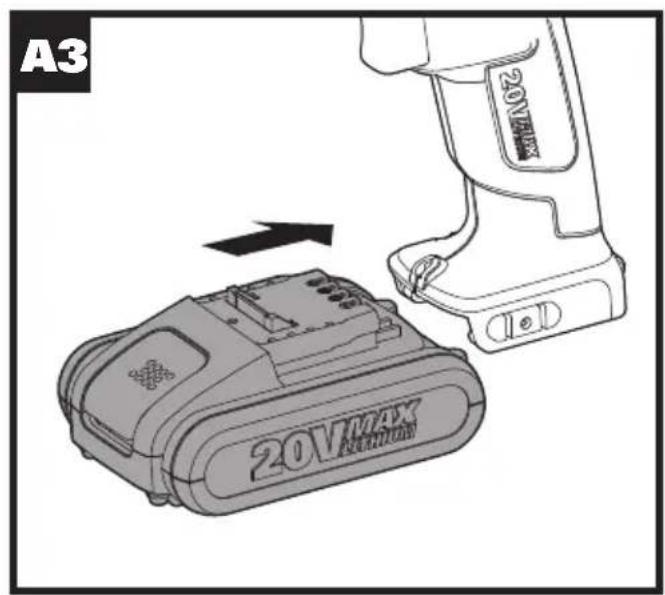

Installing the battery pack See Fig. A3
ASSEMBLY

CHUCK ADJUSTMENT

WARNING: Always lock off trigger switch and disconnect tool from power source when changing accessories. Always ensure the bit is secure before starting the tool. Damage to the k or a loose bit may cause possible personal injury.

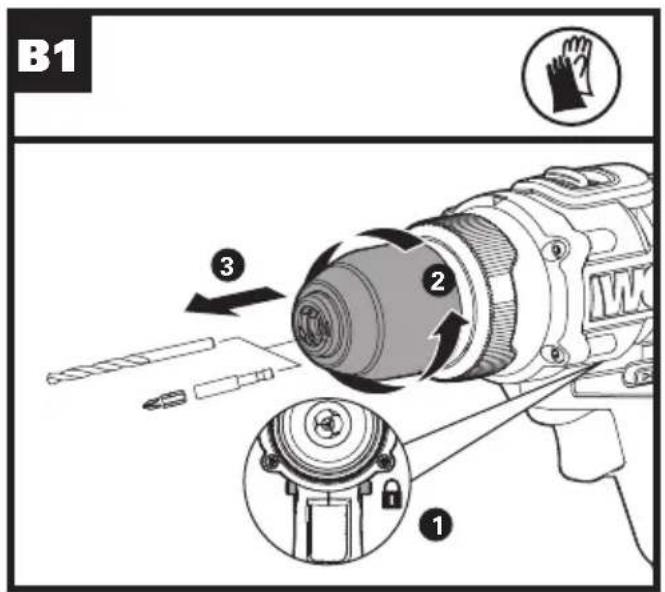

--Removing the bits See Fig. B1

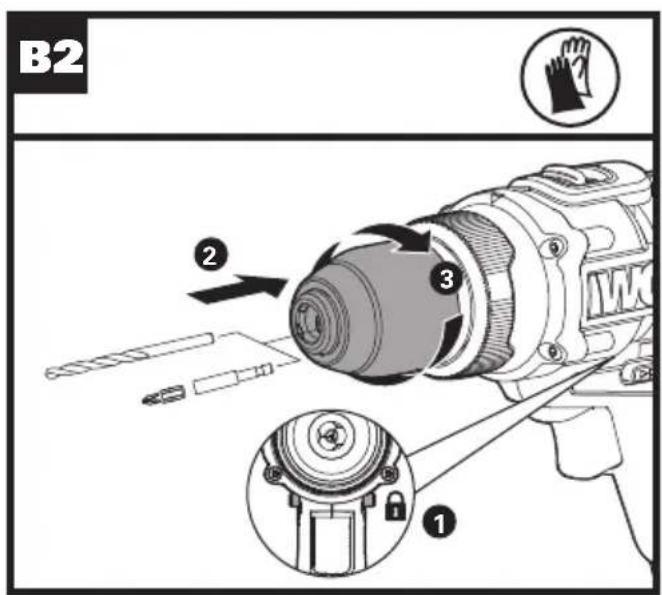

--Inserting the bits See Fig. B2
OPERATION

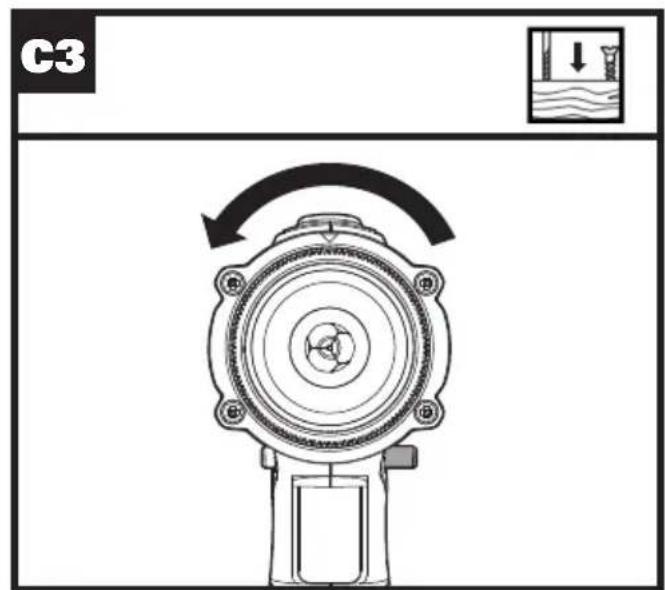

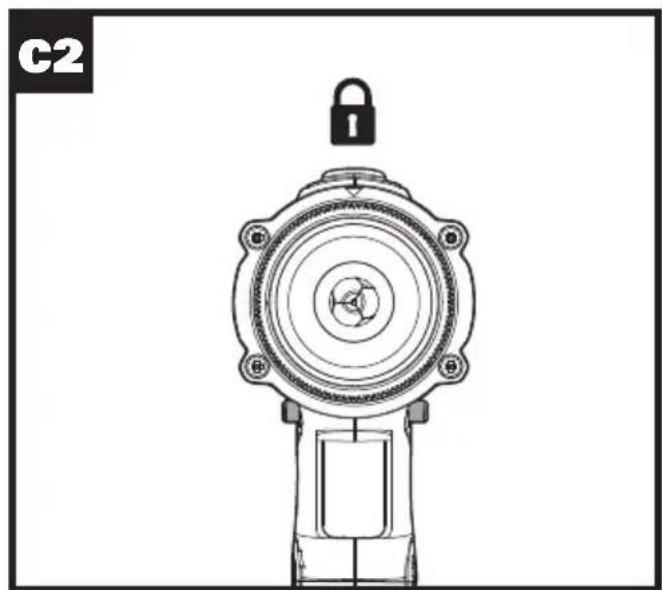

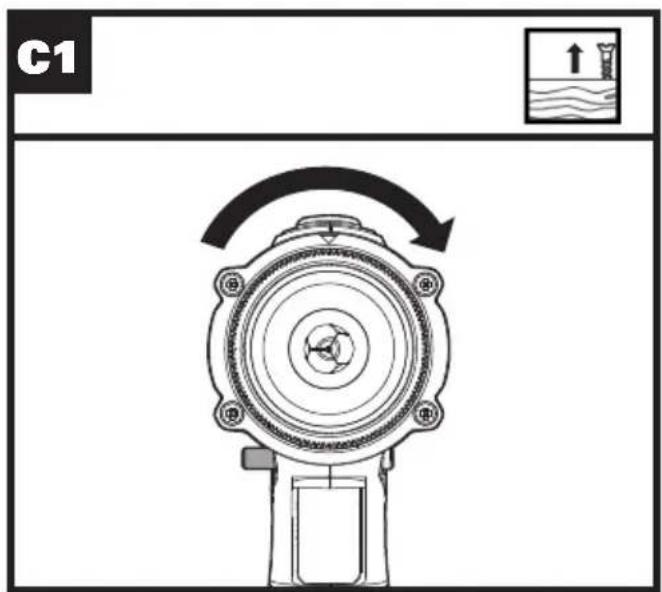

FORWARD/REVERSE ROTATION CONTROLWARNING: Never change the direction of rotation when the chuck is rotating, wait until it has stopped!	See Fig. C1, C2, C3

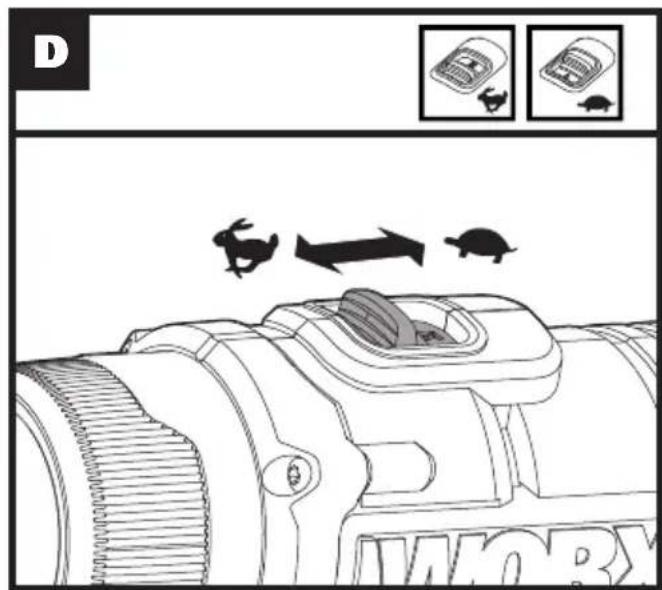

TWO-SPEED GEAR CONTROL	See Fig. D

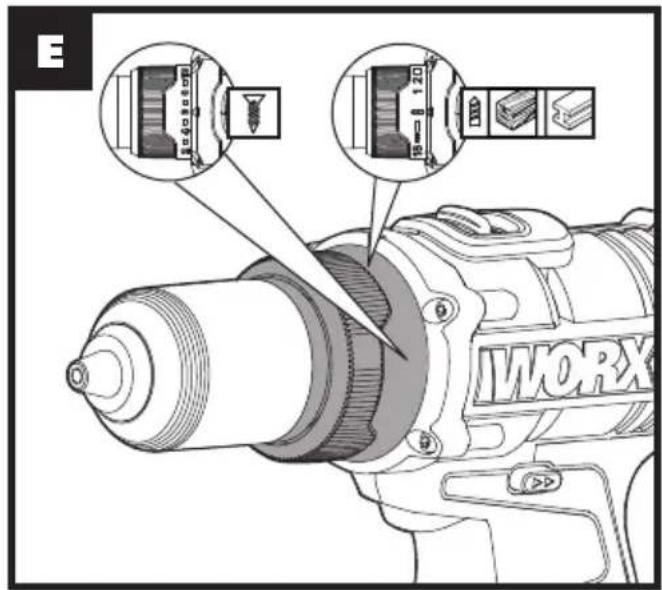

TORQUE ADJUSTMENT SCREWDRIVING, DRILLING	See Fig. E

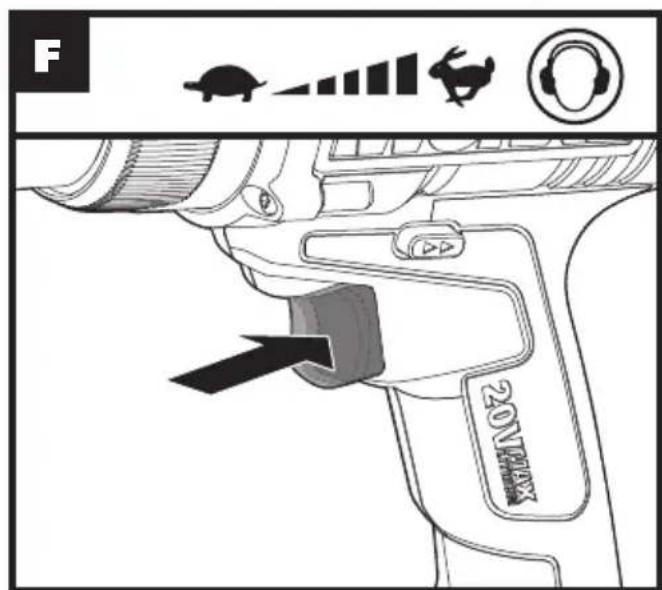

OPERATING THE ON/OFF SWITCHWARNING: Do not operate for long periods at low speed because excess heat will be produced internally.	See Fig. F

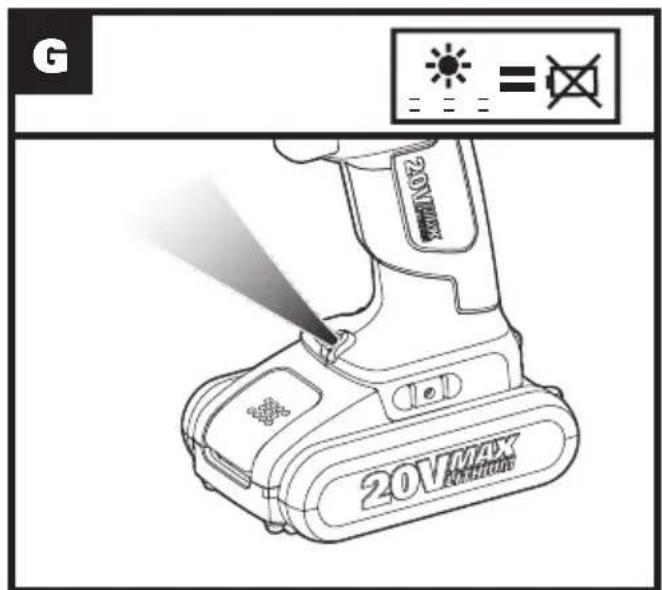

LED LIGHT INDICATOR (See Fig. G)

Before operation, the LED light will be activated when the On/Off switch is slightly depressed.

The tool and battery are equipped with a protection system. When the LED Light is quickly flashing 60 seconds and turns off, the system will automatically cut off power to the tool to extend battery life. The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

• Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the Trigger Switch on the tool and stop the application that caused the tool to become overloaded. Then pull the Trigger Switch again to restart.
• Overheated: Under the condition above, if the tool does not start, the tool and battery are overheated. In this situation, let the tool and battery cool before pulling the Trigger Switch again.
- Low battery voltage: The remaining Battery capacity is too low and the tool will not operate. In this situation, remove and recharge the Battery.

WARNING: To turn on the light, press the On/Off switch and make sure the Forward/Reverse

Rotation Control is on right/left position.

PROBLEM SOLUTION

1. WHY DOES THE DRILL NOT TURN ON WHEN YOU PRESS THE SWITCH?

The Forward and Reverse Switch, which is on top of the trigger, is positioned in the lock function. Unlock the Forward and Reverse Switch putting it into the required rotation position. Push the trigger and the drill will start to rotate (See Fig.C1, C2, C3).

2. THE DRILL STOPS BEFORE THE SCREW IS COMPLETELY TIGHTENED. WHY?

Verify the torque position of the Torque Adjustment Ring, you can find the Torque Adjustment Ring between the chuck and the tool body. Position 1 is the lowest torque (screw driving force) and position 18 is the highest torque (screw driving force). Position is for drill operation.

3. I CAN NOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?

The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the red LED Light should turn on when the battery is charging.

4. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, as above, and having not used a Battery Pack for a prolonged time will reduce the Battery Pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the Battery Pack energy faster than lighter working conditions. Do not re-charge your Battery Pack below 0^ C and above 30^ C as this will affect performance.

MAINTENANCE

Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.

Check with your local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description WORX Lithium-Ion Cordless Drill Driver

Type WX183 WX183.1 WX183.9

(1-designation of machinery, representative of drill)

Function Drilling

Complies with the following Directives,

2006/42/EC

2011/65/EU

2014/30/EU

Standards conform to

EN 55014-1

EN 55014-2

EN 60745-1

EN 60745-2-1

EN 60745-2-2

The person authorized to compile the technical file,

Name Russell Nicholson

Address Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK

Suzhou 2016/06/20

Allen Ding

Deputy Chief Engineer, Testing & Certification
