NIM026MB00 - Ice Maker NewAir - Free user manual and instructions

Product Type	Portable Countertop Ice Maker
Brand	NewAir
Model	NIM026MB00
Production Capacity	26 lb (11.8 kg) of ice per day
Dimensions (W x D x H)	22.2 x 31.3 x 32 cm (8.74 x 12.32 x 12.6 inches)
Net Weight	7.08 kg (15.62 lb)
Power Supply	115 V, 60 Hz, 1.7 A (making) / 2.0 A (harvesting)
Refrigerant	R600a (flammable) - 21 g
Ice Cube Size Selection	Small or Large (ICE SIZE button)
Indicator Lights	Power, FULL, ADD
Automatic Shut-off	Yes, when the basket is full
Water Reservoir	With max level mark, drains through front plug
Material	Plastic and stainless steel (exterior)
Cleaning and Maintenance	Clean interior with mild detergent and warm water; drain and dry if not in use
Safety	Grounding required; do not use extension cord; flammable refrigerant
Spare Parts	Ice scoop, ice basket, drain plug
Manufacturer Warranty	1 year (parts and labor)

Frequently Asked Questions - NIM026MB00 NewAir

What to do if the ADD (Add Water) indicator is on?

The ADD light indicates low water in the reservoir. Stop the machine, fill water to the max level mark, then press the Power button again to restart.

What does the FULL indicator mean?

The FULL light turns on when the ice basket is full. Remove the ice for the machine to resume production automatically. You can also hold the Power button for 5 seconds to force 10 additional cycles.

Why are my ice cubes sticking together?

This can happen if the cycle is too long or the water is too cold. Try selecting the small size with the ICE SIZE button, or replace the water in the reservoir (recommended temperature: 40°F to 90°F).

The machine runs but does not produce ice, what should I do?

Check that the ambient temperature is between 50°F and 105°F and the water temperature is between 40°F and 90°F. If the problem persists, there may be a refrigerant leak or blockage; contact a qualified technician.

What type of water should I use?

Use only drinking water. Never pour other liquids into the reservoir. Change the water every 24 hours to maintain good hygiene.

How to clean the ice maker?

Remove the basket, clean the interior with a soft cloth dampened with warm water and mild detergent, then rinse with clean water. Drain the water by removing the drain plug at the front. Wipe the exterior with a clean cloth.

What safety precautions should I follow?

Only plug into a grounded outlet. Do not immerse the cord in water. Leave at least 10 cm (4 inches) of space around the appliance. The refrigerant R600a is flammable: do not puncture the tubes and have repairs done only by a professional.

How long does it take to make ice?

The ice making cycle takes about 6 to 13 minutes, depending on the selected size and ambient temperature. The recommended ambient temperature is 50°F to 105°F.

Can I use an extension cord?

It is not recommended to use an extension cord as it may overheat. If necessary, use a cable of at least 14 AWG and a power rating of at least 1875 watts.

What to do if the ice level sensor does not stop?

Direct sunlight or reflection can interfere with the infrared sensor. Move the appliance to a location away from direct sunlight.

USER MANUAL NIM026MB00 NewAir

26 lb. Portable Countertop Ice Maker

Line drawing of a washing machine with control panel and fan (no text or symbols)

OWNER'S MANUAL

A Name You Can Trust

Trust should be earned and we will earn yours. Customer happiness is the focus of our business.

From the factory to the warehouse, from the sales floor to your home, the whole Newair family promises to provide you with innovative products, exceptional service, and support when you need it the most.

Count on Newair

As a proud Newair owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.

Contact Us

Please reach out to our customer service team before making a return to your store of purchase. We are happy to help with any questions or concerns!

Mon-Fri from 8-4 PST at:

Call: 1-855-963-9247

Email: [e-mail]

Online: www.newair.com

A team member will respond to you within 24 hours.

Follow Us:

Facebook.com/newairusa

Instagram.com/newairusa

YouTube.com/newairusa

Twitter.com/newairusa

READ AND SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS

Specifications 5

Register Your Product Online....6

Safety Information & Warnings 7

Parts List....9

Electrical diagram....10

Operating Instructions....11

Postion of control panel & function....11

Unpacking your ice maker 12

Connecting your ice maker 12

Using your ice maker 13

Cleaning & Maintenance....14

Troubleshooting....15

Limited Manufacturer's Warranty 16

SPECIFICATIONS

MODEL NO.	NIM026MS00/ NIM026MB00
ICE MAKING CURRENT	1.7A
ICE HARVEST CURRENT	2.0A
REFRIGERANT	R600a 0.74Oz/21g
NET WEIGHT	15.62 Lbs.
DIMENSION (W * D *H)	8.74” W x 12.32” D x 12.6” H

REGISTER YOUR PRODUCT ONLINE

Register Your NewAir Product Online Today!

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for Newair promotions and offers

Registering your product information online is safe & secure and takes less than 2 minutes to complete:

newair.com/register

Alternatively, we recommend you attach a copy of your sales receipt below and record the following information, located on the manufacturer's nameplate on the rear of the unit. You will need this information if it becomes necessary to contact the manufacturer for service inquiries.

Date of Purchase: ____

Serial Number: ____

Model Number: ____

SAFETY INFORMATION & WARNINGS

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. All safety messages will follow the Safety Alert Symbol and either the words "DANGER" or "WARNING"

These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance.

• Do not operate this, or any other appliance with a damaged cord.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• This ice-maker must be positioned so that the plug is accessible.
• Connect to properly polarized outlets only. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the receptacle.
• Do not run the power cord over carpeting or other heat insulators. Do not cover the cord. Keep cord away from traffic areas, and do not submerge in water.
• We do not recommend the use of an extension cord, as it may overheat and become a risk of fire.
• Unplug the ice maker before cleaning or making any repairs or servicing.
• Exercise caution and use reasonable supervision when appliance is used near children.
• Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and make sure that there is at least 4 inches of space between the back of your unit and wall. Keep a minimum distance of 4 inches on each side of your unit free.

• Do not use other liquid to make the ice-cubes other than water.

• Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion.

• Do not tip over.
• If the ice maker is brought in from outside in wintertime, give it a few hours to warm up to room temperature before plugging it in.
• WARNING: This appliance must be earthed.
• DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost ice maker. Do not puncture refrigerant tubing.
  • DANGER: To be repaired only by trained service personnel.
• CAUTION: Consult repair manual/owner's guide before attempting to install or service this product. All safety precautions must be followed.
• CAUTION: Dispose of property in accordance with federal or local regulations.
• CAUTION: Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully.
• The ice maker should be installed in accordance with the safety standard for Refrigeration Systems, ASHRAE15. The ice maker shall not be installed in corridors or hallways of public buildings.
• If the unit is with problem need to be maintained, that replacing with like components and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.

IMPORTANT:

The wires in this mains lead are colored in accordance with the following code:

Green or Green with a strip yellow:

Grounding

White:

Neutral

Black:

Live

To avoid a hazard due to instability of the appliance, it must be placed at an even or flat surface.

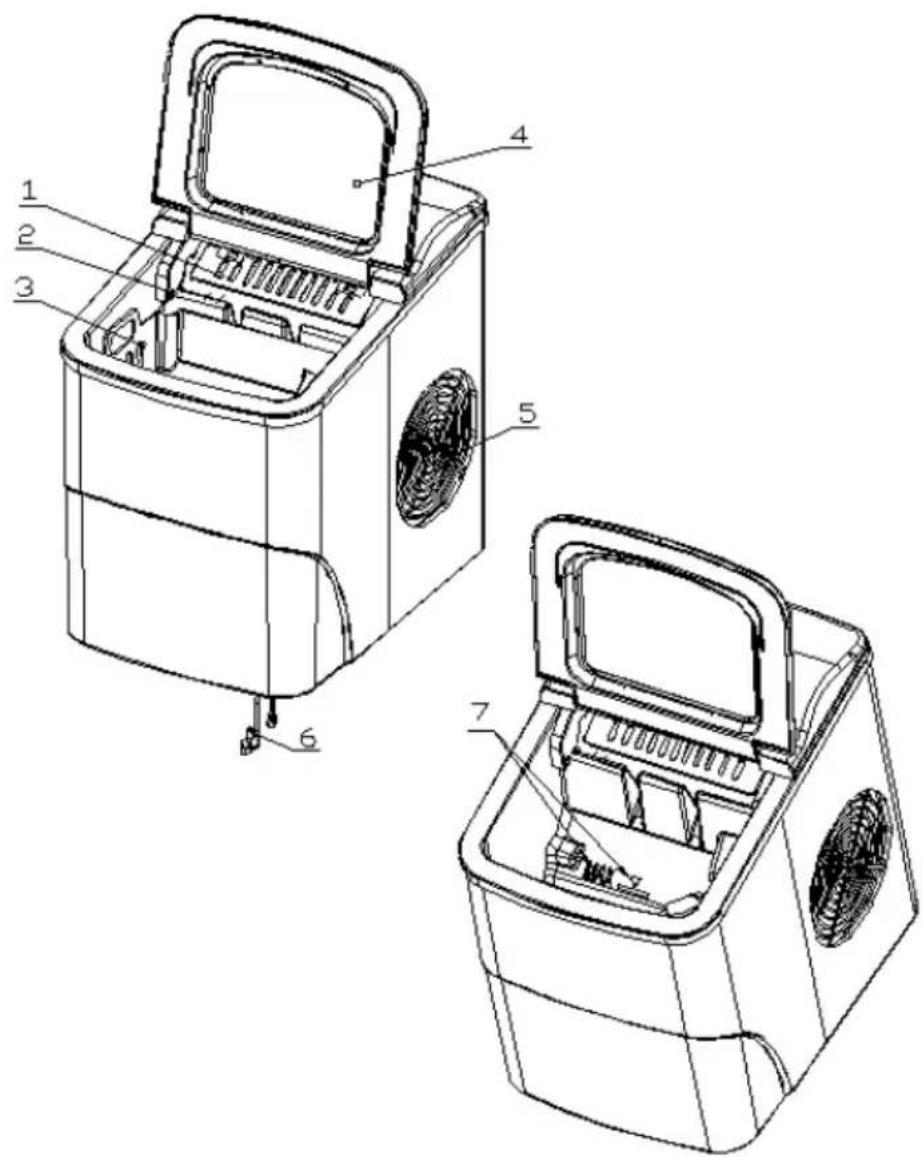

PARTS LIST

1. Ice scoop
2. Ice full sensor
3. Ice basket
4. Top cover with transparent window
5. Air exhausting
6. Water drain plug: at front bottom side of the unit
7. Maximum water level indicator

Remove the ice basket to see the water level mark.

Technical diagram of a two-part appliance with labeled parts, showing open and closed views of the device.

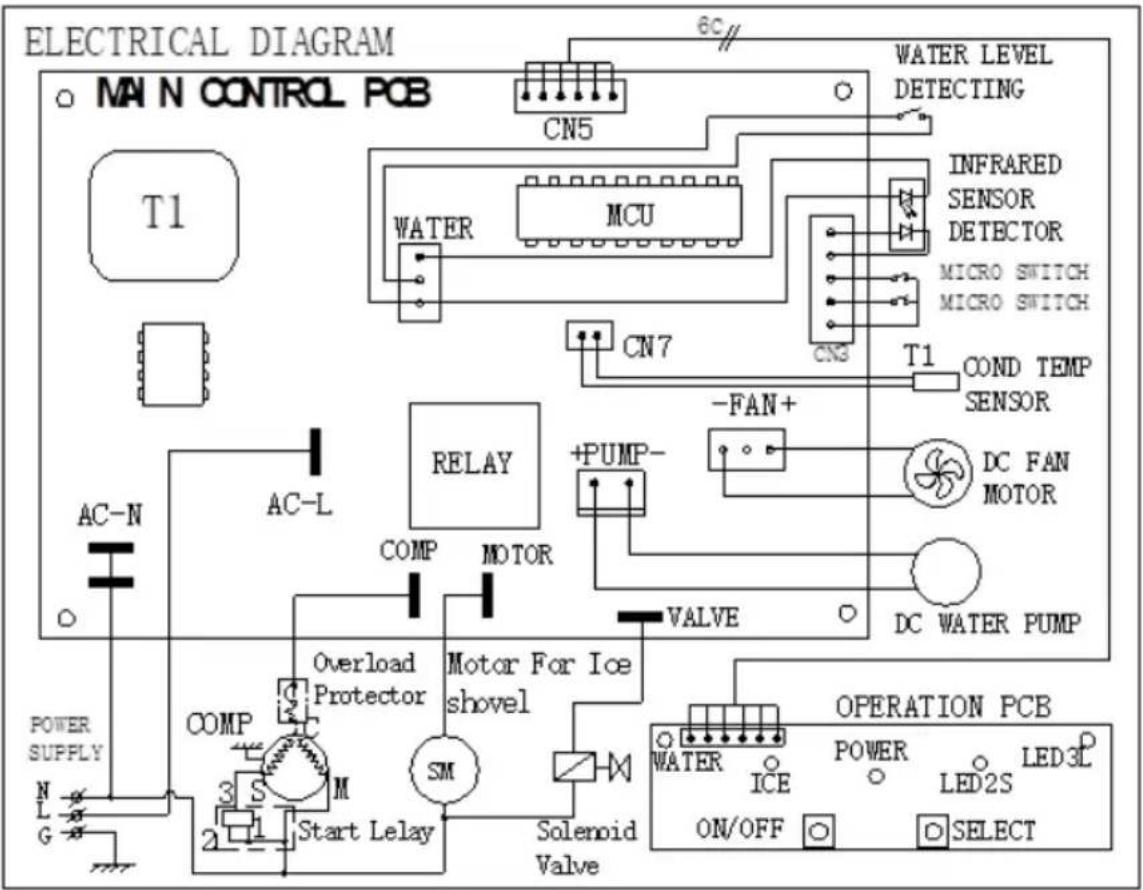

ELECTRICAL DIAGRAM

OPERATING INSTRUCTIONS

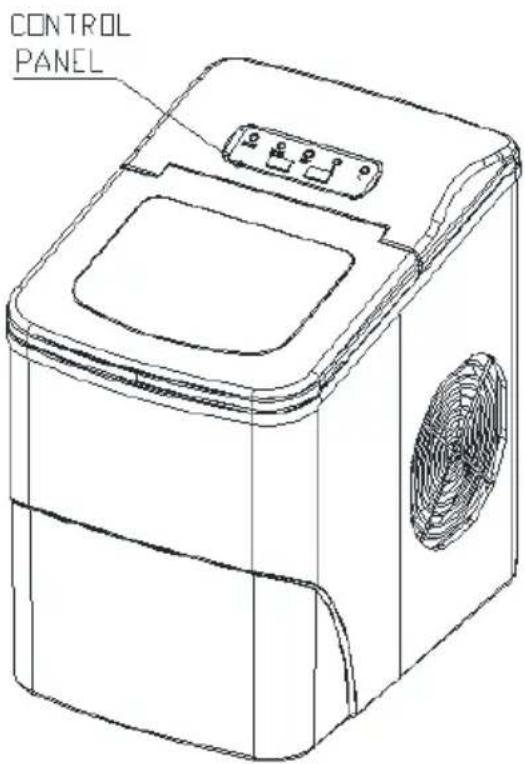

POSITION OF CONTROL PANEL & FUNCTION

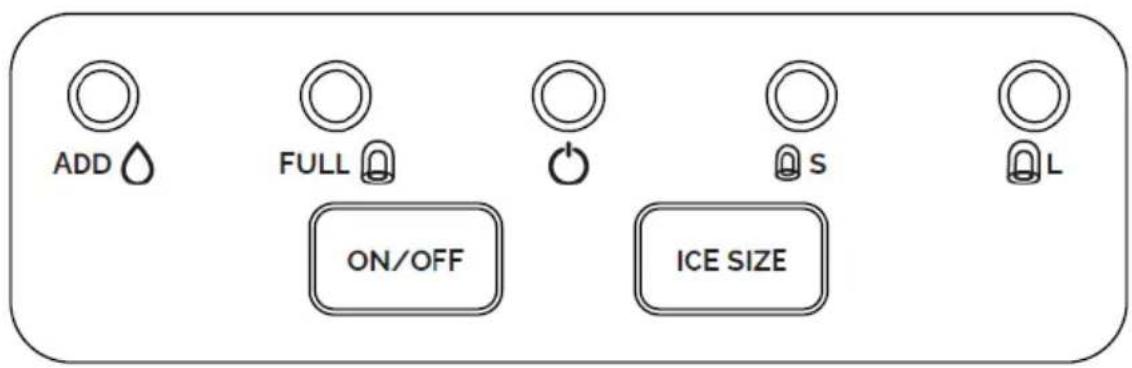

CONTROL PANEL

ADD FULL ON/OFF ICE SIZE S L

A. Selected ice size displaying: Small: ☐S and Large: ☐L.
B. Power indicator:
C. Ice-Full indicator: FULL 🔒
D. Add Water indicator: ADD
E. Button to turn on/off the unit.
F. Button to select ice cube size.
S and Large: L.

UNPACKING YOUR ICE MAKER

1. Remove the exterior and interior packaging. Check if ice basket and ice scoop inside. If any parts are missing, please contact our customer service.
2. Remove the tapes for fixing ice shovel, ice basket & ice scoop. Clean the tank & ice basket.
3. Put the ice maker on a level & flat counter top without direct sunlight and other sources of heat (i.e.: stove, furnace, radiator). Make sure that there is at least 4 inches gap between the back & sides from the wall.
4. Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.
5. The appliance must be positioned so that the plug is accessible.

WARNING: Only use drinking water to produce ice.

CONNECTING YOUR ICE MAKER

DANGER: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, please call our customer service.

1. This unit should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electric shock.
2. Plug your appliance into an exclusive, properly installed, grounded wall outlet. Do not under any circumstances, cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician.
3. This appliance requires a standard 110-120volt, 60Hz electrical outlet with three-prong ground.

USING YOUR ICE MAKER

1. Open the cover, remove the ice basket and pour water into tank. Keep water level below the water level mark.

2. Press ON/OFF button on the control panel to begin the ice making cycle.

3. Select the ice cube size by pressing the ICE SIZE button. If the room temperature is lower than 60 F, it is recommended to select small ice cube in order to avoid ice sticking together.

4. The ice making cycle lasts approx. 6 to 13 minutes, depending on selection of ice cube size and the room temperature. The recommended room temperature is 50 F to 105 F

5. If water pump can't inject water, the ice maker will stop automatically, and the "ADD 🔒" indicator will be on. Press ON/OFF button, fill water up to the max water level mark and press ON/OFF button again to turn on the unit again. Allow the refrigerant liquid inside the compressor at least 3 minutes to settle before restarting.

6. The ice maker stops when the ice basket is full and the "FULL 🔒" indicator will be on.

WARNING: Direct sunlight or sunlight reflection may cause an infrared sensor malfunction. If the unit doesn't stop even ice cubes obstruct sensor, move the unit where no sunlight.

1. Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level.

If unit isn't going to be used for a longer period of time, drain all the water and dry the tank.

CLEANING & MAINTENANCE

Before using your ice maker, it is strongly recommended to clean it thoroughly.

• Take out the ice basket.
- Clean the interior with diluted detergent, warm water and a soft cloth.
- Then use the water to rinse the inside parts, and drain out the water by unplugging the drain cap on front bottom side.

- The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water.

- Dry the interior and exterior with a clean soft cloth.

- When the machine is not to be used for a long time, drain water completely & dry the interior.

TROUBLESHOOTING

Problem	Possible Causes	Solution
“ADD 🔒 indicator is on.	Lack of Water.	Stop the ice maker, fill water, and pressbutton again to restart the unit.
“FULL 🔒 indicator is on.	Ice is full in basket.	Remove ice from ice basket. Continuouslyfor 5 seconds, the unit could make ice 10 cycles even though “FULL indicator is on.
Ice cubes stick together.	The ice making cycle is too long.	Stop the ice maker, and restart it when the ice blocks melt. Select the small size ice cube selection.
	Water temperature in inner tank is too low.	Replace the water.Temperature of water recommended at 40 F-90 F
Ice making cycle is normal but no ice formed.	Room temperature or water temperature in inner tank is too high.	The room temperature should be 50 F-10 F,water temperature should be 40 F-90 F
	Refrigerant in cooling system leaks.	Verify by a qualified technician.
	Pipe in the cooling system is blocked.	Verify by a qualified technician.

button again to

LIMITED MANUFACTURER'S WARRANTY

This appliance is covered by a limited manufacturer's warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Warranty Terms:

During the first year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer's discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.

Warranty Exclusions:

The warranty will not apply if damage is caused by any of the following:

• Power failure
• Damage in transit or when moving the appliance
• Improper power supply such as low voltage, defective household wiring or inadequate fuses
• Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories, inadequate air circulation in the room or abnormal operating conditions (extreme temperatures)
• Use in commercial or industrial applications
• Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes, floods, etc.
• Use of force or damage caused by external influences
• Partially or completely dismantled appliances
• Excess wear and tear by the user

Obtaining Service:

When making a warranty claim, please have the original bill of purchase with the purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a Newair™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer's discretion. For technical support and warranty service, please email [e-mail].

Un nom de confiance

Instagram.com/newairusa

YouTube.com/newairusa

Twitter.com/newairusa

LISEZ ET CONSERVEZ CES INSTRUCTIONS

TABLE DES MATIÈRES

Caractéristiques 19

Ces mots signifient:

Technical diagram of a two-part appliance with labeled parts, showing open and closed views of the device.

SCHÉMA ÉLECTRIQUE

MODE D'EMPLOI

POSITION DU PANNEAU DE COMMANDE ET FONCTION

CONTROL PANEL

ADD

FULL

[NO TEXT]

s

L

ICE SIZE

et Grande

Email: [e-mail]

Instagram.com/newairusa

YouTube.com/newairusa

Twitter.com/newairusa

LEA Y GUARDE ESTAS INSTRUCCIONES

INDICE

Technical diagram of a portable air conditioner unit with numbered parts for identification

DIAGRAMA ELÉCTRICO

INSTRUCCIONES DE USO
