USER MANUAL RSSE265K40SN BEKO

Simple line drawing of a pear and a carrot (no text or symbols)

RSSE265K30WN - RSSE265K40WN - RSSE265K40SN

EN / DE / FR / HR

Please read this user manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide effective service.

Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well.

The user manual will help you use the product in a fast and safe way.

• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

i Important information or useful tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

INFORMATION ENERG® SUPPLIER'S NAME MODEL IDENTIFIER A A The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (°) found on energy label. https://eprel.ec.europa.eu/

1 Your appliance 3

2 Important Safety Warnings 4

Intended use 4

General safety 5

For products with a 9

water dispenser; 9

Child safety 9

Compliance with WEEE Directive and Disposing of the Waste Product: .....10

Package information 10

HC warning 10

Things to be done for energy saving 11

3 Installation 12

Points to be paid attention to when the relocation of the appliance .....12

Before you start the appliance, .....12

Electrical connection .....13

Disposing of the packaging .....13

Disposing of your old appliance .....13

Placing and Installation....13

4 Preparation 14

Reversing the doors .....15

5 Using your appliance 16

Temperature Control And

Adjustment 16

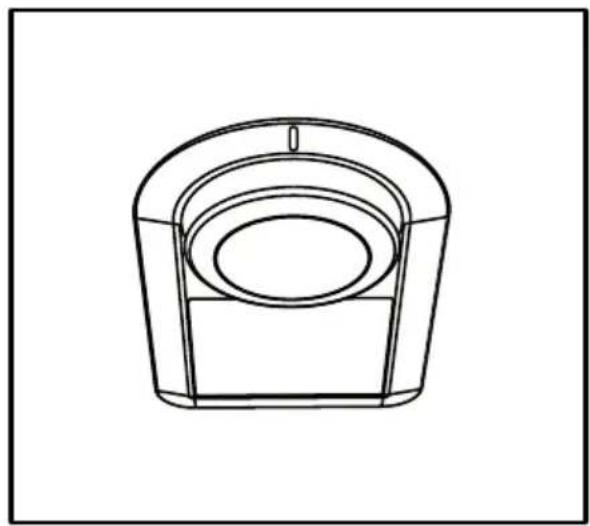

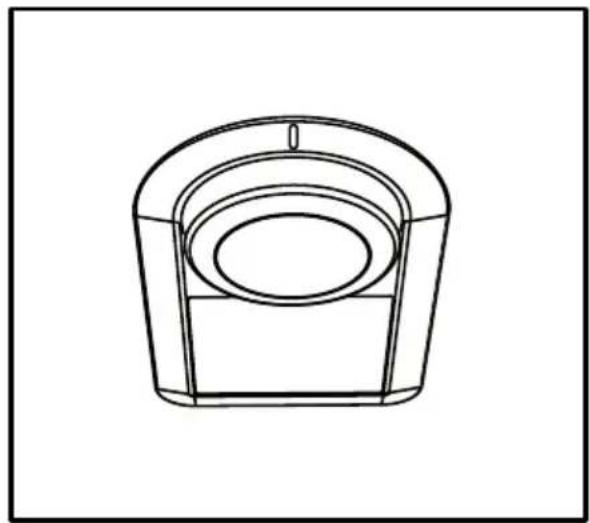

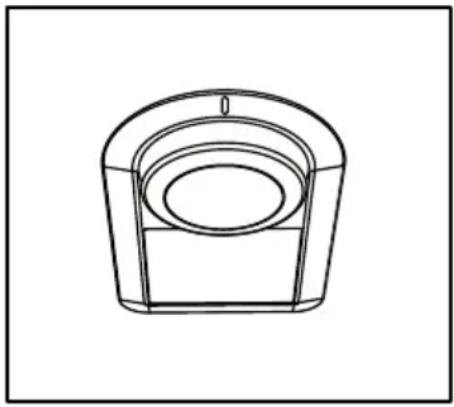

Thermostat setting button .....16

Defrost 17

Changing the illumination lamp .....17

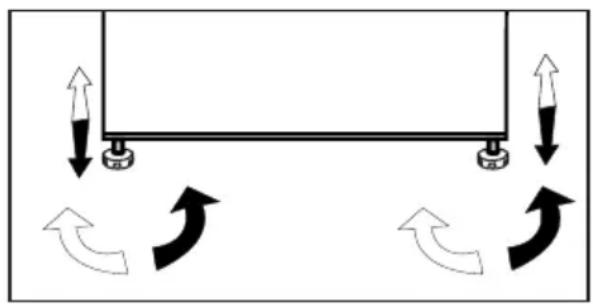

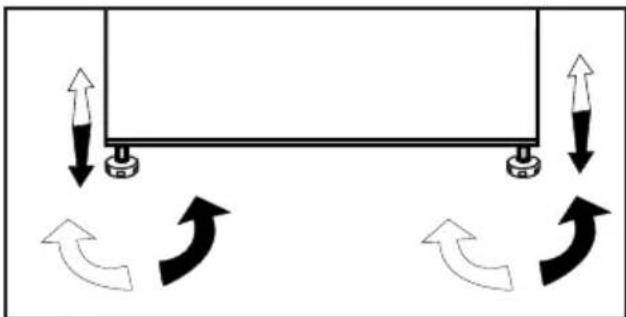

Adjusting the legs 17

6 Maintenance and cleaning 18

Protection of plastic surfaces .....18

7 Troubleshooting 19

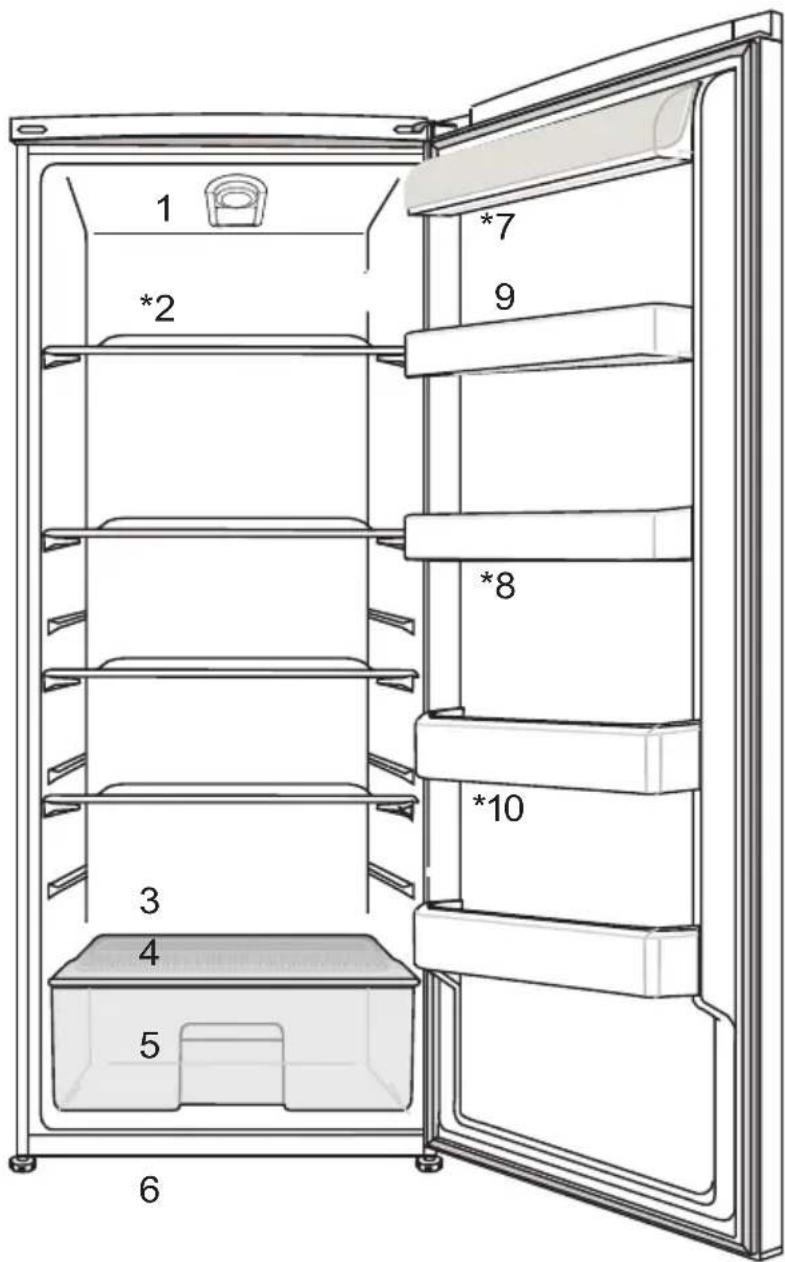

1 Your appliance

1 *2 *7 9 *8 *10 3 4 5 6

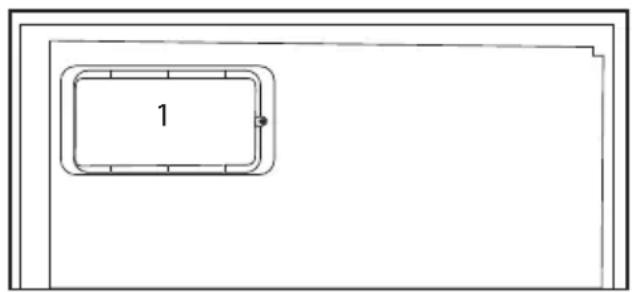

1. Temperature setting knob

2. Movable shelves

3. Defrost water collection channel - Drain tube

4. Crisper cover

5. Crisper

6. Adjustable front feet

7. Dairy compartment

8. Adjustable door shelves

9. Egg compartment

10. Bottle shelf

\*May not be available in all models

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

Original spare parts will be provided for 10 years, following the product purchasing date.

Intended use

⚠️	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠️	WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

⚠️	WARNING:Do not damage the refrigerant circuit.
⚠️	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
⚠️	WARNING:Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels

and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.

General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.
• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

• For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

• For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

• Do not touch frozen food by hand; they may stick to your hand.
• Unplug your refrigerator before cleaning or defrosting.
• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.
• Never use the parts on your refrigerator such as the door as a means of support or step.

• Do not use electrical devices inside the refrigerator.

• Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

• Do not cover or block the ventilation holes on your refrigerator with any material.
  • Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.
• In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.

• Ensure highly alcoholic beverages are stored securely with the lid fastened and placed upright.

• Never store spray cans containing flammable and explosive substances in the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product
• Do not operate a damaged refrigerator. Consult with the service

agent if you have any concerns.

• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact authorized service when there is a power cable damage to avoid danger.
• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
• This refrigerator is intended for only storing food items. It must not be used for any other purpose.

• Label of technical specifications is located on the left wall inside the refrigerator.

• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

• If there is a blue light on the refrigerator, do not look at the blue light with optical tools.
• For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.
• This operation manual should be handed in to the new owner of the product when it is given to others.

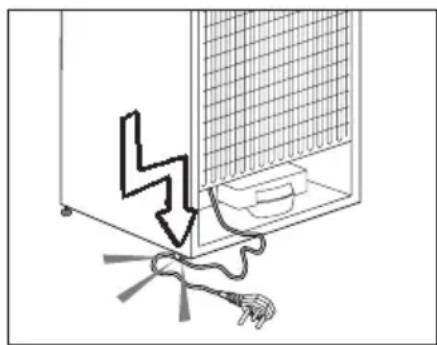

• Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product

Diagram showing a device with a lightning bolt and wiring, no text or symbols present

- Do not plug the refrigerator if the wall outlet is loose.

• Water should not be sprayed on inner or outer parts of the product for safety purposes.

- Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

- Never place containers filled with water on top of the refrigerator; in the event of spillages, this may cause electric shock or fire.

- Do not overload the refrigerator with food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door.

- Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

- As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

- If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.

- Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.

- When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.

- When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

- The product shall never be used while the compartment which is located at the top or back of your product and in which electronic boards are available (electronic board box cover) (1) is open.

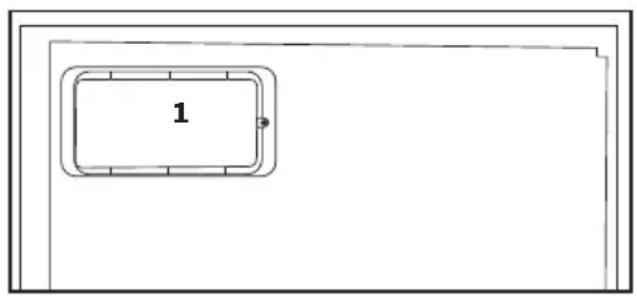

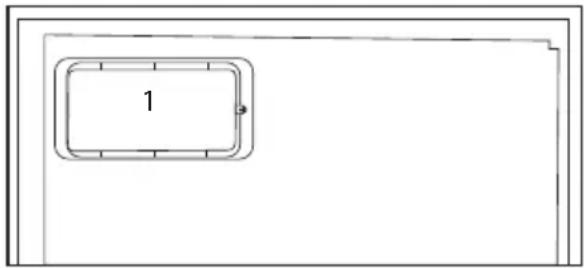

Technical line drawing of a mechanical component with a labeled part (1), no text or symbols present

1

For products with a water dispenser;

- Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water

pressure, ask for the help of a professional plumber.

- If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers is you are not sure that there is no water hammer effect in your installation.

- Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum.

- Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
  • Children must be supervised to prevent

them from tampering with the product.

Compliance with WEEE Directive and Disposing of the Waste Product:

Pure electrical circuit lines without any symbols

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children's safety, cut the power cable and break the locking mechanism of the door, if any, so that it will be non-functional before disposing of the product.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Do not forget...

Any recycled substance is an indispensable matter for nature and our national asset wealth.

If you want to contribute to the re-evaluation of the packaging materials, you can consult to your environmentalist organizations or the municipalities where you are located.

HC warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type label which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

- Do not leave the doors of your refrigerator open for a long time.

- Do not put hot food or drinks in your refrigerator.

- Do not overload your refrigerator so that the air circulation inside of it is not prevented.

- Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators. Keep your refrigerator at least 30cm away from heat emitting sources and at least 5cm from electrical ovens.

- Pay attention to keep your food in closed containers.

- For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

- Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3 Installation

The manufacturer will not be liable for any event caused by disregarding the information supplied in this user manual.

Points to be paid attention to when the relocation of the appliance

1. Your appliance should be unplugged. Before transportation of your appliance, it should be emptied and cleaned.
2. Before it is re-packaged, shelves, accessories, crisper, etc. inside your appliance should be fixed with adhesive tape and secured against impacts. Packaging should be adequate and the transportation rules on the package should be strictly observed.
3. Original packaging and foam materials should be kept for future transportations or moving.

Before you start the appliance,

Check the following before you start to use your appliance:

1. Clean the interior of the appliance as recommended in the "Maintenance and cleaning" section.
2. Connect the plug of the appliance to the wall socket. When the fridge door is opened, fridge internal lamp will turn on.
3. When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
4. Front edges of the appliance may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

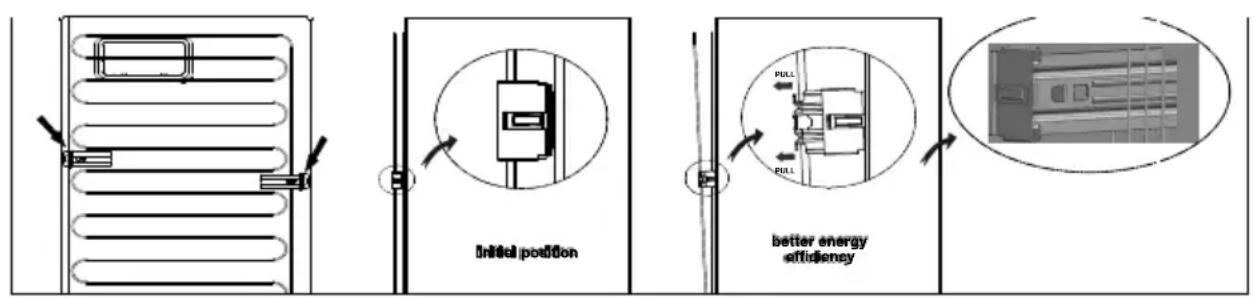

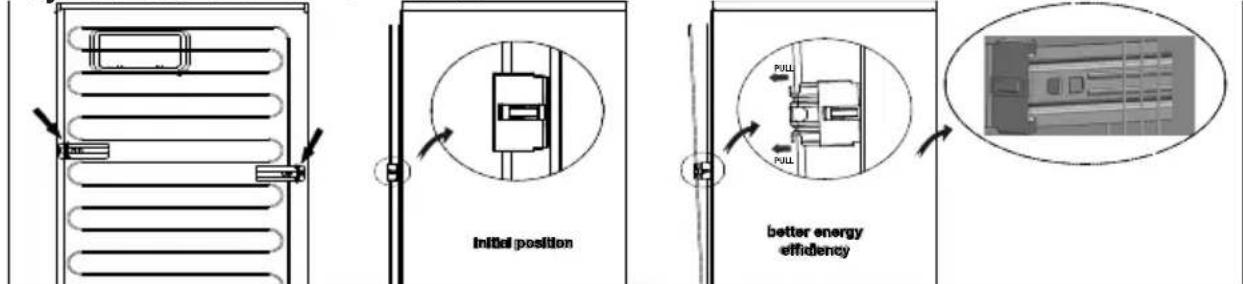

The condenser of your appliance is located on the back as shown below. In order to achieve better energy efficiency with lower energy consumption, please pull the condenser towards yourself as illustrated in picture below.

*may not be available in all models

Initial position better energy efficiency

Electrical connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity. Important:

The connection must be in compliance with national regulations.

• The power plug must be easily accessible after installation.
• Electrical safety of your appliance shall be guaranteed only if the earth system in your house complies with standards.
• The voltage stated on the label located at left inner side of your product should be equal to your network voltage.
• Extension cables and multi plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.
⚠️ Product must not be operated before it is repaired! There is the risk of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities.

The packing of your appliance is produced from recyclable materials.

Disposing of your old appliance

Dispose of your old appliance without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your appliance.

Before disposing of your appliance, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the appliance will be installed is not wide enough for the appliance to pass through, then carefully remove the doors of your appliance and pass it sideways through the door.

1. Install your appliance to a place that allows ease of use.
2. Keep your appliance away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your appliance in order to achieve an efficient operation. If the appliance is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet.
4. Place your appliance on an even floor surface to prevent jolts.

4 Preparation

• For a freestanding appliance; 'this refrigerating appliance is not intended to be used as a built-in appliance.
• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• The ambient temperature of the room where you install your refrigerator should at least be 10°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.
• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

• Original packaging and foam materials should be kept for future transportations or moving. 17

• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.
• In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.
• Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal

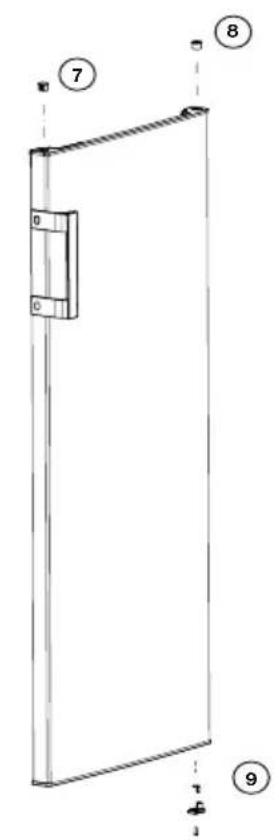

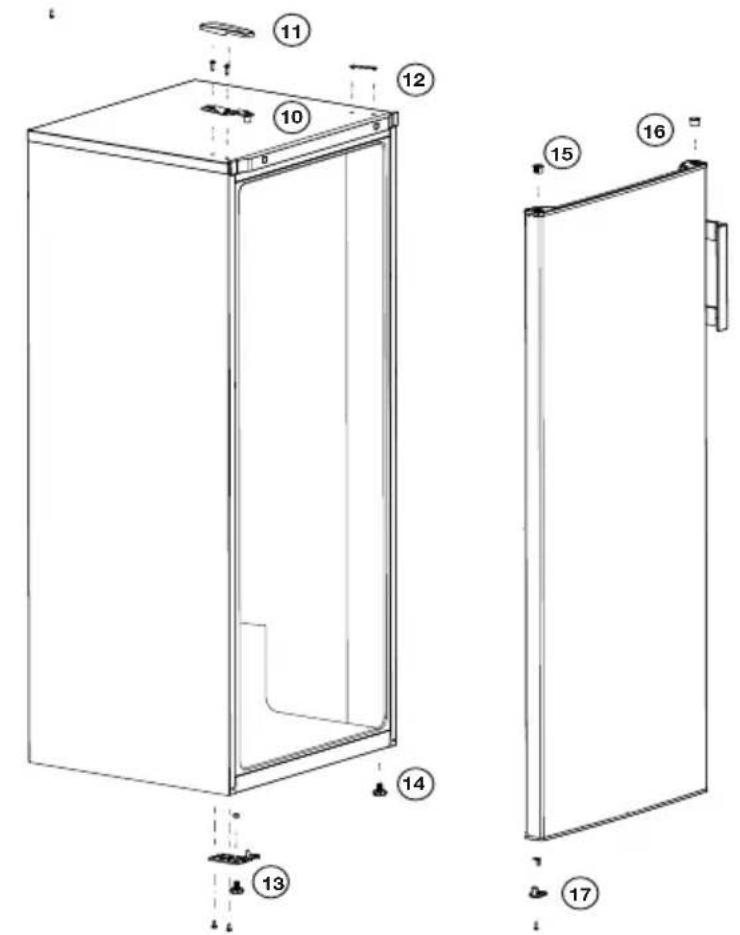

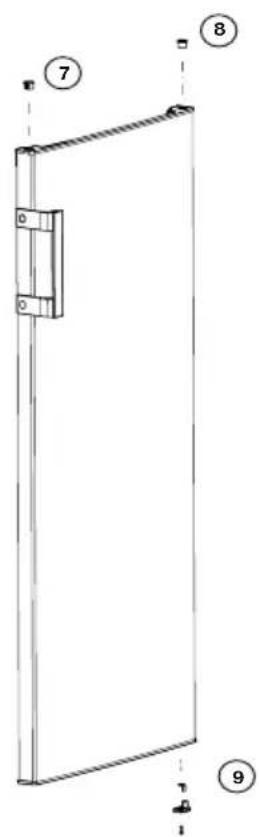

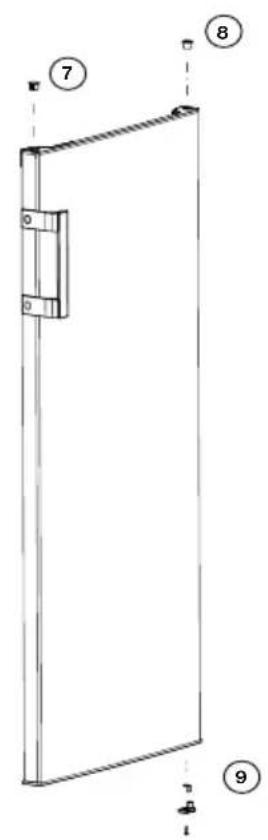

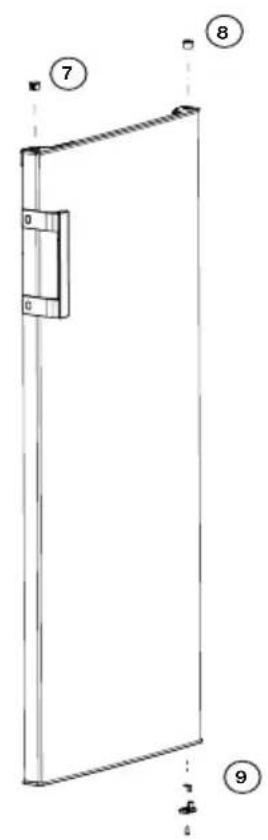

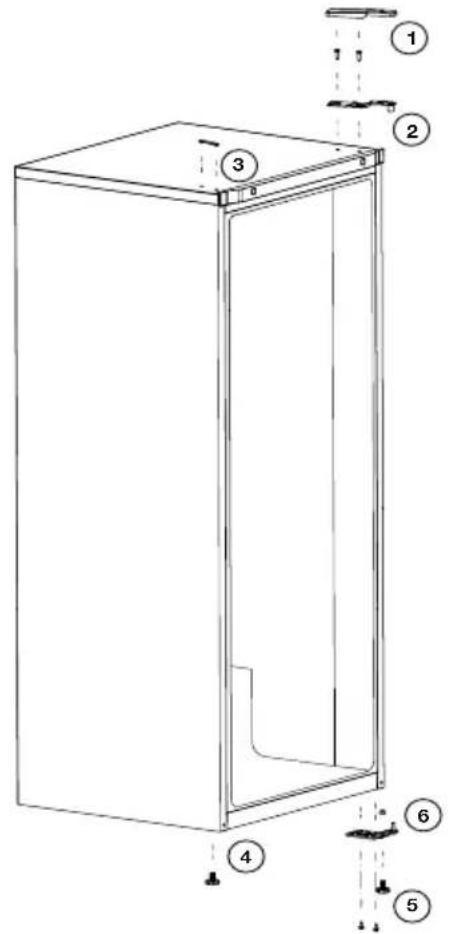

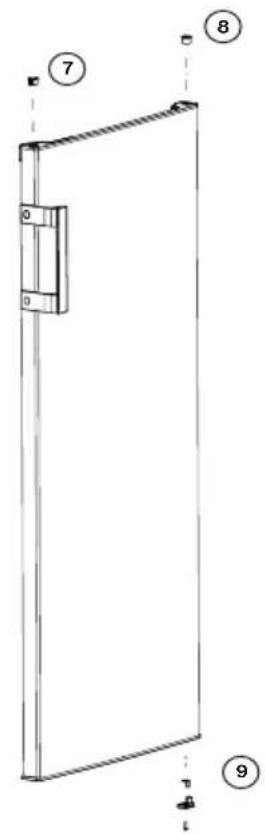

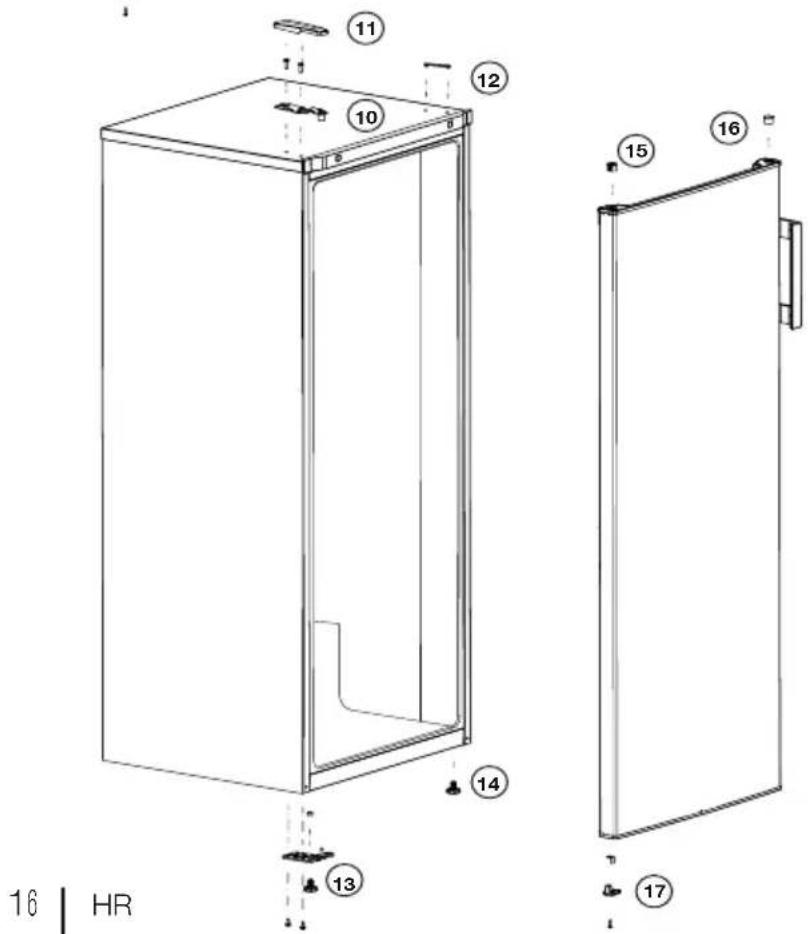

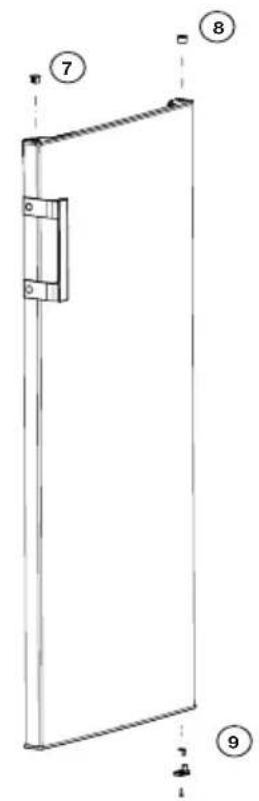

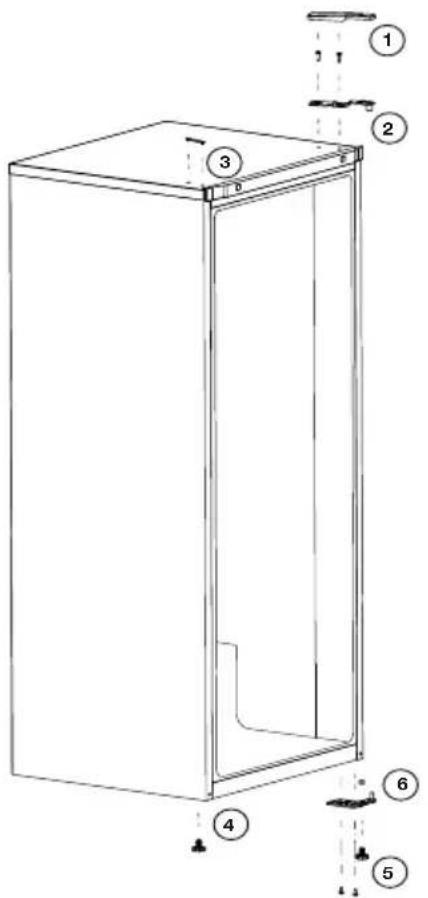

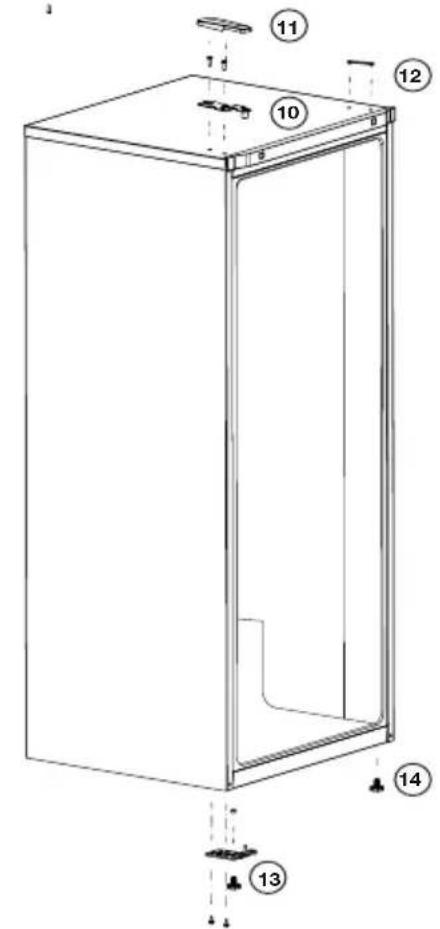

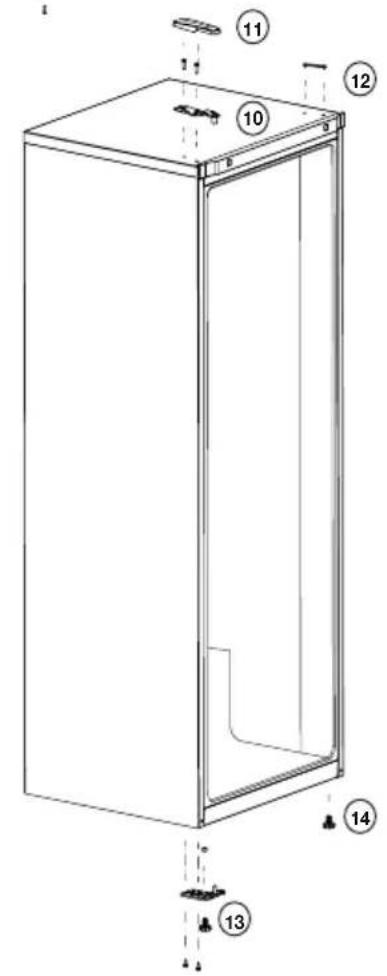

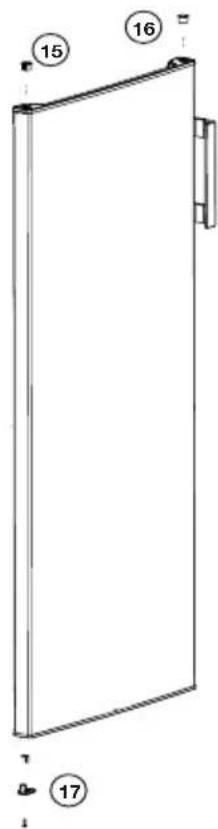

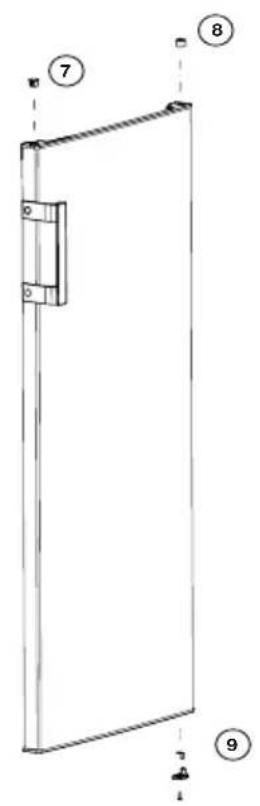

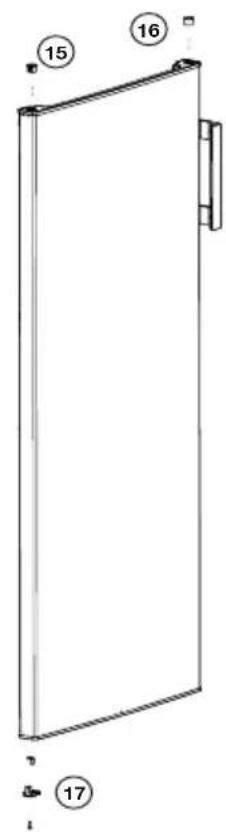

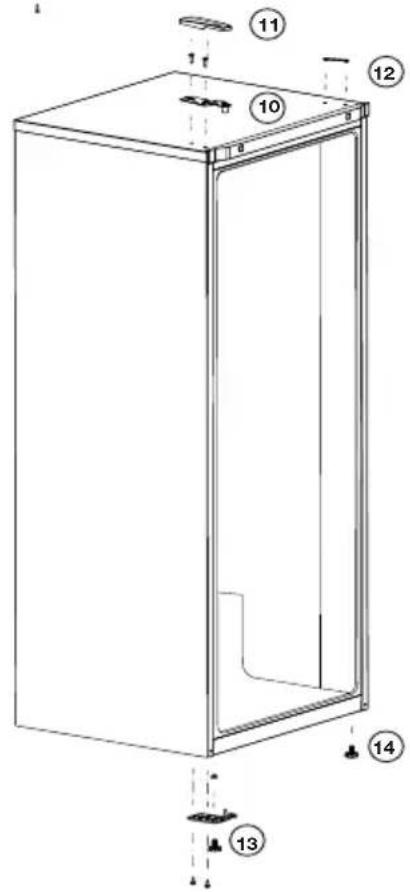

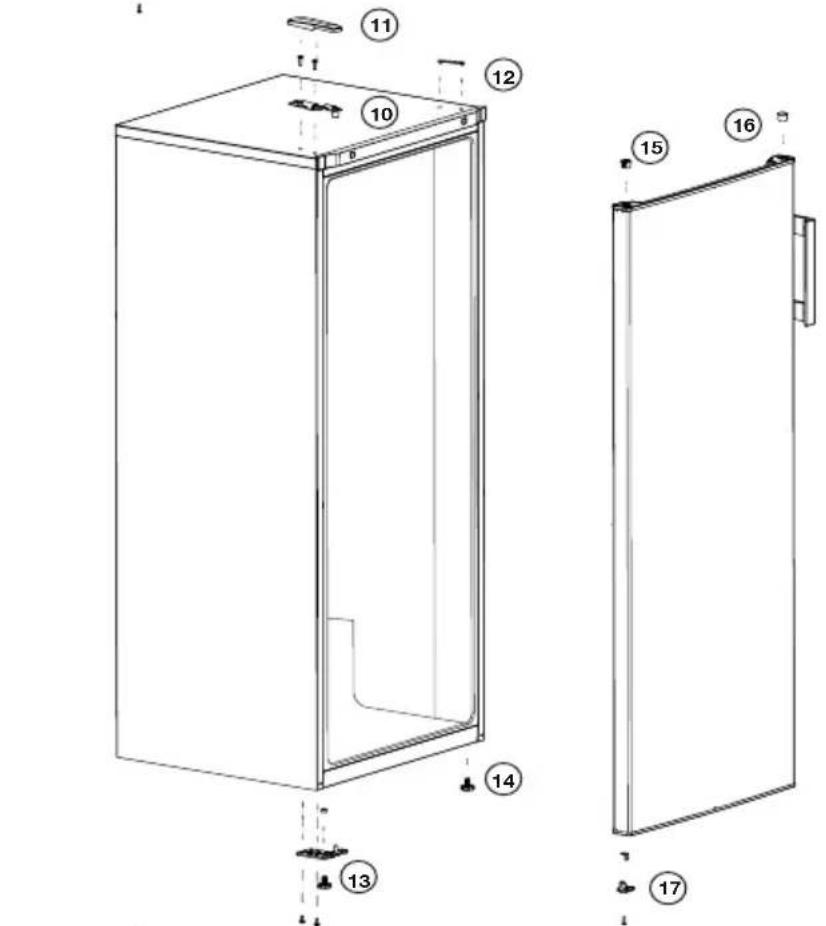

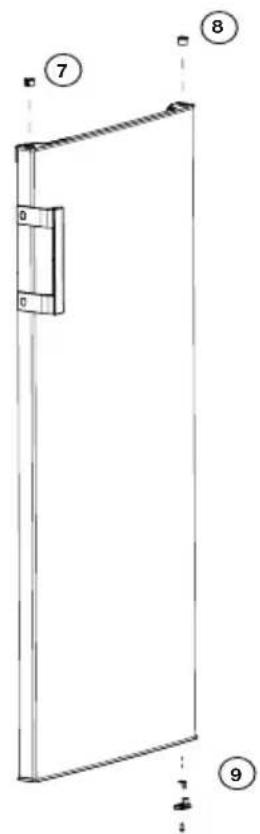

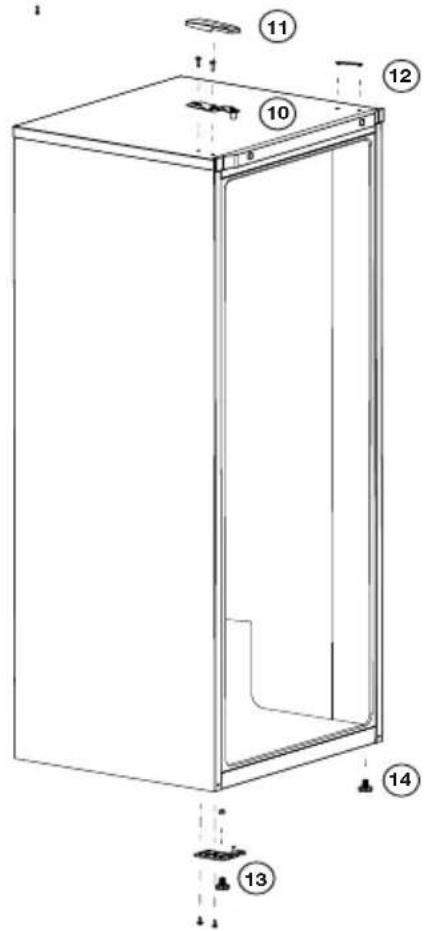

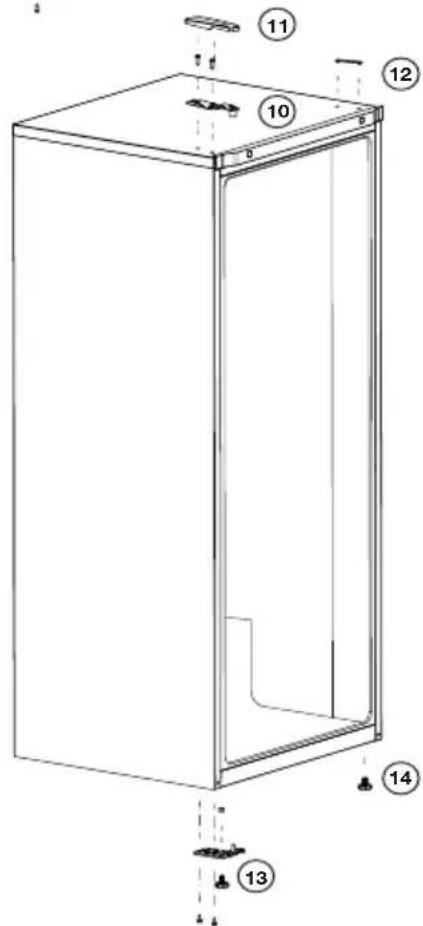

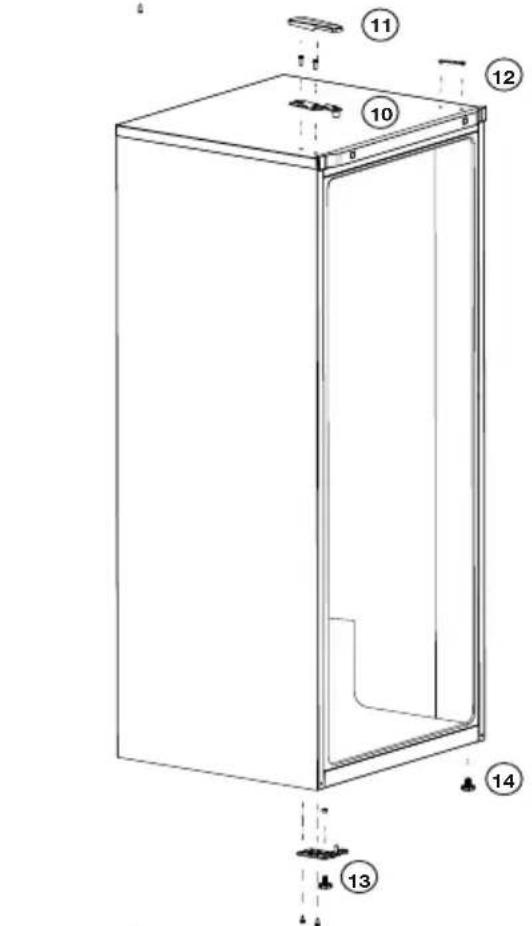

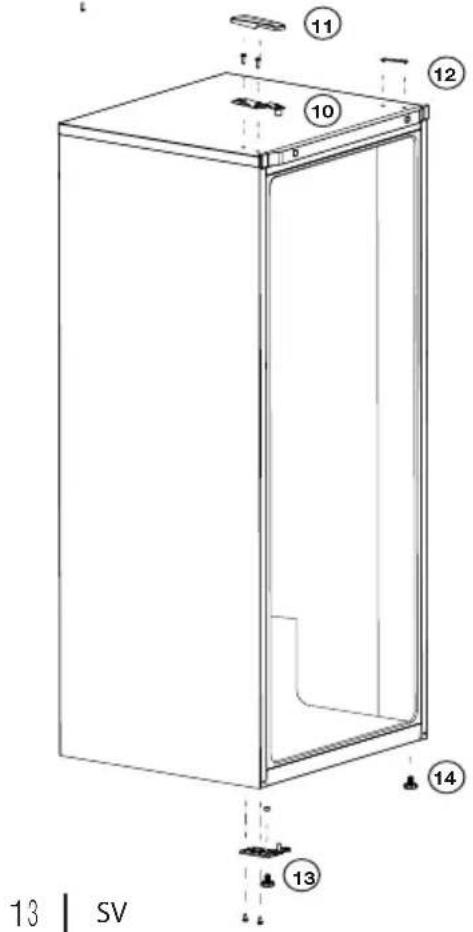

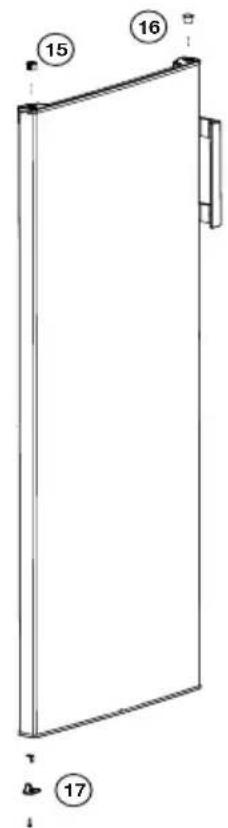

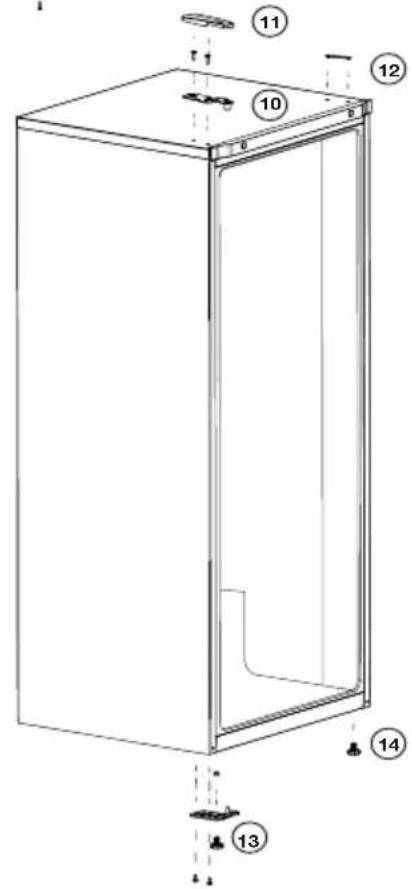

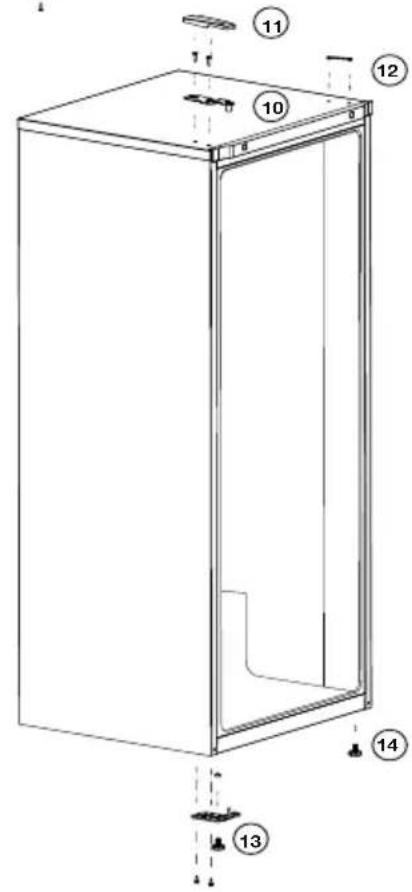

Reversing the doors

Technical diagram of a rectangular enclosure with numbered components for identification and assembly reference.

Technical diagram of a door frame with numbered components and mounting points

Technical diagram of a refrigerator with numbered components for identification

Line drawing of a rectangular door or cabinet with numbered labels (15, 16, 17) indicating parts of the lid and base (no text or symbols on the main body)

5 Using your appliance

Temperature Control And Adjustment

Warm Cell 1 2 3 4 5

(Or) Min. Max.

The operating temperature is regulated by the temperature control.

Simple line drawing of a cylindrical container with a central oval and side supports (no text or symbols)

(Or) Min. Max.

1=Lowest cooling setting (Warmest setting).

5=Highest cooling setting (Coldest setting).

The average temperature inside the fridge should be around +5°C.

Please choose the setting according to the desired temperature.

Please note that there will be different temperatures in the cooling area.

The coldest region is immediately above the vegetable compartment.

The interior temperature also depends on ambient temperature, the frequency with which the door is opened and the amount of foods kept inside.

Frequently opening the door causes the interior temperature to rise.

For this reason, it is recommended to close the door again as soon as possible after use.

Thermostat setting button

The interior temperature of your refrigerator changes for the following reasons;

• Seasonal temperatures,
• Frequent opening of the door and leaving the door open for long periods,
• Food put into the refrigerator without cooling down to the room temperature,
• The location of the refrigerator in the room (e.g. exposing to sunlight).
• You may adjust the varying interior temperature due to such reasons by using the thermostat. Numbers around the thermostat button indicates the cooling degrees.
• If the ambient temperature is higher than 25°C, turn the thermostat button to maximum position.
• If the ambient temperature is lower than 25^ C, turn the thermostat button to minimum position.

Defrost

The fridge compartment defrosts automatically. The thawing water flows through the drain channel into a collection container at the rear of the device.

During defrosting, water droplets form at the back of the fridge due to the evaporator.

If not all of the drops run down, they may freeze again after defrosting but will be thawed during the next defrost cycle.

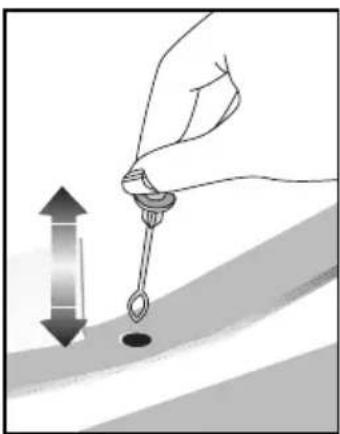

Check the flow of the thawed water from time to time. It may become blocked occasionally.

Illustration of a hand holding a tool with a vertical double-headed arrow, pointing downward on a surface (no text or symbols)

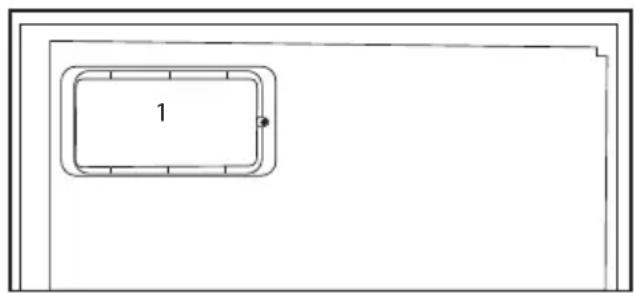

Changing the illumination lamp

To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20 °C.

(only chest and upright freezer)

Adjusting the legs

If your refrigerator is unbalanced; You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

6

Maintenance and cleaning

Cleaning your fridge at regular intervals will extend the service life of the product.

WARNING:

Unplug the product before cleaning it.

• Never use gasoline, benzene or similar substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it.
• Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface
• Dissolve one teaspoon of bi-carbonate in half litre of water. Soak a cloth with the solution and wrung it thoroughly. Wipe the interior of the refrigerator with this cloth and the dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar.
• Check regularly that the door gaskets are clean. If not, clean them.
• To remove door and body shelves, remove all of its contents.
• Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install.
• Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

6.1 Avoiding bad odours

• Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem:
• Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator with bi-carbonate dissolved in water every few months. Never use detergents or soap.
• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
• Never keep the food that have passed best before dates and spoiled in the refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

• In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.
• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>>The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.

• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.

• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

- The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.

- Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

- Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.

- The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.

- The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

- The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.

- Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.

- The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

- Food packages may be blocking the door. >>> Relocate any items blocking the doors.

- The product is not standing in full upright position on the ground. >>>Adjust the stands to balance the product.

- The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

- High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

⚠ WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

DISCLAIMER / WARNING

Some (simple) failures can be adequately handled by the end-user without any safety issue or unsafe use arising, provided that they are carried out within the limits and in accordance with the following instructions (see the “Self-Repair” section).

Therefore, unless otherwise authorized in the “Self-Repair” section below, repairs shall be addressed to registered professional repairers in order to avoid safety issues. A registered professional repairer is a professional repairer that has been granted access to the instructions and spare parts list of this product by the manufacturer according to the methods described in legislative acts pursuant to Directive 2009/125/EC.

However, only the service agent (i.e. authorized professional repairers) that you can reach through the phone number given in the user manual/warranty card or through your authorized dealer may provide service under the guarantee terms. Therefore, please be advised that repairs by professional repairers (who are not authorized by Beko) shall void the guarantee.

Self-Repair

Self-repair can be done by the end-user with regard to the following spare parts: door handles,door hinges, trays, baskets and door gaskets (an updated list is also available in support.beko.com as of 1st March 2021).

Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the instructions in the user manual for self-repair or which are available in support. beko.com. For your safety, unplug the product before attempting any self-repair.

Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product.

Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or registered professional repairers. On the contrary, such attempts by end-users may cause safety issues and damage the product and subsequently cause fire, flood, electrocution and serious personal injury to occur.

By way of example, but not limited to, the following repairs must be addressed to authorized professional repairers or registered professional repairers: compressor, cooling circuit, main board, inverter board, display board, etc.

The manufacturer/seller cannot be held liable in any case where end-users do not comply with the above.

The spare part availability of the refrigerator that you purchased is 10 years.

During this period, original spare parts will be available to operate the refrigerator properly

The minimum duration of guarantee of the refrigerator that you purchased is 24 months.

This product is equipped with a lighting source of the "G" energy class.

The lighting source in this product shall only be replaced by professional repairers.

Simple line drawing of a rectangular object with a label '1' on its top surface (no text or symbols on the object itself)

1

Diagram showing a lightning bolt striking a surface with a grid and mechanical components (no text or symbols)

Diagram showing airflow or heat transfer between two labeled components (1 and 2), with arrows indicating direction of movement.

Initial position better energy efficiency

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Installation

Technical diagram of a refrigerator with numbered components for identification and assembly reference.

Technical diagram of a door frame with numbered components and mounting points

Technical diagram of a refrigerator with numbered components for identification

15 16 17

4 Vorbereitung

Line drawing of a cylindrical container with a central oval and two concentric rings (no text or symbols)

Simple line drawing of a rectangular device with a labeled component '1' (no text or symbols beyond the label)

1

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Warning symbol image showing a black lightning bolt inside a triangle, indicating electrical hazard or accident.

AVERTISSEMENT:

Technical diagram of a rectangular enclosure with numbered components and directional arrows indicating assembly or installation.

Technical diagram of a door frame with numbered components and mounting points

Technical diagram of a refrigerator with numbered components for identification

15 16 17

Line drawing of a cylindrical container with a central oval opening, no text or symbols present

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the label)

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Initial position better energy efficiency

Električno spajanje

Spojite svoj proizvod u uzemljenu utičnicu koja je zaštićena osiguračem odgovarajućeg kapaciteta.

Važno:

• Spoj mora biti u skladu s nacionalnim zakonskim odredbama.
• Kabel napajanja mora biti lako dostupan nakon postavljanja.
• Navedeni napon mora biti jednak naponu el. energije.
• Produžni kabeli i razvodnici se ne smiju koristiti za spajanje.

Diagram showing a rectangular structure with upward and downward arrows, flanked by curved arrows indicating rotational motion (no text or symbols)

4 Priprema

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

16 | HR 11 10 12 15 16 13 14 17

5 Upotreba hladnjaka/zamrzivača

Line drawing of a cylindrical container with a central oval opening, no text or symbols present

Temperatura rada regulira se tipkom za kontrolu temperature.

(Or) Min. Max.

Simple line drawing of a pear and a carrot (no text or symbols)

RSSE265K30WN - RSSE265K40WN - RSSE265K40SN

SV / NL / PT / SL

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

1

Barnsäkerhet

Pure electrical circuit lines without any symbols

Diagram showing airflow or fluid flow through a container with labeled components and directional arrows

2-b Initial position better energy efficiency

Technical diagram of a rectangular refrigerator with numbered components for identification

Technical diagram of a door frame with numbered components and mounting points

13 | SV 10 11 12 14 13

Line drawing of a rectangular door or panel with numbered labels (15, 16, 17) indicating different components or parts, no text or symbols present.

4 Förberedelse

Line drawing of a mechanical component with concentric rings and a central oval (no text or symbols)

Driftstemperaturen regleras med temperaturkontrollen.

(Eller) Min. Max.

Illustration of a hand holding a tool with a vertical arrow and a dot on a surface, no text or symbols present

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement (no text or symbols)

Byta lampan

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

Diagram showing a lightning bolt striking down on a wall-mounted device with a cable and plug (no text or symbols)

1.1.1 HC waarschuwing

Pure electrical circuit lines without any symbols

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Initial position better energy efficiency

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

3.6. Waarschuwing Deur open

Technical diagram of a rectangular cabinet with numbered components for identification

Technical diagram of a door frame with numbered components and mounting points

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical diagram of a door with numbered labels indicating parts of the panel.

4 Voorbereiding

Line drawing of a cylindrical container with a central oval opening, no text or symbols present

DISCLAIMER / WAARSCHUWING

Simple line drawing of a mechanical component with a labeled part '1' (no text or symbols beyond the label)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram showing airflow or heat transfer between two containers with labeled components 1 and 2, indicating fluid or material movement.

Initial position better energy efficiency

Instalação

Technical diagram of a rectangular cabinet with numbered components for identification

Technical diagram of a door frame with numbered components and mounting points

Technical diagram of a refrigerator with numbered components for identification

Line drawing of a rectangular door with labeled dimensions (15, 16, 17) and a handle, no text or symbols present.

4 Preparação

Line drawing of a mechanical component with concentric rings and a central oval (no text or symbols)

Diagram showing a rectangular structure with upward and downward arrows indicating motion or force directions, no text or symbols present.

https://eprel.ec.europa.eu/

1 Varnost in okoljska navodila 3

Splošna varnost 3

Predvidena uporaba 5

Varnost otrok 5

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

1

Diagram showing a mechanical or electrical component with a lightning bolt and lever mechanism (no text or symbols)

Varnost in okoljska navodila

1.1.1 HC opozorilo

Diagram illustrating fluid flow through a container with labeled components and directional arrows

Namestitev

Pure diagram of a mechanical or structural system with arrows indicating direction, no text or symbols present

Diagram illustrating the step-by-step installation of a refrigerator with numbered instructions and a magnified view showing cleaning steps.

Vzvratno vrat

Line drawing of a cylindrical container with a central oval and side plate (no text or symbols)

Delovno temperaturo uravnavate z nadzorom za temperaturo.

(Or) Min. Max.

0 = Hladilni sistem je izklopljen.

Simple line drawing of a pear and a carrot (no text or symbols)

RSSE265K30WN - RSSE265K40WN - RSSE265K40SN

SB / BS / MK / SQ

Molimo da prvo pročitate ovo uputstvo za upotrebu!

Poštovani kupci,

Nadamo se da će vam ovaj proizvod, koji je proizveden u savremenim fabrikama i koji je prošao najstrože kontrole kvaliteta, dugo i efikasno služiti.

Zato pažljivo pročitajte kompletno uputstvo za upotrebu pre nego što počnete da koristite proizvod i sačuvajte ga za buduće potrebe. Ako proizvod predajte nekome, dajte mu i uputstvo za upotrebu.

Uputstvo za upotrebu će vam pomoći da proizvod koristite efikasno i na sigurna način.

• Pročitajte uputstvo za upotrebu pre instaliranja i rada sa proizvodom.
• Obavezno pročitajte bezbednosna uputstva.
• Uputstvo za upotrebu čuvajte na pristupačnom mestu jer vam kasnije može zatrebati.
• Pročitajte i drugu dokumentaciju koju ste dobili uz proizvod.

Imajte na umu da se ovo uputstvo za upotrebu odnosi i na nekoliko drugih modela. Razlike između modela će biti naznačene u uputstvu.

Objašnjenje simbola

Diagram showing a device with wires and a lightning bolt, no text or symbols present

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the number)

Diagram showing airflow or heat transfer between two labeled components, with arrows indicating direction of movement.

Initial position better energy efficiency

Podešavanje nožoca

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Upozorenje za otvorena vrata

\*opcija

Technical diagram of a rectangular enclosure with numbered components and structural details

Technical diagram of a vertical panel with numbered annotations indicating components or parts.

Technical diagram of a rectangular cabinet with numbered components for identification and assembly reference.

Technical diagram of a door frame with numbered labels pointing to different sections

5 Korišćenje Vašeg rashlađivača/zamrzivača

Line drawing of a cylindrical container with a central oval opening, no text or symbols present

Radna temperatura se reguliše putem kontrole temperature.

(Or) Min. Max.

0 = Hlađenje sistema je isključeno.

Simple line drawing of a rectangular frame with a numbered label '1' and a small symbol inside, no text or symbols present.

Simple line drawing of a mechanical component with a base and top view, no text or symbols present.

Diagram showing a lightning bolt striking down on a wall-mounted device, with a cable and plug attached (no text or symbols)

1.1.1 HC upozorenje

Ako proizvod sadrži sistem za hlađenje koji koristi plin R600a, vodite računa da izbjegnete oštećenje sistema za hlađenje i njegovih cijevi dok koristite i premještate proizvod. Ovaj plin je zapaljiv. Ako je sistem za hlađenje oštećen, držite proizvod podalje od izvora vatre i odmah provjetrite prostoriju.

Pure electrical circuit lines without any symbols

Ovaj proizvod je proizveden od visokokvalitetnih dijelova i materijala koji se mogu ponovo koristi i pogodni su za reciklažu. Na kraju radnog vijeka, ne bacajte otpadni proizvod sa običnim domaćim i ostalim otpadom.

Odnesite ga u sabirni centar za recikliranje električne i elektronske opreme. Obratite vašim lokalnim vlastima kako biste saznali više o ovim sabirnim centrima.

1.5. Usklađenost sa RoHS direktivom

Initial position better energy efficiency

• Stavite proizvod na ravnu površinu kako bi izbjegli vibracije.
• Postavite proizvoda najmanje 30 cm od grijalice, peći i sličnih izvora topline i najmanje 5 cm od električnih peći.
• Ne izlažite proizvod direktnoj sunčevoj svjetlosti ili ne držite ga u vlažnom okruženju.
• Proizvod zahtijeva adekvatnu cirkulaciju zraka da bi efikasno funkcionirao.
• Ako proizvod treba da se stavi u nišu, ne zaboravite da ostavite najmanje 5 cm udaljenosti između uređaja i plafona i zidova.

Diagram showing two labeled components (1 and 2) with directional arrows indicating flow or movement between them in a container-like structure.

Instalacija

3.3. Podešavanje postolja

Ako proizvod nije u uravnoteženom položaju, podesite prednja podesiva postolja okretanjem na desno ili lijevo.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

3.4. Priključak za napajanje

	UPOZORENJE: Ne koristite produžni kabel ili kabel sa više utičnica na priključku za napajanje.
	UPOZORENJE: Oštećeni kabel za napajanje mora da zamijeni ovlašteni servis.
	Prilikom postavljanja dva hladnjaka jedan pored drugog, ostavite najmanje 4 cm prostora između dvije jedinice.

• Naša firma ne preuzima odgovornost za bilo kakvu štetu zbog korištenja bez uzemljenja i bez priključka za napajanje u skladu sa nacionalnim propisima.
• Napojni kabel mora biti lako dostupan nakon instalacije.
• Povežite hladnjak na uzemljenu utičnicu sa naponom od 220-240 V/50 Hz. Utikač mora sadržati osigurač od 10-16A.
• Ne koristite utikač sa više grupa sa ili bez produžnog kabela između zidne utičnice i hladnjaka.

Upozorenje na vruću površinu! Na bočnim zidovima vašeg proizvoda ce nalaze cijevi rashladnog sredstva koje poboljšavaju rashladni sistem. Kroz ove oblasti može da teče rashladno sredstvo na visokim temperaturama, što rezultira vrućim površinama na bočnim zidovima. Ovo je normalno i nije potrebno servisiranje. Vodite računa kada dodirujete ove oblasti.

4 Priprema

Za samostojeći uređaj; „Ovaj rashladni uređaj nije predviđen da se koristi kao ugradni uređaj“;
i Vaš frižider bi trebao biti postavljen na udaljenosti od najmanje 30 cm od izvora toplote poput kamina, pećnica, centralnog grijača i peći i najmanje 5 cm od električnih štednjaka te ne bi trebao biti postavljen na sunčevu svjetlost.
i Ambijentna temperatura sobe gdje postavljate vaš frižider bi trebala biti najmanje 10°C. Zbog njegove efikasnosti, nije preporučeno da vaš frižider radi pod hladnijim uslovima od ovih.
i Molimo da provjerite da je unutrašnjost vašeg frižidera temeljno očišćena.
i Ukoliko su dva frižidera postavljena jedan do drugog, onda je potrebno da bude najmanje 2 cm udaljenosti između njih.
Molimo da obratite pažnju na slijedeća uputstva koja se odnose na prvih šest sati rada, kada prvi put palite vaš frižider.

- Vrata frižidera se ne bi trebala prečesto otvarati.

- Frižider mora da radi prazan bez ikakve hrane u njemu.

- Ne isključujte frižider. Ukoliko dođe do nestanka struje izvan vaše kontrole, molimo pogledajte upuzorenja u dijelu "Preporučena rješenja za probleme"

i Originalno pakovanje i materijale od pjene zadržite zbog budućeg transporta ili pomjeranja.
① kod nekih modela, panel instrumenata se automatski isključuje 5 minuta nakon zatvaranja vrata. On će se ponovo aktivirati kada se vrata tvore ili kada se pritisne neka tipka.
Zbog promjene u temperaturi do koje dolazi otvaranjem/zatvaranjem vrata uređaja tokom rada, normalna je pojava kondenzacije na policama vrata/kućišta i staklenim kontejnerima.

Line drawing of a cylindrical container with a central oval and side supports (no text or symbols)

Radna temperatura se reguliše pomoću kontrole temperature.

(Or) Min. Max.

0=Hlađenje sistema je isključeno.

1=Najniže postavke hlađenja (najtoplije postavke).

5=Najviše postavke hlađenja (Najhladnije postavke).

https://eprel.ec.europa.eu/

Simple line drawing of a rectangular frame with an arrow labeled '1' pointing to the inner rectangle (no text or symbols beyond the number)

Simple line drawing of a mechanical component with a base and top view, no text or symbols present.

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

Image containing a black information icon inside a square, commonly used to denote information.

Diagram showing airflow or heat transfer between two labeled components (1 and 2) within a container, with arrows indicating direction of movement.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

The condenser of your appliance is located on the back as shown below. In order to achieve better energy efficiency with lower energy consumption, please pull the condenser towards yourself as illustrated in picture below.

*may not be available in all models

Initial position better energy efficiency

4 Подготовка

Technical diagram of a rectangular enclosure with numbered components for identification and assembly reference.

Technical diagram of a door frame with numbered components and mounting points

Technical diagram of a refrigerator with numbered components for identification

15 16 17

Line drawing of a cylindrical container with a central oval and two concentric rings (no text or symbols)

Diagram showing a cable being inserted into a refrigerator with a lightning bolt indicating the electrical outlet (no text or symbols present)

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

1

Për produktet me dispenser uji;

Pure electrical circuit lines without any symbols

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

Lidhja elektrike

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

Simple line drawing of a pear and a carrot (no text or symbols)

RSSE265K30WN - RSSE265K40WN

DA / FIN / NO /

Diagram showing a device with wires and a plug, no text or symbols present

Simple line drawing of a rectangular object with a small inset showing internal structure (no text or symbols)

Simple line drawing of a rectangular frame with a small circular element inside, no text or symbols present.

Diagram illustrating fluid flow through a container with labeled components and directional arrows

Vending af dør

Technical diagram of a rectangular refrigerator with numbered parts for identification and assembly reference.

Technical diagram of a door frame with numbered components and mounting points

Technical diagram of a rectangular refrigerator with numbered components for identification

Technical diagram of a door frame with numbered labels indicating parts of each panel.

4 Tilberedning

Line drawing of a cylindrical container with a central oval opening, no text or symbols present

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Simple line drawing of a rectangular object with a base and top, no text or symbols present

Simple line drawing of a rectangular frame with a small rectangular cutout labeled '1' (no text or symbols beyond the number)

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

2-b Initial position better energy efficiency

4 Valmistelu

Technical diagram of a rectangular refrigerator with numbered parts for identification and assembly reference.

Technical diagram of a vertical panel or enclosure with numbered components labeled 7, 8, and 9.

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Line drawing of a cylindrical container with a central oval opening, no text or symbols present

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Lampun vaihtaminen

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a rectangular frame with a numbered label '1' on the left side (no other text or symbols)

Barnesikring

Pure electrical circuit lines without any symbols

Dette produktet er i samsvar med EU-direktivet som omhandler elektronisk og elektrisk utstyr (2012/19/EU). Dette produktet har et klassifiseringsymbol for sortering av avfall elektrisk og elektronisk utstyr (WEEE).

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

2-b Initial position better energy efficiency

4 Forberedelse

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Line drawing of a cylindrical container with a central oval opening, no text or symbols present

Driftstemperaturen reguleres ved bruk av temperaturkontrollen.

(Or) Min. Max.

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)
