USER MANUAL BC296NCM Be Cool

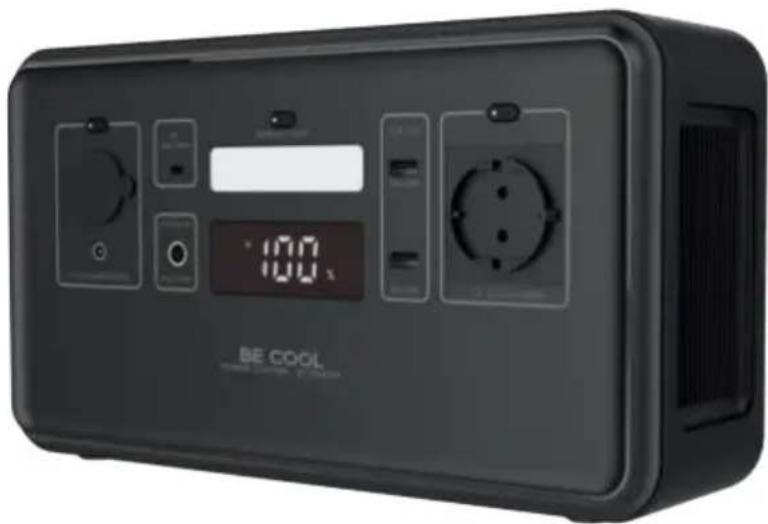

Outdoor-Powerstation
BC296NCM
BE COOL
Inhaltsverzeichnis
Power Station Model: BC296NCM
Batteries: Li-ion 14.8V/20Ah (296Wh)
DC Input: 12-24V=5A 120W Max.
PD Input/Output: 5V---3A, 9V---3A, 12V---3A,
15V---3A, 20V---5A, 100W Max.
Output: Car Charger/DC: 12V---10A 120W (Total: 10A)
USB-A1/USB-A2:5V---3A,9V---2A
AC(Sine wave): 230V\~1.3A, 50Hz, 300W Max.
Stable at 300W Peak at 500W Maximum total output: 300W
Discharge temperature: -10-40°C Charging temperature: 0-40°C
Schuss Home Electronic GmbH, Scheringg. 3, 1140 Vienna, Austria
Made in China


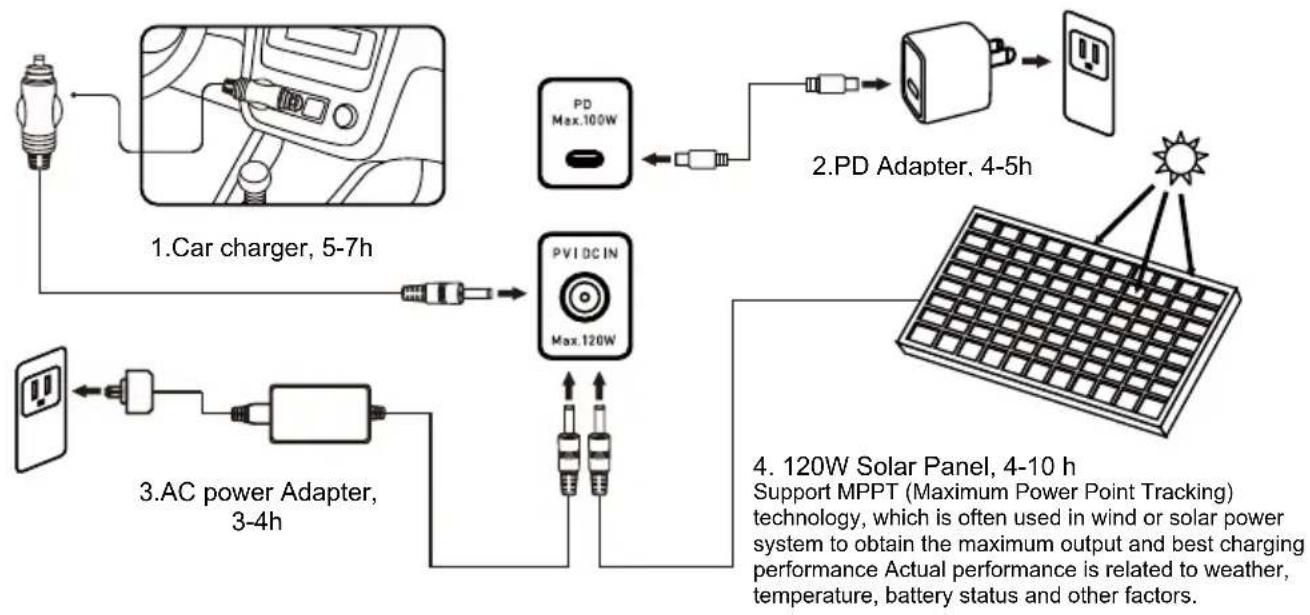

Pure electrical circuit lines without any symbolsNetzadapter
Autoladegerät
BE COOL
Aufladbare Geräte
GARANTIE
Declares that the product
EN IEC 62368-1:2020+A11:2020
EMV
EN 301489-1 V2.2.3 (2019-11)
EN 301489-17 V3.2.4(2020-09)
EN 55032:2015
EN 55035:2017
Funk
EN 300328 V2.2.2 (2019-07)
Reach SVHC(EC)NO. 1907/2006
Place and date of issue:
Declaration reference:
BE COOL
Table des matières
Power Station Model: BC296NCM
Batteries: Li-ion 14.8V/20Ah (296Wh)
DC Input: 12-24V==5A 120W Max.
PD Input/Output: 5V---3A, 9V---3A, 12V---3A,
15V---3A, 20V---5A, 100W Max.
Output: Car Charger/DC: 12V==10A 120W (Total: 10A)
USB-A1/USB-A2:5V---3A, 9V---2A
AC(Sine wave): 230V\~1.3A, 50Hz, 300W Max.
Stable at 300W Peak at 500W Maximum total output: 300W
Discharge temperature: -10-40°C Charging temperature: 0-40°C
Schuss Home Electronic GmbH, Scheringg. 3, 1140 Vienna, Austria
Made in China
Dispositif rechargeable
GARANTIE
DÉCLARATION DE CONFORMITÉ DÉCLARATION DE CONFORMITÉ
Schuss Home Electronic GmbH
Scheringgasse 3
1140 Vienne
AUTRICHE
EN IEC 62368-1:2020+A11:2020
EMC
EN 301489-1 V2.2.3 (2019-11)
EN 301489-17 V3.2.4(2020-09)
EN 55032:2015
EN 55035:2017
Aspects radio
EN 300328 V2.2.2 (2019-07)
Reach SVHC(EC)NO. 1907/2006
Directive RoHs / Directive RoHs 2011/65/EU & (EU) 2015/863
BE COOL
Power Station Model: BC296NCM
Batteries: Li-ion 14.8V/20Ah (296Wh)
DC Input: 12-24V==5A 120W Max.
PD Input/Output: 5V---3A, 9V---3A, 12V---3A,
15V---3A, 20V---5A, 100W Max.
Output: Car Charger/DC: 12V==10A 120W (Total: 10A)
USB-A1/USB-A2:5V---3A, 9V---2A
AC(Sine wave): 230V\~1.3A, 50Hz, 300W Max.
Stable at 300W Peak at 500W Maximum total output: 300W
Discharge temperature: -10-40°C Charging temperature: 0-40°C
Schuss Home Electronic GmbH, Scheringg. 3, 1140 Vienna, Austria
Made in China
GARANZIA
EN IEC 62368-1:2020+A11:2020
EMC
EN 301489-1 V2.2.3 (2019-11)
EN 301489-17 V3.2.4(2020-09)
EN 55032:2015
EN 55035:2017
Aspetti radiofonici
EN 300328 V2.2.2 (2019-07)
Reach SVHC(EC)NO. 1907/2006
RoHs directive / Direttiva RoHs 2011/65/EU & (UE) 2015/863
BE COOL
Inhoudsopgave
Power Station Model: BC296NCM
Batteries: Li-ion 14.8V/20Ah (296Wh)
DC Input: 12-24V==5A 120W Max.
PD Input/Output: 5V---3A, 9V---3A, 12V---3A,
15V---3A, 20V---5A, 100W Max.
Output: Car Charger/DC: 12V==10A 120W (Total: 10A)
USB-A1/USB-A2:5V---3A, 9V---2A
AC(Sine wave): 230V\~1.3A, 50Hz, 300W Max.
Stable at 300W Peak at 500W Maximum total output: 300W
Discharge temperature: -10-40°C Charging temperature: 0-40°C
Schuss Home Electronic GmbH, Scheringg. 3, 1140 Vienna, Austria
Made in China
Autolader
BE COOL
Oplaadbaar apparaat
USB-uitgang: Smartphone, smartwatch, digitale camera, e-reader, tablet, enz.
12V-autolader-uitgang: Licht, auto-adapter, enz.
GARANTIE
EN IEC 62368-1:2020+A11:2020
EMC
EN 301489-1 V2.2.3 (2019-11)
EN 301489-17 V3.2.4(2020-09)
EN 55032:2015
EN 55035:2017
Radio-aspecten
EN 300328 V2.2.2 (2019-07)
Reach SVHC(EC)NO. 1907/2006
BE COOL
Power Station Model: BC296NCM
Batteries: Li-ion 14.8V/20Ah (296Wh)
DC Input: 12-24V=5A 120W Max.
PD Input/Output: 5V---3A, 9V---3A, 12V---3A,
15V---3A, 20V---5A, 100W Max.
Output: Car Charger/DC: 12V=10A 120W (Total: 10A)
USB-A1/USB-A2:5V---3A, 9V---2A
AC(Sine wave): 230V\~1.3A, 50Hz, 300W Max.
Stable at 300W Peak at 500W Maximum total output: 300W
Discharge temperature: -10-40°C Charging temperature: 0-40°C
Schuss Home Electronic GmbH, Scheringg. 3, 1140 Vienna, Austria
Made in China
GARANTI
EN IEC 62368-1:2020+A11:2020
EMC
EN 301489-1 V2.2.3 (2019-11)
EN 301489-17 V3.2.4(2020-09)
EN 55032:2015
EN 55035:2017
Radioaspekter
EN 300328 V2.2.2 (2019-07)
Reach SVHC(EC)NO. 1907/2006
RoHs-direktivet / RoHs-direktivet 2011/65/EU& (EU) 2015/863
BE COOL
Obsah
Power Station Model: BC296NCM
Batteries: Li-ion 14.8V/20Ah (296Wh)
DC Input: 12-24V==5A 120W Max.
PD Input/Output: 5V---3A, 9V---3A, 12V---3A,
15V---3A, 20V---5A, 100W Max.
Output: Car Charger/DC: 12V==10A 120W (Total: 10A)
USB-A1/USB-A2:5V---3A, 9V---2A
AC(Sine wave): 230V\~1.3A, 50Hz, 300W Max.
Stable at 300W Peak at 500W Maximum total output: 300W
Discharge temperature: -10-40°C Charging temperature: 0-40°C
Schuss Home Electronic GmbH, Scheringg. 3, 1140 Vienna, Austria
Made in China
ZÁRUKA
EN IEC 62368-1:2020+A11:2020
EMC
EN 301489-1 V2.2.3 (2019-11)
EN 301489-17 V3.2.4(2020-09)
EN 55032:2015
EN 55035:2017
Rádiové aspekty
EN 300328 V2.2.2 (2019-07)
Reach SVHC(EC)NO. 1907/2006
RoHS-Richtlinie / RoHS směrnice 2011/65/EU & (EU) 2015/863
ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL.
BE COOL
Obsah
Power Station Model: BC296NCM
Batteries: Li-ion 14.8V/20Ah (296Wh)
DC Input: 12-24V==5A 120W Max.
PD Input/Output: 5V---3A, 9V---3A, 12V---3A,
15V---3A, 20V---5A, 100W Max.
Output: Car Charger/DC: 12V==10A 120W (Total: 10A)
USB-A1/USB-A2:5V---3A, 9V---2A
AC(Sine wave): 230V\~1.3A, 50Hz, 300W Max.
Stable at 300W Peak at 500W Maximum total output: 300W
Discharge temperature: -10-40°C Charging temperature: 0-40°C
Schuss Home Electronic GmbH, Scheringg. 3, 1140 Vienna, Austria
Made in China
Pokyny pre APLIKÁCIU
ZÁRUKA
EN IEC 62368-1:2020+A11:2020
EMC
EN 301489-1 V2.2.3 (2019-11)
EN 301489-17 V3.2.4(2020-09)
EN 55032:2015
EN 55035:2017
Rádiové aspekty
EN 300328 V2.2.2 (2019-07)
Reach SVHC(EC)NO. 1907/2006
Smernica RoHs / Smernica RoHs 2011/65/EÚ a (EÚ) 2015/863
BE COOL
Cuprins
Power Station Model: BC296NCM
Batteries: Li-ion 14.8V/20Ah (296Wh)
DC Input: 12-24V==5A 120W Max.
PD Input/Output: 5V---3A, 9V---3A, 12V---3A,
15V---3A, 20V---5A, 100W Max.
Output: Car Charger/DC: 12V==10A 120W (Total: 10A)
USB-A1/USB-A2:5V---3A, 9V---2A
AC(Sine wave): 230V\~1.3A, 50Hz, 300W Max.
Stable at 300W Peak at 500W Maximum total output: 300W
Discharge temperature: -10-40°C Charging temperature: 0-40°C
Schuss Home Electronic GmbH, Scheringg. 3, 1140 Vienna, Austria
Made in China
GARANTIE
EN IEC 62368-1:2020+A11:2020
EMC
EN 301489-1 V2.2.3 (2019-11)
EN 301489-17 V3.2.4(2020-09)
EN 55032:2015
EN 55035:2017
Aspecte radio
EN 300328 V2.2.2 (2019-07)
Reach SVHC(EC)NO. 1907/2006
Directiva RoHs / Directiva RoHs 2011/65/EU & (UE) 2015/863

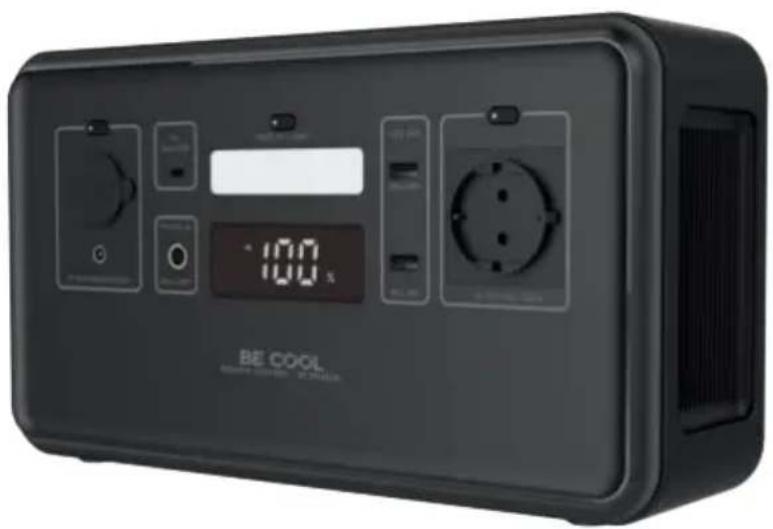

Outdoor Power Station
BC296NCM
BE COOL
Table of contents
| Introduction |
| Intended use |
| Explanation of symbols |
| Safety instructions |
| Notes on the integrated battery and disposal |
| Important notes on disposal |
| Scope of Delivery |
| Product details |
| Chargeable Device / Charging Method |
| Commissioning |
| Specifications |

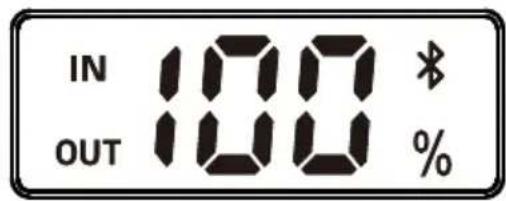

| Led Screen Instructions |
| Frequently Q & A |
| Chemical Composition |
| App Instructions |
| Fault Diagnosis |
| Storage and maintenance |
| Technical Data |
| Disclaimer |
| Warranty |
| Declaration of Conformity |
PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY COVERAGE.
BE COOL
Intended use
With 296 Wh of stored energy, you can power electronic devices anytime, anywhere, whether you're camping, in your motorhome, or in case of emergencies or power outages. Our product is not suitable for use with installations, relating to personal safety and relying significantly on the power supply, such as medical equipment, nuclear plant equipment, aircraft and spacecraft manufacturing, etc.
Therefore, we do not accept any liability for accidents involving personal safety, fires or machine breakdowns caused by the use of our product with the above equipment.
Explanation of symbols
DANGER!
WARNING!
Symbol:
Meaning:
Protection class 2
The symbol indicates that the unit is assigned to protection class 2.
Devices of protection class 2 are not connected to the protective conductor. Instead, they have reinforced or double insulation at the level of the rated insulation voltage between active and touchable parts. Electrically conductive surfaces or conductive touchable parts are thus separated from live parts by reinforced or double insulation.
Safety instructions
BE COOL
These operating instructions are intended to familiarize you with the operation of this product. It contains important instructions for the use, safety and maintenance of the appliance. Therefore, keep this manual in a safe place so that you can refer to it at any time. Pass them on to subsequent users.
Please observe the safety instructions during use.
Before using the unit, check the unit and its connecting cable as well as accessories for damage. Do not use the unit if it shows visible damage.
Operate the unit only from standard household sockets. Check whether the mains voltage indicated on the type plate corresponds to that of your mains supply.
Do not squeeze the connection cable or pull it over sharp edges or hot surfaces. Do not use the connection cable for carrying.
If the mains lead of this appliance is damaged, it must be replaced by the manufacturer or its after-sales service or a similarly qualified person in order to avoid hazards.
Unplug the appliance: after each use, in case of malfunctions during operation, before cleaning the appliance.
Never pull the plug out of the socket by the mains cable or with wet hands.
The appliance is intended exclusively for household or similar use. It must not be used for commercial purposes!
The unit is suitable for indoor use only.
BE COOL
Make sure that the unit has good stability during operation and that it is not possible to trip over the mains cable.
Never use the appliance after a malfunction, e.g. if the appliance has been dropped into water or damaged in any other way.
The manufacturer accepts no responsibility for incorrect use resulting from failure to observe the instructions for use.
Conversion or modification of the product impairs product safety. Caution: Risk of injury!
All modifications or repairs to the unit or accessories may only be carried out by the manufacturer or persons expressly authorized by the manufacturer for this purpose.
Make sure that the product is operated from a socket that is easily accessible so that you can quickly disconnect the unit from the mains in case of an emergency.
Never open the product yourself. Never carry out repairs yourself!
Handle the product with care. It can be damaged by bumps, knocks or falling from even a low height.
Keep the product away from moisture and extreme heat.
Never immerse the product in water or other liquids.
Do not touch the product with wet or damp hands.
Never use the product after a malfunction, e.g. if it has been dropped into water or damaged in any other way.
BE COOL
DANGER!
DO NOT disassemble, repair or modify the system or battery. This may result in electric shocks, fire, etc.
DO NOT position the system near or in a fire or expose it to heat.
Do not expose to direct sunlight. This may cause electric shocks, fire, etc.
DO NOT charge, use or store the system in the bathroom or in the rain or damp areas. This may result in electric shocks, fire, etc.
Only use the output socket to supply external devices. Do not connect the output to the mains under any circumstances.
Connection to the mains supply may result in electric shock, injury or fire.
DO NOT touch the system or the plugs with wet hands. This can lead to electric shocks.
DO NOT connect metal objects to the AC input or AC output. This may cause electric shocks, fire, etc.
DO NOT rub the eyes if liquid from inside the system enters the eyes. If this happens, flush the eyes with water and seek medical advice immediately. There is a risk of blindness.
DO NOT dispose of the system with household waste.
Comply with local laws regarding disposal of the system.
BE COOL
DO NOT use unsuitable power cables. This may result in electric shocks, fire, etc.
DO NOT operate the system beyond the specified input voltage. This may result in electric shock, fire, etc.
DO NOT use the system if it is not functioning correctly. This may result in electric shocks, fire, damage to the system, etc.
DO NOT move the system while it is charging or in operation. This may result in electric shock, damage to the system or other injury.
WARNING
Use the system only in a clean and dry environment. Do not use or store in dusty and humid environments. Failure to comply with these regulations may result in a short circuit, smoke formation or fires if metal dust or small metal parts come into contact with the connections.
Check the system before each use. Do not use the system if it is damaged or defective. If you find that the system has any damage or cracks, is defective or has any other
If the system shows any abnormalities, DO NOT continue to use the system and contact the dealer or service center.
Do not use the system if the power cable is damaged or defective.
Keep the system away from children. DO NOT allow children to use the power supply unit. This may cause accidents or
BE COOL
injuries. This system must not be used by children. Keep the system and its connecting cables out of the reach of children.
Children are not allowed to play with the system.
The system must not be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the system in a safe way and understand the hazards involved.
Keep the system away from pets.
DO NOT use or store the system in an environment with high temperatures. This may cause the system to deform or overheat.
If liquid from inside the system comes into contact with skin or clothing, wash the affected areas with tap water.
Contact with the liquid can cause injury.
Unplug the power cable from the socket during storms.
A thunderstorm can cause overcurrent from the socket, which can cause overheating, fires or other accidents.
DO NOT charge the system using power supply systems that operate outside the 100-240 V range. This may otherwise cause overheating, fire, etc.
DO NOT position the system on its side or upside-down during use or storage. This may cause the system to leak or overheat, resulting in other accidents.
BE COOL
CAUTION
If rust, peculiar odors, overheating or other abnormal conditions are detected, stop using the system immediately and contact the dealer or our service center.
The system meets all legal requirements for the transport of hazardous materials.
This system contains Li-ion batteries.
According to the airline's transport standards, lithium batteries with 100Wh capacity cannot be transported by air.
For transport in vehicles, ensure that the system is properly secured when transported in a motor vehicle.
Failure to comply with this provision may result in damage to the system, electric shocks, overheating, fire and other accidents.
The system may only be charged, and used, at ambient temperatures between -10 and 40^ (14-104 °F).
Operating the system above or below this temperature range may result in overheating or reduced performance.
Switch off the system immediately if it has been accidentally dropped, dropped or subjected to strong vibrations.
To avoid accidents, please contact the dealer or our service center to have the system checked and repaired.
Carefully read the instructions for the electrical appliances you intend to connect to the power supply unit.
BE COOL
Make sure that the unit you are connecting is switched off before connecting.
A unit that starts suddenly can cause accidents or injuries.
When activating the protection function and disconnecting the appliance plug, disconnect the electrical equipment from the plug. Switch off the system when not in use/storage to avoid electric shock as well as unnecessary discharge of the battery, etc.
Keep the unit away from other objects when moving it.
Take extra care so that the appliance never falls to the floor.
Place the unit on a stable surface. This also makes it easier to read the displays.
The unit should not be exposed to shocks or vibrations. Otherwise, there is a risk of fire.
When in use, power supplies generate electromagnetic fields which may interfere with the normal operation of medical implants or personal medical devices such as pacemakers, cochlear implants, hearing aids, defibrillators, etc. If such medical devices are used, contact the manufacturer for any restrictions on the use of such devices. These measures are essential to ensure a sufficient safety distance between the medical implants (e.g. pacemakers, cochlear implants, hearing aids, defibrillators, etc.) and this product while it is in use.
If the power supply is connected to a refrigerator in normal mode, power fluctuations may cause the power supply to be switched off automatically. We do not recommend connecting a refrigerator in which medicines, vaccines or other valuable or
BE COOL
medical or even non-medically important substances are stored to the unit.
However, if the power supply is connected to a refrigerator where medicines, vaccines or other valuable substances, medical or non-medical, are stored, it is recommended to set the AC output in the app to "always on". This helps to establish a continuous power supply and efficient power consumption.
Keep the original packaging of the unit and use it in case of transport.
Notes on the integrated battery and disposal
Used rechargeable batteries do not belong in household waste. As a consumer, you are legally obliged to return used rechargeable batteries for proper disposal. You can hand in your rechargeable batteries at the public collection points in your municipality or wherever rechargeable batteries of the same type are sold.
Batteries do not belong in the hands of children.
Do not heat the battery above 60 °C and do not throw it into fire: risk of fire, explosion and burns!
Do not short-circuit the battery.
Do not attempt to open batteries.
Stay close to the unit when charging and check its temperature regularly. Stop charging immediately if it
Seite 226 von 241
BE COOL
becomes very overheated. A battery that becomes very hot or deformed during charging is defective and must not be used any further.
Do not subject the battery to mechanical stress. Avoid dropping, hitting, bending or cutting the battery.
When charging the battery, make absolutely sure that the polarity of the charging plug is correct. If the charging plug is incorrectly connected, the charger is unsuitable or the polarity is reversed, there is a risk of short circuit and explosion!
Never discharge the battery completely, this will shorten its life.
If the unit is to be stored for a longer period of time, it is recommended that the remaining capacity of the battery is approx. 30 % of the charge volume.
Avoid direct sunlight at the storage location. The ideal temperature is 10 - 20^ C .
Low temperature may affect the battery capacity of the product.
The product can be charged at a temperature in the range 0^-40^ .
The product can supply power to other devices in the temperature range -10^-40^ .
Operating the unit in a residential environment may cause radio interference.
BE COOL
 | RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste. |
 | DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you are helping to protect resources and the environment.For more information, please contact your dealer or local authorities. |
 | DECLARATION OF CONFORMITYWe hereby certify that this article complies with the essential requirements, regulations and directives of the EU.You can view the detailed declaration of conformity at any time under the following link: www.schuss-home.at/de/downloads/ |
Errors and technical modifications excepted.
BE COOL
BE COOL
Power Station Model: BC296NCM
Batteries: Li-ion 14.8V/20Ah (296Wh)
DC Input: 12-24V==5A 120W Max.
PD Input/Output: 5V---3A, 9V---3A, 12V---3A,
15V---3A, 20V---5A, 100W Max.
Output: Car Charger/DC: 12V==10A 120W (Total: 10A)
USB-A1/USB-A2:5V---3A, 9V---2A
AC(Sine wave): 230V\~1.3A, 50Hz, 300W Max.
Stable at 300W Peak at 500W Maximum total output: 300W
Discharge temperature: -10-40°C Charging temperature: 0-40°C
Schuss Home Electronic GmbH, Scheringg. 3, 1140 Vienna, Austria
Made in China
Note: DoD refers to the Depth of Discharge, is the local inverter efficiency. DoD=90%, =90%.
DoD may vary depending on ambient-operating temperature and discharge rate. Load power and charging time are measured in Watt and Hour.
BE COOL
With the package you have purchased you have received:
• Solar converter with powerbank
• 230-volt power supply
• Cigarette lighter connection adapter
- Operating instructions
Packing List
 |  |  |  |
| Outdoor power Supply | AC power adapter | Car charger User manual | |
Product details
LED Display Switch
Short Press to Control LED display on/off Long press 2s clear the BT blind list
Input
- DC: 60W (20V)
- USB-C PD 100W
- Solar: 120W (12-24V)
- Car Charger: 100W (12-20V)
Output
- USB-C: PD 100W
- USB-A 1/2: 18W
- Car Charger/DC Output shared 120W
- AC: Stable at 300W Peak at 500W
Car charger
BE COOL
Chargeable device
USB Output: Smartphone, Smartwatch, Digital Camera, E-reader, Tablet, etc.
12V Car charger Outlet: Light, Car Adaptor, etc.
AC Output: Laptop, LED screen, Household appliances, etc.
| AC Output: | |||||||
 | LED lights12V/5W(50 h) |  | Camera16WH(15 times) |  | Laptop60WH(4 times) |  | TV 110W(2 h) |
 | Drone60WH(4 times) |  | Fan 45W(5.5 h) |  | Wallbreakingmachine250W(1 h) |  | Projector100W(2.5 h) |
| USB Output | DC Output | ||||||
 | iPhone 133095mAh(18 times) |  | NintendoSwitch4310mAh(15 times) |  | Ipadpro202128.65Wh(8 times) |  | Car chargerOutlet Carrefrigerator 65W(3.5 h) |
Charging Methode
Before using or storing the product, please charge it with the charger. When connected to the mains for charging, the indicator light of the charger is on, and the LED screen will display the current charging ratio. When the LED screen shows that the power is 100%, it means full. The current battery level can be checked through the LED screen.
BE COOL
Use Instructions
How to use it:
- Press the switch next to each port you will use.
- When the indicator light next to the port is on, the output is turned on, and the responding device can be charged.
- AC Output is stable at 300W (peak at 500W). If the product is used beyond the maximum power, the power supply will be automatically turned off to protect the product during overload use.
- Press ON/OFF button for turn off output.
- If the product is not used for a long time, it should be recharged every three months. It is better to keep the power at 60%-80% and store it in a cool and dry place.
Attention! If the AC port is not in use, please turn it off to save power.
Note: The output supports charging during use. The output can work simultaneously with the maximum load
BE COOL
Specifications
 |  |  |  |  |  |  |  |  |  |
| Capacity Weight | Dimension | DC Input | Solar Input | USB-C IN/OUT | Car charger Output | DC Output | USB-A Output 2 | AC Output* 2 | |
| 296Wh (2000mAh/14.8V) | 4kg | 340*106*188mm | DC 60W (20V) | DC 120W (12-24V) | PD100 W | 120W Max | 12V/120 W | 18W Max. | Stable at 300W Peak at 500W |
 |  |  |  |  |  | [7026] |  |
| Battery Cell | Cycle times | Storage Temperature | Operation Temperature | Charging Temperature | Protect system | Bluetooth | Certificate |
| Li-ion Battery | 1000times -10-45°C | -10-40°C | 0-40°C | Overcharge protection, Over discharge protectionOvercurrent protection Over temperature protection Short circuit protection, Overvoltage protection | Bluetooth 5.0 with App |
LED Screen Instructions
The LED screen of this product displays the product usage status. When the product is fully charged, the LED screen turns off and stops charging. When any function is activated, the screen will light up. When the screen display is not needed, you can press the button to turn off the LED screen.
- The input power
2.Battery level display - The Bluetooth logo
- The output power
Low temperature may affect the battery capacity of the product. The product can be charged in a temperature range of 0^ - 40^ . Charge the product when the temperature is below 0^ , We recommend placing the product in an insulated cooler or other temperature conditions, also connect it to a power source (AC
BE COOL
output socket, solar photovoltaic panel). The product can charge the device in the temperature range of -10^-40^ .
Frequently Q&A
What is the battery type?
Li-ion Battery.
Can the product be taken on the aircraft?
No, According to the airline transportation standards, 100Wh capacity of lithium battery can not board the aircraft.
How to estimate the working time of the product?
The LED display of this product can help you better understand the working status of the power supply. When the IN (input terminal) in the screen is on: it means the product is charging. When the OUT (output terminal) in the screen is on: it means the product is in the discharging state.
You can recognize the remaining working time of the product by the battery percentage in the display.
Chemical composition of Toxic and harmful substances
| Part Name | Toxic and harmful substances or chemical elements | |||||
| Pb | Hg | Cd | Cr(VI) | PBB | PBDE | |
| Product Shell | O | O | O | O | O | O |
| Circuit Module | X | O | O | O | O | O |
| Small Hardware | O | O | O | O | O | O |
| Charging Cable | O | O | O | O | O | O |
O : The content of hazardous substances in homogeneous materials all components are limit requirement specified in GB-T 26572.
X: The content of hazardous substance in at least one of the average materials of the part exceeds the limit requirement of GB-T 26572, and there is no mature alternative in the industry at present, which meets the environmental protection requirements of the EU
RoHS directive.
This information for reference purposes only and does not represent a binding agreement. Product (Color, Size, OSD, etc.) in kind prevail.
BE COOL
APP Instructions
- Scan the code to install the APP,
- For the first use, please press the screen button until the Bluetooth icon appears on the screen. If you have already installed, please go directly to step 7,
- After installing and running the app, after logging in, select "Add Device",
- After finding the equipment, It will display the following page (If it can't be find, please check the Bluetooth permissions or repeat the first step)
- Click "Next", enter the add page,
- Click "+" , add the equipment, connect it,
- Once the connection is completed, the user can control the USB port output, the in-vehicle output, the AC output.
Fault diagnosis
If your device is not successfully charged with this product, please follow the steps below:
- Ensure that the output port is open, LED indicator lights on the power button.
- Check the LED power display, if it is 20% or less, please charge the product.
- The power of the device you are using exceeds the maximum power of the port of the product.
- The device link cable you are using is not plugged in well or has poor contact.
Solar photovoltaic panels:
Choose our solar photovoltaic products, just insert the DC port, you can easily charge the product with solar energy. This product uses MPPT (Maximum Power Tracking) technology, which can compare the output voltage point of the solar panel with the battery voltage of the product in real time, so as to find the maximum power output point that the solar panel can provide and charge the battery of the machine to obtain the best Charging efficiency.
BE COOL
AC adapter:
The product must be charged with the AC adapter specified by us. We will not be responsible for any consequences caused by charging with other adapters.
Storage and maintenance
Switch off the product before storage and store it in a dry, ventilated place at room temperature. Do not place it near sources of water. For prolonged storage, charge and discharge the product every three months to prolong the life of the battery.
For long-term storage, please discharge the product e very three months (first discharge to 0%, then fully charge and finally discharge to 60%). The product is not covered by the warranty if it is not charged and discharged for more than 6 months.
BE COOL
Technical data
| GENERAL | Model BC296NCM | |
| Capacity 296Wh | ||
| Cell Chemistry Li-ion | ||
| Single Cell Capacity 20Ah @ 3,7V/pcs | ||
| Lifecycle 1000+ Cycles to 80% Capacity | ||
| Indicator APP / LED Screen | ||
| Discharge Temp. 14°F-140°F (-10°C-40°C) | ||
| Charging Temp. 32°F-104°F (0°C-40°C) | ||
| Material ABS+PC | ||
| Weight 4±0,5kg | ||
| Dimensions 340*106* 188 mm | ||
| Battery Management System OVP, OCP, ODP, SCP, etc. | ||
| Solar Charge System MPPT Charge Controller | ||
| INPUT | DC7909 | 60W Max (DC 20V)120W Max (DC / Solar 12V-24V) |
| USB-C 100W Max | ||
| OUTPUT | AC | 220V-240V @ 50/60Hz300W Max |
| USB-C 100W Max | ||
| USB-A 18W Max | ||
| DC 5525 | share 11.4-16.8V / 10A | |
| Car Port |
BE COOL
Disclaimer
Our company shall not be liable for any damage caused by fire, earthquake, use by a third party, other accidents, willful misconduct on the part of the customer, improper use or other abnormal conditions. Do not repair any damage to the AC plug or power supply yourself. The warranty covers all terms and conditions of the warranty. Contents not specified in the warranty terms and conditions are beyond our responsibility. Our company accepts no liability for any damage caused by improper use or failure to comply with these operating instructions.
WARRANTY
With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.
For this BE COOL unit, we grant a warranty period of 2 years from the date of purchase, valid in Austria, Germany, Sweden, Netherlands, Romania, Czech Republic, Slovakia! If, contrary to expectations, service work should nevertheless be necessary on your unit during this period, we hereby guarantee to repair it free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a credit note for the current value. In the event of warranty claims, please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by the authorized contract workshop in Austria immediately terminates the validity of this warranty.
This warranty does not cover:
• Repair or replacement of parts due to normal wear and tear
• Damage due to non-observance of the operating instructions
• Devices that are used - even only partially - for commercial purposes
• equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
• Equipment that has been improperly handled
- Units that have not been opened by our authorized service workshop.
• Consumer expectations not met.
• Damage caused by force majeure, water, lightning, overvoltage.
- Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
• Services outside our authorized workshops, the transport costs to an authorized workshop or to us and back, and the associated risks.
We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2010, June 2015) will be charged in case of operating errors or if no error was detected.
The absolute warranty period of 2 years from the date of purchase is not extended by the provision of warranty service (repair or replacement of the unit). The 2-year guarantee is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the appliance) and the corresponding guarantee certificate, on which the type of appliance as well as the serial number (visible on the box and on the back or bottom of the appliance) must be noted! Without presentation of the guarantee certificate, only the legal guarantee applies! We expressly point out that the statutory warranty rights are not affected by this warranty and continue undiminished. Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. In any case, liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded. Damages to or for recorded data are always excluded from the liability for damages.
Congratulations on your choice. We wish you much pleasure with your BE COOL appliance!
ADDRESS
Schuss Home Electronic GmbH
1140 Vienna, Scheringgasse 3
Tel.: +43 (0)1/ 970
Type designation: ....
Serial number: ....
In the event of a warranty claim, this warranty certificate must be handed over together with the unit to the authorized service workshop or the dealer from whom you purchased the unit!
BE COOL
DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY
Schuss Home Electronic GmbH
Scheringgasse 3
1140 Vienna
AUSTRIA
Declares that the product
Declares that the product
Manufacturer
Producer
BE COOL
Designation
Description
Power Station
Model no.
Model No.
BC296NCM
complies with the following directives, standards and/or regulations: is conformity with following directives, norms and/or regulations:
RED Richtlinie / RED directive 2014/53/EU
Health and safety
EN IEC 62368-1:2020+A11:2020
EMC
EN 301489-1 V2.2.3 (2019-11)
EN 301489-17 V3.2.4(2020-09)
EN 55032:2015
EN 55035:2017
Radio aspects
EN 300328 V2.2.2 (2019-07)
Reach SVHC(EC)NO. 1907/2006
RoHs Directive / RoHs directive 2011/65/EU & (EU) 2015/863
Place and date of the exhibition:
Place and date of issue:
Vienna, 2023-02-16
Declaration reference:
Declaration reference:
SCHUSS HOME ELECTRONIC GMBH
Scheringgasse 3, 1140 Vienna, AUSTRIA
Subject to changes and misprints, the current version can be downloaded:
Subject to alterations and printing errors, the current version is available for download:
