USER MANUAL 1305 PeakTech

text_image Lab equipment photo showing oscilloscope, multimeter, and electronic components with visible labels and waveform graphs

PeakTech® I265/ I305/ I310

natural_image Technical illustration of a medical or electrical device with two components, one being inserted and the other holding a tool (no text or symbols present)
natural_image Line drawing of a soldering iron with a pointed tip and threaded end (no text or symbols)

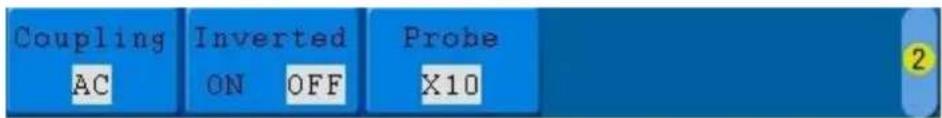

text_image Coupling DC Inverted ON OFF Probe X10

PeakTech 1305 - 1

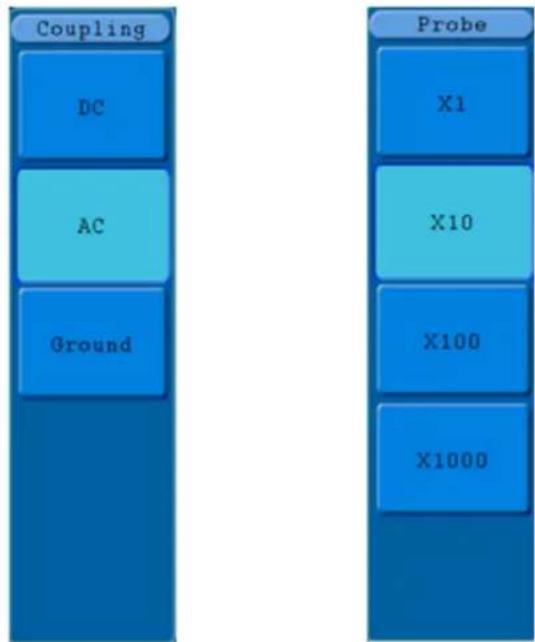

text_image Coupling AC Inverted ON OFF Probe X10 2

PeakTech 1305 - 2
text_image Main Set Zoom

Fig. 25 Menu Mode Heure

text_image Single Pulse Source CH1 Couple DC When >24ns Auto &Holdoff
text_image ALT Pulse Source CH1 Couple DC When >24ns Auto &Holdoff
text_image Type Dots Vect Persist OFF XY Mode ON OFF Cymometer ON OFF VGA Disp ON OFF
text_image MFunction Config Display Adjust Pass/fail Output LAN Set

PeakTech 1305 - 3

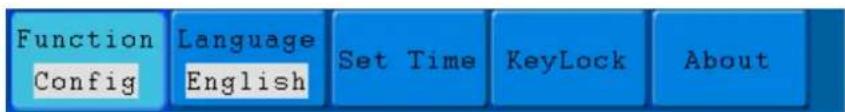

text_image Function Config Language English Set Time KeyLock About

Fig. 52 Menu de configuration

text_image Function Adjust Self Cal Default

Fig.54 Menu Ajuster

Le menu Ajuster :

text_image Auto 23.50ms Autocalibration Remove all probes cables from (CH1 CH2) Press (Auto calibration) for Calibration Press any key to quit.

Fig.56 Menu Pass/Fail

Le menu Pass/Fail :

text_image Function Output Type
text_image Function LAN Set Set

Fig. 59 Menu LAN Set

Le menu LAN Set :

text_image Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 71 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 192 . 168 . 1 . 1 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: 192 . 168 . 1 . 1 Alternate DNS server: . Advanced... OK Cancel

Fig. 60

text_image Ports-settings Connect using LAN IP: 192.168.1.72 port: 3000 Custom USB Transfer Instructions (Some Types can choose to get bin / bmp or deep-memory data) WaveForm Image High Memory Depth Get Image File ".bmp" Setting: Keep Getting Delay(ms): 2000 Save data file automatically to below directory Browse... For there is a limit number of files in one single directory of Windows File System(FAT16, FAT32, NTFS), the number of files to be saved is not certain, it is recommended to choose a directory in NTFS disk drive, turn off the storage channels in device, and use short directory path to save more files. OK Get Data now! Keep Getting now!

Fig. 61

text_image Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. ○ Obtain an IP address automatically ● Use the following IP address: IP address: 192 . 168 . 1 . 71 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 192 . 168 . 1 . 1 ○ Obtain DNS server address automatically ● Use the following DNS server addresses: Preferred DNS server: 192 . 168 . 1 . 1 Alternate DNS server: . Advanced... OK Cancel

Fig. 63

text_image Ports-settings Connect using LAN IP: 192.168.1.72 port: 3000 Custom USB Transfer Instructions (Some Types can choose to get bin / bmp or deep-memory data) WaveForm Image High Memory Depth Get Image File ".bmp" Setting: Keep Getting Delay(ms): 2000 Save data file automatically to below directory Browse... For there is a limit number of files in one single directory of Windows File System (FAT16, FAT32, NTFS), the number of files to be saved is not certain, it is recommended to choose a directory in NTFS disk drive, turn off the storage channels in device, and use short directory path to save more files. OK Get Data now! Keep Getting now!

Fig. 64

text_image Overshoot Vmax Vpp Vtop Vamp Vbase Vmin Preshoot

Fig. 68

line | Parameter | Value | | --------------- | --------- | | Current | 220.00V | | Voltage | -116.00V | | Current | 104.00V | | Voltage | -2.00Div | | Source | CH1 CH2 |
text_image AutoScale ON OFF Mode Wave Mode

Fig. 76 Menu Autoscale

Avis :

Le menu Autoscale :

line | Time (s) | Red Wave (dB) | Yellow Wave (dB) | |----------|---------------|------------------| | 1.56 | 1.56 | -2.0 | | 2.0 | 2.0 | -2.5 | | 3.5 | 3.5 | -3.5 | | 5.0 | 5.0 | -4.5 | | 6.5 | 6.5 | -5.5 | | 8.0 | 8.0 | -6.5 | | 9.5 | 9.5 | -7.5 | | 11.0 | 11.0 | -8.5 | | 12.5 | 12.5 | -9.5 | | 14.0 | 14.0 | -10.5 | | 15.5 | 15.5 | -11.5 | | 17.0 | 17.0 | -12.5 | | 18.5 | 18.5 | -13.5 | | 20.0 | 20.0 | -14.5 | | 21.5 | 21.5 | -15.5 | | 23.0 | 23.0 | -16.5 | | 24.5 | 24.5 | -17.5 | | 26.0 | 26.0 | -18.5 | | 27.5 | 27.5 | -19.5 | | 29.0 | 29.0 | -20.5 | | 30.5 | 30.5 | -21.5 | | 32.0 | 32.0 | -22.5 | | 33.5 | 33.5 | -23.5 | | 35.0 | 35.0 | -24.5 | | 36.5 | 36.5 | -25.5 | | 38.0 | 38.0 | -26.5 | | 39.5 | 39.5 | -27.5 | | 41.0 | 41.0 | -28.5 | | 42.5 | 42.5 | -29.5 | | 44.0 | 44.0 | -30.5 | | 45.5 | 45.5 | -31.5 | | 47.0 | 47.0 | -32.5 | | 48.5 | 48.5 | -33.5 | | 50.0 | 50.0 | -34.5 | | 51.5 | 51.5 | -35.5 | | 53.0 | 53.0 | -36.5 | | 54.5 | 54.5 | -37.5 | | 56.0 | 56.0 | -38.5 | | 57.5 | 57.5 | -39.5 | | 59.0 | 59.0 | -40.5 | | 60.5 | 60.5 | -41.5 | | 62.0 | 62.0 | -42.5 | | 63.5 | 63.5 | -43.5 | | 65.0 | 65.0 | -44.5 | | 66.5 | 66.5 | -45.5 | | 68.0 | 68.0 | -46.5 | | 69.5 | 69.5 | -47.5 | | 71.0 | 71.0 | -48.5 | | 72.5 | 72.5 | -49.5 | | 74.0 | 74.0 | -50.5 | | 75.5 | 75.5 | -51.5 | | 77.0 | 77.0 | -52.5 | | 78.5 | 78.5 | -53.5 | | 80.0 | 80.0 | -54.5 | | 81.5 | 81.5 | -55.5 | | 83.0 | 83.0 | -56.5 | | 84.5 | 84.5 | -57.5 | | 86.0 | 86.0 | -58.5 | | 87.5 | 87.5 | -59.5 | | 89.0 | 89.0 | -60.5 | | 90.5 | 90.5 | -61.5 | | 92.0 | 92.0 | -62.5 | | 93.5 | 93.5 | -63.5 | | 95 | 95 | -64 | | 96 | 96 | -64 | | 97 | 97 | -64 | | 98 | 98 | -64 | | 99 | 99 | -64 | | 1 | 1 | -64 | The chart displays two waveforms (red and yellow) plotted against time (x-axis) and voltage (y-axis). The red line represents a square wave with amplitude in dB, the yellow line represents a square wave with amplitude in V, and the orange line represents an orange scale (ON/OFF). The waveforms are labeled with 'Time' and 'Value'.

Gain (db) = 20Xlog (gain)

PeakTech 1305 - 4

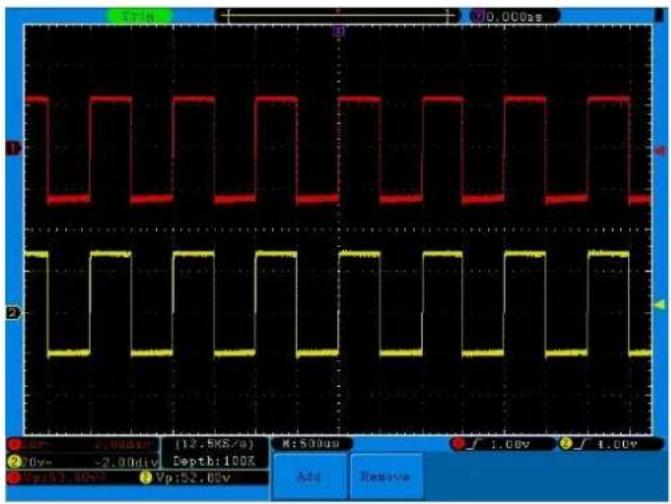

text_image 0.000ns 12.5K8/s 0V -2.00div Depth:100% Vp:3.0V Vp:52.0V M:500us √ 1.00V √ 1.00V Add Remove
