USER MANUAL HP-3019BK Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

HOT POT OLLA CALIENTE ELÉCTRICA

ITEM NO.: HP-3019BK (BLACK)

Black Brentwood coffee maker with lid and control knob (no visible text or symbols on body)

Operating and Safety Instructions FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE!

ENGLISH

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the appliance is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.
• Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.
• Do not touch hot surfaces. ONLY use handles or knobs and protective oven mitts or gloves when handling product to avoid burns or personal injury.
• Do not touch the stainless-steel shell or the steam from the glass cover to prevent burns while it is on.
• To prevent accident, slowly open the glass lid so that steam escapes in a direction away from yourself.
• Do not store the appliance in a refrigerator.
• This appliance generates heat and steam during use. Please take the proper precautions to avoid burns, fire, and personal or property damage. Only use on heat resistant surfaces.
• Do not use any parts that are not delivered with the original hot pot; this might cause danger. Do not place in or on other appliances.
• Do not fill with water while appliance is in use.
• Do not add water higher than the maximum water level, to prevent water splashing out and scalding.
• Do not use empty or with little water. Water should be higher than the lowest water level, to avoid overheating the hot pot.
• Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use extreme caution when moving an appliance containing food or liquids.
• Use the appliance in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

• Do not plug or unplug the appliance from the electrical outlet with a wet hand.

• This appliance is intended solely for non-commercial, non-industrial, indoor household use in cooking of food for human consumption.

• Do not operate the appliance empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 10.
• Do not overload wall outlet or extension cords as this can result in a fire or electric shock.
• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

SPECIAL INSTRUCTIONS:

• If the Glass Lid has chipped or cracked discontinue use.

• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this appliance, but if one must be used:

• The marked electrical rating must be at least as great as that of the appliance.

• If the appliance is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.
• If the appliance is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

BEFORE FIRST USE

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material. Remove any adhesive stickers and foreign objects before use.

• Before your first use, clean the food grade stainless-steel with a damp cloth with non-abrasive soap. Do not submerge the unit under water. Make sure to dry all parts thoroughly.
• The Tempered Glass Lid can be washed under running water also using a non-abrasive sponge and soap. Make sure to dry all parts thoroughly before using the appliance.
• Before first use, add water to the maximum water level line, then boil the water and pour it out. This will clean the product and make it ready for use.

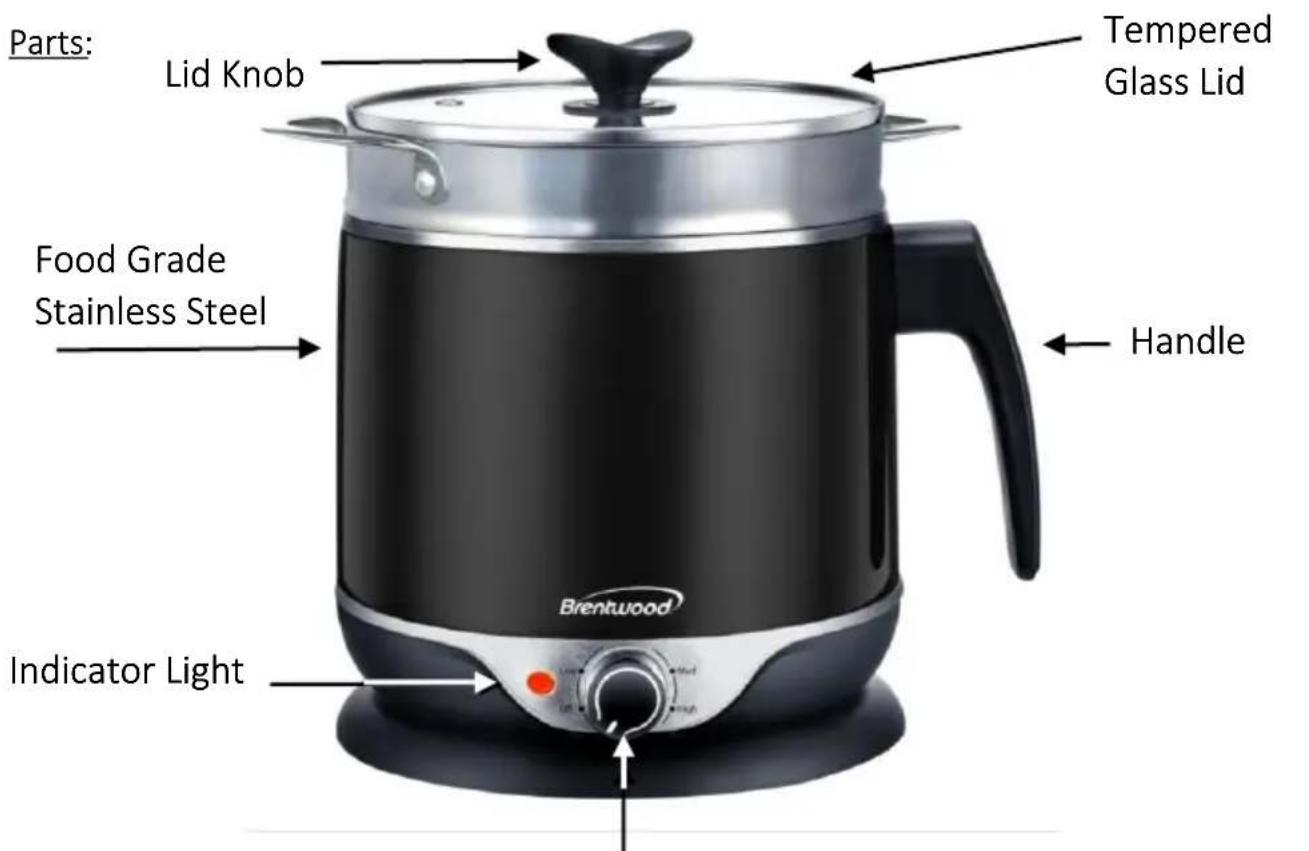

Parts: Lid Knob Tempered Glass Lid Food Grade Stainless Steel Handle Indicator Light Brentwood

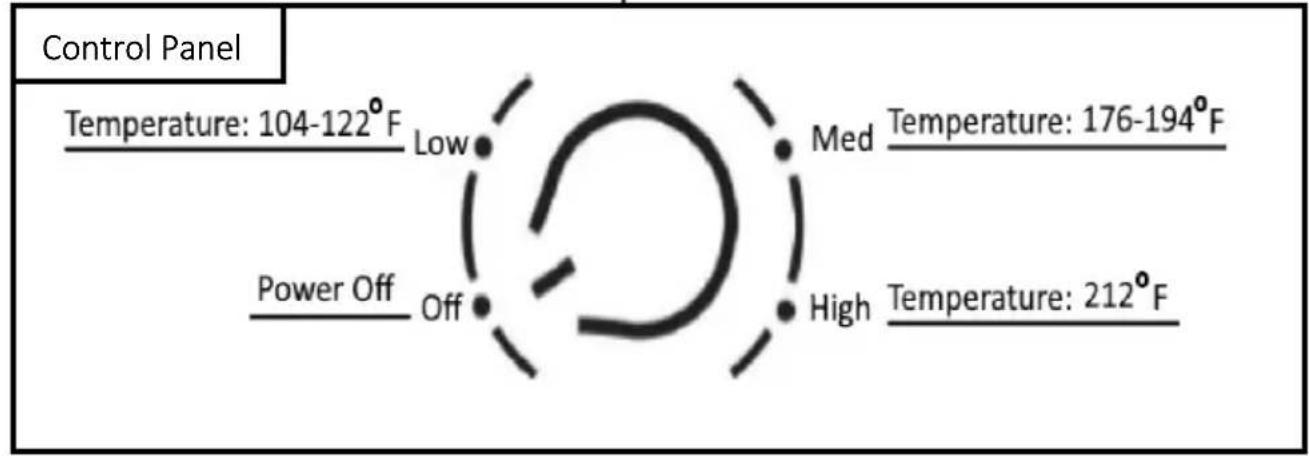

Control Panel Temperature: 104-122°F Low Med Temperature: 176-194°F Power Off Off High Temperature: 212°F

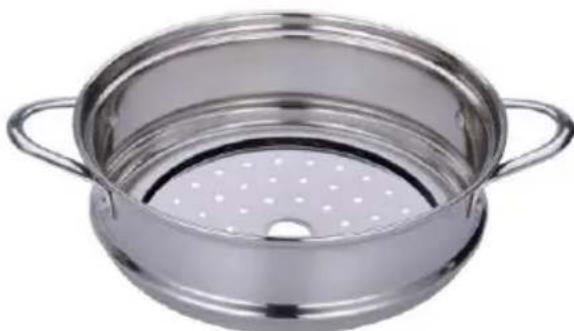

Accessory Included:

Stainless Steel Steaming Basket with Detachable Steamer Tray Base

Metallic stainless steel pot with lid and side handles, no visible text or symbols

Using Your Hot Pot

Attention: During the first use the heating element undergoes a minor chemical reaction that may result in a slight odor and/or minor smoking. It quickly goes away. CAUTION: Do not overfill the appliance or operate it when empty.

NOTE: When there is no water in the Hot Pot or if the water runs out during use, the boil-dry protection automatically switches off the heating element. Should this happen, turn the power switch off, unplug the unit, and allow it to cool before continuing to use or storing.

NOTE: When max temperature is reached, indicator light will turn off and heating will stop. Light will go back on to maintain temperature.

1. Place the Hot Pot on a sturdy flat and dry surface.
2. Insert the power cord firmly into the socket and make sure it is securely in place.
3. Plug the Hot Pot into the nearest Electric Outlet.
4. Turn on temperature control knob to the desired setting.
   CAUTION: Do not overfill the appliance above the 'MAX' line.
5. Add your ingredients to the Hot Pot and gently stir using only plastic or wood utensils during cooking, as metal can scratch and damage the stainless steel.
6. Once cooking is completed, turn the Temperature Control Switch 'Off', unplug the appliance from the electrical outlet.
7. Let stand and cool before cleaning (15 minutes).

Common Usage:

Multi cooking functions (boiling water or tea, cooking noodles, steamboat, and healthy steaming.)

Boiling Water

1. Remove glass lid, fill the inner pot with water as required. Do not fill water exceeding 'MAX' mark. Then cover with glass lid. Insert the plug to an electrical outlet. Turn the temperature control knob to 'Boil', indicator light will go on and hot pot will start heating.

2. Approximately 10 minutes later, the water will begin to boil, turn the temperature control knob to 'Off', Hot Pot will stop heating and indicator light will go off. When no longer in use, always remember to unplug your appliance from the electrical outlet.

Noodles

1. Fill the inner pot with water as required. Do not fill water exceeding the 'MAX' mark. Then cover with glass lid. Insert the plug to an electrical outlet. Turn the temperature control knob to 'Boil', indicator light will go on and Hot Pot will start heating.
2. Approximately 10 minutes later, the water will begin to boil, remove the glass lid place noodles and seasoning into the Hot Pot and cover.
3. When water returns to a boil switch to 'Low' setting for slow cooking. Cook the noodles according to personal taste and turn off the multi cooker by turning the control knob to 'Off'. Hot pot will stop heating and indicator light will go off. When no longer in use, always remember to unplug your appliance from the electrical outlet.

Steamboat / Hot Pot

1. Fill the inner pot with water or broth as required. Do not fill water or broth exceeding the 'MAX' mark, place glass lid onto the inner pot. Insert the plug to an electrical outlet. Turn the temperature control dial to the desired temperature 'Boil', indicator light will go on and Hot Pot will start heating.
2. Approximately 15 minutes later, the water/broth will begin to boil, remove the glass lid add in soup ingredients. Cook according to personal taste.
3. If you want to reduce the temperature, turn the dial to 'Low', as the temperature will take a longer time to return to a boil. When you are done and no longer need to heat your food, turn the control dial to 'Off' this will turn 'OFF' the appliance completely. When no longer in use, always remember to unplug your appliance from the electrical outlet.

Using your Steam Basket

1. Fill the inner pot with water. Do not fill water exceeding the 'MAX' mark. Then cover with glass lid. Insert the plug to an electrical outlet. Turn the temperature control dial to 'Boil', indicator light will go on and Hot Pot will start heating.

2. Approximately 10 minutes later, the water will begin to boil.

3. Remove glass lid, be careful with released steam, add your Stainless-Steel Steam Basket onto the Hot Pot and place your raw vegetables into the basket and cover with glass lid.

4. Approximately 3-5 minutes later, the water will begin to boil.

5. Turn the control knob to 'OFF'. When no longer in use, always remember to unplug your appliance from the electrical outlet.

Cleaning Your Hot Pot:

Warning: Always unplug the appliance and allow it to cool before cleaning or storing.

Notice: Never immerse the unit, plug, or cord in water or any other liquid.

• Wash the Hot Pot by hand using non-abrasive cleaners and pads with warm water.
• To prolong the life of your hot pot we recommend not submerging the appliance. Use a water recipient to pour water in and carefully discard.
• Do not use steel wool pads as they can damage the surface. You can use stainless steel cleaning agents.

- The Tempered Glass Lid can be washed under running water with mild dish soap.

- Rinse all parts thoroughly and dry. Reassemble and store in a cool, dry place. Away from reach of children.

- Cord Storage

Descaling:

Descaling is the removal of mineral deposits from stainless steel. All water contains minerals including purified and filtered water. After your hot pots first use, you may see the first signs of deposits which may be white to reddish brown in color. These stains are not rust nor are they toxic.

To descale your Hot Pot, fill it full of water, add a small amount of white vinegar, and boil. Unplug the Hot Pot and allow the solution to sit for an hour. For darker stains leave overnight. This will remove most deposits that have built up from normal use. Rinse out solution, add fresh water, and boil again. Allow to cool, follow with thorough cleaning, and dry before next use.

Specifications:

Power Supply: 120V\~60Hz

Power: 600W

Capacity: 1.8 Quarts

RECIPE IDEAS

These are suggestions (indications only) as some ingredients differ in origin, shape, and size.

NOTE: In general, let the soup come to a boil before adding in any food and let it boil before taking any food out.

Hot Pot Vegetable Ideas

Time: Approx. 12-15 minutes for potatoes and a quick dip for leafy greens

Leafy greens: Spinach, Watercress, Kale, Chard Hearty Vegetables: Broccoli, Cauliflower, Lotus Root, Corn

Lettuce: Green Leaf, Romaine, Iceberg Cabbage: Siu Choi, Napa, Kole, Green Mushrooms: Enoki, Shitake, Oyster, King

Starchy Vegetables: Daikon, Potatoes, Sweet Potatoes, Taro Tomatoes: Any and all types. (Caution: these get very Hot in the Hot Pot)

Tofu Ideas

Time: Depending on your preference

Soft Cube	Medium Cubes
Firm Cubes	Egg Tofu
Fried Tofu	Tofu Puffs
Bean Curd Sheets	Pressed Tofu

Hot Pot Meat Ideas

Time: Approx. 30 seconds for beef and up to 1-2 minutes for Pork/Chicken/Lamb
Beef Rib Eye	Pork Shoulder, Loin, Belly, or jowl
Short Ribs	Chicken (all parts)
Thinly Sliced Chuck or Tripe	Lamb Shoulder

Hot Pot Seafood Ideas

Time: Approx.: 1-2 minutes in general cooks quickly
Scallops	Bass
Shrimp / Prawns	Catfish
Squid	Cod
Salmon	Clams
Halibut	Musse

Hot Pot Dumpling and Meatballs Ideas

Time: Cook according to package directions

Shrimp balls	Wonton
Fish tofu	Gyoza
Pork and Corn Dumplings	Vietnamese Beef Balls
Pork and Vegetable Dumplings	Pork Balls
Chicken and Vegetable Dumplings	Chinese Pork and Mushroom Balls

Hot Pot Noodle Ideas

Time: Cook according to package directions.

Udon (Frozen or Vacuum)	Vermicelli
Glass / Silver	Shirataki
Instant

Hot Pot Sauce Ideas

Toasted Sesame Oil	Black Vinegar
Sesame Paste	Shacha Paste

Hoisin Sauce

Sriracha

Ketchup

Toasted Sesame Seeds

Ginger (Grated)

Garlic (Minced)

Cilantro

Scallions

Steamed Salmon with Lemon, Garlic, and Dill Seasonings (Steam Basket Required)

2 – 6 or 7 oz salmon fillets (1' thick; remove skin)

14 - Tsp Sea Salt

1 – Cup of liquid (see instruction using steam rack for liquid amount).

14 - Tsp Fresh Ground Black Pepper

2 – Garlic Cloves crushed or grated

12 - Lemon (thinly sliced) and for garnishing

4 – Fresh Dill (sprigs) and for garnishing

1. Add 13 oz to the hot pot.
2. Add the lemon, garlic, and dill to the water. Place the lid on the hot pot and bring to a boil. Then lower temperature and prepare salmon.
3. Season your fillets with black pepper and sea salt.
4. Place the steam basket on to the hot pot.
5. Add salmon fillets and place lid on the steam basket and maintain a low steam.
6. Steam for 4-6 minutes, depending on the thickness of the fillets. Remove lid and check for doneness on the thicker end of the fillet.

NOTE: Perfect medium to rare fish fillet is opaque outside and slightly translucent in the center.

1. You may use a thermometer to check for readiness.
2. When salmon reaches desired temperature, remove the fillets from the steam basket and serve with garnish (dill and lemon).

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S.A. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES

Metallic stainless steel pot with lid and side handles, no visible text or symbols

Como Usar su Olla Caliente:

RECOMMANDATIONS ADDITIONNELLES:

Metallic stainless steel pot with lid and side handles, no visible text or symbols

© 2021 Brentwood Appliances, Inc.
