Table of Contents

IMPORTANT SAFEGUARDS 6

Introduction 8

General description 8

Before first use 9

Preparing for use 9

Using the appliance 9

Cleaning 12

Storage 12

Disposal 12

Warranty 12

Frequently asked questions 13

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions before using the appliance and save them for future reference.
2. To protect against risk of electrical shock, do not put or immerse the motor unit, power cord, or electrical plug in water or any other liquid. Do not rinse it under the tap and do not clean it in the dishwasher. Only certain parts of this appliance have been designed to be immersed in water or other liquids. If the motor unit falls into liquid, immediately unplug it. Carefully remove the motor unit, then clean and dry it thoroughly before continuing.
3. Check if the voltage indicated on the base of the appliance corresponds to the local electrical voltage before you connect the appliance.
4. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. For assistance in the U.S. or Canada only call 1-866-309-8817.
5. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.
6. This appliance is intended for household use only. Do not use this appliance for anything other than its intended use as described in this manual.
7. Close supervision is necessary when the appliance is used by, on, or near children or invalids.
8. This appliance should not be used by children and care should be taken when used near children.
9. Children should be supervised by a responsible person to ensure they do not play with the appliance.
10. Keep the appliance and its cord out of reach of children.
11. The blades are very sharp. Do not touch the blades, especially when the appliance is plugged in. Handle carefully when removing, inserting or cleaning. Exercise care when removing or inserting the blades.
12. Make certain the MultiChopper lid is securely locked in place before operating the appliance. Do not attempt to remove the lid or empty the chopper bowl until the blade has stopped rotating.
13. Release the motor unit, unplug and ensure all moving parts have stopped before disassembling appliance to remove food.
14. If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades. BLADES ARE SHARP.
15. Do not let the power cord hang over the edge of a table or counter.
16. Do not let cord contact hot surface, including the stove.
17. Do not place the appliance or power cord near a hot surface, gas or electric burner, or in a heated oven.
18. Always unwind the power cord completely before you switch on the appliance.

19. Keep hands, fingers, hair, scarves, clothing as well as spatulas and other utensils away from the appliance while using to reduce the risk of injury to persons, and/or damage to the appliance.

20. Always ensure the appliance is turned off after each use. Always unplug the appliance from the electrical outlet when not in use, before putting on or taking off parts, before touching parts that move and before cleaning or attempting to move the appliance.

21. Never leave the appliance unattended while in use.
22. Always place the appliance on a stable, level and horizontal surface.
23. Do not use the appliance outdoors or in moving vehicles or boats. Misuse may cause injury.
24. Avoid contact with moving parts.
25. Make sure all parts are assembled properly before you switch on the appliance. Do not disassemble while the appliance is operating.
26. Do not exceed the suggested quantities and running time specified in the user manual or run the motor continuously.
27. Do not process more than one batch without interruption (maximum 3 minutes). Let the appliance cool down completely before continuing to process.
28. Keep hands, fingers, and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to persons or damage to the food chopper. A scraper may be used but only when the food chopper is not running.
29. Blade is sharp. Handle carefully.
30. To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place.
31. Be certain cover is securely locked in place before operating appliance.
32. Do not attempt to defeat the cover interlock mechanism.

SAVE THESE INSTRUCTIONS

IMPORTANT

• Vibration may occur while operating the appliance. This is normal. Make sure the appliance is always operated on a stable, flat surface.
• If a significant amount of juice or fluid spills onto, around or under the appliance while operating, turn the appliance off, and unplug from outlet. Then clean and dry the appliance before continuing to use.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

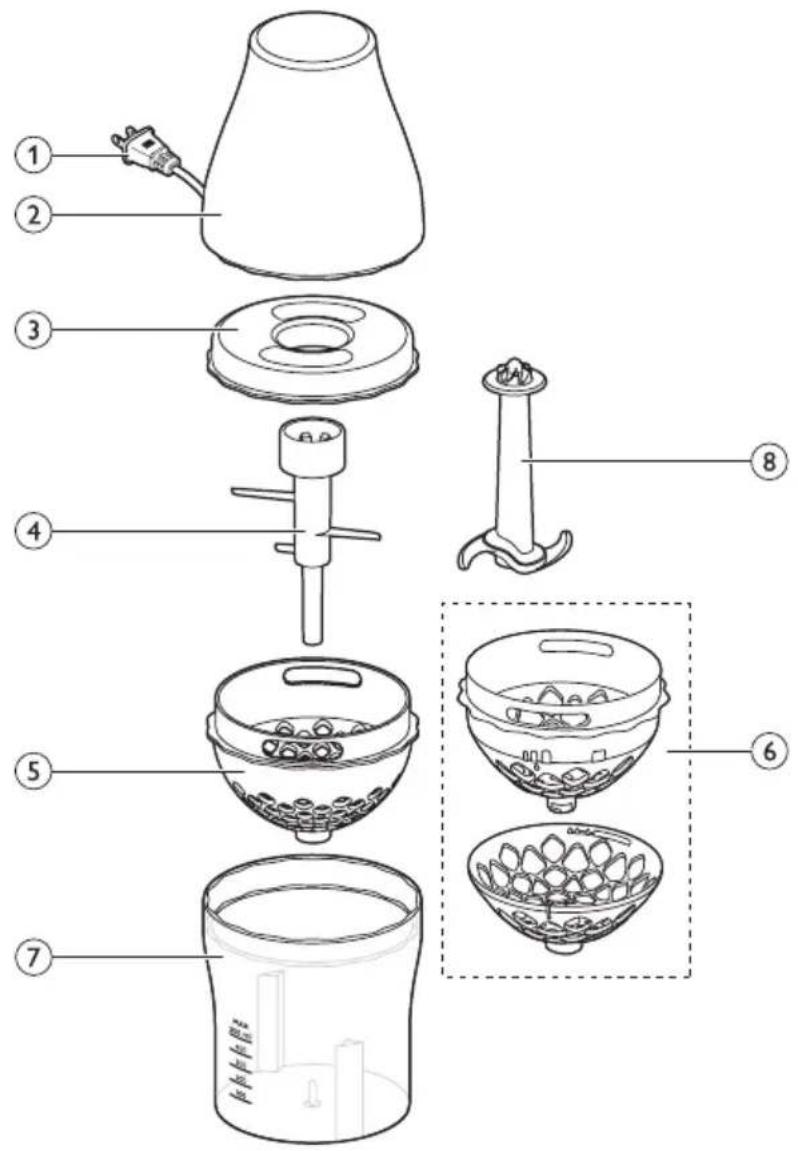

General description

① Plug
② Motor unit
③ MultiChopper lid
④ ChopDrop™ blade unit
⑤ MultiChopper basket (HR2505 only)
⑥ MultiChopper adjustable basket (HR2515 only)
⑦ Chopper bowl
⑧ Regular chopper blade unit

Exploded diagram of a food appliance with numbered parts for identification and assembly reference.

Before first use

1 Thoroughly clean all parts that will come into food contact before you use the appliance for the first time (see chapter ‘Cleaning’).

Note

- Make sure all parts are completely dry before you start using the appliance.

Preparing for use

1 Let hot ingredients cool down before you process them or put them in the chopper bowl (maximum temperature 175^ F / 80^ C).
2 Cut large ingredients into pieces of approx. 2 × 2 × 2 cm ( 3/4 × 3/4 × 3/4 in) before you process them.
3 Assemble the appliance properly before you put the plug in the wall outlet.

Note

• Always unwind the power cord completely before you switch on the appliance.
- Remove all packing material or labels before using.

Using the appliance

Use this appliance for its intended household use as described in this manual.

Caution

- Avoid contact with moving parts. Keep hands and fingers away from blades and out of container during operation or while appliance is plugged in to prevent the possibility of severe injury to persons and/or damage to the appliance.

MultiChopper (HR2505 only)

The MultiChopper is intended to chop onions, garlic, cheese, raw and cooked vegetables, cooked eggs and fruits etc. into small and evenly sized pieces.

Caution

• Be very careful when you handle the blade unit, the cutting edges are very sharp. Always hold the part by the center plastic rod. Never touch the blades themselves. (fig. 1)
• Always unplug the appliance first. Be particularly careful when you insert or remove the blade unit from the chopper bowl and during cleaning. Never touch the blade itself when cleaning or clearing food caught in blades.
• Do not process ingredients such as ice cubes, frozen ingredients, dark chocolate or fruits with stones. (fig. 2)

Note

• Always use the MultiChopper with the basket in place.

Chopping quantities

Ingredients Quantity

Onions 100g (2/3 C)
Boiled eggs 2
Cheese 100-150 g (3.5- 5.3 oz)
Mixed pickles 120 g (4.2 oz)
Fruits, cucumber, mushrooms, pepper	120 g (2/3 C)

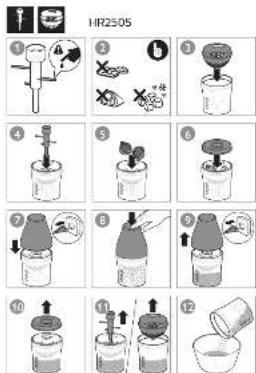

1 Insert the basket into the bowl. (fig. 3)
2 Insert the ChopDrop™ blade unit into the bowl and place it onto the metal pin. (fig. 4)
3 Cut the ingredients into 2 x 2 x 2 cm (3/4 x 3/4 x 3/4 in) pieces, and then put the precut ingredients into the basket. (fig. 5)
4 Place the MultiChopper lid on the chopper bowl. Be certain the lid is securely locked in place before operating the appliance. (fig. 6)
5 Attach the motor unit on the chopper bowl and put the plug in the wall outlet (fig. 7)
6 Press down the motor and let the appliance operate unit until all ingredients are cut. (fig. 8)
7 After you have finished chopping, release the motor unit to turn the appliance off and unplug the appliance. (fig. 9)
8 Disassemble the MultiChopper lid, the blade unit and the basket. (fig. 10 & 11)
9 Pour the cut ingredients out. (fig. 12)

Caution

- Blades are sharp. Handle carefully. Always unplug the appliance first. Never touch the blade itself when cleaning or clearing food caught in blades.

Chopper

The chopper is intended for chopping ingredients such as nuts, raw meat, onions, hard cheese, boiled eggs, garlic, herbs, dry bread, etc.

Caution

• Be very careful when you handle the blade unit, the cutting edges are very sharp. Always hold the part by the center plastic rod. Never touch the blades themselves. (fig. 13)
• Always unplug the appliance first. Be particularly careful when you insert or remove the blade unit from the chopper bowl and during cleaning. Never touch the blade itself when cleaning or clearing food caught in blades.
• Do not process ingredients such as ice cubes, frozen ingredients, dark chocolate or fruits with stones. (fig. 2)

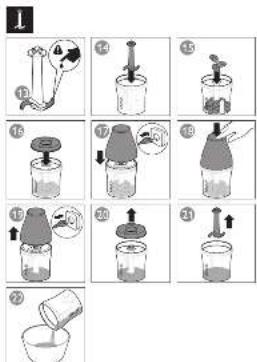

1 Insert the regular blade unit into the bowl and place it onto the metal pin (fig. 14).
2 Cut the ingredients into 2 × 2 × 2 cm (3/4 x 3/4 x 3/4 in) pieces, and then put the precut ingredients into the chopper bowl. (fig. 15)
3 Place the MultiChopper lid on the chopper bowl. Be certain the lid is securely locked in place before operating the appliance (fig. 16)
4 Attach the motor unit on the chopper bowl and put the plug in the wall outlet. (fig. 17)
5 Press down the motor unit and let the appliance operate until all ingredients are cut. (fig. 18)
6 After you have finished chopping, release the motor unit to turn the appliance off and unplug the appliance. (fig. 19)
7 Disassemble the MultiChopper lid and the blade unit. (fig. 20 & 21)
8 Pour the cut ingredients out. (fig. 22)

Chopping quantities and processing times

Ingredients Chopping quantity Time

Onions 100 g (2/3 C) 5 x 1 sec.
Eggs 3-4 5 x 1 sec.
Meat 200g (7 oz) 10 sec.
Herbs 30g (1 oz)	10 x 1 sec.
Nuts and almonds	200g (7 oz) 30 sec.
Dry bread cubes	80g (1/3 C)	30 sec.
Parmesan cheese	200g (7 oz) 20 sec.
Dark chocolate	100g (3.5 oz)	20 sec.
Baby food	250-300 g (8.8-10.6 oz)	10-20 sec.

The MultiChopper with adjustable basket is intended to chop onions, garlic, cheese, raw and cooked vegetables, cooked eggs and fruits, etc. into evenly sized pieces. The adjustable basket comes with three sizes for the desired end-result.

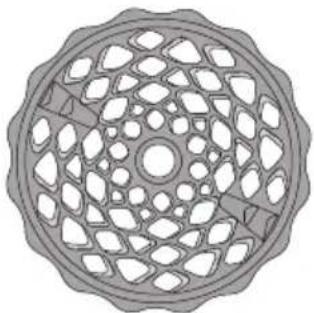

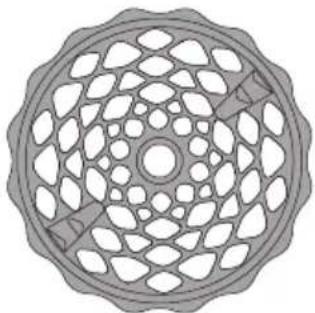

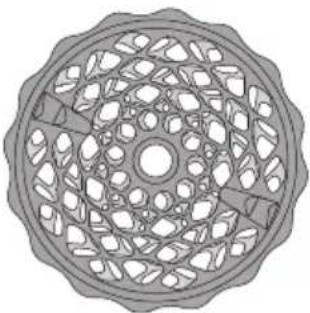

Fine Medium Coarse

Caution

• Be very careful when you handle the blade unit, the cutting edges are very sharp. Always hold the part by the center plastic rod. Never touch the blades themselves. (fig. 23)
  • Always unplug the appliance first. Be particularly careful when you insert or remove the blade unit from the chopper bowl and during cleaning. Never touch the blade itself when cleaning or clearing food caught in blades.
• Do not process ingredients such as ice cubes, frozen ingredients, dark chocolate or fruits with stones. (fig. 24)

Note

• Always use the MultiChopper with the basket in place.

Chopping quantities

Ingredients Quantity

Onions 100g (2/3 C)

Boiled eggs 2

Cheese 100-150 g (3.5- 5.3 oz)

Mixed pickles 120 g (4.2 oz)

Fruits, cucumber, mushrooms, 120 g (2/3 C) pepper

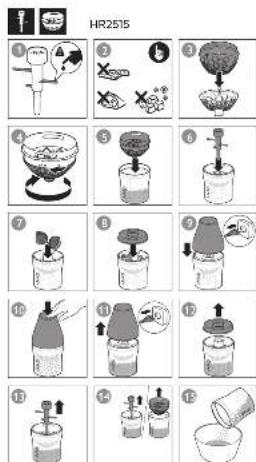

1 Assemble the adjustable basket. (fig. 27 & 28)
2 Insert the basket into the bowl. (fig. 25)

3 Insert the ChopDrop™ blade unit into the bowl and place it onto the metal pin. (fig. 26)
4 Cut the ingredients into 2 x 2 x 2 cm (3/4 x 3/4 x 3/4 in) pieces, and then put the precut ingredients into the basket. (fig. 29)
5 Place the MultiChopper lid on the chopper bowl. Be certain the lid is securely locked in place before operating the appliance. (fig. 30)
6 Attach the motor unit on the chopper bowl and put the plug in the wall outlet (fig. 31)
7 Press down the motor and let the appliance operate unit until all ingredients are cut. (fig. 32)
8 After you have finished chopping, release the motor unit to turn the appliance off and unplug the appliance. (fig. 33)
9 Disassemble the MultiChopper lid, the blade unit and the basket. (fig. 34 & 35)
10 Detach the two parts of the basket. (fig. 36)
11 Pour the cut ingredients out. (fig 37)

Cleaning

Caution

• Do not immerse the motor unit in water or any other liquids, nor rinse them under the tap. Use a moist cloth to clean these parts.
• Never use scouring pads, abrasive cleaning agents or aggressive liquids such as alcohol, gasoline or acetone to clean the appliance.

1 Unplug the appliance.

2 See the ‘Cleaning’ chart for further instructions.

This appliance has no other user-serviceable parts. For assistance in the U.S. or Canada only, call 1-866-309-8817.

Storage

1 Store the appliance in a cool, dry place away from direct sunlight or other heat source.

Disposal

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. For recycling information, please contact your local waste management facilities or visit www.recycle.philips.com.

Warranty

If you need information, support, or if you have a problem, please visit www.philips.com/support or (in the US or Canada only) call 1-866-309-8817 for assistance.

One year limited warranty

Philips warrants that this product shall be free from defects in material, workmanship and assembly, under normal use, in accordance with the specifications and warnings, for a period of one year from the date of purchase. This warranty extends only to the original purchaser of the product, and is not transferable. To exercise your rights under this warranty, you must provide proof of purchase in the form of an original sales receipt that shows the product name and the date of purchase. For customer support or to obtain warranty service, please visit our website www.philips.com/support.

THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES.

Philips' liability is limited to repair or, at its sole option, replacement of the product. Incidental, special and consequential damages are disclaimed where permitted by law. This warranty gives you specific legal rights.

You may also have other rights that vary from state to state, province to province or country to country.

In U.S. only

Manufactured for:

Philips Personal Health

A division of Philips North America LLC

P.O. Box 10313, Stamford, CT 06904

United States of America

In Canada only

Manufactured for:

Philips Electronics Ltd.

281 Hillmount Road

Markham, ON L6C 2S3

For support, please visit www.philips.com/support

PHILIPS and Philips Shield are Registered Trademarks of Koninklijke Philips N.V.

©2017 Philips North America LLC. All Rights Reserved.

LISTED

This symbol on the product's nameplate means it is listed by Underwriters Laboratories, Inc.

Frequently asked questions

Question Answer

The appliance makes a lot of noise, produces an unpleasant smell, feels hot to the touch or produces smoke. What should I do?	The appliance may produce an unpleasant smell or emit a little smoke if it has been used too long. In this case you should switch off the appliance and let it cool down for 60 minutes. If the problem persists, in the U.S. or Canada only, call 1-866-309-8817 for assistance.
Is it possible to damage the appliance by processing very hard ingredients?	Yes, the appliance may get damaged if you process very hard ingredients such as bones, fruit with stones or frozen ingredients.
Why does the appliance suddenly stop working?	Some hard ingredients may block the blade unit. Unplug the appliance, detach the motor unit and carefully remove the ingredients that block the blade unit.
