USER MANUAL TS-119S Brentwood

Brentwood® Appliances

© 2022 Brentwood Appliances, Inc.

MOKA ESPRESSO MAKER

MÁQUINA DE CAFÉ EXPRESO MOKA MACHINE À EXPRESSO MOKA

ITEM NO.: TS-119BK (BLACK), TS-119R (RED) & TS-119S (SILVER)

Three identical electric blender models with black and red shades, displayed side by side (no text or symbols visible on the devices themselves)

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury, and property damage please note the following:

- This appliance is not intended for use by children. Keep the appliance out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

- ALWAYS ensure the appliance is kept unplugged from the electrical outlet and on the OFF POSITION, when NOT IN USE!! DO NOT OPERATE THE APPLIANCE EMPTY!!

• DO NOT TOUCH BOILER/WATER CHAMBER when in operation and immediately after use.

- SURFACE IS HOT!!! Can burn. Appliance MUST be allowed to cool before assembling, disassembling, relocating, or cleaning. ONLY use handle to pour.

- Do not leave the appliance unattended while it is in use.

- Do not overload wall outlet with other appliances or if on an extension cord, as this can result in a fire or electric shock. This will short the appliance out and will leave the appliance unusable and will not function at all.

- Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.

- Do not touch hot surfaces. Use handle when pouring.

- This appliance generates heat and steam during use. Use protective oven mitts or gloves when removing the Lid or handling hot containers to avoid burns and personal injury.

- Do not use attachments not recommended or sold by the Manufacturer.

- Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing food or liquids.

- Use the appliance in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the appliance from the electrical outlet with a wet hand.

- This appliance is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the appliance outdoors or for any other purpose.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.

• Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 11.
• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the appliance.
• If the appliance cord is a 3-wire grounded cord, the extension cord must also be a 3-wire grounded cord.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

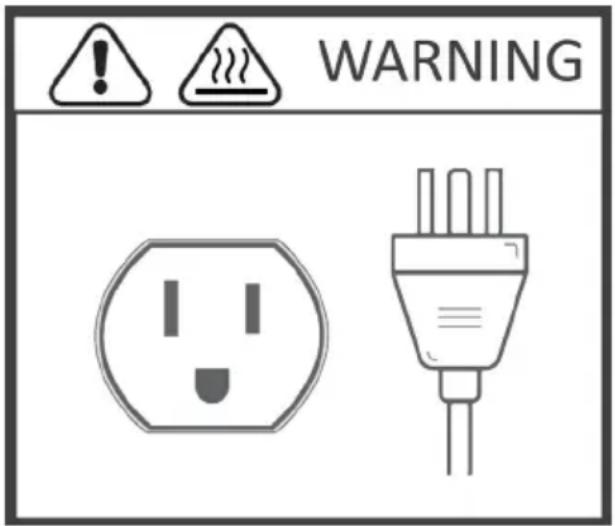

WARNING: This product is equipped with a 3-prong grounding type. This is a safety feature. The plug will fit into an outlet one way ONLY. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord and the extension cord must be a grounding-type 3 wire cord. DO NOT attempt to defeat the safety purpose of the plug.

WARNING

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

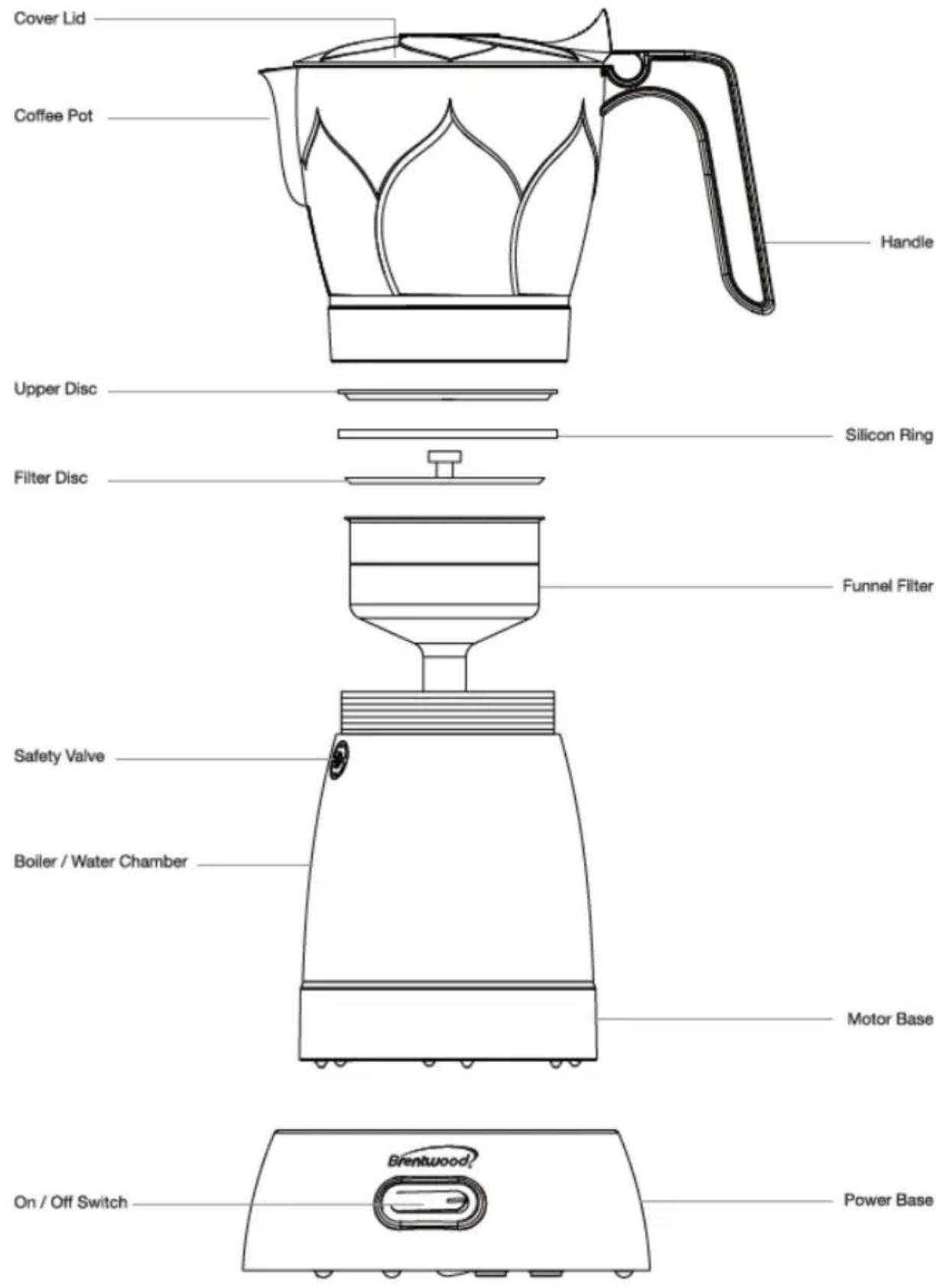

Parts:

Cover Lid Coffee Pot Handle Upper Disc Silicon Ring Filter Disc Funnel Filter Safety Valve Boiler / Water Chamber Motor Base On / Off Switch Brentwood Power Base

Before First Use:

Important: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

NOTE: Do not immerse motor part in water. To clean, fill the kettle with water up to the MAX level (Do not exceed the safety valve) turn off your appliance when the water starts boiling and pour the contents out. Only use handle after use to pour. Boiler/Water Chamber is TOO HOT TO TOUCH. Wait until it cools before handling or wear heat resistant gloves to open and disassemble.

Illustration of a faucet with a cross symbol indicating water release or discharge, next to a container filled with liquid (no text or symbols present)

CAUTION:

Do not touch the body of the Boiler/Water Chamber with bare hands when in operation or immediately after using. Surface gets HOT! Use oven mittens or heat resistant gloves to handle and pour out water. ONLY USE HANDLE TO POUR.

Wait until the Boiler/Water Chamber cools before cleaning, emptying, refilling, and disassembling.

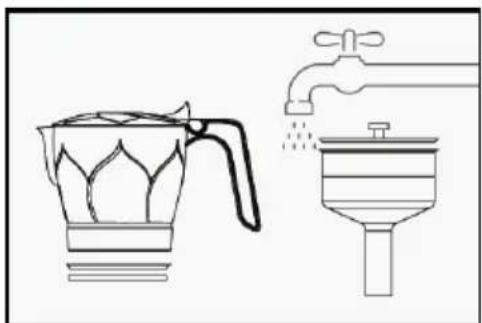

Washable Parts (Dishwasher Safe - Top Shelf ONLY)

1. Coffee Pot
2. Upper Disc / Filter Disc
3. Funnel Filter
4. Silicon Ring

Line drawings of a coffee maker and a funnel with water spray (no text or symbols)

First Steps:

Wash the pot and lid using warm soapy water. Run the appliance with water once or twice before brewing an actual pot.

Note: ALWAYS keep the bottom of the 'Boiler' and the 'Support Base' dry. If this part gets wet, your appliance will not function.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

• Rinse the inside of the Boiler and Pitcher thoroughly before using.
  • Dry all parts before using.
• Do not place Boiler on Support Base until it is fully assembled.

• Do not fill Boiler with water while it is on the Support Base.

• Place Support Base on a flat clean dry surface and make certain the power button is on the OFF position before plugging into an outlet.

• Place dry Boiler on a flat dry clean counter and fill with water.
  • DO NOT fill or refill Boiler when on the Support Base.

CAUTION: Water level must not exceed safety valve.

• Now you may place the filled Boiler on the Support Base, make sure both are dry.
- Switch appliance ON by pressing on the LEFT side of the switch. Light will illuminate when it is ON, indicating the heat source is working. Follow Quick Start 4 Steps below. Or for more details, go to 'Using Your Moka Espresso Maker' (Page 8).

ON

OFF

QUICK START

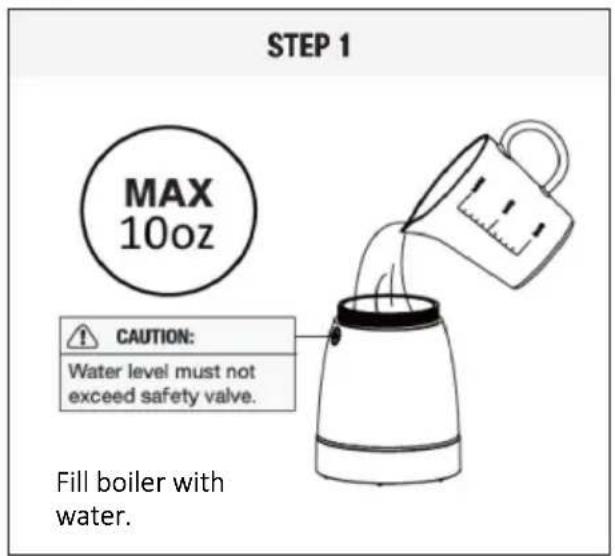

STEP 1 MAX 10oz CAUTION: Water level must not exceed safety valve. Fill boiler with water.

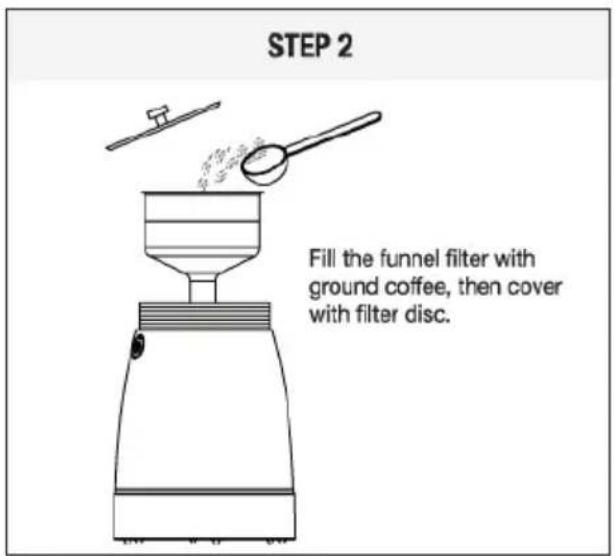

STEP 2 Fill the funnel filter with ground coffee, then cover with filter disc.

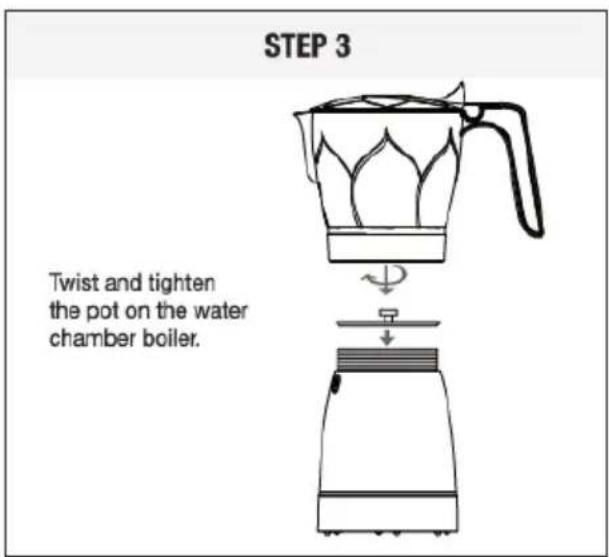

STEP 3 Twist and tighten the pot on the water chamber boiler.

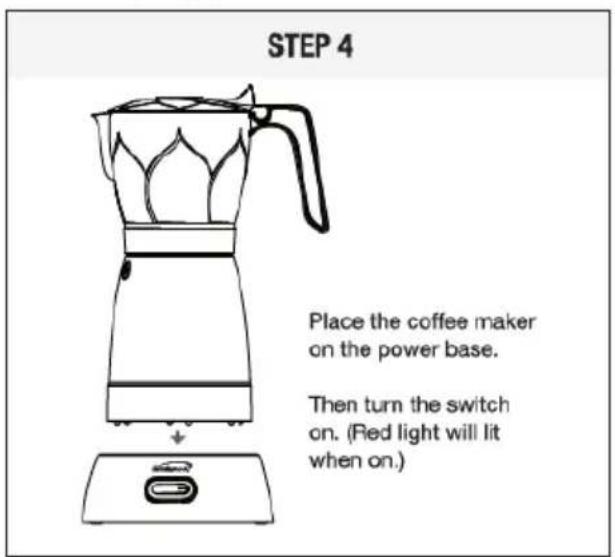

STEP 4 Place the coffee maker on the power base. Then turn the switch on. (Red light will lit when on.)

Notice: ALWAYS keep the appliance in the OFF position and ALWAYS unplug electrical outlet when done. CAUTION: Parts will be HOT!! ONLY USE HANDLE TO

POUR. Do not clean immediately after use. Allow appliance to cool before handling the 'Boiler' to clean and dry. Always dry before reassembling the espresso maker and place back on to the unplugged Support Base.

Using Your Moka Espresso Maker:

Brentwood

1

Make sure power base is placed on a clean and dry flat surface.

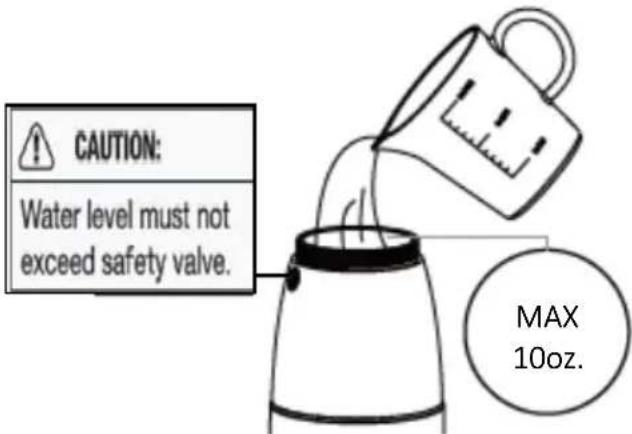

CAUTION: Water level must not exceed safety valve. MAX 10oz.

3

According to the number of cups of coffee (for 3-4 persons, max-7 oz.) pour enough cold water in boiler.

Illustration of a blender being placed on top, showing the process from base to side (no text or symbols)

5

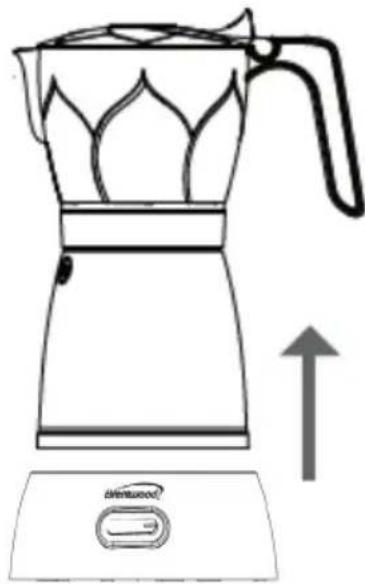

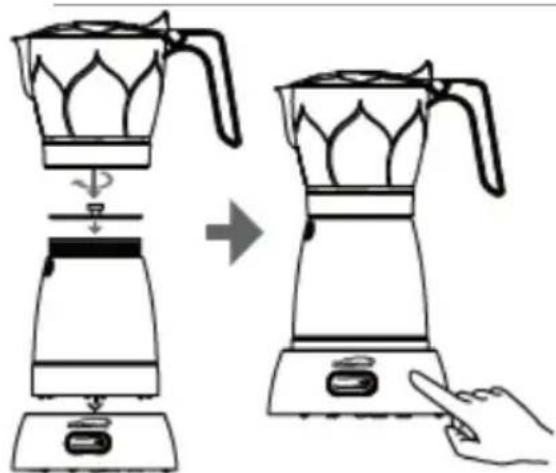

Reattach the pot on the boiler and place the coffee maker on the power base. Then turn on the power switch.

CAUTION:

Do not refill water when water boiler is on the base.

Simple line drawing of a cup pouring liquid into a container with a cross symbol (no text or labels)

Line drawing of a blender with floral design and an upward arrow, no text or symbols present

2

Remove the coffee maker from its base to refill water.

Simple line drawing of a funnel pouring granular material into a conical flask, with a tool partially visible (no text or symbols)

4

Place filter funnel and add desired amount of coffee. Then place disc filter on top.

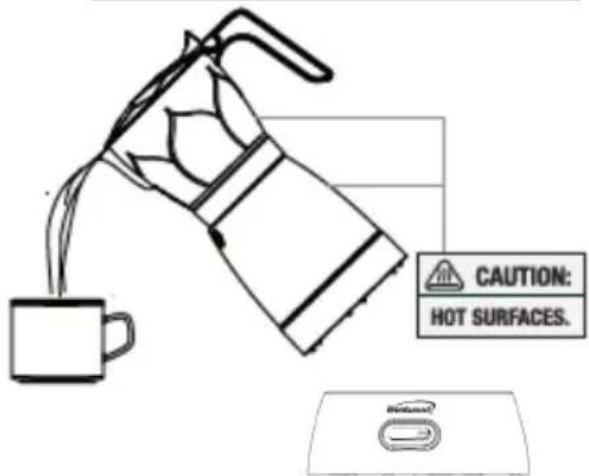

CAUTION: HOT SURFACES.

6

Use with caution while serving espresso as the body of the pot and boiler are extremely hot!

Notice: ALWAYS keep the appliance in the OFF position and ALWAYS unplug from the electrical outlet when done brewing. Unplug before you start to serve.

Caution: Parts will be hot. Do not handle immediately after use. Allow appliance to cool before handling the 'Boiler' to clean and dry. Always dry before reassembling the espresso maker and place back on to the unplugged Support Base.

Using Your Moka Espresso Maker:

WARNING: Hot surfaces.

1. Filling with water: remove the Boiler/Water Chamber from its Support Base and place it down on a clean, dry flat surface.
2. According to the number of espresso cups desired (for 3-4 persons, max-7 oz.), fill with enough cold water. Water level must NOT exceed safety valve.
3. Replace filter back on the Boiler and fill with the desired amount of espresso or Moka. Place disc filter on top.
4. Twist on the Pitcher to the Boiler and place it on the Support Base.
5. Your appliance is ready for use.
6. Before plugging in your appliance to an electrical outlet, make sure you have the switch on the OFF position, opposite of the light indicator side.
7. Keep the Power Switch always on the OFF position, when not in use.
8. Plug the Espresso Maker into an electrical outlet and switch the power from OFF to ON, the light indicator will illuminate.
9. Allow it to brew the entire amount of water you filled it with.
10. Once it stops brewing all the water, switch the power from ON to OFF and unplug from the electrical outlet immediately.
11. Your espresso is ready to be served.
12. Use caution while serving espresso as the Broiler gets extremely hot. Use the cool touch handle to pour. DO NOT disassemble or clean immediately after, unless you are using heat resistant gloves. Otherwise allow the appliance to cool before handling.

CAUTION: Do not overfill the appliance or operate it when empty.

NOTE: This appliance has boil-dry protection. If this appliance is not shut OFF after use, and there is no more water in the chamber, the appliance will cycle ON and OFF repeatedly for several times. This feature is a safety feature and should not be used to turn the appliance off. If the boil-dry protection feature is used too many times, the appliance will eventually not turn on as it will eventually no longer operate effectively.

IMPORTANT: ALWAYS switch the appliance OFF and unplug after use. If you do this small step, you will extend the life of the appliance.

Cleaning Your Moka Espresso Maker:

WARNING: Always unplug the appliance and allow it to cool before cleaning or storing.

- Before cleaning always make sure the appliance is OFF. Unplug it from the outlet and allow it to cool down.

- It is recommended to rinse parts after use to make cleaning easier once it cools.

- Empty any remaining water and espresso grounds from the appliance, rinse the Pitcher and Boiler out with warm water, and wipe the outside off thoroughly with a dry or damp cloth.

- NEVER immerse the Power Base unit and the Boiler into water.

Washable Parts (Dishwasher Safe - Top Shelf ONLY)

- Coffee Pot, Upper Disc / Filter Disc, Funnel Filter, Silicon Ring

- Avoid using abrasive and chemical cleaning agents (i.e., liquid bleach, hydrochloric acid, etc.) to clean any accessory parts of the appliance. If outside gets damaged that is not covered under Warranty.

- Store product in a cool, dry place, away from the reach of children.

Descaling Your Pot:

WARNING: Always unplug the product before any cleaning. Dry all parts after every use. Descale your pot regularly to avoid tougher stains.

Descaling:

Descaling is the removal of mineral deposits from glass and stainless steel. All water contains minerals including purified and filtered water. After your first use, you may see the first signs of deposits which may be white to reddish brown in color. These stains are not rust nor are they toxic.

Note: Reheating espresso in your pot may discolor or stain the surface at the base of the pot.

To descale, fill the pot full of water, add a small amount of white vinegar, and boil. Unplug as soon as the water starts boiling, if you are cleaning the Boiler, let the solution sit in the boiler for an hour. If it is the pot, allow the solution to fill the pot and allow the solution to sit for an hour. For darker stains leave overnight. This will remove most deposits that have built up from normal use. Rinse out solution, add fresh water, and boil again. Allow to cool, follow with thorough cleaning, and dry before next use.

If you air dry your boiler, please flip it upside down so any remaining water will fall out of the boiler and into the drying rack. This will lessen the mineral deposits.

We do suggest you dry it inside and out after every use to avoid buildup.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S.A. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
