USER MANUAL TS-213BK Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

4 CUP COFFEE MAKER

CAFETERA DE 4 VASOS / CAFETIÈRE FILTRE 4 TASSES

ITEM No.: TS-213BL(Blue), TS-213W(White), & TS-213BK(Black)

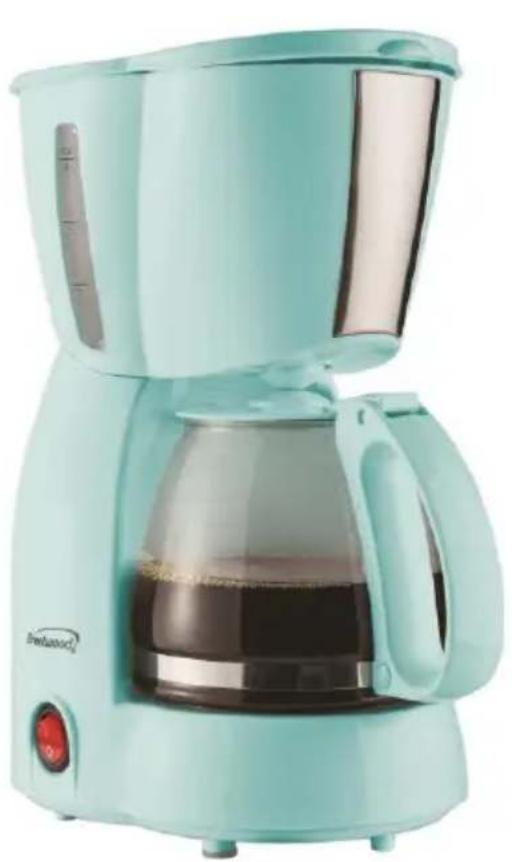

Teal-colored coffee maker with clear glass and red control panel (no visible text or symbols)

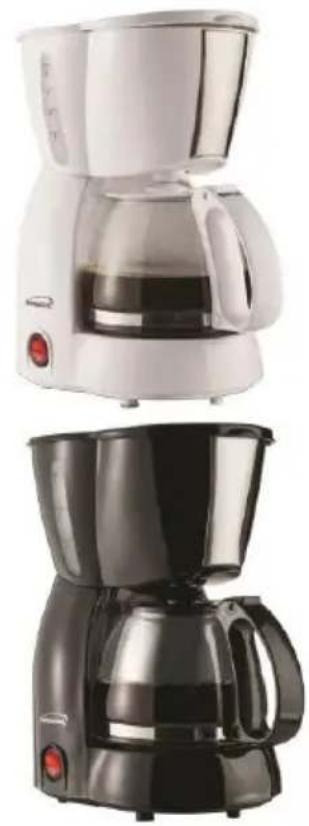

Two types of kitchen or coffee models: a white and black model with a side view showing the same device (no text or symbols visible)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING-To reduce the risk of fire, electric shock, serious personal injury, and proper damage please note the following:

- This product is not intended for use by children. Keep the product out of reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.

- Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.

- Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.

- Do not touch hot surfaces. Use handles or knobs when handling product to avoid burns.

- Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.

- Only use attachments and accessories recommended and sold by the Manufacturer.

- Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing hot oil, hot water, or other liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the product from the electrical outlet with a wet hand.

- This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.

- Do not operate the product empty.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.

- This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 7.

- Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord.

An extension cord is not recommended for use with this product, but if one must be used:

- The marked electrical rating must be at least as great as that of the product.

- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polariz outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

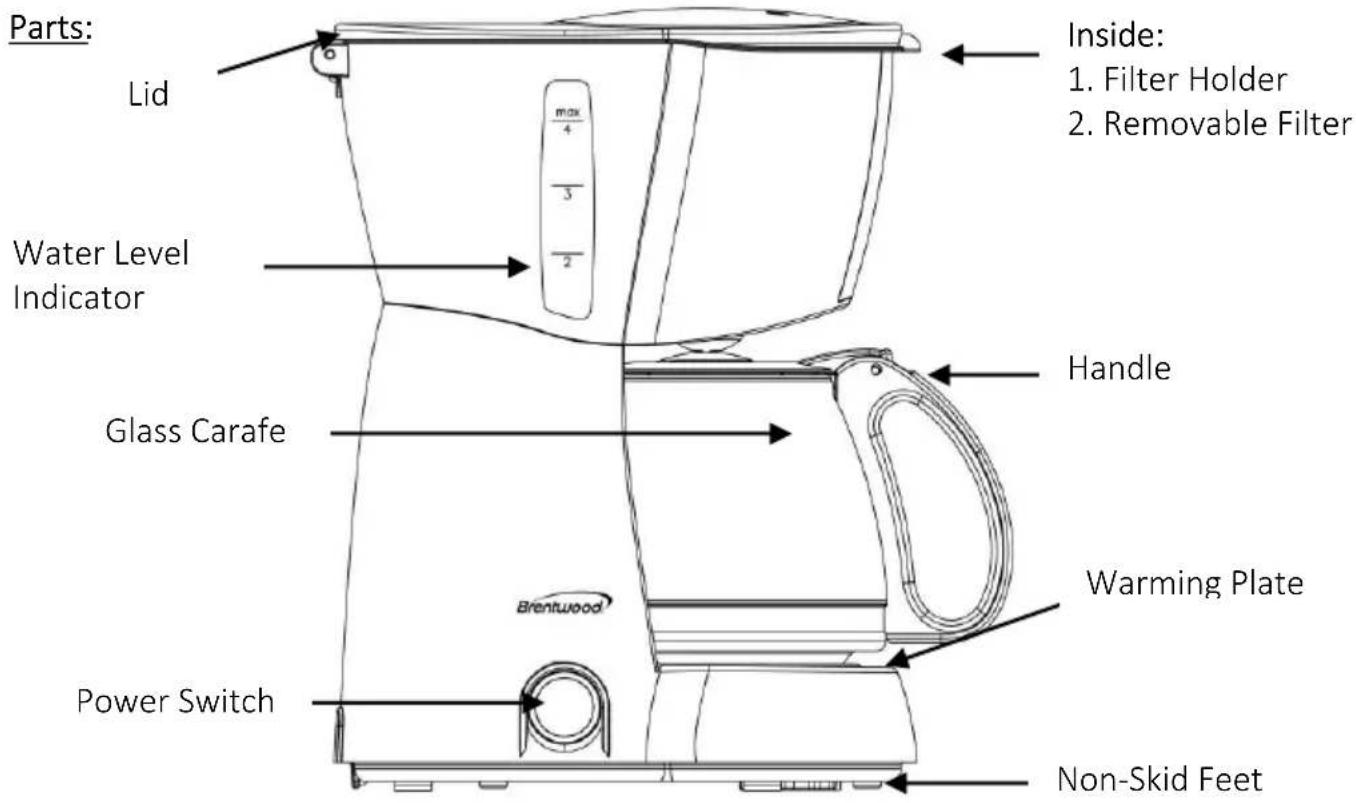

Parts: Lid Water Level Indicator Glass Carafe Power Switch Inside: 1. Filter Holder 2. Removable Filter Handle Warming Plate Brentwood Non-Skid Feet

Before First Use:

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

1. Wash the Carafe, Filter Basket with warm soapy water. Rinse and dry thoroughly.
2. Run a brew cycle with WATER ONLY. Do not add coffee to coffee filter.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. Once cooled, discard the water and rinse the carafe, lid, and filter basket.

Using Your Coffee Maker:

WARNING: Avoid contact hot parts.

For best results, use and measure medium ground coffee with a tablespoon. (included)

Water	Regular Coffee	Strong Coffee
1 cup (6 oz.)	1 tbsp.	2 tbsp.
4 cups	3 tbsp.	4 tbsp.

1. Lift and open the filter basket cover. For your convenience, you can lift the removable filter basket.
2. Place a basket-style paper filter or a permanent filter in the removable filter basket. CAUTION: If using paper filters, it is important that the sides of the filter adhere to the sides of the filter basket.

3. Add the desired amount of coffee and gently shake the filter basket to level the coffee.

4. Make sure the filter is centered and adheres to the bottom of the filter basket.

5. Fill the carafe with the desired amount of cold water. For accurate measurement, the water level window indicates the amount of water equivalent to the number of cups of coffee desired.
6. When filling, do not exceed the "Max" line to prevent water from overflowing the carafe.
7. The volume of coffee brewed will be slightly less than the amount of water poured into the tank, due to the minimal absorption of water by the coffee grounds.
8. Transfer the water from the carafe into the reservoir. Close the lid and place the empty carafe back on the hot plate.

BREWING:

1. After steps 1-8 above, press the power switch from "0" to "1".
2. Your coffee maker will begin to brew. When it is done brewing, the warming plate will keep it hot as long as you keep the switch on "I". Please turn your coffee maker to "O" when you no longer have coffee in your pot.
3. DO NOT leave your coffee maker on for more than an hour after brewing to prevent burning. This Coffee Maker does not shut off automatically.
4. This coffee maker has a Pause and Serve feature that allows you to sneak a cup of coffee and remove the glass carafe for about 30 seconds. Replace the pot immediately to prevent overflow of filter basket.
5. To turn the coffee maker off push the switch back to the "O" position.
6. Make sure all contents have cooled before handling them to clean or store.

Cleaning Your Coffee Maker:

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

NOTICE: To avoid damaging the product, do not pour cold water into the Glass Carafe while it is still hot or warm. Wait until cool, before pouring cold water in the Glass Carafe.

• Once cold, empty the cooled coffee grounds along with the paper filter to the waste bin.
• Carafe and removable filter can be washed under warm running water and mild soapy cloth.
• Wipe the surfaces with a soft, damp cloth. Never submerge the Coffee Maker.
• Dry all parts thoroughly before storing or using again.

Glass Carafe Special Instructions:

• This Glass Carafe is designed for use only with your Brentwood Coffee Maker and should never be used on a range stove top, oven, or microwave of any kind.
• DO NOT set a HOT glass carafe on a wet or cold surface.
• DO NOT clean the glass carafe with abrasive cleaners, steel wool pads or other abrasive materials.
• DO NOT place glass carafe in the dishwasher.
• DO NOT use a cracked glass carafe or a glass carafe with a loose or weakened handle.

• Discard the glass carafe immediately, if it is ever boiled dry.

• Protect the glass carafe from sharp blows, scratches, or rough handling.
  • DO NOT disassemble the carafe.

Descaling Your Carafe:

WARNING: Always unplug the product before any cleaning. Dry all parts after every use. Descale your carafe regularly to avoid tougher stains.

Descaling is the removal of mineral deposits from glass and stainless steel. All water contains minerals including purified and filtered water. After your carafe's first use you may see the first signs of deposits which may be white to reddish brown in color. These stains are not rust nor are they toxic.

Note: Reheating coffee in your carafe may discolor or stain the surface of the carafe.

To descale your carafe, fill a carafe full of water, add a small amount of white vinegar, and boil. Unplug the carafe and allow the solution to sit for an hour. For darker stains leave overnight. This will remove most deposits that have built up from normal use. Rinse out solution, add fresh water, and run again. Allow to cool, follow with thorough cleaning, and dry before next use.

Trouble Shooting your Coffee Maker:

Problem	Possible Cause:
Coffee is not brewing	The appliance is unplugged
	The water reservoir is empty.
	The filter basket is not properly inserted.
	The decanter is not placed all the way in on the warming plate.
	There are no coffee grounds in the filter basket.
The coffee maker is brewing slowly	The filter basket is not properly inserted.
	The decanter is not placed correctly on the warming plate.
	The decanter lid is not on glass carafe.
	You have overfilled the removable filter with ground coffee.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
